SVS PB17-Ultra R|Evolution Subwoofer

Built for reference-level home theater and serious 2-channel listening, the SVS PB17-Ultra R|Evolution is a flagship ported subwoofer engineered to deliver extreme low-frequency output with precision control. A front-firing 17-inch high-excursion driver with unprecedented dual 8-inch voice coils pairs with the Sledge STA-2800D dual-mono amplifier platform to produce chest-thumping impact, effortless headroom, and detailed bass texture—without sacrificing accuracy. With multiple tuning modes, deep extension down to 12Hz (extended mode), and full control from the SVS Subwoofer smartphone app (with Auto Room EQ coming soon via over-the-air update), it’s designed to dominate large rooms while staying refined enough for audiophile-grade musical bass. The PB17 Ultra is part of ListenUp's SVS Ported Subwoofer Collection.

What It's Good At:

• Delivering room-pressurizing, ultra-deep bass down to 12Hz (extended mode) for movies and immersive gaming
• Producing clean, high-output slam with massive headroom for large rooms and reference listening levels
• Fine-tuning performance with multiple ported/“sealed” tuning modes and app-based DSP controls
• Blending smoothly with any system via adjustable filtering, phase, polarity, PEQ, and room gain features
• Supporting flexible integration using RCA or balanced XLR I/O, plus trigger and IR control options
• Making setup and daily adjustments easy with app control, presets, and a rear-panel OLED interface

SVS PB17-Ultra R|Evolution Subwoofer Full Specifications:

• Model: SVS PB17-Ultra R|Evolution (ported subwoofer)

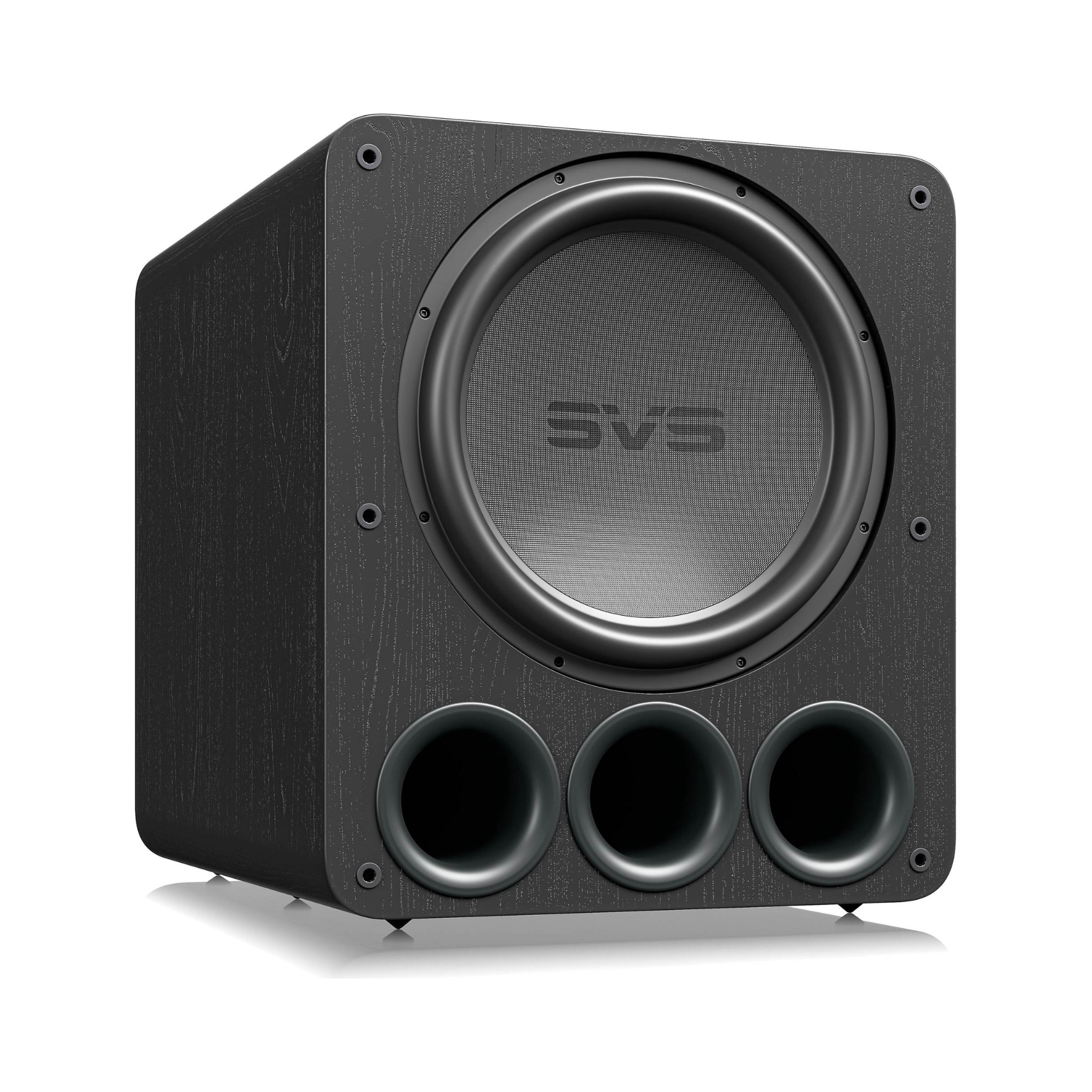

• Driver (Overview): 17" front-firing high-excursion driver
• Driver (Detailed):
  • All-new proprietary 17-inch long-throw driver with high-precision tuned overhung motor configuration
  • 63.76lb (28.92kg) pound woofer with 54.17lb (24.57kg) pounds motor
  • 48.9mm Xmax, 81.78mm Xmech precision aligned excursion
  • 8” diameter voice coil with high current 4-layer bifilar copper-clad aluminum wire windings
  • Dual voice coil design captures power delivery from dual-mono amplifier outputs into a single voice coil for maximum acoustic output
  • High temperature glass-fiber composite former/bobbing
  • Four-piece high-grade oversized Y35 ferrite magnet motor produces effortless on-demand driving-force
  • Dual shorting rings reduce gap inductance and lower distortion
  • Dual 25-strand copper-alloy and Nomex composite high-temperature leads woven through the spider
  • Precision machined and narrow tolerance top-plate and oversized T-yoke with integrated pole-piece extension made from low carbon 1010 steel
  • Dual Nomex extreme excursion linear suspension spiders
  • Proprietary injection-molded extreme-excursion catenary SBR rubber surround ensures flawless pistonic motion
  • Premium glass-fiber laminated dustcap and vented composite cone sub-structure with exceptional stiffness-to-mass ratio
  • High-density 17” powder-coated cast aluminum basket (FEA optimized)
  • Nickel-plated high-tension spring terminals provide secure connections
• Amplifier Rating (Overview): 2800 watts RMS (6000+ watts peak)
• Amplifier Platform: Sledge STA-2800D
• Amplifier / DSP (Detailed):
  • Sledge STA-2800D with 2800 watts RMS continuous power (6000+ watts peak dynamic power)
  • 295Mhz Analog Devices Audio DSP with double precision 56bit filtering
  • 120 dB Signal-to-Noise Ratio DACs
  • Dual-mono discrete Class D amplifiers powered by eight 60A 200V MOSFETs
  • SMPS with two-stage 100v-240v active Power Factor Correction (PFC)
  • Onboard AC line conditioning and convective cooling plate design
  • Customer EQ and DSP limiter settings tuned for the 17-Ultra platform
• Frequency Response:
  • 14–220 Hz ±3 dB (standard mode – all ports open)
  • 12–220 Hz ±3 dB (extended mode – 2 ports open)
  • 14–320 Hz ±3 dB (sealed mode – all ports sealed)
• Ports / Tuning:

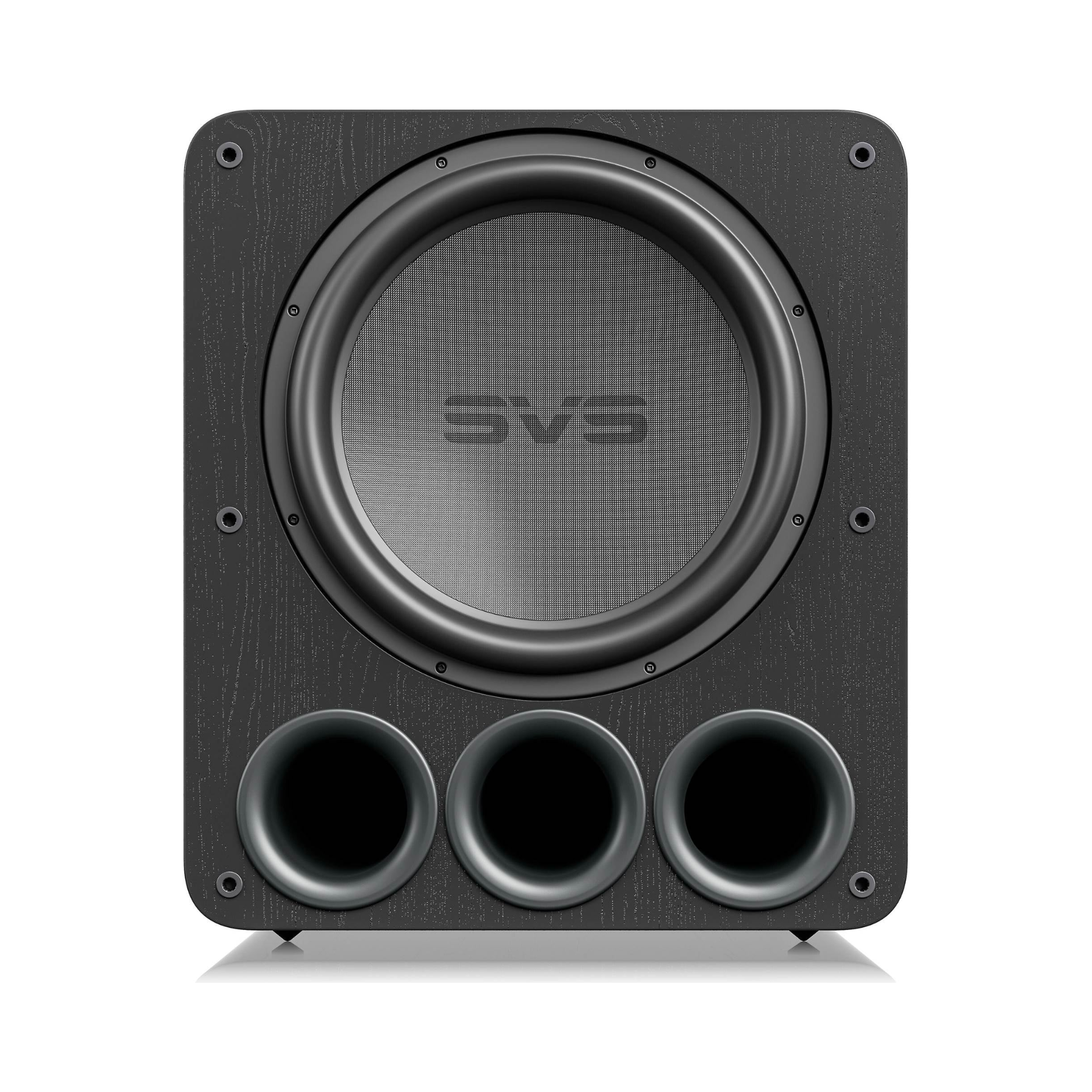

  • Triple high-flow 4-inch ports
  • Standard tune: all ports open
  • Extended tune: one port plugged / two ports open
  • Sealed tune: all ports plugged
  • Includes 3 foam port tuning plugs
• Finish Options: Piano Gloss Black; Black Oak Real Wood Veneer

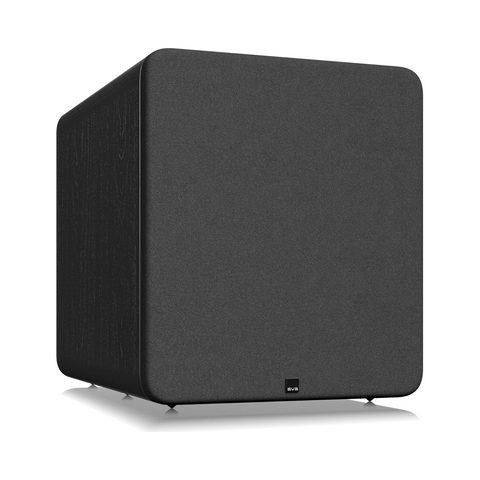

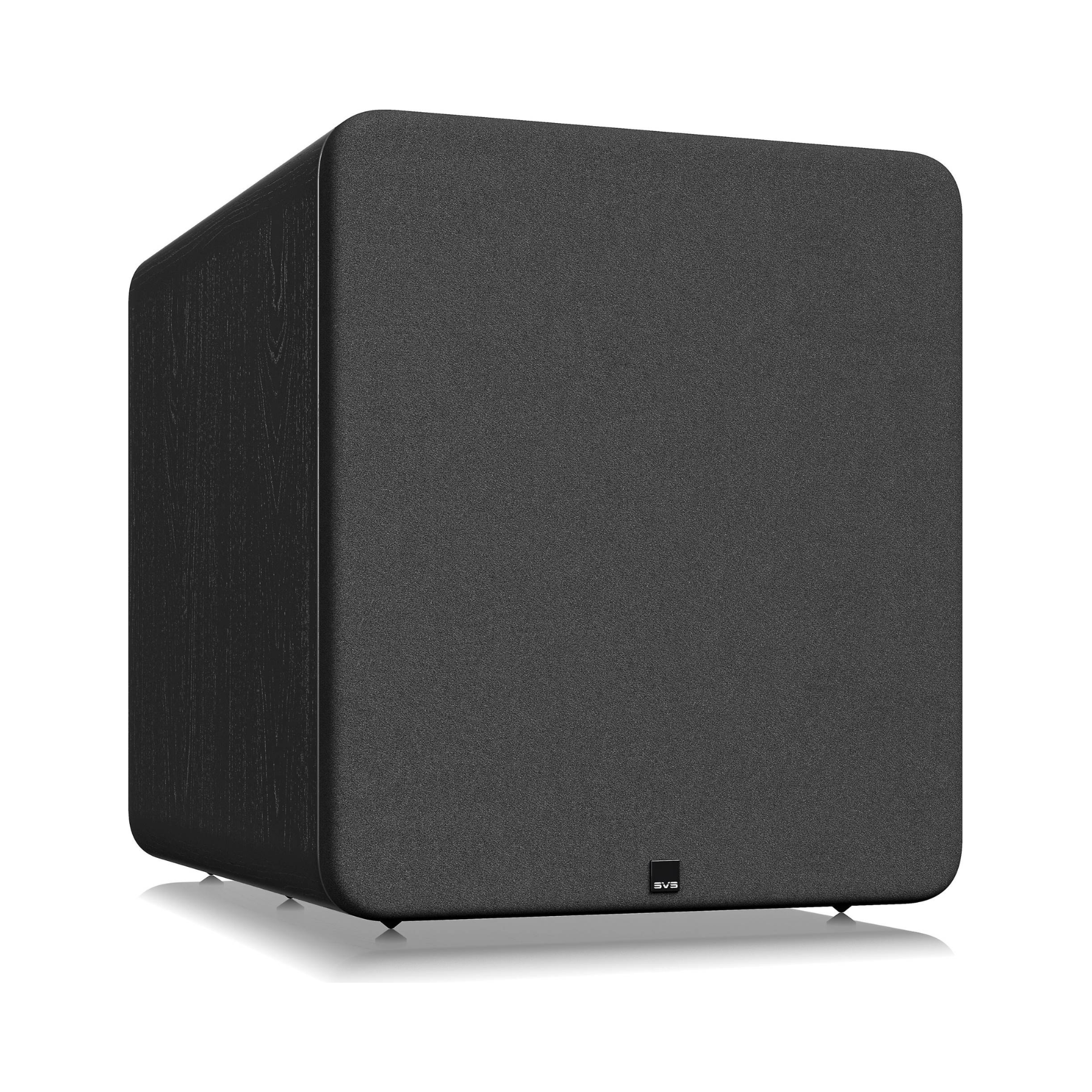

• Cabinet / Build: MDF cabinet with internal bracing; extra-thick ABS grille frame with fabric mesh cover; screw-in iso-elastomer feet
• Dimensions (with grille): 25.0” (635mm) H x 21.7” (550mm) W x 29.3” (744mm) D
• Dimensions (without grille): 25.0” (635mm) H x 21.7” (550mm) W x 28.5” (723mm) D
• Shipped Dimensions: 30.2” (767mm) H x 27.5” (698mm) W x 38.4” (976mm) D
• Weight (unboxed): 164.7lbs (74.7kg)
• Shipped Weight: 186.1lbs (84.4kg)
• Inputs / Outputs: RCA line level inputs/outputs; XLR line level inputs/outputs; LFE support
• Input Impedance: RCA 10kohm (up to 4Vrms); XLR 14kohm (up to 14Vrms / +24dBu)

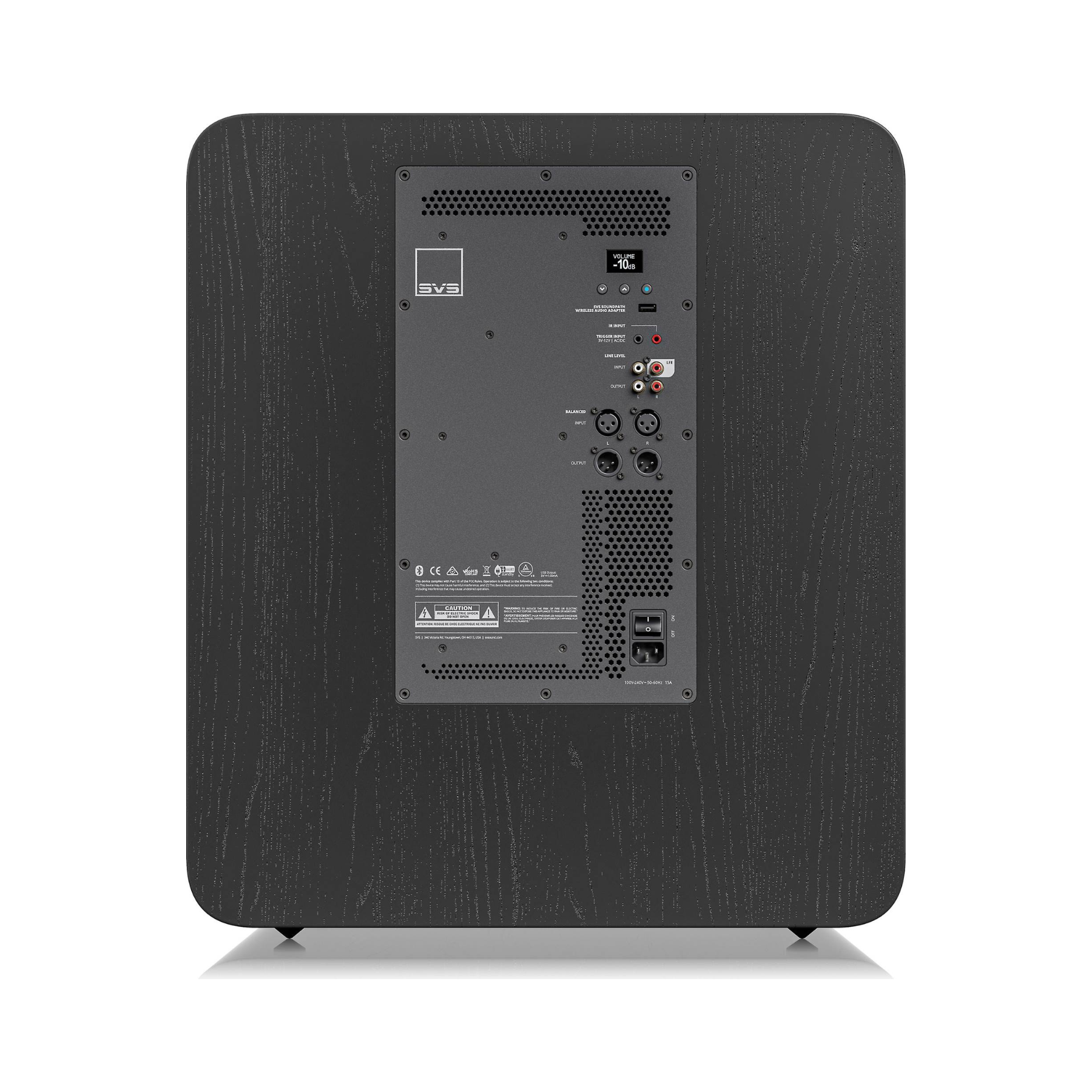

• Control / Integration: rear OLED interface with Display Flip; USB Type-A (firmware + power); 3.5mm trigger input (3–12V AC/DC); 3.5mm IR input
• App Compatibility: iOS, Android, Amazon Fire; presets; PEQ; room gain compensation; tuning modes; Auto Room EQ (OTA update coming soon)
• Power: 100V–240V ~ 50–60Hz, 2000W; 0.5-watt low standby power consumption
• Compliance: RoHS compliant; world-wide safety certifications
• Included Accessories: ABS grille frame w/ fabric mesh cover; iso-elastomer feet; 3 foam port plugs; 6’ heavy-duty power cord; Quick Start Guide

How low does the PB17-Ultra R|Evolution play?

It reaches down to 12Hz in extended mode (±3 dB), delivering the kind of ultra-deep bass you feel as much as you hear. Standard mode is rated 14–220Hz (±3 dB).

What’s the difference between Standard, Extended, and Sealed tuning modes?

Standard mode uses all ports open for maximum output, Extended mode uses one port plugged (two open) for deeper extension, and Sealed mode plugs all ports for tighter transient response and higher upper-bass extension.

Can I control it from my phone?

Yes. The SVS Subwoofer Control app works with iOS, Android, and Amazon Fire devices and provides access to volume, filtering, phase, polarity, PEQ, room gain compensation, tuning modes, presets, and more.

Is Auto Room EQ included?

Auto Room Equalization is planned to arrive via an over-the-air app update (coming soon). It uses your device’s microphone to measure your room and apply corrective EQ filters.

What connections does it support (RCA/XLR)?

It supports both unbalanced RCA and balanced XLR line-level inputs and outputs, including LFE use. This makes it compatible with consumer AVRs as well as balanced preamps and processors.

Does it work with dual subwoofer setups?

Absolutely. Multiple subs can improve seat-to-seat consistency, increase headroom, and reduce localization; the PB17 includes outputs suitable for daisy-chaining depending on your system approach.

How big and heavy is it?

It measures 25.0" H x 21.7" W x 29.3" D with the grille installed and weighs 164.7 lb unboxed. Planning the path into the room (and using help) is strongly recommended.

Does it support trigger and IR control?

Yes. It includes a 3.5mm trigger input (3–12V AC/DC) and a 3.5mm IR input for integration with control systems, plus app-based power options.
