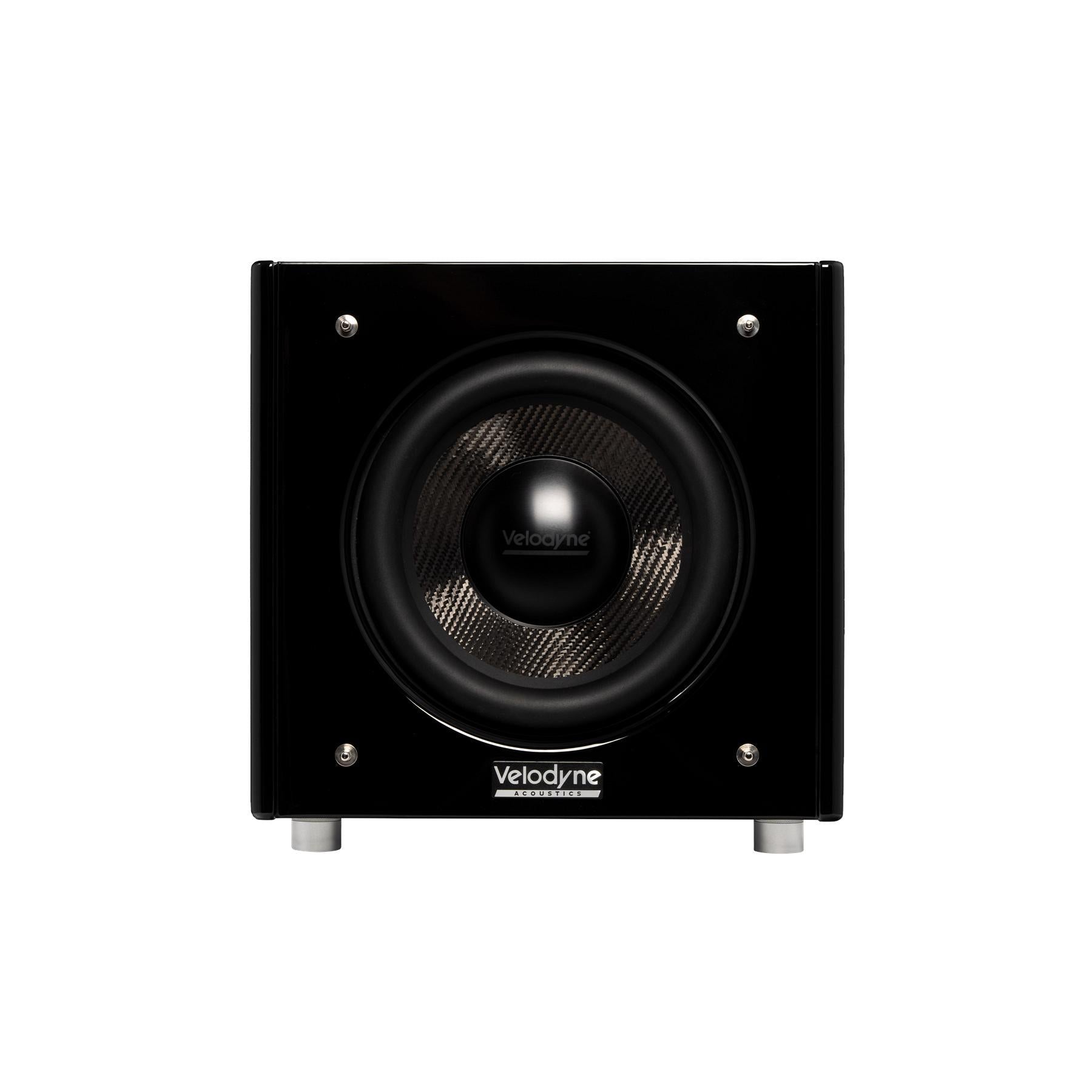

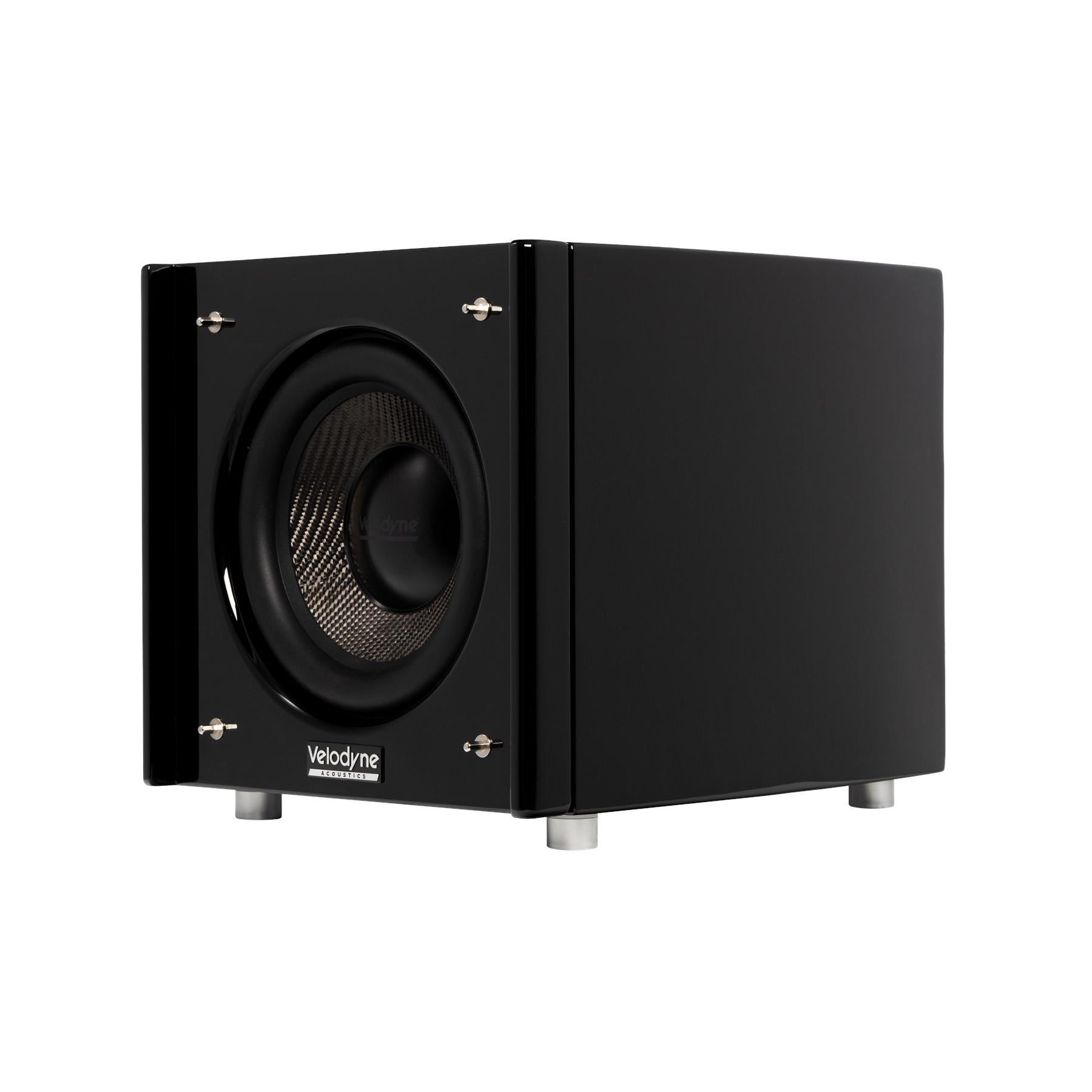

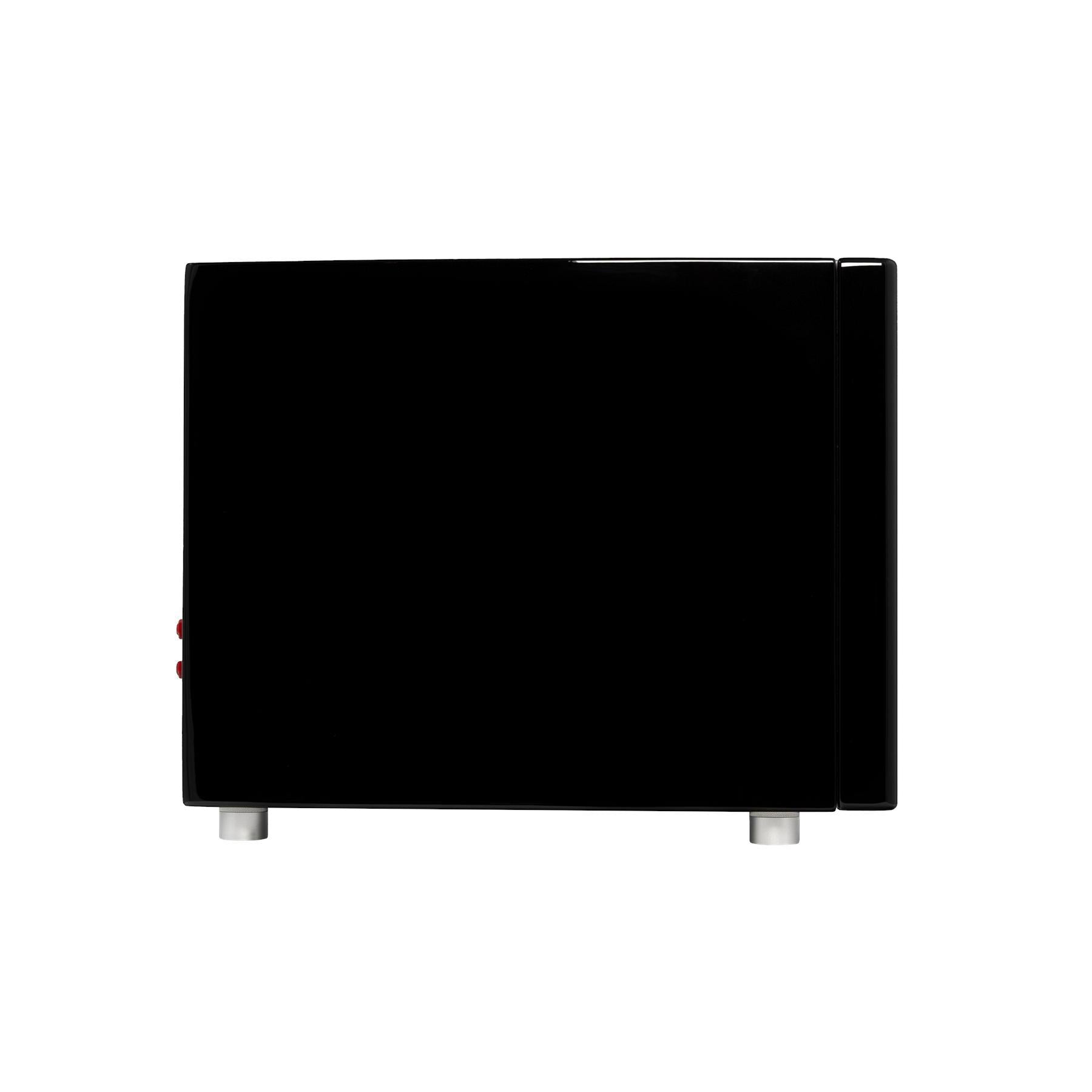

Velodyne Acoustics SPL-X 10 10″ High-Performance Subwoofer
The Velodyne Acoustics SPL-X 10 is a compact flagship 10-inch sealed subwoofer designed to deliver precise, powerful low frequencies for high-end stereo and home theater systems. Its heavy-duty carbon fiber driver with dual-spider suspension and triple ferrite magnet system is controlled by a 1000 W RMS / 1500 W peak Class D amplifier and advanced DSP, ensuring deep extension with tight, articulate bass even at demanding playback levels.
With automatic room calibration (AutoEQ), parametric 6-band EQ and app control, the SPL-X 10 can be fine-tuned from the listening position to adapt perfectly to any room. Flexible connectivity with RCA and XLR stereo/LFE plus high-level inputs makes integration easy with AV receivers, stereo preamps or integrated amplifiers, while the closed, reinforced HDF cabinet and black fabric grille help the sub blend discreetly into sophisticated listening spaces.
Velodyne Acoustics SPL-X 10 Full Specifications:
-
Subwoofer type: High-end active sealed subwoofer, SPL-X series flagship line
-
Woofer: 10″ high-performance driver with basket featuring three ventilation channels, carbon fiber cone, dual-spider suspension
-
Voice coil: Four-layer 3″ (76 mm) voice coil
-
Magnet system: Triple ferrite magnet system
-
Cabinet: Closed, reinforced HDF construction
-
Amplifier: Class D, 1000 W RMS / 1500 W peak
-
Frequency response (±10 dB): 18–300 Hz
-
Frequency response (±3 dB): 28–250 Hz
-
Low-pass filter: 30–200 Hz adjustable, 12/24/36/48 dB per octave
-
Delay: Adjustable 0–500 ms
-
Inputs (RCA): RCA stereo / LFE
-
Inputs (XLR): XLR stereo / LFE
-
Inputs (high-level): High-level stereo input
-
Outputs (RCA): RCA stereo / LFE
-
Outputs (XLR): XLR stereo / LFE
-
DSP & control: DSP-controlled AutoEQ with microphone, fully parametric 6-band EQ, subsonic filter, high-pass filter, presets, app control
-
Auto power-on: Yes, sensitivity adjustable
-
Power switch modes: Auto / Trigger / On
-
Mains voltage: 115 V – 230 V
-

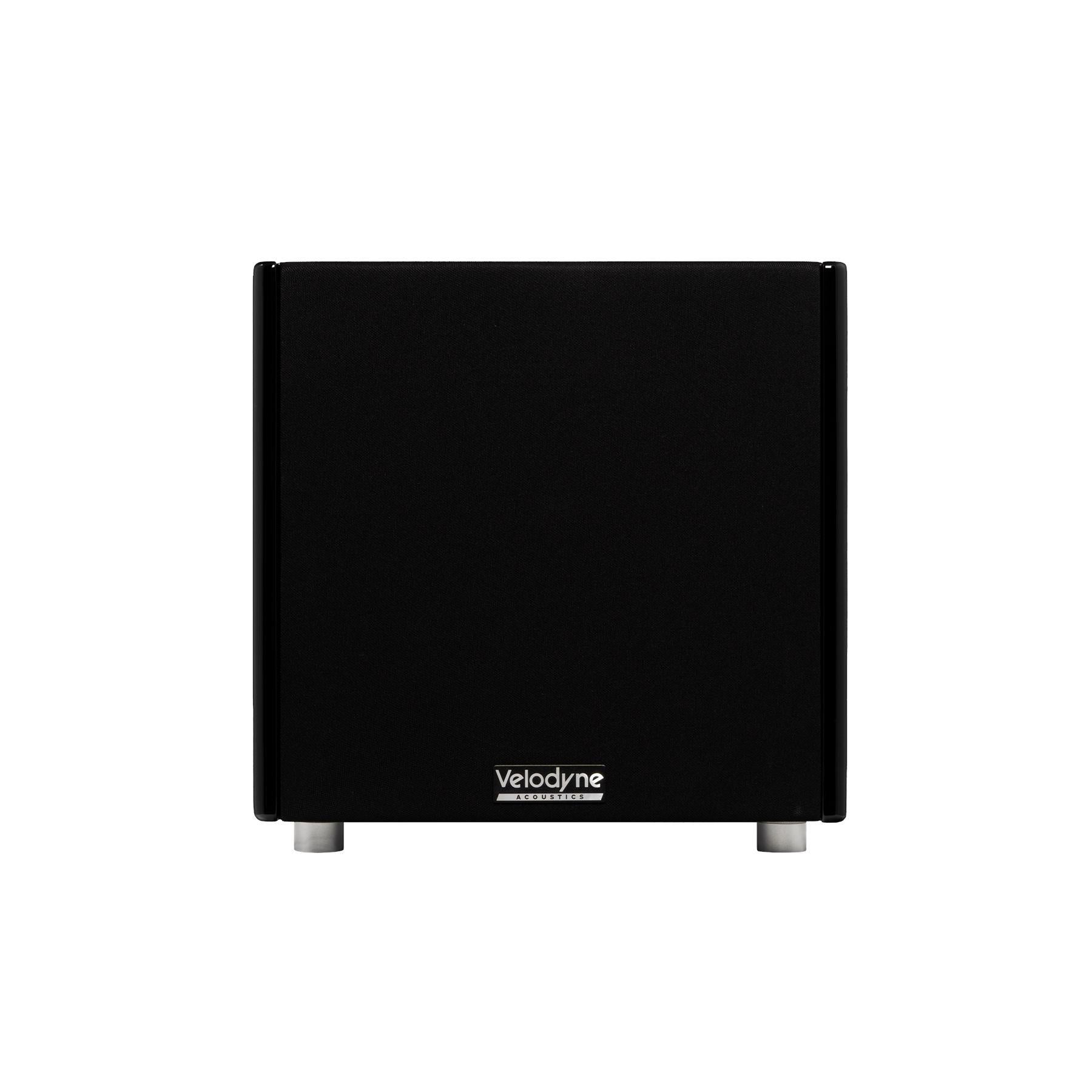

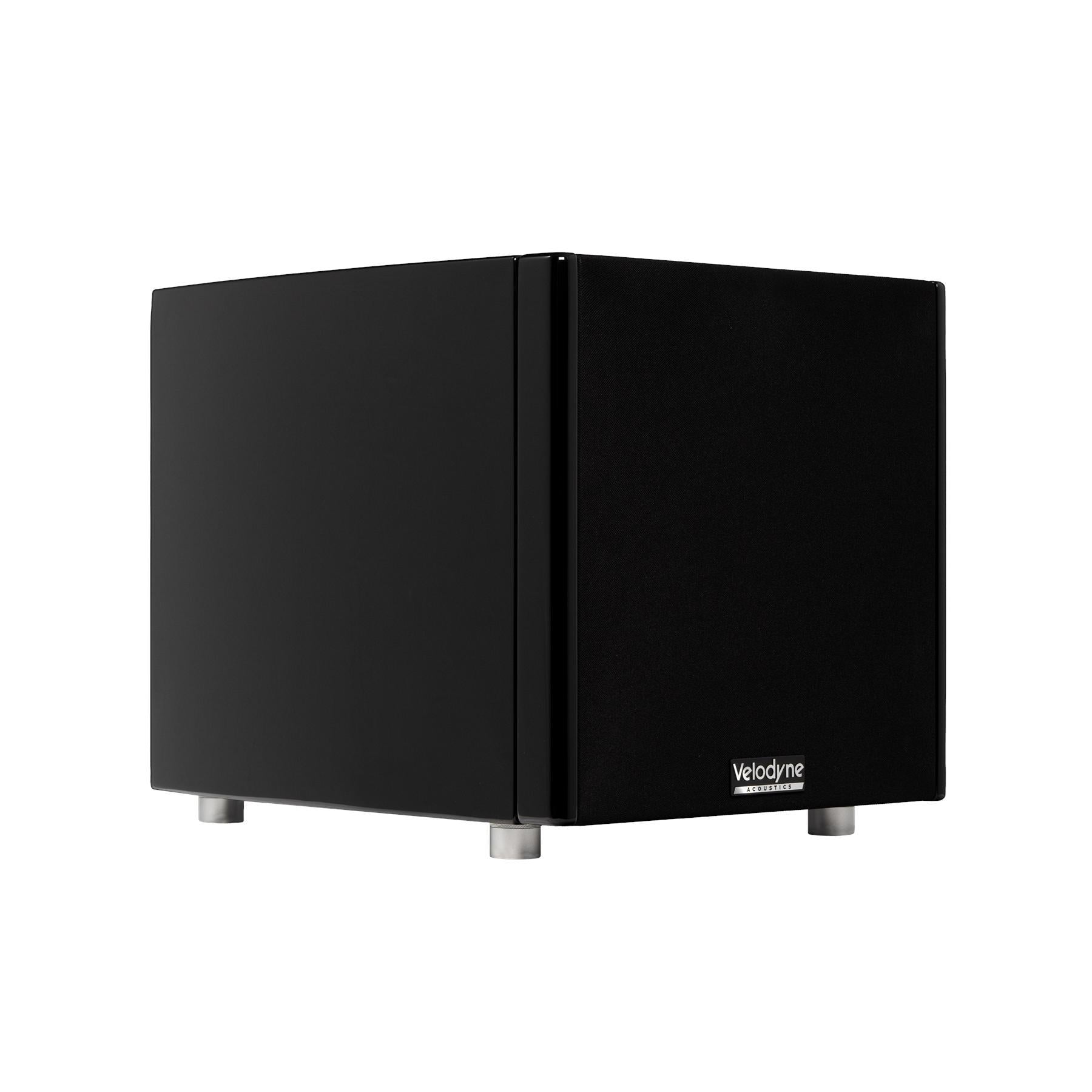

Front grille: Black fabric grille, MDF frame
-
Dimensions (W × H × D): 360 × 340 × 440 mm
-
Net weight: 30 kg
-
Shipping weight: 33 kg
Velodyne Acoustics SPL-X 10 Q&A:
- Is the SPL-X 10 suitable for both music and home theater use?
- Yes, the SPL-X 10 is engineered as a high-end active subwoofer for both HiFi stereo and home cinema, offering tight, controlled bass for music and movies.
- How does the AutoEQ function work on the SPL-X 10?
- The built-in DSP uses the supplied AutoEQ microphone to measure your room and automatically adjust the response, which can then be refined via a 6-band parametric EQ in the app.
- What types of connections does the SPL-X 10 support?
- It offers RCA stereo/LFE, XLR stereo/LFE and high-level stereo inputs, plus matching RCA and XLR outputs for flexible integration with AV and stereo systems.
- Is the SPL-X 10 a sealed or ported subwoofer?
- The SPL-X 10 uses a sealed, closed HDF enclosure for precise, well-damped bass performance.
- What is the frequency response range of the SPL-X 10?
- Its frequency response is 18–300 Hz (±10 dB) and 28–250 Hz (±3 dB), providing deep extension and versatile crossover options.
- Can the delay and crossover settings be adjusted?
- Yes, delay is adjustable from 0–500 ms and the low-pass filter can be set between 30–200 Hz with selectable 12/24/36/48 dB per octave slopes.
- Does the SPL-X 10 support automatic power-on?
- It includes an auto power-on feature with adjustable sensitivity and a power switch offering Auto, Trigger and On modes.
- What are the physical dimensions and weight of the SPL-X 10?
- The subwoofer measures 360 × 340 × 440 mm (W×H×D), weighs 30 kg and ships at 33 kg.
Velodyne Acoustics SPL-X 10 Downloads:
Velodyne Acoustics SPL-X 10 User Manual
