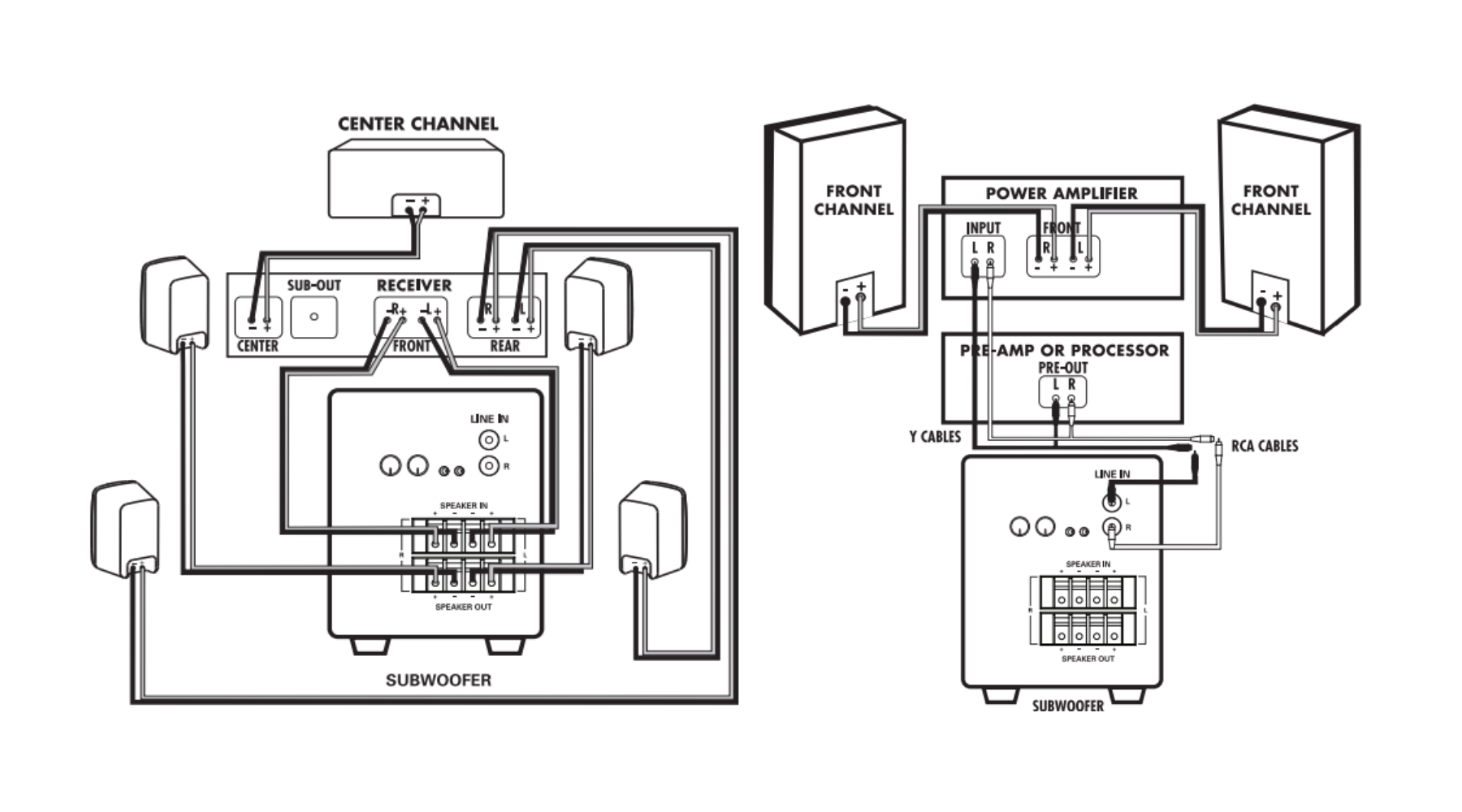

Which Wiring Diagram Should I Follow to Connect My Subwoofer?

The best wiring diagram for your subwoofer depends on the specific connectivity options your subwoofer and audio equipment offer. In this guide, we’ll break down the most common connection types, how they work, and which setup will give you the best performance for your system.

Common Subwoofer Connection Types

Most powered subwoofers offer one or more of the following input and output options:

• RCA Line-Level Inputs (Stereo Pair)
  These are the most common and often include an input labeled “LFE” (Low Frequency Effects) for home theater setups.


• RCA Line-Level Outputs
   These allow the signal to pass through the subwoofer to other components, such as power amplifiers or speakers.


• Balanced XLR Inputs and Outputs
  Premium subwoofers may offer XLR connectors for balanced audio signals, which are ideal for long cable runs and noise rejection.


• Speaker-Level (High-Level) Inputs and Outputs
   These accept amplified signals directly from a receiver or amplifier and are sometimes necessary in systems without preamp outputs.

Why Speaker-Level Inputs Are Not Ideal

Speaker-level inputs are generally a last resort. Since powered subwoofers are designed to receive preamp/line-level signals, speaker-level inputs must reduce the already amplified signal back down. This process can introduce distortion or noise, potentially degrading audio quality.

Advantages of Line-Level and Balanced Connections

Line-level RCA inputs avoid the complications of signal reduction, but they are more susceptible to noise over long cable distances.

This is where XLR balanced connections shine. They are specifically designed to reject induced noise, making them ideal for delivering a clean, distortion-free signal—especially in professional or high-performance systems.

What is the “.1” in a 5.1 or 7.1 Surround Sound System?

The “.1” refers to the Low Frequency Effects (LFE) channel, a dedicated mono channel used for deep bass sounds in surround sound audio.

Most AV receivers or processors include one or more RCA outputs labeled “Subwoofer” or “LFE.” These outputs can be configured to:

• Send only the LFE channel


• Send both the LFE and bass content below a set crossover frequency


Tip: If you have multiple subwoofer outputs, use one per subwoofer. Connecting more than one output to a single subwoofer doesn’t provide any benefit.

Why Do Some Subwoofers Have Outputs?

Subwoofer outputs allow for bass management and signal routing in more complex setups. Whether or not you use them depends on whether you want your main speakers to handle deep bass or if you prefer your subwoofer to manage all low-frequency duties.

Here’s how it works:

If your subwoofer has an internal crossover, it can filter out low bass from the signal before passing it along to your amplifier or speakers. Thus improving your system's efficiency, as your amplifier focuses on just the upper bass, midrange and treble—reducing strain and improving clarity.

When to Use High-Level Outputs

If your receiver lacks preamp or subwoofer outputs, speaker-level (high-level) outputs can be useful. They let you:

• Share a speaker output between subwoofer and main speakers


• Filter out damaging low bass to protect smaller speakers



Still, this approach should only be used when no line-level options are available.

Conclusion: Choosing the Right Subwoofer Wiring Diagram

To determine the right wiring diagram:

1. Check your subwoofer’s input and output options (RCA, XLR, or speaker-level).


2. Evaluate your audio source (AV receiver, preamp, integrated amplifier).


3. Prioritize line-level or balanced connections whenever possible for cleaner and more efficient performance.


4. Use high-level connections only when necessary, and understand their limitations.


By understanding your system’s capabilities and your personal audio goals, you can choose the subwoofer wiring setup that delivers the best sound quality for your room.
