Product Description

Line Circle

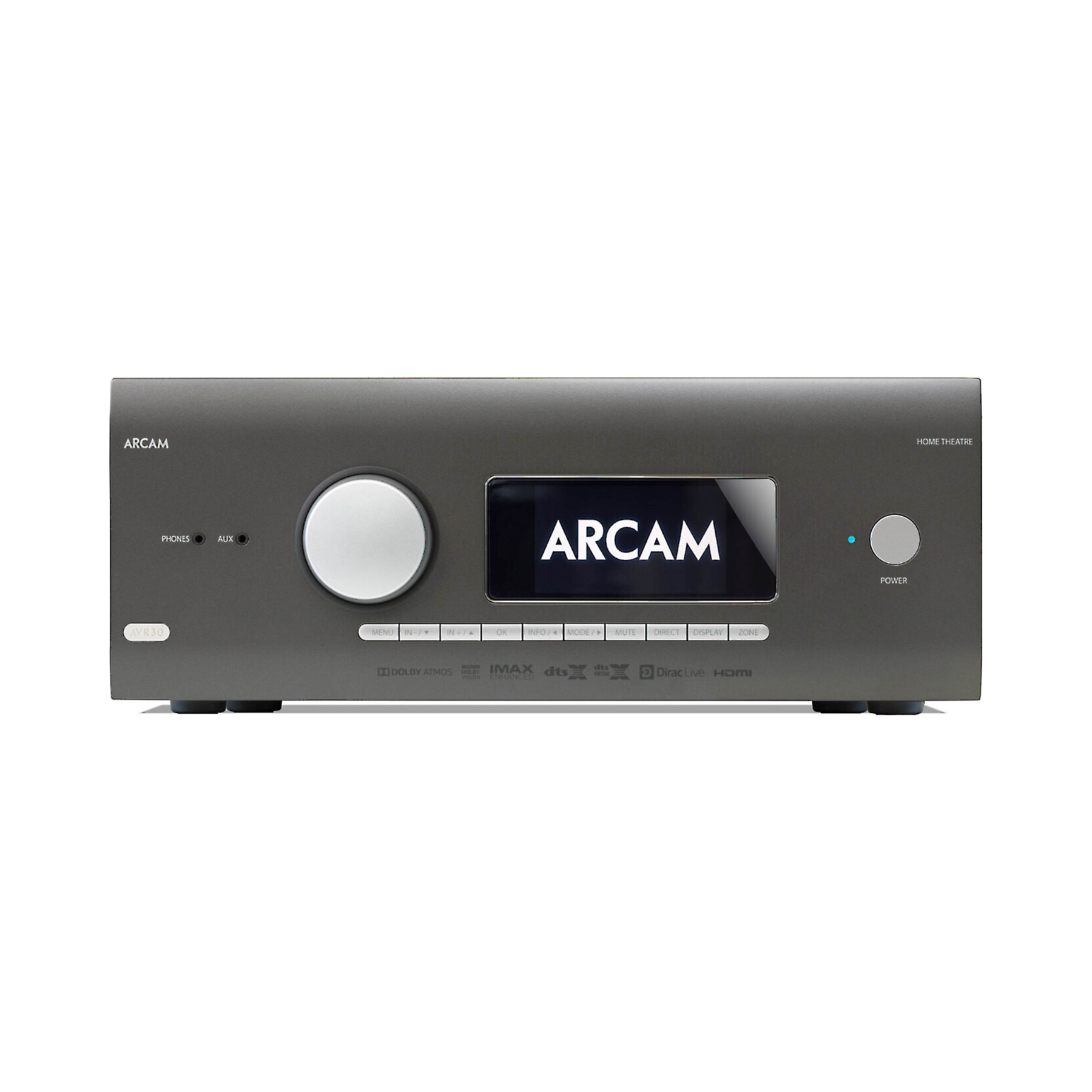

The Arcam AVR30 is a Roon-Ready 7.2 channel 180 W home theater receiver with Bluetooth and Apple AirPlay 2, Dirac room correction, designed and built to give you years of listening enjoyment.
Get the Details

Features & Specs Line Circle

Continuous Power Output, Per Channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD:- 120W/200W
2 channels driven, 1kHz, 0.2% THD:- 140W/220W
7 channels driven, 1kHz, 0.2% THD:- 100W/180W
Residual noise & hum (A-wtd):- <0.15mV
Stereo Line Inputs
Maximum input:- 4.5V rms
Nominal sensitivity:- 1V, 2V, 4V (user adjustable)
Input impedance:- 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct:- 100dB/110dB
Frequency response:- 20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level:- 1V RMS (max. 5V RMS)
Output impedance:- 560Ω
THD+N (20Hz—20kHz):- –100dB
Headphone Output
Maximum output level into 32Ω:- 5Vrms
Output impedance:- <100Ω
General
Mains voltage:- 110–120V or 220–240V, 50–60Hz
Power consumption (maximum):- 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical):- 100W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby):- <0.5W
Dimensions:- 17-1/16"W x 6-3/4"H x 16-3/4"D
Weight:- 39.9 lbs
Supplied Accessories
Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
Continuous Power Output, Per Channel, 8Ω/4Ω
2 channels driven, 20Hz - 20kHz, <0.02% THD:- 120W/200W
2 channels driven, 1kHz, 0.2% THD:- 140W/220W
7 channels driven, 1kHz, 0.2% THD:- 100W/180W
Residual noise & hum (A-wtd):- <0.15mV
Stereo Line Inputs
Maximum input:- 4.5V rms
Nominal sensitivity:- 1V, 2V, 4V (user adjustable)
Input impedance:- 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct:- 100dB/110dB
Frequency response:- 20Hz—20kHz ± 0.2dB
Preamplifier Outputs
Nominal output level:- 1V RMS (max. 5V RMS)
Output impedance:- 560Ω
THD+N (20Hz—20kHz):- –100dB
Headphone Output
Maximum output level into 32Ω:- 5Vrms
Output impedance:- <100Ω
General
Mains voltage:- 110–120V or 220–240V, 50–60Hz
Power consumption (maximum):- 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical):- 100W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby):- <0.5W
Dimensions:- 17-1/16"W x 6-3/4"H x 16-3/4"D
Weight:- 39.9 lbs
Supplied Accessories
Mains lead
Remote control with 2 x AAA batteries
Manual
DAB/FM aerial
3 x WiFi/Bluetooth antennas
Calibration microphone
USB cable
Expert Insights Coming Soon
Line Circle

Details

Line Circle

AVR30 - Class G AV Receiver

The AVR30 is a high-performance audio/visual receiver that delivers stunning realism for the ultimate home cinema experience. With an impressive 16-channel surround solution and featuring all the latest CODECs from Dolby, DTS, Auro-3D and IMAX Enhanced, the AVR30 exemplifies sound quality and engineering excellence.

The AVR30 boasts the dynamic class G amplification, powering the most complex speakers with ease while delivering great efficiency. Audiophile listening experiences are optimised with full 16-channel Dirac calibration on board as well as simple streaming with a mobile device using the native app of choice via Apple AirPlay2 or Google Chromecast.

Dirac Live® Bass Control aggregates measurement and location data from each subwoofer as well as the main speakers to determine how a system’s bass is distributed throughout the room.

  • Dolby Atmos , IMAX Enhanced, Auro-3D & DTS:X 9.1.6 decoding
  • 4K (UHD) HDMI2.0b with HDCP2.2
  • 7 HDMI inputs, 3 HDMI outputs, eARC compatible
  • Dirac Live® for Arcam room correction
  • ESS 9026PRO audiophile DAC
  • Class G power amplification - Uses toroidal transformer
  • Wifi / Ethernet, RS232 and IR control
  • Google Cast/UPnP capability for streaming audio
  • Roon Ready Certified
  • MQA supported
  • Bluetooth
  • Free MusicLife iOS UPnP and control app
