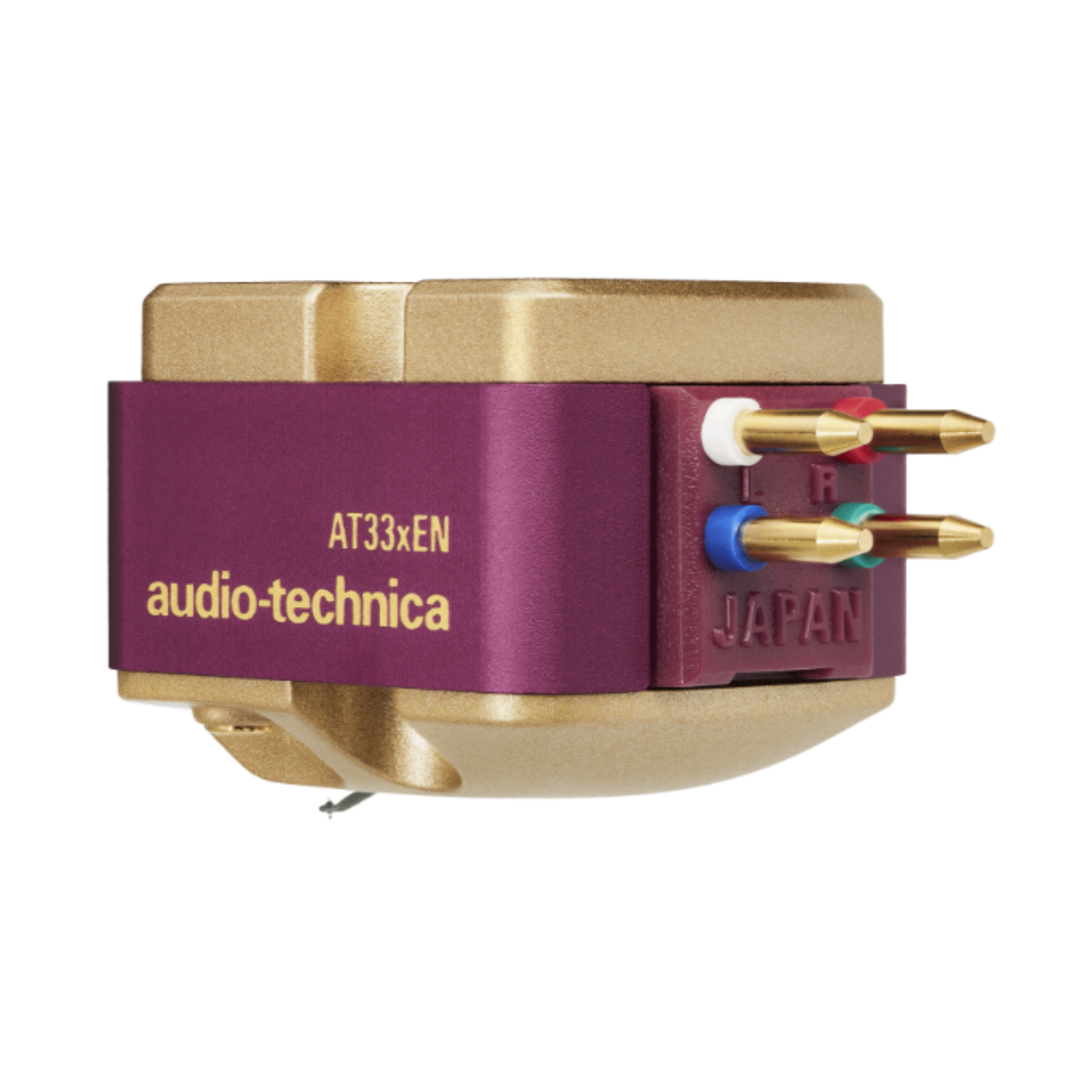

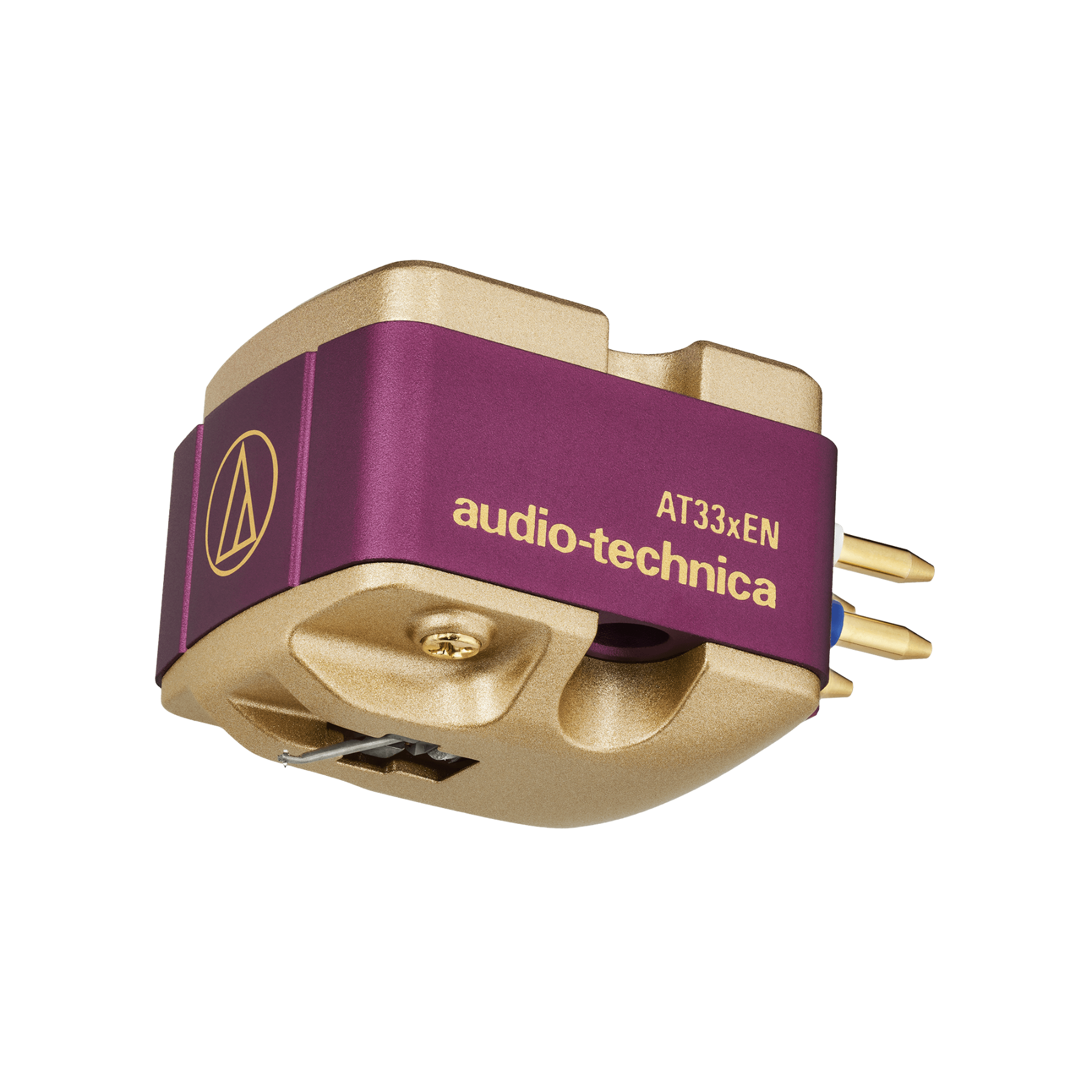

Audio-Technica AT33xEN Dual Moving Coil Stereo Cartridge

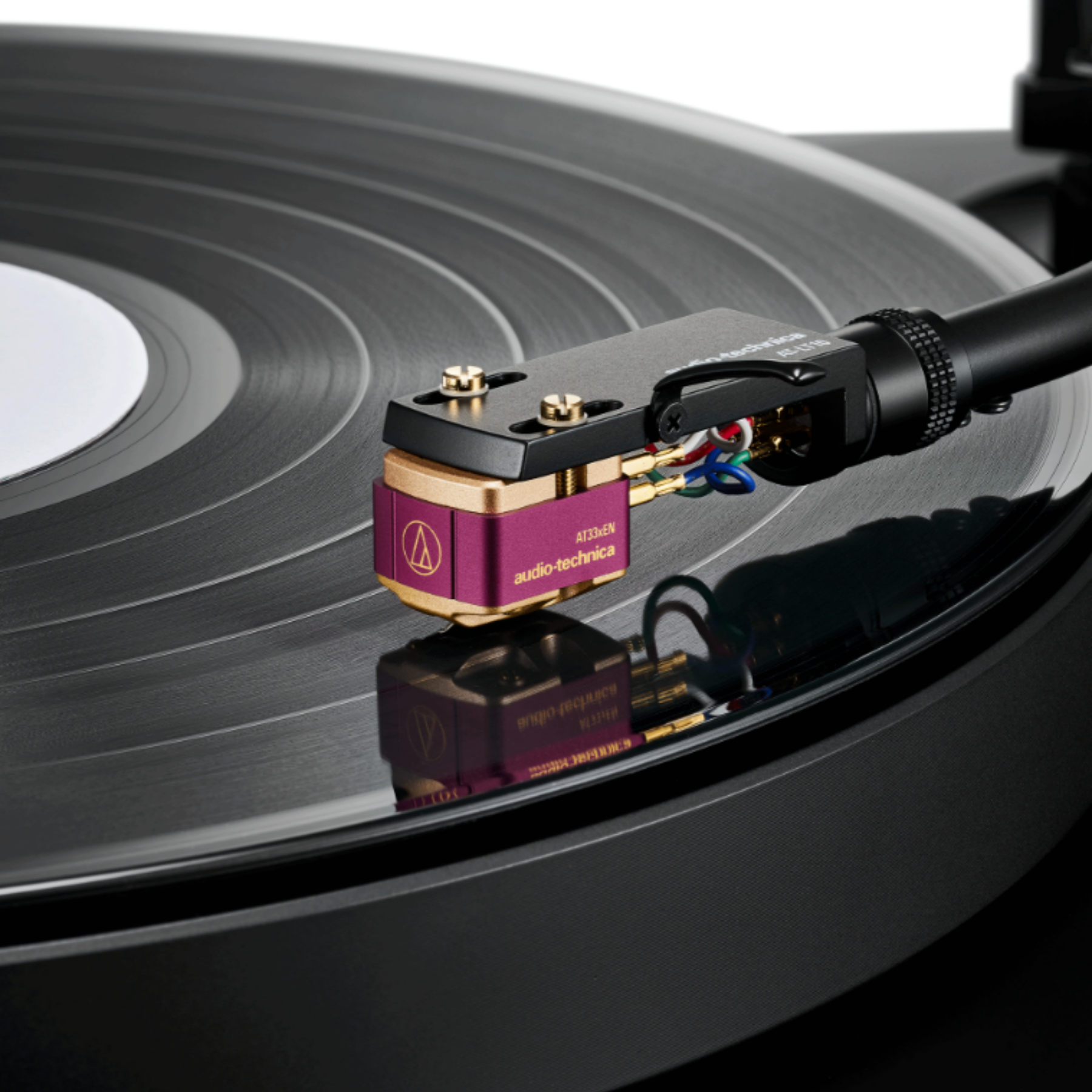

Rediscover your vinyl collection with the Audio-Technica AT33xEN, the all-around performer in the newly reengineered AT33x Series. Designed for audiophiles who want warm, full-bodied sound with refined detail, the AT33xEN features a nude elliptical stylus and rigid tapered duralumin pipe cantilever for excellent groove tracking and high-frequency control. Its advanced dual moving coil design ensures clear stereo separation, while a precision piano-wire suspension system enhances tracking accuracy and depth in the mid-to-low frequency range. Crafted in Japan with a three-material body that disperses resonance, the AT33xEN delivers an immersive analog listening experience at an exceptional value.
Specifications
-
Type: Dual Moving Coil (MC)
-
Stylus Shape: Nude Elliptical (0.3 × 0.7 mil)
-
Cantilever: Hard duralumin tapered pipe
-
Frequency Response: 20 – 45,000 Hz
-
Channel Separation: 27 dB (1 kHz)
-
Tracking Force: 1.8 – 2.2 g (2.0 g standard)
-
Vertical Tracking Angle: 19°
-
Recommended Load Impedance: ≥ 100 ohms (with head amp)
-
Coil Impedance: 12 ohms (1 kHz)
-
DC Resistance: 12 ohms
-
Coil Inductance: 26 μH (1 kHz)
-
Output Voltage: 0.42 mV (1 kHz, 5 cm/sec.)
-
Output Balance: 1.0 dB (1 kHz)
-
Static Compliance: 19 × 10⁻⁶ cm/dyne
-
Dynamic Compliance: 6 × 10⁻⁶ cm/dyne (100 Hz)
-
Threaded Mount: M2.6 × 2
-
Dimensions: 16.0 mm × 16.6 mm × 26.1 mm (H × W × D)
-
Weight: 10.1 g (0.36 oz)
-

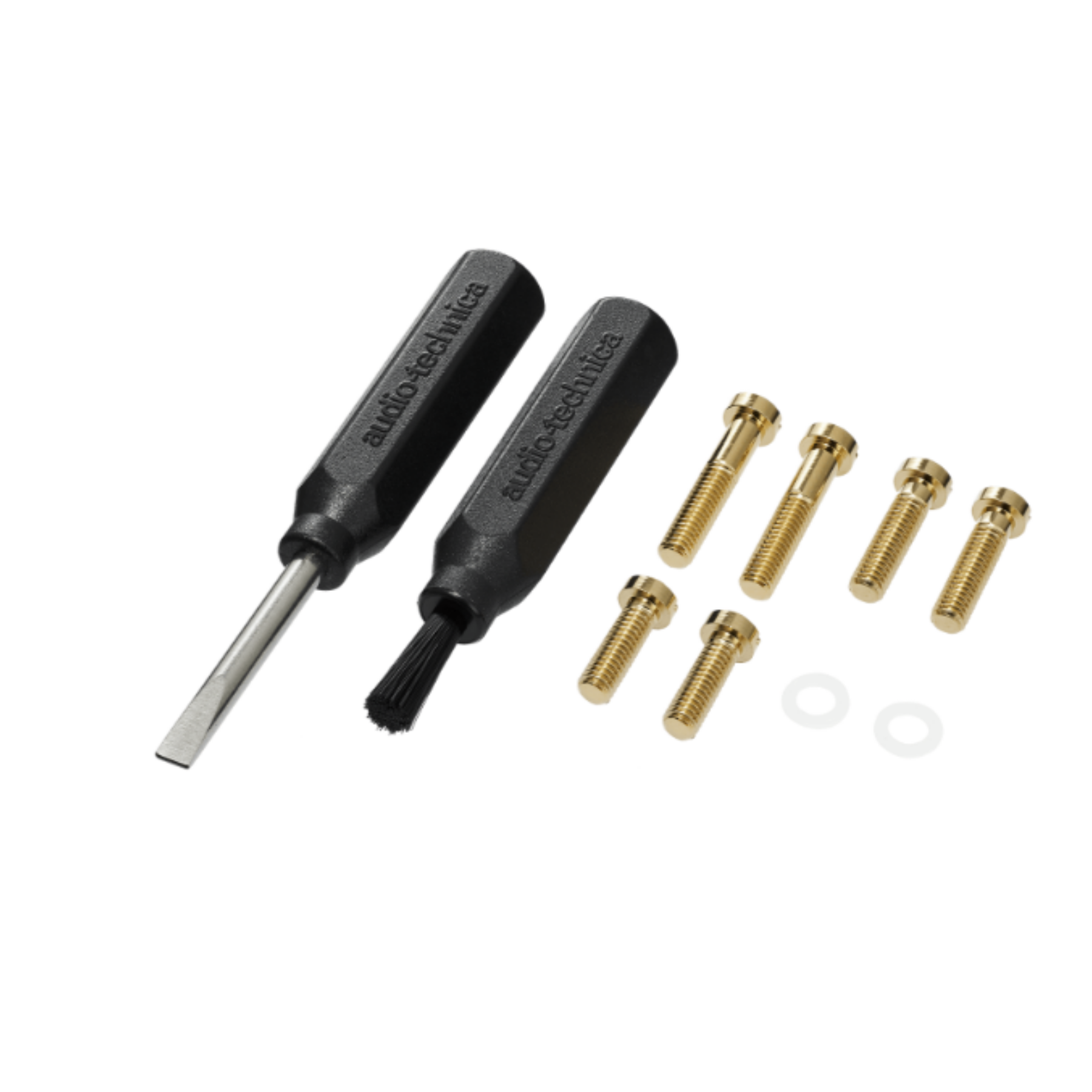

Included Accessories: Non-magnetic screwdriver, brush, 2 washers, 6 cartridge mounting screws (3 sizes), stylus protector
-
Made In: Japan
Expanded Key Features List
-

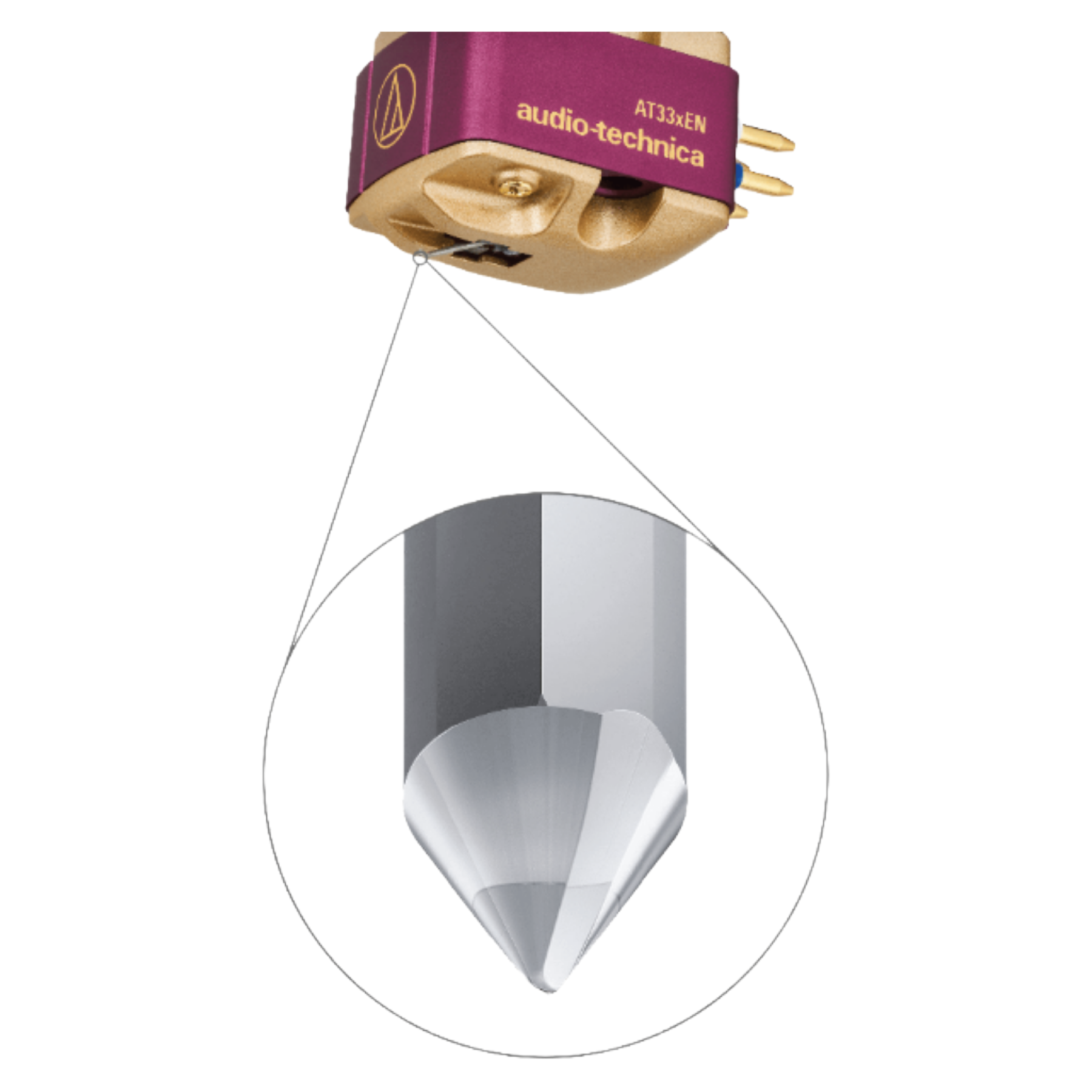

Nude Elliptical Stylus: Tracks with high precision and enhances playback clarity, especially in high frequencies.
-
Duralumin Tapered Cantilever: Lightweight and rigid for accurate stylus movement and responsive audio detail.
-

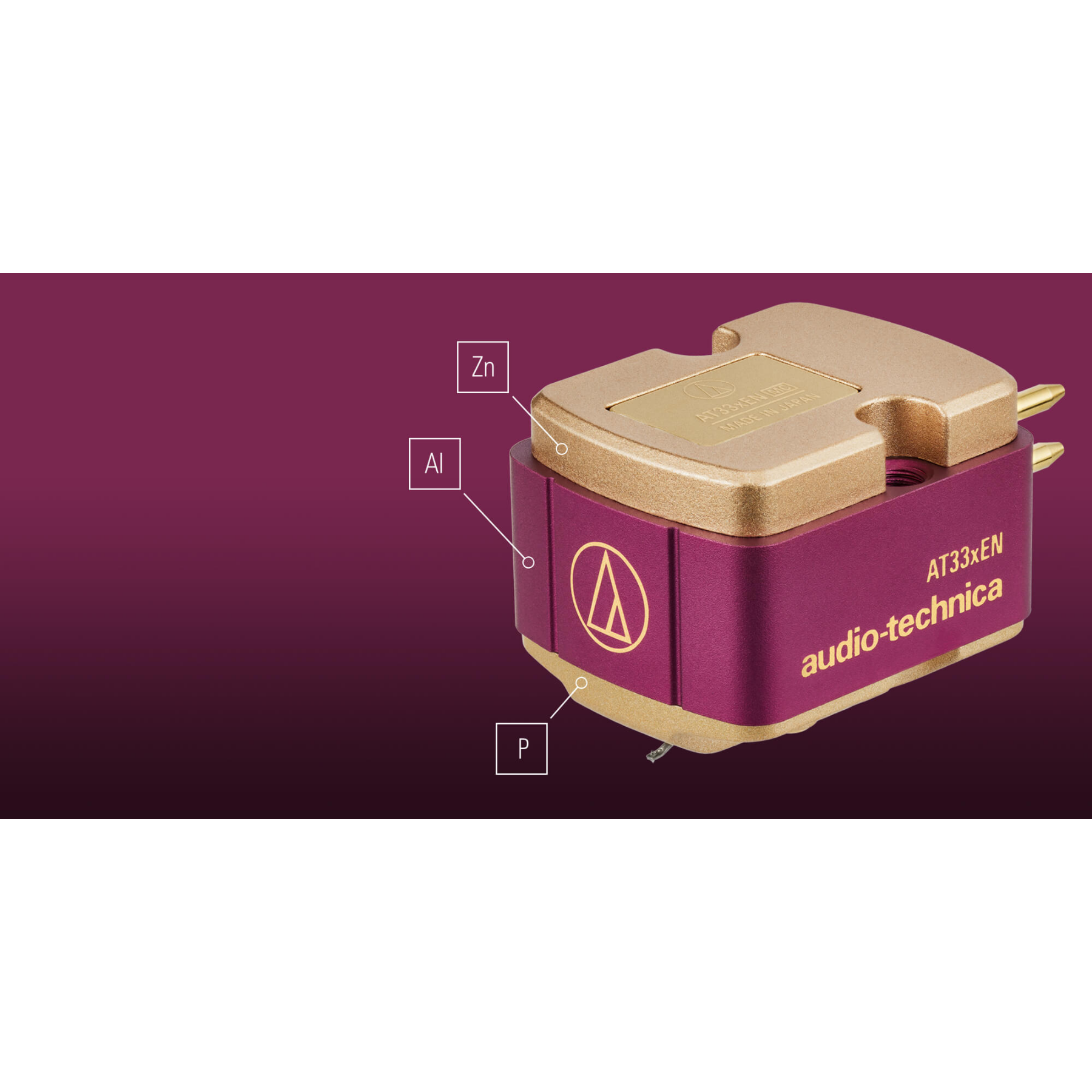

Three-Material Cartridge Body: Combines zinc, aluminum, and polymer to minimize unwanted resonance and coloration.
-
Independent Dual PCOCC Coils: Ensures clear stereo separation and clean signal transmission from groove to output.
-
Advanced Suspension System: Piano-wire design reduces compliance for improved tracking and fuller low-end response.
-
Threaded Mounting Holes: Makes tonearm installation faster and more secure without the need for nuts.
Q&A Section
Q: What kind of stylus does the AT33xEN use?
A: It features a nude elliptical stylus (0.3 × 0.7 mil) for excellent tracking and detailed audio playback.
Q: Is the cartridge easy to install?
A: Yes, the AT33xEN has threaded mounting holes, so no nuts are required—just screw it directly into the headshell.
Q: How does the sound compare to the AT33xMLB?
A: While the AT33xMLB offers a microlinear stylus for even more resolution, the AT33xEN provides a smoother sound with great all-around performance at a lower price.
Q: What type of preamp do I need?
A: This is a low-output moving coil cartridge (0.42 mV), so it requires an MC-compatible phono preamp or a step-up transformer.
Q: What tonearm is best suited for this cartridge?
A: It pairs well with medium to high-mass tonearms due to its dynamic compliance and suspension system.
Q: Is the cartridge body resonant?
A: No, the AT33xEN uses a multi-material body with zinc, aluminum, and polymer to reduce resonance and deliver clean audio.
Q: Where is it manufactured?
A: The AT33xEN is manufactured in Japan with precision engineering and premium materials.
Q: Can I use it with older records?
A: Yes, it works beautifully with both vintage and modern records, offering warmth and clarity across the spectrum.
