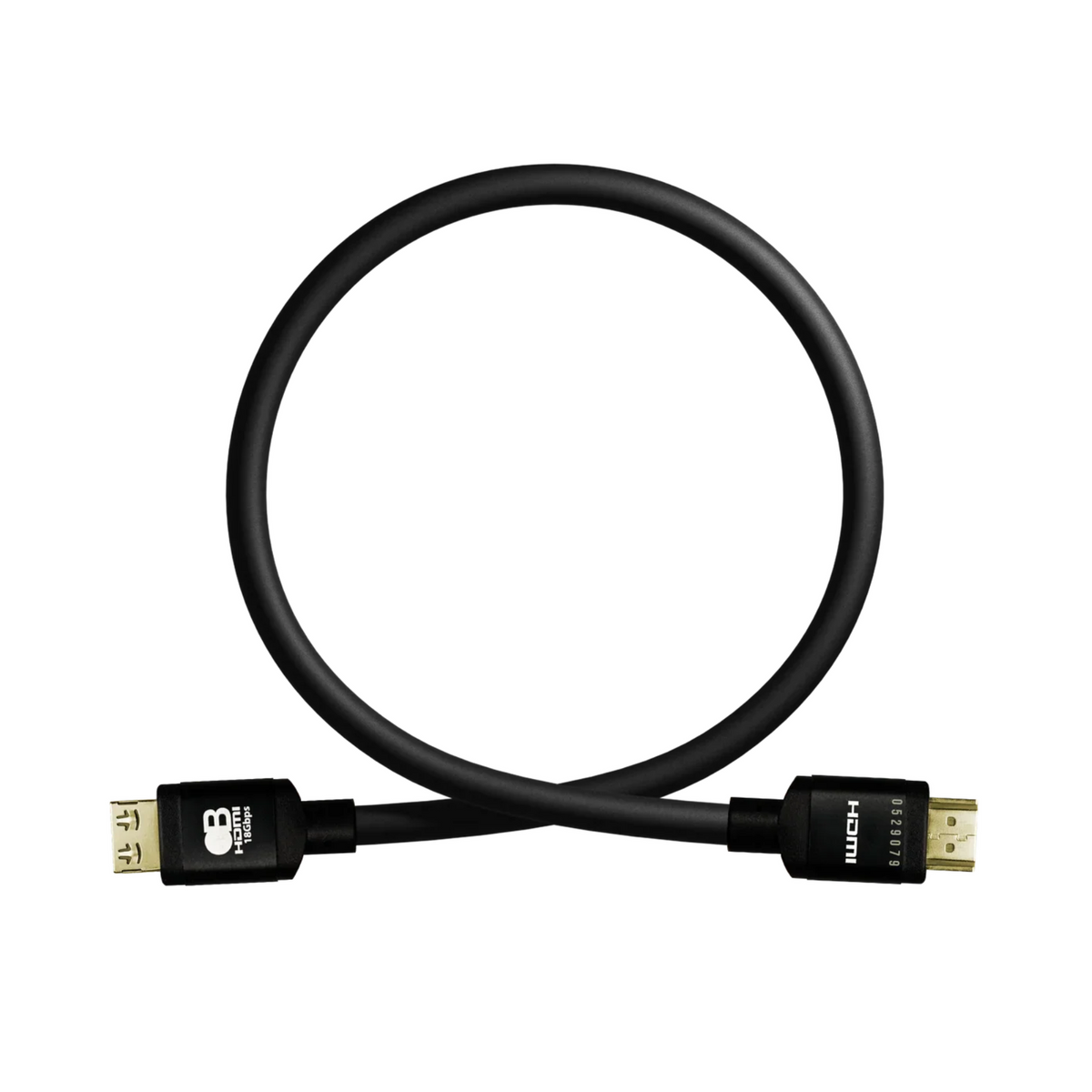

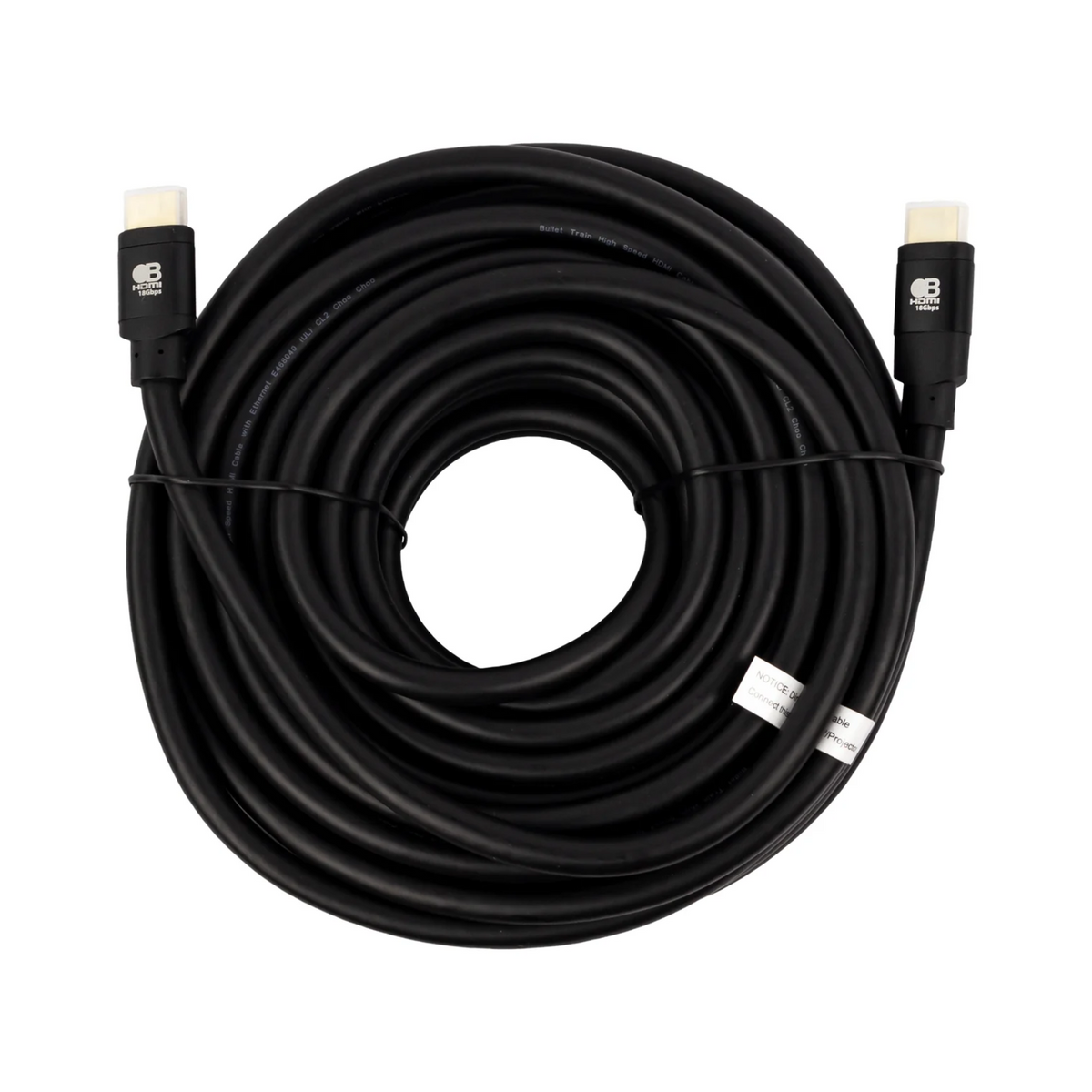

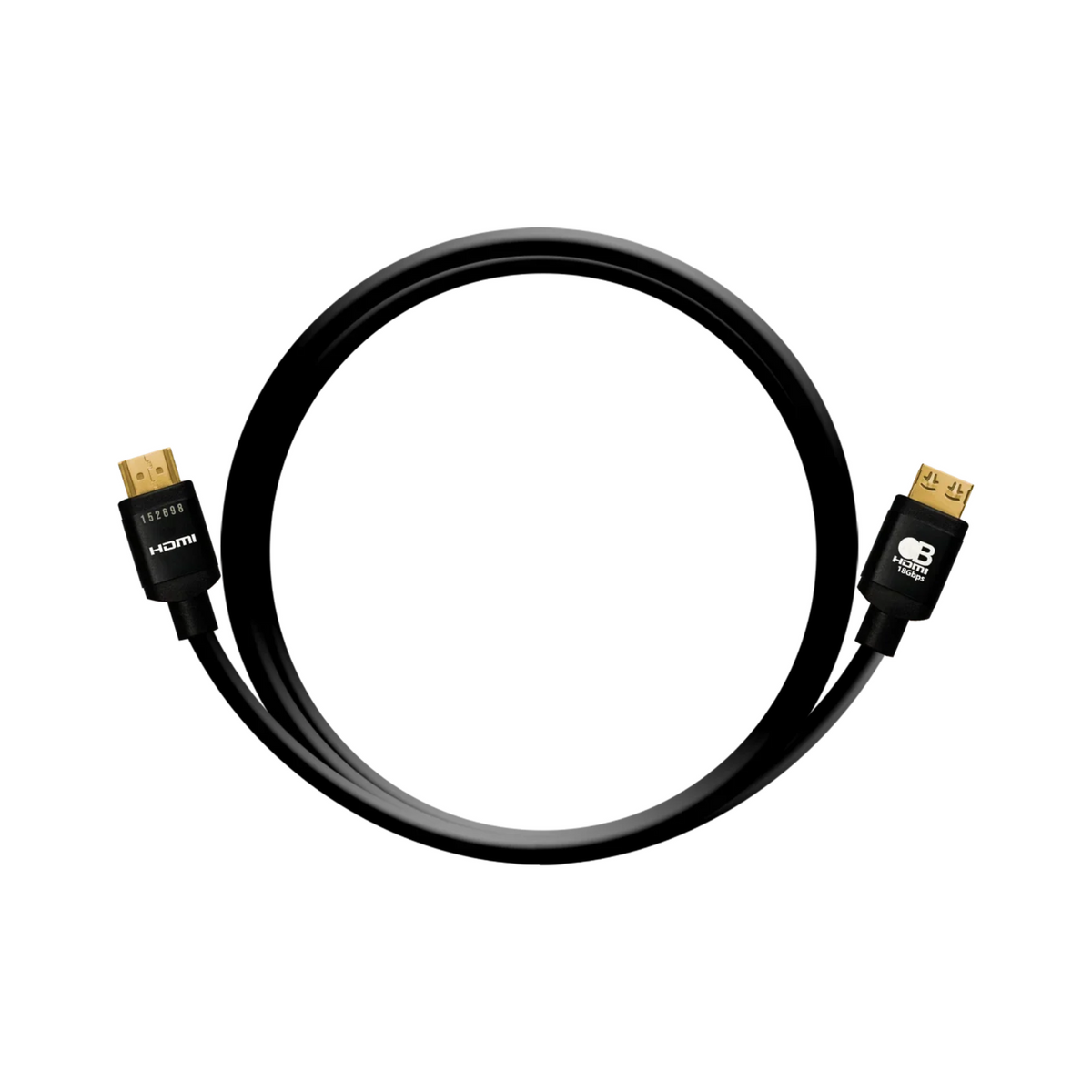

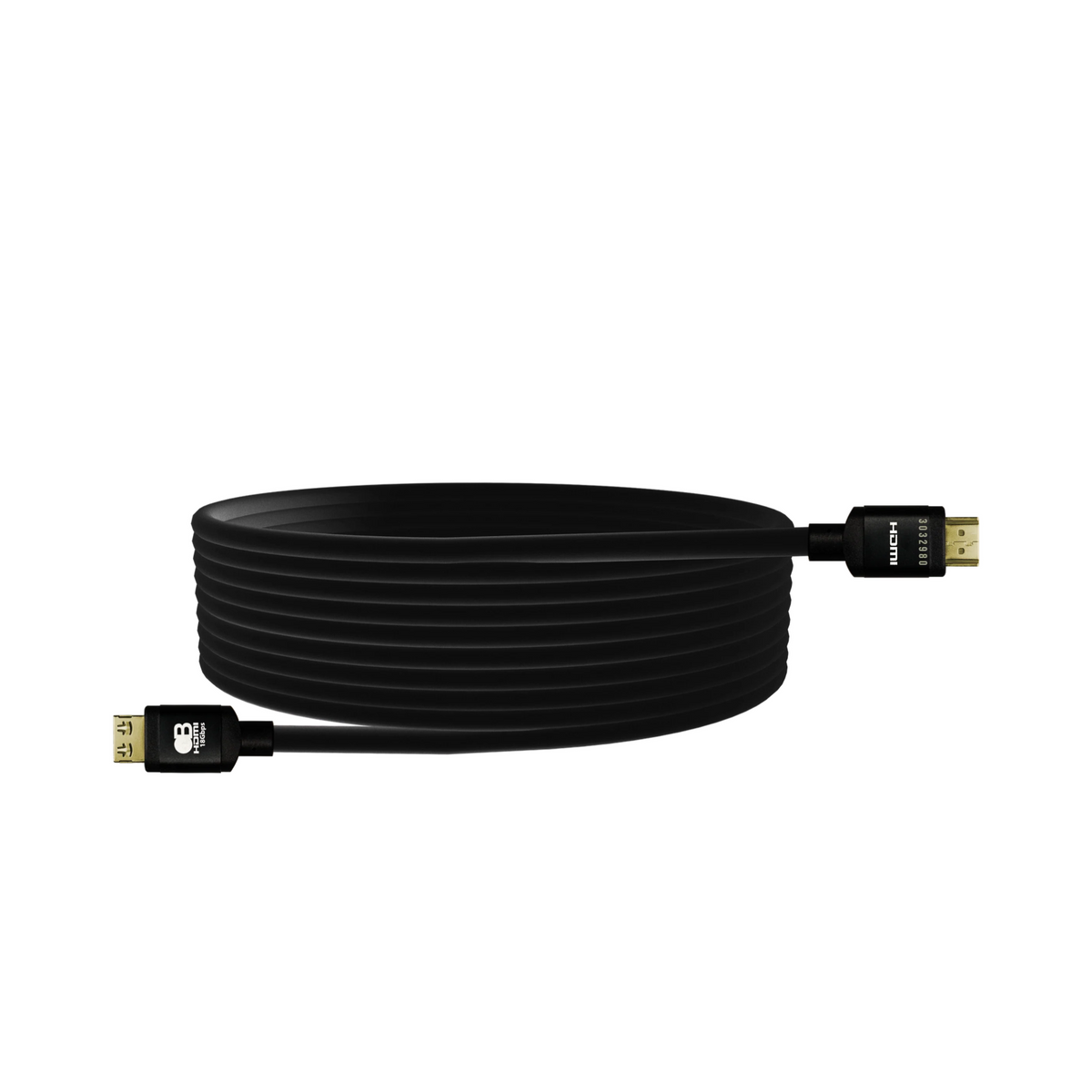

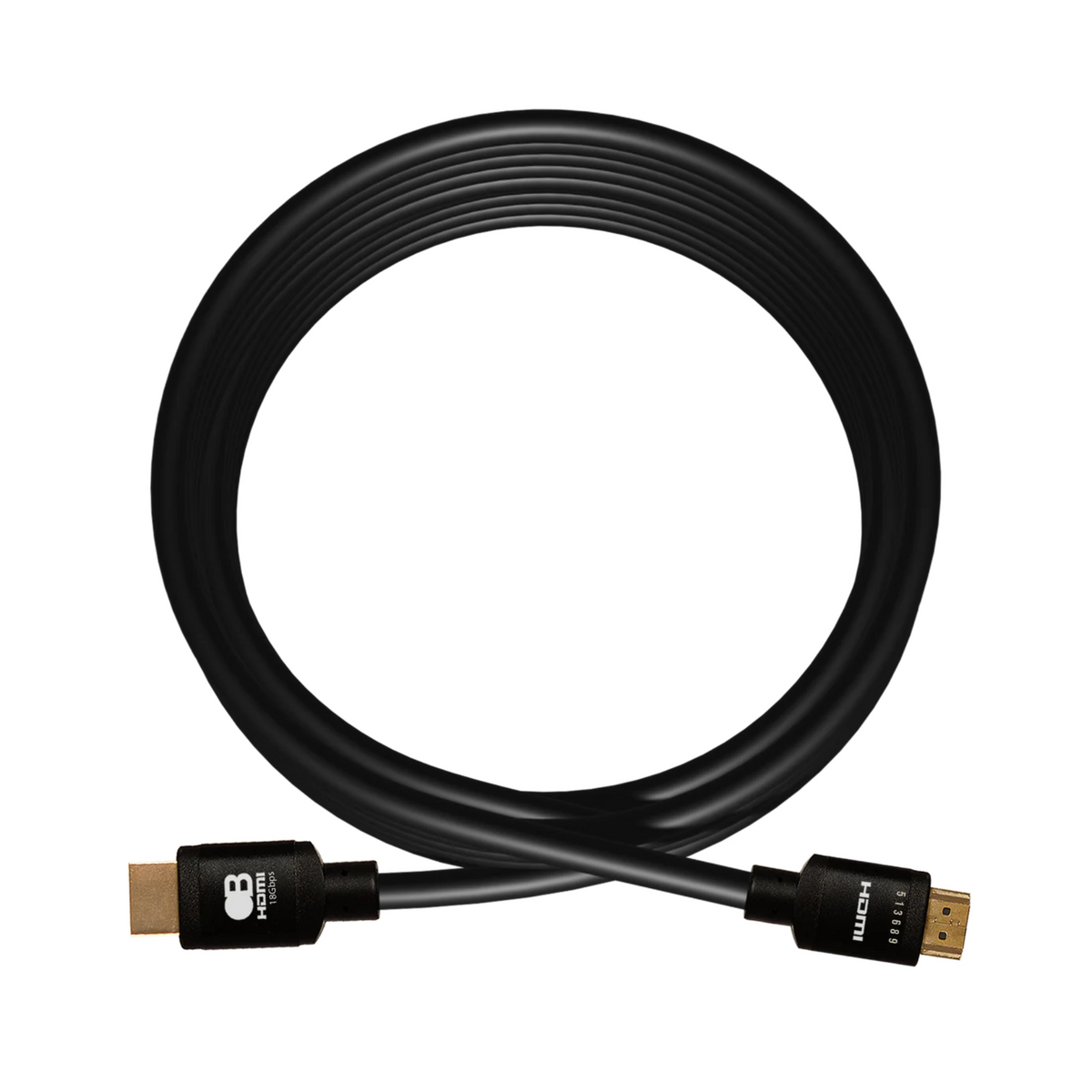

4K 18Gbps High Speed HDMI™ Cable

Your go-to HDMI™ cable is here! 18Gbps, HDR and Wide Color Gamut are no issue for Bullet Train Premium HDMI cables. Bullet Train allows installers to rest assured that these cables are highly engineered and tested to be a long lasting part of any infrastructure (they are CL2/CL3 in wall certified).

When High Dynamic Range (HDR) and Wide Color Gamut (WCG) are required, these are the cables you NEED to be using. Bullet Train was made to provide clients with a reliable, affordable HDMI cable ready for powerful 4K installations. Ensure stable video and audio in new installs with Bullet Train HDMI and feel confident telling your clientele that they are using the best cables on the market.

What's Inside?

Bullet Train knows that a stable signal is a must have for all integrators. To ensure our cable delivers the highest quality signal possible we used nothing but the highest quality copper. Using proprietary engineering and manufacturing practices we have been able to twist the internal cables in a way that maximizes signal flow for speed and quality.

Refresh Rate

This HDMI cable supports high refresh rate range, which becomes extremely important as we push the limit of frames per second. Bullet Train allows the display to match the speed at which frames are traveling through the HDMI cable. This ensures the timing at these extremely minuscule measurements are displayed accurately and efficiently.

Increased Frame Rate

Reach data rates up to 60 FPS. This allows us to nearly triple the standard Frame Rates of 24 frames-per-second (FPS) to 60 FPS.

Color Accuracy

Bullet Train cabling comes from a family of HDMI Testing and Display Calibration, which is why we can offer Imaging Science Foundation (ISF) certification on every single cable we sell. ISF is a leader in scientifically accurate display coloring, when you run a signal through this HDMI cable you are seeing the vibrant colors the content was mastered in.

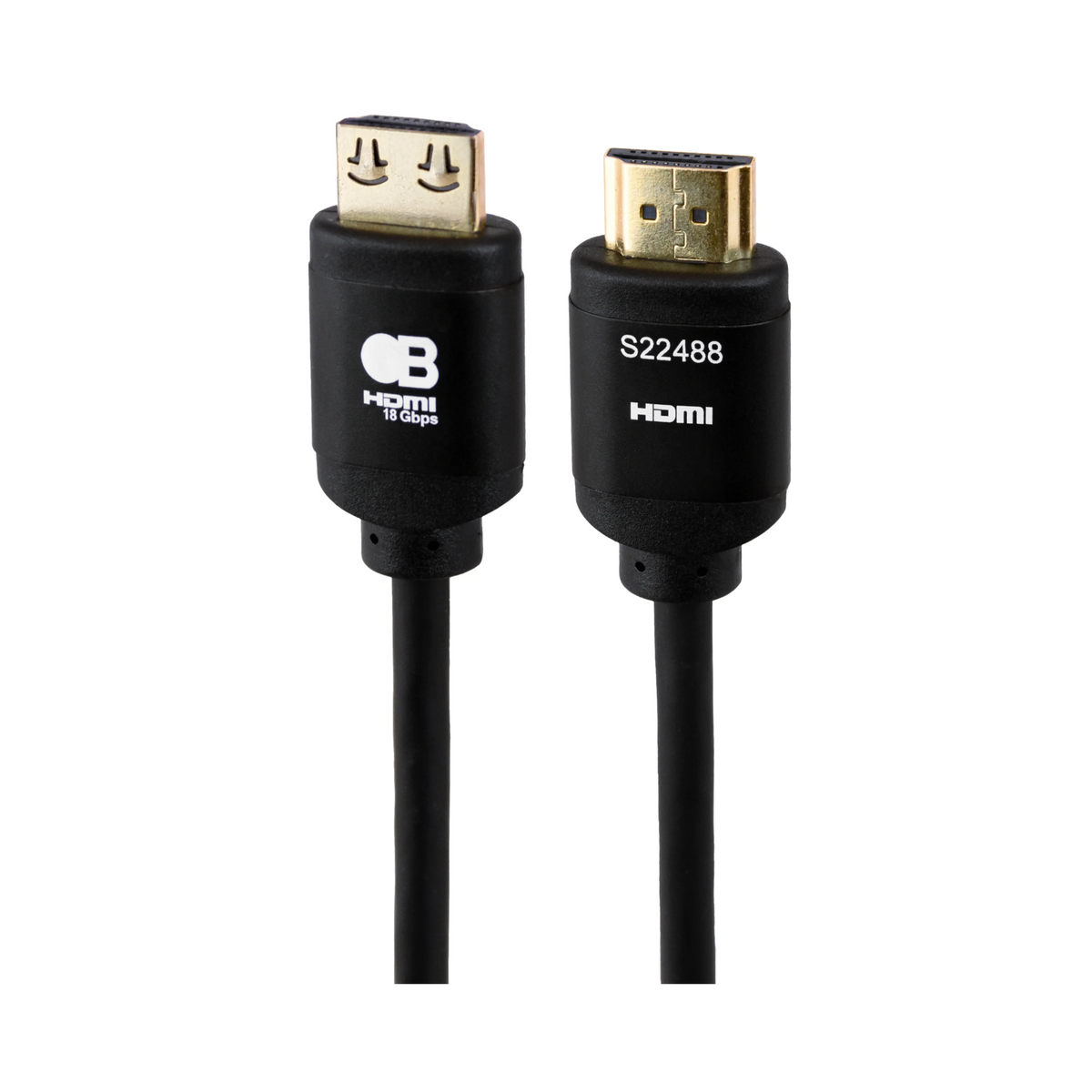

Serial-Numbered Headshells

Both headshells are serial-numbered to enable fast, easy identification of signal paths between components. Serial numbers can be logged into cable legends, eliminating labor-intensive label marking.

Specifications

• Connector Type: HDMI Type-A, male
• Max Resolution Timing: 4K @ 60 Hz, 4:4:4, 12-bit
• Max Bandwidth: 18 Gbps
• Retention Force: 3 kg / 6.6 lbs
• Wire Gauge: 28 AWG
• Internal Wire Construction:

  • 8C (4 x High-speed differential FRL pairs)
  • 2C (1 x HEAC/eARC differential pair)
  • 3C (3 x 'DDC-SDA', 'DDC-SCL' & 'CEC')
  • 1C (1 x '+5 V')
• Cable Impedance: 100 Ohms s±10 Ohms
• Cable Outer Diameter: 7.3 ± 0.15 mm
• Plug Dimensions (L x W x D): mm: 38.1 x 20.32 x 11.18 / inches: 1.5 x .8 x .44
• Plug Material: Gold-plated, 0.3 µin thick layer
• Casing Material: Black Molded PVC
• Outer Shielding Material: PVC Jacket
• Bend Radius: 109.5 mm
• In-Wall Rating: CL3
• EMI/EMC/Safety Certifications: UL
• Environmental: RoHS / CA65
• ESD Rating: 8 kV contact (IEC 61000-4-2 Level 2)
• Lead-free (Pb-free): Yes
