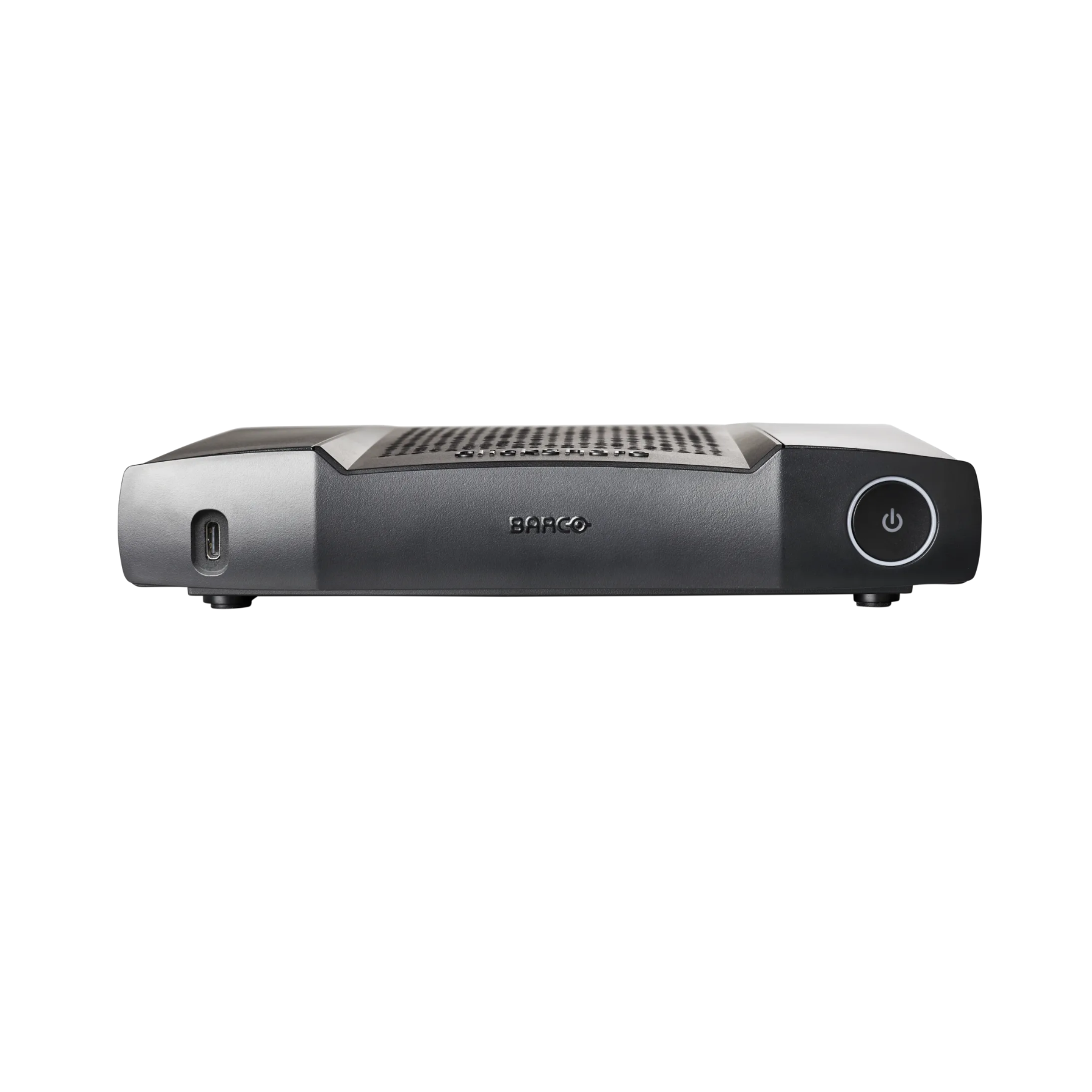

ClickShare CX-50

ClickShare CX-50 allows you to organize wireless conferences in large meeting rooms. As soon as you enter the meeting room, ClickShare automatically connects you to the equipment already installed (cameras, microphones, speakers, soundbar, screens...).

Start a meeting in seconds from your laptop, using your preferred video conferencing platform. Your colleagues and guests can easily access it with a single click using the ClickShare button or the ClickShare app.

• Interactive features: TouchBack, annotations, and blackboard
• Optimized collaboration with 2 sources on the screen
• Advanced network (dual Wi-Fi) and audiovisual integration
• HDMI input for high-quality content sharing.
• Integrated security and cloud-based management

Specifications

• Operating system:
  • Windows 10 or higher macOS 11 (BigSur) and higher
  • Android v11 and higher (ClickShare App)
  • iOS 14 and higher (ClickShare App)
• System requirements:
  • For a smooth experience with Microsoft Teams or Zoom
  • Minimum: Windows processor Intel Core i3 or AMD Ryzen 5/macOS: Intel Core i3 or Apple Silicon M1; RAM 8GB; OS version: Windows 10 20H2/macOS 11 Big Sur Recommended: Windows processor Intel Core i5/Ultra 5 or AMD Ryzen
    7/macOS: Apple Silicon M3; RAM 8GB; OS version: Windows 11 latest build/macOS latest build
• Video outputs: 4K UHD (3840*2160) @ 30 Hz. HDMI™ 1.4b
• Video inputs: 1920x1080 @30 Hz. HDMI 1.4b
• Audio output: USB, SPDIF, jack, HDMI

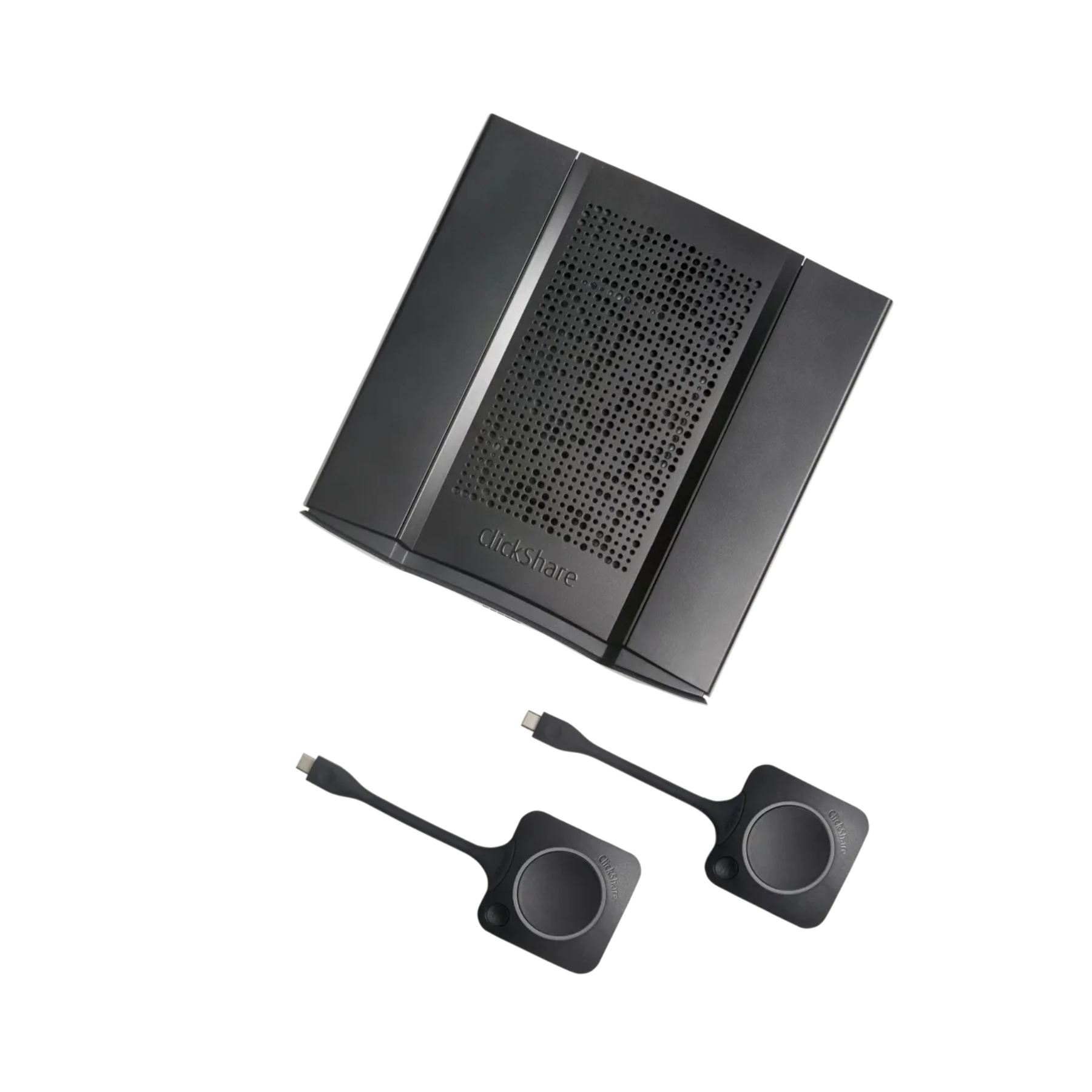

• ClickShare Buttons: 2
• ClickShare App: Desktop & Mobile
• Native protocols: Airplay, Google Cast, Miracast
• Maximum sources simultaneously on screen: 2
• Noise Level:
  • Max. 25dBA @ 0-30°C
  • Max. 30dBA @ 30-40°C
• Wired authentication:
  • WPA2-PSK in stand alone mode
  • WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode
• Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1
• Reach:
  • Max. 30m (100 ft) between ClickShare Button and ClickShare Base Unit
  • Frequency band 2.4 GHZ and 5 GHz (DFS)
• Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries)

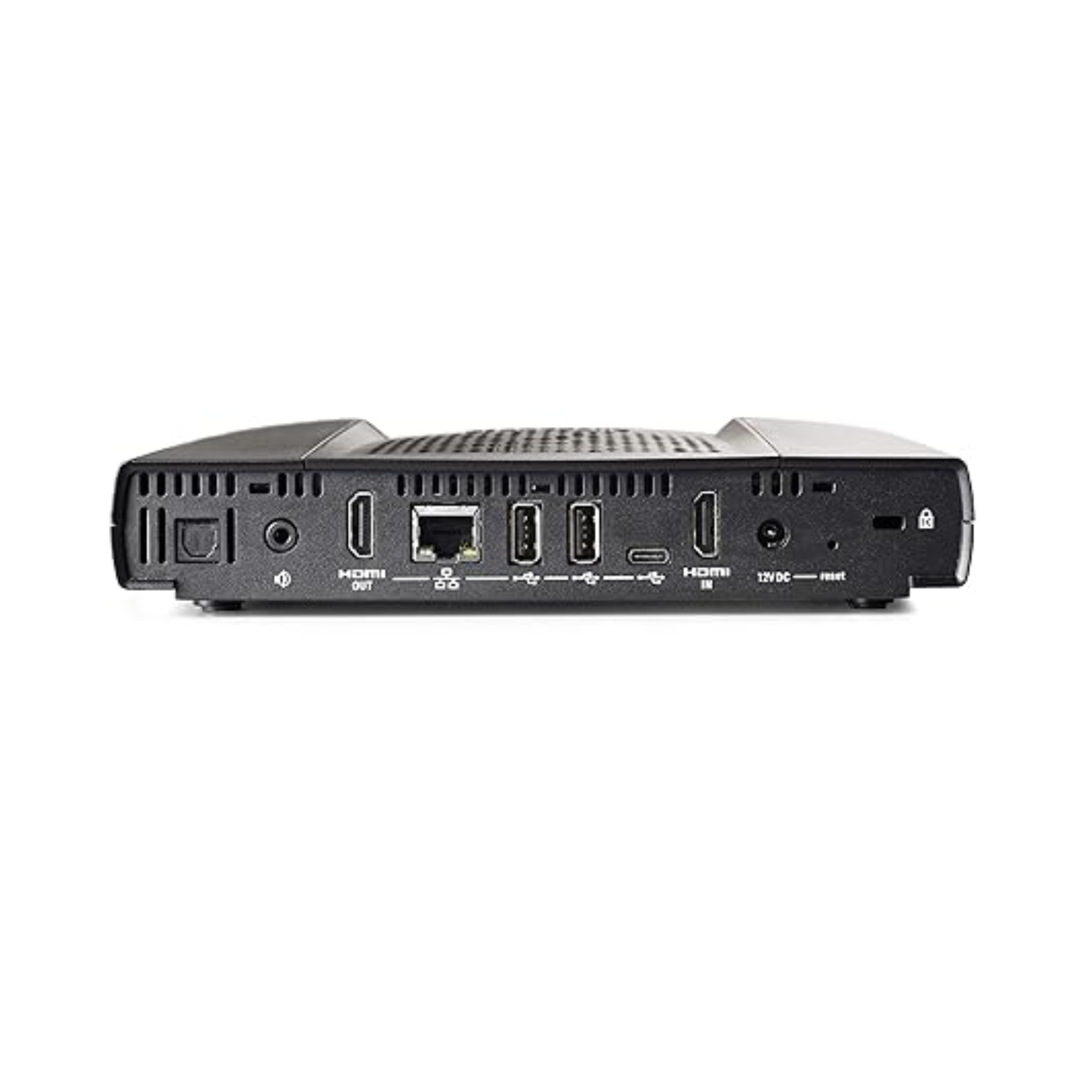

• Connections:
  • 1x Ethernet LAN 1Gbit
  • 1x USB-C 2.0 (back); 2x USB-A 2.0 (back); 1x USB -A 2.0 (front)
  • Audio analog line out on mini jack socket (3.5mm), digital S/PDIF
• Temperature range:
  • Operating: 0°C to +40°C (+32°F to +104°F)
  • Max: 35°C (95°F) at 3000m
  • Storage: -20°C to +60°C (-4°F to +140°F)
• Humidity Storage:
  • 0 to 90% relative humidity, non-condensing
  • Operation: 0 to 85% relative humidity, non-condensing
• Anti-theft system: Kensington lock
• Certifications: FCC/CE
• Touch screen support & Interactivity: Yes
• Wireless conferencing: via App or Button
• Local view: High quality
• Network connection: LAN & WiFi (dual)
• Management and reporting: Yes
• Dimensions (HxWxD): 39mm x 200mm x 202mm /
• Power consumption:
  • Operational: 50W (max)
    Standby
• Power supply: Standard 110/220 V AC plug
• Weight: 900 gr
