Bowers & Wilkins CCM362 In-Ceiling Speakers (Pair)

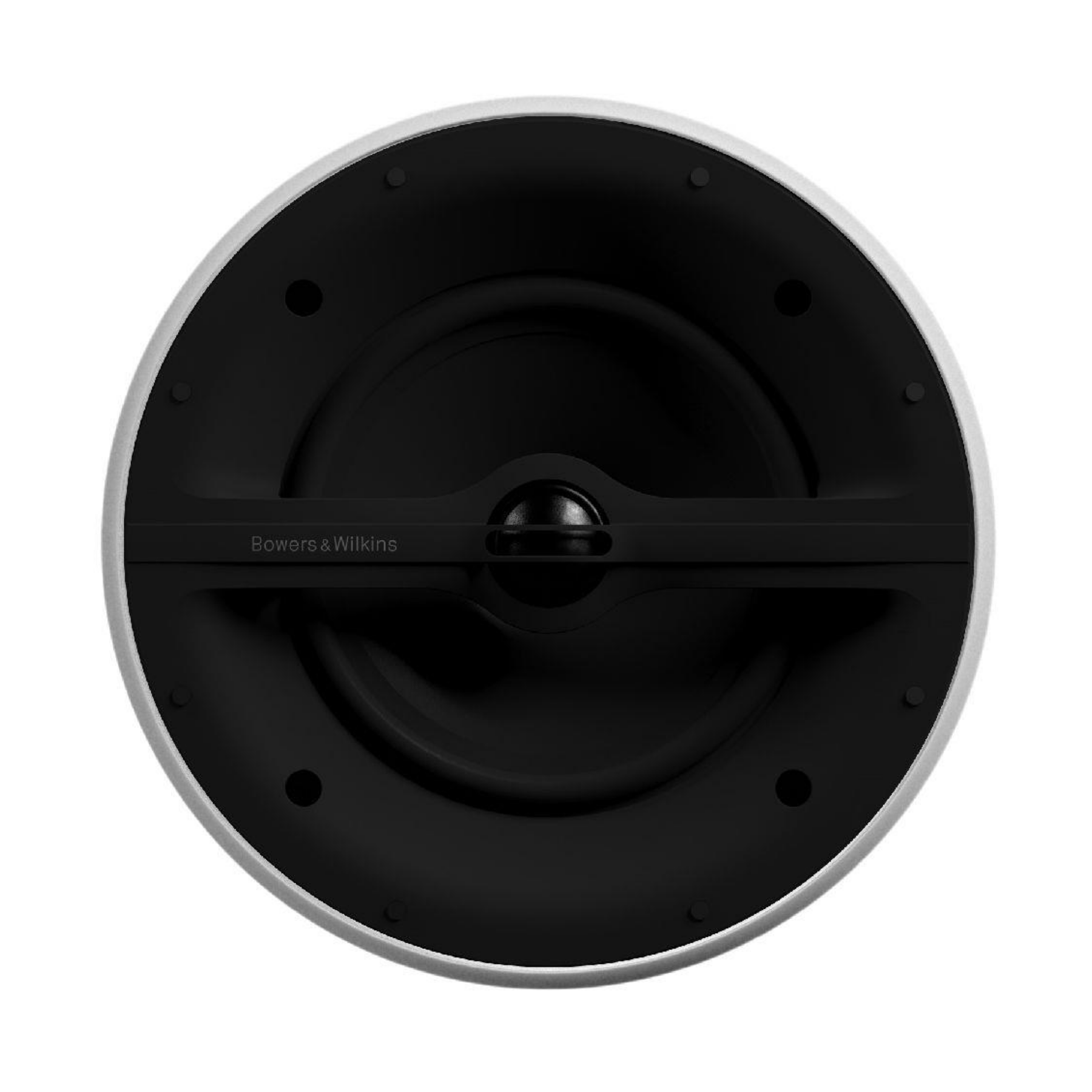

The Bowers & Wilkins CCM362 is a compact, shallow-form in-ceiling speaker designed to deliver high-quality audio in virtually any environment. Featuring a 160mm (6") mid/bass driver and a 25mm (1") soft dome tweeter, the CCM362 provides a smooth, balanced sound profile ideal for music, movies, or whole-home installations. Its discreet, paintable design and minimal depth make it an excellent choice for new builds, retrofits, or anywhere space is limited. Whether you're enhancing a home theater or adding ambient audio to multiple rooms, the CCM362 offers impressive clarity and wide dispersion from a low-profile form factor.
Specifications
-
Type: Two-way in-ceiling speaker
-
Tweeter: 25mm (1") soft dome
-
Mid/Bass Driver: 160mm (6") polypropylene cone
-
Frequency Response: 50Hz – 30kHz
-
Recommended Amplifier Power: 25W – 80W
-
Sensitivity: 89dB
-
Nominal Impedance: 8 ohms (minimum 5.0 ohms)
-
Frame Diameter: 240mm (9.4")
-
Cut-Out Diameter: 202mm (8")
-
Depth Behind Surface: 79mm (3.1")
-
Finish: White (paintable)
-
Grille: Magnetically attached, round
-
Installation: QuickDog™ fixing system
-
Sold As: Pair
Expanded Key Features List
-
Two-Way Design: Includes both a tweeter and woofer for dynamic full-range sound reproduction.
-
6-Inch Polypropylene Cone Woofer: Produces rich, controlled midrange and bass performance.
-
1-Inch Soft Dome Tweeter: Ensures smooth treble with wide dispersion throughout the room.
-
Ultra-Shallow Mounting Depth: Only 3.1 inches deep, perfect for tight ceiling cavities or retrofit installs.
-

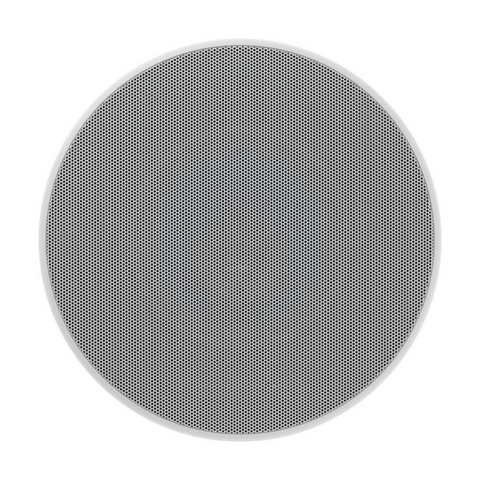

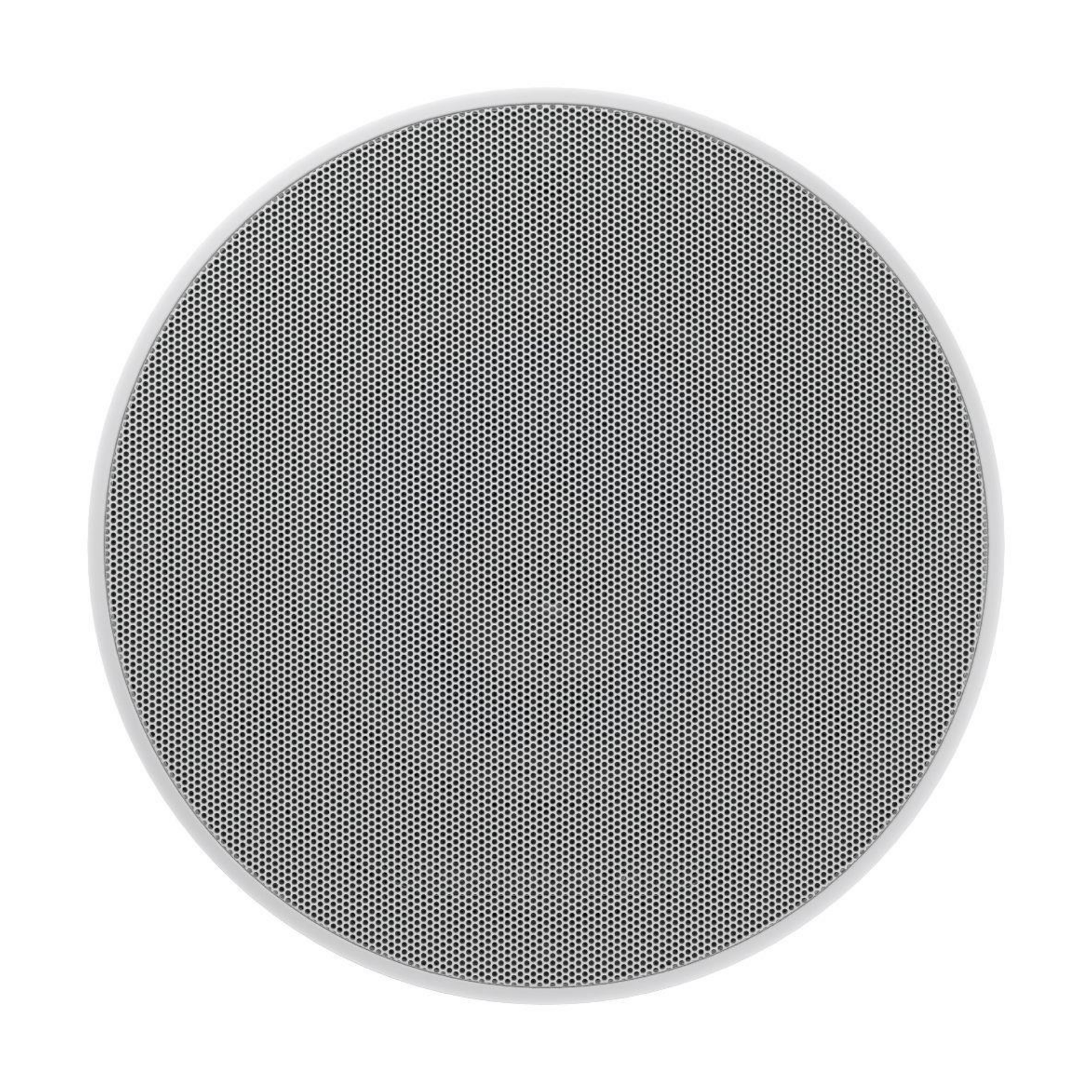

Magnetic Grille: Easy to remove and paint for seamless ceiling integration.
-
QuickDog™ Fixing System: Enables fast and secure installation with minimal tools required.
-
Wide Frequency Range: 50Hz–30kHz for a detailed and immersive audio experience.
-
Ideal for Whole-Home Audio: Compact size and clear sound make it great for distributed audio systems.
Q&A Section
Q: What size is the CCM362 speaker?
A: The CCM362 features a 6-inch (160mm) woofer and a 1-inch (25mm) tweeter in a low-profile ceiling-mounted design.
Q: What is the cut-out diameter required?
A: The speaker requires a cut-out diameter of 202mm (8 inches) for installation.
Q: Can the grille be painted to match my ceiling?
A: Yes, the round magnetic grille is paintable for a seamless appearance.
Q: Is this speaker suitable for shallow ceilings?
A: Yes, with a depth of only 79mm (3.1"), it's ideal for tight ceiling spaces.
Q: Do I need special tools to install the CCM362?
A: No, the QuickDog™ fixing system allows for easy, tool-free installation.
Q: Is this speaker sold individually or as a pair?
A: The CCM362 is sold as a pair.
Q: What kind of amplifier is recommended?
A: Use an amplifier that provides between 25W to 80W per channel for optimal performance.
Q: Is the CCM362 good for home theater setups?
A: While compact, it delivers excellent clarity and dispersion, making it suitable for home theaters or multi-room audio systems.
