Brane Audio X Portable Bluetooth Wireless Smart Speaker
Brane X is a portable smart speaker built for people who refuse to compromise on bass. It’s the first portable speaker designed with a true subwoofer built in—powered by Brane’s proprietary Repel-Attract Driver (RAD) technology—to deliver deep, room-filling low end down to 27.1 Hz while staying remarkably compact. With an immersive 5-driver array and a custom DSP engine performing over 500 million EQ calculations per second, Brane X produces a wide soundstage with clear vocals and crisp highs that feel bigger than its size suggests.
Designed for real life, Brane X is fully waterproof (IP57) for pool days, rain, and outdoor adventures, and it’s equally at home on a countertop with Amazon Alexa built in (when connected to Wi-Fi). Use the Brane Mobile App to fine-tune bass, dial in EQ, manage settings, and wirelessly group up to eight Brane speakers for stereo, multi-room listening, or party mode. Want a wired setup? The 3.5 mm AUX input and Soundbar Mode let Brane X pull double duty as a compact amp or TV speaker.
What It's Good At:
- Delivering jaw-dropping, true subwoofer-style bass in a portable footprint (down to 27.1 Hz)
- Creating an immersive, wide soundstage with a 5-driver array (stereo midrange separation + clear highs)
- Handling outdoor and on-the-go use with full waterproofing (IP57) and rugged portability
- Smart, flexible listening with Wi-Fi streaming, Bluetooth playback, and Alexa voice control
- Easy personalization with app-based bass/mid/treble EQ and custom tuning for different rooms and genres
- Scaling your system by grouping up to 8 speakers for stereo, multi-room, or party playback
Brane X Full Specifications:
-
Category: Smart Speaker (portable)
-
Amplifiers: Four class-D digital amplifiers with combined output of over 200 watts
-

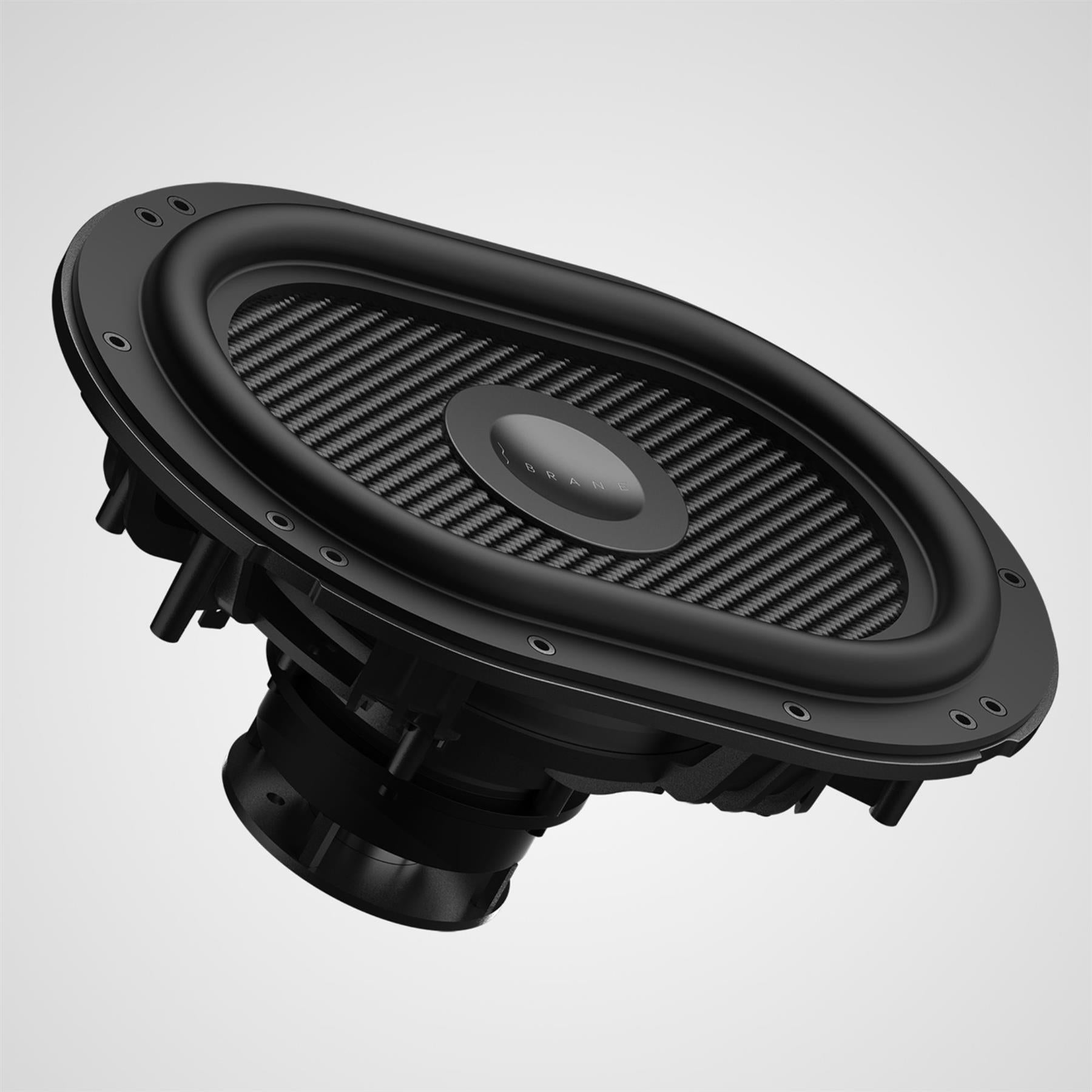

Subwoofer: One high excursion 6.5" x 9" (165 mm x 229 mm) RAD subwoofer; sub-bass down to 27.1 Hz
-
Midrange Drivers: Two 2.5” (64 mm) midrange drivers for distinct stereo separation in the mid frequency band
-
Tweeters: Two 0.75” (19 mm) dome tweeters for clear highs and an ultra-wide soundstage
-
Microphones: Four waterproof microphones for accurate voice recognition
-
Audio EQ: Adjustable bass, midrange and treble via the Brane mobile app
-
Pressure EQ: Internal 50 cc/s pump ensures subwoofer excursion symmetry and launches/lands the driver during startup/shutdown
-

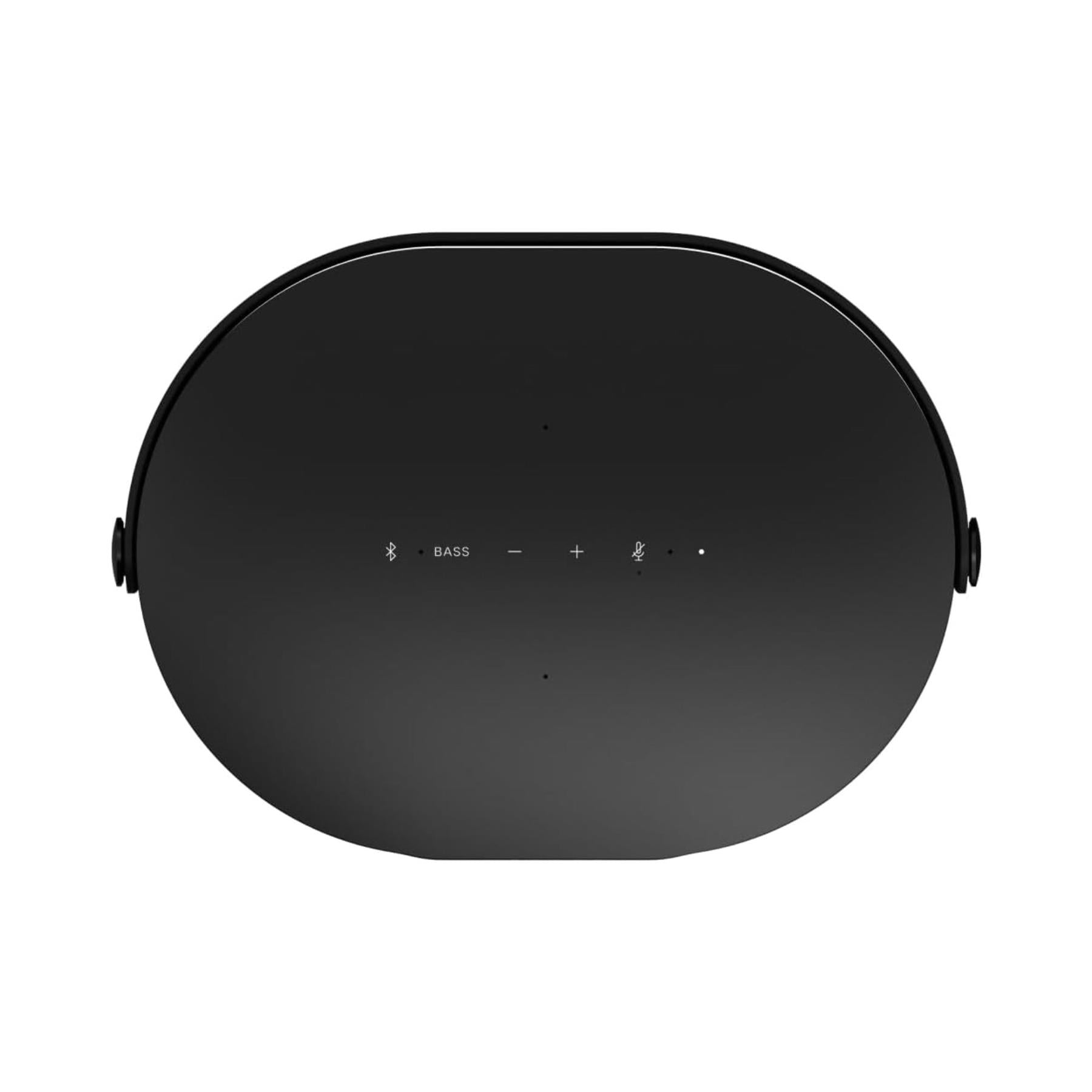

Controls: Six capacitive touch buttons for Bluetooth, bass, volume, mic, and voice control
-
Waterproof Rating: IP57 — fully waterproof; can be submerged in 1 meter of water for up to 30 minutes
-
Dimensions: H 6.1” x W 9.3” x D 7” (H 155 mm x W 237 mm x D 177 mm)
-
Weight: 7.7 lb (3.5 kg)
-
Wi-Fi: Connect to Wi-Fi using any 802.11a/b/g/n/ac router
-
Bluetooth: Yes
-
Streaming Support: Spotify Connect, Pandora, Prime Music, SiriusXM, iHeartRadio, Deezer, TuneIn
-
Voice Assistant: Works with Amazon Alexa when connected to Wi-Fi
-
Battery: 72 watt-hour battery provides up to 12 hours of runtime at moderate volume
-
Charging: Fully recharges in three hours using the included 15-volt, 6-amp power supply
-

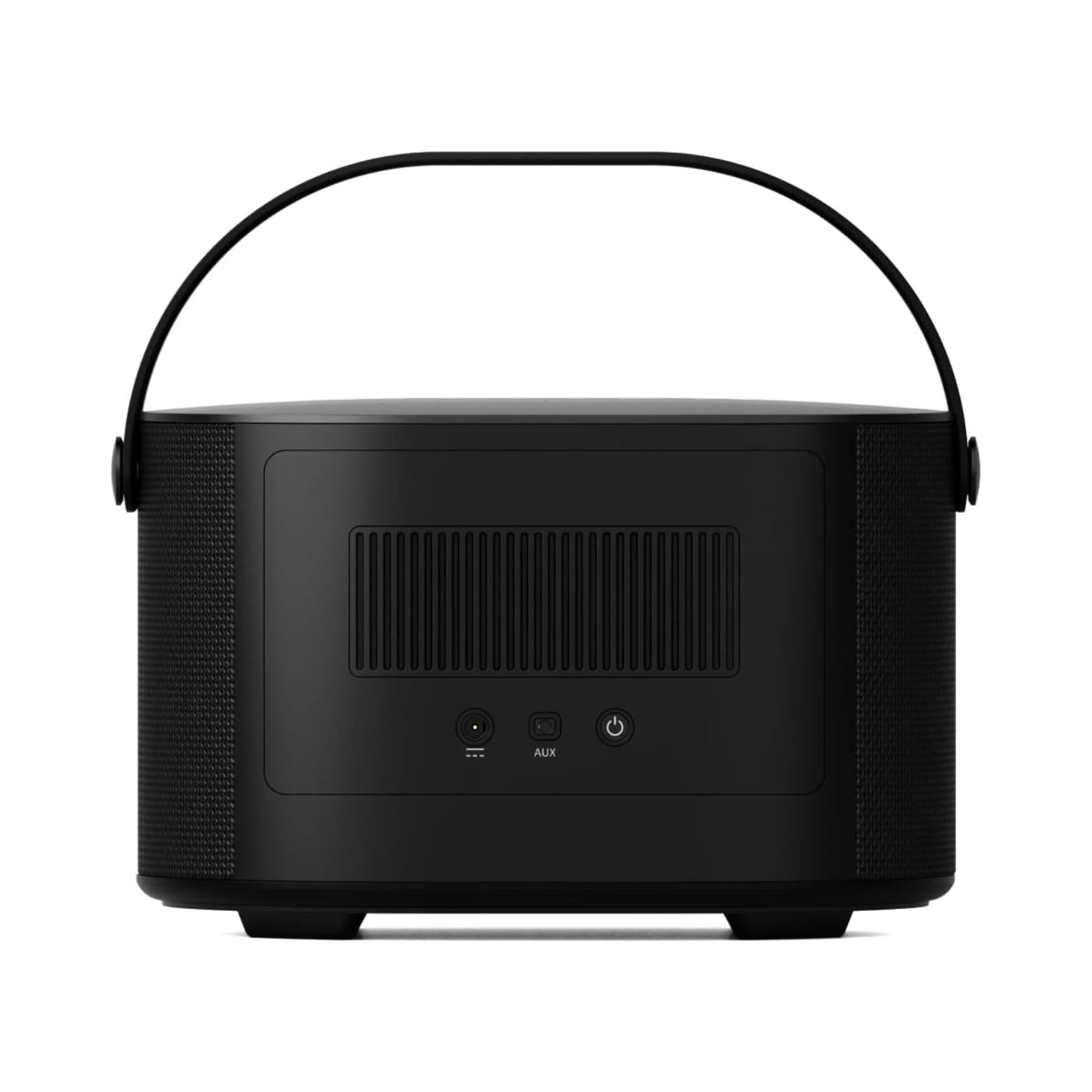

AUX Port: 3.5 mm auxiliary port for connecting to compatible turntables and other external devices
-
FPGA / DSP: Custom DSP engine built inside a high-density field-programmable gate array enables over 500 million EQ calculations per second
-
Operating Temperature: 32°F to 104°F (0°C to 40°C)
-
Storage Temperature: -13°F to 140°F (-25°C to 60°C)
-
What’s Included: Brane X Smart Speaker; Charging Cable + Power Adapter; Quickstart Guide
Brane X Q&A:
- How do I pair Brane X with Bluetooth?
- Press the Bluetooth button on the speaker to enter pairing mode (the front light will pulse blue). Then select Brane X from your phone’s Bluetooth list; the light turns solid blue when connected.
- How do I connect Brane X to Wi-Fi?
- Make sure your phone is on the Wi-Fi network you want to use. If the speaker has never been connected, it will pulse white on startup; if not, press and hold the Bluetooth button for 5 seconds to enable the access point. Open the Brane app and follow the prompts to onboard Brane X; the front light turns solid white when connected.
- What does IP57 waterproof mean for real-world use?
- Brane X is fully waterproof and can be submerged in up to 1 meter of water for up to 30 minutes. It’s designed for poolside, rain, and outdoor listening.
- Can I adjust the sound (bass/EQ) to fit my room or music style?
- Yes. The Brane Mobile App lets you adjust bass, midrange, and treble, and create a custom EQ curve for different rooms, genres, and preferences.
- Can I connect Brane X to a TV or use it like a soundbar?
- Yes. Use the 3.5 mm AUX input for a wired connection, and enable Soundbar Mode in the Brane app to minimize delay and help maintain proper lip sync.
- How long does the battery last, and how fast does it charge?
- The 72 Wh battery provides up to 12 hours of runtime at moderate volume. It fully recharges in about 3 hours with the included 15V/6A power supply.
- Can I group multiple Brane speakers together?
- Yes. In the Brane app, you can link up to eight speakers into stereo pairs or multi-room/party groups (speakers must be on and connected to the same Wi-Fi network).
- Does Brane X support voice control?
- Yes. Brane X works with Amazon Alexa when connected to Wi-Fi, using four waterproof microphones for voice recognition.
Brane X Downloads:
Brane Audio X Manual
Brane Audio X Quick Start Guide
