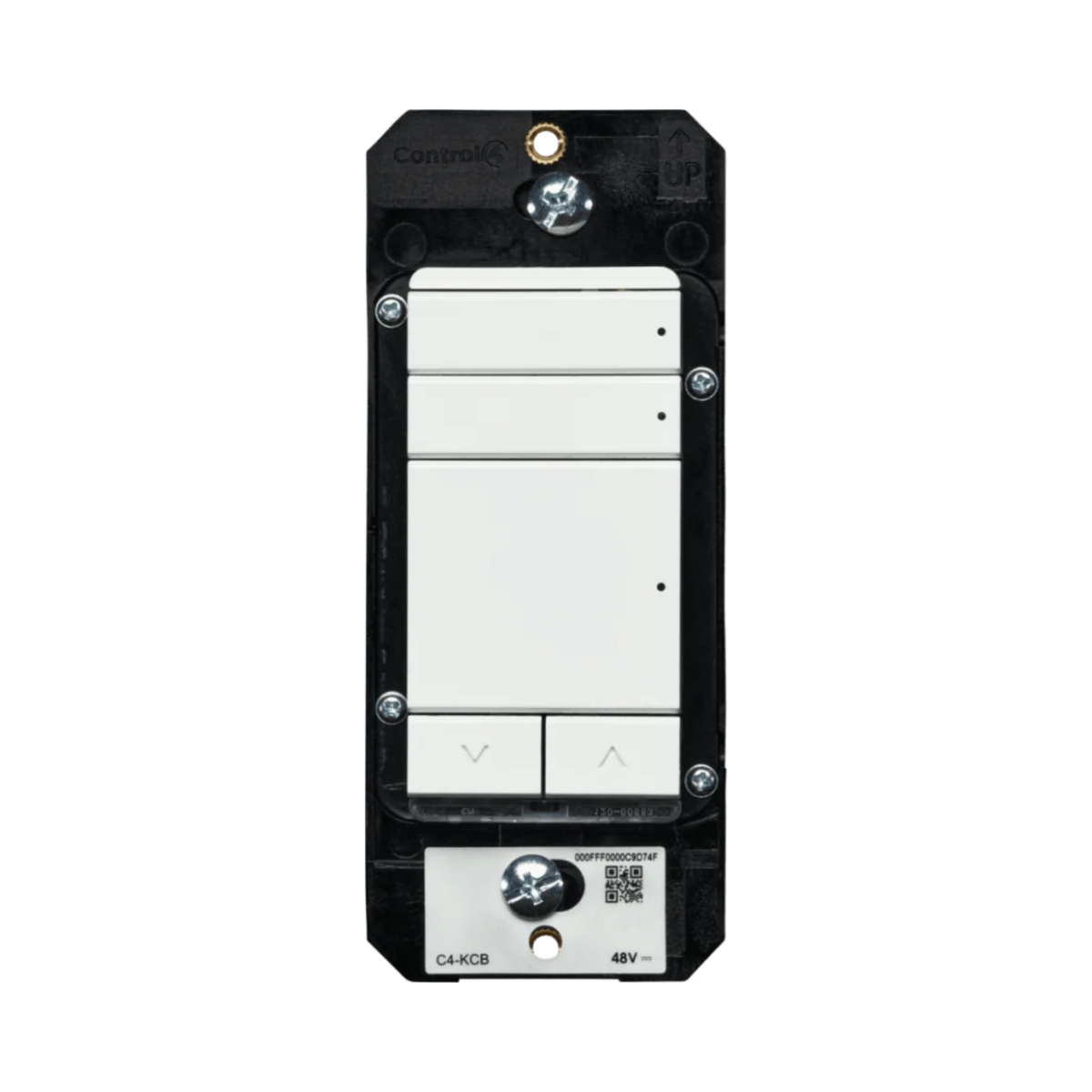

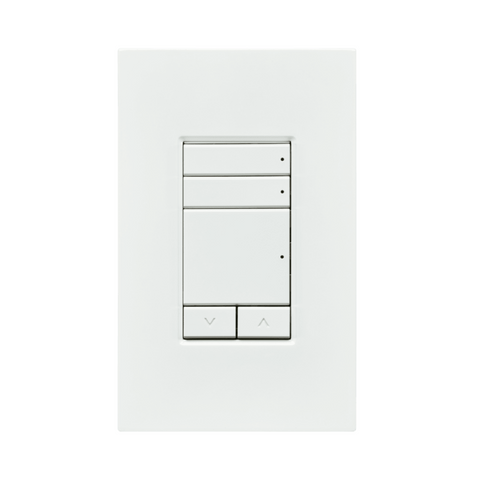

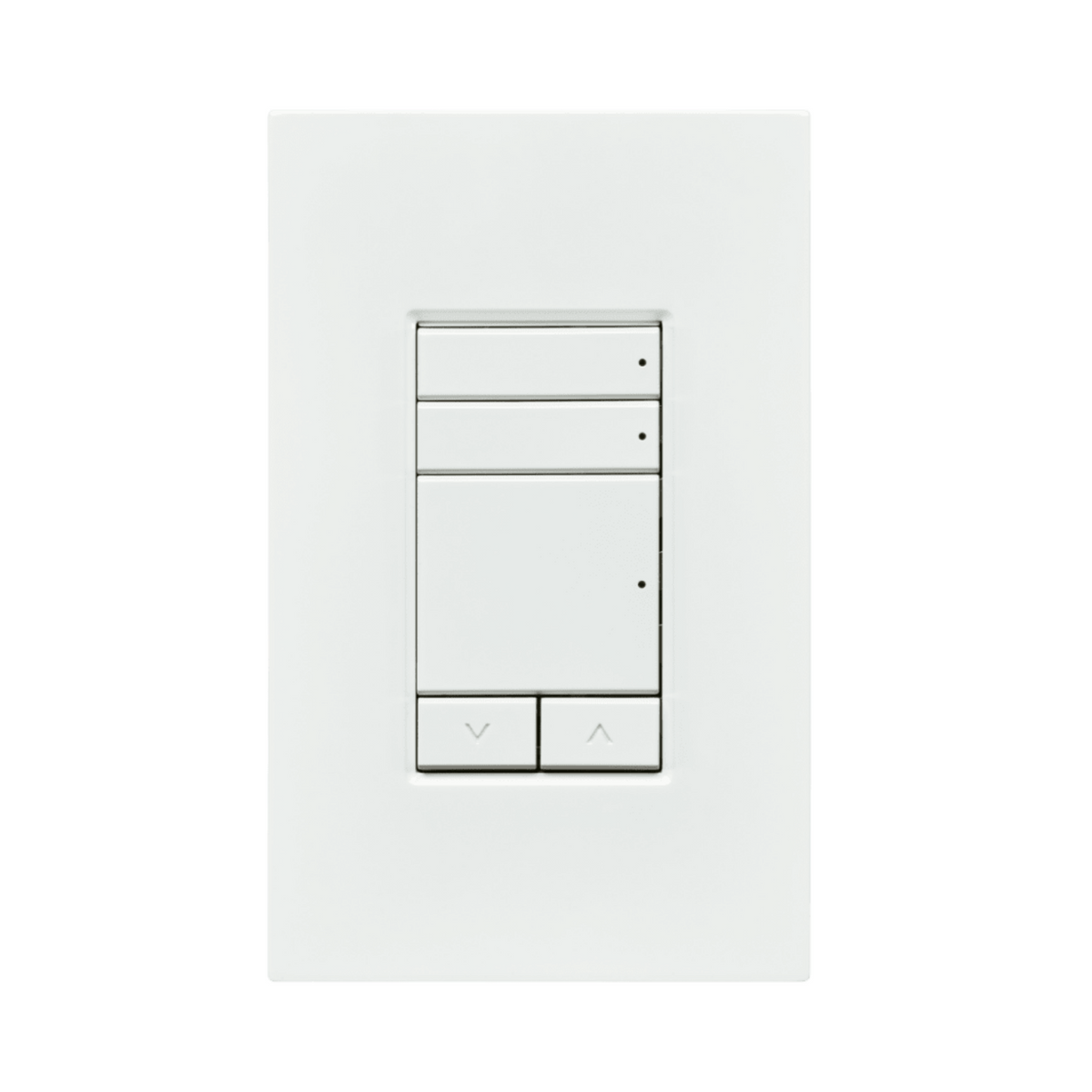

Contemporary Decora Wired Keypad

The Control4 Decora Wired Keypad combines beautiful aesthetics and flexible button configuration, providing a stunning user interface that elegantly controls any aspect of a Control4 system. Control lights, scene, music, security—the possibilities are endless. The keypad can be configured with two to seven buttons using four different button sizes for a total of 37 possible configurations. There’s no need to worry about how many buttons will be needed on a specific keypad prior to (or even after) installation.

The modern, elegant design is the perfect complement to today’s beautiful smart home. Plus, the new buttons provide a more tactile response and provide longevity that you and your customers can rely on.

Features:

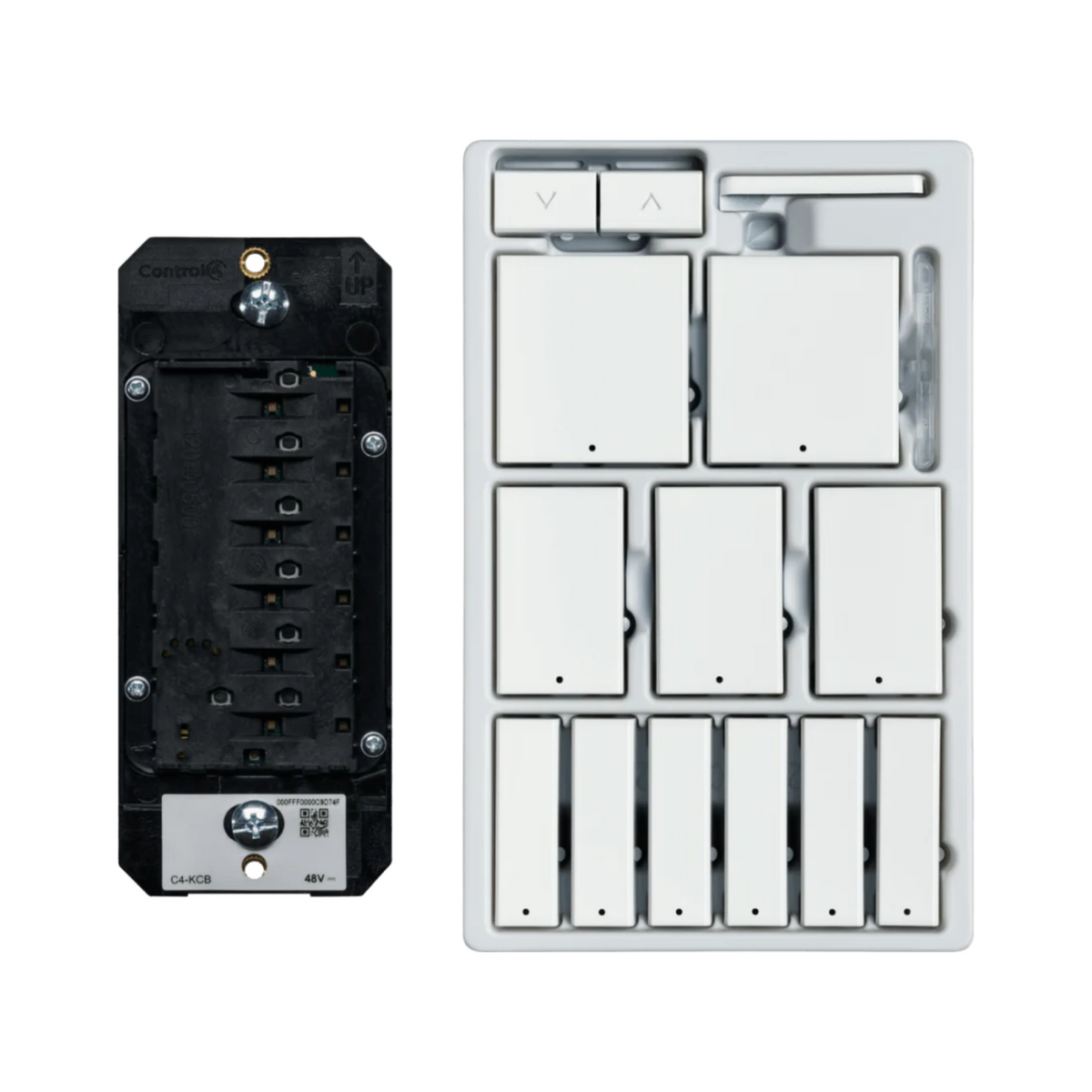

• Includes a button kit with every button necessary to make any of the 37 possible button configurations
• Elegant, sophisticated design makes a beautiful addition to any home or business
• Custom engraving available to clearly identify each button
• Backlit buttons with programmable color control for easy readability regardless of time of day or light level
• Programmable RGB LEDs provide status feedback for lighting and other devices in the system
• Ambient light sensor automatically adjusts backlight and status LED brightness depending on the light level in the room
• Control4® screw-less faceplates, sold separately, provide a sleek profile (See Available Accessories)
• RS-485 Bus Communication
• Compatible with the 48V Bus Power Supply

Specifications

• Buttons:
  • Programmable: 2-7 depending on configuration
  • LED Feedback: One RGB status LED per button
• Power Requirements: 48 VDC
• Power Consumption:
  • Max: 1.2W
  • Min: 0.7W
• Control Communications: RS-485
• Weight:
  • 0.1 lb (0.045 kg)
  • Shipping: 0.3 lb (0.14 kg)
• Wallbox Volume: 4.75 cubic in. (77.8 cubic cm)
• Operational Temperature: 32°F - 104°F (0°C - 40°C)
• Storage Temperature: -4° F - 158° F (-20°C - 70°C)
• Humidity: 5% to 95% non-condensing
