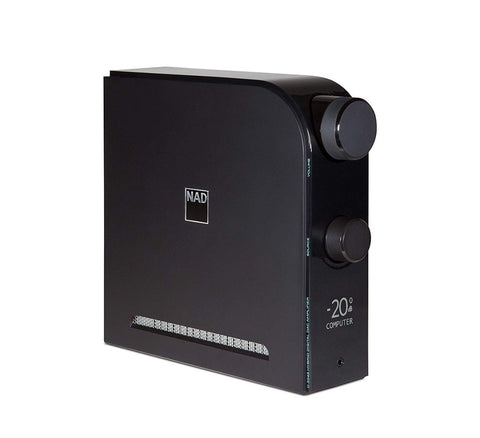

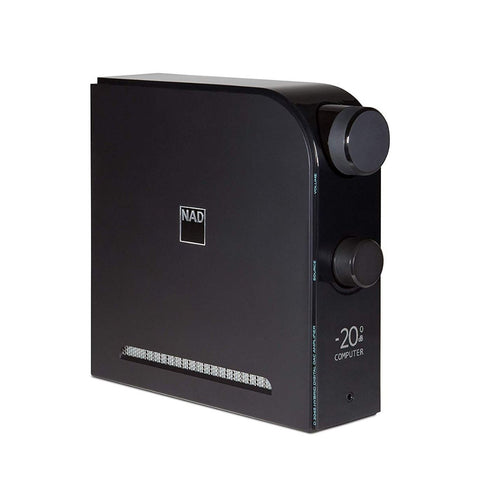

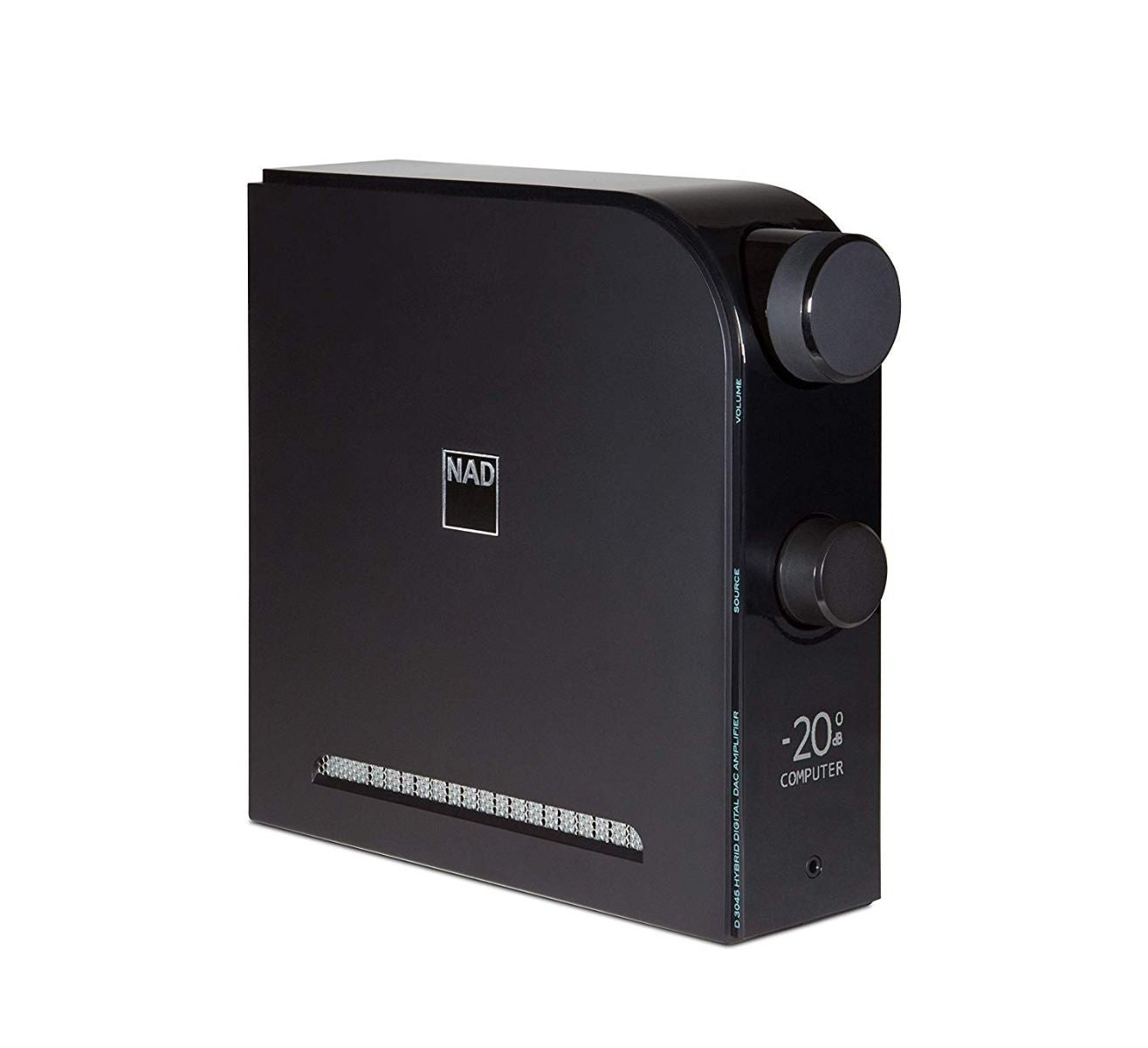

NAD D 3045 HybridDigital DAC Amplifier

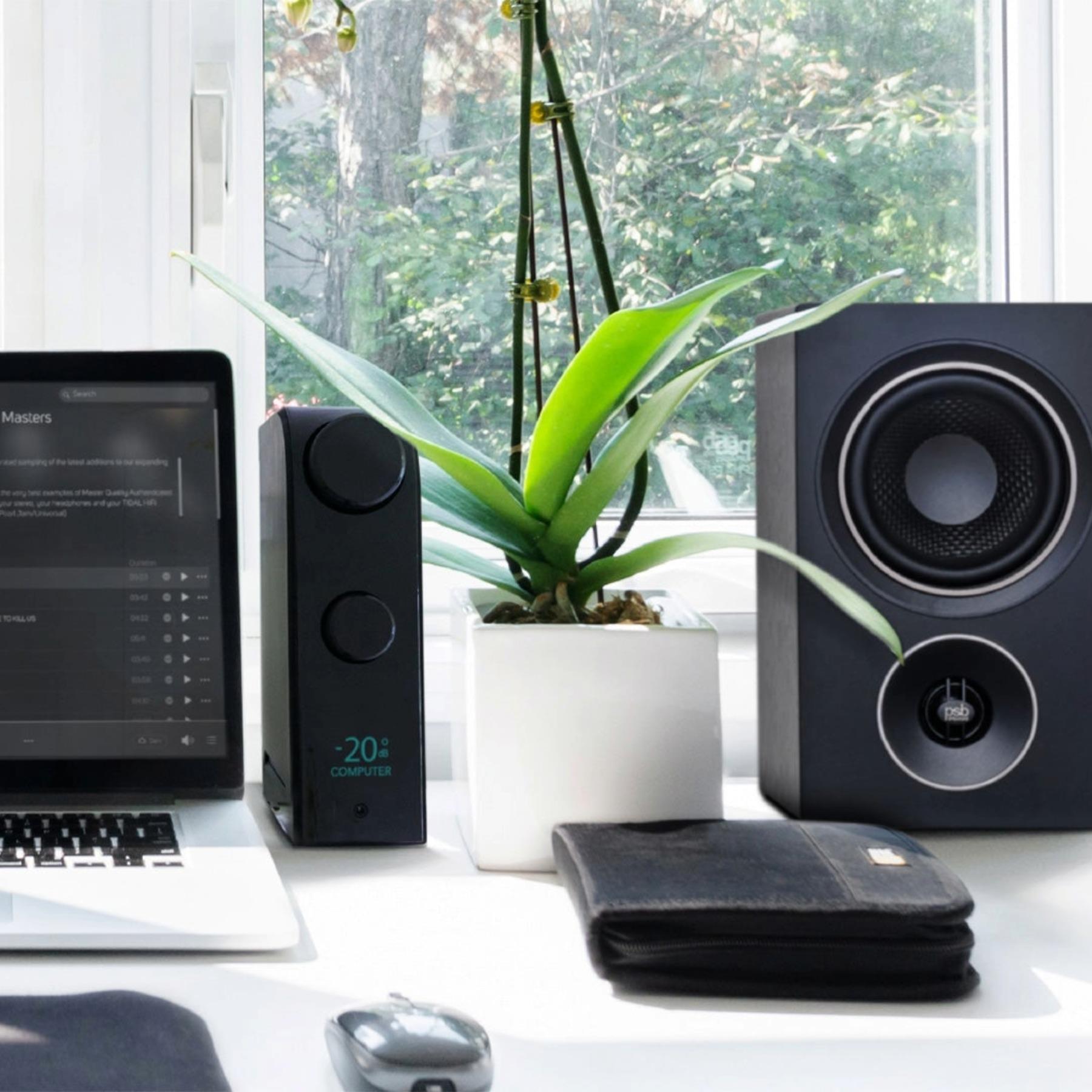

The NAD D 3045 HybridDigital DAC Amplifier is a compact, high-performance integrated amplifier built for modern listening spaces where sound quality matters as much as simplicity. Delivering 60 watts per channel of NAD’s efficient HybridDigital amplification, it drives real-world speakers with confident control—ideal for apartment living rooms, desktop hi-fi setups, or TV-based systems where you want clean dynamics without a full-size rack.

At its core, the D 3045 combines a powerful amplifier with a full-featured high-resolution DAC, so you can connect today’s sources without compromise. Use HDMI ARC to upgrade your TV audio with straightforward control, plug in a computer via asynchronous USB for high-res playback, or connect streamers and consoles through optical/coaxial digital inputs. Wireless listening is handled via Bluetooth with aptX HD, while audiophile staples are covered with a built-in Moving Magnet phono stage for turntables and a dedicated headphone amplifier for private sessions. With pre-out and subwoofer output, the D 3045 is ready to grow with your system as your needs evolve.

The NAD D 3045 is part of ListenUp's NAD Music Streamer Collection.

What It's Good At:

• Big, controlled sound in small spaces with 60W/ch HybridDigital power that stays clear as volume climbs
• TV audio upgrade made easy using HDMI ARC for cleaner dialogue and simple control
• Hi-res music from computers via asynchronous USB for detailed, low-jitter playback
• Flexible wireless streaming with Bluetooth and aptX HD for better-than-basic Bluetooth sound
• Vinyl-ready performance thanks to a built-in Moving Magnet phono input with accurate RIAA EQ
• System expansion without replacing gear using pre-out and subwoofer output for future upgrades

NAD D 3045 Full Specifications:

• Preamplifier Section (Line Input / Pre Out)
  • THD (20Hz–20kHz): <0.003% at 2V out
  • Signal-to-Noise Ratio: >100dB (IHF, A-weighted, ref. 500mV out, unity gain)
  • Channel separation: >85dB (1kHz); >80dB (10kHz)
  • Input impedance (R and C): 47kohms + 220pF
  • Maximum input signal: >5.5Vrms (ref. 0.1% THD)
  • Output impedance: 400 Ohms
  • Input sensitivity: 82mV (ref. 500mV out, Volume maximum)
  • Frequency response: ±0.2dB (20Hz–20kHz)
  • Maximum voltage output (IHF load): >4V (ref. 0.1% THD)
• Phono Input / Pre Out
  • THD (20Hz–20kHz): <0.015% at 2V out
  • Signal-to-Noise Ratio: >82dB (200 Ohm source, A-weighted, ref. 500mV out)
  • Signal-to-Noise Ratio: >76dB (MM cartridge source, IHF; A-weighted, ref. 500mV out)
  • Input sensitivity: 1.35mV (ref. 500mV out, Volume maximum)
  • Maximum input signal at 1kHz: >90mVrms (ref. 0.1% THD)
  • Frequency response: ±0.3dB (20Hz–20kHz)
• Line Input / Headphone Out
  • THD (20Hz–20kHz): <0.003% at 120mW
  • Signal-to-Noise Ratio: >90dB (32 Ohm load; A-weighted, ref. 500mV out, unity gain)
  • Frequency response: ±0.3dB (20Hz–20kHz)
  • Output impedance: 2 Ohms
  • Maximum headphone output (32 Ohm load): <8V (ref. 0.1% THD)
• General Specifications (Line Input / Speaker Out)
  • Continuous output power into 4 and 8 Ohms: 60W (ref. 20Hz–20kHz at 0.03% THD, both channels driven)
  • THD (20Hz–20kHz): <0.005% (at 1W, 4 and 8 ohms)
  • Signal-to-Noise Ratio: >98dB (A-weighted, 500mV input, ref. 2.828V out in 4 Ohms)
  • Clipping power: >80W (at 1kHz 4 Ohms 0.1% THD)
  • IHF dynamic power: 8 Ohms: 80W; 4 Ohms: 150W; 2 Ohms: 200W
  • Peak output current: >18A (in 1 Ohm, 1ms)
  • Damping factor: >300 (ref. 8 Ohms, 20Hz to 6.5kHz)
  • Frequency response: ±0.3dB (20Hz–20kHz)
  • Channel separation: >75dB (1kHz); >70dB (10kHz)
  • Input sensitivity: 260mV (for 30W in 4 Ohms)
  • Supports bit rate/sample rate: up to 24 bit/192kHz (digital source); up to 24 bit/384kHz (computer source)
  • Standby power: <0.5W
• Dimension and Weight
  • Gross dimensions (W x H x D): 70 x 235 x 265 mm / 2 13/16 x 9 5/16 x 10 7/16 inches
  • Net weight: 3.6kg (7.9lb)
  • Shipping weight: 2.6kg (5.7lb)

NAD D 3045 Q&A:

What speakers can the NAD D 3045 drive?

With 60 watts per channel and strong current capability, the D 3045 is designed to drive a wide range of speakers confidently, staying controlled and clear as volume increases.

How do I connect the D 3045 to my TV?

Use the HDMI ARC input to send TV audio directly to the amplifier while keeping control simple for everyday watching.

Can I play high-resolution audio from a computer?

Yes. The asynchronous USB input supports high-resolution playback up to 24-bit/192kHz from computers and workstations.

Does it support wireless Bluetooth streaming?

Yes. Built-in Bluetooth with aptX HD provides higher-quality wireless playback than standard Bluetooth for compatible devices.

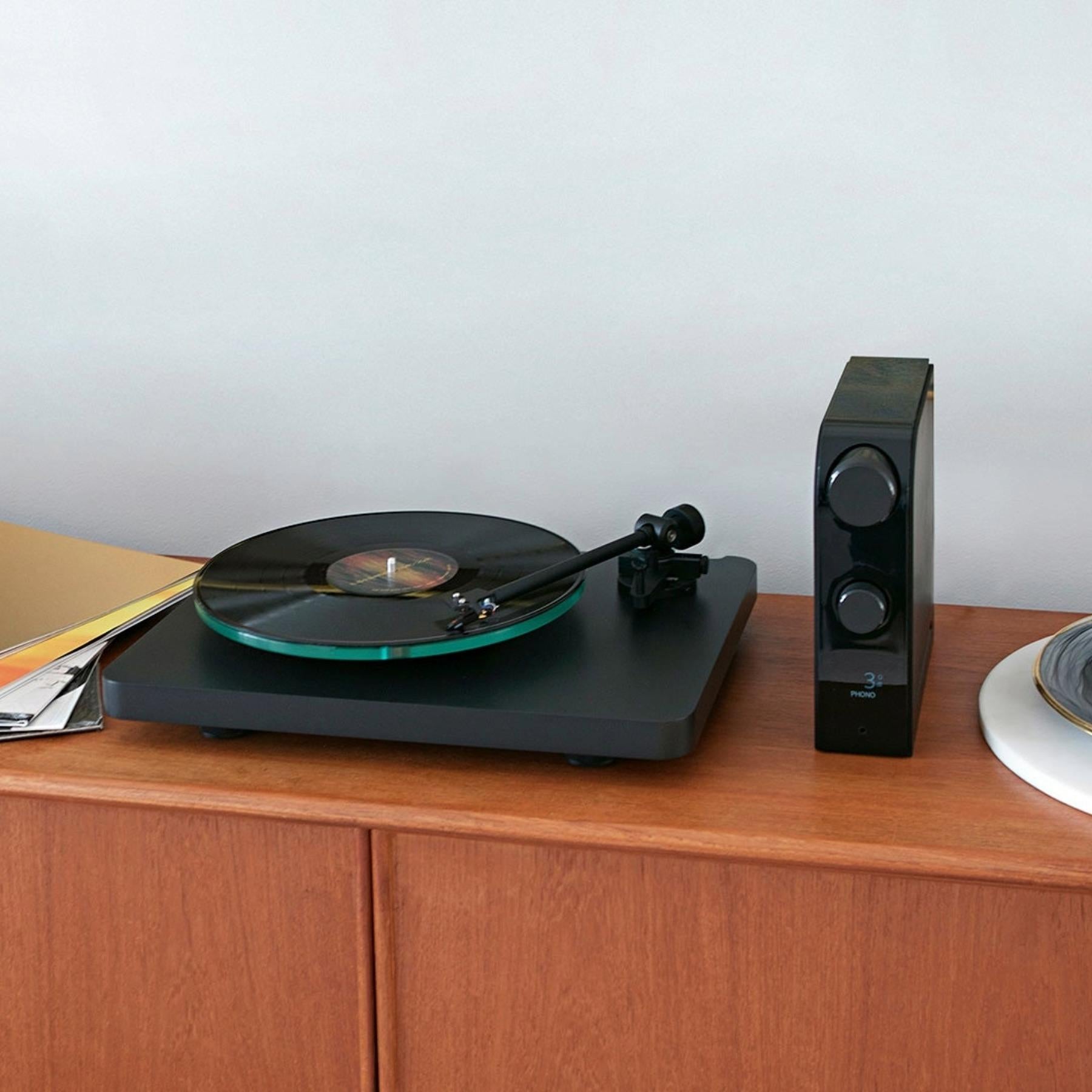

Can I connect a turntable directly to the D 3045?

Yes. It includes a Moving Magnet (MM) phono input with accurate RIAA equalization, so a turntable can be connected without an external phono preamp.

What digital inputs are available besides HDMI?

The D 3045 includes optical and coaxial digital inputs for connecting streamers, game consoles, CD transports, and other digital sources.

Can I add a subwoofer or expand the system later?

Yes. A dedicated subwoofer output and pre-out connections make it easy to extend bass performance or add external amplification later.

Is there a headphone output, and is it high quality?

Yes. The D 3045 features a dedicated headphone amplifier designed for private listening with controlled, low-noise performance.

NAD D 3045 Downloads:

NAD D 3045 Manual
NAD D 3045 Quick Start Guide
NAD D 3045 Data Sheet
