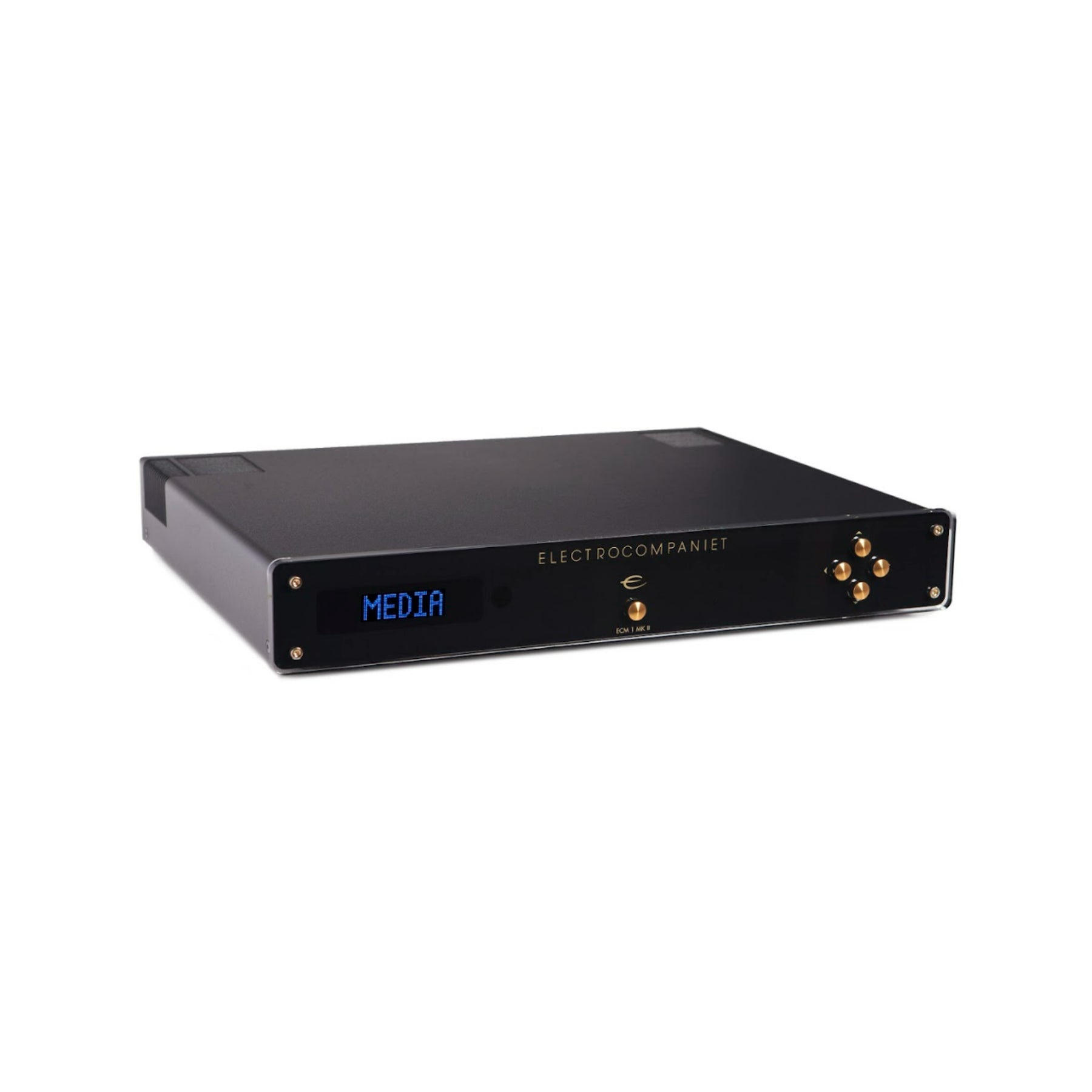

Electrocompaniet ECM 1 MKII High End DAC & Music Streamer

The new ECM 1 MKII serves as both a DAC and music streamer, featuring innovative in-house developed streaming software and app that play lossless, DSD, and high-resolution digital content, inviting you to explore the rich tapestry of music available.

Improved Design

The ECM 1 MKII boasts updated technical and sonic enhancements, along with new mechanics and design that align with the latest MKII versions of our product line.

Future-Proof EC Software Engine

Utilizing the same app and interface as our EC Living line, the ECM 1 MKII allows you to play all your music seamlessly across all units, offering the perfect blend of high-end audio quality and multi-room flexibility.

Top Streaming Services

The powerful and user-friendly streamer supports direct playback from Tidal, Spotify, and Qobuz, and can be connected via AirPlay, DLNA, or Bluetooth.

Reference DAC

Equipped with two Cirrus Logic converters, the ECM 1 MKII processes each channel at 192 kHz with 24-bit precision.

Reference Analog Stage

The analog output stage is entirely symmetrical, ensuring superior sound quality and performance.

Specs

• Measurements: 120V/240V, 50Hz/60Hz
• Channels: 2
• Output Impedance: 300 Ohms
• Noise Floor: < -145 dB (20 - 20 kHz)
• Frequency Response: 0.5 - 48 kHz
• THD+N: < 0.0005%
• Upsampling Rate: 192 kHz, 24 bit
• Digital/Analog Conversion: 192 kHz, 24 bit
• Network Connection: Wi-Fi or LAN
• Internal Drive: Docking, self-installation, 3.5"/2.5" (unlimited capacity)
• Supported Formats: WAV, MP3, AAC+, FLAC, DSD (up to DSD 128)
• Control Interfaces: DLNA, UPnP, Android/iOS remote
• Streaming Services: AirPlay 2, Spotify Connect, Qobuz, TIDAL Connect, Roon Ready, DLNA, Internet Radio
• Bluetooth Streaming: Yes (from any Bluetooth-enabled device)
• Power Consumption: 50 W (no load), 0.5 W (standby)
• Dimensions: 470 mm x 381 mm x 80 mm (18.5" x 14.99" x 3.14")
• Weight: 8.3 kg (18 lbs)
