The Fosi Audio ZH1 Smart-Tuned Fully Balanced Desktop DAC & Headphone Amplifier combines an ESS ES9039Q2M DAC, XMOS XU316 processor, and dual TPA6120 amplifiers to deliver high-resolution PCM up to 32-bit/768kHz and DSD512 with up to 2,300mW per channel of balanced headphone output power. Featuring 3.5mm, 6.35mm, and 4.4mm headphone connections, USB-C, optical, and coaxial inputs, and stereo RCA outputs, the ZH1 provides versatile connectivity for music listening, gaming, and desktop Hi-Fi systems. With AI-assisted Smart PEQ tuning, three selectable gain levels, a customizable 1.2-inch LCD display, and nine RGB lighting modes, the ZH1 combines powerful headphone performance with personalized sound control.
Get the Details

Fosi Audio ZH1 Smart-Tuned Fully Balanced Desktop DAC & Headphone Amplifier

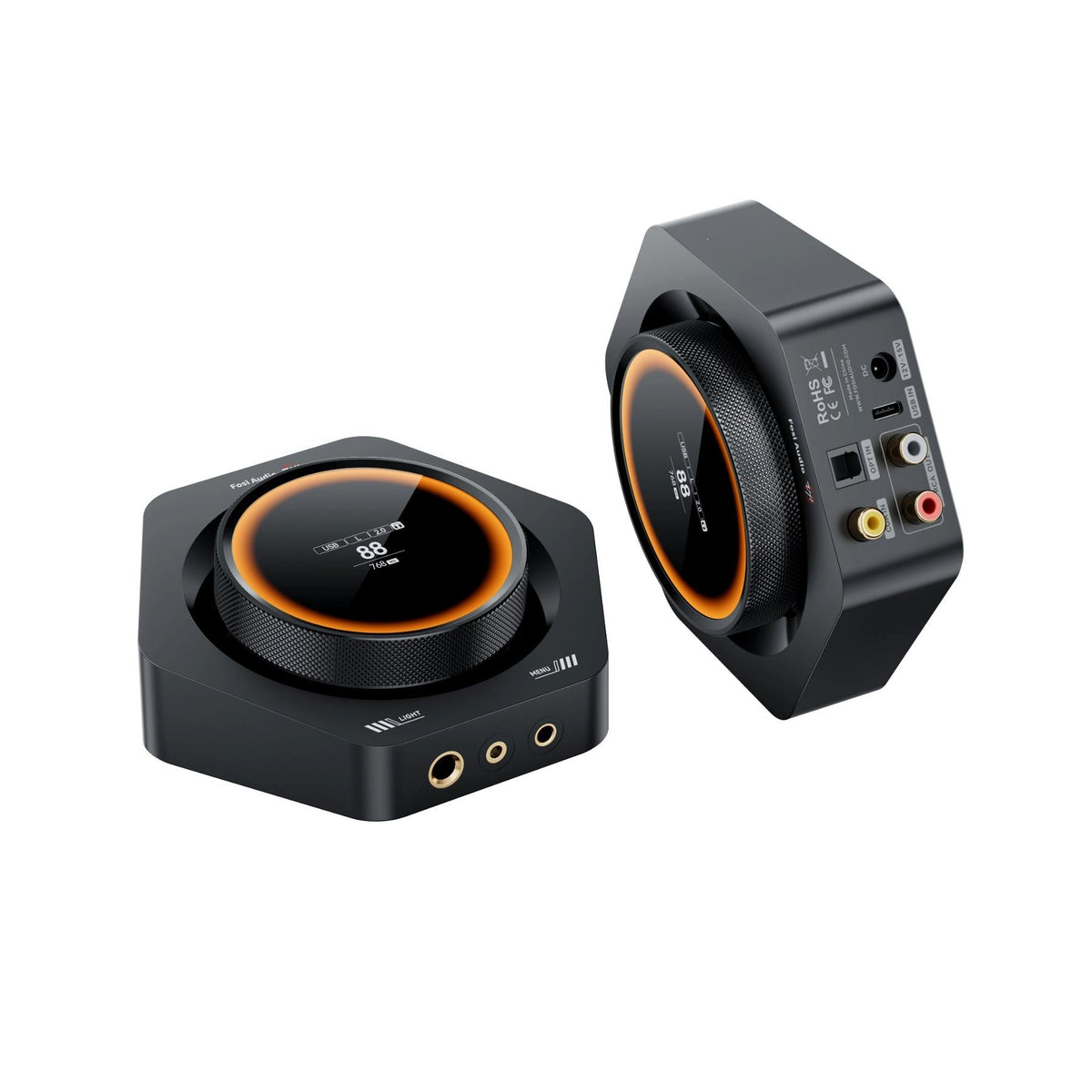

Experience powerful, personalized desktop audio with the Fosi Audio ZH1 Smart-Tuned Fully Balanced Desktop DAC & Headphone Amplifier, an all-in-one Hi-Fi component designed for music enthusiasts, gamers, and headphone listeners who want exceptional sound with advanced customization. Featuring a premium ESS ES9039Q2M DAC, XMOS XU316 USB processor, and dual Texas Instruments TPA6120 amplifier chips, the ZH1 combines high-resolution digital-to-analog conversion with fully balanced Class-AB headphone amplification. Delivering up to 2,300mW per channel into 32 ohms through its balanced headphone output, the ZH1 provides ample power for compatible in-ear monitors and over-ear headphones. With AI-assisted parametric EQ, versatile digital connections, and customizable RGB lighting, the ZH1 brings modern performance and flexibility to your desktop listening setup.

At the heart of the ZH1 is the ESS Sabre ES9039Q2M digital-to-analog converter, paired with an XMOS XU316 USB processor capable of decoding PCM audio up to 32-bit/768kHz and DSD512. The fully balanced Class-AB amplification circuit uses two Texas Instruments TPA6120 amplifier chips to deliver detailed sound with low distortion and excellent dynamic range. Fosi Audio's carefully optimized circuitry provides a manufacturer-rated signal-to-noise ratio of at least 124dB, total harmonic distortion plus noise of 0.0002% or less, and a noise floor of 1.7µV or less. This combination helps preserve subtle musical details while providing the dynamic performance needed for demanding recordings, games, and movies.

One of the ZH1's standout features is its Smart Acoustic Assistant, an AI-assisted parametric equalization system designed to simplify personalized sound tuning. Instead of manually adjusting complex EQ settings, users can describe their preferred sound characteristics or select listening presets optimized for gaming, movies, and music. The system can generate personalized parametric EQ profiles and reference an open-source headphone database to help align supported headphone frequency responses with the Harman Target. A dedicated web-based control panel provides visual EQ adjustment, profile management, and EQ file sharing, allowing listeners to fine-tune their sound without requiring extensive audio engineering knowledge.

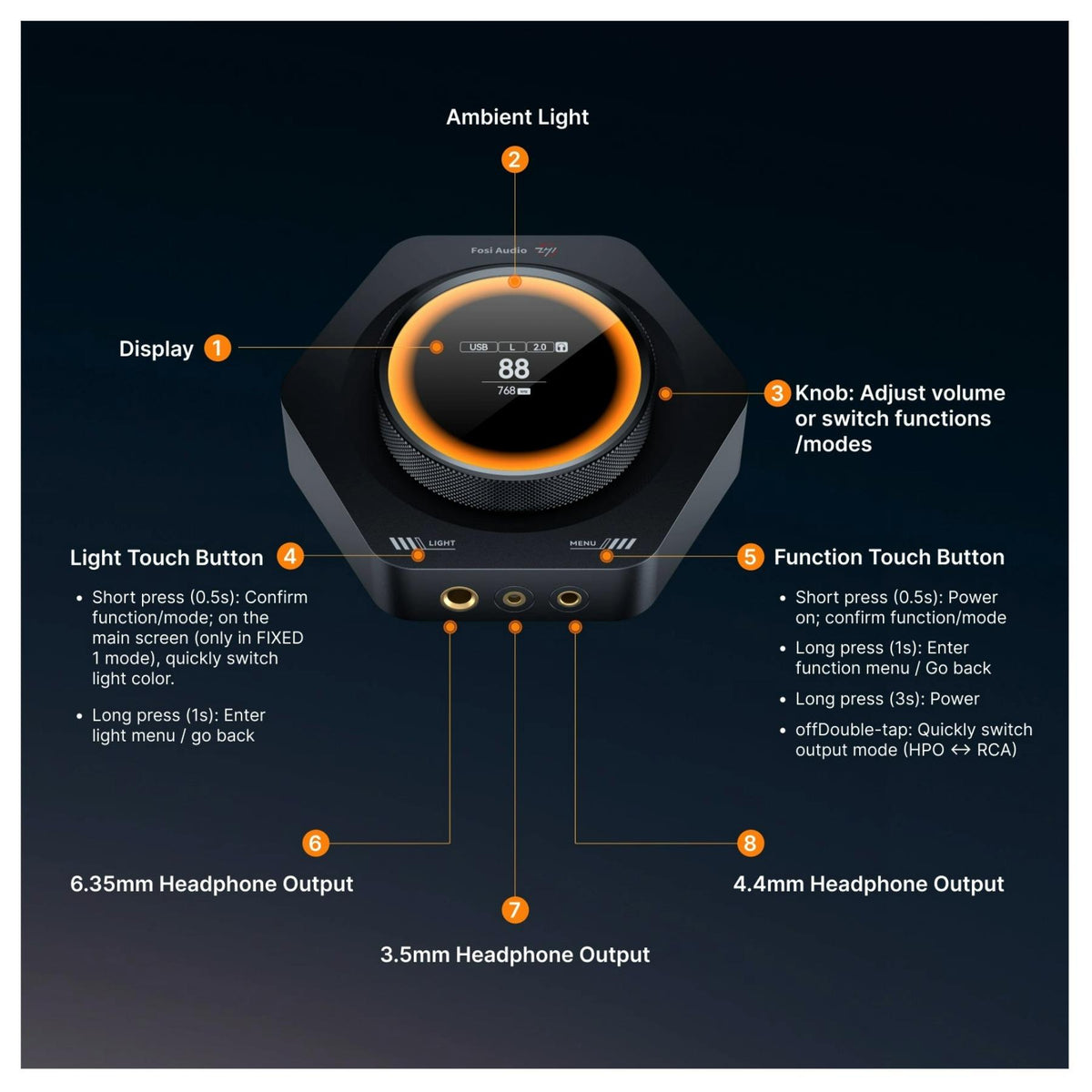

Designed to accommodate a wide variety of headphones, the Fosi Audio ZH1 features three headphone connections: a 3.5mm single-ended output, a 6.35mm single-ended output, and a 4.4mm balanced output. The 4.4mm balanced connection delivers up to 2,300mW per channel into 32 ohms, while the 6.35mm single-ended output provides up to 589mW per channel into 32 ohms. Three selectable gain levels allow the ZH1 to accommodate compatible headphones with impedances from 8 to 300 ohms, making it suitable for sensitive in-ear monitors as well as many full-size audiophile headphones. A convenient output-switching function lets users move between headphone playback and the rear stereo RCA output, with independent volume memory for each listening mode.

Connectivity is another strength of the ZH1. USB-C, optical, and coaxial digital inputs make it easy to connect compatible computers, CD transports, game consoles, and other digital audio sources. Support for USB Audio Class 1.0 expands compatibility with gaming systems such as the PlayStation 5 and Nintendo Switch, allowing the ZH1 to function as a dedicated gaming DAC and headphone amplifier. The rear stereo RCA output also allows the ZH1 to connect to compatible powered speakers or external amplifiers, making it a versatile centerpiece for desktop Hi-Fi systems that alternate between headphones and speakers.

The ZH1 combines advanced audio functionality with a distinctive modern design. A 1.2-inch HD LCD displays essential playback information, while an aluminum rotary knob and touch-sensitive controls provide convenient access to volume, settings, and listening modes. A customizable RGB light ring offers nine dynamic lighting modes, including effects that respond to volume changes. Color, sensitivity, and lighting behavior can be adjusted through the web control panel, allowing the ZH1 to complement gaming stations, desktop audio systems, and minimalist listening spaces. With its combination of powerful balanced amplification, high-resolution audio conversion, intelligent sound tuning, and flexible connectivity, the Fosi Audio ZH1 offers a compelling all-in-one solution for personalized headphone listening and desktop Hi-Fi.

Specifications

• Brand: Fosi Audio
• Model: ZH1
• Product Type: Fully balanced desktop DAC, headphone amplifier, and stereo preamplifier
• Audio Channels: 2-channel stereo
• Amplifier Class: Class-AB
• Amplifier Architecture: Fully balanced headphone amplification
• DAC Chip: ESS Sabre ES9039Q2M
• USB Audio Processor: XMOS XU316
• Headphone Amplifier Chips: 2 × Texas Instruments TPA6120
• Maximum PCM Resolution: 32-bit/768kHz
• Maximum DSD Resolution: DSD512
• Maximum Balanced Headphone Output Power: 2,300mW × 2 at 32 ohms, THD+N below 1%
• Maximum Single-Ended Headphone Output Power: 589mW × 2 at 32 ohms, THD+N below 1%
• Supported Headphone Impedance: 8–300 ohms
• Gain Settings: 3 selectable levels
• Signal-to-Noise Ratio: At least 124dB
• Dynamic Range: At least 124dB
• Total Harmonic Distortion + Noise: 0.0002% or less
• Noise Floor: 1.7µV or less
• Total Audio Input Types: 3
• USB Audio Input: 1 × USB-C
• Optical Digital Input: 1 × TOSLINK
• Coaxial Digital Input: 1 × coaxial S/PDIF
• USB Audio Class Compatibility: UAC 1.0 support for compatible gaming consoles
• Gaming Compatibility: Compatible PCs, PlayStation 5, and Nintendo Switch
• Total Audio Output Types: 4
• 3.5mm Headphone Output: 1 × single-ended stereo
• 6.35mm Headphone Output: 1 × single-ended stereo
• 4.4mm Headphone Output: 1 × balanced stereo
• Analog RCA Output: 1 × stereo RCA pair
• RCA Output Function: Analog output for compatible powered speakers and external amplifiers
• Output Switching: Quick double-tap switching between headphone and RCA output modes
• Volume Memory: Independent volume memory for headphone and RCA output modes
• Sound Customization: AI-assisted parametric equalization
• EQ System: Smart Acoustic Assistant
• EQ Presets: Optimized listening profiles for gaming, movies, and music
• Personalized EQ Generation: Natural-language sound preference input
• Headphone EQ Database: Integration with an open-source headphone measurement database
• Headphone Target Matching: Harman Target frequency response alignment for supported headphones
• EQ Customization: Web-based visual parametric EQ adjustment
• EQ Sharing: Supports EQ file sharing through the web control interface
• Control Interface: Web-based settings and EQ customization panel
• Display: 1.2-inch HD LCD
• Front-Panel Controls: Aluminum rotary knob and touch-sensitive controls
• RGB Lighting: Integrated customizable RGB light ring
• Lighting Modes: 9 dynamic RGB effects
• Volume-Synchronized Lighting: Supported
• Lighting Customization: Adjustable color, sensitivity, and lighting effects through the web control panel
• Power Input: DC 12–15V
• Included Power Supply: External power adapter
• Built-In DAC: Yes
• Built-In Headphone Amplifier: Yes
• Analog RCA Audio Inputs: 0
• Balanced XLR Audio Outputs: 0
• Headphone Microphone Input: No dedicated microphone input listed
• Passive Speaker Amplification: No
• Speaker Binding Posts: No
• Stereo Speaker Pairs Powered Directly: 0
• Bluetooth Connectivity: No
• Wi-Fi Connectivity: No
• Apple AirPlay: No
• Built-In Music Streaming Services: No
• HDMI Inputs: 0
• HDMI Outputs: 0
• Remote Control: No
• Web-Based EQ Control: Yes
• 12V Trigger Input: No dedicated connection listed
• 12V Trigger Output: No dedicated connection listed
• Manufacturer Warranty: 24-month limited warranty
• Included Accessories: Fosi Audio ZH1 DAC/headphone amplifier, USB-A/USB-C to USB-C cable, power adapter, and quick guide

What It's Great At

• AI-Assisted Personalized Sound: Smart Acoustic Assistant generates customized parametric EQ settings based on listening preferences, supported headphone measurements, and presets for gaming, movies, and music.
• Powerful Fully Balanced Headphone Amplification: Dual Texas Instruments TPA6120 amplifiers deliver up to 2,300mW per channel into 32 ohms through the 4.4mm balanced output for compatible audiophile headphones.
• High-Resolution ESS Sabre DAC: The ES9039Q2M DAC and XMOS XU316 processor support PCM up to 32-bit/768kHz and DSD512 for detailed digital audio reproduction.
• Versatile Headphone and Speaker Connectivity: Three headphone connections and stereo RCA outputs provide flexibility for switching between personal listening and compatible desktop speaker systems.
• Hi-Fi and Gaming Compatibility: USB-C, optical, and coaxial inputs with UAC 1.0 support accommodate compatible computers, digital audio sources, and gaming consoles, including PlayStation 5 and Nintendo Switch.
• Customizable Display and RGB Lighting: A 1.2-inch LCD, responsive controls, and nine adjustable RGB lighting effects provide clear playback information and a personalized desktop appearance.

FAQ Section

Q: What is the Fosi Audio ZH1? A: The Fosi Audio ZH1 is a fully balanced desktop DAC, headphone amplifier, and stereo preamplifier designed for high-resolution music, gaming, and personal audio. It combines an ESS ES9039Q2M DAC, XMOS XU316 USB processor, and dual TPA6120 headphone amplifier chips with AI-assisted parametric equalization and versatile digital connectivity.

Q: How much headphone power does the Fosi Audio ZH1 deliver? A: The ZH1 delivers a maximum of 2,300mW per channel into 32 ohms through its balanced 4.4mm headphone output and 589mW per channel into 32 ohms through its single-ended output, measured with THD+N below 1%. It supports compatible headphones with impedances ranging from 8 to 300 ohms and includes three selectable gain levels.

Q: What headphone connections does the Fosi Audio ZH1 have? A: The ZH1 provides three wired headphone connections: 3.5mm single-ended, 6.35mm single-ended, and 4.4mm balanced. This allows users to connect compatible in-ear monitors and over-ear headphones without requiring a separate headphone amplifier.

Q: How does the Fosi Audio ZH1 AI Smart PEQ feature work? A: The Smart Acoustic Assistant allows users to describe their preferred sound characteristics or select presets for gaming, movies, and music. It can generate personalized parametric EQ settings and reference a headphone measurement database to help align supported headphones with the Harman Target. A web-based control panel provides additional visual tuning and EQ management.

Q: Does the Fosi Audio ZH1 support high-resolution audio? A: Yes. Its ESS ES9039Q2M DAC and XMOS XU316 USB processor support PCM playback up to 32-bit/768kHz and DSD512 through compatible USB connections. Actual playback capability depends on the connected source, playback software, and selected audio format.

Q: Can the Fosi Audio ZH1 connect to powered speakers? A: Yes. The ZH1 includes a stereo RCA output for connection to compatible powered speakers or external amplifiers. A convenient double-tap control switches between headphone and RCA output modes, and independent volume memory helps preserve preferred listening levels when changing outputs.

Q: Can I use the Fosi Audio ZH1 with a PlayStation 5 or Nintendo Switch? A: Yes. The ZH1 supports USB Audio Class 1.0, providing compatibility with supported gaming consoles such as PlayStation 5 and Nintendo Switch. Its Smart Acoustic Assistant also includes gaming-focused EQ presets that can be customized to suit individual preferences.

Q: Does the Fosi Audio ZH1 support Bluetooth, Apple AirPlay, or Wi-Fi streaming? A: No. The ZH1 is a wired digital audio component with USB-C, optical, and coaxial inputs. It does not include Bluetooth, Wi-Fi, Apple AirPlay, or independent network streaming services. The web-based control panel is designed for EQ and device customization rather than built-in wireless music playback.
