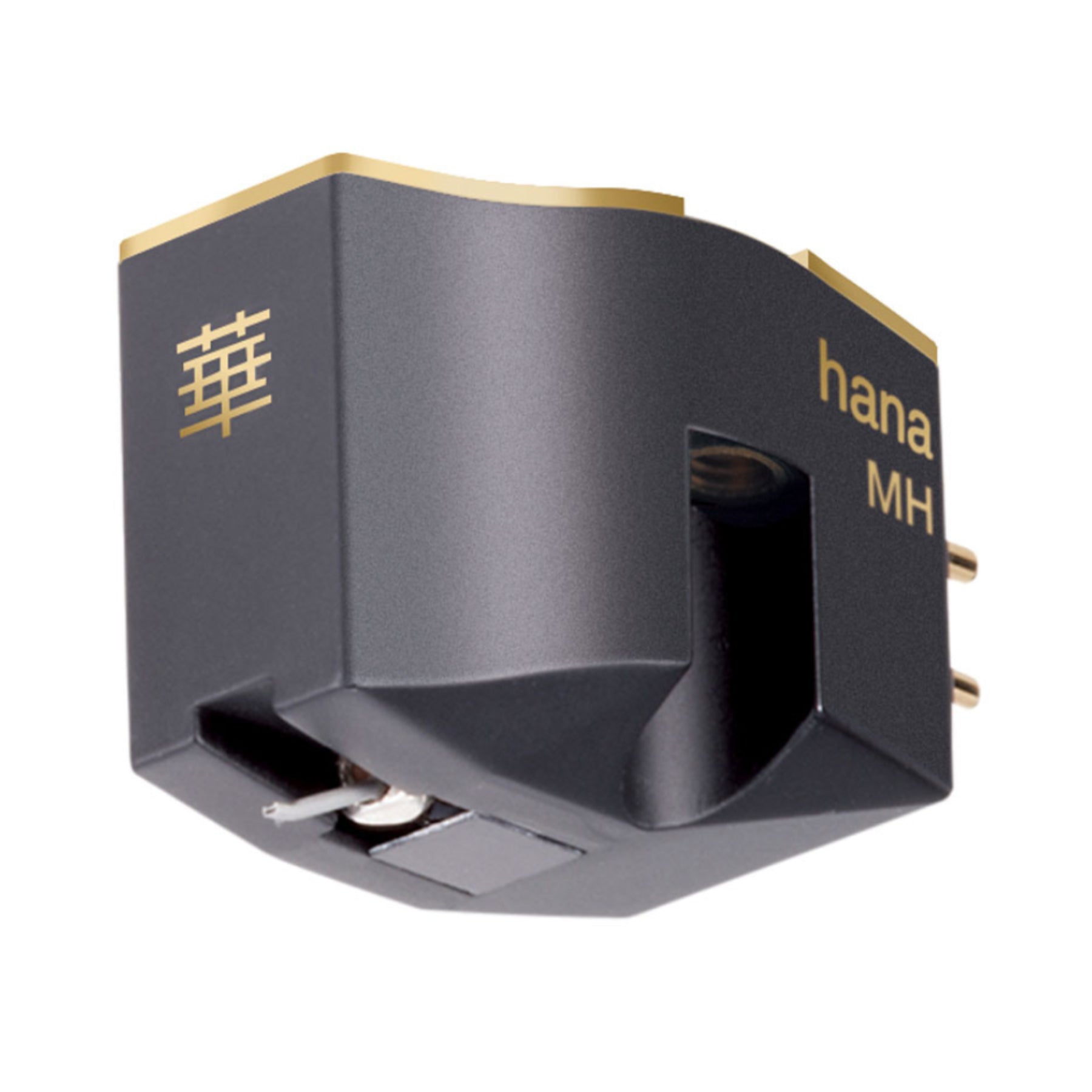

MH: Hana M Series Moving Coil Stereo Cartridge - Micro Line Stylus

• Nude Microline Tip Stylus
• MH 2mV output @3.54cm/sec
• Aluminum Cantilever
• Tracking force 2 grams
• Frequency Response: 12-45,000Hz
• Impedance: 130Ω/1kHz
• Loading: 47kΩ

The Hana MH, one of the world's best High Output Moving Coil cartridges combines the technological advances of the Hana M Series with the optimal interface for moving magnet phono stages.

M Series Nude Microline stylus & Higher Specification Part
Befitting its name, the M Series uses a Nude Microline stylus, mimicking the cutting stylus and fitting more precisely into the vinyl groove. This enhances tracking to capture the most delicate musical details with better frequency reproduction, stereo imaging, and resolution.

Delrin cartridge body & Advanced Materials
The M Series cartridge body is injection molded from Delrin, a high-tech polymer with improved mechanical characteristics for better resonance damping, to reveal more low level information and enhance dynamic range.

Cryogenic Processing - Unique Technical Treatment
Cryogenic processing is Cold Annealing at near absolute zero temperature that restructures metals at the molecular level, especially important in the Alnico based magnetic electro-motive circuit (cartridge signal generator). The M Series parts treated include the front yoke as well as center and rear components. The result is a more precise and controlled magnetic flux field for greater linearity and musical sound quality.

Brass Cap with Threaded fittings - Superior Mechanical Interface
The Delrin cartridge body features an integral machined brass cap providing constrained mode layer damping and its heavier 9.5 gram weight provides expanded compatibility with a wider range of tonearms and turntables.

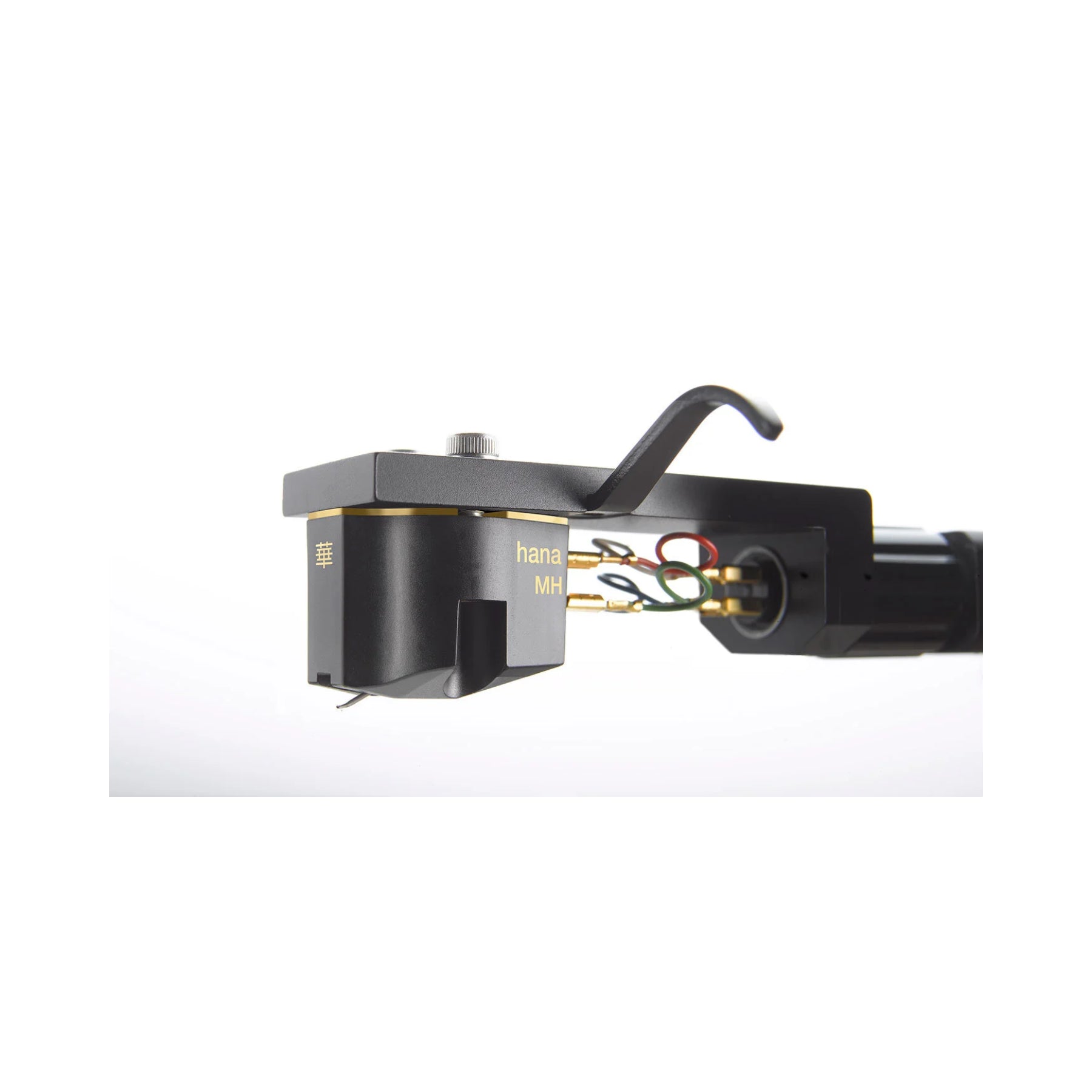

Built into the M Series Delrin cartridge body are metal threaded fittings for headshell mounting hardware, offering easier attachment and a superior mechanical interface for better bass and dynamics.
