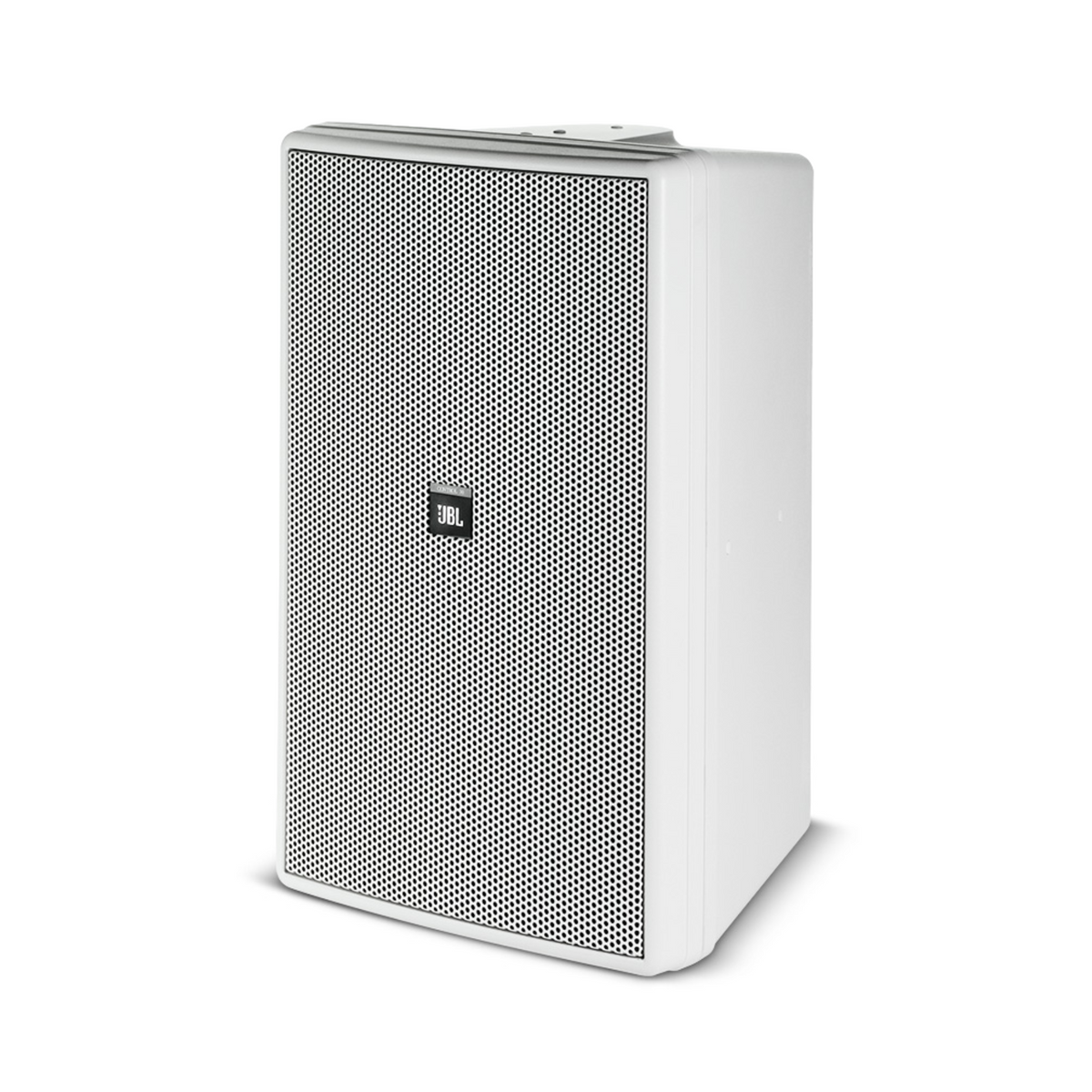

JBL Control 30

The Control 30 utilizes high power components, computer optimized horn and coaxial component design, patent-pending cabinet manufacturing techniques, and a complex network to achieve smooth high fidelity performance, extended bandwidth and well-controlled, defined coverage from a compact loudspeaker.

A symmetrical mid-high frequency horn allows use of the speaker in either vertical or horizontal orientation. Smooth frequency response and cone-midrange performance ensures excellent sound character throughout the frequency band, over the entire listening area.

The top-quality line distribution transformer, designed for minimal insertion loss and reduced saturation, allows use of either 70V or 100V distributed speaker lines. In bypass position, the 4 ohm impedance allows use of multiple speakers on a loudspeaker line.

The included InvisiBall mounting method is simple to install, aims easily and provides a high degree of theft deterrence. InvisiBall allows horizontal rotation of up to 41° off-axis and vertical rotation of up to 36° (horn end inward) or 23° (woofer end inward). Attachment points for the optional MTC-30UB (-WH) U-bracket allows for compact installation and is particularly useful for low profile under-balcony applications.

Weather resistance has been maximized. The neodymium magnet LF woofer has a fiberglass and Kevlar composite cone, the surround is pure butyl rubber, and the basket is rear loaded to minimize exposure. The MR cone of the coaxial mid-high driver is anodized aluminum with a formulation EPDM rubber surround, and the HF compression driver’s diaphragm is pure titanium. The coaxial component is protected by an acoustically transparent screen. The grille is thermoset composite
coated and stands up very well to UV as well as humidity. The grille is backed with our WeatherMax multi-layer foam, which prevents the direct incursion of water. Nickel/zinc rust-resistant terminals ensure a secure input connection. An MTC-PC2 sealed-entrance cover is included to further protect the speaker’s terminals.

JBL’s exclusive SonicGuard overload protection is virtually inaudible to the listener, ensuring reliability while providing full fidelity sound.

Features:

• Extended bandwidth, extremely smooth frequency response
• Fully outdoor-capable design, featuring WeatherMax™ multi-layer grille
• 120° x 110° HF coverage
• 150W transformer for 70V or 100V lines, with 4Ω thru
• SonicGuard® overload protection

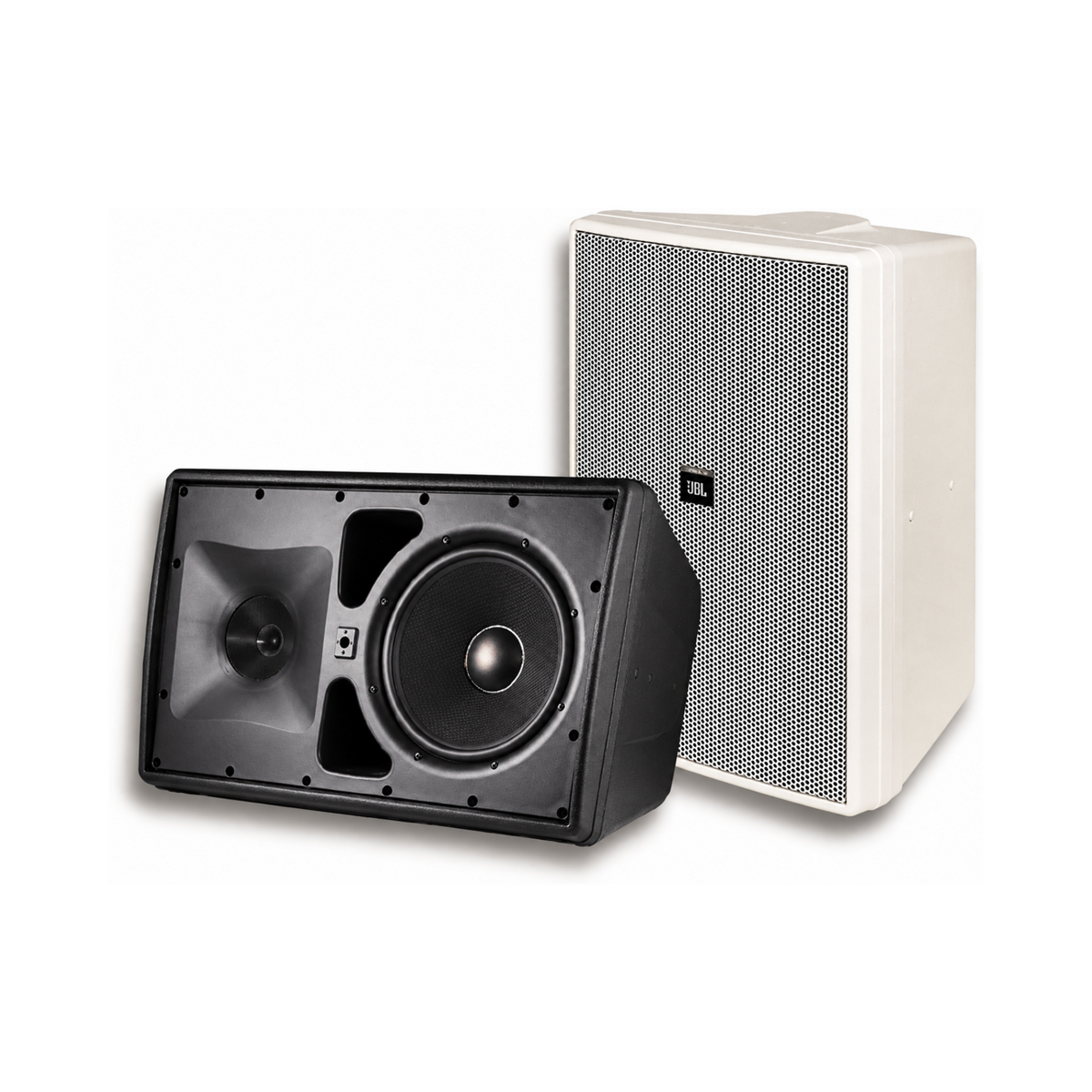

• 250 mm (10 in) fiberglass/Kevlar® cone LF woofer, with neodymium magnet coaxial 125 mm (5 in) anodized aluminum cone MR, and 25 mm (1 in) titanium diaphragm compression driver
• Includes InvisiBall® mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
• Sealed input panel cover and screw-down input terminals

Specifications:

• Frequency Range (-10 dB): 38 Hz – 17 kHz
• Frequency Response (+/-3 dB): 40 Hz – 16 kHz
• 100 Hr Power Capacity: 500 Watts Continuous Program Power ; 250 Watts Continuous IEC Pink Noise
• Maximum SPL @ 1m: Short-Term = 123 dB; Long-Term = 117 dB
• Nominal Sensitivity: 93 dB, 2.83V @ 1m (3.3 ft)
• Nominal Coverage Angle: 120° H x 110° V
• Directivity Factor (Q): 5.2, averaged 500 Hz to 10 kHz
• Directivity Index (DI): 7.1 dB, averaged 500 Hz to 10 kHz
• Nominal Impedance: 4 ohms
• Crossover Type: 3rd order Low Pass LF, 2nd order High Pass/3rd order Low Pass MF, 3rd order High Pass, HF, plus conjugate shaping circuitry.
• Transformer Taps: 70V = 150W, 75W, 38W, 19W ; 100V = 150W, 75W, 38W ; Thru Position = 4Ω nominal
• Low Frequency Driver: 250 mm (10 in) fiberglass/Kevlar® cone with pure butyl rubber surround, 50 mm (2 in) voice coil on fiberglass former, neodymium magnet
• Mid Frequency Driver: 125 mm (5 in) anodized aluminum cone with EPDM rubber (Terpolymer of Ethylene and Propylene) surround, 25 mm (1 in) voice coil on fiberglass former
• High Frequency Driver: 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround
• Included Accessories: 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 305 mm InvisiBall Hex wrench.
• Optional Accessories: MTC-30MK-WH Marine Grille Kit includes grille and protective cover for baffle screws. White only. ; MTC-30CM (-WH) to install speaker down from the ceiling. ; MTC-30UB (-WH) U-Bracket
• Dimensions (H x W x D): 593 x 372 x 345 mm (23.3 x 14.6 x 13.5 in)
• Weight (ea): 18.9 kg (42 lb)
• Shipping Weight (ea): 20.3 kg (45 lb)
