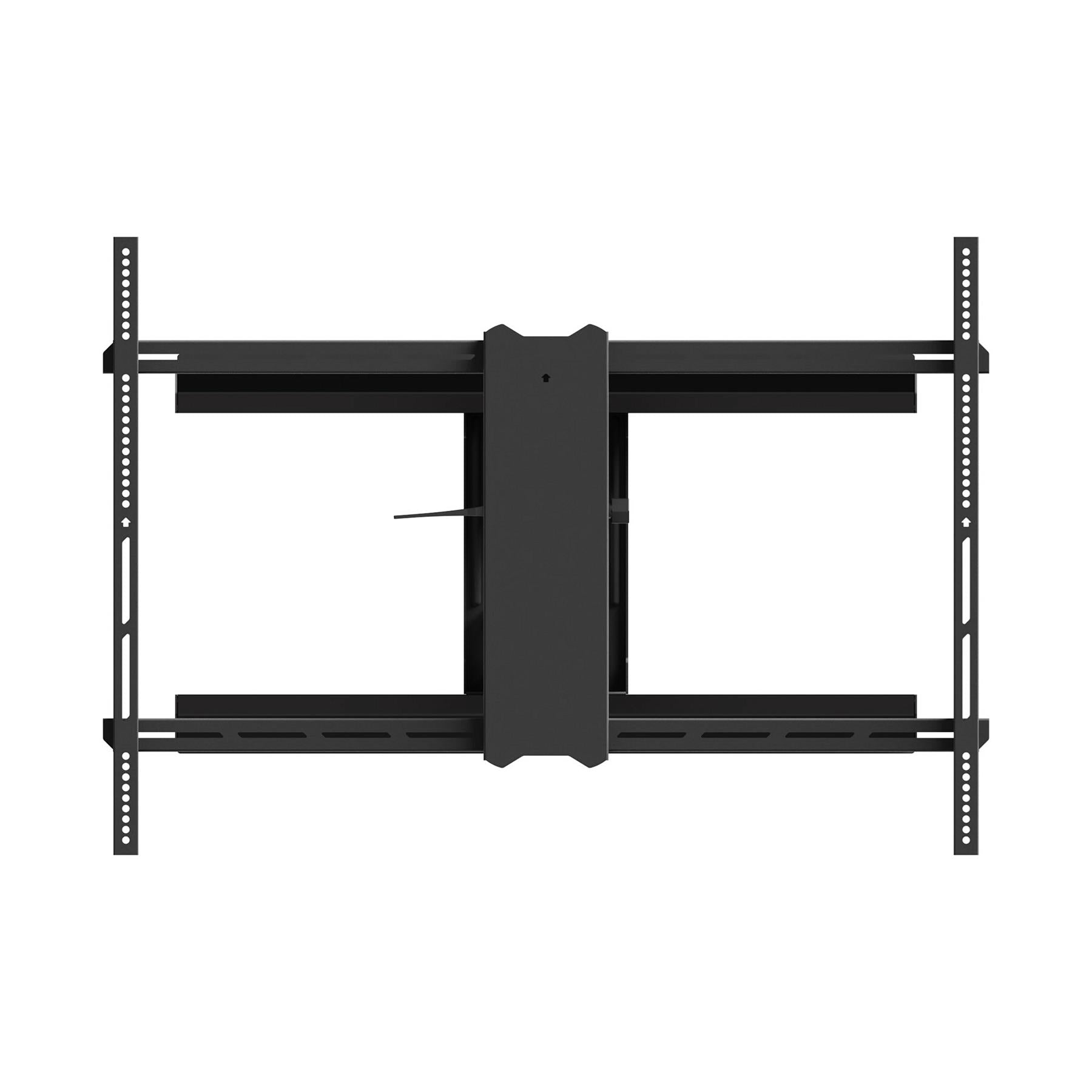

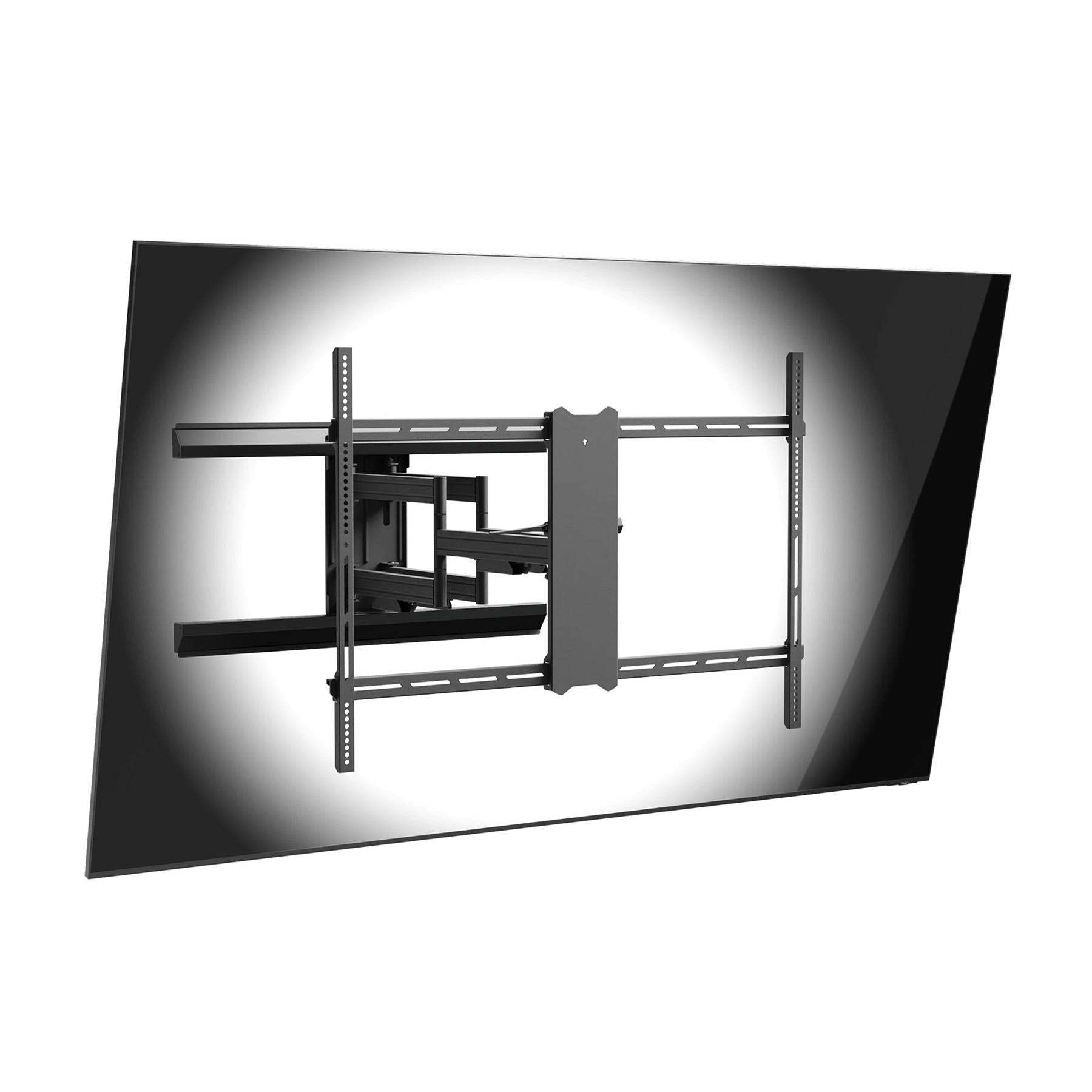

Kanto PMX900HD Pro Series Full Motion TV Mount

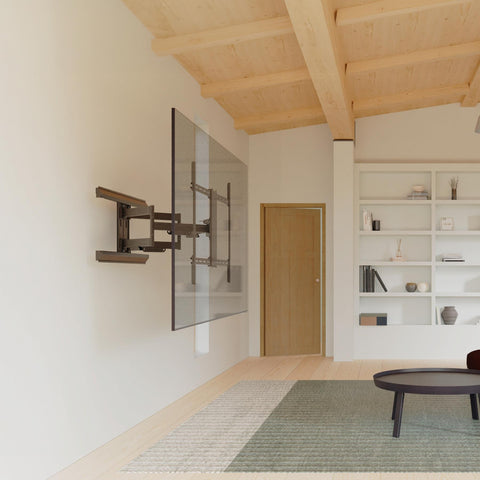

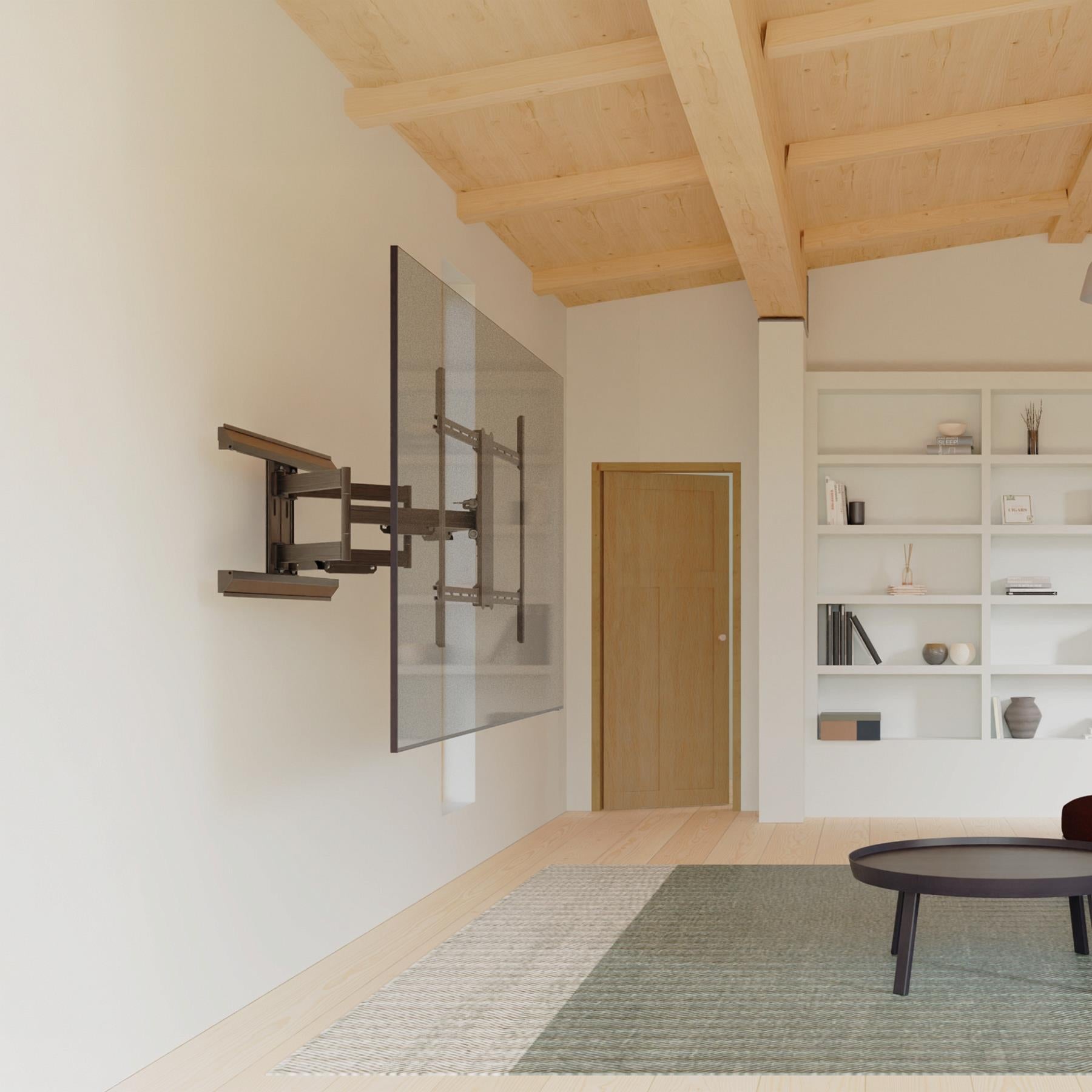

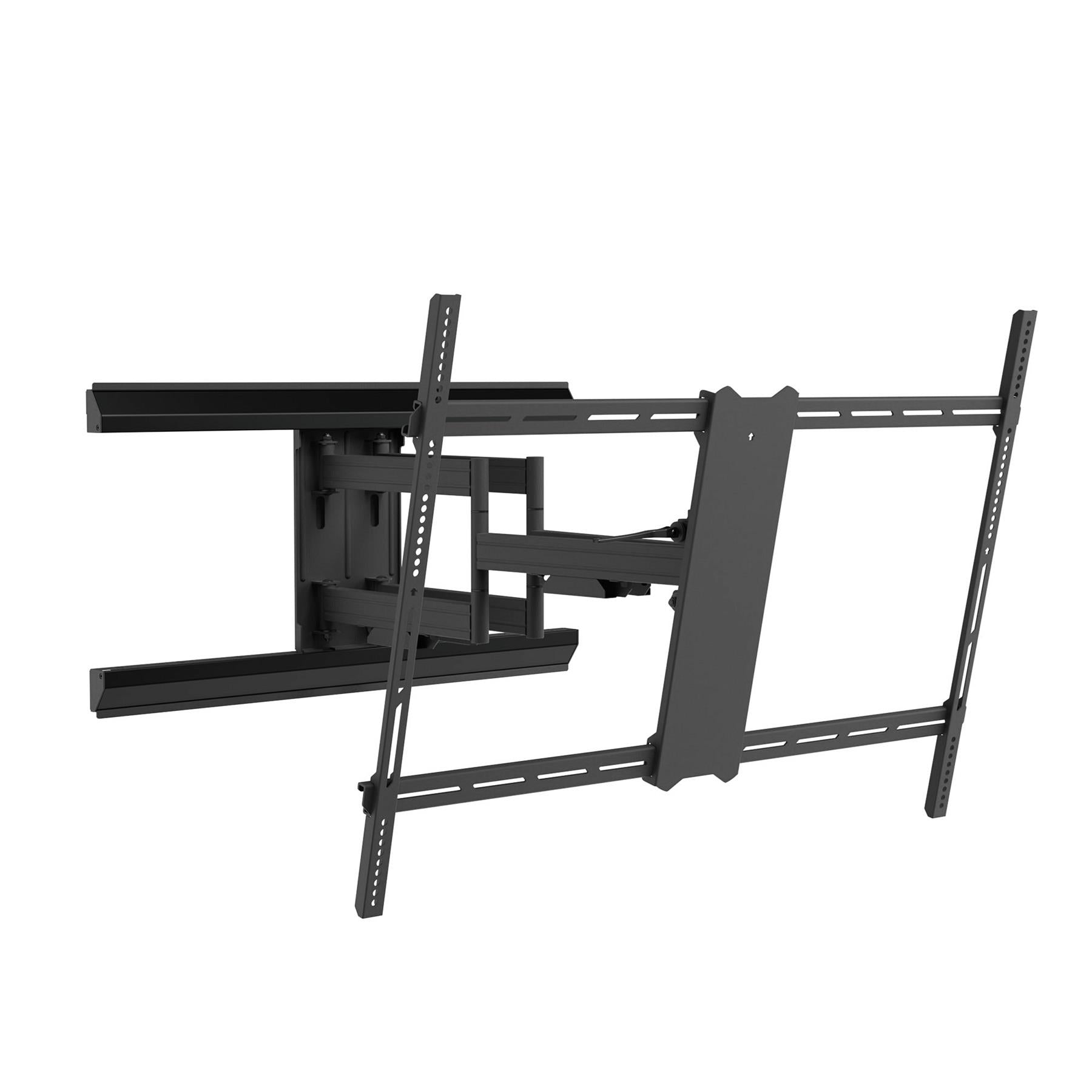

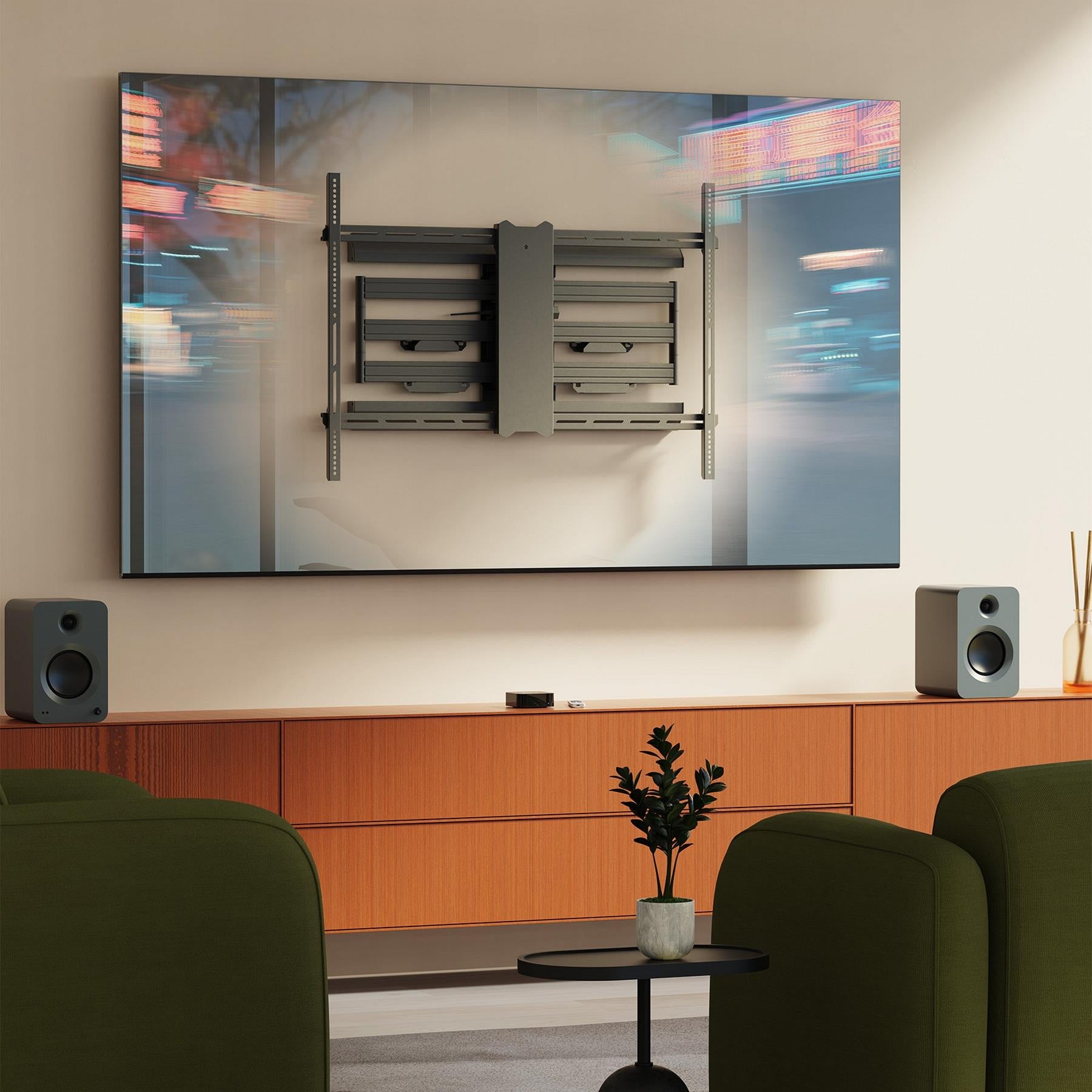

The Kanto PMX900HD Pro Series Full Motion TV Mount is engineered for extra-large displays, giving 65" to 140" TVs a secure, flexible, and refined wall-mounted installation. Built for serious home theater, commercial, and premium media room setups, this height-adjustable full motion TV mount supports up to 275 lb and accommodates wide VESA patterns from 200x100 to 1000x700. Its heavy-duty articulating design extends up to 33" from the wall, retracts to a slim 2.7" profile, and provides smooth swivel, toolless tilt, horizontal offset, and post-install height adjustment for precise screen placement. Integrated metal cable management, aluminum wall plate covers, solid steel construction, and included installation hardware help deliver a clean, professional-grade finished look.
What It's Good At:
- Supporting massive 65" to 140" displays up to 275 lb
- Fine-tuning TV placement after installation with 2" height adjustment and 22" horizontal offset
- Extending large screens up to 33" for better viewing angles and easier rear-panel access
- Reducing glare with a toolless +12° to -3° tilt mechanism
- Creating a clean, premium installation with cable management and aluminum covers
- Providing flexible viewing with up to ±90° swivel, depending on screen size and installation conditions
Kanto PMX900HD Pro Series Full Motion TV Mount Full Specifications:
-
Brand: Kanto
-
Model: PMX900HD
-
Series: Pro Series
-
Product Type: Height Adjustable Full Motion TV Mount / Full Motion TV Mount for Large Screens
-
Compatible TV Sizes: Most 65" to 140" TVs
-
Maximum Weight Capacity: 275 lb / 124.7 kg
-

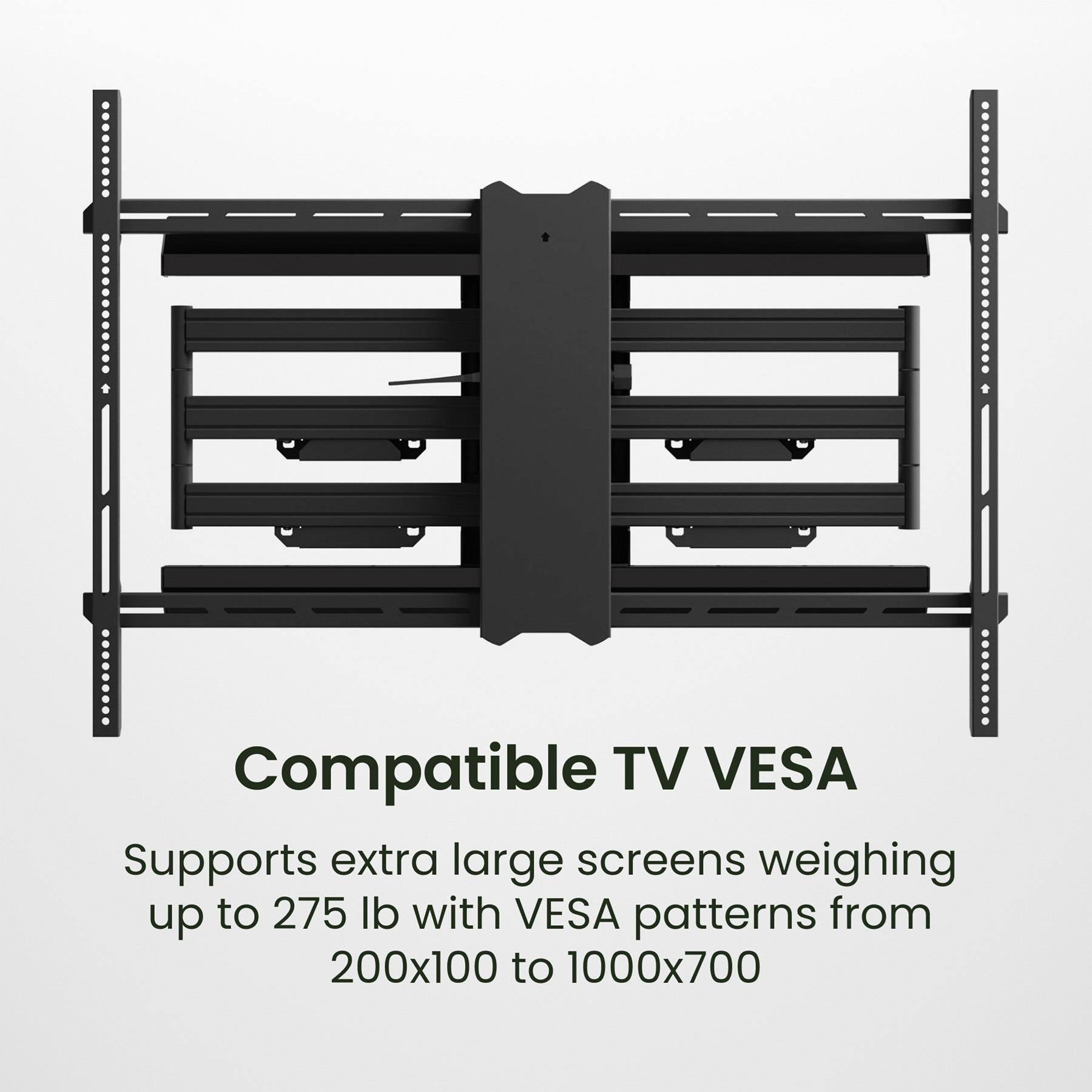

VESA Compatibility: 200x100 to 1000x700
-
Motion Type: Full motion
-
Tilt Range: +12° to -3°
-

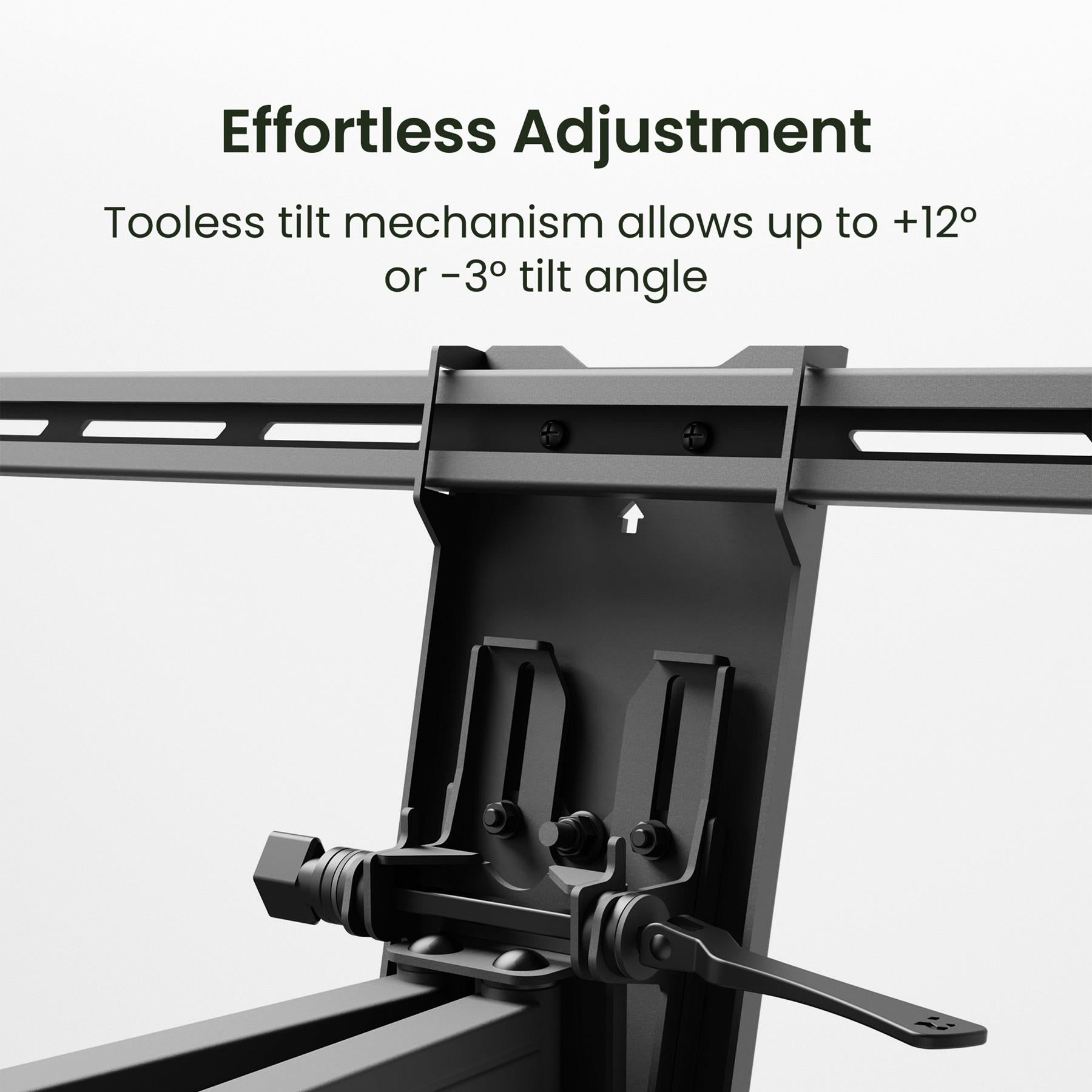

Tilt Mechanism: Toolless tilt with cam-lever locking
-
Swivel Range: ±90° left or right
-

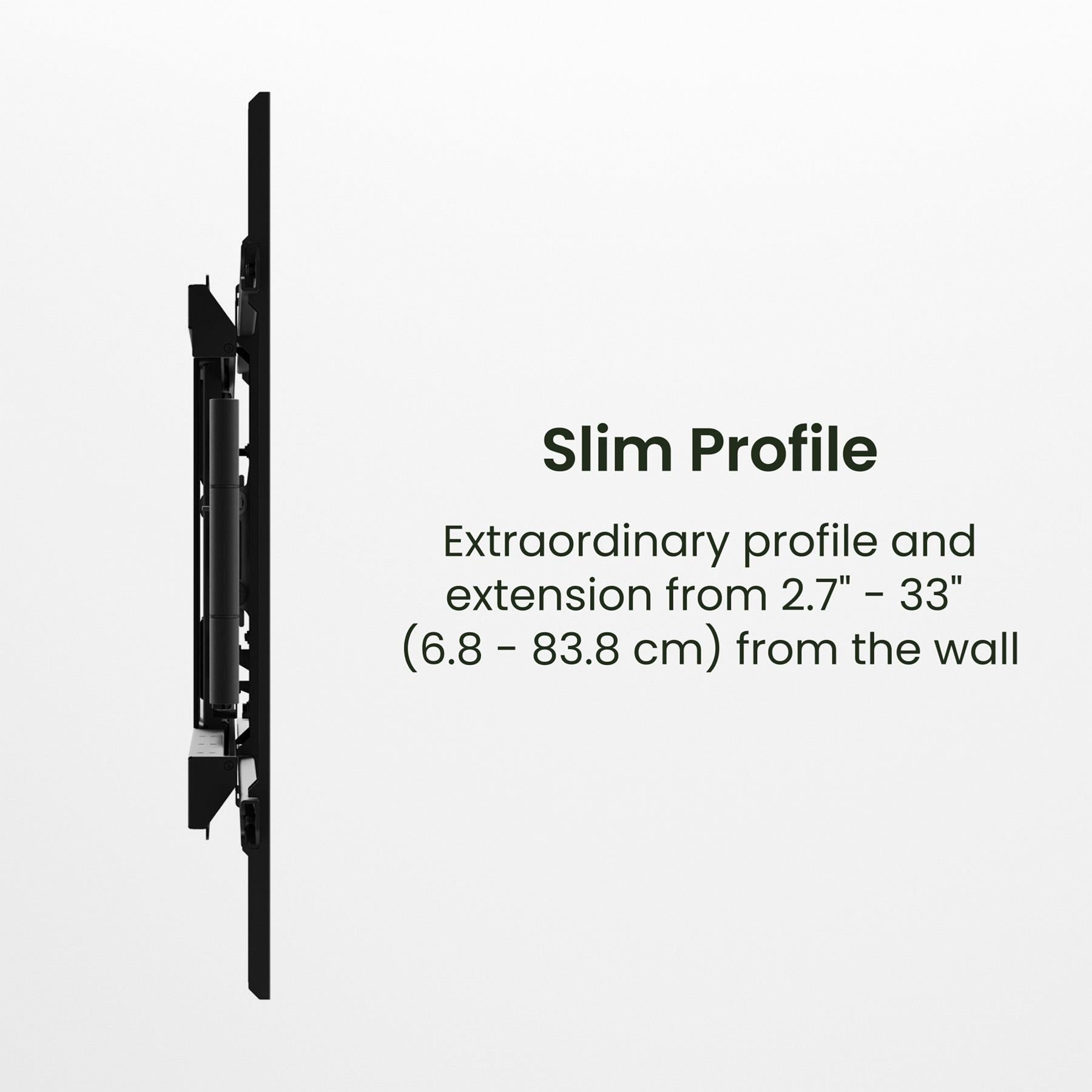

Extension Range: 2.7" to 33"
-
Extension Range Metric: 6.8 cm to approximately 83.7 cm
-
Low-Profile Depth: 2.7" / 6.8 cm from wall
-
Maximum Extension: 33"
-

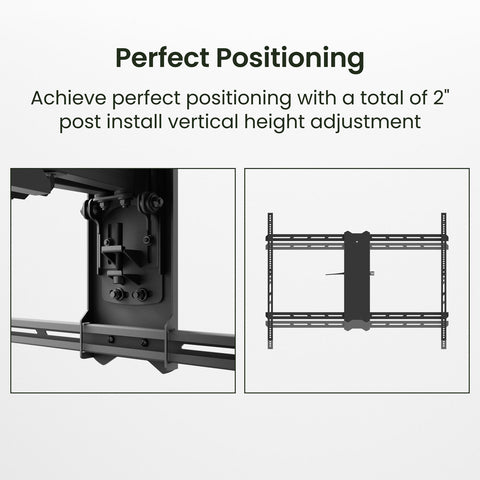

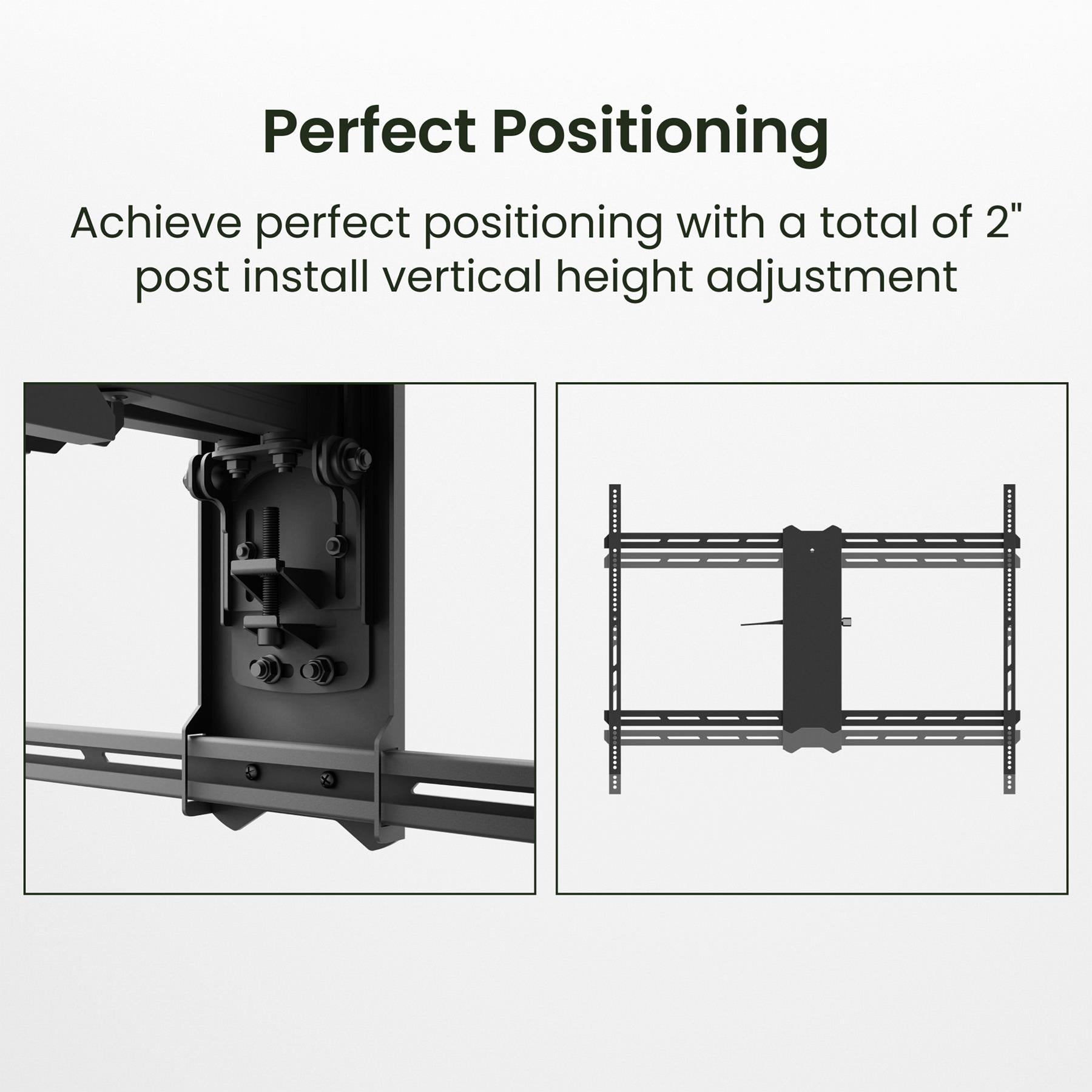

Post-Install Height Adjustment: Up to 2" / 5.1 cm total
-

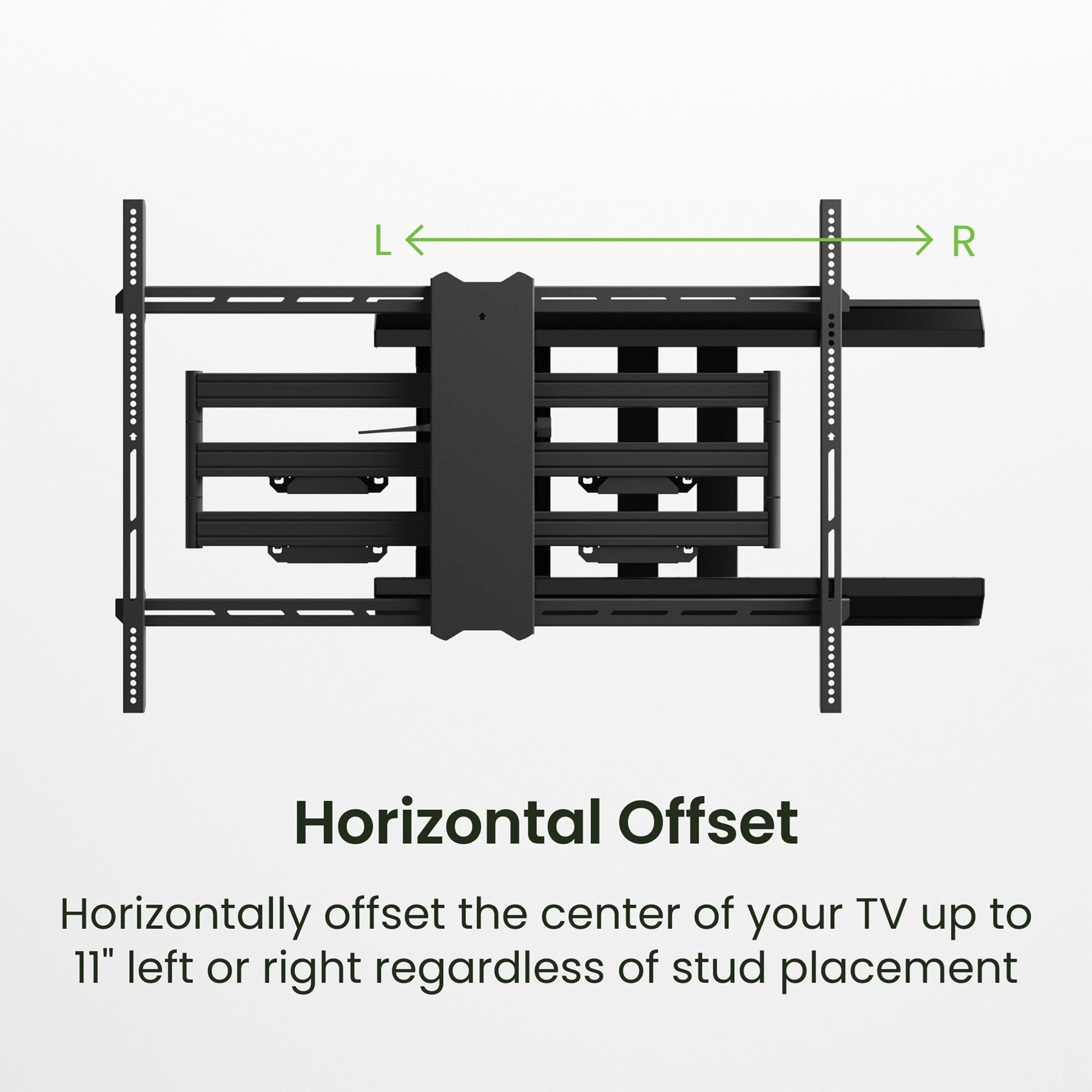

Horizontal Offset: Up to 22" / 55.8 cm total
-
Horizontal Leveling: Adjustable horizontal leveling
-
Cable Management: Integrated metal cable management channels
-
Wall Plate: 35" / 88.9 cm wall plate
-
Stud Compatibility: Accommodates dual studs with up to 24" spacing; extra-wide plate can span up to three studs
-
Wall Plate Covers: Full-length aluminum wall plate covers hide lag bolts and hardware
-
Construction: Solid steel construction with premium aluminum covers
-
Installation Hardware: Includes mounting hardware for wood stud and concrete installation
-
Included Template: Paper wall template for marking pilot holes
-
Included Documentation: Installation manual
-
Included Adjustment Tool: Allen key included for easy adjustments
-
Product Dimensions: 41.5" W x 29" H x 33" D
-
Product Dimensions Metric: 105.5 x 73.6 x 83.8 cm
-
Product Weight: 57.3 lb / 26 kg
-
Shipping Box Dimensions: 44.6" x 21.7" x 4.9"
-
Shipping Box Dimensions Metric: 113.3 x 55.2 x 12.5 cm
-
Shipping Box Weight: 68.3 lb / 31 kg
-
UPC: 800152726304
-
Warranty: 10-year limited manufacturer’s warranty to the original purchaser
-
Canadian Design: Yes
-
Supplied TV Screws: M6 x 10 mm x4, M6 x 14 mm x4, M6 x 20 mm x4, M6 x 35 mm x4, M8 x 10 mm x4, M8 x 14 mm x4, M8 x 20 mm x4, M8 x 30 mm x4, M8 x 35 mm x4, M8 x 50 mm x4
-
Supplied Spacers: 2.5 mm spacers x8, 5 mm spacers x8
-
Supplied Washers: M6 washers x4, M8 washers x4, M10 washers x6
-
Supplied Lag Bolts: M10 x 80 mm x6
-
Supplied Concrete Anchors: x6
-
Supplied Hex Keys: 3 mm, 5 mm, and 8 mm
-
Supplied Cable Ties: x12
-
Required General Tools: Socket set, Phillips screwdriver, pencil, level, measuring tape, drill
-
Required Wood Stud Tools: Stud finder and 1/4" wood bit
-
Required Concrete Tools: Hammer and 5/8" masonry bit
-
Wood Stud Pilot Hole Size: 1/4" / 6.4 mm
-
Concrete Pilot Hole Size: 5/8" / 16 mm
-
Pilot Hole Depth: 3.2" / 80 mm
-
Concrete Wall Requirement: Minimum 4" thick concrete wall
-
Concrete Density Requirement: Minimum 2000 psi
-
Installation Surface Requirement: Wall must support more than 5 times the combined weight of the TV and mount
-
Use Limitation: Intended for mounting a VESA-compliant TV on a vertical surface
-
Not Intended For: Steel stud walls or cinder block walls
Kanto PMX900HD Pro Series Full Motion TV Mount Q&A:
- What size TVs does the Kanto PMX900HD support?
- The PMX900HD is designed for most 65" to 140" TVs, making it ideal for extra-large displays in home theater, media room, and commercial installations.
- How much weight can the PMX900HD hold?
- This heavy-duty TV wall mount supports displays up to 275 lb, providing the strength needed for today’s largest premium screens.
- Will this mount fit my TV’s VESA pattern?
- The PMX900HD supports VESA mounting patterns from 200x100 up to 1000x700, offering wide compatibility with large-format TVs.
- How far does the PMX900HD extend from the wall?
- The mount extends up to 33" from the wall and retracts to a slim 2.7" profile for a clean, low-profile look when pushed back.
- Can I adjust the TV after it has already been mounted?
- Yes. The PMX900HD provides up to 2" of post-install height adjustment, up to 22" of horizontal offset, and adjustable horizontal leveling for precise final positioning.
- How much tilt and swivel does the mount provide?
- The PMX900HD offers +12° to -3° of toolless tilt and up to ±90° of swivel, helping improve sightlines and reduce glare.
- What installation hardware is included?
- The mount includes a paper wall template, installation manual, mounting hardware for wood stud and concrete installation, TV screws, spacers, washers, lag bolts, concrete anchors, cable ties, and hex keys.
- Does the PMX900HD include cable management?
- Yes. Integrated metal cable management channels help route wiring cleanly, while aluminum wall plate covers hide lag bolts and hardware for a polished installation.
Kanto PMX900HD Downloads:
Kanto PMX900HD User Manual
Kanto PMX900HD Specification Sheet
Kanto PMX900HD Technical Drawings
