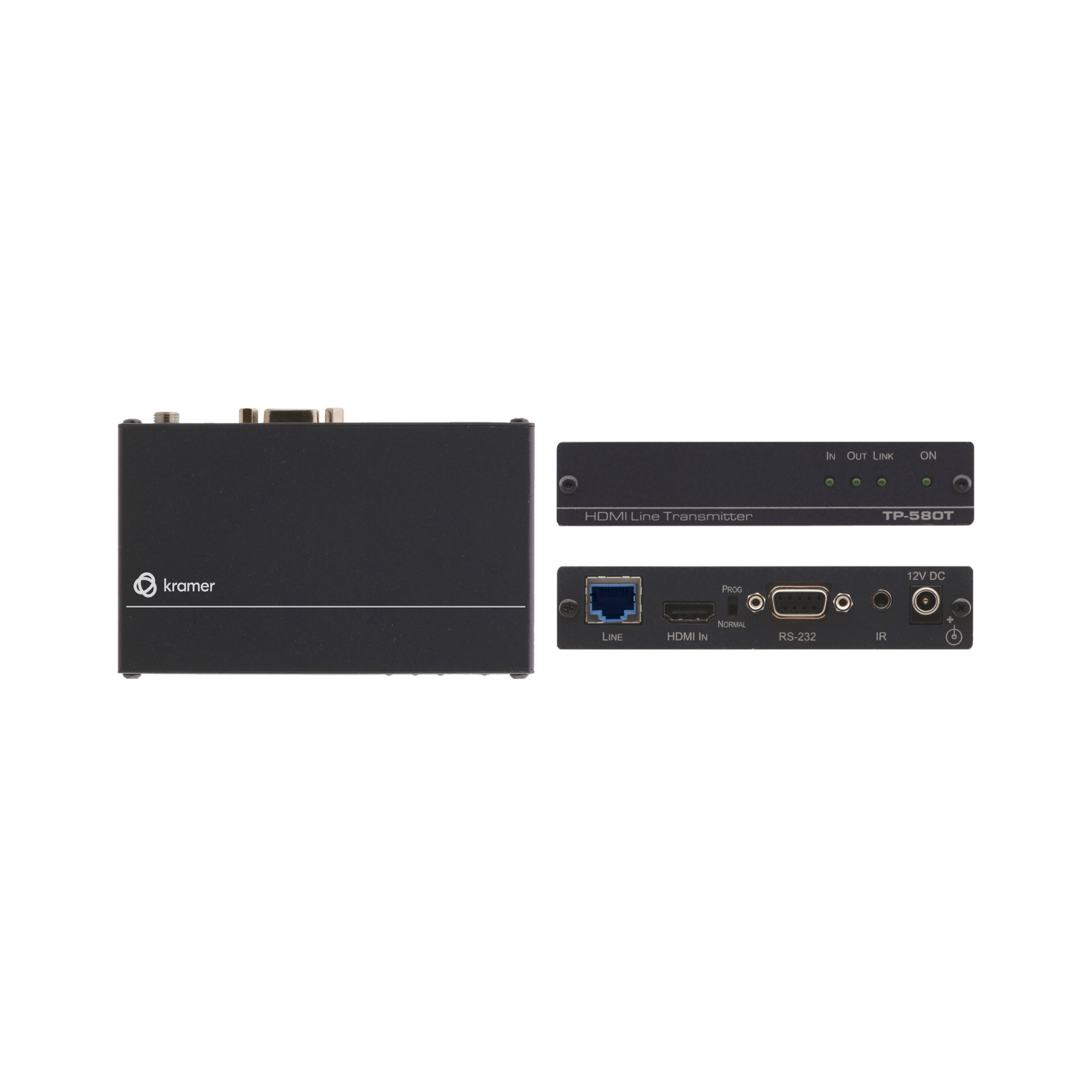

Kramer TP-580T - 4K60 4:2:0 HDMI HDCP 2.2 Transmitter with RS–232 & IR over Long–Reach HDBaseT

TP−580T is a high−performance, long−reach HDBaseT transmitter for 4K60Hz (4:2:0) HDMI, RS−232 and IR signals over twisted pair. TP−580T converts all input signals into the transmitted HDBaseT signal. It extends video signals to up to 40m (130ft) over CAT copper cables at up to 4K@60Hz (4:2:0) 24bpp video resolution and provides even further reach for lower HD video resolutions.

• HDBaseT 1.0 transmitter
• Up to 70m (230ft) at 1080p
• Up to 40m (130ft) at 4K@60Hz (4:2:0)
• Up to 4K@60Hz (4:2:0) 24bpp video resolution
• Control extension

High Performance Standard Extender

Professional HDBaseT extender for providing long–reach signals over twisted–pair copper infrastructures. TP–580T is a standard extender that can be connected to any market–available HDBaseT–compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.

HDMI Signal Extension

HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0. EDID and CEC signals are passed through from the source to the display.

I–EDIDPro™ Kramer Intelligent EDID Processing™

Intelligent EDID handling, processing and pass–through algorithm that ensures Plug and Play operation for HDMI source and display systems.

Multi–channel Audio Extension

Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.

Bidirectional RS–232 Extension

Serial interface data flows in both directions, allowing data transmission and device control.

Bidirectional Infrared Extension

IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

Cost–effective Maintenance

Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection and the K–Upload tool ensures lasting, field–proven deployment.

Easy Installation

Compact DigiTOOLS fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.

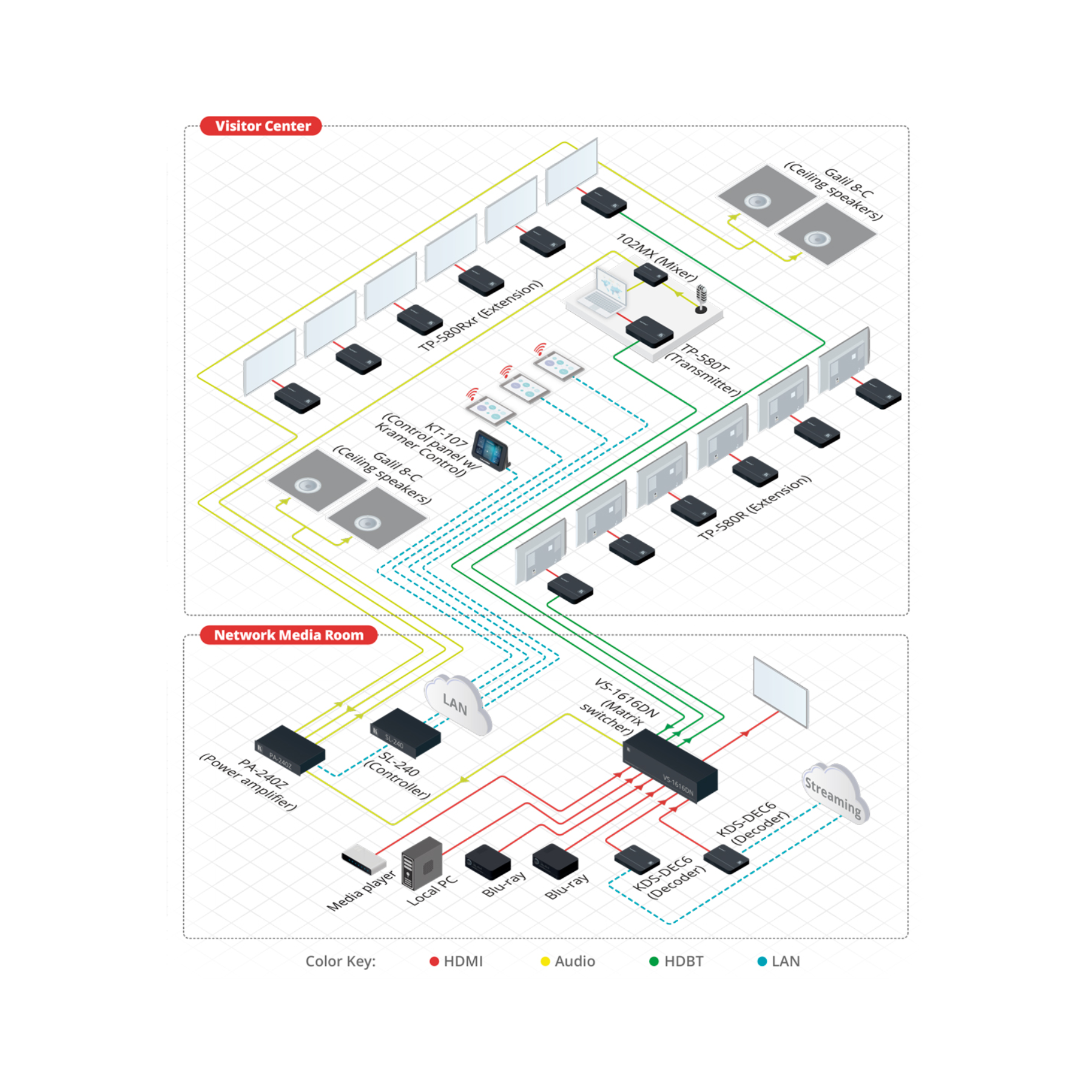

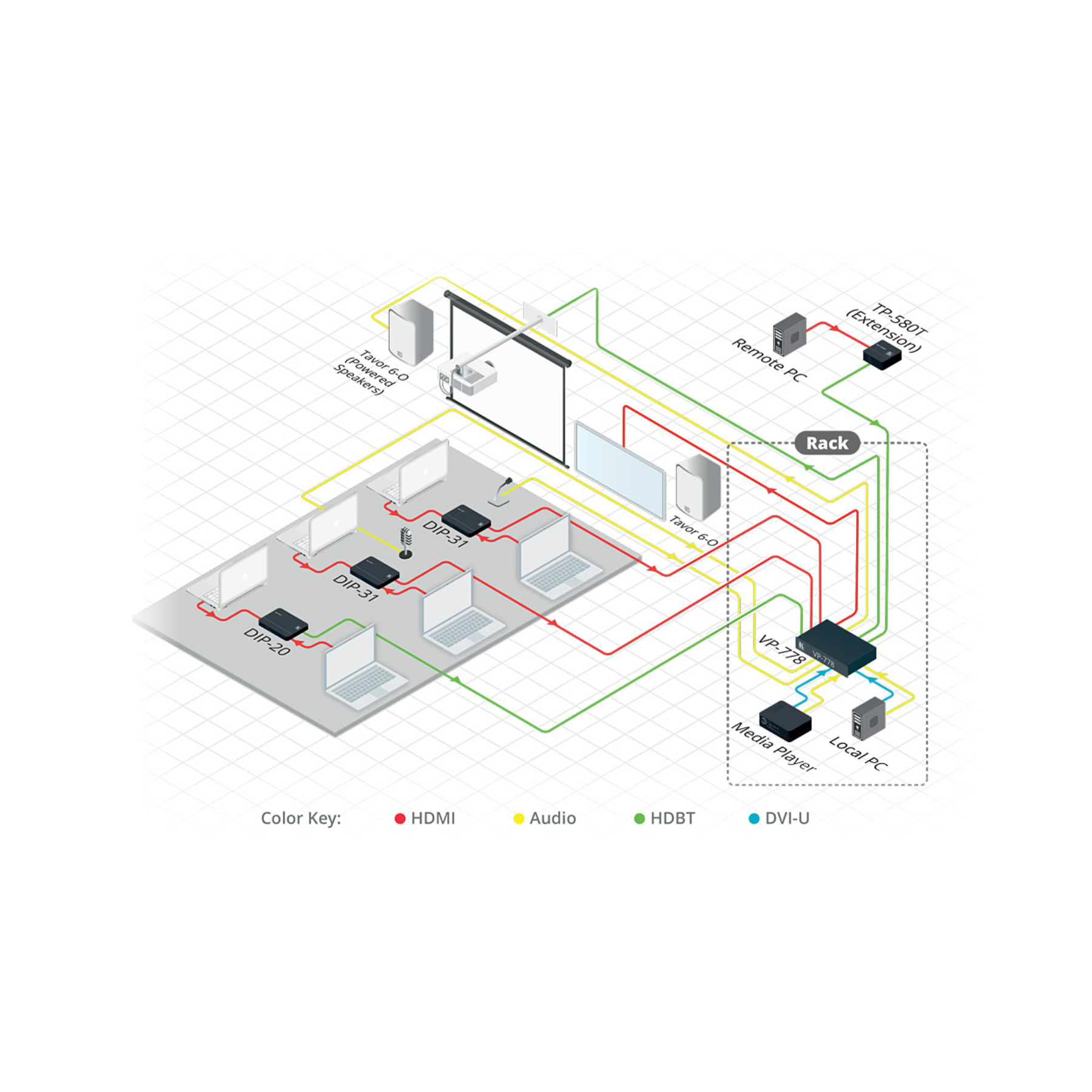

Applications

• Long–distance AV signal extension for multi–room, large dividable auditoriums and lecture hall connectivity
• AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities

SPECIFICATIONS

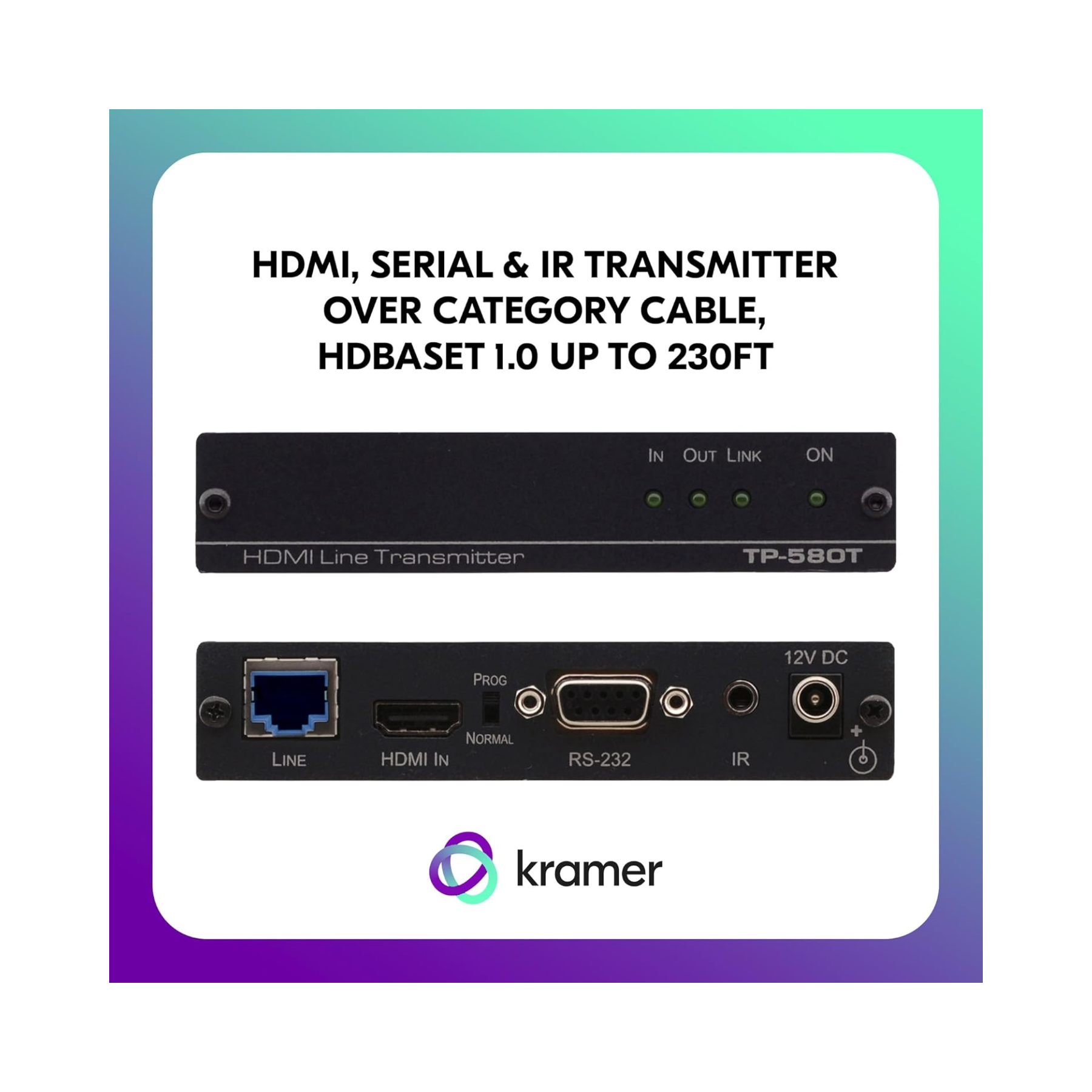

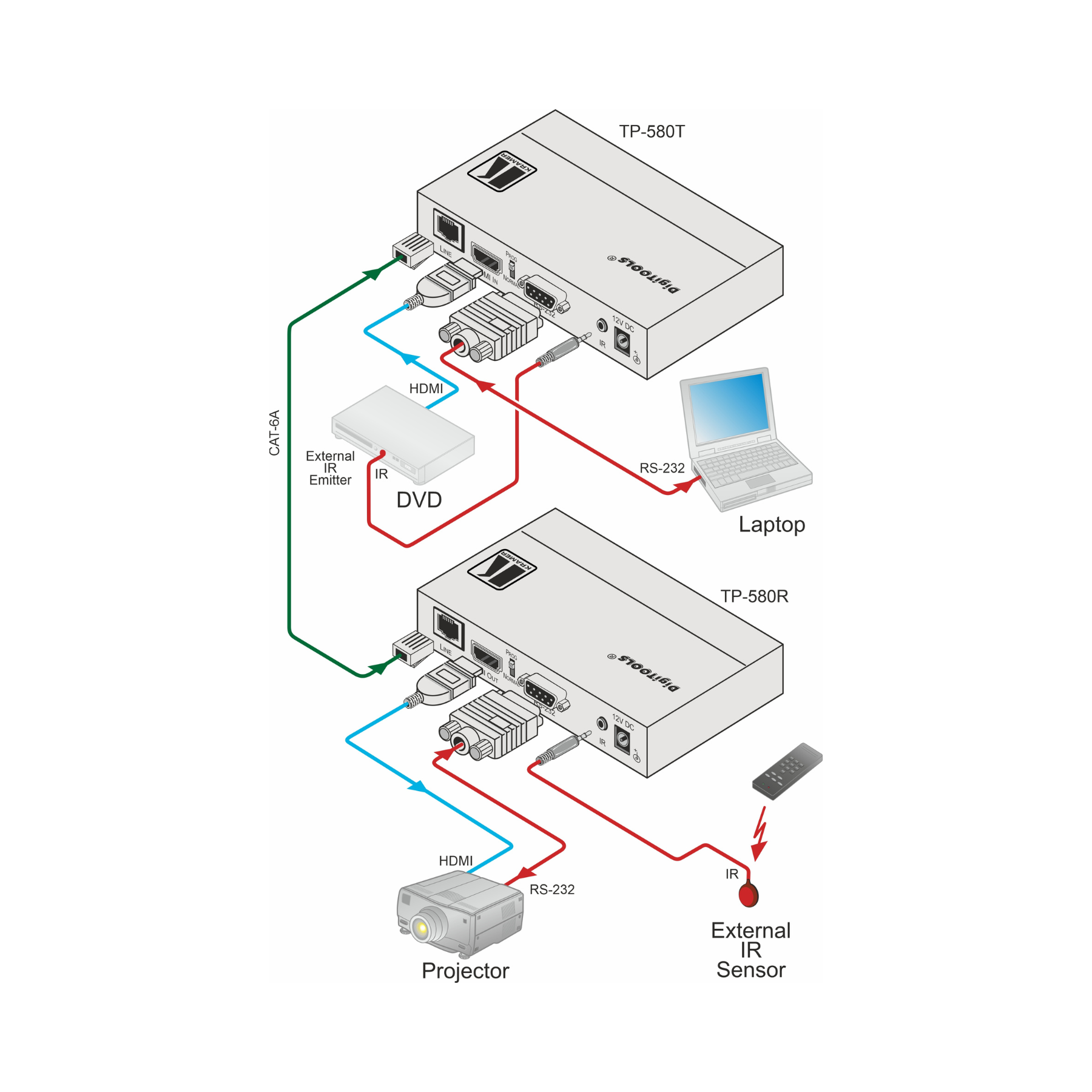

• INPUTS: 1 HDMI on an HDMI connector
• OUTPUTS: 1 HDBT on an RJ–45 female connector
• PORTS:
  • 1 IR on a 3.5mm mini jack for IR link extension,
  • 1 RS–232 on a 9–pin D–sub connector for serial link extension and device firmware upgrade
• EXTENSION LINE:
  • HDBaseT 1.0 compliant
  • Up to 40m (130ft) at 4K @60Hz (4:2:0)
  • Up to 70m (230ft) at full HD (1080p @60Hz 36bpp)
  • Note: When using Kramer HDBaseT cables
• VIDEO:
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDCP 2.2 signal compliance
  • Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0
• EXTENDED RS-232: 300 to 115200 baud rate
• CONTROL RS-232: 115200 baud rate
• POWER SOURCE: 12V DC, 2A
• POWER CONSUMPTION: 12V DC, 275mA
• ENCLOSURE: DigiTOOLS® size, aluminum type
• COOLING: Convection ventilation
• OPERATING TEMPERATURE: 0° to 40°C (32° to 104°F)
• STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F)
• HUMIDITY: 10% to 90%, RHL non–condensing
• INCLUDED ACCESSORIES: Power supply unit
• Product Dimensions: 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H
• Product Weight: 0.2kg (0.4lbs) approx.
• Shipping Dimensions: 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H
• Shipping Weight: 0.7kg (1.6lbs) approx.
