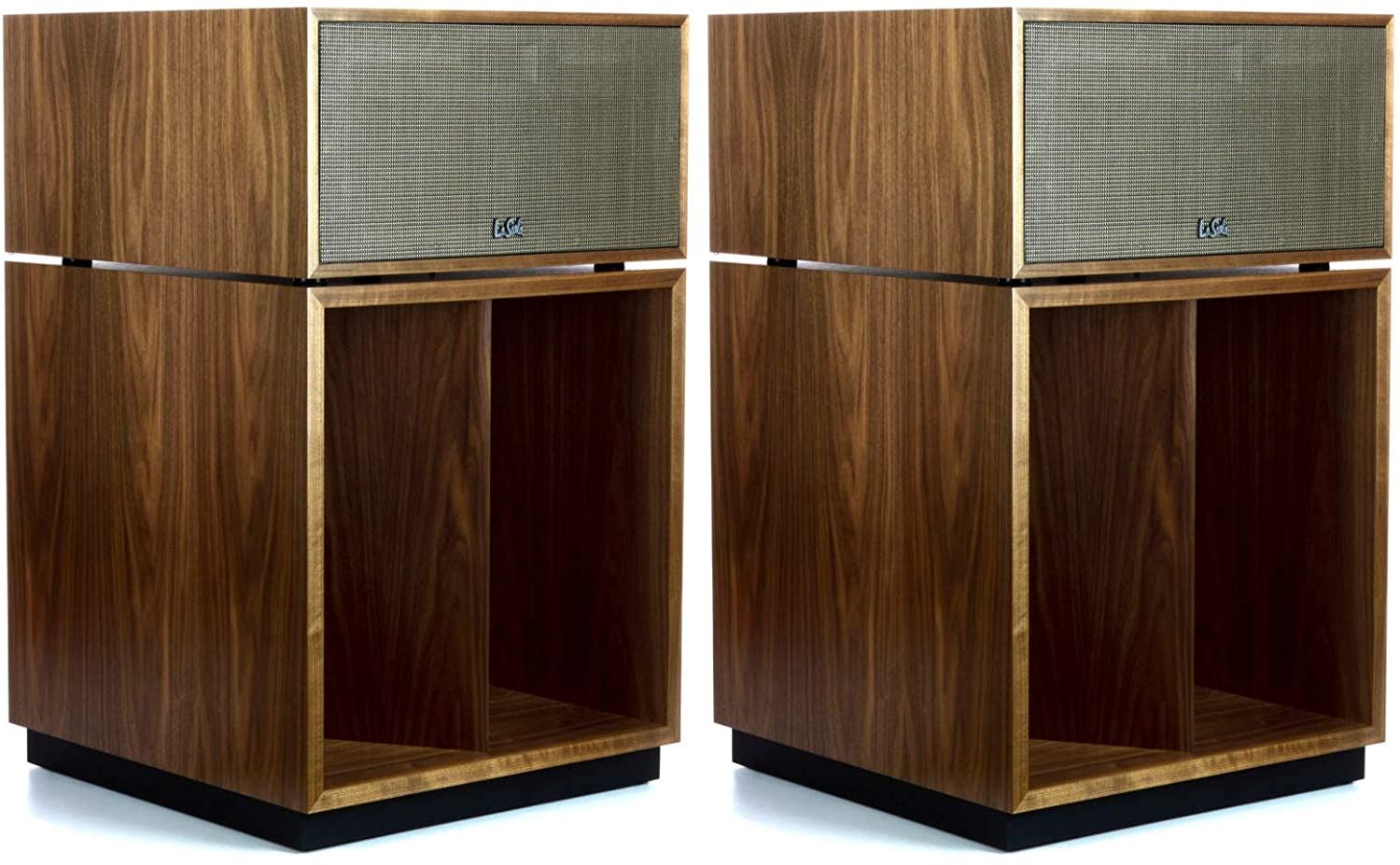

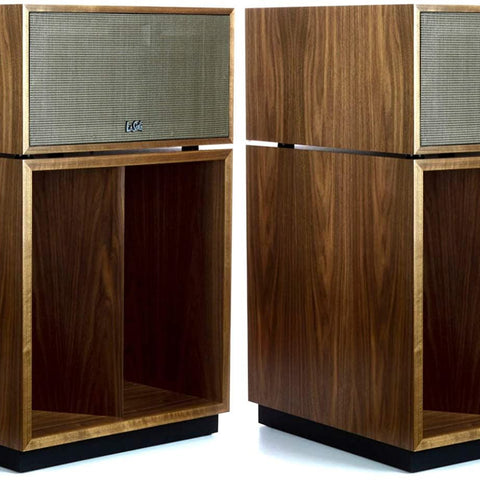

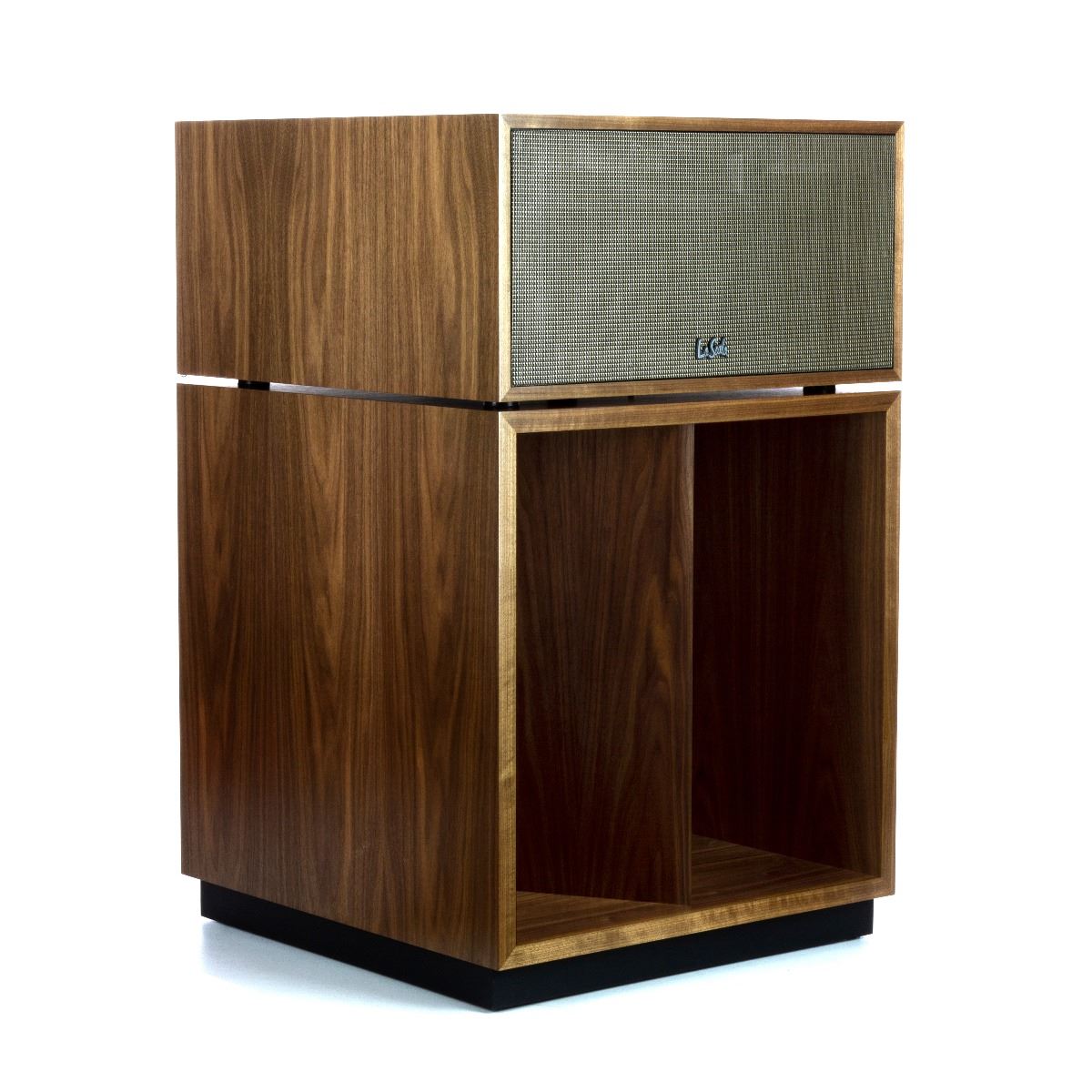

Klipsch La Scala AL5 Heritage Series 3 Way Fully Horn-loaded Loudspeakers
- Three-way, fully horn-loaded loudspeaker
- One watt can generate a concert sound experience
- Clarity, accuracy, and remarkable tonal definition
- A best-in-class, highly durable speaker enclosure assembled with pride in Hope, AR as part of the Klipsch Heritage Series
- Available in Natural Cherry, Satin Black Ash and American Walnut book-matched veneers to complement any space
- Includes New 10-Year Warranty
THE MOST VERSATILE KLIPSCH CREATION
The must-have speaker for any audiophile! Delivering top-of-the-line sound in a more compact design, the La Scala AL5 is the only other fully horn-loaded speaker in the Heritage series besides the legendary Klipschorn.
NEODYMIUM TWEETER
The La Scala features a neodymium tweeter with a 1" polyimide diaphragm and copper clad aluminum voice coil. This lightweight diaphragm assembly and high strength magnet structure creates the tweeter’s high 105dB sensitivity and makes it the most efficient consumer tweeter in the market. When coupled to a 90° x 40° Tractrix horn, the tweeter sets new levels of performance for dynamic range and output.
MIDRANGE
According to Paul W. Klipsch, "the midrange is where we live" and is one of the most critical parts in any loudspeaker design. The La Scala’s midrange utilizes a 2" compression driver mated to a high efficiency exponential horn that maximizes the system’s power and performance. As a result, less distortion is produced by the amplifier and by the loudspeaker. That means clarity, accuracy and remarkable tonal definition.
BI-AMP INPUT PANEL AND BINDING POSTS
The La Scala’s premium, aluminum input panel accommodates large, high-quality speaker cables. Strong, versatile and quality binding posts provide the capability for bi-wiring or bi-amping. The quality continues with AudioQuest Type 4 with Star-Quad Geometry internal wiring featuring carbon-loaded insulation, nitrogen injected PE and solid long-grain copper conductors.
BOOK-MATCHED WOOD VENEER
Klipsch only uses book-matched wood veneers for the Heritage series. The veneer leaves are kept in order as they are delicately sliced from the timber and precisely arranged to provide a mirror image at the splice joint - like turning the pages of a book. This gives each speaker an aesthetically appealing and consistent appearance that is treasured more than any other cut of wood veneer The LF and HF cabinets are also matched for continuous grain and color from top to bottom.
BUILT TO LAST
While each and every component of the La Scala is built to last, Klipsch has always recognized the unique and critical role of a loudspeaker’s cabinet in the sound reproduction process. From the craftsmen in Hope, AR to the engineers in Indianapolis, Klipsch has always put an extraordinary emphasis on cabinet design. The La Scala enclosure is assembled using only the highest-grade adhesives and fasteners. This is a speaker you will hand down from generation to generation.
Klipsch La Scala AL5 Specifications:
-
FREQUENCY RESPONSE (+/- 4 dB): 51Hz – 20kHz
-
SENSITIVITY: 105dB @ 2.83V / 1m
-
POWER HANDLING (CONT/PEAK): 100W/400W
-
MAXIMUM SPL: 121dB
-
NOMINAL IMPEDANCE: 8 ohms Compatible
-
CROSSOVER FREQUENCY:
-
TWEETER: K-771 1" (2.54cm) light-weight Polyimide diaphragm compression driver mated to a 90 x 40 Tractrix horn
-
HIGH FREQUENCY HORN: Tractrix
-
MIDRANGE: K-55-X 2" (5.08cm) Phenolic diaphragm compression driver
-
MID-FREQUENCY HORN: Exponential
-
WOOFER: K-33-E 15" (38.1cm) Fiber-composite cone woofer with a trihedral exponential folded horn
-
ENCLOSURE MATERIAL: Birch Plywood and MDF
-
ENCLOSURE TYPE: Fully horn-loaded
-
HEIGHT: 40" (101.6 cm)
-
WIDTH: 24 1/4" (61.59 cm)
-
DEPTH: 25 5/16" (64.29 cm)
-
WEIGHT: 201 lbs (91 kg) Each
-
FINISHES: Natural Cherry, Satin Black Ash and American Walnut
-
GRILLE CLOTH: Silver Metallic
-
BUILT FROM: 2018
