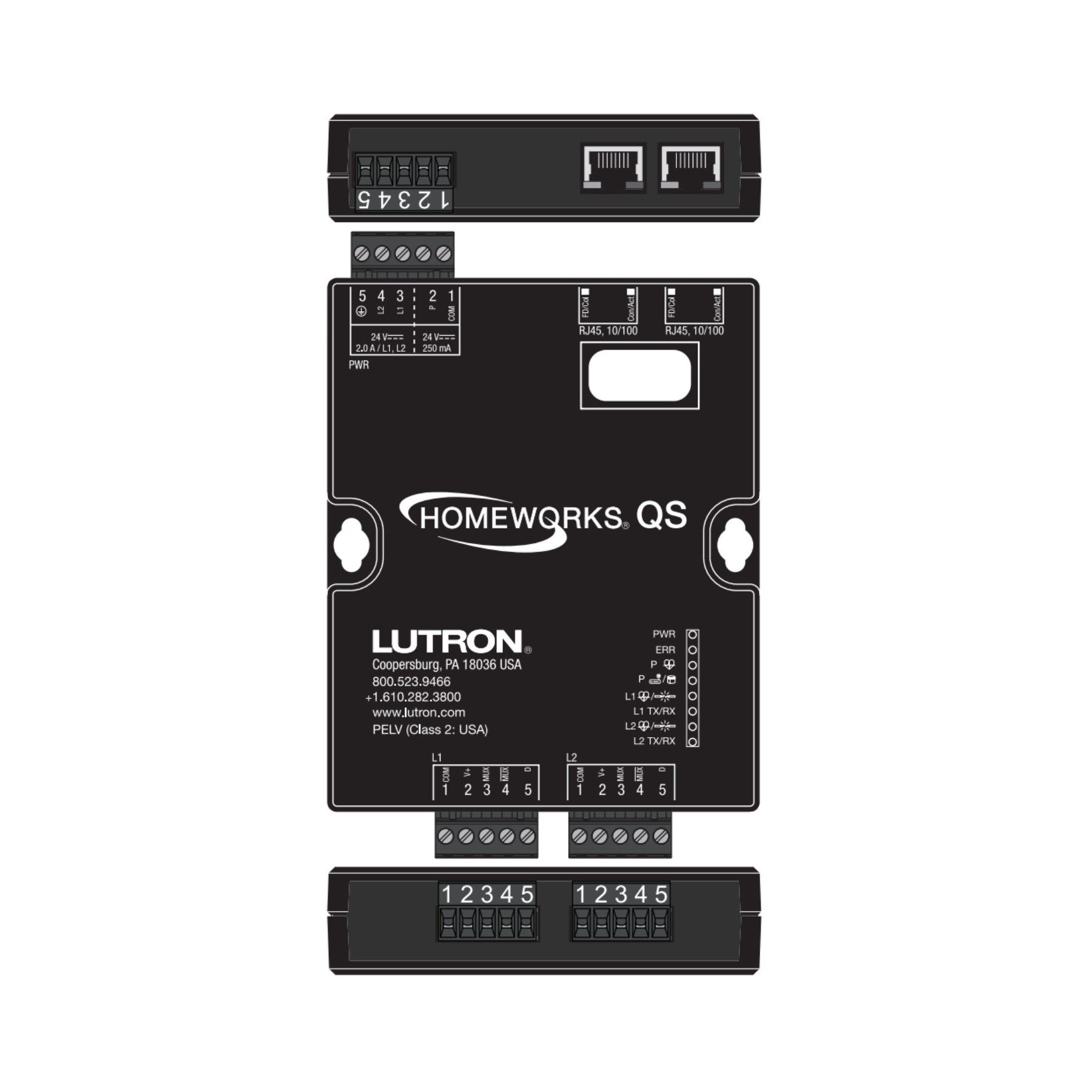

HomeWorks QS Processor

The QS processor provides control and communication to HomeWorks system components.

The Ethernet links allow communication to the HomeWorks QS software, integration with third party systems and communication between multiple processors. HomeWorks QS processors may be connected using either standard networking or using ad-hoc networking. All processors on a project must be connected to a single network. The HomeWorks QS software and all integration equipment must be connected to the same network as the processors.

The processor is powered from the QSPS-DH-1-75 or QSPS-DH-1-60 power supply. Refer to the HomeWorks QS software to determine link power
requirements.

The QS processor can be installed in a HQ-LV21, L-LV21, L-LV14, or PNL-8 enclosure.

Processor Capabilities

Each QS processor has 2 links that can be individually configured as one of four types:

• HomeWorks Power Panels
  16 interfaces / 256 zones
• HomeWorks QS Wired Device Link
  99 devices / 512 zones
• HomeWorks Clear Connect
  99 devices / 100 zones
• HomeWorks Wired Dimmers
  4 interfaces / 192 zones

Specifications

• Model Number: HQP6-2
• Power: Processor (P): 24–36 V- 250 mA
               Links (L1 / L2): 24–36 V- 2 A per link
• Typical Power Consumption: 5 W; 8 Power Draw Units (PDUs)
                                                     Test conditions: Two Ethernet links connected, both device links in use
• Regulatory Approvals: UL, cUL, CE, NOM
• Environment: Indoor use only. 32 °F to 104 °F (0 °C to 40 °C), 0% to 90% humidity, non-condensing
• Heat Generated: 17 BTU/hr — typical
                                (24 BTU/hr with 2 links at 2 A each output)
• Cooling Method: Passive Cooling
• Power Failure Memory: System data stored in non-volatile memory. Timeclock retention for 10 years
• Internal Timeclock: ±1 minute per year
• Miswire Protection: All terminal block inputs are over-voltage and miswire protected against wire reversals and shorts.
• Low-Voltage Link Wire Type: Two pair — one pair 18 AWG (0.75 mm2), one pair 18 to 22 AWG
                                                      (0.34 to 0.75 mm2) twisted shielded — IEC PELV / NEC® Class 2 cable
• Low-Voltage Power Wire Type: 18 AWG (0.75 mm2)
• Communications: Ethernet, RS485 (QS, RF, Power Panel)
• Link Capacities: HomeWorks Power Panels 16 interfaces/256 zones
                                HomeWorks QS Wired Device Link 99 devices/512 zones
                                HomeWorks RF Link 99 devices/100 zones
                                HomeWorks Wired Dimmers 4 interfaces/192 zones
• ESD Protection: Meets or exceeds the IEC 61000-4-2 standard
• Surge Protection: Meets or exceeds ANSI/IEEE C62.41 standard
• Mounting: Mounts in HQ-LV21, L-LV14, L-LV21, or PNL-8 enclosure
• Dimensions: With terminal blocks (as shown): 4.27 in (108 mm) x 6.0 in (152 mm)
                        Without terminal blocks: 4.27 in (108 mm) x 5.26 in (134 mm)
• Connections: Two 5-pin removable terminal blocks* for Links 1 and 2.
                         One 5-pin removable terminal block* for Power Input.
                         Two RJ45 standard Ethernet connections.
                         *Each terminal will accept up to two 18 AWG (0.75 mm2) wires.
