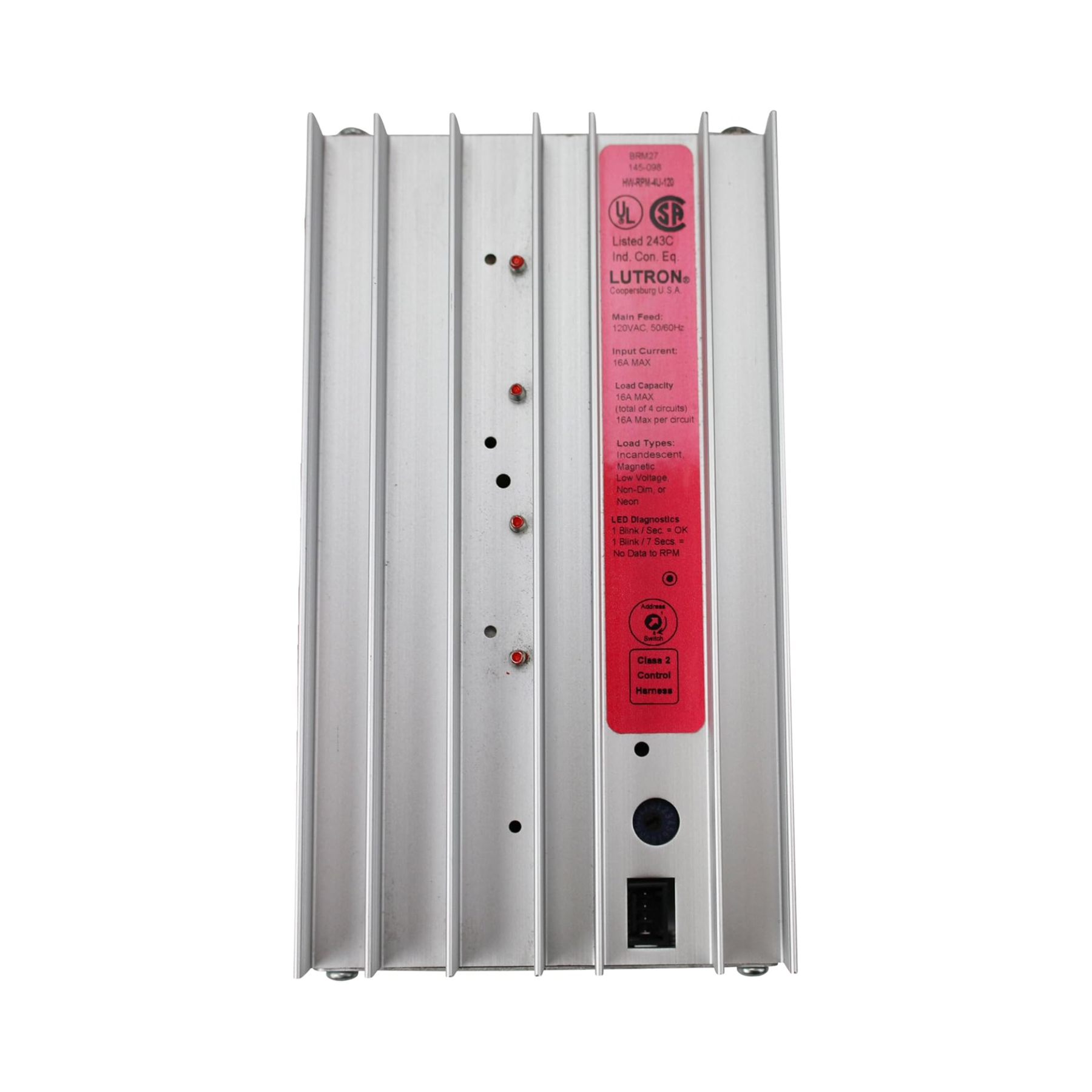

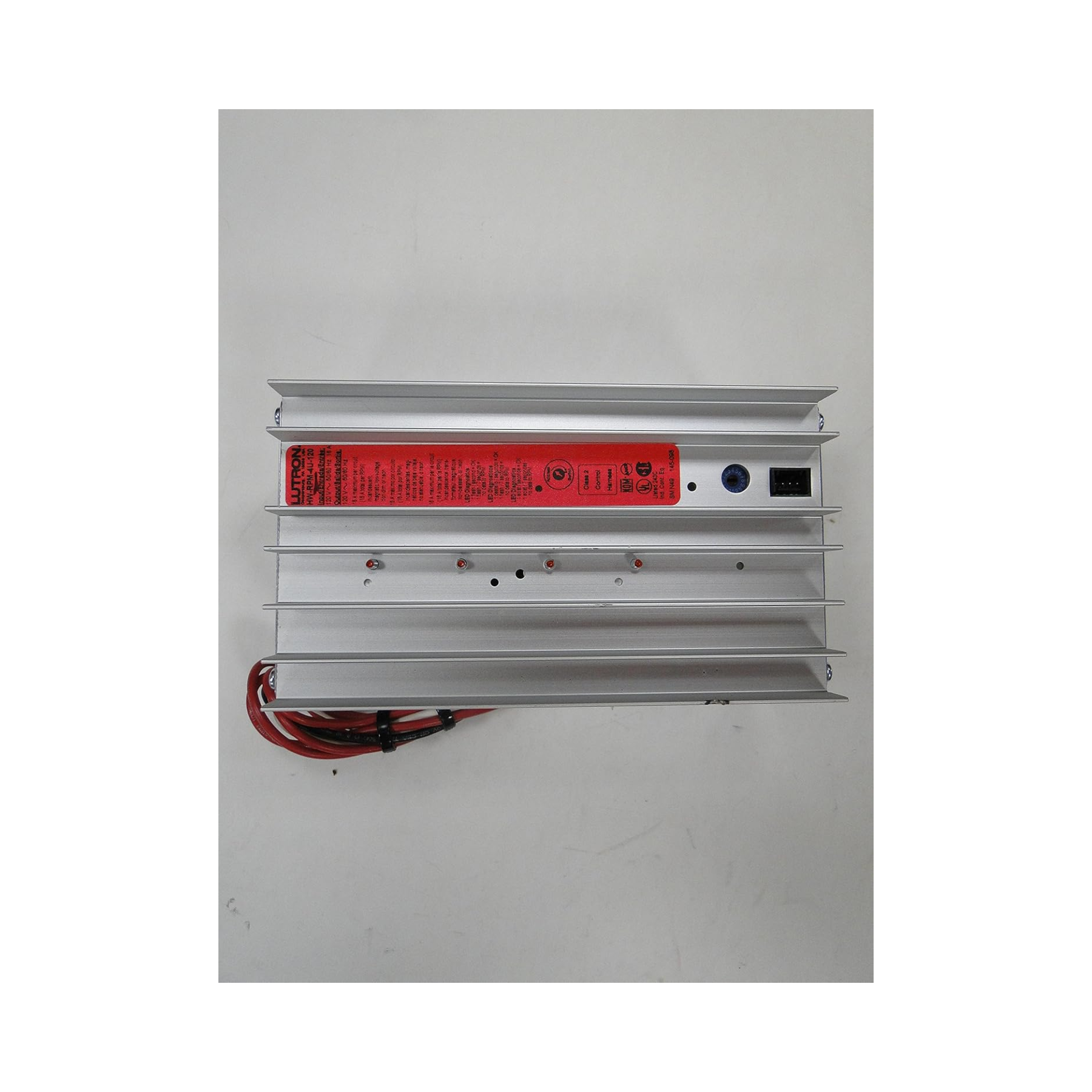

HW-RPM-4U-120 - Remote Power Module
Remote Power Modules (RPMs) are used to control lighting, motor, and fan loads. There are several different models of RPMs. Each model controls specific load types. The RPMs are mounted in remote power panels. All RPMs must be connected to a module interface housed within the same panel enclosure. RPMs within an enclosure are connected to the module interface using a Lutron-provided harness. To minimize the effects of single power supply failure, each RPM is powered by its own internal power supply.
Specifications
Model Number: HW-RPM-4U-120
Power: 120 V~ 50 / 60 Hz
Number of Outputs: 4
Regulatory Approvals: UL®, CSA, NOM
Environment Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C), 0 to 90% humidity, non-condensing. Indoor use only.
Cooling: Passive cooling.
Heat Generated Fully Loaded: 70 BTUs per hour.
Line-Voltage Connections: Separate line-voltage feeds at the DIN rail terminal blocks for each RPM. Terminal blocks should be tightened to 3.5 in-lb to 5.0 in-lb (0.40 N•m to 0.57 N•m).
Low-Voltage Communications: Communication harness (included).
Wiring: Terminal blocks will accept one 18 AWG to 10 AWG (1.0 mm2 to 6.0 mm2) wire or two 18 AWG to 16 AWG (1.0 mm2 to 1.5 mm2) wires.
Addressing: Manual rotary switch. Counts as 1 of 8 RPM addresses per module interface.
Diagnostics: LED provided to indicate proper communications with module interface.
ESD Protection: Meets or exceeds the IEC 61000-4-2 standard.
Surge Protection: Meets or exceeds ANSI/IEEE standard c62.41.
Air Gap: Provided when all four circuits are off.
Fail-Safe Operation: Rotary switch on the RPM allows for manual operation of each load.
Dimensions: 37⁄8 in (99 mm) wide × 7 in (178 mm) high
