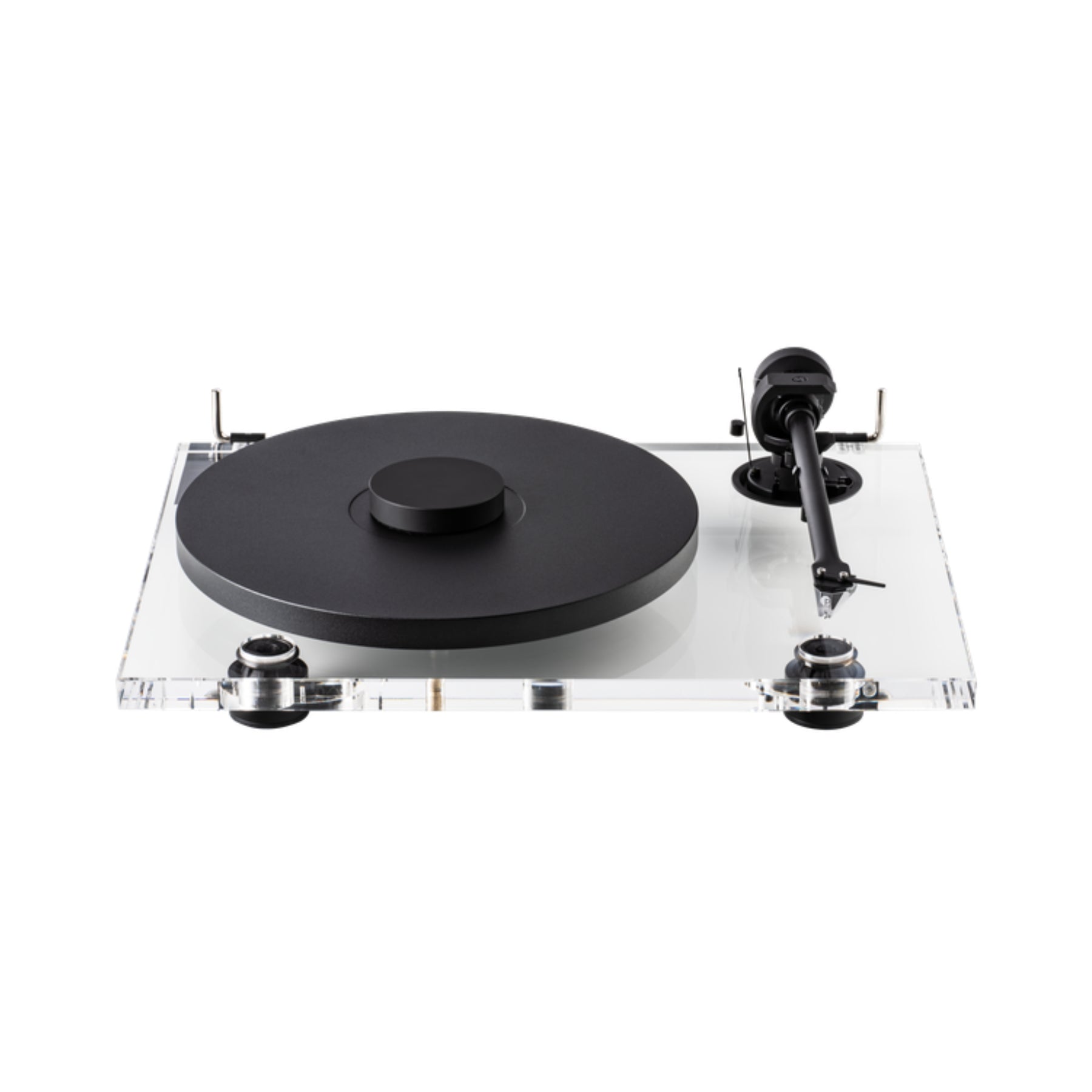

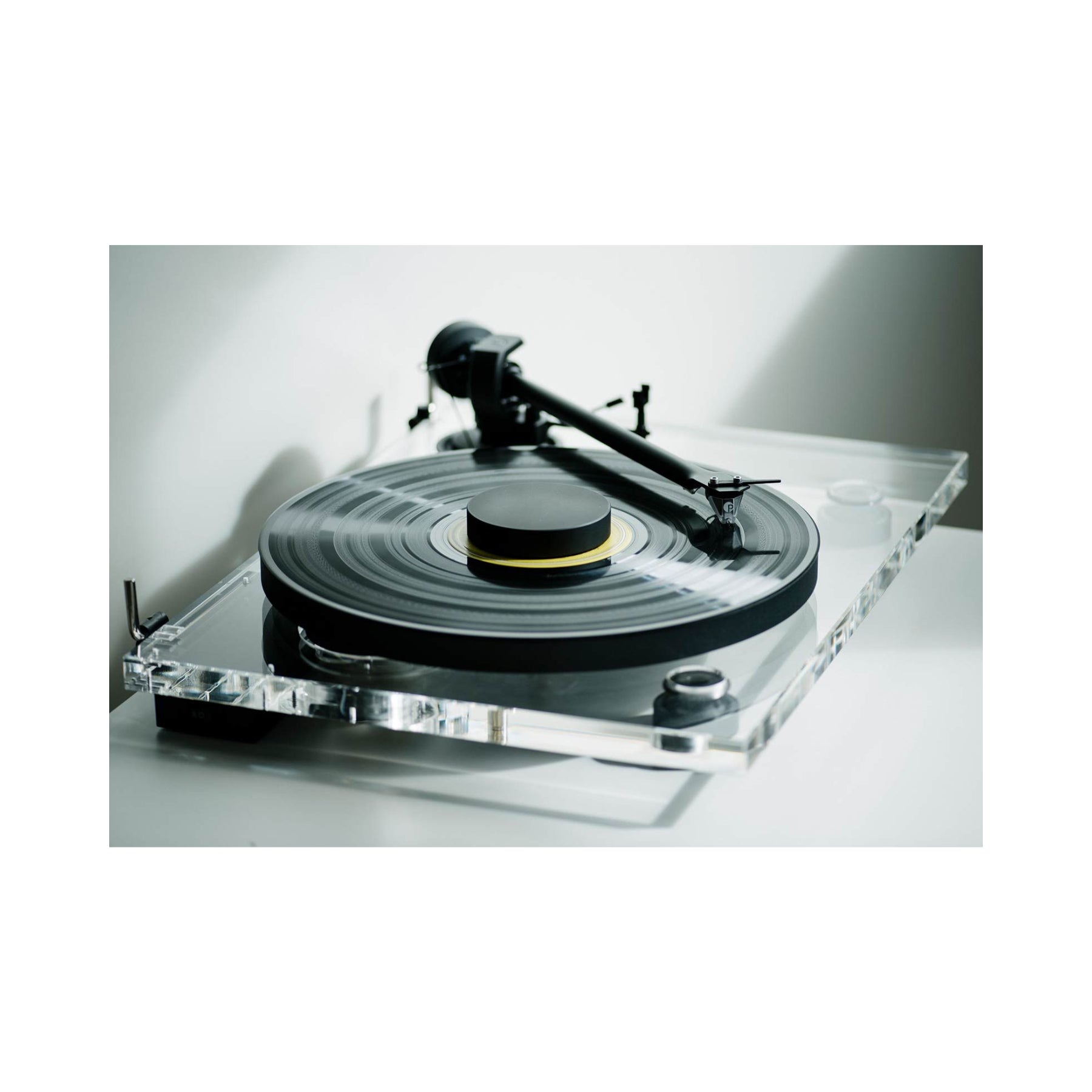

Pro-Ject XA B Balanced Acrylic Turntable

For over 30 years, Pro-Ject has focused on building high-end turntables that prioritize sound quality over unnecessary features. The XA B is a direct result of decades of material experimentation—especially with acrylic, a material known for its anti-resonant properties and an option for a true balanced output!

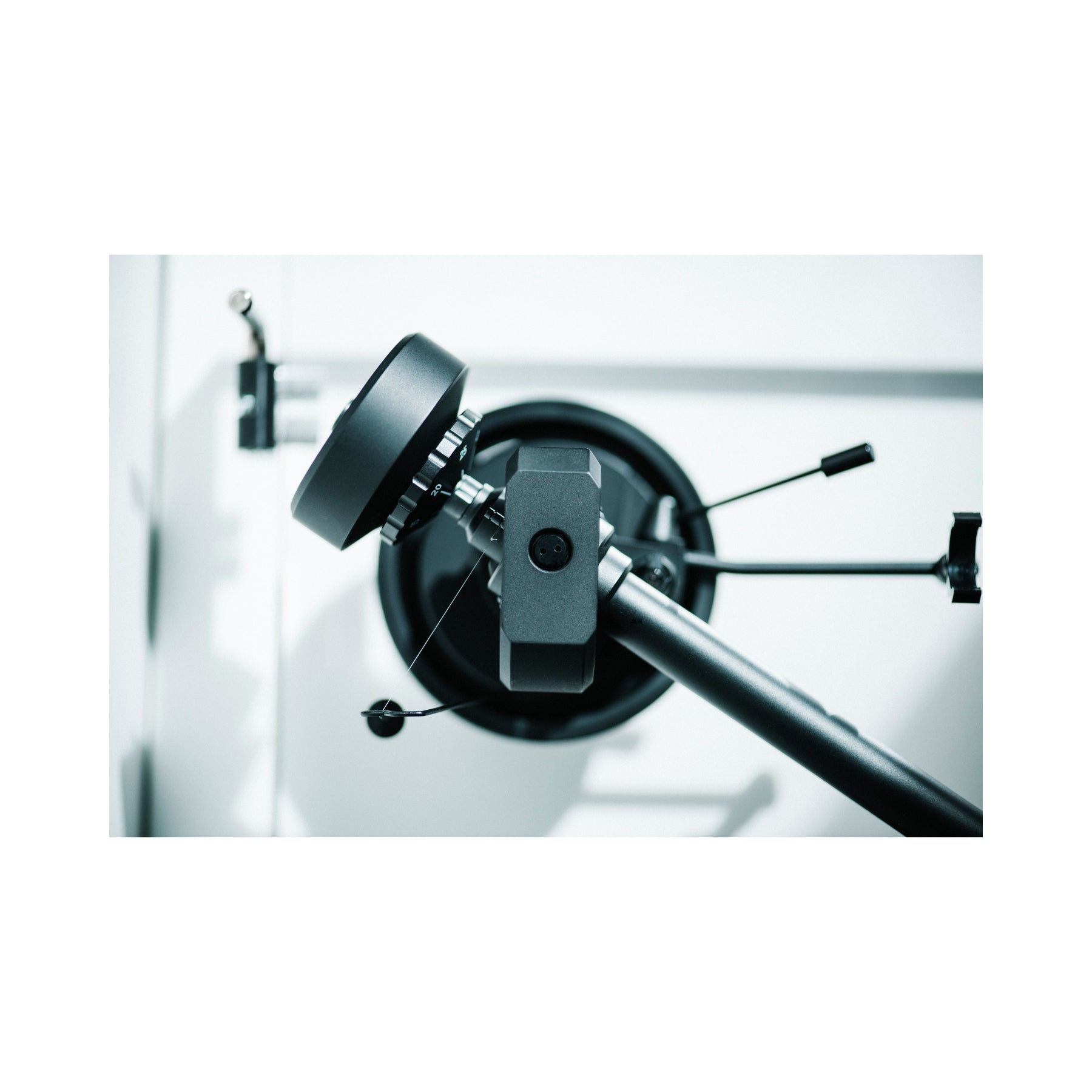

• 10″ One-Piece Aluminum Tonearm: Rigid, lightweight, and designed for reduced tracking error
• Pre-Installed Pick it PRO Balanced MM Cartridge : The Pick it PRO Balanced cartridge is a modified version of our popular MM cartridge, redesigned to support true balanced signal transmission.
• 5-Pin DIN Balanced Output: For maximum signal purity and reduced interference—especially important for low-level phono signals. Simply connect via a DIN to XLR or DIN to Mini XLR cable to any of our balanced phono preamps—including the Phono Box S3 B, Phono Box DS3 B, Tube Box DS3 B, or Phono Box RS2.
• Adjustable VTA and Azimuth: Full tonearm adjustment for advanced setup control
• Cardanic Ultra-Low-Friction 4-Point Tonearm Bearing: Precision tracking for accurate audio reproduction
• Precision 1.7kg Aluminum Platter with TPE Damping: Minimizes resonance for smooth playback
• Acoustically Inert Acrylic Chassis: Beautiful and anti-resonant for pure sound
• Electronic Speed Control: Accurate speed stability and easy switching between 33/45 RPM
• High-Quality DC/AC Generator: Creates clean power for consistent motor performance

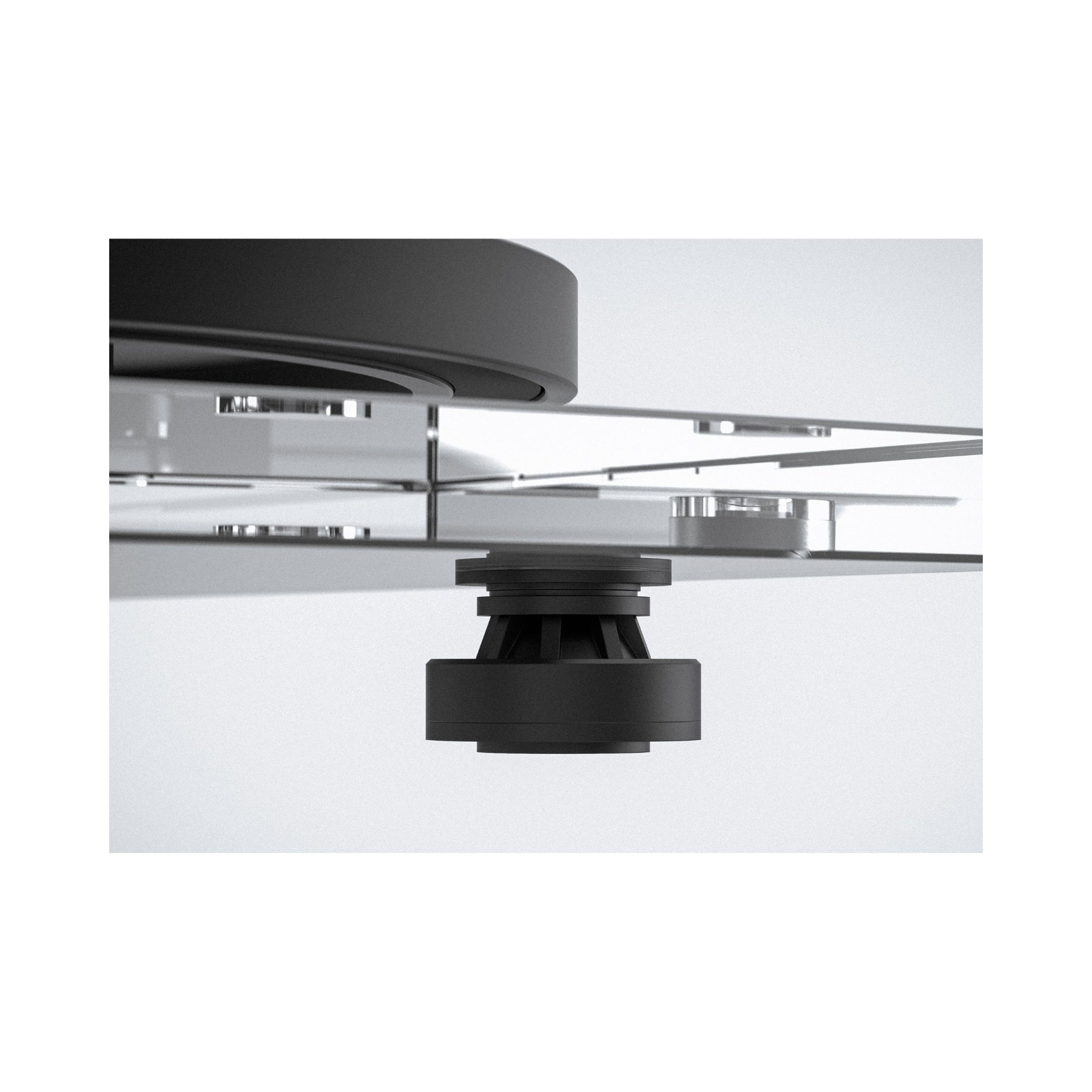

• Special TPE-Damped Metal Feet: Height-adjustable for enhanced vibration isolation
• Record Puck E Included: Improves record coupling and playback stability

Pro-Ject XA B Specifications:

Cartridge: Pick it PRO-Balanced

Speed: 33, 45 (electronic speed change)

Drive Principle: Belt

Platter: 1,7kg die-cast aluminium & TPE damped

Main bearing: Stainless steel/brass

Wow & flutter: 33: 0.13% 45: 0.12%

Speed drift: 33: 0.30% 45: 0.20%

Tonearm: 10" Aluminium

Effective arm length / mass: 9“ (245 mm) / 10 g

Overhang: 18mm

Feet: Height adjustable & TPE damped

Included Phono Cable: Connect it E 5P -> RCA, 1.23m

Additional Included Accessories: 15V DC / 0,8A power supply, dust cover, 7“ single adapter, felt mat, record puck

Power Consumption: 4.5W / <0.3 W standby mode

Dimensions (lid closed): 18.1”W x 5.1”H x 13.4”D

Weight: 13.9 lbs
