Bandwidth-hungry voice and video applications. Internet of Things (IoT) connections. An explosion of new devices and content. With these kinds of demands, organizations in every industry need more from their Wi-Fi. But with hundreds of devices and nonstop wireless noise and interference, busy indoor spaces can make challenging wireless environments. The Ruckus R710 premier indoor access point is a perfect solution.
Get the Details

RUCKUS R710

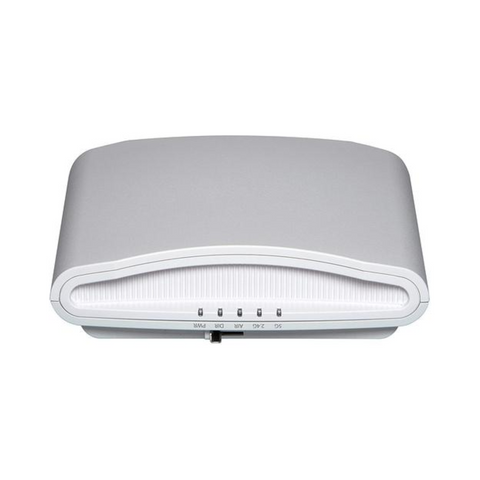

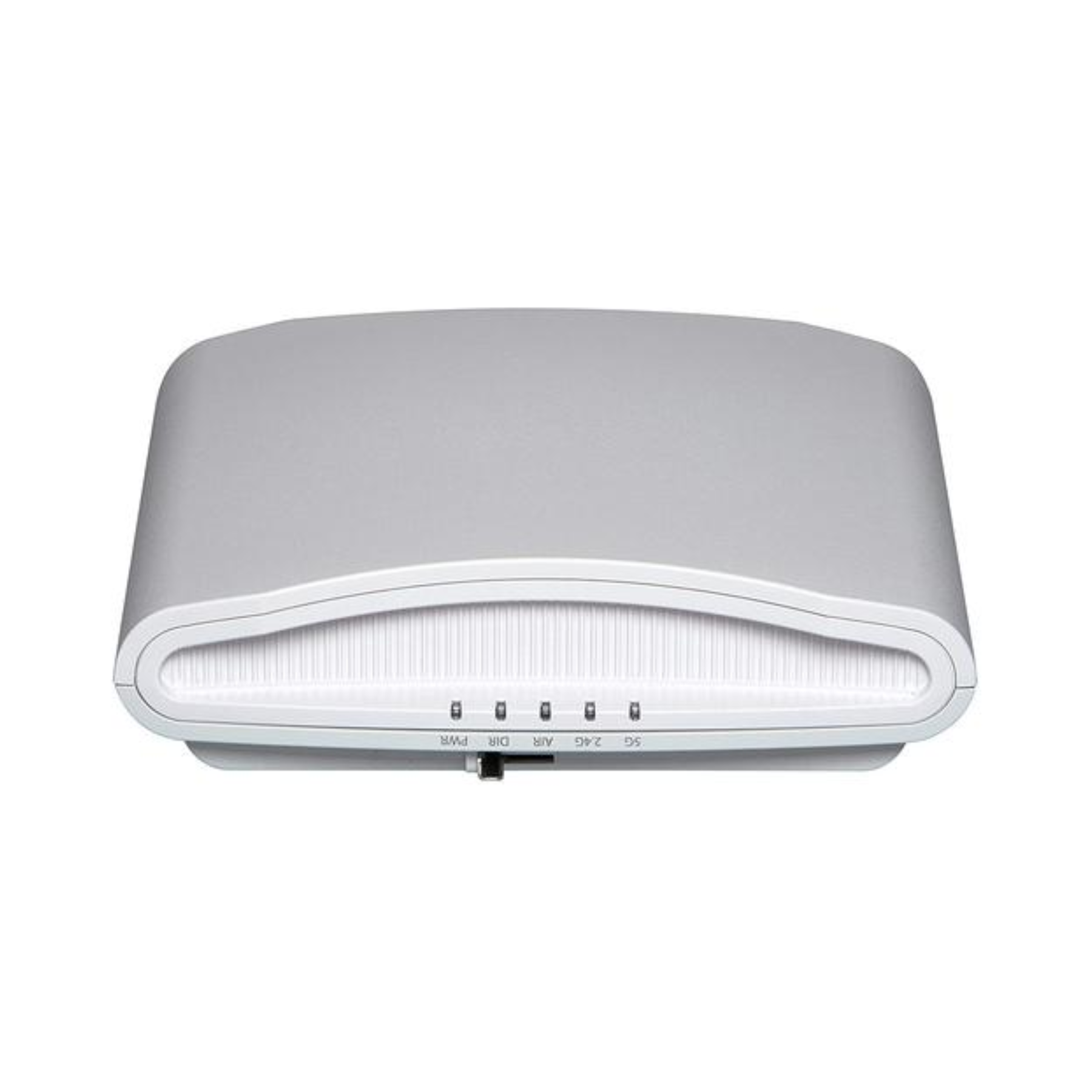

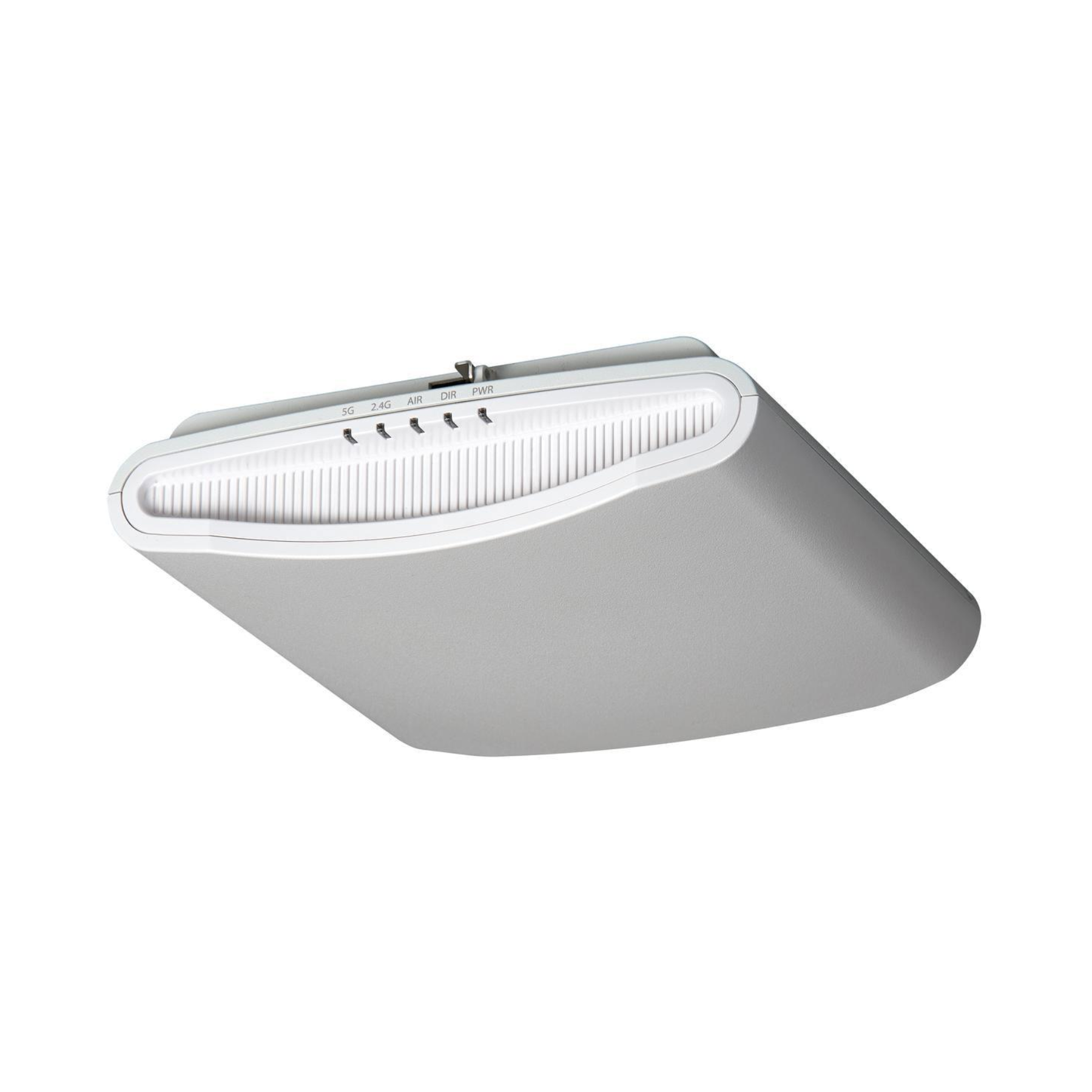

The RUCKUS R710 is a premier indoor access point, delivering industry-leading performance and reliability in the most demanding high-density locations. With data rates up to 800Mbps (2.4GHz) and 1.733Gbps (5GHz), the R710 delivers the highest available throughput for Wi-Fi clients.

The R710 delivers reliable, high-performance connectivity in schools, universities, public venues, hotels, conference centers, and other busy indoor spaces. The perfect choice for data-intensive streaming multimedia applications, it delivers picture-perfect HD-quality IP video, while supporting voice and data applications with stringent quality-of-service requirements.

The R710 802.11ac Wave 2 Wi-Fi AP incorporates patented technologies found only in the RUCKUS Wi-Fi portfolio.

• Extended coverage with patented BeamFlex+ utilizing multi-directional antenna patterns.
• Improve throughput with ChannelFly, which dynamically finds less congested Wi-Fi channels to use.

With MultiUser MIMO (MU-MIMO) connectivity, the R710 can simultaneously transmit to multiple client devices, drastically improving RF efficiency, overall throughput, and availability—even for non-Wave 2 clients. The R710 also features a USB port for hosting IoT devices such as Bluetooth Low Energy (BLE) beacons, and dual Gigabit Ethernet ports that support Link Aggregation for highercapacity backhaul to the switch. The R710 supports up to 512 clients per AP and features capacitybased admission control to prevent APs from getting congested with too many attached devices.

Whether you’re deploying ten or ten thousand APs, the R710 is also easy to manage through RUCKUS’ appliance, virtual and cloud management options.

Features:

• 802.11ac Multi-User MIMO (MU-MIMO)
• Concurrent dual-band (5 GHz/2.4 GHz) support
• 80 MHz channelization; 256-QAM modulation support; 1733 Mbps
  PHY rates at 5 GHz
• 256-QAM support on 2.4GHz
• 802.11ac standard Tx Beamforming
• Space Time Block Coding for increased handset performance
• Improved Maximum Ratio Combining (MRC) for best-in-class receive sensitivity
• Low Density Parity Check (LDPC) for increased data throughput at all ranges
• BeamFlex+ (PD-MRC) improves signal reception of mobile devices
• Integrated smart antenna with many unique patterns for ultra reliability
• Unmatched Rx sensitivity down to -104 dBm
• WPA-PSK (AES), 802.1X support for RADIUS and AD
• Admission control/load balancing
• Band balancing

Stunning Wi-Fi Performance

Provide a great user experience no matter how challenging the environment with BeamFlex®+ adaptive antenna technology and a library of 4K+ directional
antenna patterns.

Serve More Devices

Connect more devices simultaneously with four MUMIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing non-Wave 2 device
performance.

Automate Optimal Throughput

ChannelFly® dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the
band can support.

Multiple Management Options

Manage the R710 from the cloud, with on-premises physical/virtual appliances, or without a controller.

Better Mesh Networking

Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh™ wireless meshing technology to dynamically create selfforming, self-healing mesh networks.

Expanded Backhaul

Pair two onboard 1GbE ports with link aggregation (LACP) to maximize throughput between the AP and wired switch.

Specifications

WI-FI

• Wi-Fi Standards · IEEE 802.11a/b/g/n/ac Wave 2
• Supported Rates
  • 802.11ac: 6.5 to 1,733Mbps (MCS0 to MCS9, NSS = 1 to 4 for VHT20/40/80)
  • 802.11n: 6.5 Mbps to 600Mbps (MCS0 to MCS31)
  • 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
  • 802.11b: 11, 5.5, 2 and 1 Mbps
• Supported Channels
  • 2.4GHz: 1-13
  • 5GHz: 36-64, 100-144, 149-165
• MIMO
  • 4x4 SU-MIMO
  • 4x4 MU-MIMO
• Spatial Streams
  • 4 streams for SU-MIMO
  • 3 streams for MU-MIMO
• Channelization: 20, 40, 80MHz
• Security
  • WPA-PSK, WPA-TKIP, WPA2-Personal, WPA2-Enterprise,
    WPA3-Personal, WPA3-Enterprise, WPA3, AES, 802.11i,
    Dynamic PSK
  • WIPS/WIDS
• Other Wi-Fi Features
  • WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
  • Hotspot
  • Hotspot 2.0
  • Captive Portal
  • WISPr

RF

• Antenna Type
  • BeamFlex+ adaptive antennas with polarization diversity
  • Adaptive antenna that provides 4,000+ unique antenna patterns
• Antenna Gain (max) · Up to 3dBi
• Peak Transmit Power (aggregate across MIMO chains)
  • 2.4GHz: 28dBm
  • 5GHz: 28dBm
• Minimum Receive Sensitivity · -104dBm
• Frequency Bands:
  • ISM (2.4-2.484GHz)
  • U-NII-1 (5.15-5.25GHz)
  • U-NII-2A (5.25-5.35GHz)
  • U-NII-2C (5.47-5.725GHz)
  • U-NII-3 (5.725-5.85GHz)

NETWORKING

• Controller Platform Support
  • SmartZone
  • ZoneDirector
  • Unleashed
  • Standalone
  • Cloud
• Mesh: SmartMesh™ wireless meshing technology. Self-healing Mesh
• IP : IPv4, IPv6, dual-stack
• VLAN
  • 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
  • Port-based
• 802.1x · Authenticator & Supplicant
• Tunnel: L2TP
• Policy Management Tools
  • Application Recognition and Contro
  • Access Control Lists
  • Device Fingerprinting

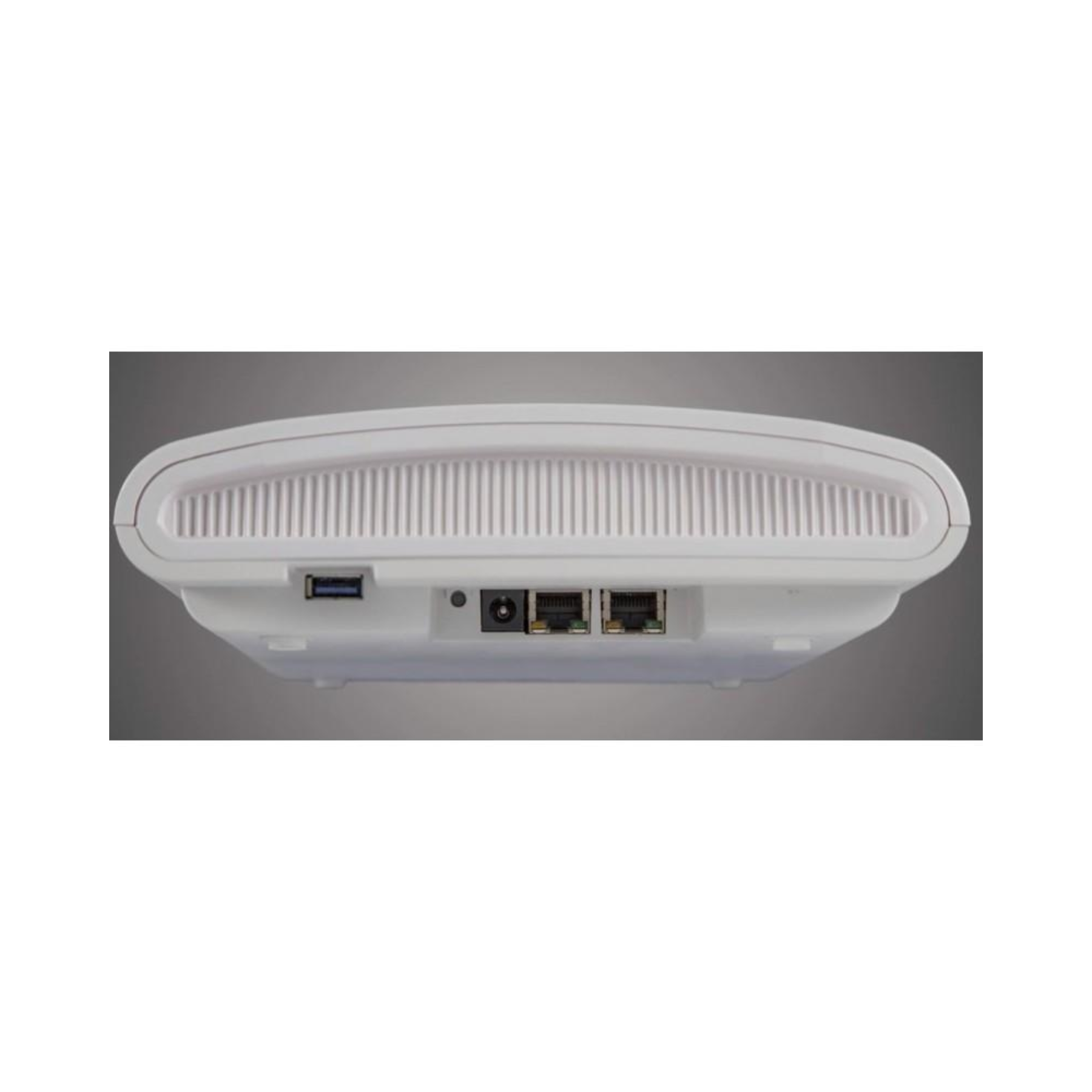

PHYSICAL INTERFACES

• Ethernet
  • Two 1Gbps Ethernet ports
  • Power over Ethernet (802.3af/at/bt) with Category 5/5e/6 cable
  • Link Aggregation (LACP)
• USB · 1 USB 2.0 port, Type A

PHYSICAL CHARACTERISTICS

• Physical Size
  • 22 cm (L), 22 cm (W), 6 cm (H)
  • 8.7in (L) x 8.7in (W) x 2.4in (H)
• Weight · 1.12 kg (2.5 lb)
• Mounting
  • Pole Mount, Flat Surface
  • Bracket included in the box
• Operating Temperature · -4ºC (25ºF) to 60ºC (140ºF)
• Operating Humidity · Up to 95%, non-condensing

POWER

• Power Supply: 802.3af
• Operating Characteristics:
  • 2.4GHz: 2x4, 19dBm per chain
  • 5GHz: 4x4, 20dBm per chain
  • Functional Limitation: 2nd
    Ethernet disabled USB disabled
• Power Supply: 802.3at, PoE+/injector, VDC
• Operating Characteristics:
  • 2.4GHz: 4x4, 22dBm per chain
  • 5GHz: 4x4, 20dBm per chain
  • Functional Limitation: None
• Max Power Consumption: Peak: 25W, including USB loading and 100m cable

CERTIFICATIONS AND COMPLIANCE

• Wi-Fi Alliance
  • Wi-Fi CERTIFIED™ a, b, g, n, ac
  • Wi-Fi Enhanced Open™
  • WPA2™ - Personal
  • WPA2™ - Enterprise
  • WPA3™ - Personal
  • WPA3™ - Enterprise
  • Wi-Fi Agile Multiband™
  • Wi-Fi Optimized Connectivity™
  • Wi-Fi Vantage™
  • WMM®
  • Passpoint®
• Standards Compliance
  • EN 60950-1 Safety
  • EN 60601-1-2 Medical
  • EN 61000-4-2/3/5 Immunity
  • EN 50121-1 Railway EMC
  • EN 50121-4 Railway Immunity
  • IEC 61373 Railway Shock & Vibration
  • UL 2043 Plenum
  • EN 62311 Human Safety/RF Exposure
  • WEEE & RoHS
  • ISTA 2A Transportation

SOFTWARE AND SERVICES

• Location Based Services · SPoT
• Network Analytics · SmartCell Insight (SCI)
• Security and Policy · Cloudpath
