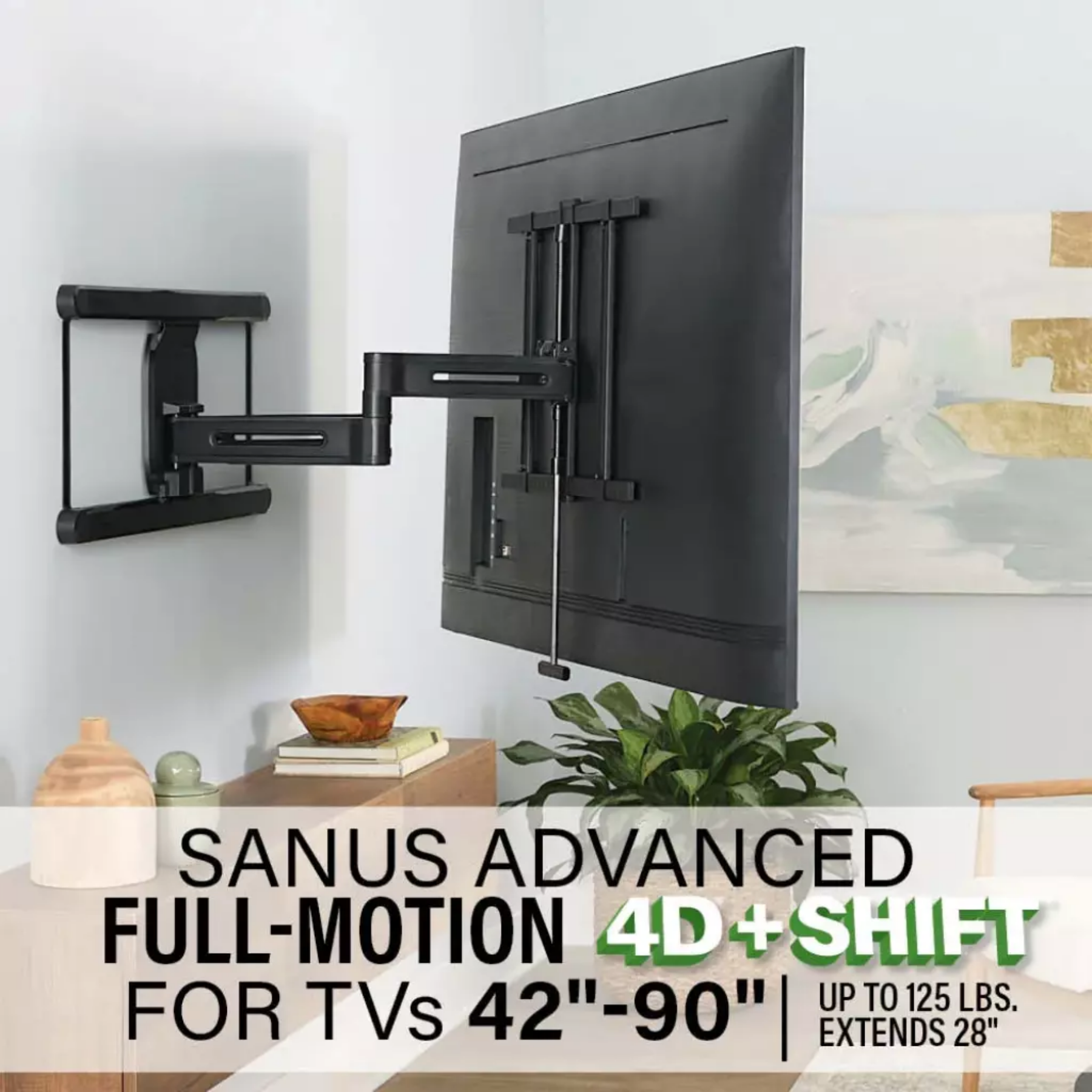

SANUS Advanced Full-Motion 4D + Shift TV Wall Mount for TVs 42"–90" (VLF828)

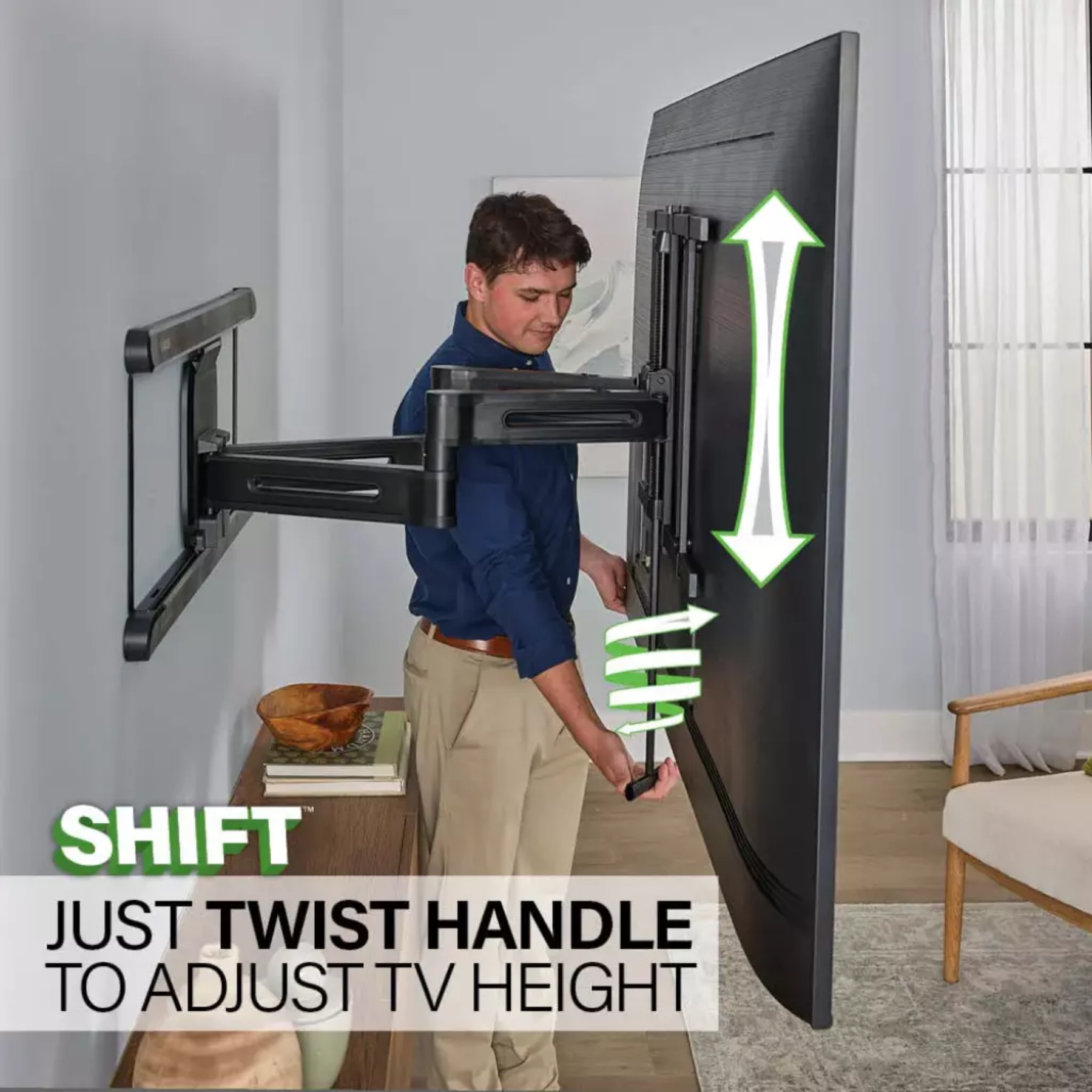

The SANUS Advanced Full-Motion 4D + Shift TV Wall Mount (VLF828) delivers unmatched flexibility, strength, and precision for modern large-screen TVs from 42" to 90". Designed with patent-pending 4D + Shift height adjustment, this premium full-motion mount allows up to 8 inches of vertical movement after installation, making it ideal for mounting above fireplaces, consoles, soundbars, or around wall obstacles such as outlets. If measurements aren’t perfect the first time, Shift™ lets you easily reposition your TV without reinstalling the mount.

Built on an ultra-strong solid steel frame, the VLF828 supports TVs up to 125 lbs while maintaining a sleek, low-profile depth of just 2.42 inches from the wall when retracted. SANUS FluidMotion engineering ensures smooth, effortless extension, tilt, and swivel regardless of TV size or weight, while Steady Set keeps the TV firmly in place with no drifting. Thoughtful design details like FollowThru cable management, ProSet post-install leveling, and a removable Shift handle make installation and everyday use simple, clean, and frustration-free.

Specifications

• Brand: SANUS
• Model Code: VLF828
• TV Size Compatibility: 42"–90" (106.68 cm – 228.60 cm)
• Maximum TV Weight: 125 lbs (56.70 kg)
• Mount Type: Advanced Full-Motion Wall Mount

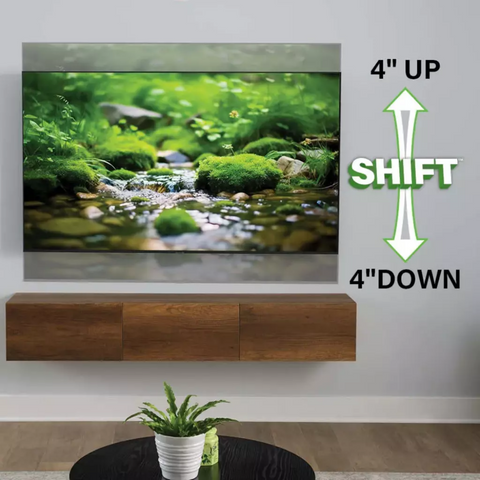

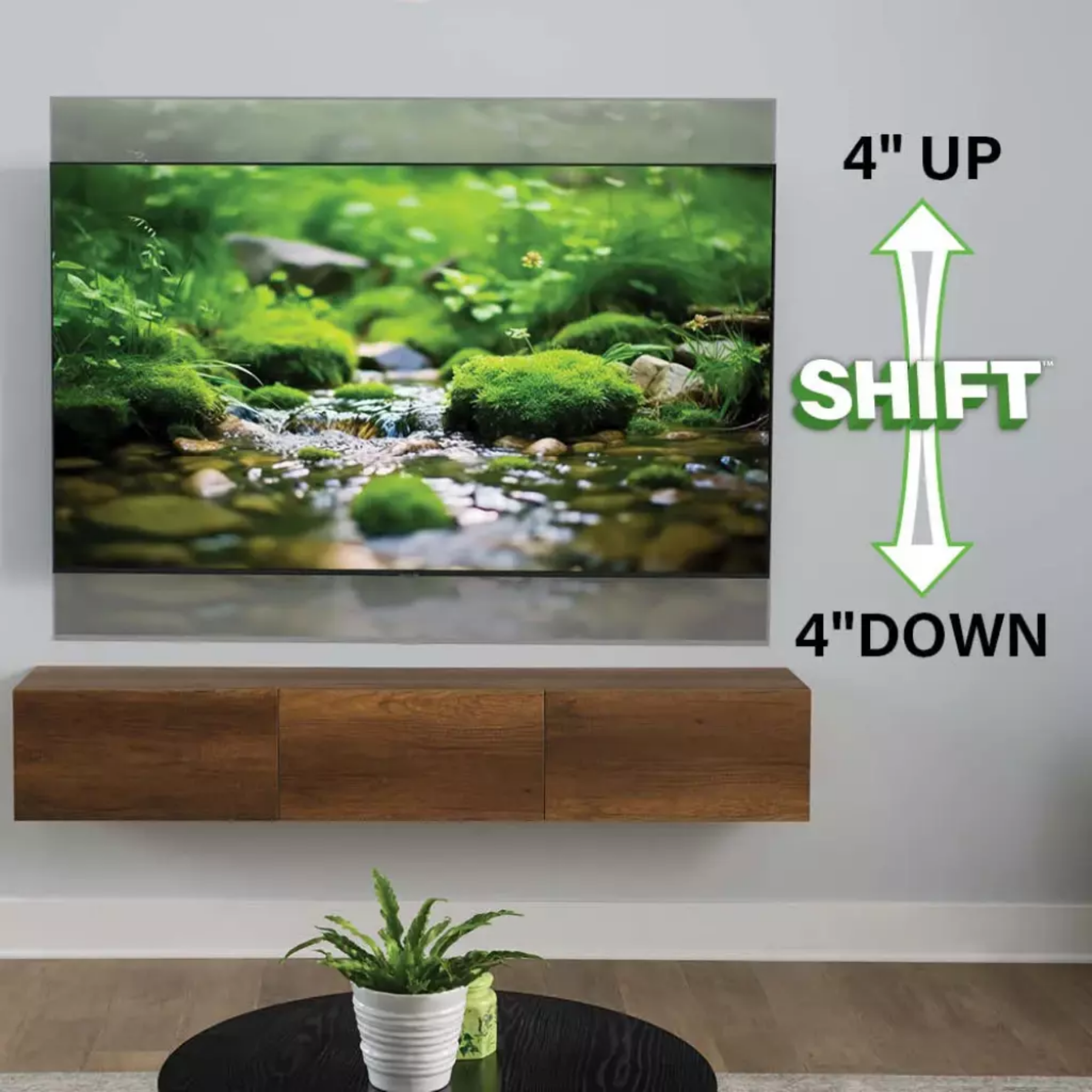

• Height Adjustment: Up to 8" (20.32 cm) post-install with 4D + Shift
• Tilt Range: 5° up / 15° down
• Swivel Range: 46° left / 46° right
• Extension Range: 2.42"–28.00" (6.15 cm – 71.12 cm)
• Product Width: 34.80" (88.39 cm)
• Product Height: 19.20" (48.77 cm)
• Universal VESA Compatibility: 100 x 200 to 600 x 400

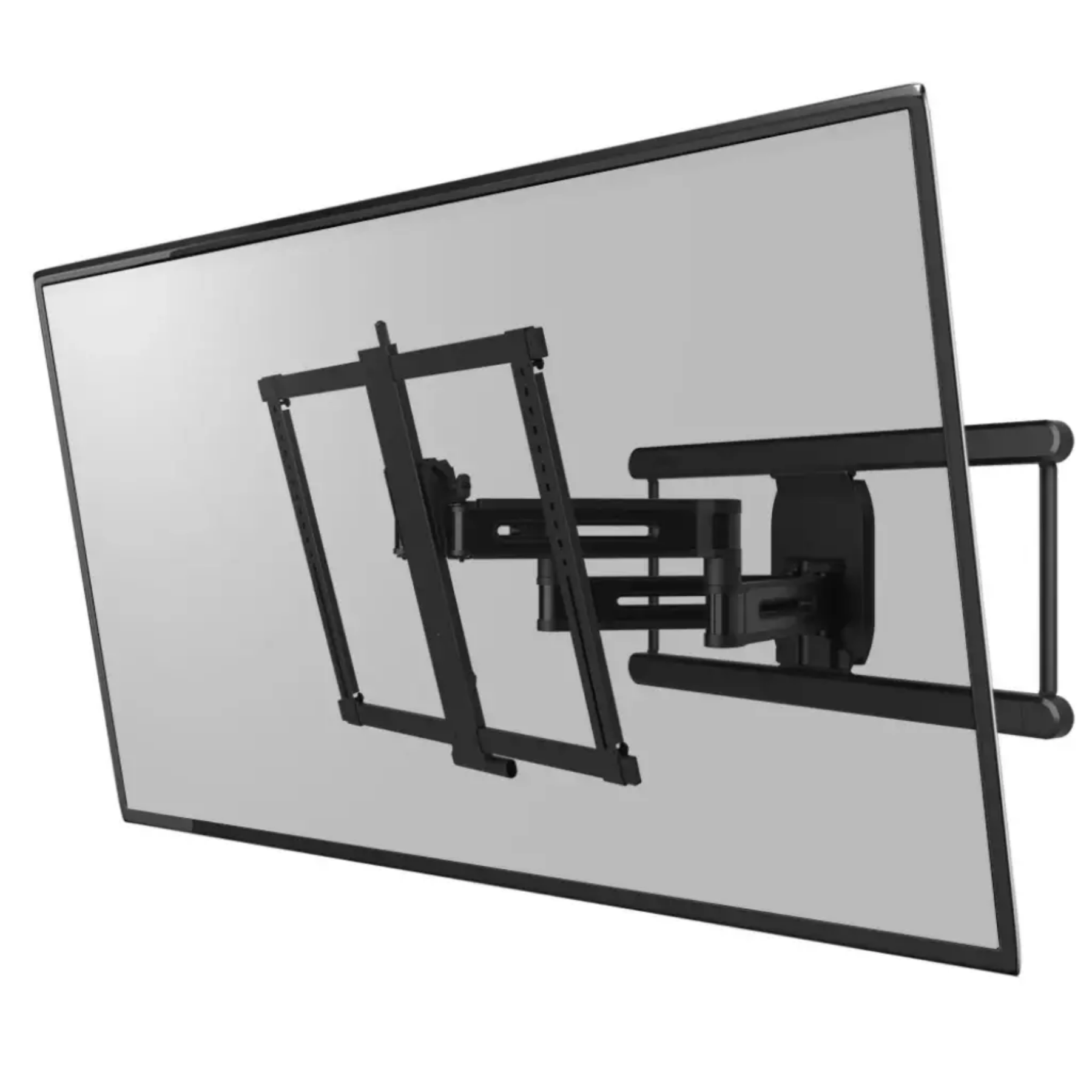

• Construction: Solid steel frame
• Cable Management: FollowThru in-arm cable routing
• Level Adjustment: ProSet post-install micro-leveling
• Motion Technology: FluidMotion with Virtual Axis tilt
• Stability System: Steady Set locking position control
• Installation Time: Approximately 15 minutes
• Safety Certification: UL listed, safety tested
• Warranty: 10-year limited warranty

What It’s Great At

• Solving height and placement challenges above fireplaces, consoles, or soundbars
• Providing smooth, precise full-motion control for large and heavy TVs
• Maintaining a sleek, low-profile look when the TV is against the wall
• Allowing post-install height and level adjustments without remounting
• Delivering professional-grade stability with no drift or movement

Expanded Key Features List

• 4D + Shift Height Adjustment: Allows up to 8 inches of vertical TV repositioning after installation for perfect placement.
• Removable Shift Handle: Provides leverage to move large TVs easily, then hides discreetly behind the screen.
• FluidMotion Engineering: Ensures smooth, effortless extension, swivel, and tilt regardless of TV size or weight.
• Virtual Axis Tilt: Enables fingertip tilt adjustments to reduce glare from lights or windows.
• Steady Set Stability: Locks the TV in place to eliminate drifting, sagging, or unwanted movement.
• Low-Profile Design: Positions TVs just 2.42 inches from the wall for a clean, modern appearance.
• FollowThru Cable Management: Routes cables neatly through the mount arms for a clutter-free setup.
• ProSet™ Post-Install Leveling: Allows micro-adjustments to ensure the TV is perfectly level after mounting.

FAQ Section

Q: What makes the SANUS VLF828 different from standard full-motion mounts?
A: The VLF828 features patent-pending 4D + Shift technology, allowing up to 8 inches of height adjustment after installation, something traditional mounts do not offer.

Q: Can this mount support very large or heavy TVs?
A: Yes, it is engineered with a solid steel frame to support TVs from 42" to 90" weighing up to 125 lbs.

Q: Is the TV height adjustable after installation?
A: Yes, the Shift feature allows easy vertical repositioning even after the TV is fully mounted.

Q: How close does the TV sit to the wall?
A: When retracted, the TV sits just 2.42 inches from the wall for a streamlined look.

Q: Does the mount allow for tilt and swivel?
A: Yes, it tilts 5° up, 15° down, and swivels up to 46° left or right.

Q: Is cable management included?
A: Yes, FollowThru cable management routes cables through the arms for a clean installation.

Q: Is this mount safety certified?
A: Absolutely. The VLF828 is UL listed, rigorously safety tested, and backed by a 10-year limited warranty.

Q: Is installation difficult?
A: No. The mount is designed for a simple 3-step installation and typically installs in about 15 minutes with the included hardware.
