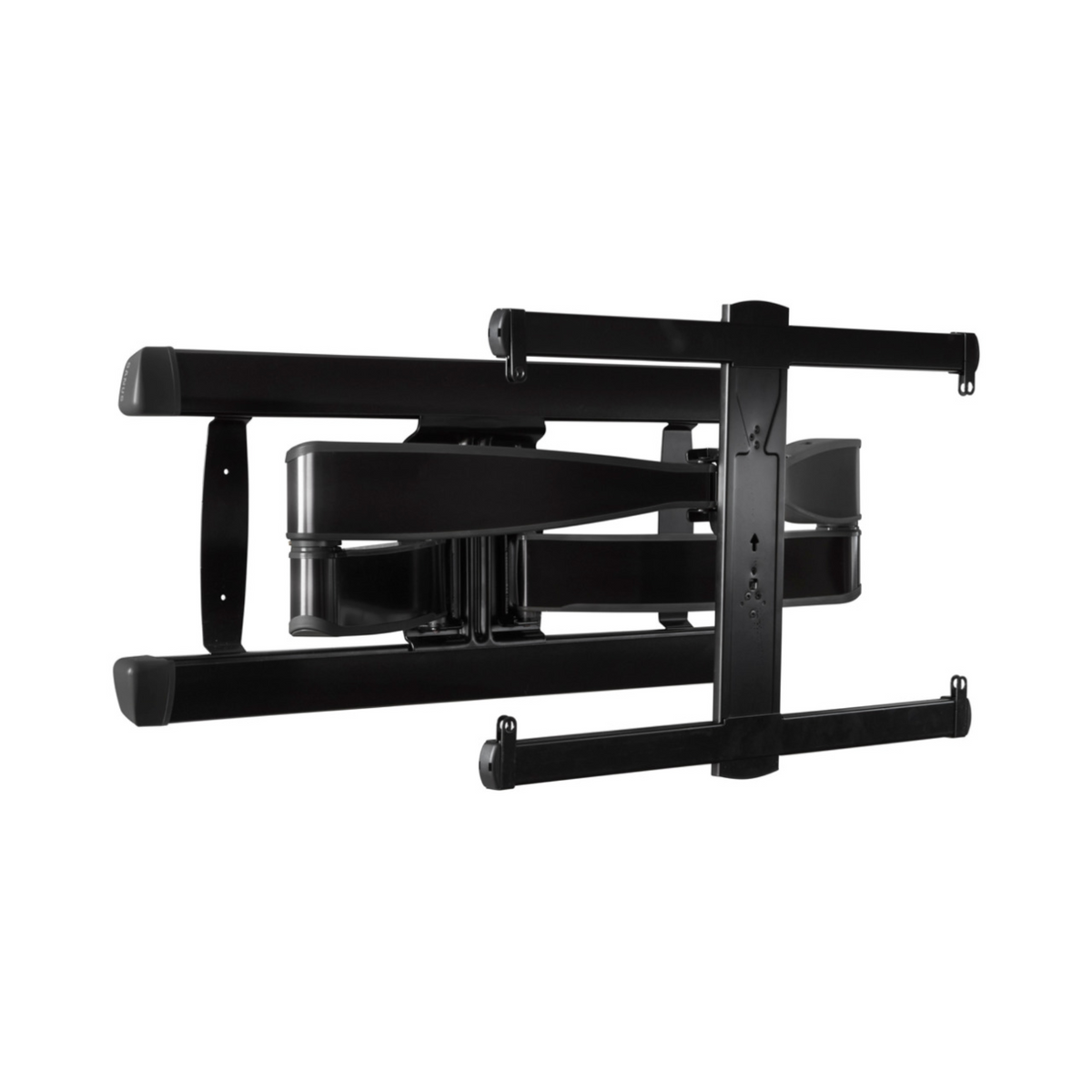

SANUS VLF728 Advanced Full-Motion TV Wall Mount for 42"–90" TVs

Upgrade your home theater with the SANUS VLF728 Advanced Full-Motion TV Wall Mount, a premium articulating TV mount engineered for large flat-panel TVs from 42 to 90 inches. Its ultra-strong solid steel frame supports TVs weighing up to 125 lbs., while the FluidMotion™ design makes it easy to extend, swivel, and tilt your screen for a comfortable viewing angle from virtually anywhere in the room. The mount extends up to 28 inches from the wall and retracts to just 2.15 inches, creating a sleek, low-profile appearance when your TV is pushed back.

Designed to complement modern TVs and interiors, the SANUS VLF728 features a refined brushed metal exterior, integrated cable management, and decorative covers that help conceal installation hardware. Steady Set™ technology keeps your TV positioned exactly where you place it, helping prevent unwanted drifting or shifting, while post-installation leveling and lateral adjustment make it easier to fine-tune screen placement. With support for VESA mounting patterns from 200 x 200 mm to 600 x 400 mm, this premium full-motion TV wall mount combines strength, flexibility, and a clean finished look for living rooms, media rooms, and home theaters.

Specifications

• Brand: SANUS
• Model: VLF728
• Mount Type: Advanced full-motion articulating TV wall mount
• Compatible TV Sizes: 42" to 90"
• Maximum TV Weight: 125 lbs. / 56.7 kg
• VESA Compatibility: 200 x 200 mm to 600 x 400 mm
• Maximum Extension: 28" / 71.12 cm
• Minimum Distance from Wall: 2.15" / 5.46 cm
• Swivel Range: 57° left / 57° right
• Tilt Range: Up to 15° downward and 5° upward
• Product Dimensions: 33.80" W x 2.15" D x 17.69" H / 85.85 x 5.46 x 44.93 cm
• Wall Plate Width: Approximately 21.83" / 55.46 cm
• Wall Plate Height: Approximately 18.72" / 47.55 cm
• Fully Assembled Mount Width: Approximately 33.80" / 85.86 cm
• Fully Assembled Mount Height: Approximately 17.68" / 44.9 cm
• TV Interface Horizontal Range: Approximately 7.87" to 23.62" / 200 to 600 mm
• TV Interface Vertical Range: Approximately 7.87" to 15.75" / 200 to 400 mm
• Frame Construction: Ultra-strong solid steel
• Exterior Finish: Brushed metal
• Available Finishes: Brushed Black Stainless and Brushed Silver Stainless
• Black Model: VLF728-B2
• Silver Model: VLF728-S2

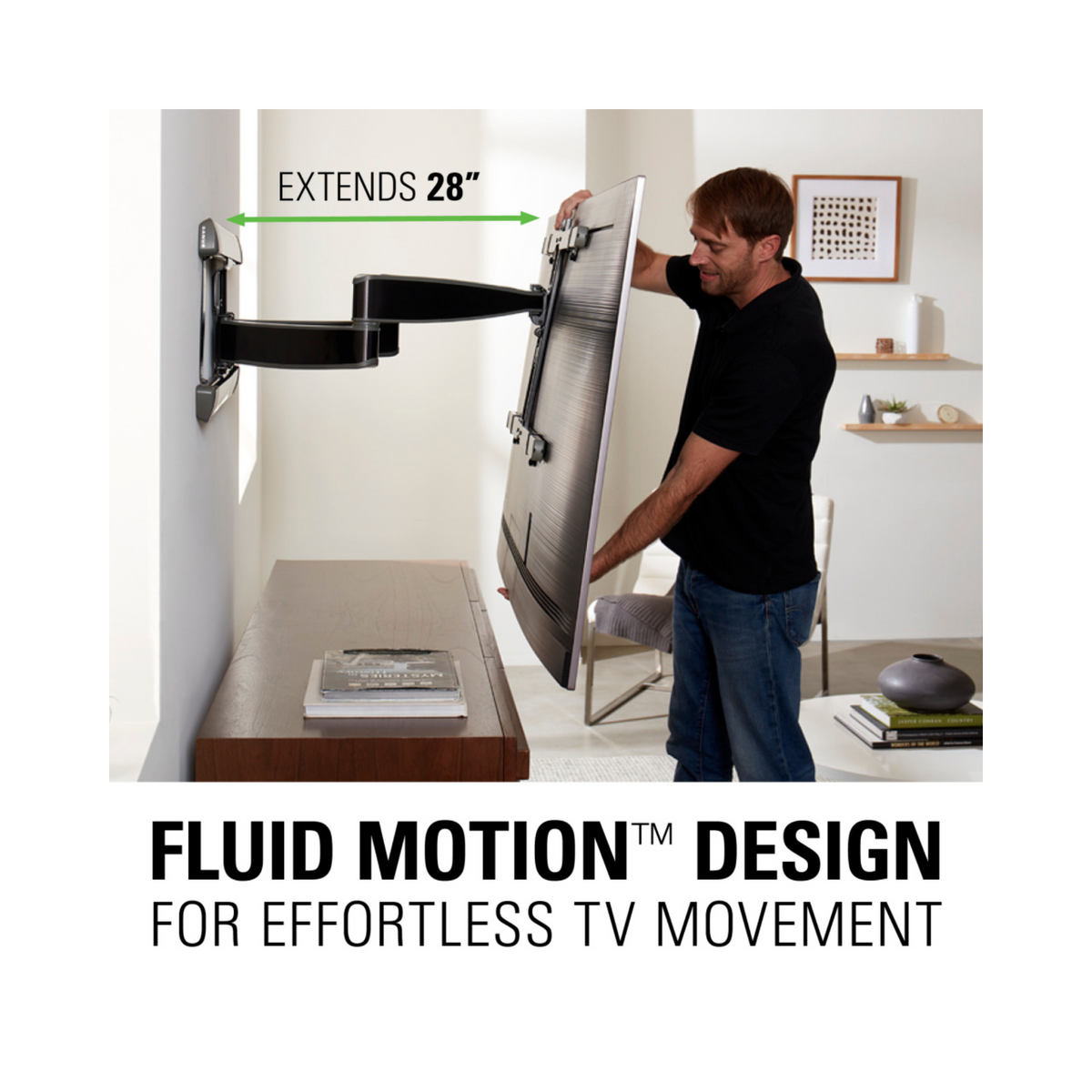

• FluidMotion™ Design: Provides smooth extension, swivel, and positioning
• Steady Set™ Technology: Helps prevent drifting, shifting, and unwanted TV movement
• Virtual Axis™ Tilt: Designed for easy fingertip tilt adjustment
• Lateral Adjustment: Allows horizontal positioning after installation
• Post-Installation Leveling: Allows the TV to be leveled after mounting

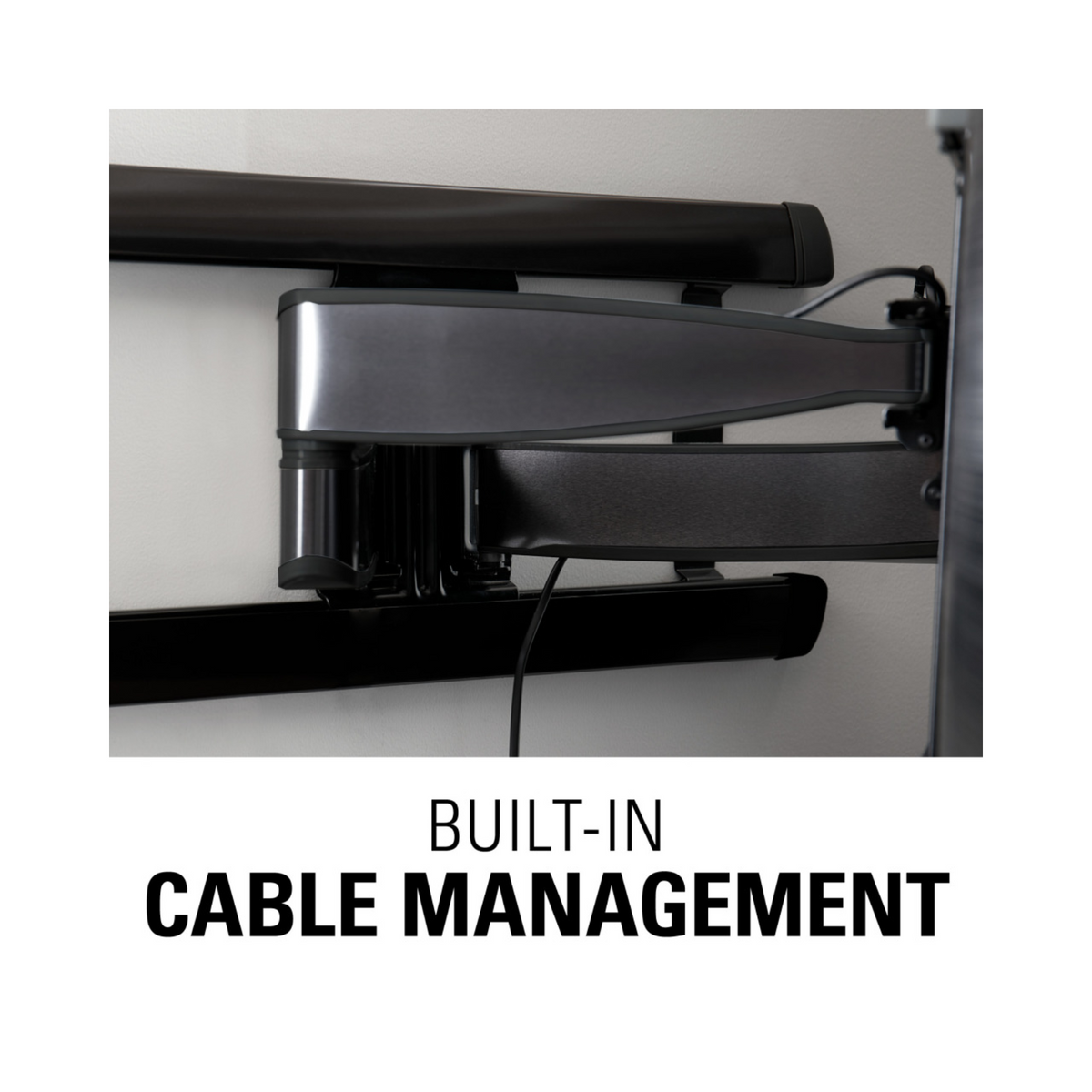

• Cable Management: Integrated in-arm cable routing helps organize and conceal cables
• Decorative Covers: Conceal the wall plate and mounting hardware for a cleaner appearance
• Installation: Designed for wood studs, solid concrete, or concrete block
• Drywall-Only Installation: Not supported
• Use: Indoor use only
• Installation Hardware: Mounting hardware and drilling template included
• Safety Certification: UL listed
• Warranty: 10-year limited warranty
• Package Dimensions: 36.38" W x 16.1" D x 3.85" H / 92.41 x 40.89 x 9.78 cm
• Package Weight: 39.2 lbs. / 17.8 kg
• Master Pack Quantity: 1
• Master Pack Dimensions: 39.96" W x 16.93" D x 4.88" H / 101.50 x 43 x 12.40 cm
• Master Pack Weight: 42.1 lbs. / 19.10 kg
• Black UPC: 793795533616
• Silver UPC: 793795533647

What It's Great At

• Flexible Viewing Angles: Extend the TV up to 28 inches, swivel it up to 57° in either direction, and adjust the tilt for comfortable viewing from different areas of the room.
• Smooth Full-Motion Adjustment: FluidMotion™ engineering helps the TV move smoothly and naturally even with larger displays.
• Holding Your TV in Position: Steady Set™ technology helps keep the screen exactly where you place it without unwanted drifting or shifting.
• Maintaining a Slim Profile: Retracts to just 2.15 inches from the wall for a streamlined installation that complements modern thin TVs.
• Supporting Large TVs: The solid steel frame accommodates compatible 42" to 90" televisions weighing up to 125 lbs.
• Creating a Clean Installation: Integrated cable management, decorative covers, and a premium brushed metal finish help produce a polished home theater appearance.
• Fine-Tuning TV Placement: Lateral adjustment and post-installation leveling make it easier to center and straighten the television after mounting.

FAQ Section

Q: What size TVs are compatible with the SANUS VLF728?
A: The VLF728 is designed for compatible flat-panel TVs from 42 to 90 inches that weigh no more than 125 lbs. including attached accessories.

Q: What VESA mounting patterns does the VLF728 support?
A: It supports VESA mounting patterns ranging from 200 x 200 mm up to 600 x 400 mm. Always verify your specific TV's mounting pattern before installation.

Q: How far can the SANUS VLF728 extend from the wall?
A: The mount extends up to 28 inches from the wall, giving you greater flexibility for angled viewing and easier access to cables and TV connections.

Q: How close does the mount sit to the wall when retracted?
A: When fully retracted, the VLF728 sits approximately 2.15 inches from the wall for a clean, low-profile appearance.

Q: How much can the TV swivel and tilt?
A: The mount swivels up to 57° to the left or right and provides up to 15° of downward tilt and 5° of upward tilt, depending on the installed TV and surrounding clearance.

Q: Can I adjust the TV after the mount is installed?
A: Yes. The VLF728 allows post-installation leveling and lateral positioning so you can fine-tune the TV's alignment and placement after it has been mounted.

Q: Does the SANUS VLF728 include cable management?
A: Yes. Integrated in-arm cable management helps route and organize TV cables, while decorative covers help conceal the wall plate and mounting hardware.

Q: What wall types can the SANUS VLF728 be installed on?
A: The mount is designed for installation into wood studs, solid concrete, or concrete block. It should not be installed into drywall alone, and it is intended for indoor use.
