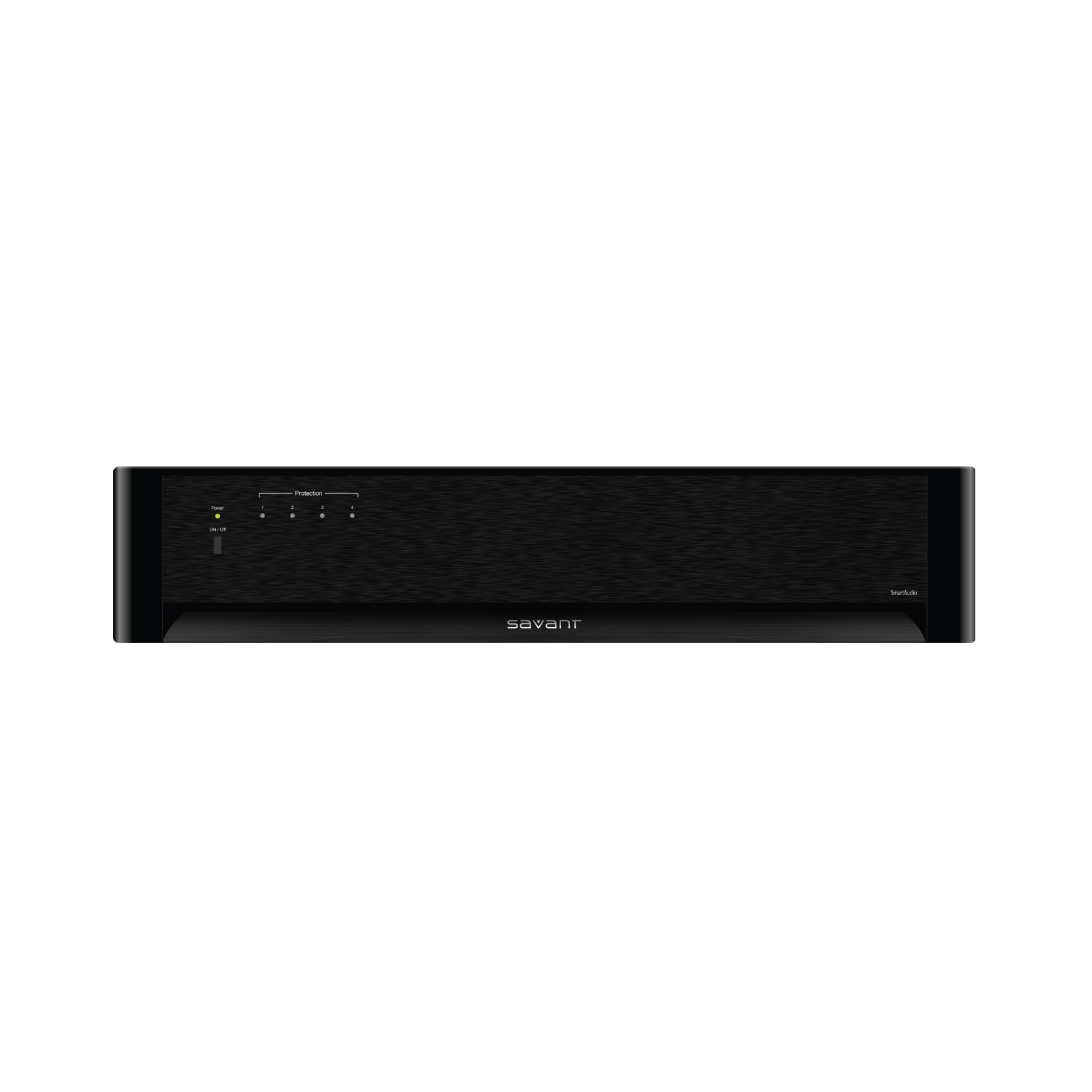

8 Channel Digital Amplifier: AMP-8040-00

The AMP-8040 is an ultra-efficient Class D digital amplifier delivering 8 channels of amplification rated at 40 watts per channel at 8 ohms in a 2U rack-space metal enclosure. It is an ideal amplifier for distributed audio applications.

The AMP-8040 complements Savant’s distributed audio solutions and are fine-tuned for any listening environment using the independent gain controls.

The audio sense mode provides energy savings by automatically detecting an audio signal on an individual channel basis and turning the specific zone on. The
amplifier is in standby mode when there is no audio signal present at any of the eight inputs.

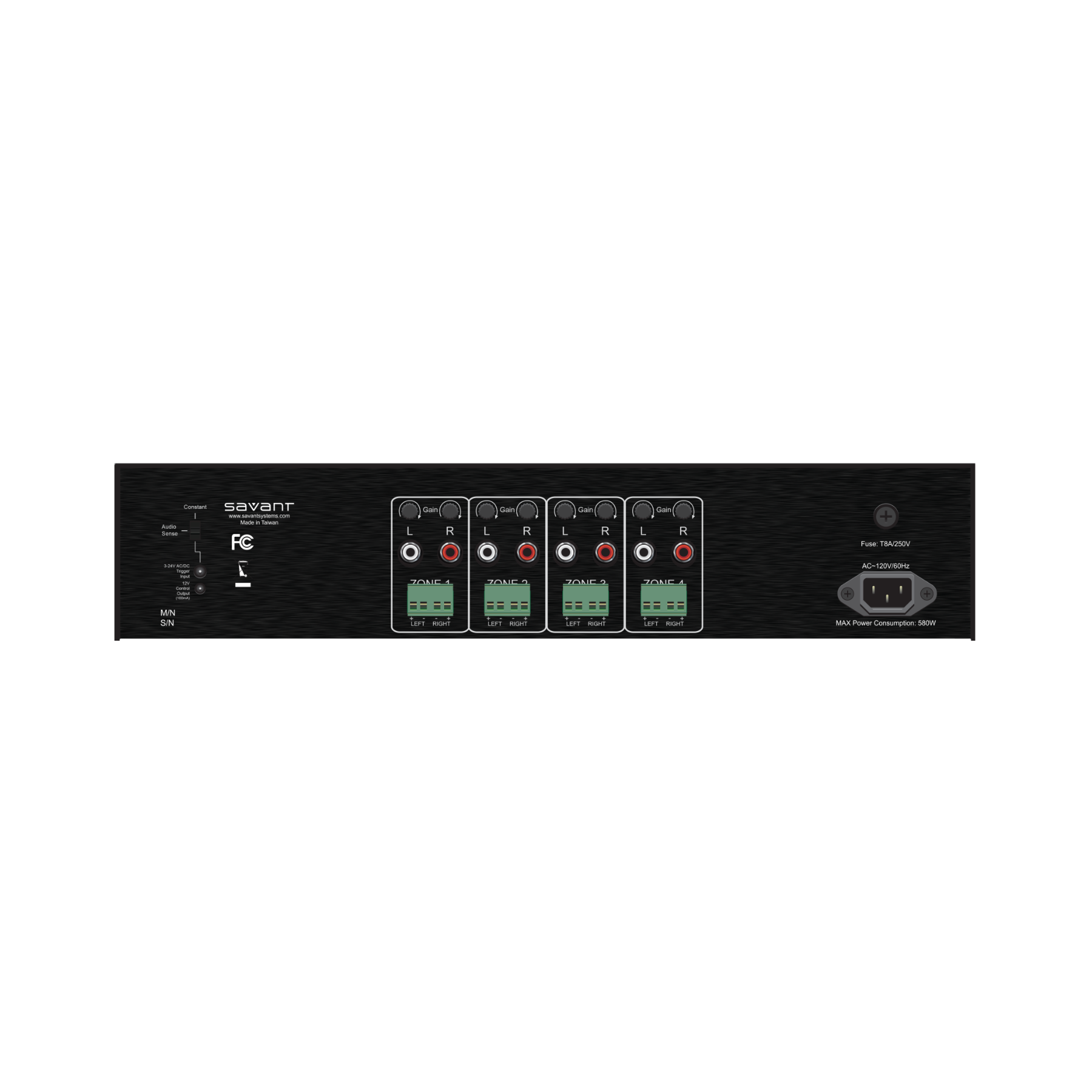

For added installation reliability the AMP-8040 features screw terminal speaker connections, supporting up to 14- gauge speaker wire.

• Ultra-efficient Class D amplifier rated at 40 watts per channel at 8 ohms
• Independent level controls for all channels
• Manual, audio sensing, and voltage trigger turn on modes
• Fanless design with overload protection
• Savant industrial design—can be rack or shelfmounted.
• Use RacePoint Blueprint™ design tool to configure the AMP-8040

Specifications

Environmental

• Temperature: 32° to 104° F (0° to 40° C)
• Humidity: 10% to 80% RH (non-condensing)
• BTUs: 1950 BTUs per hour at maximum load

Physical

• Height: 3.46 in (8.8 cm)
• Width: 17.3 in (43.9 cm)
• Depth: 15.04 in (38.2cm)
• Weight: Shipping: 23 lbs (10.43 kg)

Power

• Input Power: 120V AC, 60 Hz, 5A
• Rated Current Draw: 5A (580W max wattage consumption)
• Fuse Rating: 8A/250V Glass Fuse
• Power Connection: IEC 320 power connector with 3-pole detachable power cord

Operating Parameters

• Rated Power: 40 WPC at 8 ohms, 50 WPC at 4 ohms; (0.1% THD+N, 1kHz)
• Input Impedance: 33k ohms
• Input Sensitivity: 750mV for 40W at 8 ohms
• Overall Voltage Gain: 27.5 dB
• Frequency Response: Bandwidth limited from 20Hz to 20kHz + 0.8 dB
• Distortion, THD+N: THD+N < 0.07% from 20Hz to 20kHz, All channels driven at 8 ohms (1 Watt)
• Signal-to-Noise Ratio: > 90 dB
• Input Triggers: 3 – 24V AC/DC (5mA)
• Output Triggers: 12V DC (100mA)

Regulatory

• Safety and Emissions: UL-60065 | FCC Part 15
• RoHS: Compliant

In The Box:

• AMP-8040-00 8 Channel Amplifier: 1
• Rack Mounting Brackets: 2
• Pan Head Phillips Screws for Brackets (M3x8mm): 4
• AC Power Cord—6 ft: 1
• Screw Down Plug-In Connector for speaker output terminals: 4
• Rubber Chassis Feet: 4
• Trigger cable, (2.5 mm to 3.5 mm): 1

Required System Components

• Savant Host - Smart or Pro Series
