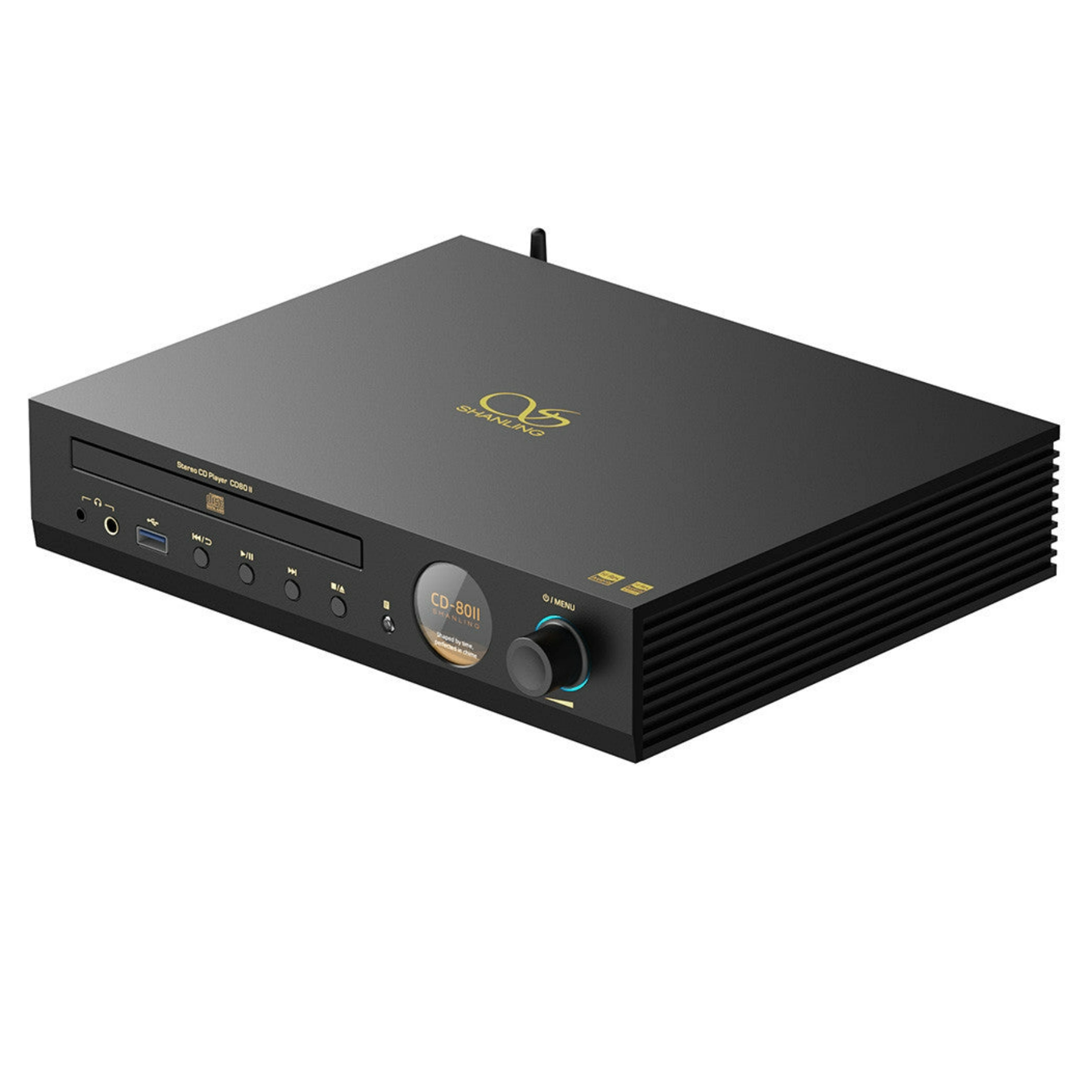

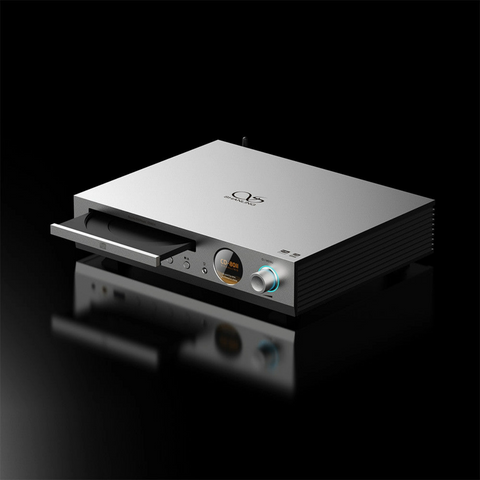

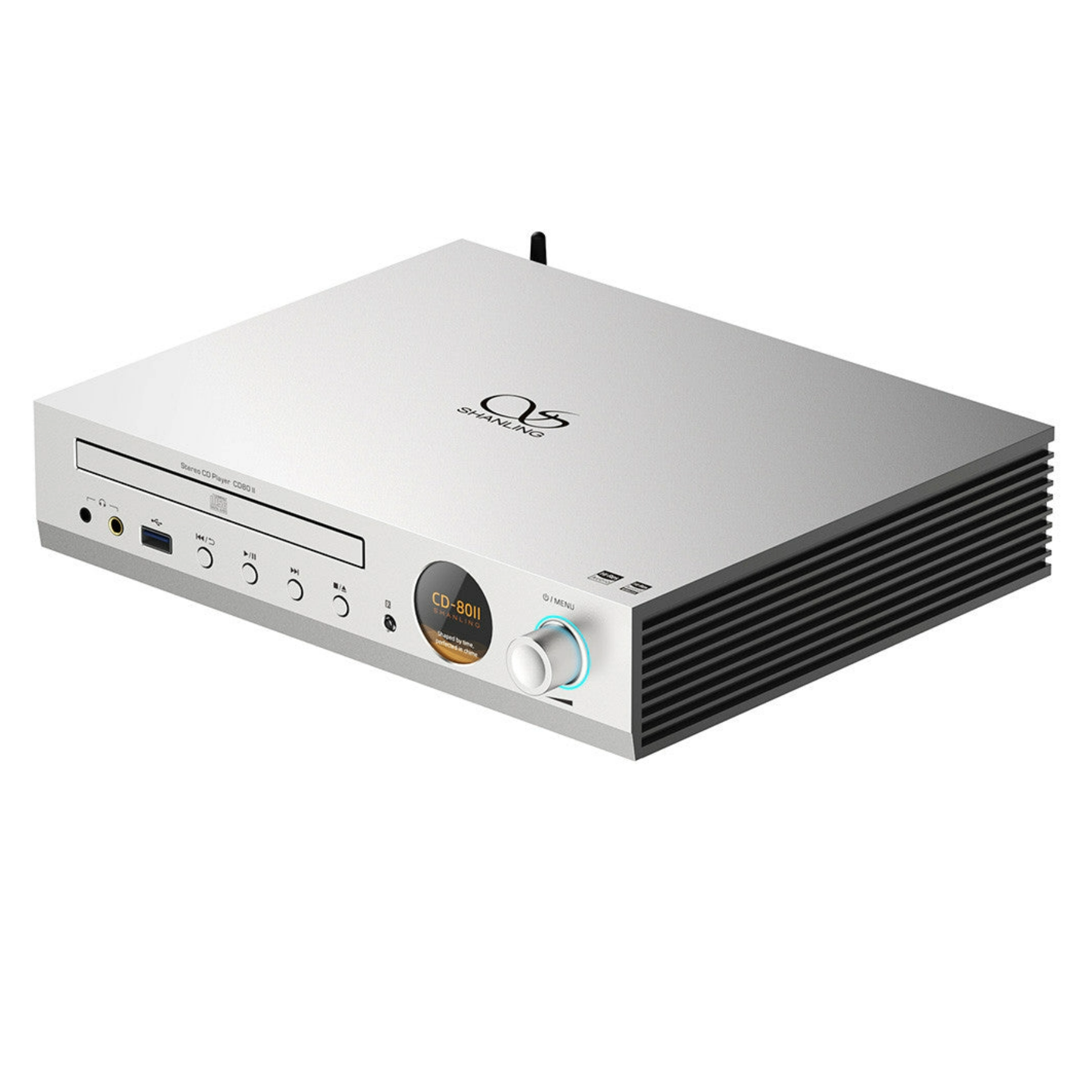

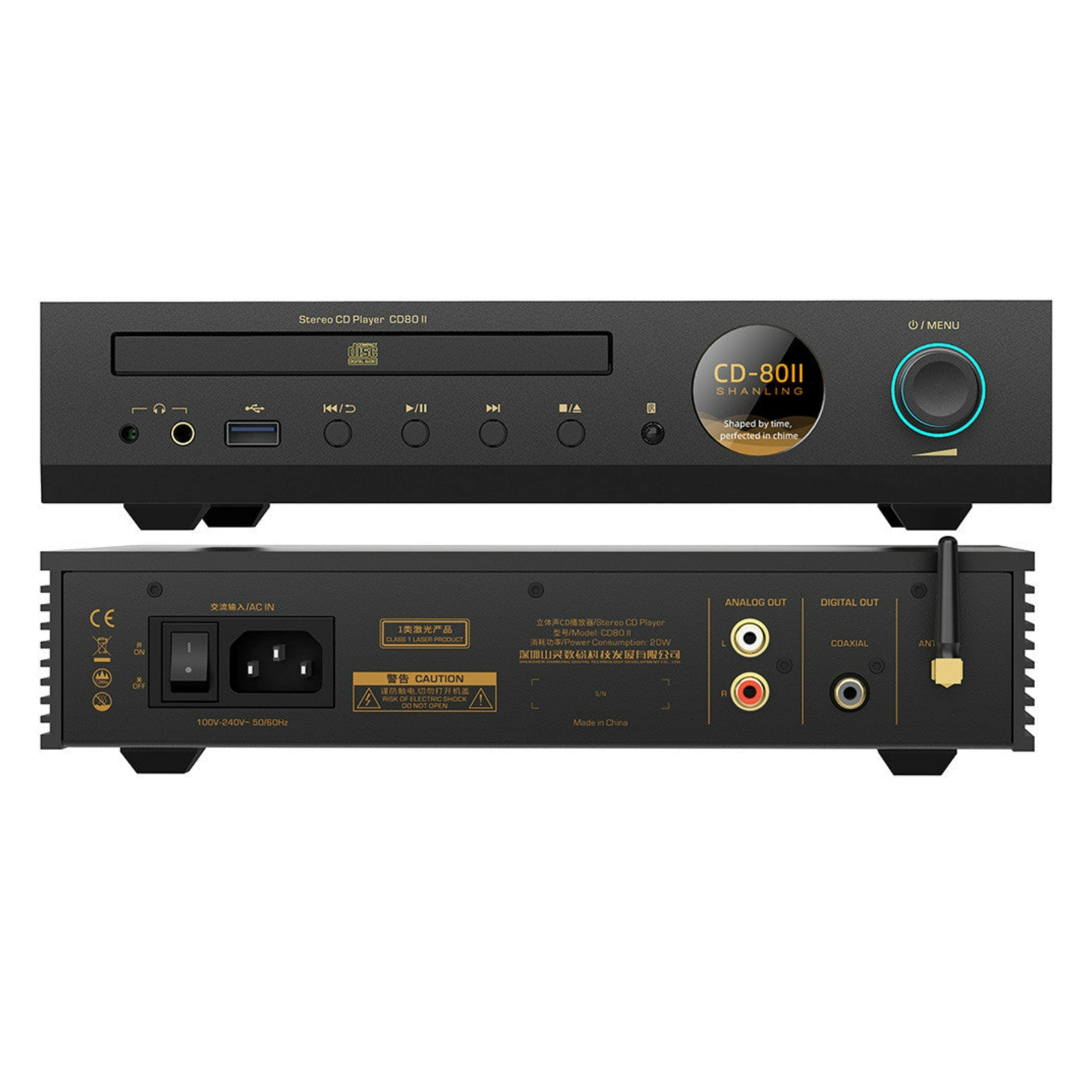

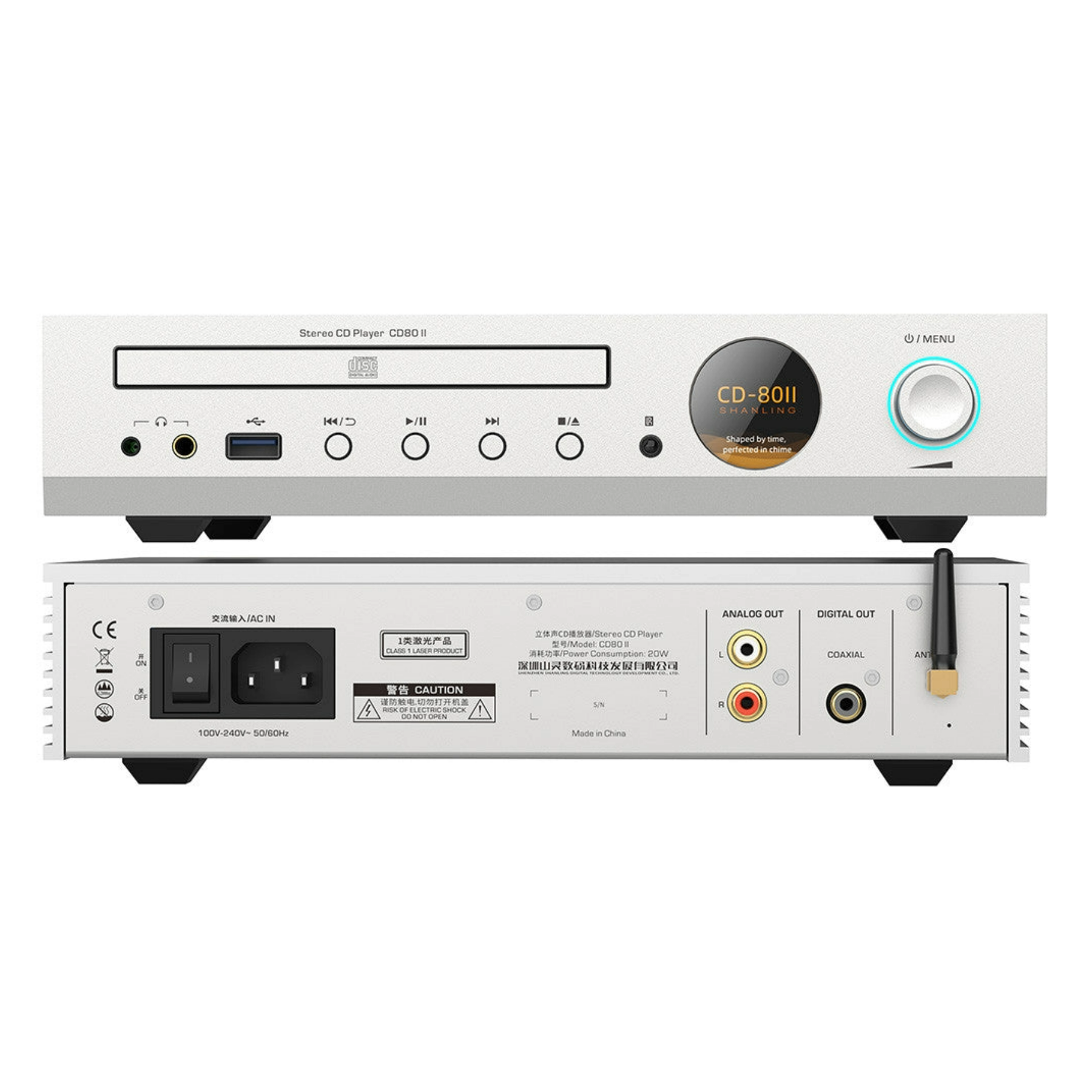

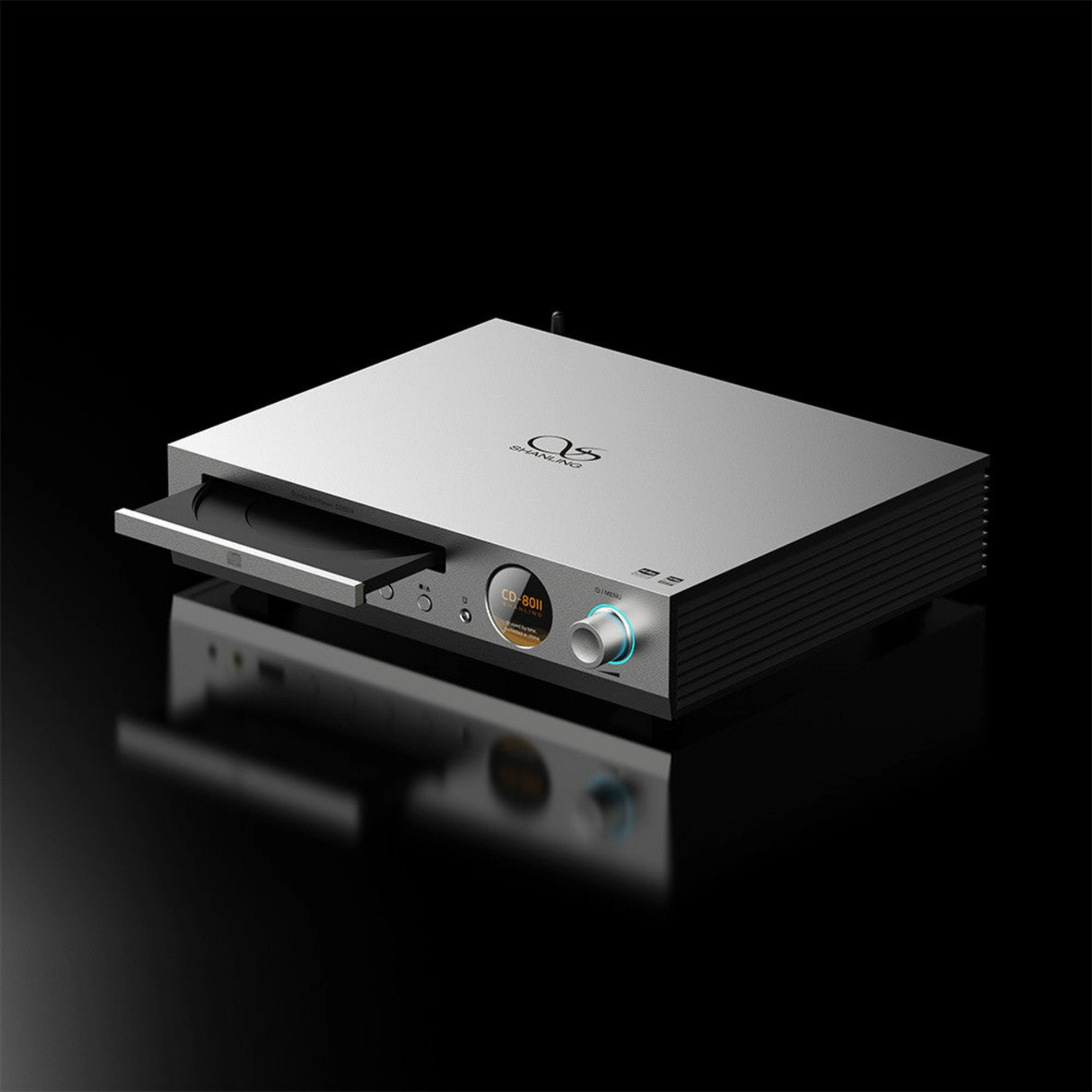

Shanling CD80II Desktop All-in-One CD Player & DAC/AMP

The Shanling CD80II is a high-performance desktop CD player, DAC, and headphone amplifier engineered for audiophiles who demand precision, power, and versatility. Featuring a fourth-generation CD-dedicated servo system with HD850 transport, a Cirrus Logic CS43198 DAC, and fully balanced headphone output up to 850mW @ 32Ω, the CD80II delivers accurate, loss-free CD playback with exceptional clarity and dynamic range. Housed in a precision-forged aluminum chassis with a smooth drawer-style CD tray and controlled via front-panel knobs, IR remote, or smartphone app, this all-in-one HiFi CD player seamlessly blends classic disc playback with modern high-resolution digital performance.

Specifications

• Dimensions (W x D x H): 280 x 205 x 52 mm
• Weight: 2.6 kg
• Chassis: Unibody aluminum-alloy construction
• CD Mechanism: HD850 transport mechanism
• Servo System: Fourth-generation CD-dedicated servo system
• Platform: Ingenic X1000E
• DAC Chip: Cirrus Logic CS43198
• Amplifier Chips: Dual SGM8262
• Bluetooth Input: Bluetooth 5.0 (LDAC, AAC, SBC)
• Display: 1.28-inch color screen (240 x 240 px)
• Supported Disc Types: CD / CD-R / CD-RW
• USB Hi-Res Playback: Up to 384 kHz / 32-bit, DSD256
• USB File Formats: DSD, DXD, APE, FLAC, ALAC, WAV, AIFF, DTS, MP3, WMA, AAC, OGG, MP2, M4A, AC3, OPUS, TAK, CUE
• RCA Line-Out Output Level: 2.6 Vrms
• RCA Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• RCA THD+N: 0.0004%
• RCA Dynamic Range: 124 dB
• RCA Signal-to-Noise Ratio: 124 dB
• RCA Output Impedance: 100 Ω
• Digital Coaxial Output: Up to PCM 192 kHz / 24-bit (S/PDIF)
• 3.5mm Headphone Output Power: 215 mW @ 32 Ω
• 3.5mm Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• 3.5mm THD+N: 0.0007%
• 3.5mm Channel Separation: 75 dB @ 32 Ω
• 3.5mm Dynamic Range: 125 dB
• 3.5mm Signal-to-Noise Ratio: 125 dB
• 3.5mm Noise Floor: 117 dB (< 1.4 µV)
• 3.5mm Output Impedance: 0.4 Ω
• 4.4mm Balanced Output Power: 850 mW @ 32 Ω
• 4.4mm Frequency Response: 20 Hz – 40 kHz (-0.2 dB)
• 4.4mm THD+N: 0.0007%
• 4.4mm Channel Separation: 112 dB @ 32 Ω
• 4.4mm Dynamic Range: 127 dB
• 4.4mm Signal-to-Noise Ratio: 127 dB
• 4.4mm Noise Floor: 113 dB (< 2.2 µV)
• 4.4mm Output Impedance: 0.7 Ω
• Controls: Front-panel buttons & rotary knob, IR remote, Eddict Player smartphone app
• Power Filtering: Panasonic FC filter capacitors
• Included Accessories: Quick Start Guide, Product Manual, Warranty Card, RC-3T Remote Control, Antenna, Power Cable
• Warranty: 1 Year (device only)

What It's Great At

The Shanling CD80II excels as a complete desktop HiFi system for CD enthusiasts and high-resolution digital audio users. It delivers precise CD playback with advanced servo accuracy, powerful balanced headphone amplification for demanding headphones, and versatile connectivity including Bluetooth LDAC and USB Hi-Res support. Ideal for home office desks, HiFi racks, and audiophile listening setups, the CD80II bridges classic physical media with modern digital convenience.

Expanded Key Features List

• Fourth-Generation CD Servo System: Advanced CD-dedicated servo architecture paired with the HD850 transport ensures sub-millisecond tracking accuracy and stable, error-free disc playback.
• Cirrus Logic CS43198 DAC: High-performance DAC supports PCM up to 384kHz/32-bit and native DSD256 for detailed, transparent, and dynamic sound reproduction.
• Powerful Balanced Headphone Output: 4.4mm balanced output delivers up to 850mW @ 32Ω, providing clean, controlled power for both low- and high-impedance headphones.
• All-in-One Desktop Design: Combines CD player, USB DAC, Bluetooth receiver, headphone amplifier, and RCA line-out in one compact aluminum chassis.
• Premium Power Supply Design: Panasonic FC filter capacitors minimize ripple and electrical noise, improving clarity and soundstage separation.
• Flexible Control Options: Operate via front-panel controls, included IR remote, or Bluetooth-enabled Eddict Player smartphone app for convenient playback management.

FAQ Section

Q: Does the Shanling CD80II support high-resolution audio files?
A: Yes, it supports USB playback up to 384kHz/32-bit PCM and native DSD256, along with a wide range of popular audio formats.

Q: Can the CD80II power high-impedance headphones?
A: Yes, the 4.4mm balanced output provides up to 850mW @ 32Ω, offering sufficient power for many demanding full-size headphones.

Q: What types of discs are compatible with the CD80II?
A: It supports standard CD, CD-R, and CD-RW discs.

Q: Does it function as a standalone DAC?
A: Yes, the CD80II can operate as a USB DAC and Bluetooth receiver in addition to its CD playback functionality.

Q: What Bluetooth codecs are supported?
A: It supports Bluetooth 5.0 with LDAC, AAC, and SBC codecs for high-quality wireless audio streaming.

Q: Is there a remote control included?
A: Yes, the package includes the RC-3T infrared remote control for convenient operation.

Q: Does it have line-out for external amplifiers?
A: Yes, it features RCA line-out with 2.6 Vrms output level for connection to external amplifiers or powered speakers.

Q: What warranty is included?
A: The Shanling CD80II includes a 1-year warranty covering the main device.
