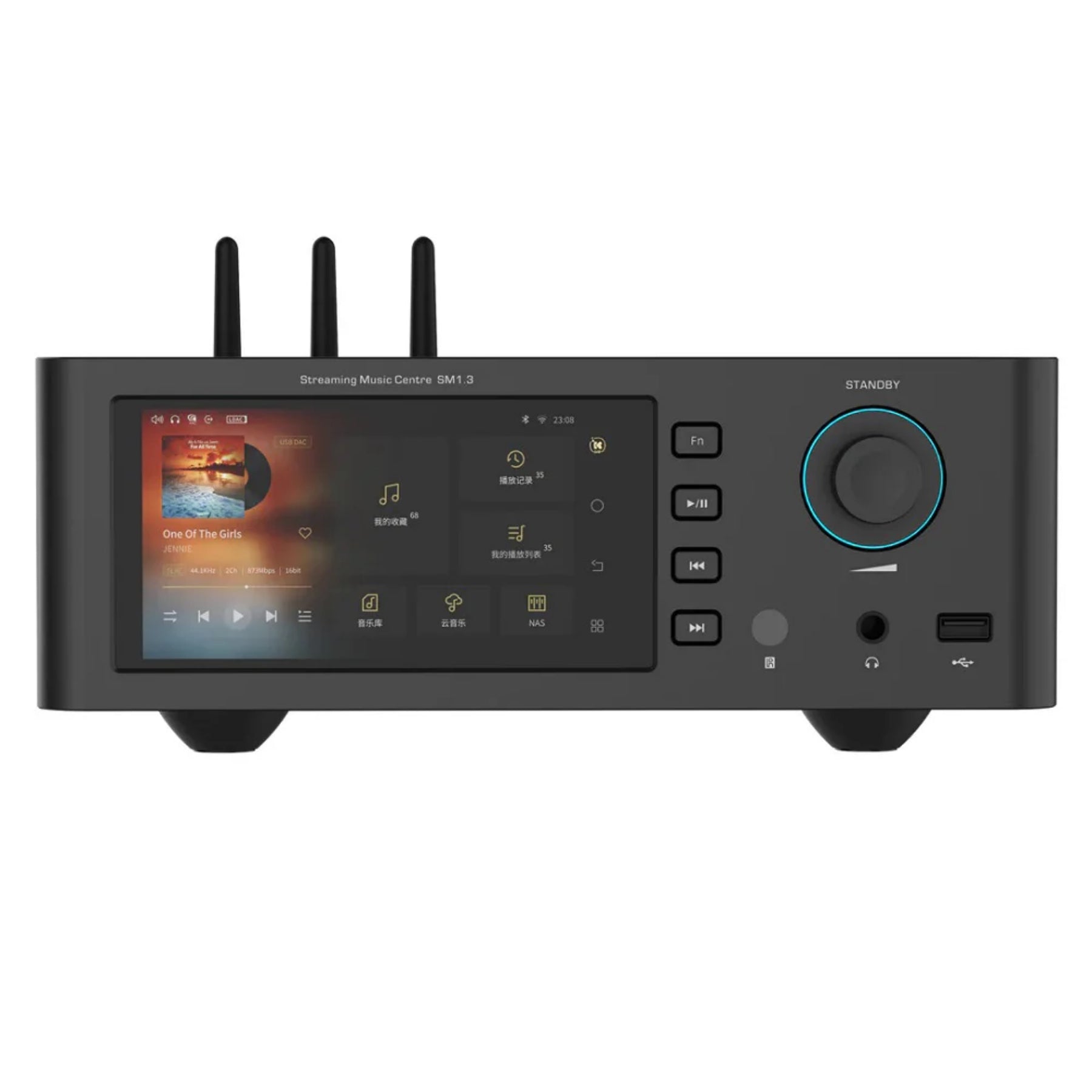

Shanling SM1.3 Network Streamer / Headphone Amplifier / DAC

Unlock a new era of high-resolution audio with the Shanling SM1.3 — a powerful all-in-one solution that combines a state-of-the-art network streamer, premium headphone amplifier, and reference-grade DAC. Built around a closed Android 12 system and driven by a 64-bit ARM Cortex A55 CPU, the SM1.3 features the flagship AKM AK4499EX DAC with AK4191 modulator, I2S output with FPGA control, and a dedicated headphone amp for pristine audio reproduction. With support for native DSD512, 32-bit/768kHz PCM, MQA 16x decoding, and robust wireless technologies including Bluetooth LDAC and Wi-Fi 6, it’s as future-ready as it is audiophile-approved. Whether streaming from TIDAL, Spotify, or your NAS library, or connecting via USB, coaxial, or optical, this versatile unit delivers a world-class listening experience in a refined, compact design.

Specifications

• Operating System: Customized closed Android 12
• Processor: 64-bit ARM Cortex A55 CPU
• Display: 5.8-inch Full-HD 1080p touch screen
• Memory: 4GB RAM + 64GB ROM
• DAC: AKM AK4499EX with AK4191 Modulator
• Headphone Amp: TPA6120 with dedicated circuitry
• Analog Output: MUSE8920-based RCA and XLR outputs
• Digital Connections: Coaxial in/out, Optical in/out, USB in/out, I2S with 10 FPGA compatibility modes
• Internal Storage: 64GB with built-in M.2 SSD slot (user-expandable up to 2TB)
• Audio Resolution: Supports PCM up to 32-bit/768kHz and native DSD512
• MQA: Full MQA decoder with 16x unfolding
• Bluetooth: Qualcomm QCC5125 Bluetooth 5.2, supports LDAC, aptX HD, aptX Adaptive, aptX LL, AAC, SBC
• Wi-Fi: Dual-band Wi-Fi 6 module
• Ethernet: Gigabit LAN port
• Power Supply: Dual linear toroidal transformers (split for system and audio)
• SNR: 121dB Signal-to-Noise Ratio
• THD+N: 0.0003% Total Harmonic Distortion + Noise
• Dynamic Range: 121dB
• Streaming Services: Spotify, TIDAL, Qobuz, Apple Music, Amazon Music, Presto Music, KKBox
• Control Options: Eddict Controller app, onboard touch UI
• Certifications: Hi-Res Audio and Hi-Res Wireless Audio (Japan Audio Society)

Expanded Key Features List

• Flagship AKM DAC Architecture: Combines AK4499EX DAC and AK4191 modulator for ultra-high-resolution, low-noise audio reproduction.
• FPGA-Controlled I2S Output: Delivers elite transport-level connectivity with 10 mode compatibility for top-tier external DACs.
• Versatile Streaming Options: Built-in apps for Spotify, TIDAL, Qobuz, Apple Music, and more — plus DLNA, NAS, and AirPlay 2 support.
• Hi-Res Audio & Wireless Certification: Official Japan Audio Society-certified for both wired and wireless high-resolution playback.

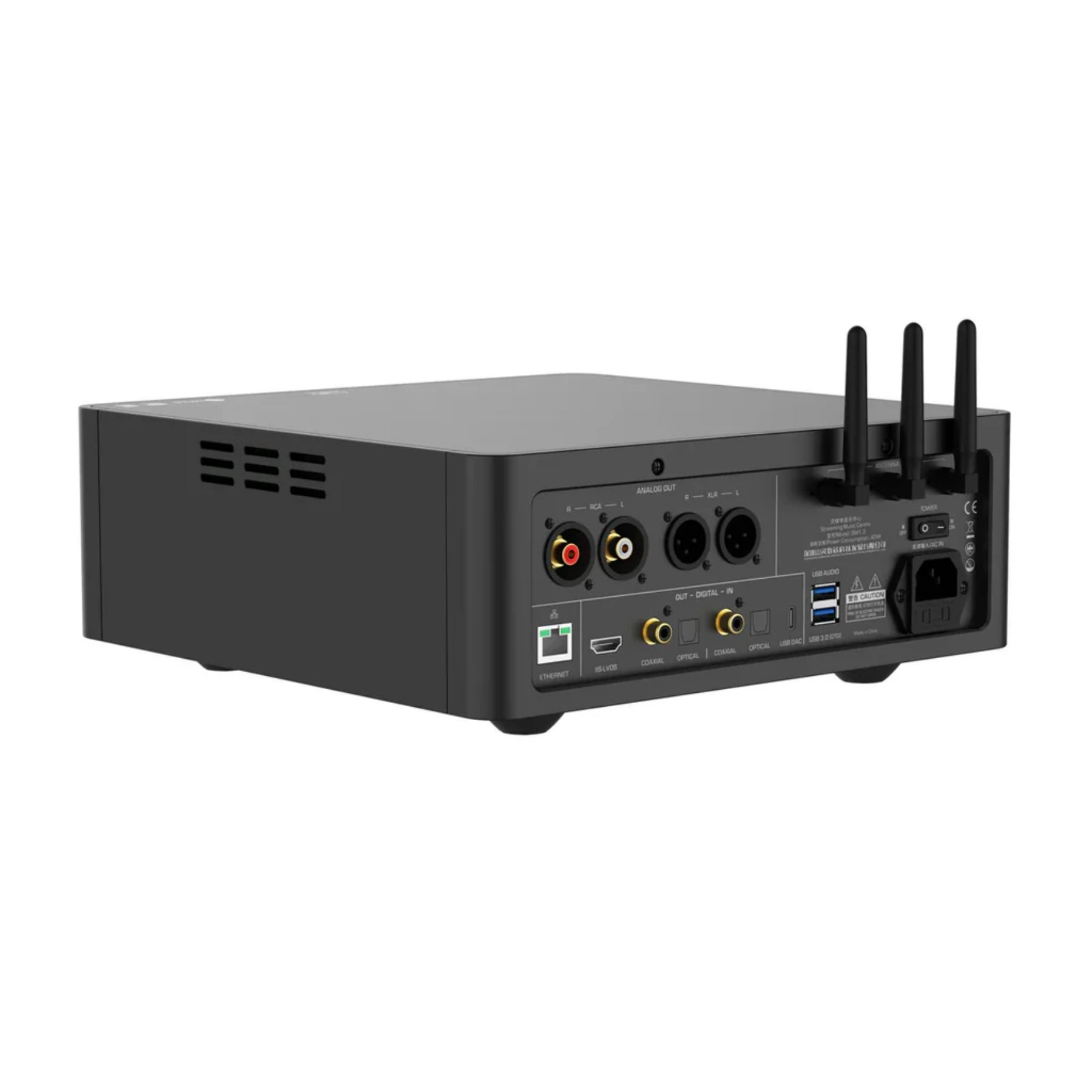

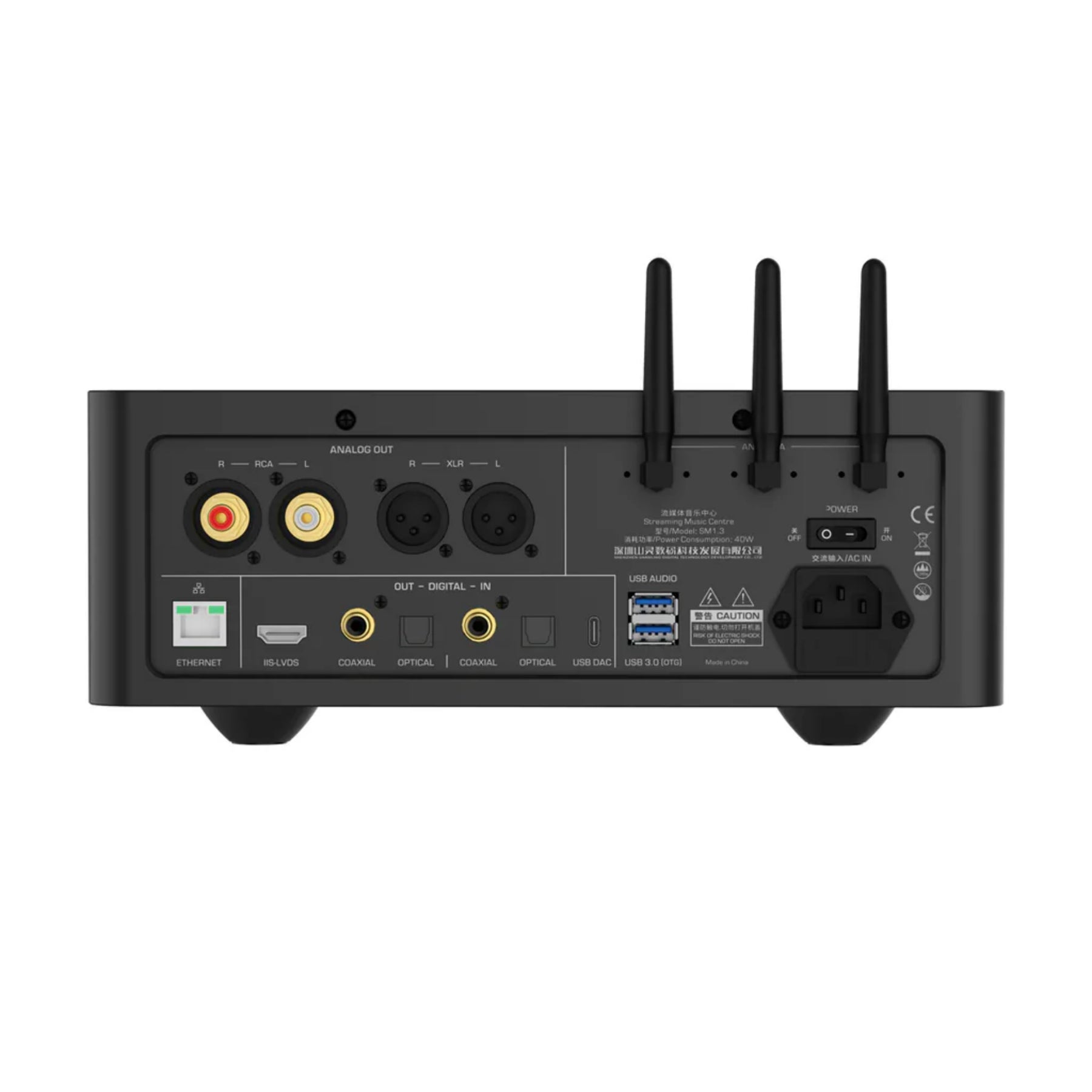

• Extensive Connectivity: Features RCA, XLR, USB, Optical, Coaxial, I2S, Gigabit LAN, Wi-Fi 6, and Bluetooth 5.2 with LDAC and aptX HD.
• Premium Headphone Amplifier: TPA6120 amp drives even demanding headphones with authority and detail.
• Expandable Storage: Internal 64GB memory plus built-in M.2 SSD slot and external USB drive support up to 2TB.
• Refined UI & Touchscreen: 5.8-inch 1080p display with optimized Android interface and enhanced Eddict app control.
• Precision Clocking: Dual ACCUSILICON clocks (45.1584MHz and 49.152MHz) ensure jitter-free digital playback.
• Dual Toroidal Transformers: Split power architecture improves signal stability and eliminates cross-interference.

Q&A Section

Q: What makes the Shanling SM1.3 different from other network streamers?
A: SM1.3 integrates a flagship DAC, headphone amp, and advanced I2S output in a single unit — with Android-based controls, streaming apps, and high-res playback support.

Q: Does the SM1.3 support native DSD?
A: Yes, it supports native DSD up to DSD512 for ultra-high-resolution audio playback.

Q: Can I use my existing external DAC with the SM1.3?
A: Absolutely. The SM1.3 features a high-grade I2S output with 10 compatibility modes and other digital outputs for connecting external DACs.

Q: Is Bluetooth audio lag-free?
A: Yes, thanks to the Qualcomm QCC5125 Bluetooth module supporting aptX LL and LDAC, you get high-quality and low-latency streaming.

Q: Can I use the SM1.3 as a preamp?
A: Yes, the MUSE8920 analog output and pre-out functions allow it to act as a standalone preamp or integrate with your amp.

Q: Does it support popular streaming services?
A: Yes, you can stream from Spotify, TIDAL, Qobuz, Apple Music, Amazon Music, and more — directly from the unit.

Q: How do I control the SM1.3 remotely?
A: Use the enhanced Eddict Controller app or navigate directly via the onboard 5.8-inch touch screen with a custom Android interface.

Q: What’s included in the wireless capabilities?
A: The unit supports dual-band Wi-Fi 6, Bluetooth 5.2 with LDAC, and Apple AirPlay 2 for flexible, high-quality wireless playback.
