Sonos Entertainment Set with Ray + Sub Mini

Upgrade TV, movies, and gaming in one compact package with the Sonos Entertainment Set with Ray + Sub Mini. Ray delivers clear, room-filling stereo sound with speech-focused tuning for crisp dialogue, while Sub Mini adds deep, balanced low end down to 25 Hz—without the buzz or rattle thanks to its sealed, force-canceling design. Connect Ray to your TV’s optical output and control everything from your existing IR remote, the Sonos app, or touch controls, then enjoy seamless WiFi streaming (plus Apple AirPlay 2) when the TV is off. Together, this set is an ideal home theater boost for smaller spaces, delivering cleaner vocals, more impactful effects, and tighter bass in a sleek, matte-black finish.

What It's Good At:

• Making dialogue easier to hear with Speech Enhancement and Hollywood sound-engineer tuning
• Adding powerful, distortion-minimizing bass with dual 6" force-canceling woofers
• Improving TV and gaming audio fast with simple optical-to-TV setup
• Keeping late-night watching comfortable using Night Sound
• Streaming music over WiFi and Apple AirPlay 2 even when the TV is off
• Building a flexible Sonos system over time (multiroom audio, expand to surrounds)

Sonos Entertainment Set with Ray + Sub Mini Full Specifications:

• Included Components: 1x Sonos Ray, 1x Sonos Sub Mini

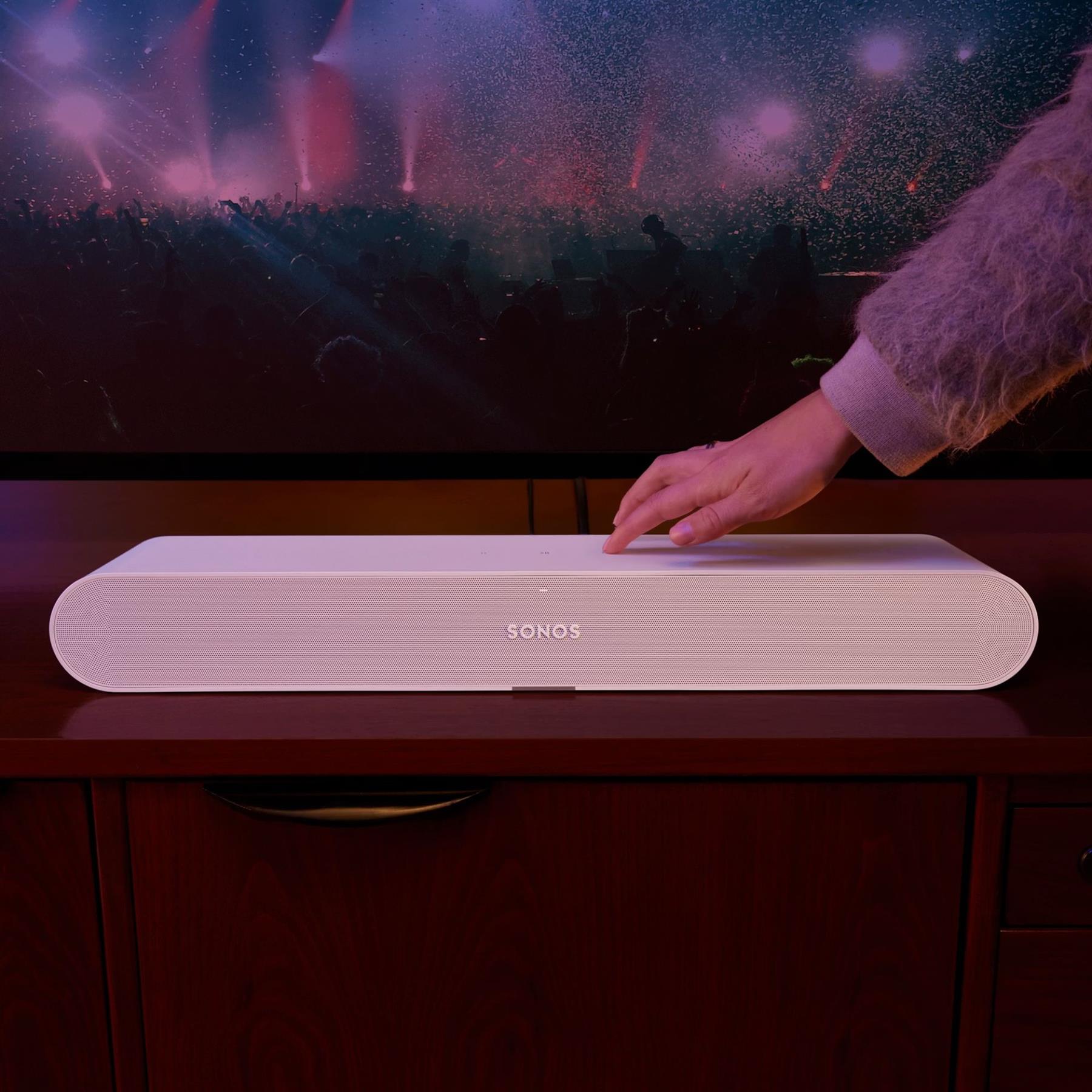

Ray (Soundbar) Specifications:

• Amplifiers: All four Class-D digital amplifiers, fine-tuned to the soundbar’s acoustic architecture
• Tweeters: Two tweeters for crisp high-frequency response
• Midwoofers: Two high-efficiency midwoofers for mid-range and solid bass
• Bass Reflex System: Proprietary low-velocity port design minimizes distortion and rounds out low-end frequencies
• Adjustable EQ: Adjust bass, treble, and loudness in the Sonos app
• Trueplay: Room-tuning (supported iOS device required)
• Speech Enhancement: Sonos app setting to clarify dialogue
• Night Sound: Sonos app setting to reduce loud effects and raise quieter sounds
• Home Theater Audio Formats: Stereo PCM, Dolby Digital*, DTS Digital Surround* (*not an indication of a licensed decoder)
• TV Audio Swap: Swap TV audio between Ray and one or two Sonos Ace headphones
• Dimensions: 2.76 in H (70 mm) x 21.93 in W (557 mm) x 3.66 in D (93 mm)
• Weight: 4.19 lbs (1.9 kg)
• Colors: Black, White
• Finish: Matte
• Mounting: M5 threaded mounting socket
• Controls: Capacitive touch controls (volume, play, pause, skip, replay)
• LED: Indicates connection, mute status, and errors
• WiFi: 2.4 GHz 802.11/b/g/n broadcast-capable router support
• Optical: TV optical connection (included cable)
• Ethernet: 10/100 port
• Infrared (IR) Receiver: Syncs with TV remote
• Voltage: Auto-switching 100–240V 50/60Hz AC universal input
• CPU: Quad Core 1.4 GHz A-53
• Memory: 1GB SDRAM; 4GB NV
• Apple AirPlay 2: Works with iOS 11.4 and higher
• Box Contents: Sonos Ray; Power Cable (6 ft / 2 m); Optical Audio Cable (4.9 ft / 1.5 m); Documentation (Quickstart Guide + legal/warranty)
• Requirements: WiFi; Internet connection; Nearby electrical outlet; Latest-generation Sonos app on compatible device

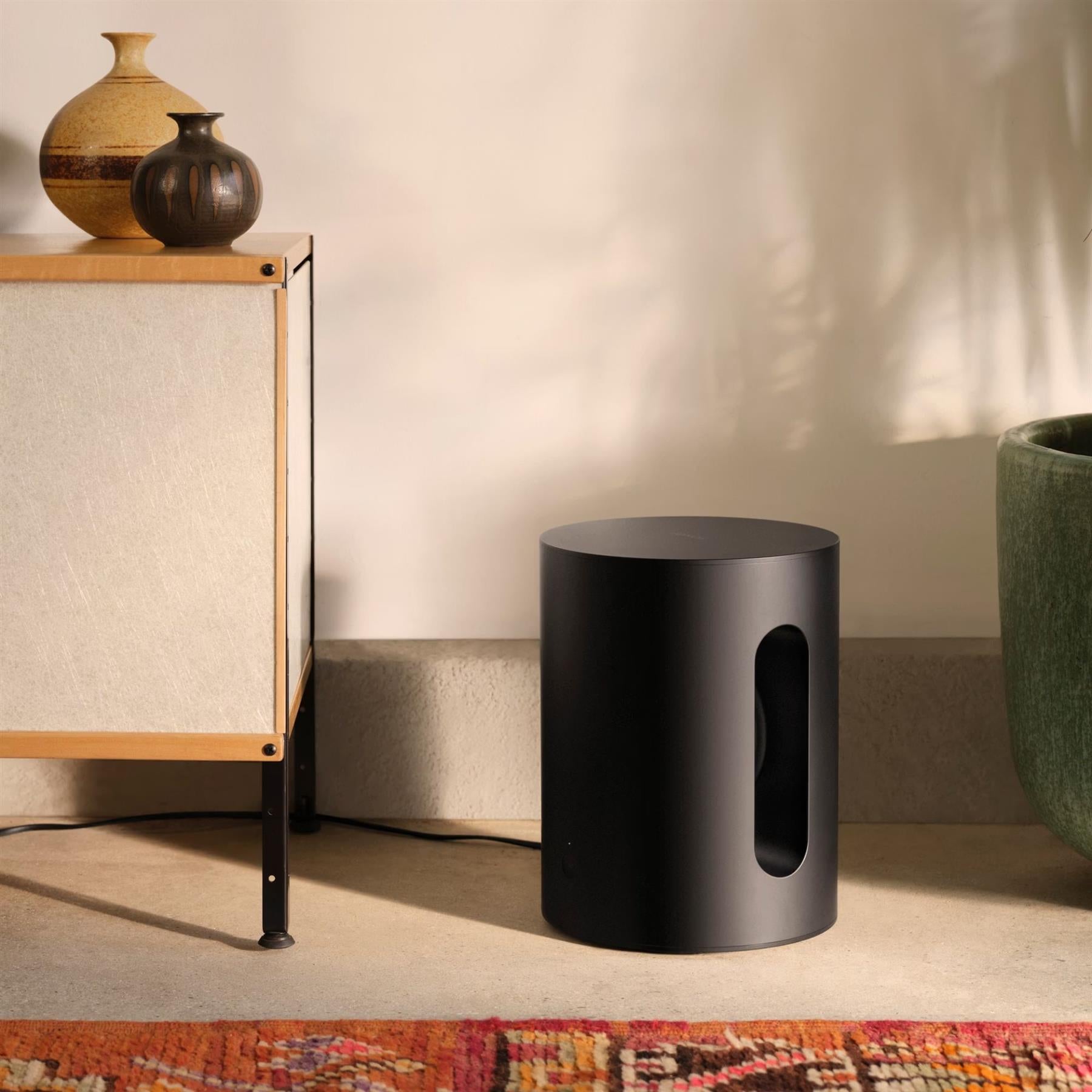

Sub Mini (Wireless Subwoofer) Specifications:

• Amplifiers: Both Class-D digital amplifiers tuned to the acoustic architecture
• Woofers: Dual 6" inward-facing woofers for force-canceling effect
• Architecture: Sealed cabinet neutralizes distortion and enhances bass response
• Frequency Response: As low as 25 Hz
• EQ: Auto-balances with paired Sonos product(s); adjust bass/treble/loudness in Sonos app
• Trueplay: Room-tuning (supported iOS device required)
• Dimensions: 12.01 in H (305 mm) x 9.06 in W (230 mm) x 9.06 in D (230 mm)
• Weight: 14 lbs (6.35 kg)
• Colors: Black, White
• Finish: Matte
• Join Button: Press once to add during setup
• WiFi: 802.11a/b/g/n 2.4 or 5 GHz broadcast-capable router support
• Ethernet: 10/100 port
• Voltage: 100–240V 50/60Hz internal power supply
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Box Contents: Sonos Sub Mini; Power Cable (6 ft / 2 m); Documentation (Quickstart Guide + legal/warranty)
• Requirements: WiFi; Internet connection; Nearby electrical outlet; Latest-generation Sonos app on compatible device; At least one amplified non-portable Sonos product (such as Era 100 or Ray)

Sonos Entertainment Set with Ray + Sub Mini Q&A:

Will this set work with my TV?

Yes—Ray connects to your TV using the included optical audio cable, making it compatible with TVs (or PCs) that have an optical output.

Can I use my current TV remote to control volume?

Yes. Ray includes an IR receiver so it can sync with an infrared-enabled TV remote for straightforward control.

Does this support Dolby Atmos?

No. Ray supports Stereo PCM, Dolby Digital, and DTS Digital Surround (format support depends on your TV’s output settings).

Is Sub Mini truly wireless?

Yes for audio—Sub Mini connects over your network via WiFi (or Ethernet if you prefer). You’ll still plug it into power.

How deep does the bass go?

Sub Mini is rated down to 25 Hz, delivering deeper impact for movies, games, and music in smaller to medium rooms.

Can I stream music when the TV is off?

Yes. Ray streams over WiFi, and it also supports Apple AirPlay 2 for compatible Apple devices.

Do I need a Sonos app to set this up?

Yes. Setup and tuning features (like EQ, Speech Enhancement, and Night Sound) are managed in the latest-generation Sonos app.

Can I expand this set later into surround sound?

Yes. You can add compatible Sonos speakers to create wireless surround sound and multiroom audio over time.
