Product Description

Line Circle

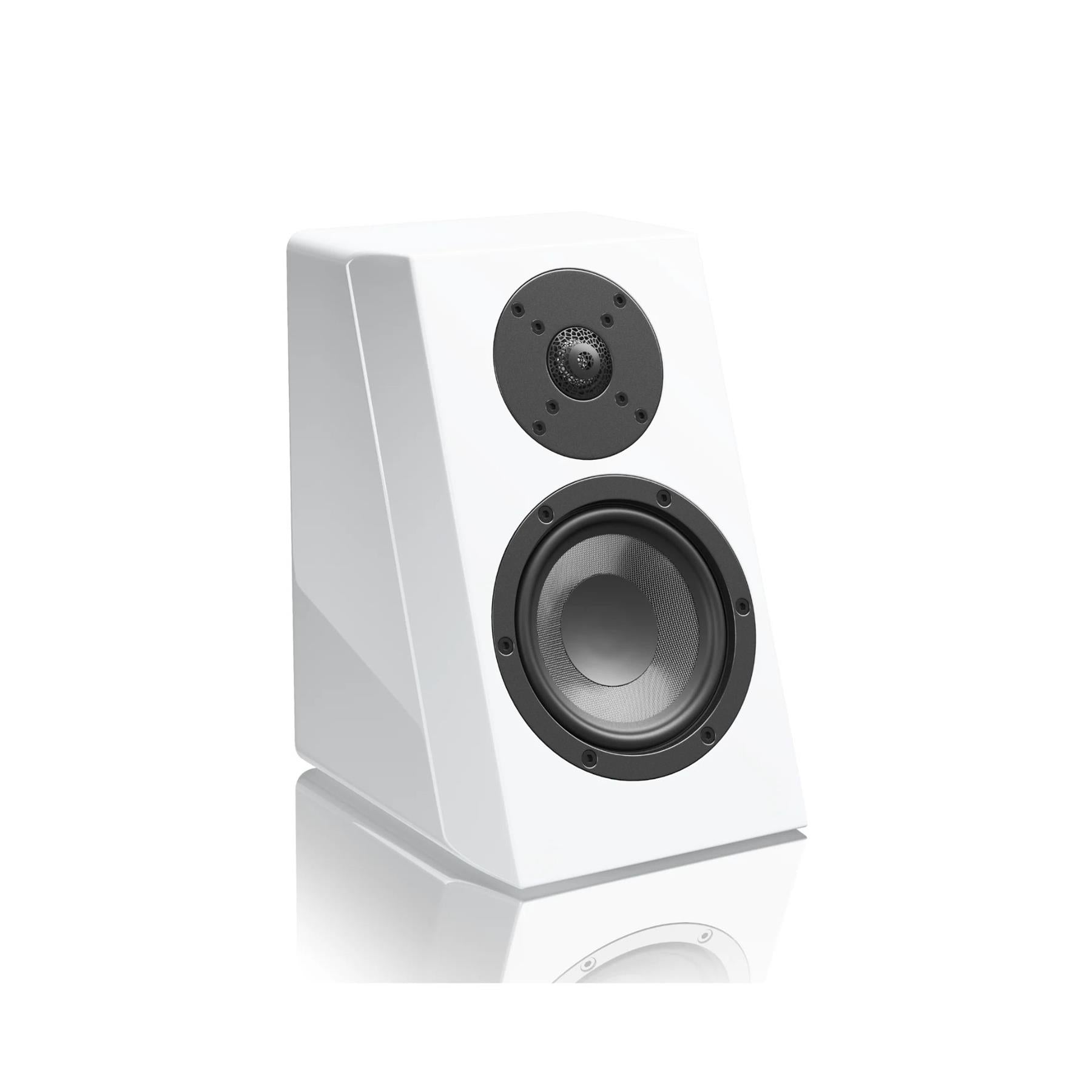

The SVS Ultra Evolution Elevation Speaker is a premium Dolby Atmos height-effects solution designed for real-room flexibility and true direct-radiating immersion. Its angled baffle and included multi-angle wall/ceiling mounting hardware make it ideal for overhead, high-wall, side, or rear surround placement. A 1" diamond-coated aluminum dome tweeter and 5.25" glass-fiber mid-woofer deliver wide dispersion, stunning clarity, and impactful dynamics with a 48Hz–40kHz (±3 dB) response. With a 6-ohm load, 87 dB sensitivity, and a 20–150W recommended power range, it pairs easily with most AV receivers for a serious home theater upgrade.
Get the Details

Features & Specs Line Circle

Direct-radiating Atmos performance that works in any room

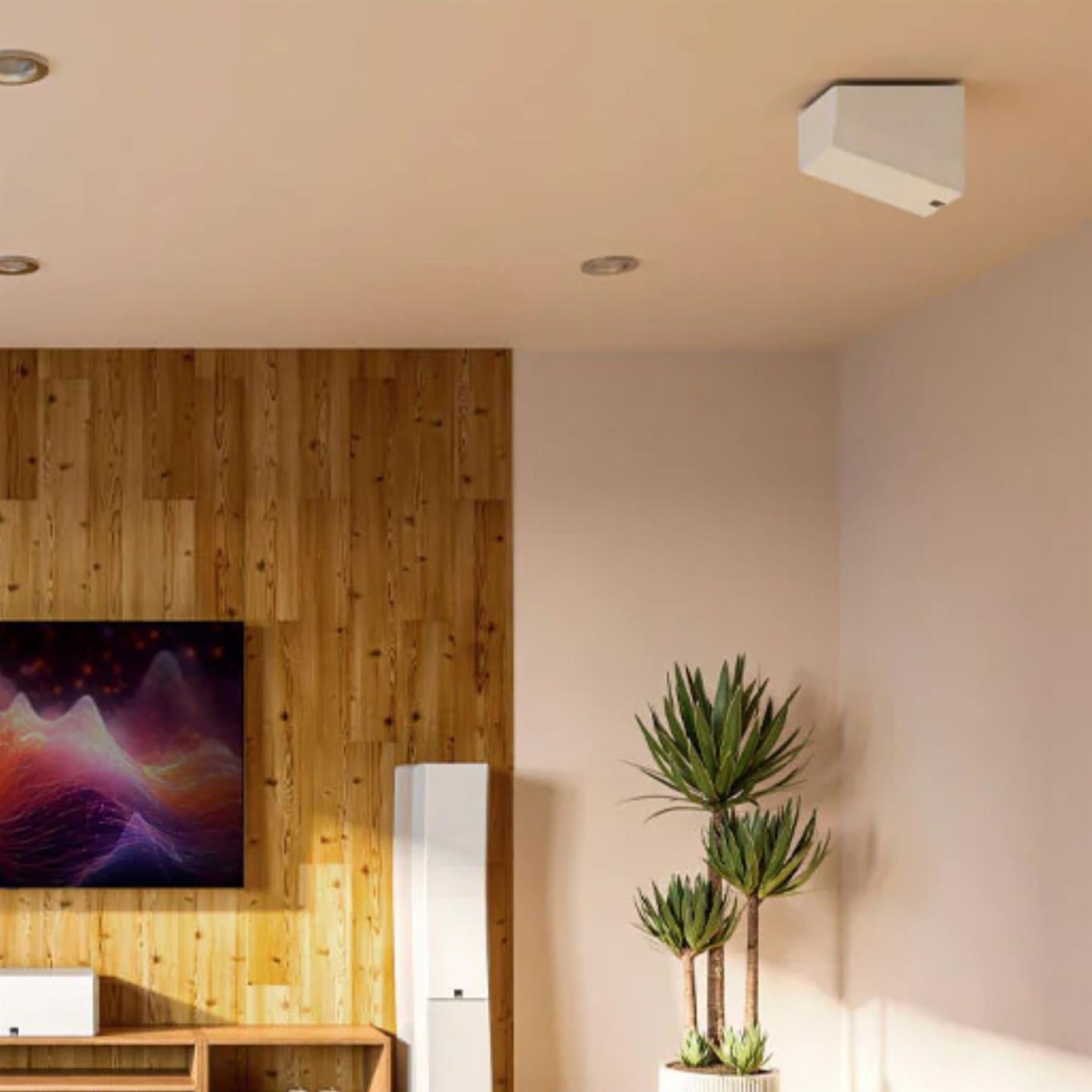

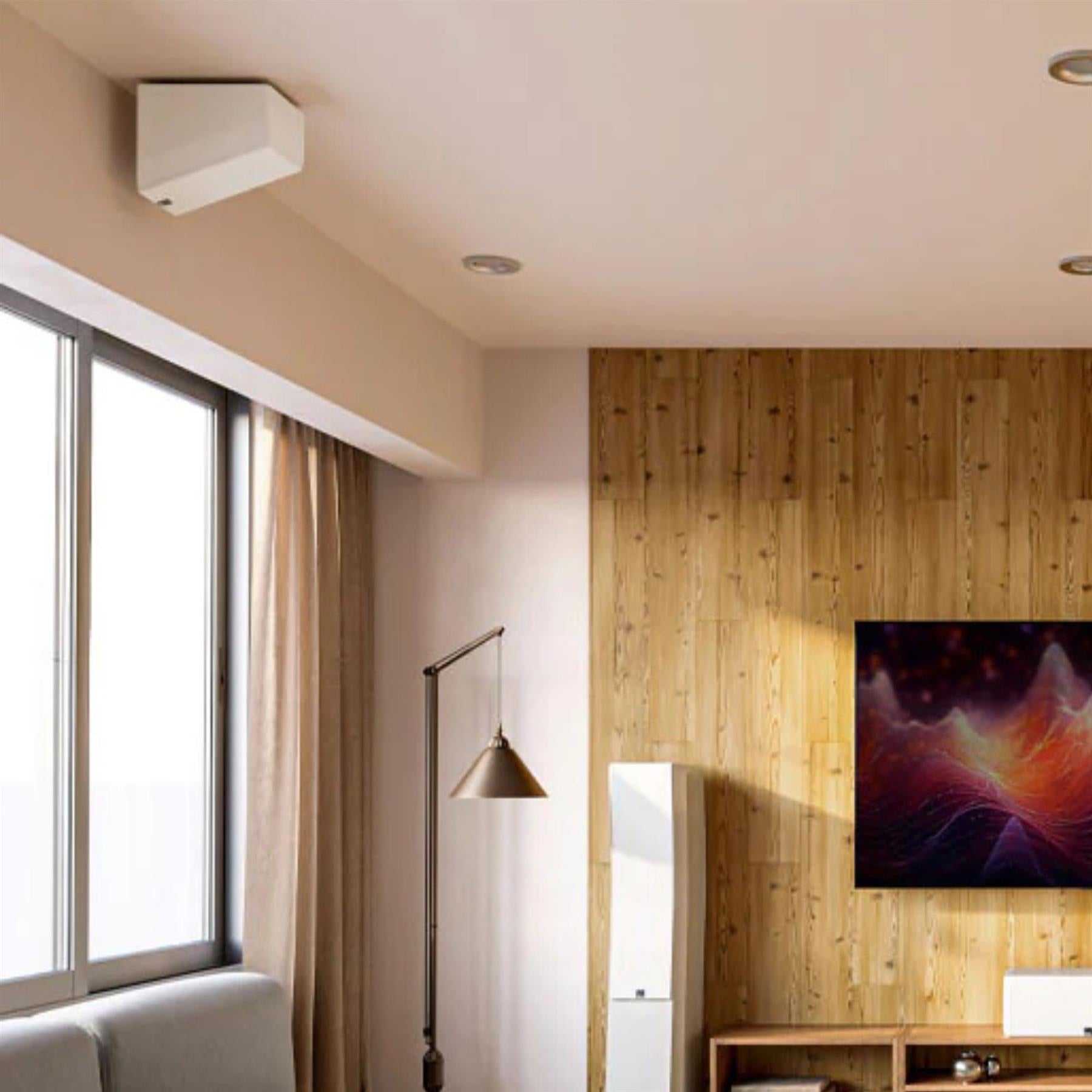

Designed to be mounted on the ceiling or high on walls, it produces convincing height effects without requiring perfect ceiling conditions or the response limits of reflective/bounce solutions.
Angled-baffle geometry plus included mounting hardware
The enclosure angle is engineered for up-, down-, or side-firing use, and the included SVS Multi-Angle Wall Bracket (plus magnetic ceiling lock) makes secure wall/ceiling installation straightforward.
Diamond-coated tweeter for effortless detail and dispersion
The 1" aluminum dome uses a diamond carbon coating and an Organic Cell Lattice Diffuser to enhance rigidity, improve off-axis response, and keep highs clean and open at any listening level.
Purpose-built mid-woofer for theater dynamics
The 5.25" glass-fiber composite cone and long-stroke motor deliver tight, accurate output with the headroom needed for modern movie mixes and discrete surround effects.
Premium crossover design for seamless driver blending
A 2-way network with high-quality components and a heavy-trace PCB integrates the drivers smoothly, with a 1.9 kHz crossover point tuned for clarity and cohesion across placements.
Easy system matching and premium finishing details
With a 6-ohm nominal impedance, 87 dB sensitivity, and a 20–150W recommended range, it integrates cleanly with most AVRs—while finishes and magnetic details keep installations looking as refined as they sound.
Direct-radiating Atmos performance that works in any room
Designed to be mounted on the ceiling or high on walls, it produces convincing height effects without requiring perfect ceiling conditions or the response limits of reflective/bounce solutions.
Angled-baffle geometry plus included mounting hardware
The enclosure angle is engineered for up-, down-, or side-firing use, and the included SVS Multi-Angle Wall Bracket (plus magnetic ceiling lock) makes secure wall/ceiling installation straightforward.
Diamond-coated tweeter for effortless detail and dispersion
The 1" aluminum dome uses a diamond carbon coating and an Organic Cell Lattice Diffuser to enhance rigidity, improve off-axis response, and keep highs clean and open at any listening level.
Purpose-built mid-woofer for theater dynamics
The 5.25" glass-fiber composite cone and long-stroke motor deliver tight, accurate output with the headroom needed for modern movie mixes and discrete surround effects.
Premium crossover design for seamless driver blending
A 2-way network with high-quality components and a heavy-trace PCB integrates the drivers smoothly, with a 1.9 kHz crossover point tuned for clarity and cohesion across placements.
Easy system matching and premium finishing details
With a 6-ohm nominal impedance, 87 dB sensitivity, and a 20–150W recommended range, it integrates cleanly with most AVRs—while finishes and magnetic details keep installations looking as refined as they sound.

Expert Insight

Line Circle

SVS's commitment to acoustic excellence and innovative design principles is evident across the entire Ultra Evolution series. These speakers are set to offer audiophiles and home theater enthusiasts a new level of audio quality to elevate their listening and viewing experiences.

Expert Img
HOMETHEATER REVIEW
NEMANJA GRBIC

Details

Line Circle

SVS Ultra Evolution Elevation Speaker

The SVS Ultra Evolution Elevation is a high-fidelity, ultra-flexible home theater speaker designed to deliver convincing Dolby Atmos height effects and immersive surround sound in real-world rooms where placement isn’t always perfect. Its optimized angled front baffle lets it perform as a down-firing height speaker, side/rear surround, or even an up/down-firing LCR or center-channel solution—without relying on “ceiling bounce” compromises. Inside, a 1" diamond-coated aluminum dome tweeter with an Organic Cell Lattice Diffuser delivers airy, effortless detail, while the 5.25" glass-fiber composite mid-woofer adds dynamic punch and deeper low-frequency extension. Add the included multi-angle wall/ceiling mounting system (with magnetic ceiling lock) and you get premium SVS clarity, impact, and placement freedom in one purpose-built speaker.

What It's Good At:

  • Producing true-to-life Dolby Atmos height effects with direct radiating performance (no ceiling-bounce limitations)
  • Solving tough placement challenges with an angled baffle and multi-angle wall/ceiling mounting options
  • Delivering crisp, open dialogue and effects with a diamond-coated tweeter and wide dispersion
  • Adding seamless immersion as side/rear surrounds with controlled, high-impact dynamics
  • Blending easily with most AV receivers thanks to a 6-ohm load, solid sensitivity, and broad amp-power range
  • Looking as premium as it sounds with piano gloss and real-wood veneer finish options

SVS Ultra Evolution Elevation Full Specifications:

  • Speaker type: Elevation loudspeaker (versatile home theater speaker for height effects/surround/LCR/center use)
  • Driver complement: 2-way design
  • Tweeter: 1" diamond-coated, aircraft-grade aluminum dome tweeter
  • Tweeter features: FEA-optimized Organic Cell Lattice Diffuser; vapor-deposition diamond carbon coating; silver tinsel leads
  • Mid-woofer: 5.25" composite glass-fiber cone mid-woofer
  • Woofer features: Long-stroke motor/suspension; precision-cast aluminum alloy basket; vented aluminum voice coil former
  • In-room frequency response: 48Hz to 40kHz (±3 dB)
  • Nominal impedance: 6 ohms
  • Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300Hz–3kHz)
  • Recommended amplifier power: 20–150 watts
  • Crossover: Premium 2-way crossover with premium-grade capacitors/inductors/resistors and heavy-trace PCB
  • Crossover point: 1.9 kHz (tweeter-to-woofer)
  • Enclosure/geometry: Optimized angled front baffle; chamfered baffle and flush-mounted drivers
  • Cabinet construction: Extra-thick 1" (25mm) driver baffle; FEA-optimized ¾" (18mm) cabinet with bracing and acoustic insulation

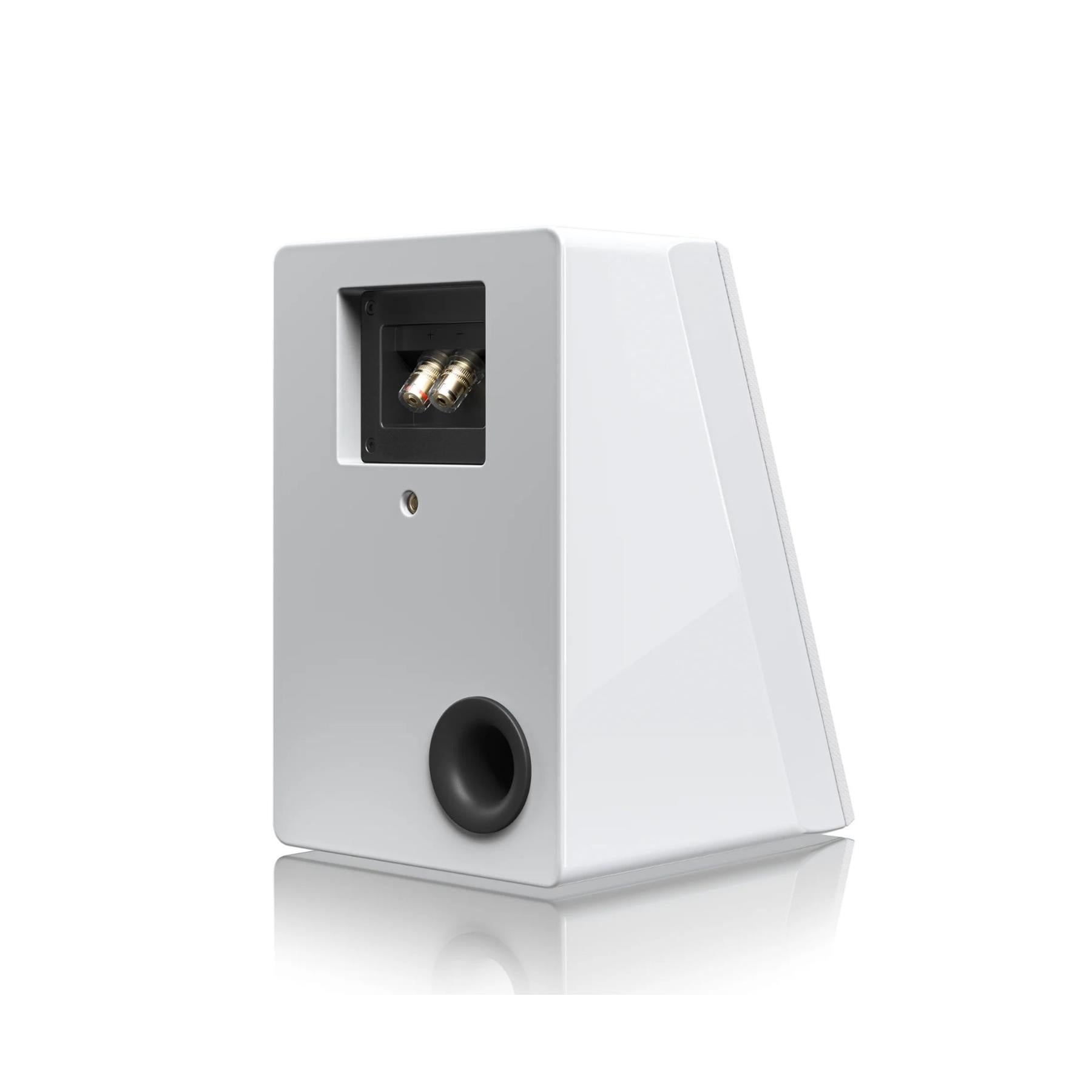

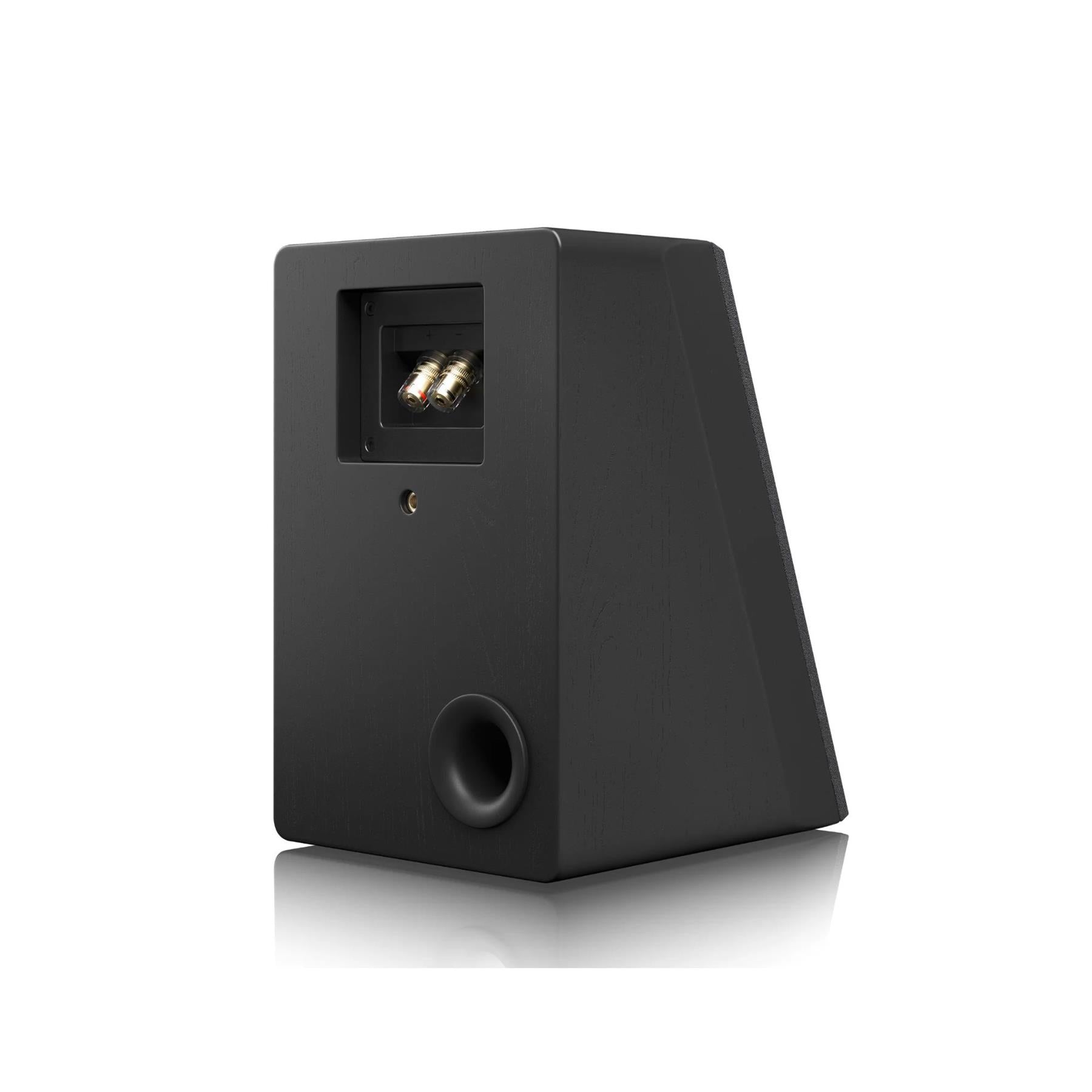

  • Porting: 1.4" wide-flared rear-firing port(s)
  • Terminals: Gold-plated 5-way binding posts (banana plugs, spades, pins, bare wire)

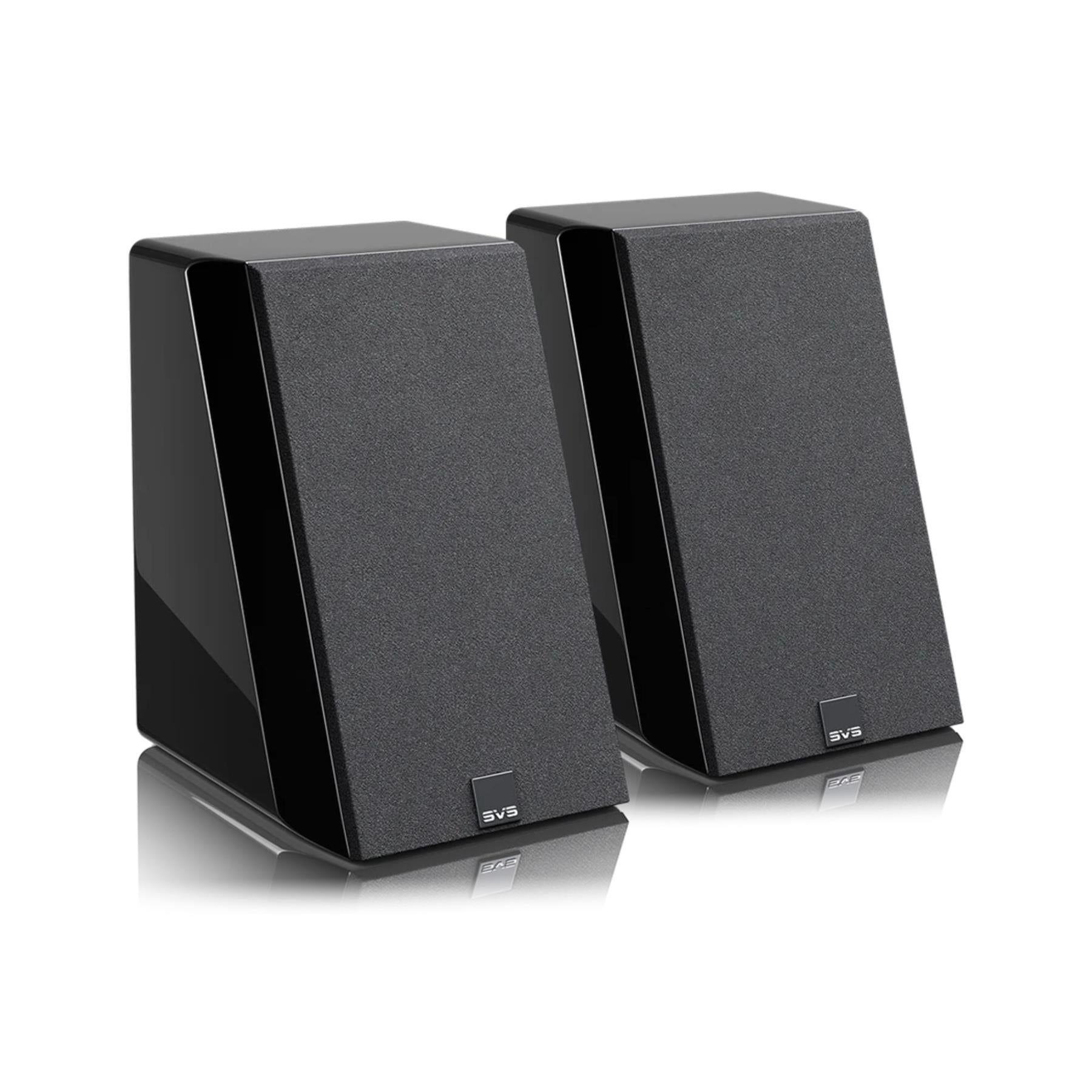

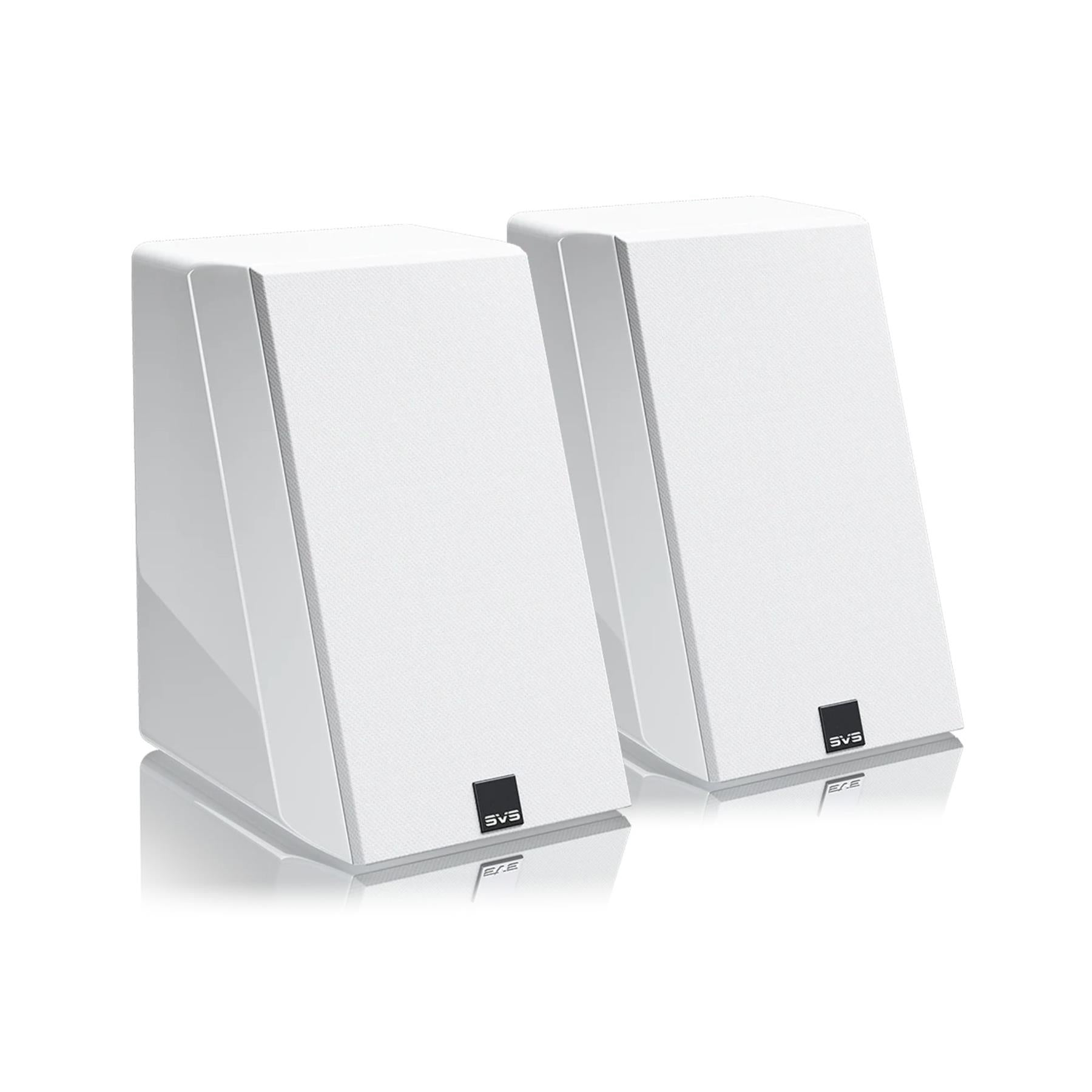

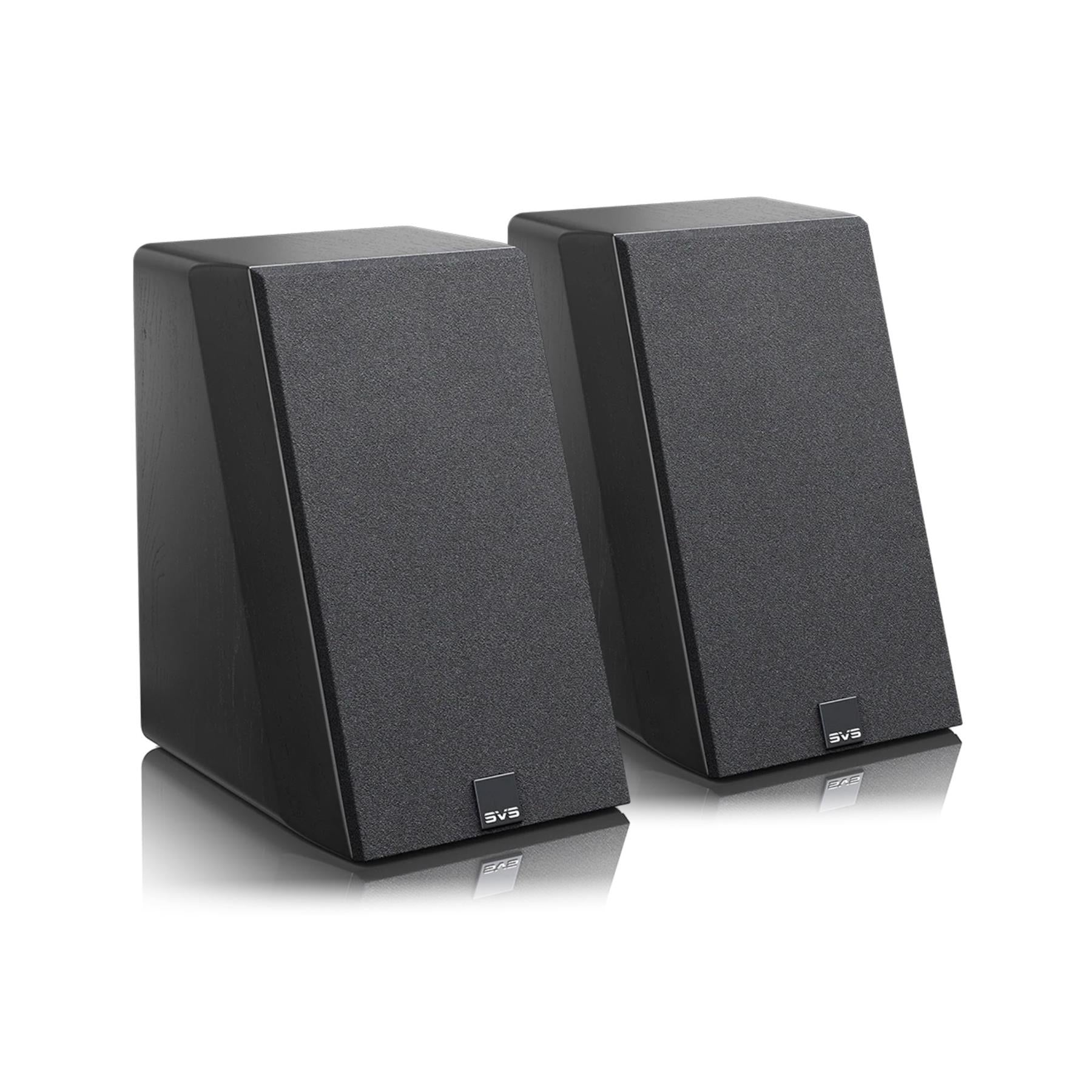

  • Grille: Cloth grille with magnetic retention system (neodymium magnetic grille design)
  • Logo badge: Magnetic SVS logo; removable and re-orientable
  • Feet: Elastomer stick-on bumper feet

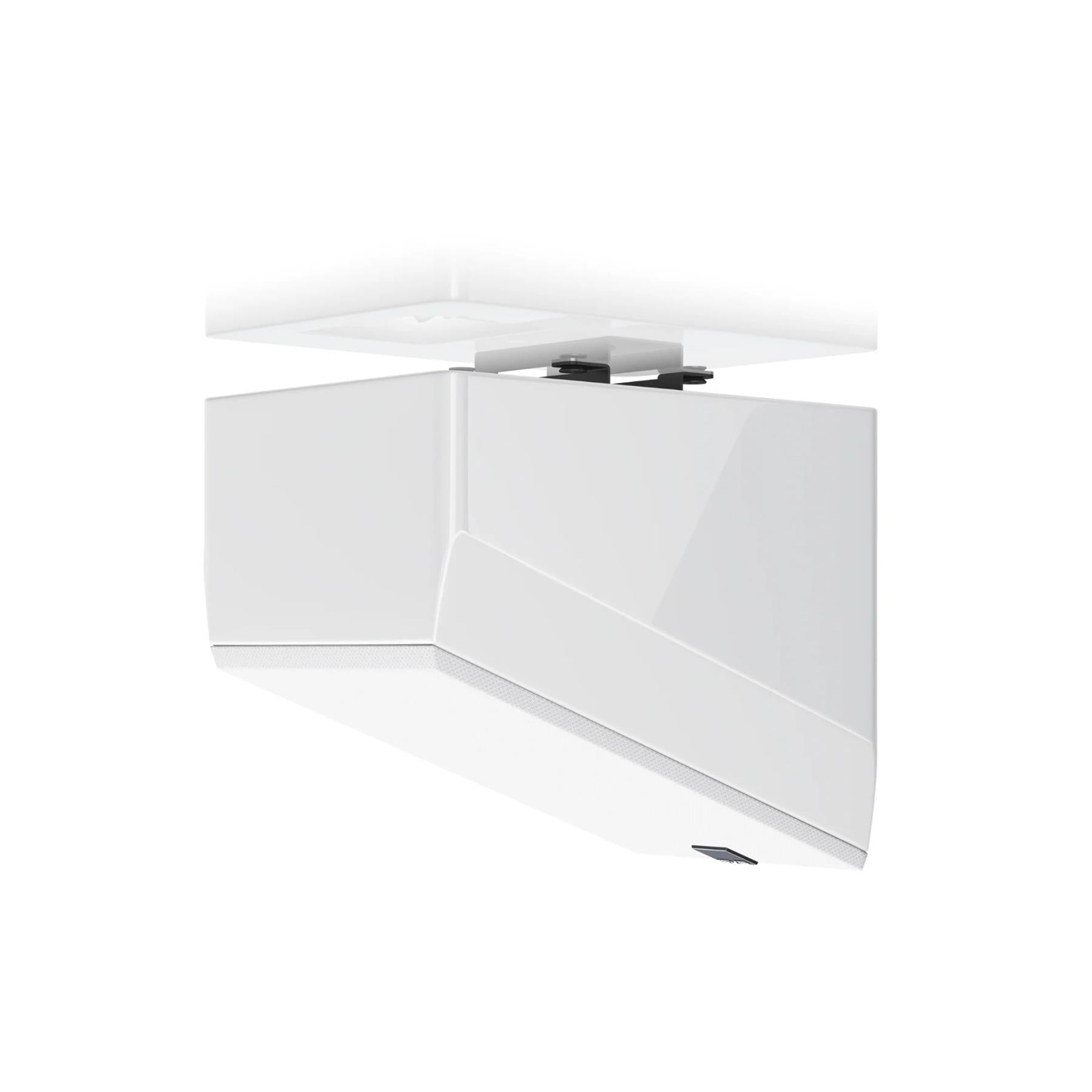

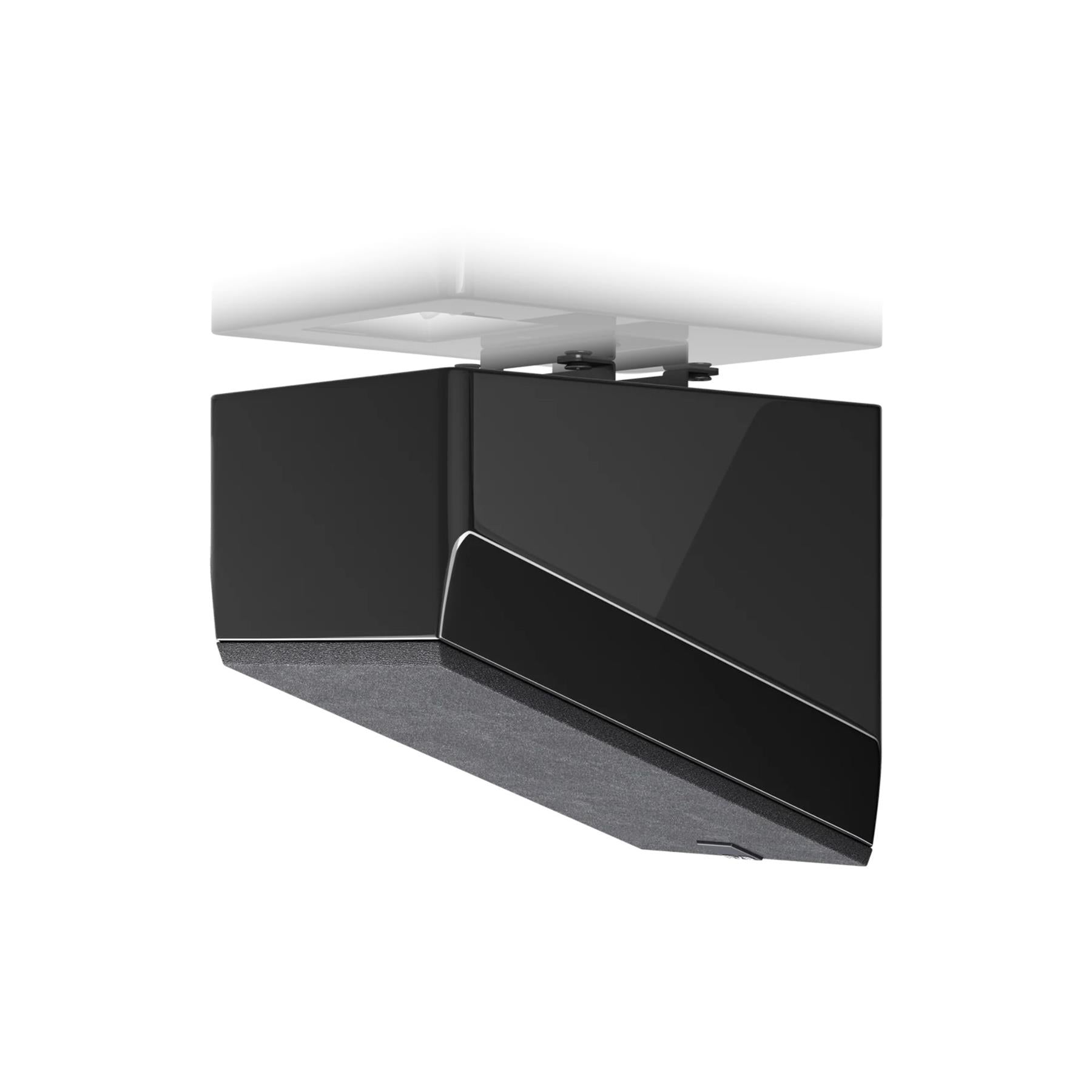

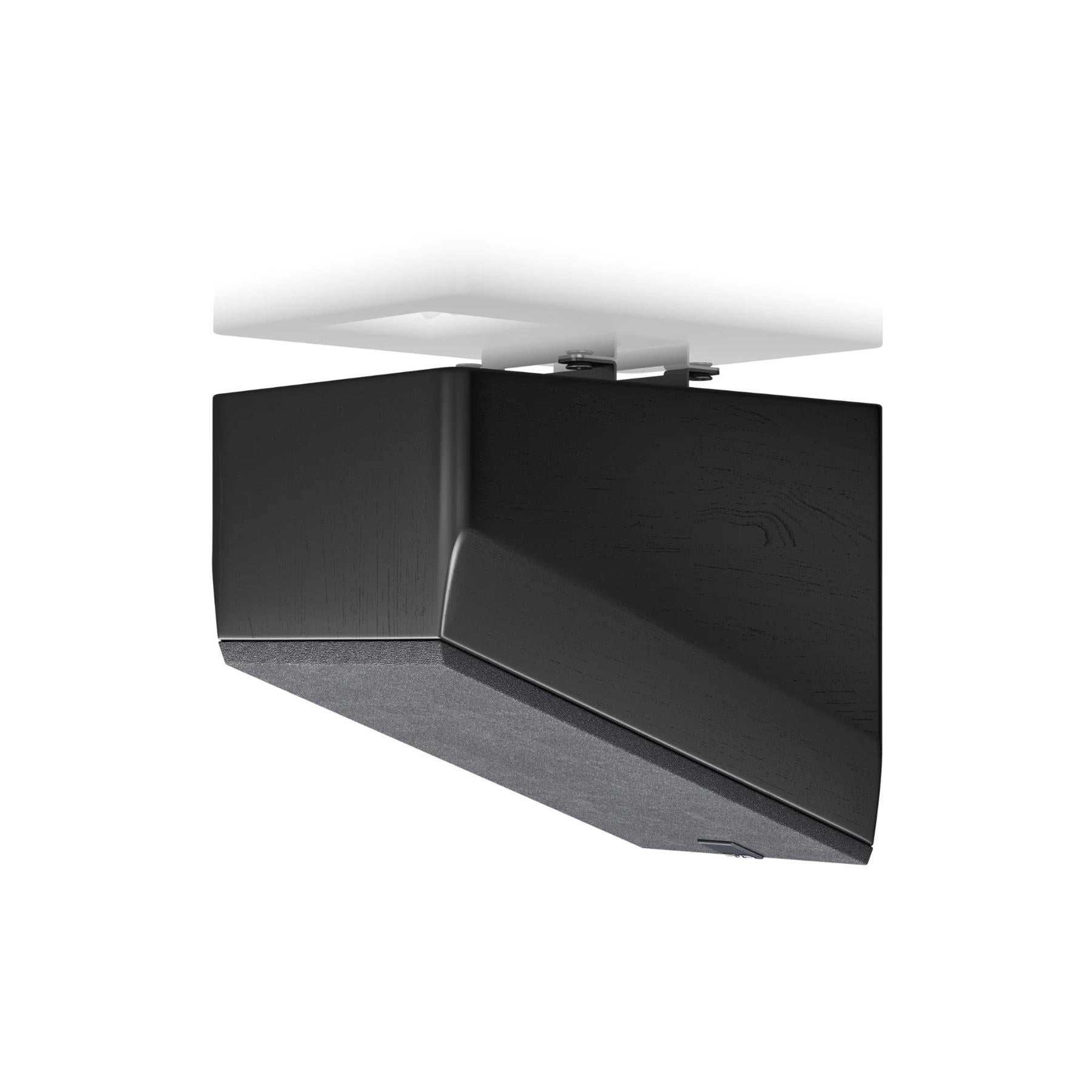

  • Mounting: Included SVS Multi-Angle Wall Bracket system for wall/ceiling mounting; magnetic ceiling lock included
  • Universal mount point: 1/4"-20 brass insert

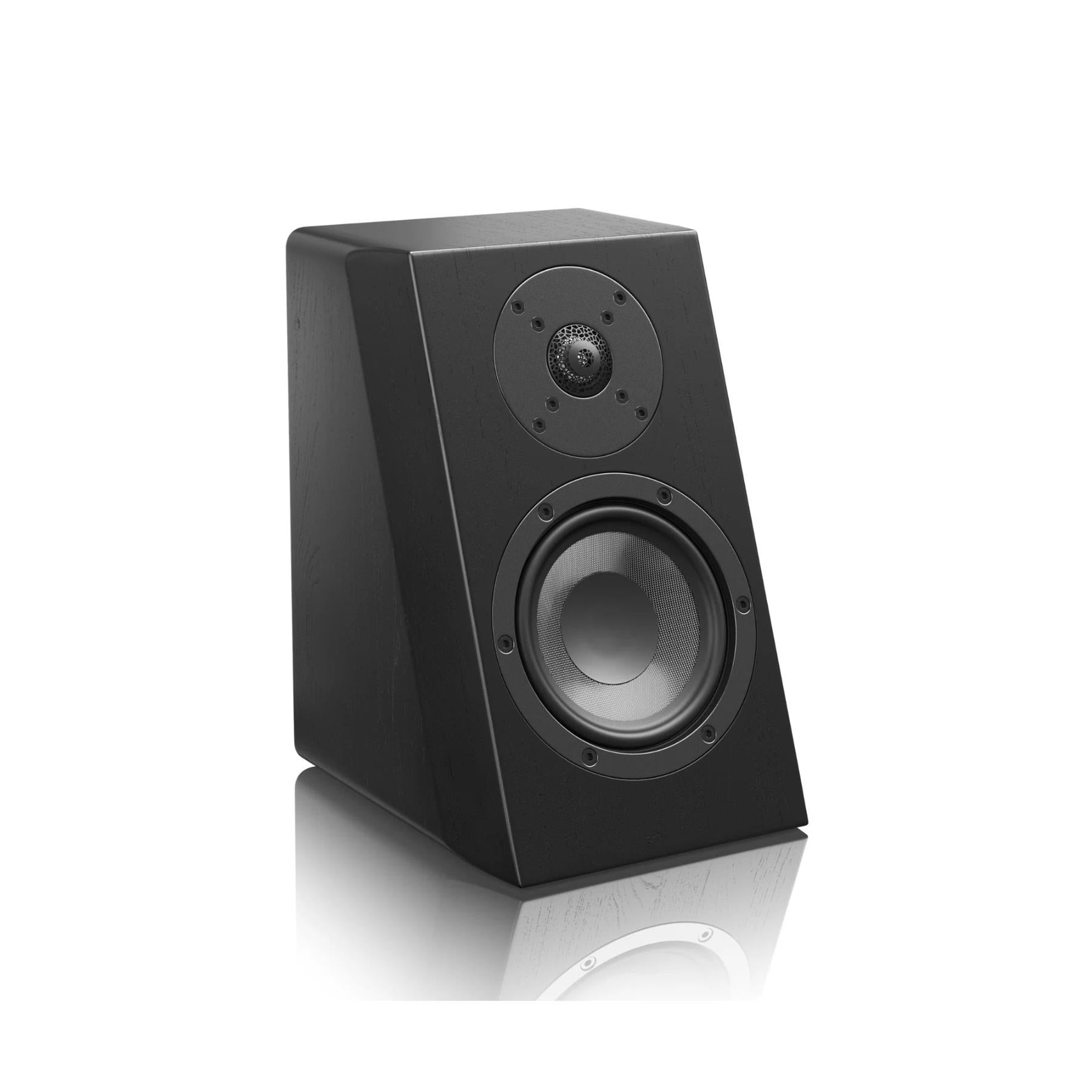

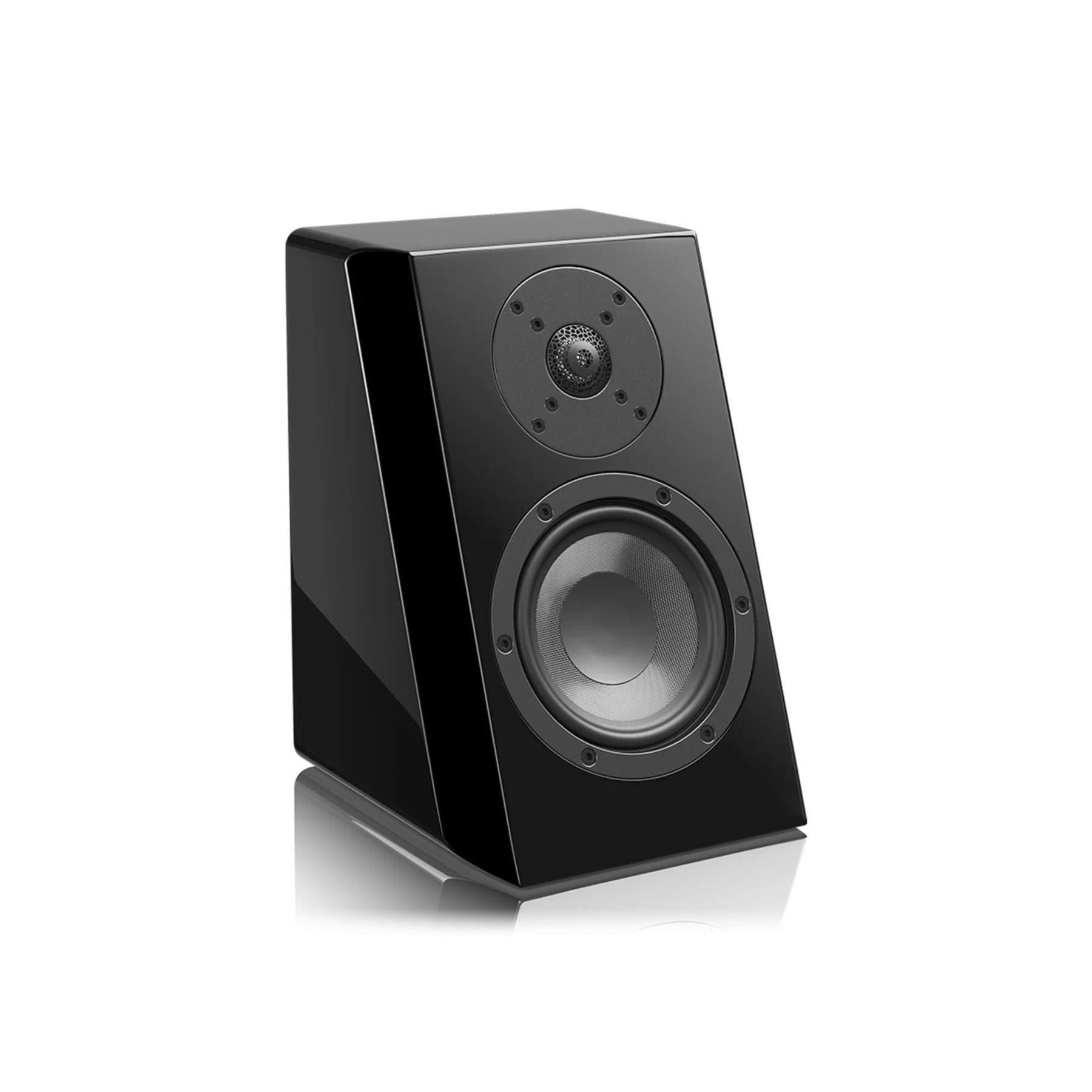

  • Finish options: Piano Gloss Black; Piano Gloss White; Black Oak Veneer (real black oak veneer)
  • Cabinet dimensions: 11.14" (H) x 7.28" (W) x 8.79" (D) / 283mm (H) x 185mm (W) x 223.2mm (D)
  • Overall dimensions (with grille, feet, binding posts): 11.3" (H) x 7.28" (W) x 9.17" (D) / 287mm (H) x 185mm (W) x 233mm (D)
  • Overall dimensions (with grille and SVS Multi-Angle Wall Bracket): 11.14" (H) x 7.28" (W) x 9.82" (D) / 283mm (H) x 185mm (W) x 249.4mm (D)
  • Shipped dimensions (pair): 11.6" (H) x 20.9" (W) x 15" (D) / 295mm (H) x 532mm (W) x 381mm (D)
  • Weight (unboxed, each): 12.3 lb / 5.6 kg
  • Weight (packaged, pair): 27.8 lb / 12.6 kg
  • Warranty: 5-year unconditional warranty

SVS Ultra Evolution Elevation Full Specifications:

What is the Ultra Evolution Elevation best used for in a home theater?
It’s purpose-built for Dolby Atmos and other height effects, but it’s also an excellent choice for side/rear surrounds—and can be used as an up/down-firing LCR or center when traditional placement isn’t possible.
Can this speaker be mounted on a wall or ceiling?
Yes. It includes SVS’s multi-angle wall/ceiling bracket system, plus a magnetic ceiling lock for secure overhead installation, and a 1/4"-20 brass insert for broader mounting compatibility.
Does it rely on ceiling-bounce to create Atmos height effects?
No. It’s a direct-radiating design, so you get full-fidelity height effects without needing ideal ceiling height, reflectivity, or limited-response “bounce” tuning.
What amplifier or AV receiver power works best with it?
SVS recommends 20–150 watts with a nominal 6-ohm impedance and 87 dB sensitivity, which makes it an easy match for most quality AV receivers and amplifiers.
What kind of speaker wire connections does it support?
The gold-plated 5-way binding posts accept banana plugs, spade connectors, pins, and bare wire for flexible, secure hookups.
What finishes are available?
Piano Gloss Black, Piano Gloss White, and Black Oak Veneer (real black oak veneer) are offered to match modern theaters and living spaces.
Is the Ultra Evolution Elevation sold individually or as a pair?
It’s sold as each speaker, making it easy to build the exact Atmos/surround layout you want (2, 4, or more channels) without buying unnecessary extras.
What makes this different from typical compact height/surround speakers?
The combination of a diamond-coated tweeter, wide 48Hz–40kHz response, premium crossover parts, and the angled baffle/mounting system delivers higher output and clarity—while staying exceptionally placement-friendly.

SVS Ultra Evolution Elevation Downloads:

SVS Ultra Elevation Owners Manual
