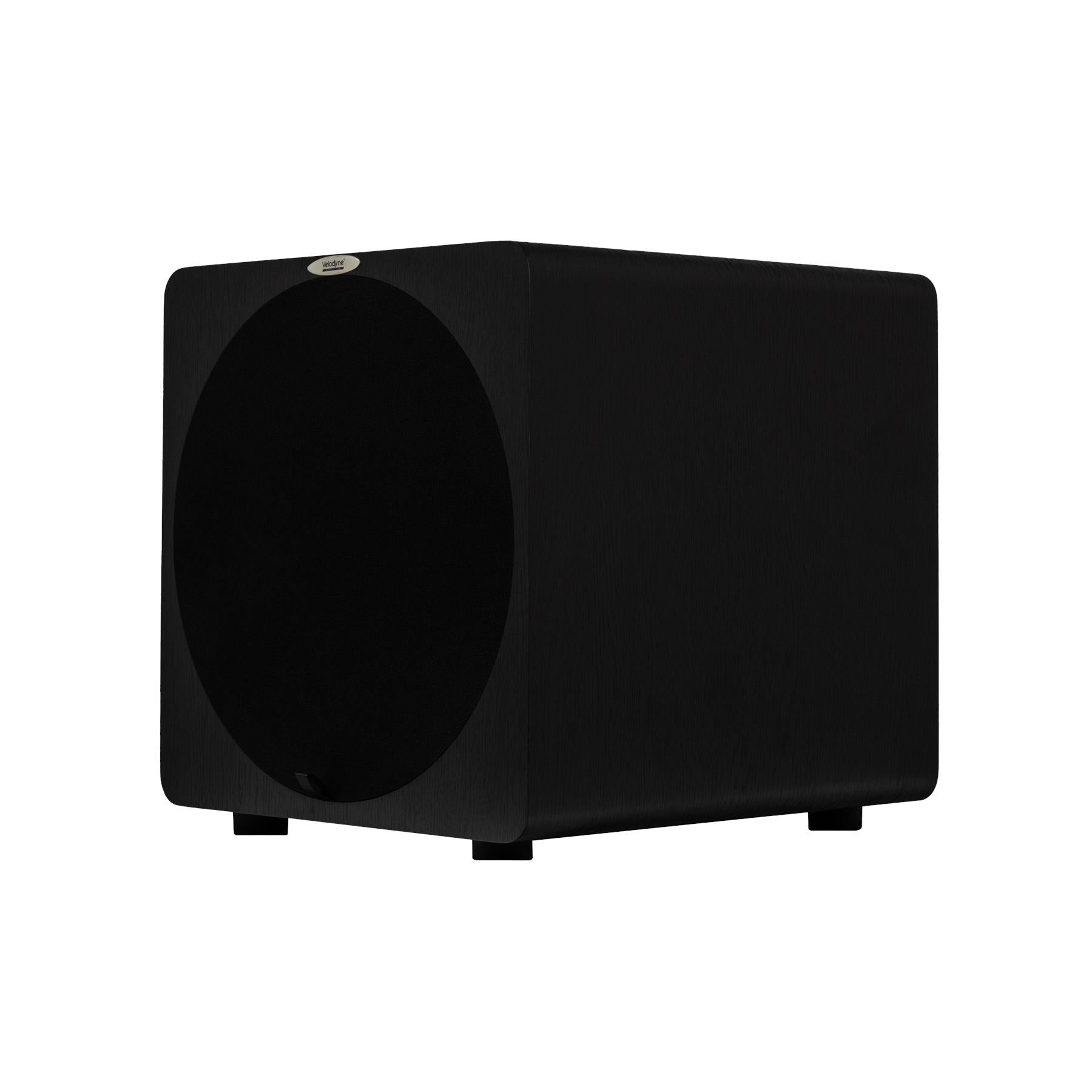

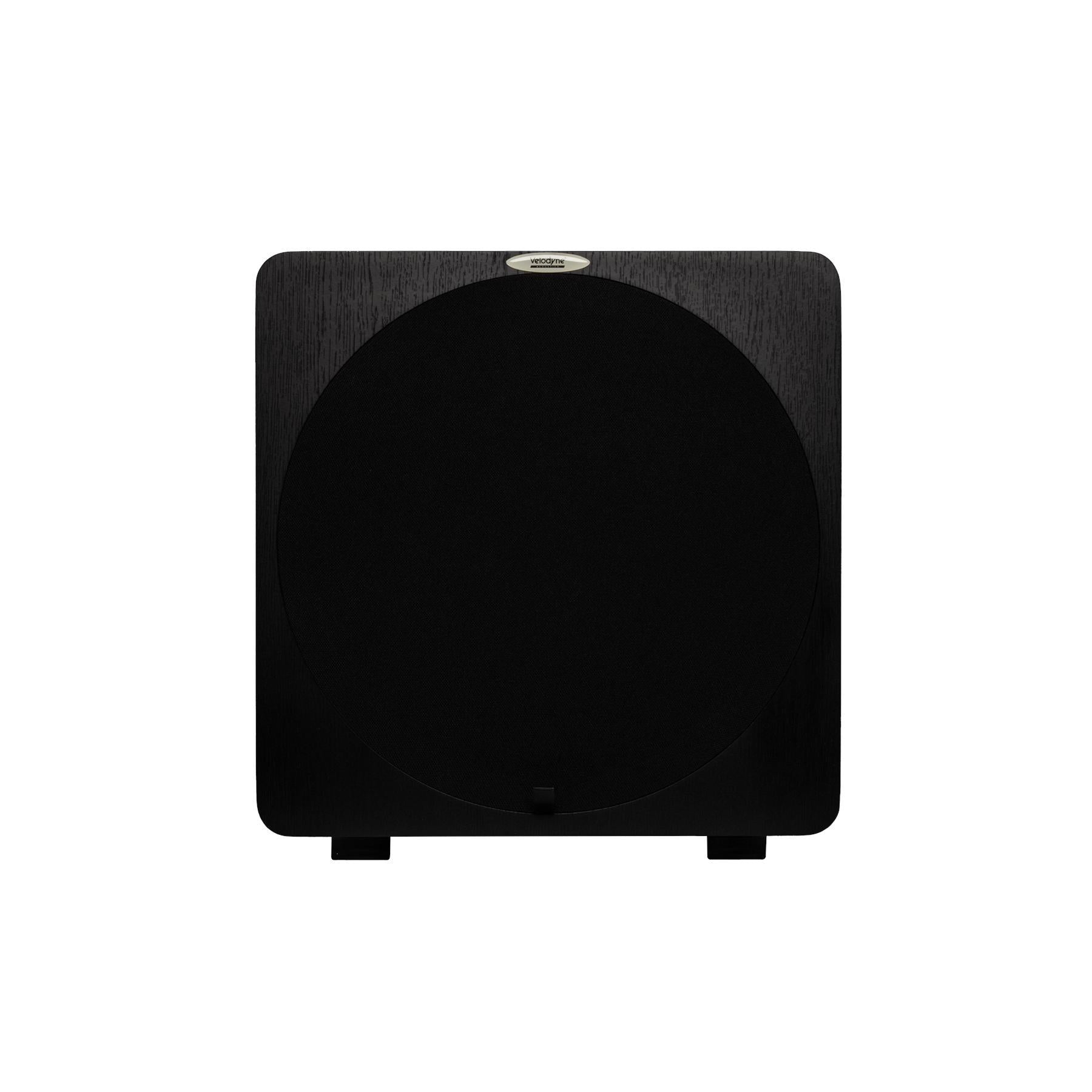

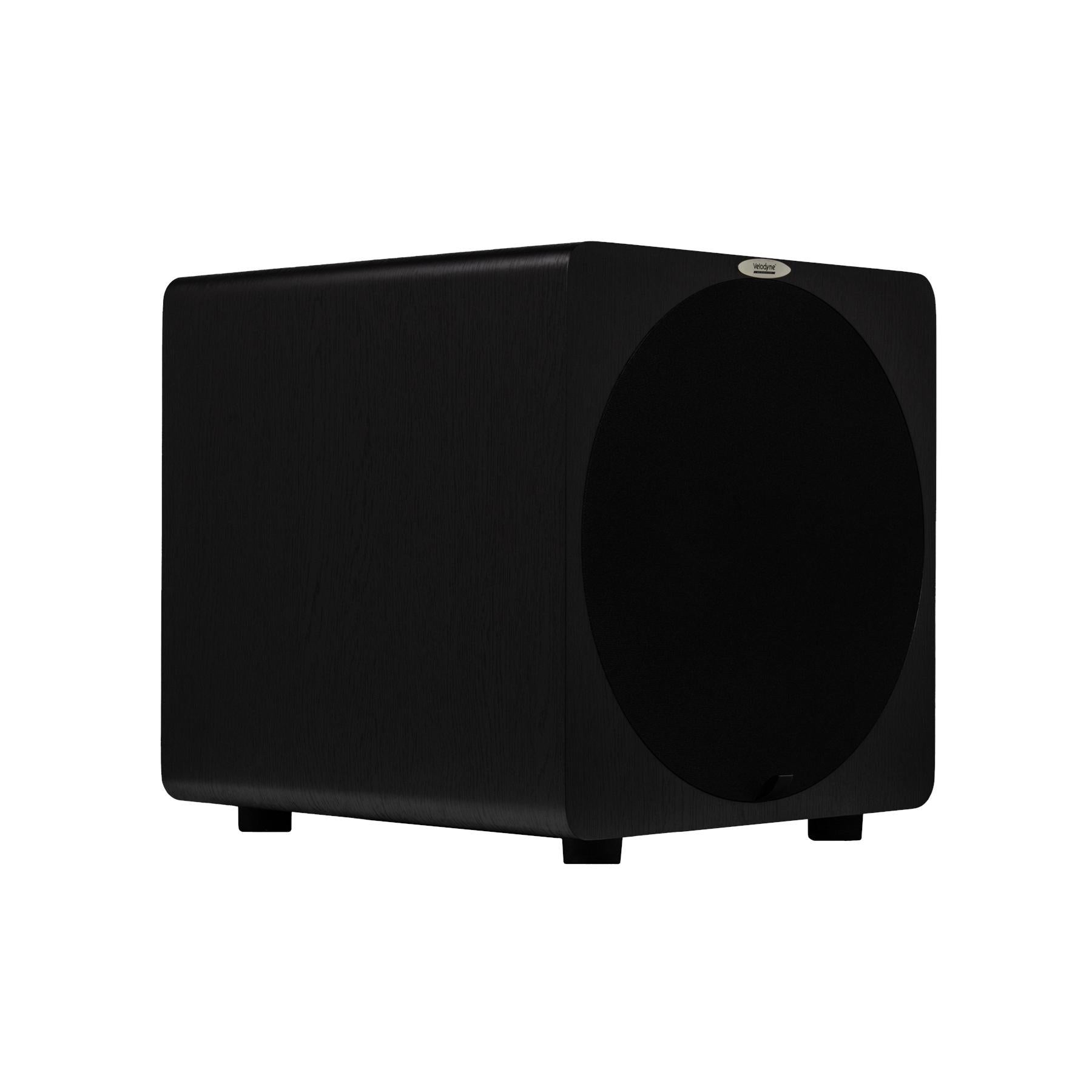

Velodyne Acoustics Deep Blue 12 Powered 12" Subwoofer
The Velodyne Acoustics Deep Blue 12 is a high-impact 12" powered subwoofer built for listeners who want deep, room-filling bass and cinematic dynamics. Its 12-inch front-firing driver is driven by a Class AB amplifier with 850 W dynamic and 350 W RMS power, delivering substantial low-frequency output while retaining the speed and control expected from Velodyne. A sealed MDF enclosure with a thick 52 mm front baffle, dual ferrite magnet motor and robust 2.5" voice coil work together to minimize distortion and maintain accuracy even at higher volumes.
With flexible crossover, phase and level controls plus high-quality RCA and high-level connections, the Deep Blue 12 can anchor larger living rooms and dedicated home theaters alike. It reaches deep into the bass range while remaining tunable enough to integrate seamlessly with both compact and full-range main speakers.
Velodyne Acoustics Deep Blue 12 Full Specifications:
-
Model: Velodyne Acoustics Deep Blue 12
-
Driver: 12″ forward firing
-
Amplifier Type: Class AB
-
Amplifier Power (Dynamic): 850 watts
-
Amplifier Power (RMS): 350 watts
-
Frequency Response (Overall): 15 – 250 Hz
-
Frequency Response (±3 dB): 26 – 140 Hz
-
Low-Pass Crossover: 50 Hz to 180 Hz (12 dB/Octave)
-
Phase Control: 0 to 180 degrees
-
Cabinet Design: MDF closed box with 52 mm / 2″ front baffle
-
Magnet Structure: Dual ferrite magnet motor
-

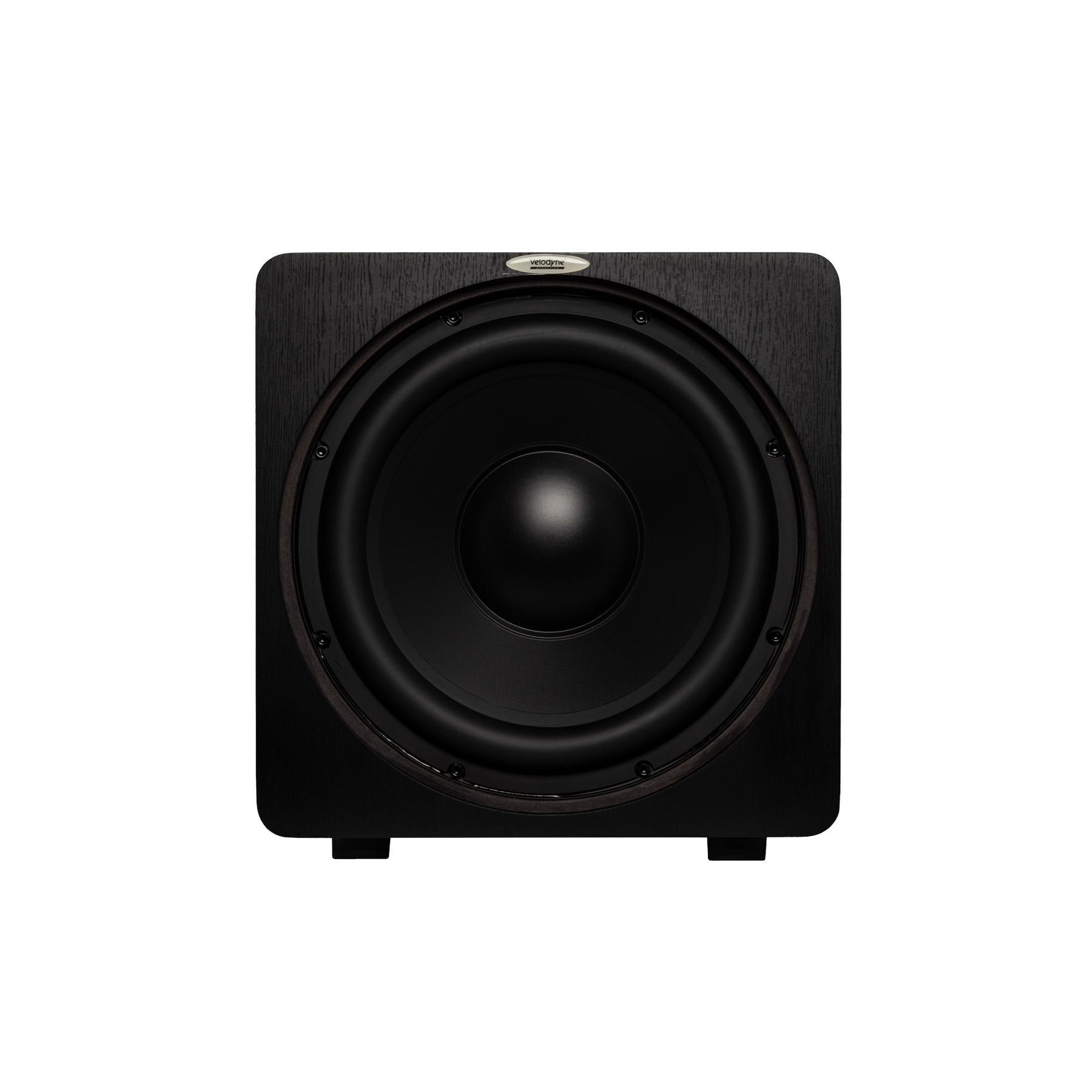

Woofer: 12″ high excursion double-vented basket driver with PP reinforced membrane
-
Voice Coil: Four-layer 2,5″ / 65 mm voice coil
-
Inputs: Gold-plated stereo RCA line in, LFE in, nickel-plated high-level input
-
Outputs: Gold-plated LFE / RCA
-
Power Selector: Off / Auto / On
-
Finish: Black
-
Dimensions (W x H x D, incl. feet & connectors): 35 x 37 x 38,8 cm
-
Weight (Approx.): 13 kg
-
Shipping Weight (Approx.): 14,8 kg
Velodyne Acoustics Deep Blue 12 Q&A:
- Is the Deep Blue 12 suitable for large home theater rooms?
- Yes, the 12″ driver and powerful amplifier make the Deep Blue 12 well-suited for larger living rooms and dedicated home theater spaces that require strong, deep bass.
- How does the Deep Blue 12 differ from the Deep Blue 10?
- The Deep Blue 12 uses a larger 12″ driver and 2.5″ voice coil to deliver more output and deeper extension, making it a better fit for bigger rooms and higher playback levels.
- Can the Deep Blue 12 be used in a music-focused hi-fi system?
- Yes, its sealed design, controlled bass response and flexible crossover settings make it suitable for 2-channel hi-fi systems where musical accuracy is important.
- What kind of enclosure does the Deep Blue 12 use?
- It uses a sealed MDF cabinet with a 52 mm front baffle, designed to minimize resonance and deliver tight, accurate low-frequency performance.
- Does the Deep Blue 12 offer an automatic standby function?
- Yes, the power selector includes an Auto mode so the subwoofer powers up when it receives signal and returns to standby when there is no input.

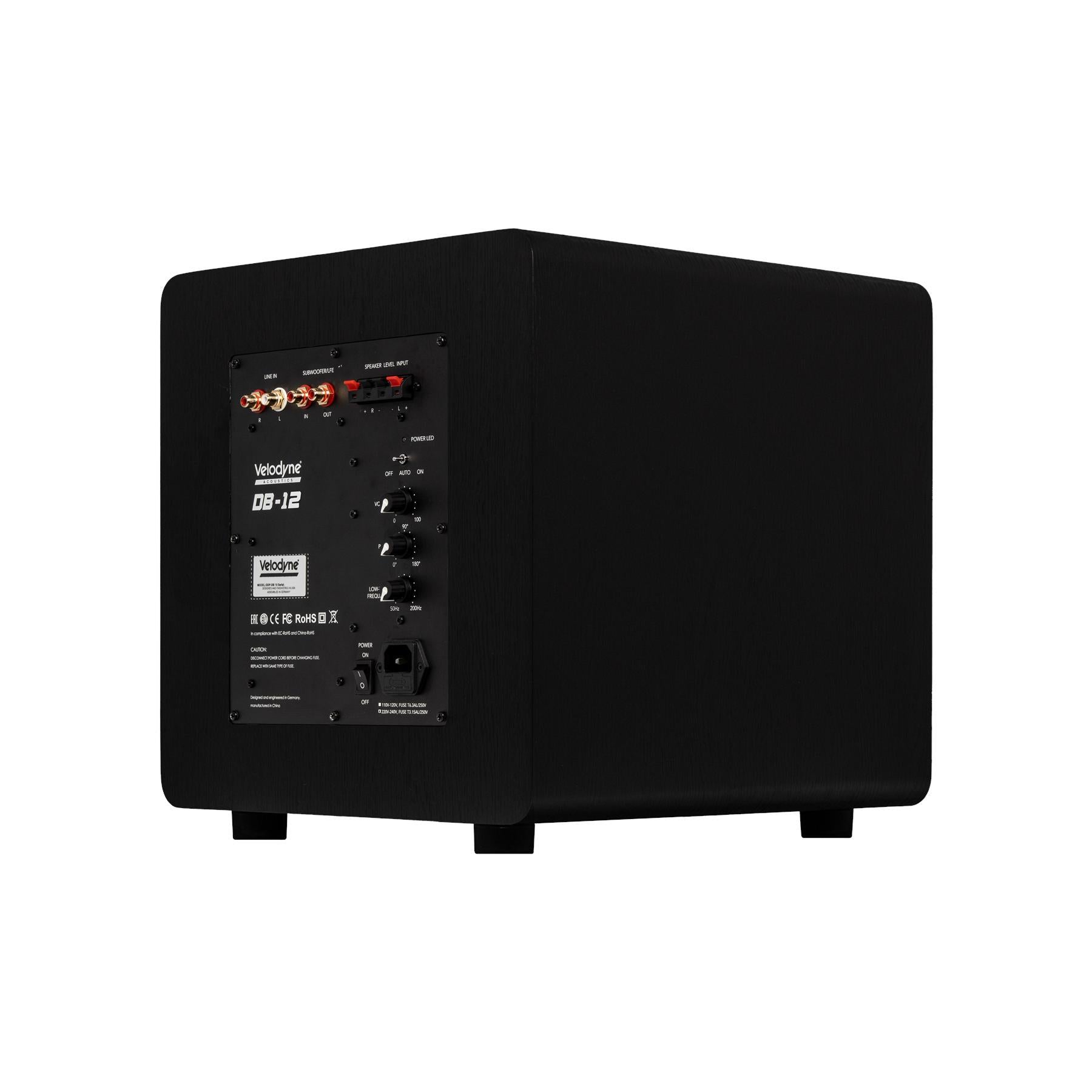

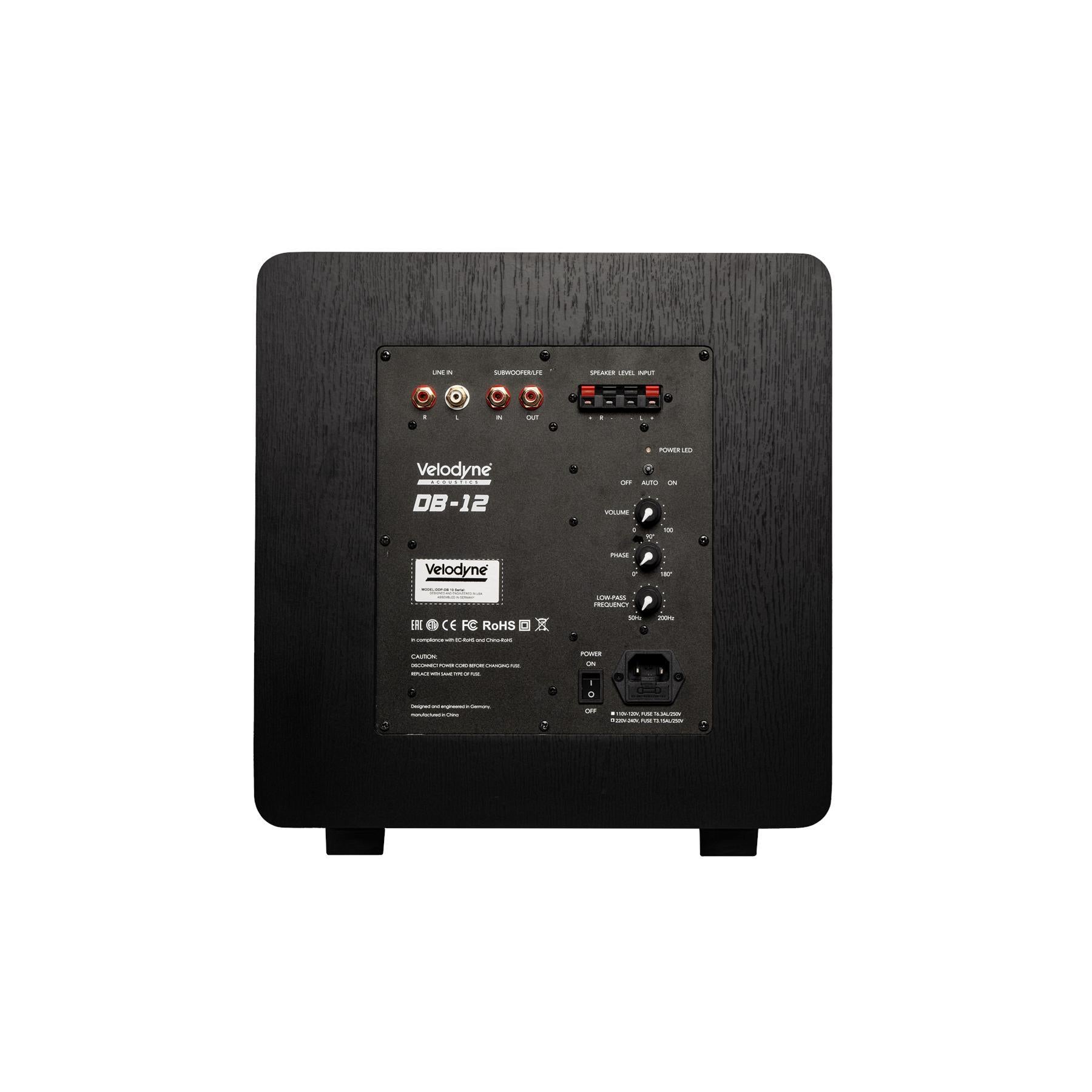

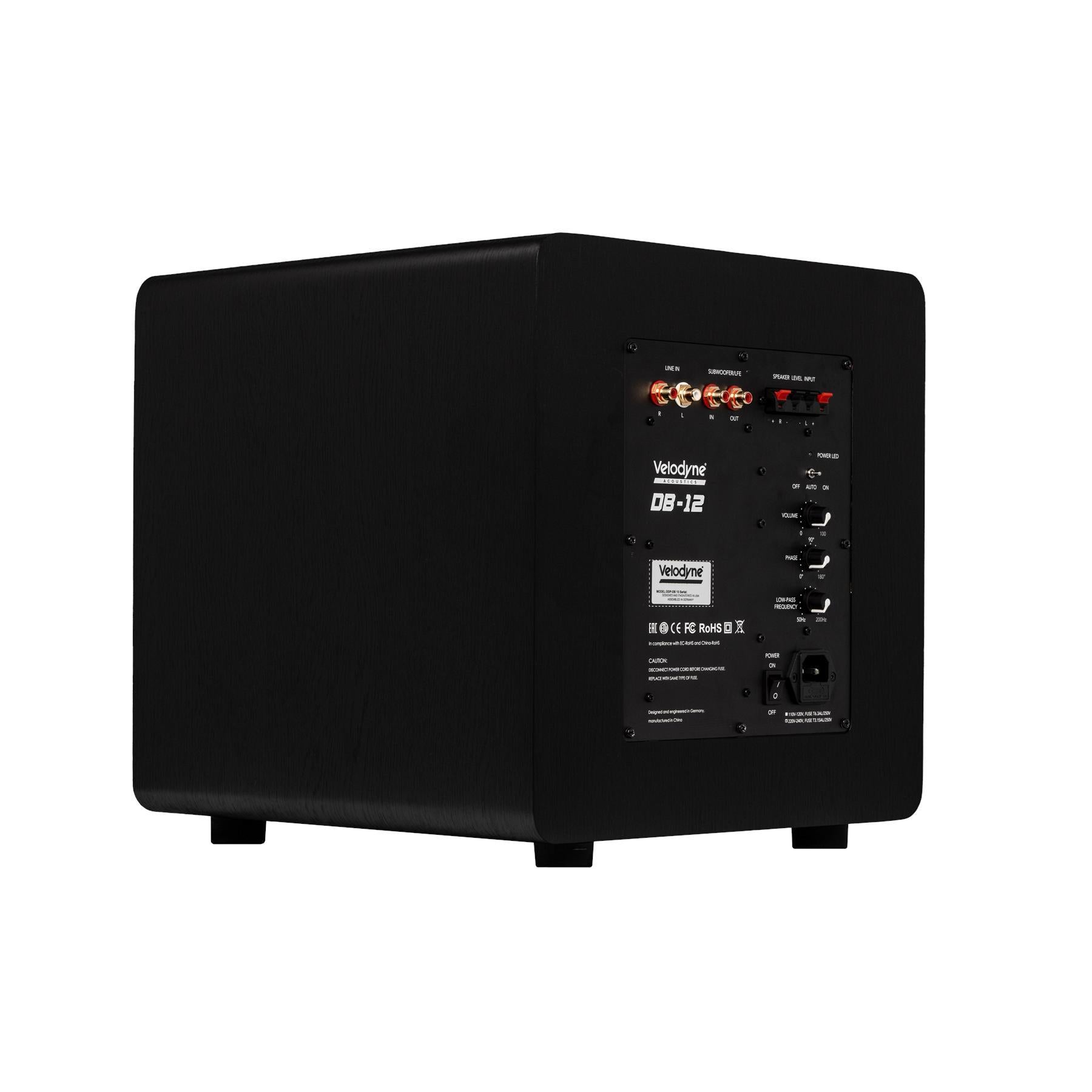

- What connection options are available on the Deep Blue 12?
- The Deep Blue 12 features gold-plated stereo RCA and LFE inputs for line-level connection, nickel-plated high-level inputs, and a gold-plated LFE/RCA output.
- How heavy is the Deep Blue 12?
- The subwoofer weighs approximately 13 kg, offering a good balance between stability and ease of positioning in the room.
- Can the Deep Blue 12 be used in a corner placement?
- Yes, its front-firing design and sealed cabinet allow it to be placed near walls or in a corner, which can help increase bass output; placement can then be fine-tuned using the available controls.
Velodyne Acoustics Deep Blue 12 Downloads:
Velodyne Acoustics Deep Blue 12 User Manual
