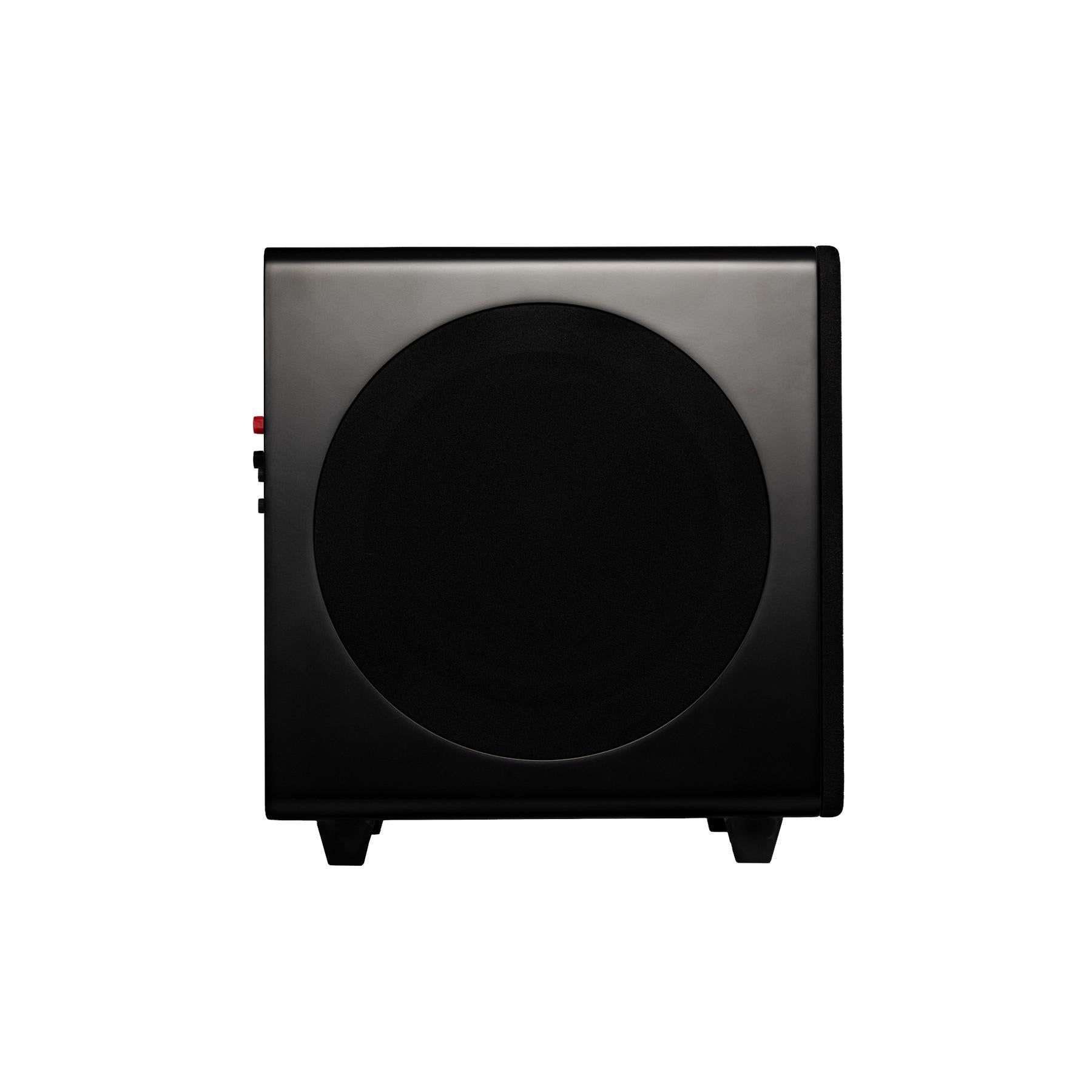

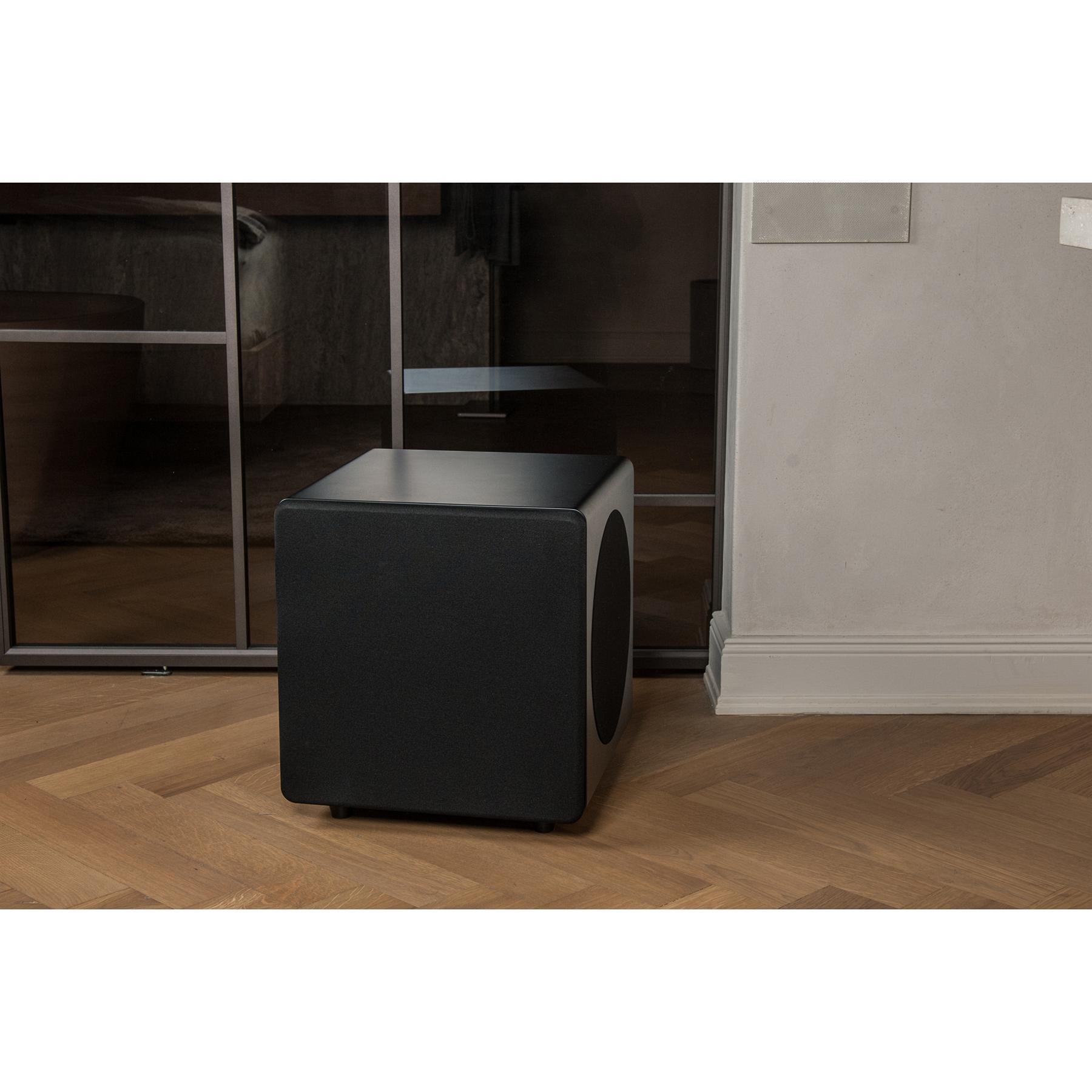

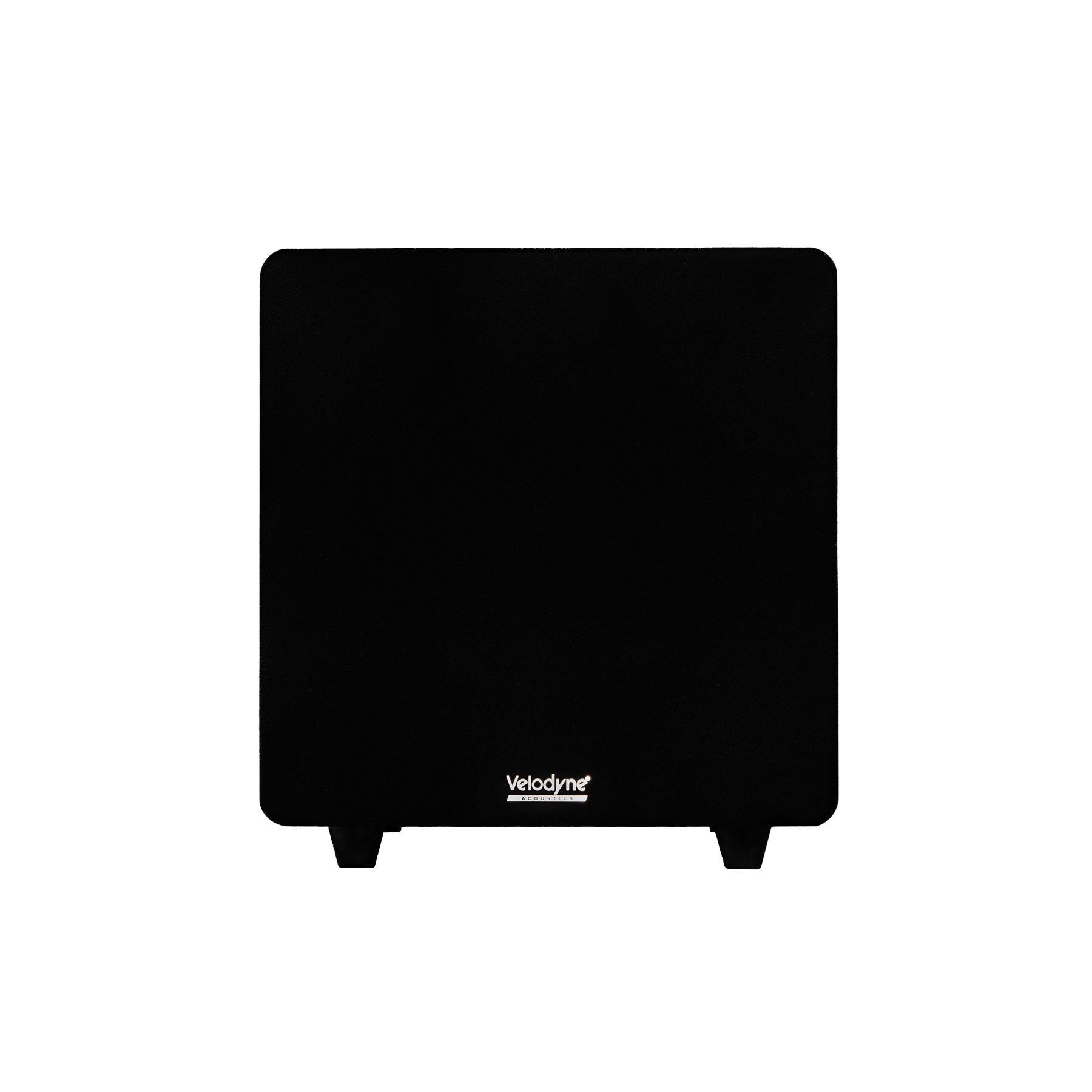

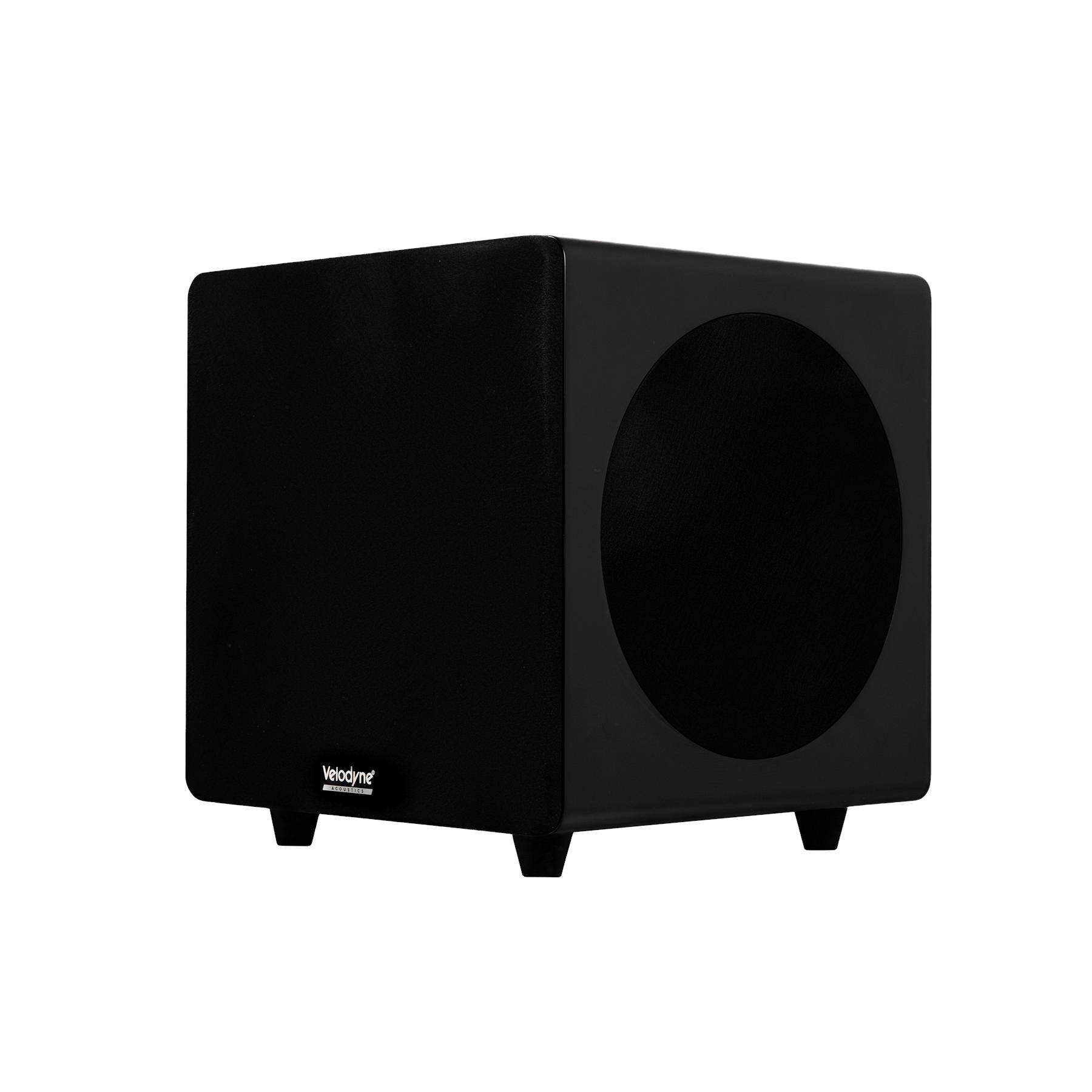

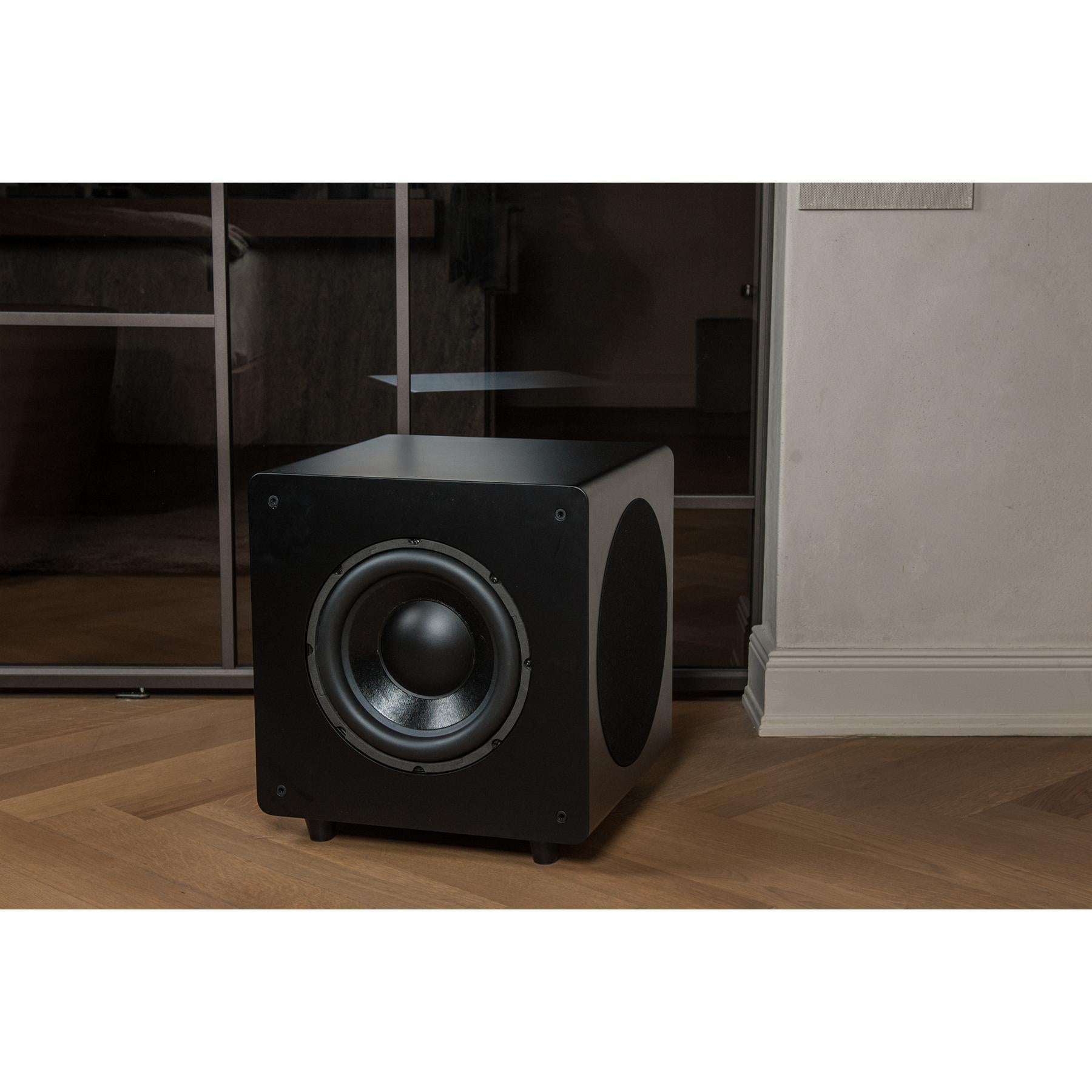

Velodyne Acoustics Deep Waves 10 10-Inch Active Subwoofer
The Velodyne Acoustics Deep Waves 10 is a compact 10-inch active subwoofer designed for serious home theater and hi-fi listeners who want deep, controlled bass without sacrificing living-room space. Its front-firing driver and side-radiating passive radiators deliver impressive low-frequency impact, while a powerful Class D amplifier keeps playback clean and dynamic, even at higher volumes. The sturdy 22 mm MDF cabinet with internal bracing reduces unwanted resonances, and the flat matte black finish blends discreetly into modern interiors. With app-based control via the iWoofer™ app and flexible connection options, the Deep Waves 10 is built for easy integration and precision tuning in virtually any room.
Velodyne Acoustics Deep Waves 10 Full Specifications:
- Series: Velodyne Acoustics Deep Waves 10 active subwoofer

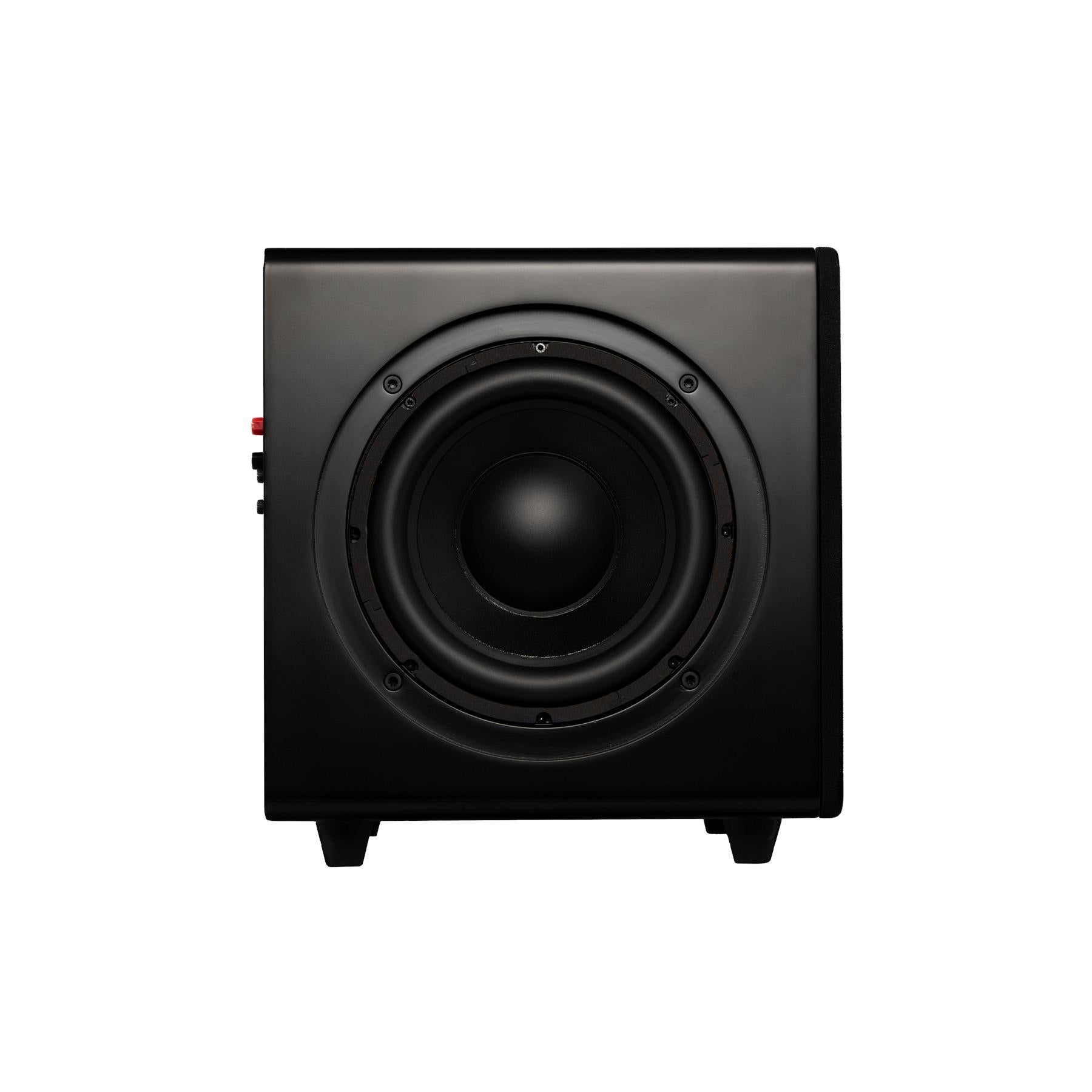

- Driver configuration: 10" front-firing active driver
- Passive radiators: Dual 10" side-radiating passive radiators
- Amplifier type: Class D
- Amplifier power (dynamic): 600 watts
- Amplifier power (RMS): 350 watts
- Overall frequency response (±3 dB): 28 Hz – 200 Hz
- Overall frequency response (±10 dB): 25 Hz – 280 Hz
- Low-pass crossover: 50 Hz – 180 Hz (12 dB/octave)
- Phase control: 0° / 180°
- Cabinet construction: 22 mm MDF with internal bracing
- Magnet structure: Dual ferrite magnet motor
- Woofer design: 10" high-excursion double-vented basket driver with polypropylene membrane and convex cone
- Voice coil: Four-layer 2.5" (63 mm) voice coil
- App control: iWoofer™ app compatibility for room and preference tuning
- Enclosure style: Front-firing driver with side-firing passive radiators

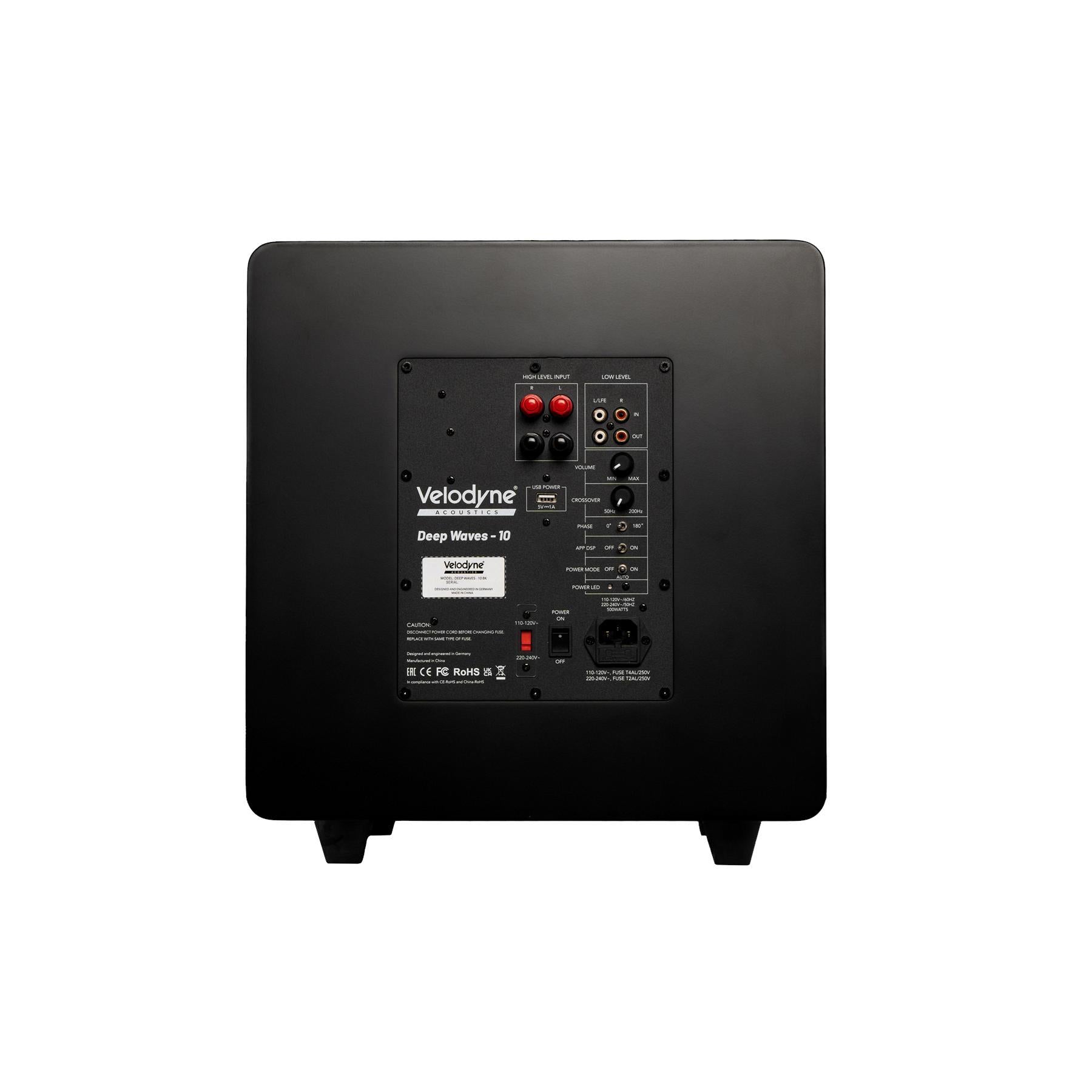

- Inputs: Gold-plated stereo/LFE RCA inputs; nickel-plated high-level inputs
- Outputs: Gold-plated stereo/LFE RCA outputs
- Power modes: Off / Auto / On selector
- Finish: Flat matte black paint
- Dimensions (W x H x D, including feet and connectors): 38 cm x 40 cm x 32 cm
- Net weight (approx.): 21 kg
- Shipping weight (approx.): 24 kg
Velodyne Acoustics Deep Waves 10 Q&A:
- Is the Deep Waves 10 suitable for both home theater and stereo music systems?
- Yes, the Deep Waves 10 is designed for high-performance use in both home cinema and hi-fi stereo systems, offering deep bass extension and accurate response for movies, TV, and music playback.
- How much power does the Deep Waves 10 amplifier deliver?
- The built-in Class D amplifier provides up to 600 watts of dynamic power and 350 watts RMS, giving the subwoofer substantial headroom for demanding content without distortion.
- What are the main connection options on the Deep Waves 10?
- The subwoofer includes gold-plated stereo/LFE RCA inputs and outputs, along with nickel-plated high-level (speaker-level) inputs, making it easy to integrate with AV receivers and traditional stereo amplifiers.
- Can I control and tune the Deep Waves 10 with an app?
- Yes, the Deep Waves 10 supports control via the iWoofer™ app, allowing you to adjust settings like level, crossover, and equalization from your listening position for optimal room integration.
- What are the physical dimensions and weight of the Deep Waves 10?
- The subwoofer measures approximately 38 cm wide, 40 cm high, and 32 cm deep (including feet and connectors), with a net weight of about 21 kg and a shipping weight of around 24 kg.
- Does the Deep Waves 10 have an automatic power-saving feature?
- Yes, it includes an Off/Auto/On power selector; in Auto mode, the subwoofer can switch into standby when no signal is present and wake automatically when audio is detected.
- How low in frequency can the Deep Waves 10 play?
- The Deep Waves 10 offers a frequency response of 28–200 Hz within ±3 dB and extends down to 25 Hz within ±10 dB, providing deep bass suitable for cinematic effects and full-range music.
- What finish and cabinet quality can be expected?
- The subwoofer features a high-quality 22 mm MDF cabinet with internal bracing and a flat matte black finish, combining structural rigidity with a discreet, modern look.
Velodyne Acoustics Deep Waves 10 Downloads:
Velodyne Acoustics Deep Waves 10 User Manual
