Velodyne Acoustics

Velodyne Acoustics Impact X 10 Subwoofer

Velodyne Acoustics

Velodyne Acoustics Impact X 10 Subwoofer

$1,199.00
HAVE SOMETHING TO TRADE? CLICK HERE
In Stock
In Stock
Back Order
Back Order
Back Order
Out of Stock
Delivery
Ships within 24 Hours
Delivery

Color:

- +
Buy now
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

View Products
Notify Me When In Stock

We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address

Notify Me

Product Description

Line Circle
The Velodyne Impact X 10 is a 10-inch powered subwoofer engineered for powerful, precise bass in home theater and Hi-Fi systems. Its 500-watt dynamic Class D amplifier and high-excursion driver deliver impactful low frequencies down to 25 Hz. Flexible controls, including variable crossover, phase switch, and DSP presets, make integration with any system straightforward. Finished in sleek black or white, the Impact X 10 blends modern design with room-shaking performance.
Get the Details

Features & Specs Line Circle

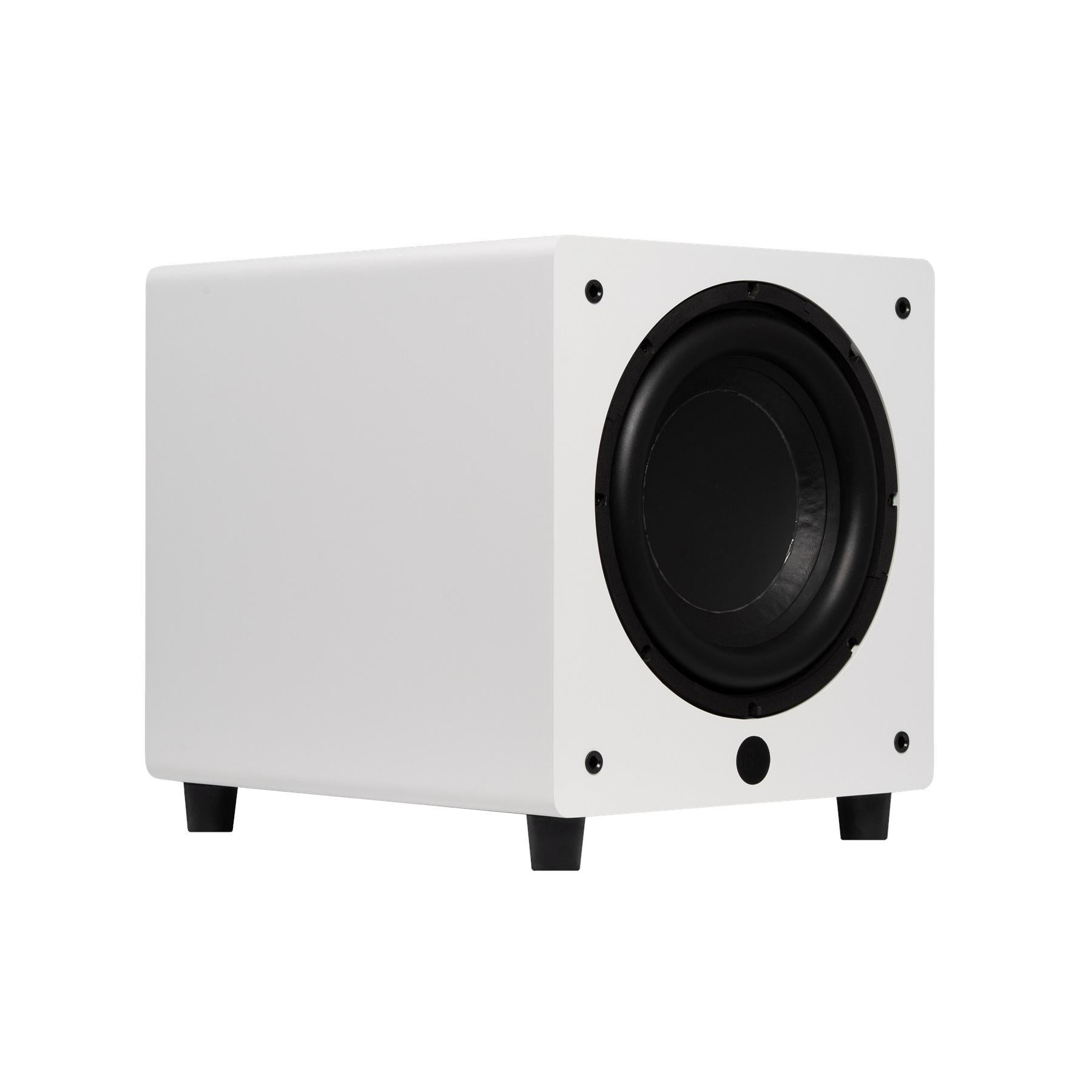

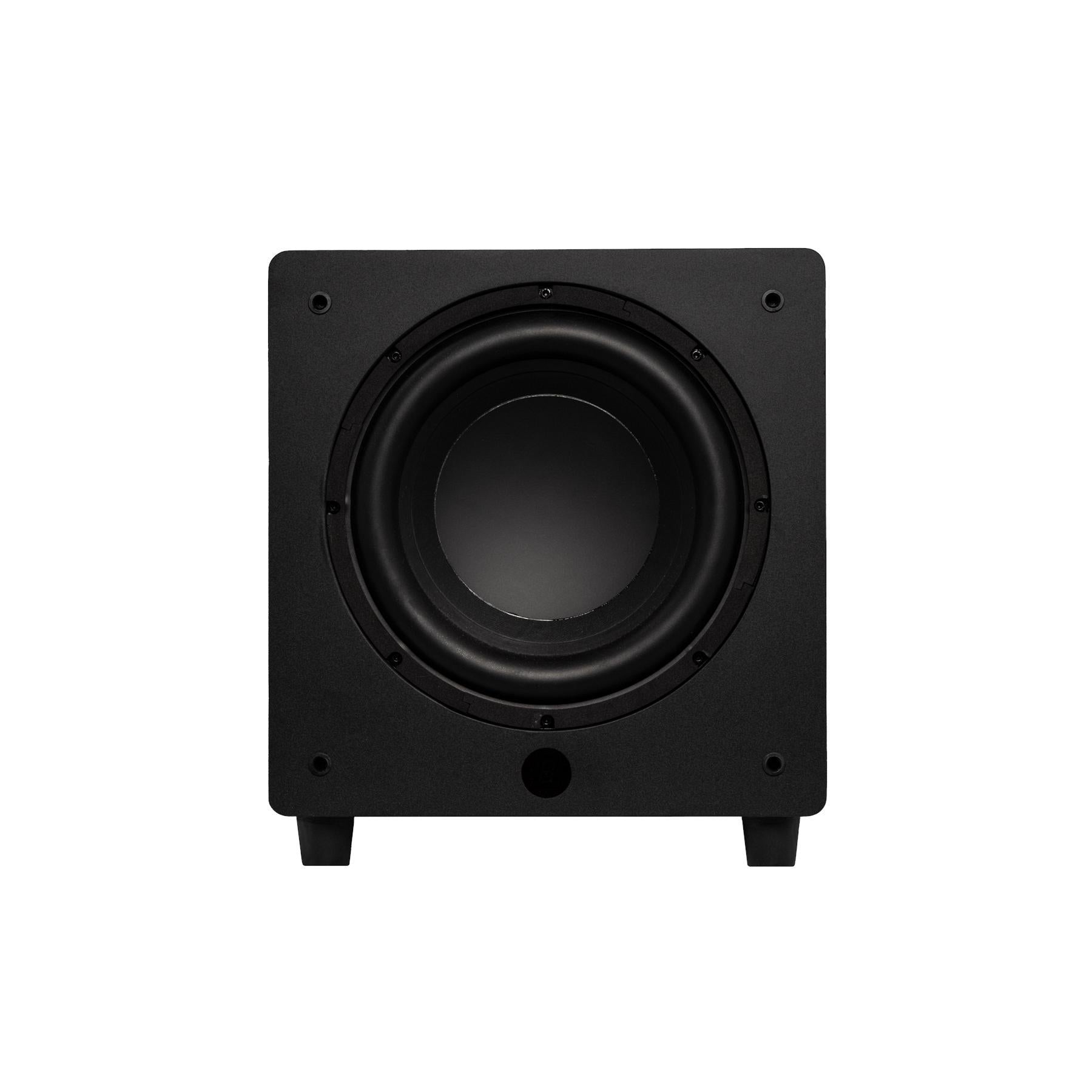

10-inch front-firing high-excursion driver
The 10″ front-firing driver moves a large volume of air with precision, delivering tight, articulate bass that adds realism to movie soundtracks and music without sounding boomy.
500 W dynamic / 250 W RMS Class D amplifier
A highly efficient Class D amplifier provides 250 watts RMS and 500 watts dynamic power, ensuring effortless low-frequency output with plenty of headroom for action scenes and bass-heavy tracks.
Deep bass response down to 25 Hz (±10 dB)
With usable output extending to 25 Hz, the Impact X 10 reproduces low-frequency effects and musical fundamentals that small speakers simply cannot reach.
Variable low-pass crossover and 0/180° phase switch
The adjustable 50–180 Hz crossover and simple 0/180° phase control allow fine-tuning of the subwoofer’s blend with your main speakers and room acoustics.
4 DSP presets with anti-clipping protection
Four DSP modes accessible via remote control optimize the response for different content and listening levels, while anti-clipping circuitry safeguards both amp and driver at high output.

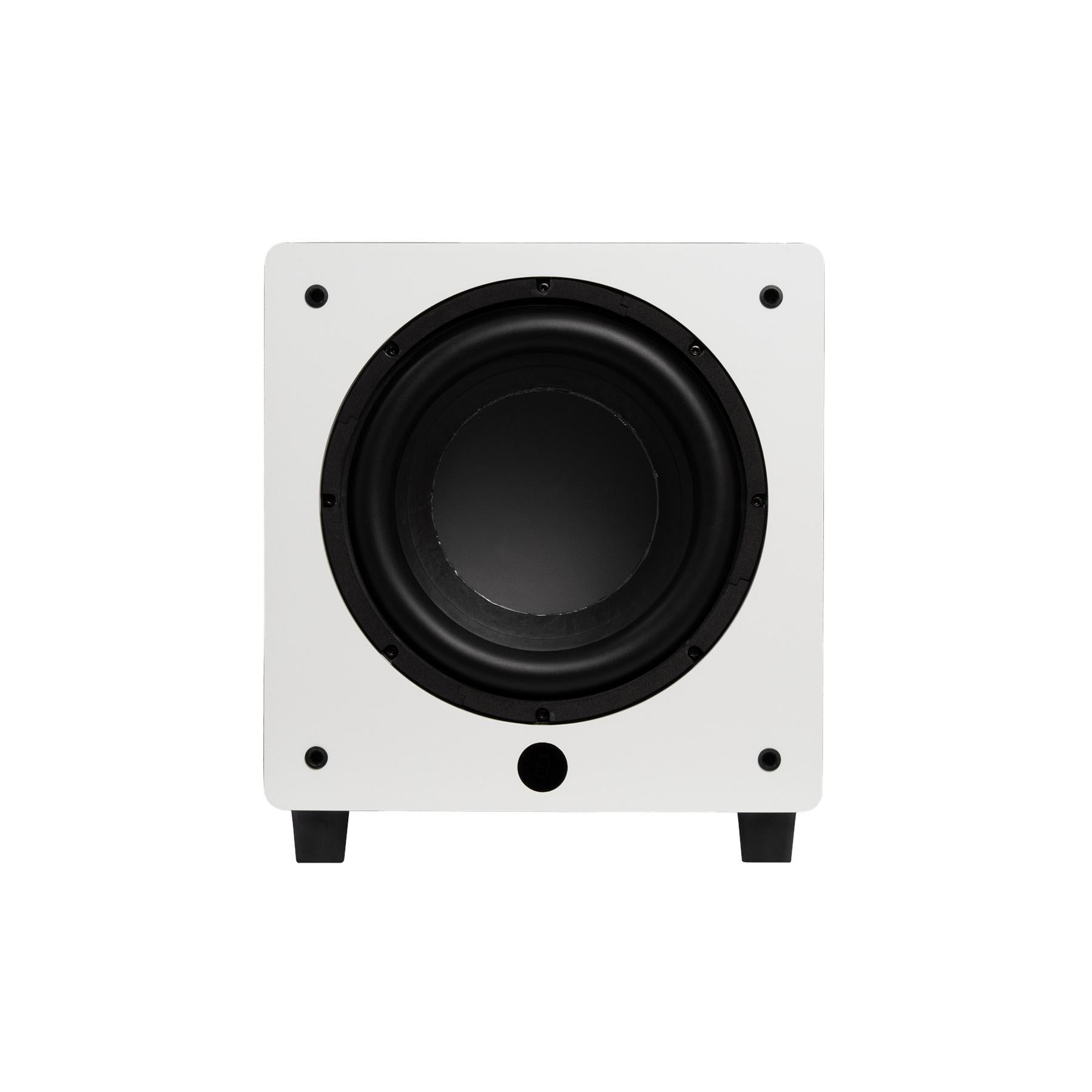

Compact 20 mm MDF cabinet in black or white
The sturdy 20 mm MDF enclosure minimizes resonance and is available in black or white finishes, making it easy to integrate visually into modern interiors.
10-inch front-firing high-excursion driver
The 10″ front-firing driver moves a large volume of air with precision, delivering tight, articulate bass that adds realism to movie soundtracks and music without sounding boomy.
500 W dynamic / 250 W RMS Class D amplifier
A highly efficient Class D amplifier provides 250 watts RMS and 500 watts dynamic power, ensuring effortless low-frequency output with plenty of headroom for action scenes and bass-heavy tracks.
Deep bass response down to 25 Hz (±10 dB)
With usable output extending to 25 Hz, the Impact X 10 reproduces low-frequency effects and musical fundamentals that small speakers simply cannot reach.
Variable low-pass crossover and 0/180° phase switch
The adjustable 50–180 Hz crossover and simple 0/180° phase control allow fine-tuning of the subwoofer’s blend with your main speakers and room acoustics.
4 DSP presets with anti-clipping protection
Four DSP modes accessible via remote control optimize the response for different content and listening levels, while anti-clipping circuitry safeguards both amp and driver at high output.
Compact 20 mm MDF cabinet in black or white
The sturdy 20 mm MDF enclosure minimizes resonance and is available in black or white finishes, making it easy to integrate visually into modern interiors.

Expert Insight

Line Circle

The Velodyne Impact X 10 delivers impressive low-frequency performance from a surprisingly compact cabinet. Bass is tight, controlled, and extends deep enough to energize small to medium-sized rooms for both movies and music. Its combination of power, DSP presets, and flexible controls makes it a strong value in the 10-inch powered subwoofer category.

Expert Img
Nate M
Brand Manager

Details

Line Circle

Velodyne Acoustics Impact X 10 10-Inch Subwoofer

The Velodyne Acoustics Impact X 10 is a compact, high-performance 10-inch active subwoofer designed for serious home theater and music systems. Its front-firing driver and bass reflex enclosure deliver deep, punchy bass from a relatively small footprint, making it ideal for living rooms, media rooms, and dedicated theaters. A powerful Class D amplifier, anti-clipping circuitry, and selectable phase provide clean, controlled low frequencies that integrate smoothly with your main speakers. With its refined black or white finish and dimmable display, the Impact X 10 looks as good as it sounds while staying easy to tailor to your room and listening preferences.

Velodyne Acoustics Impact X 10 Subwoofer Full Specifications:

  • Driver: 10″ front-firing driver
  • Amplifier Type: Class D
  • Amplifier Power (Dynamic): 500 watts
  • Amplifier Power (RMS): 250 watts
  • Frequency Response (±3 dB): 32 – 180 Hz
  • Frequency Response (±10 dB): 25 – 250 Hz
  • Low-Pass Crossover: 50 – 180 Hz (12 dB/octave)
  • Phase Control: 0 / 180 degrees
  • Cabinet Design: 20 mm MDF
  • Magnet Structure: Dual ferrite magnet motor
  • Woofer Construction: 10″ high-excursion double vented basket driver with reinforced paper membrane
  • Voice Coil: Four-layer 2″ / 52 mm voice coil
  • DSP Presets: 4 DSP modes selectable via remote control
  • Protection: Anti-clipping circuitry

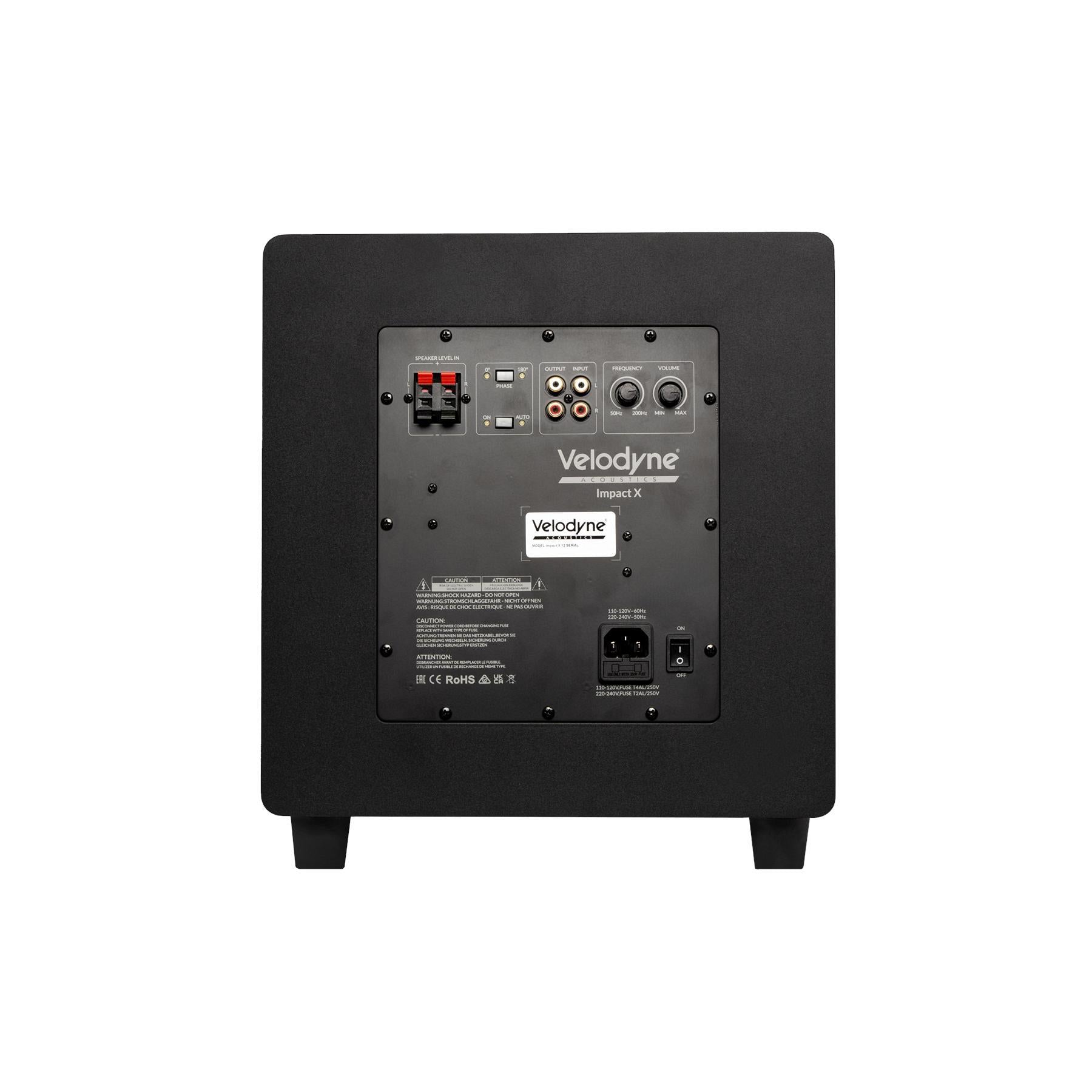

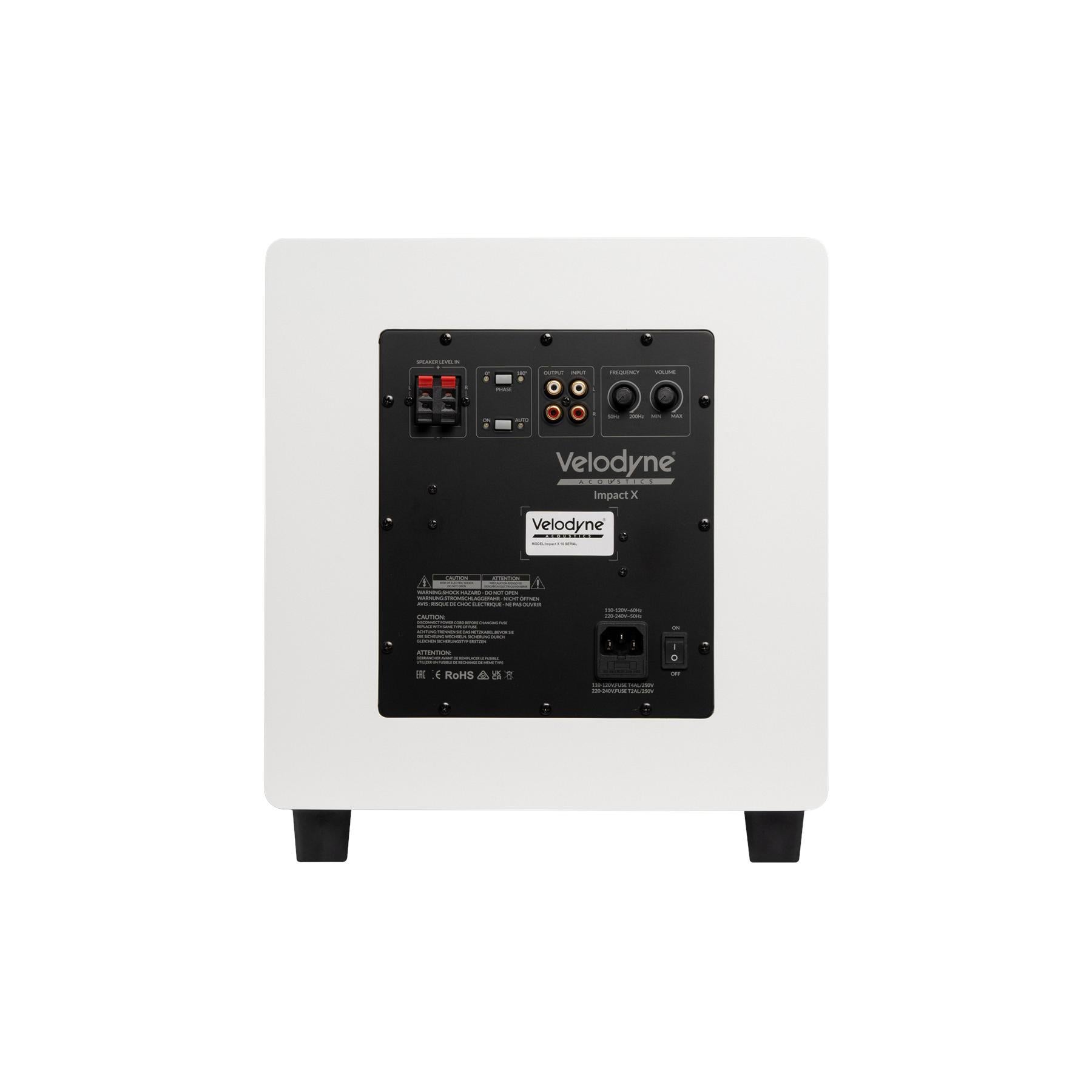

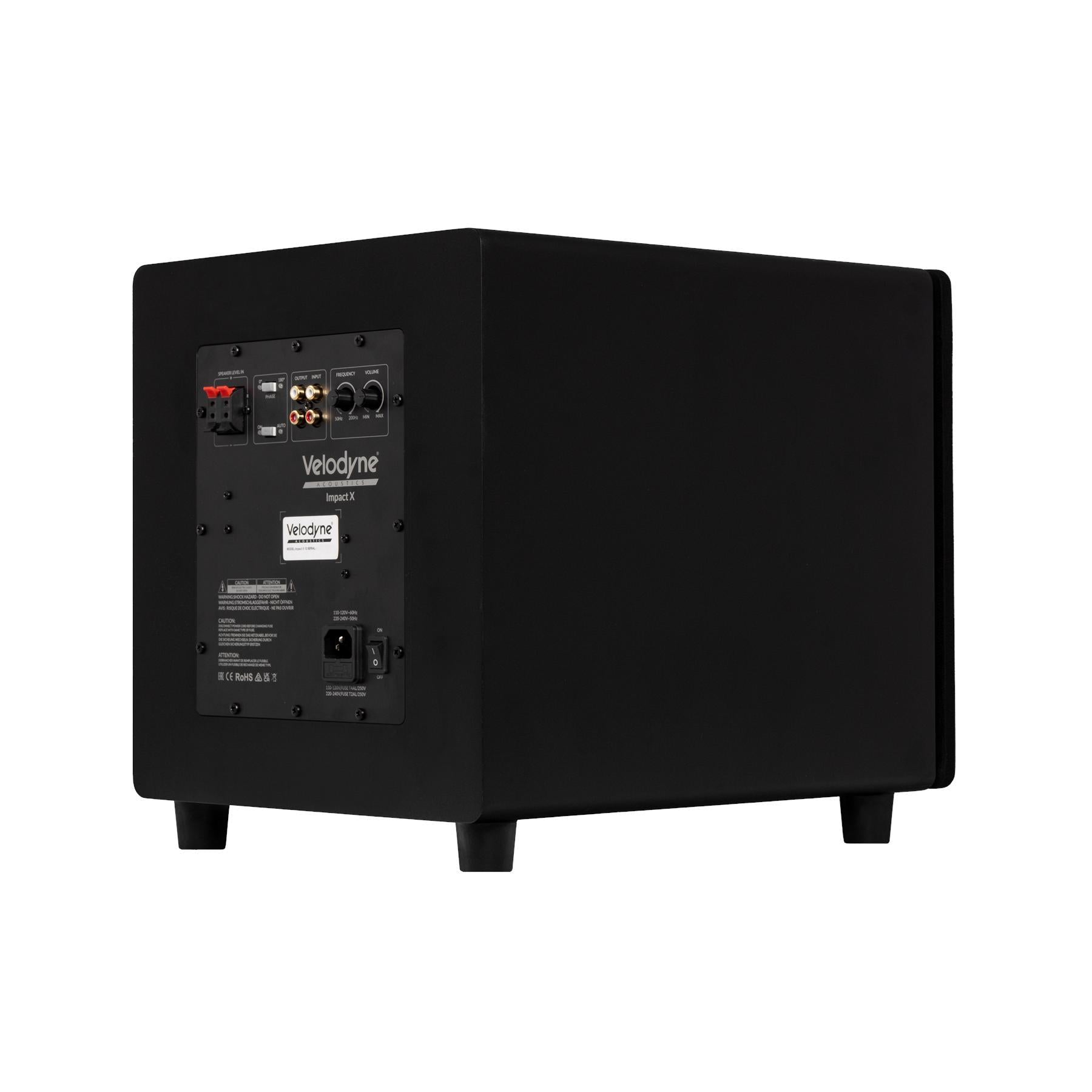

  • Inputs: Gold-plated Stereo/LFE RCA, nickel-plated high-level in
  • Outputs: Gold-plated Stereo/LFE RCA
  • Power Selector: Off / Auto / On
  • Display: Dimmable front display
  • Enclosure Type: Bass reflex
  • Finishes: Black / White
  • Dimensions (W × H × D): 32 cm × 36 cm × 40 cm (incl. feet and connectors)
  • Weight (Approx.): 15 kg
  • Shipping Weight (Approx.): 17 kg

Velodyne Acoustics Impact X 10 Subwoofer Q&A:

What size room is ideal for the Impact X 10?
The Impact X 10 is best suited for small to medium-sized rooms such as living rooms, media rooms, or bedrooms.
Can the Impact X 10 be used for both music and home theater?
Yes, it is designed to perform equally well with movie soundtracks and two-channel music playback.
How do the DSP presets work on the Impact X 10?
Four DSP presets, selectable via remote control, tailor the subwoofer’s response for different listening scenarios.
What connection options are available on the Impact X 10?
It provides gold-plated Stereo/LFE RCA inputs and outputs plus nickel-plated high-level inputs.
Does the Impact X 10 turn on and off automatically?
Yes, the power selector’s Auto mode allows the subwoofer to switch on when an audio signal is detected.
Is the Impact X 10 easy to integrate with existing speakers?
Variable crossover, phase switch, and DSP presets make integration with existing speakers straightforward.
What finishes are available for the Impact X 10?
The subwoofer is available in black or white finishes.
How heavy is the Impact X 10?
It weighs approximately 15 kg, with a shipping weight of about 17 kg.

Velodyne Acoustics Impact X 10 Subwoofer Downloads:

Velodyne Acoustics Impact X Subwoofer Manual
