Velodyne Acoustics VI-Q 10 10-inch Subwoofer

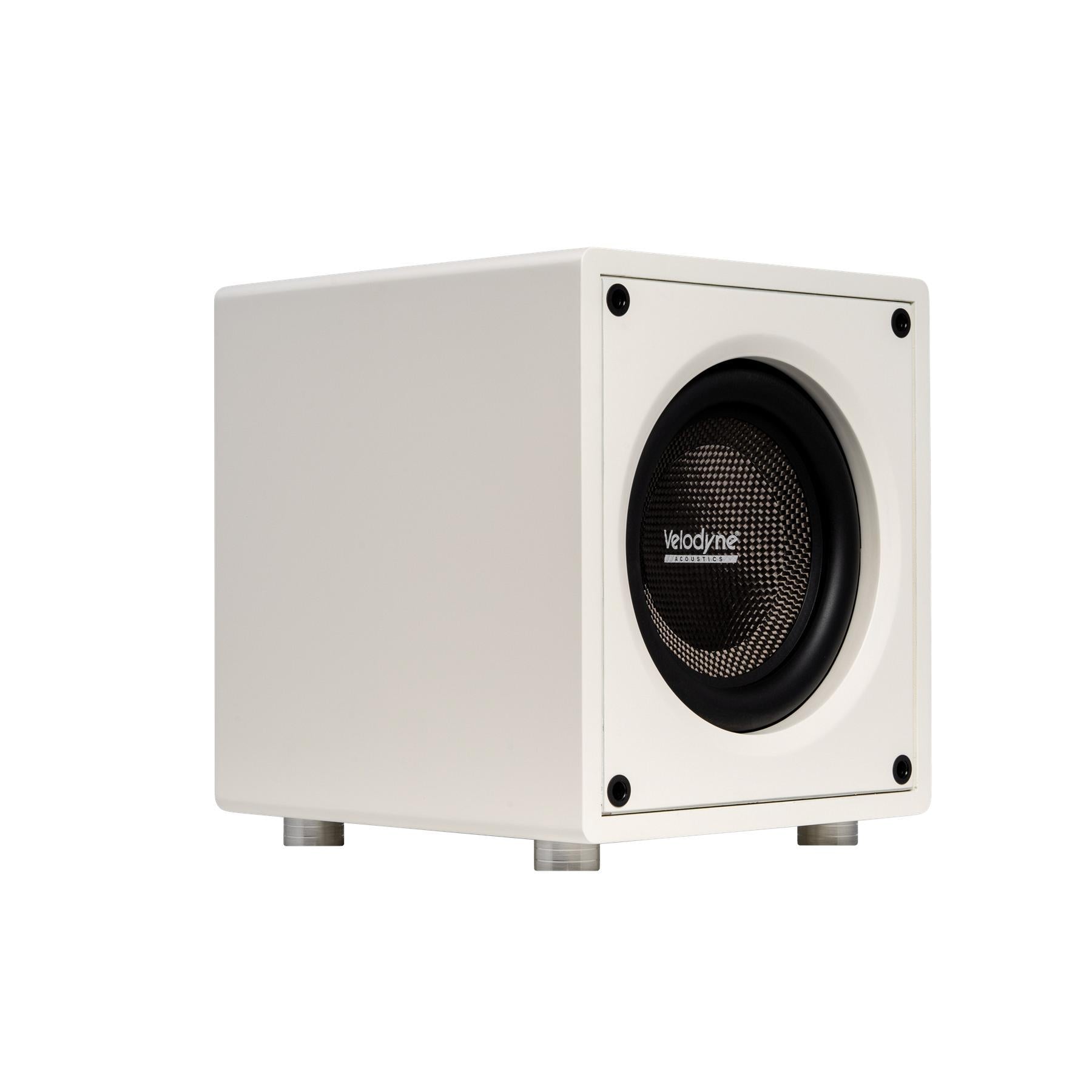

The Velodyne Acoustics VI-Q 10 is a compact 10-inch sealed subwoofer designed to bring precise, room-filling bass to high-end stereo and home cinema systems. Its closed-cabinet design, high-excursion carbon fiber driver, and powerful Class D amplification deliver fast, controlled low frequencies with impressively low distortion. With app-based DSP control via the iWoofer™ app, you get room correction, a 25-band parametric EQ, and presets to fine-tune bass performance to your space and taste. Gold-plated RCA, professional XLR, and high-level connections ensure effortless integration into premium AV setups, while the robust 21-layer front baffle and matte finishes give the VI-Q 10 a modern, understated aesthetic that fits any décor.
Velodyne Acoustics VI-Q 10 Subwoofer Full Specifications:
- Driver: 10″ front-firing driver
- Amplifier: Class D, 850 watts dynamic / 450 watts RMS
- Overall frequency response (±3 dB): 28 – 200 Hz
- Overall frequency response (±10 dB): 25 – 280 Hz
- Low-pass crossover: 50 Hz to 180 Hz (12 dB/octave)
- Phase: 0 / 180 degrees
- Cabinet design: 22 mm HDF with 50 mm front baffle
- Magnet structure: Dual ferrite magnet motor

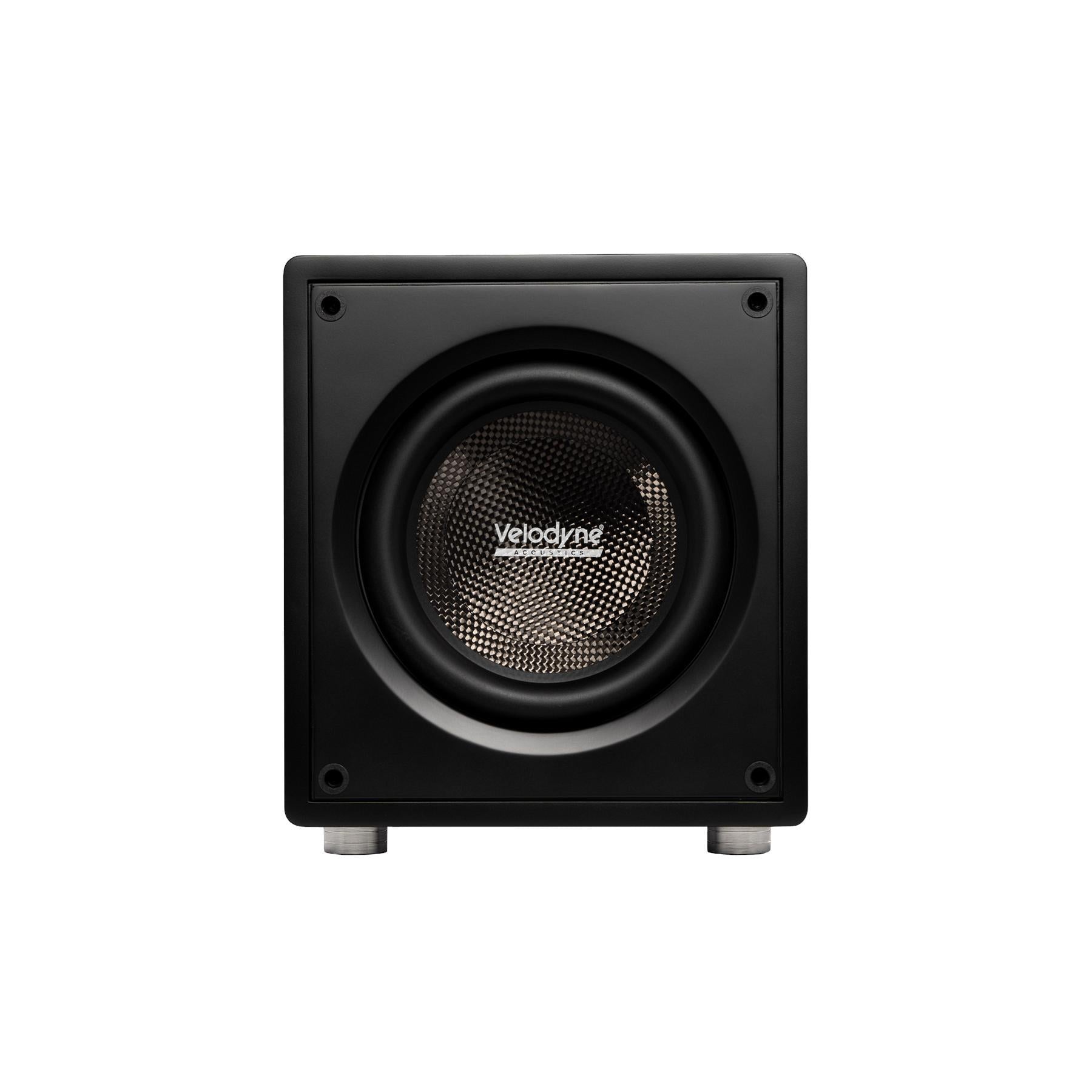

- Woofer: 10″ high-excursion triple-vented basket driver with carbon fiber membrane and convex cone
- Voice coil: Four-layer 2.5″ / 63 mm voice coil

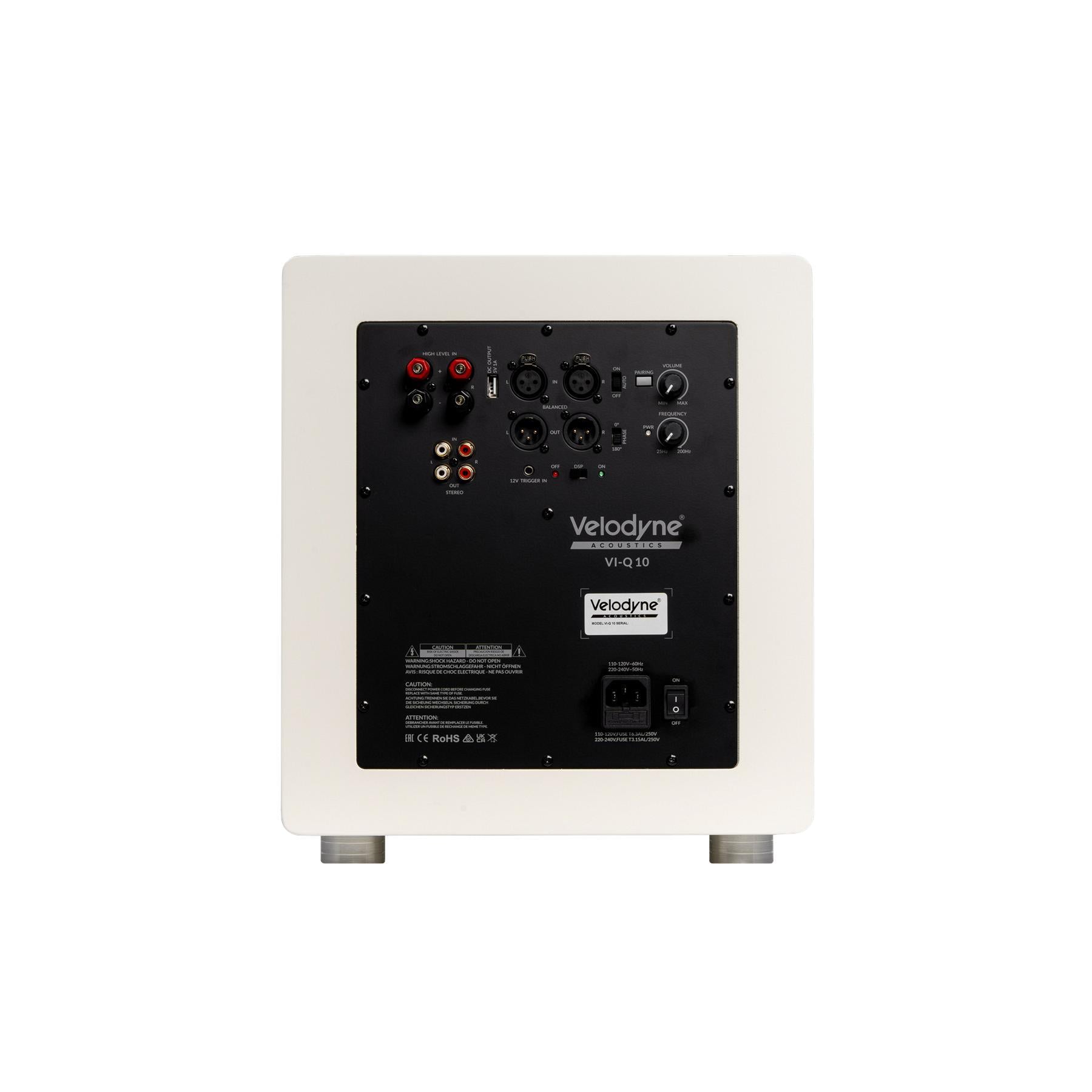

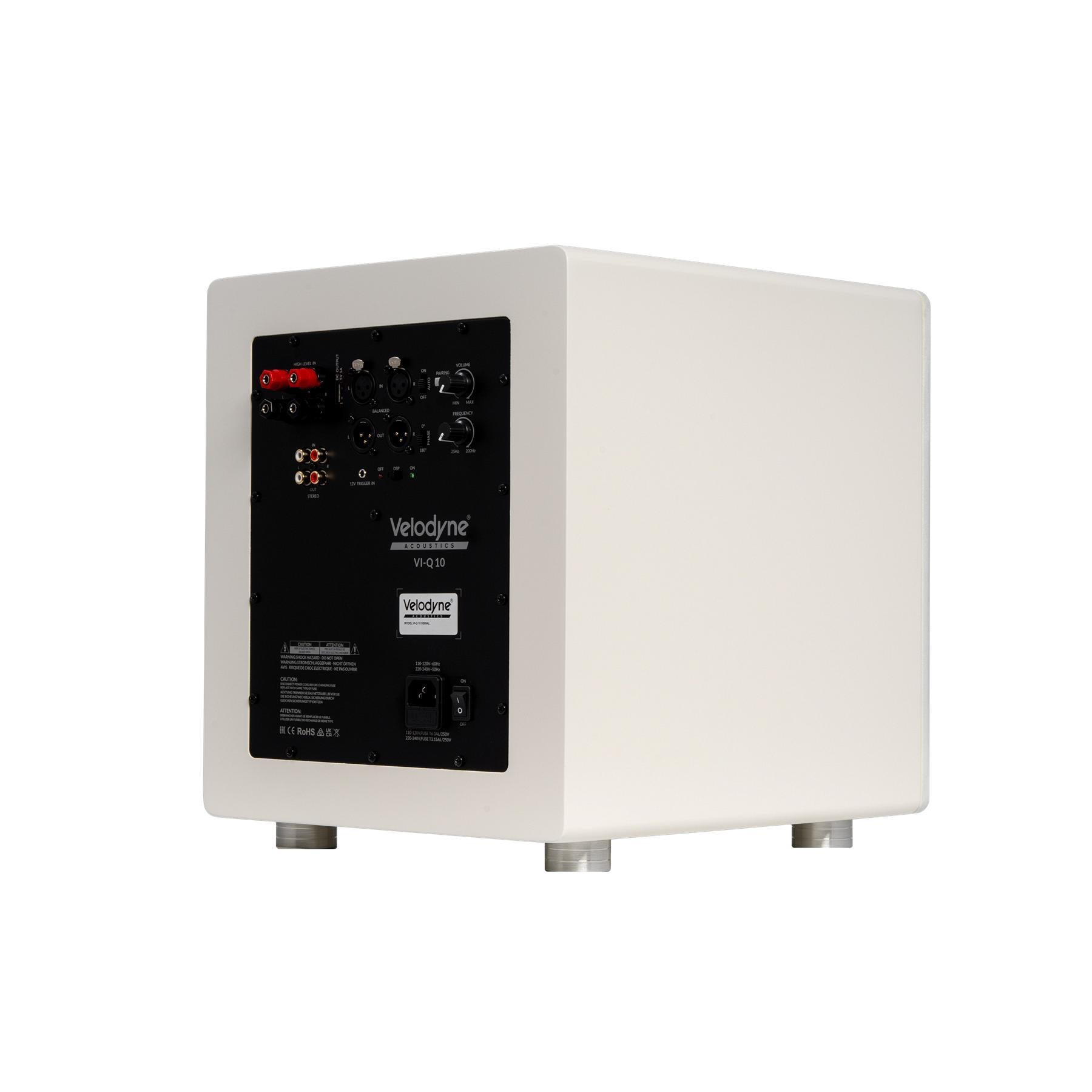

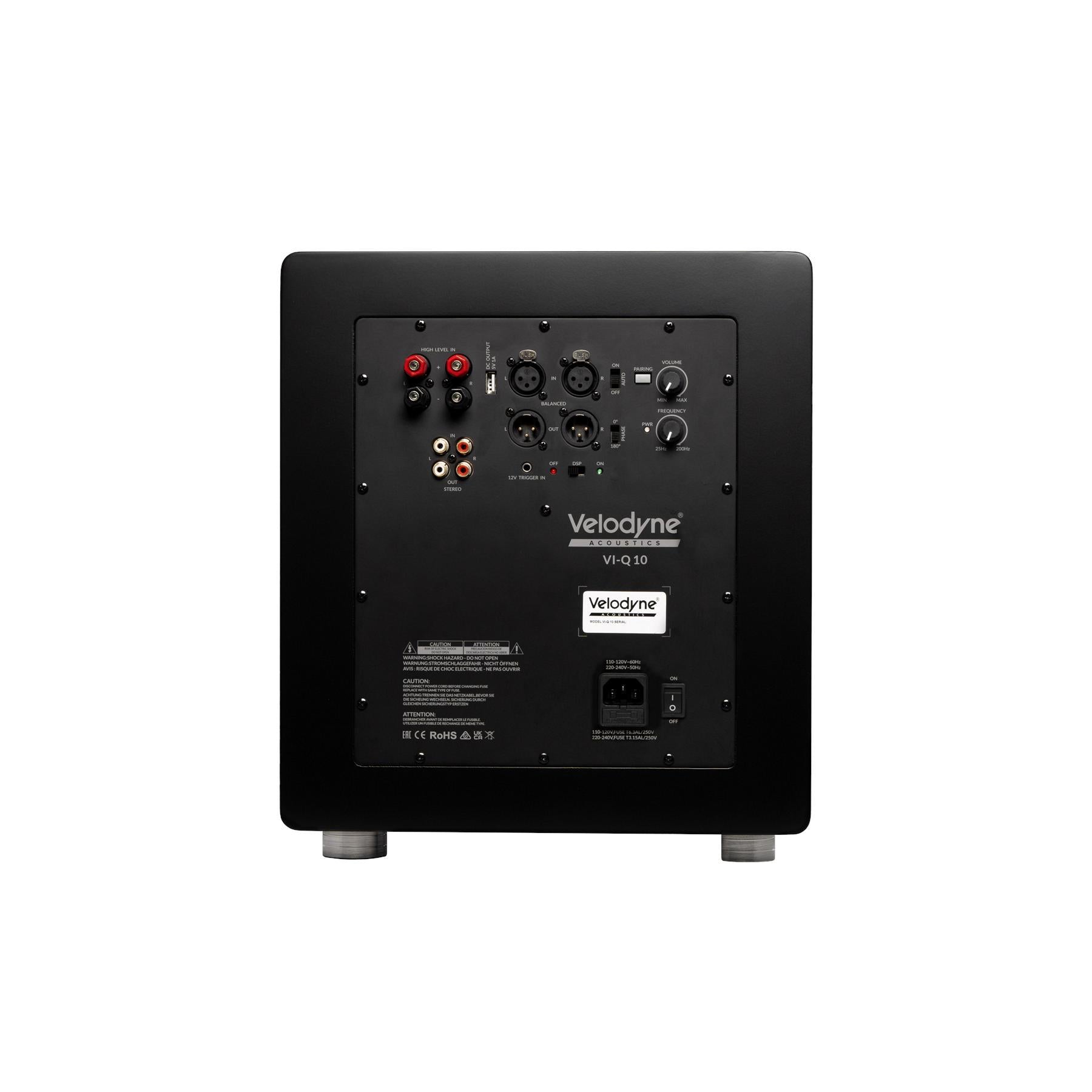

- Input connections: Gold-plated Stereo/LFE RCA, nickel-plated XLR, and high-level input
- Output connections: Gold-plated Stereo/LFE RCA, nickel-plated XLR
- Power selector: Off / Auto / On

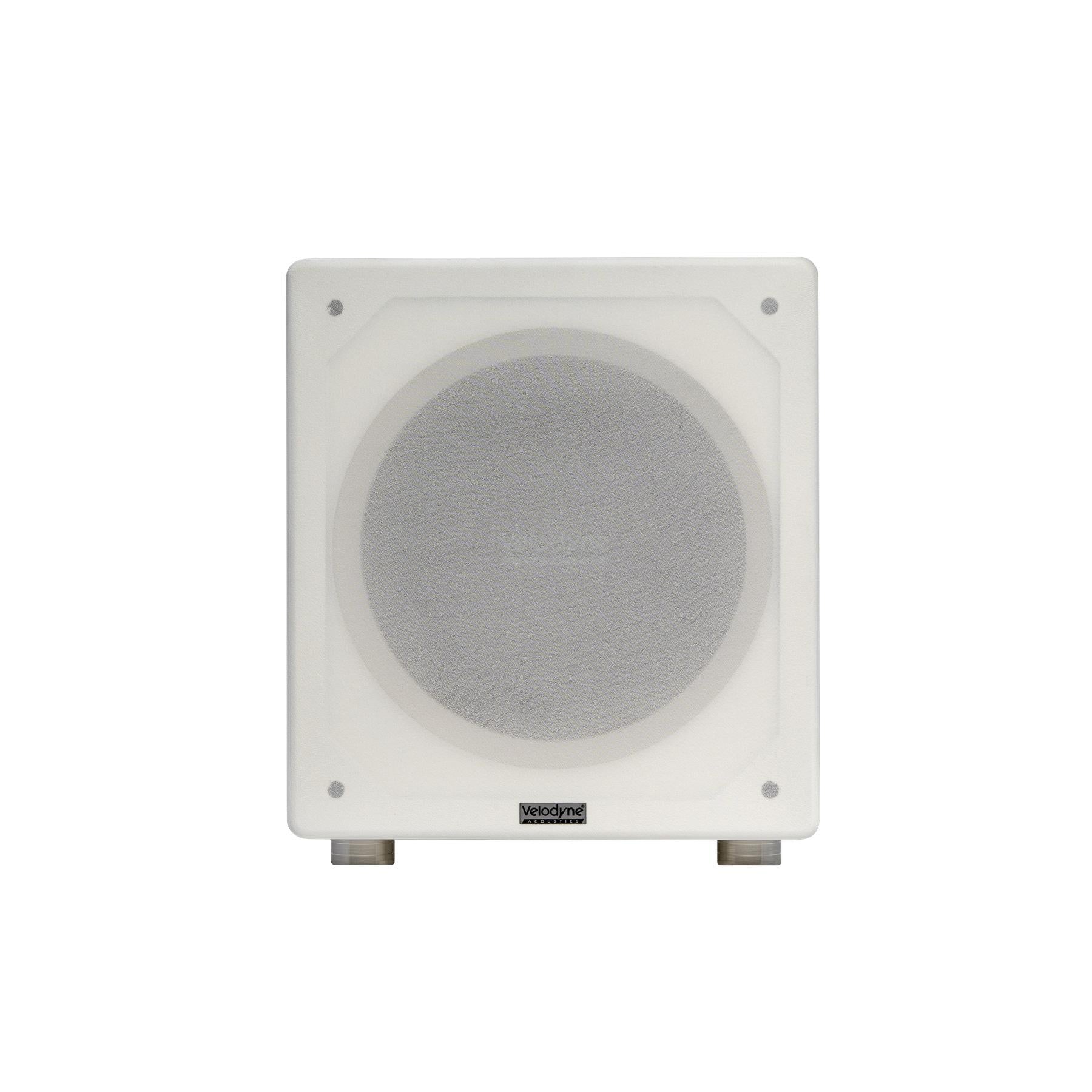

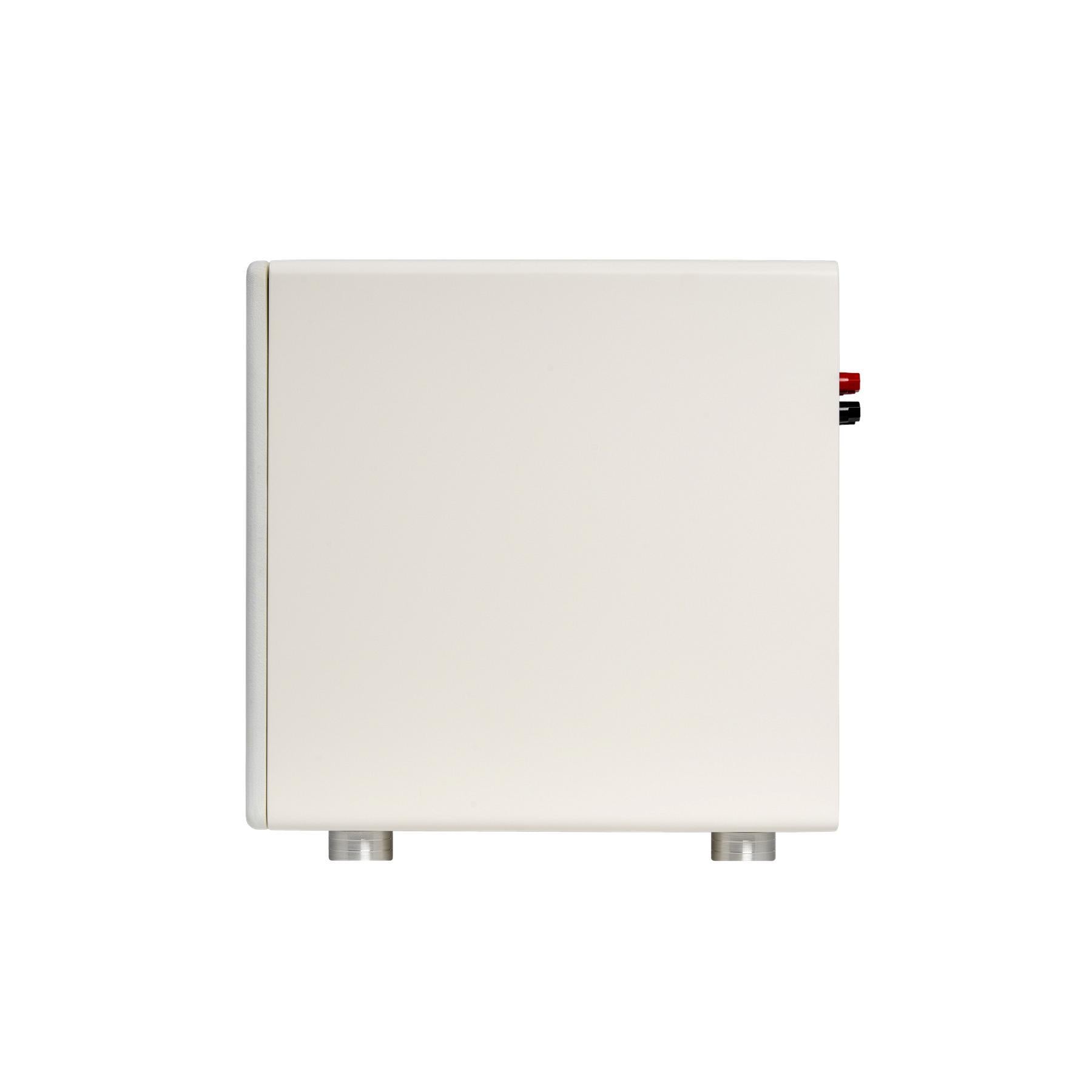

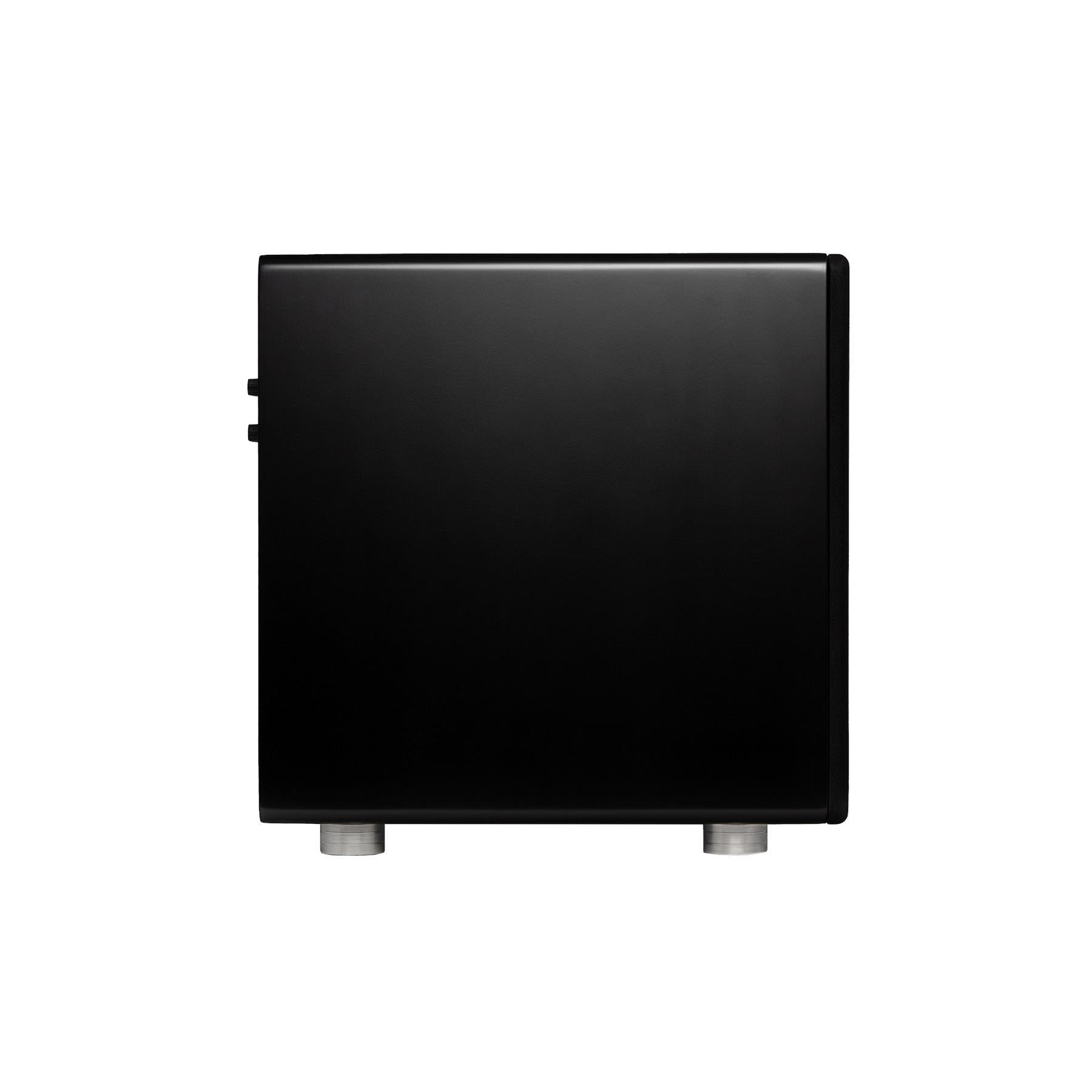

- Finishes: Flat matte black / flat matte white
- Dimensions (W × H × D, incl. feet and connectors): 38 cm × 40 cm × 32 cm
- Weight (approx.): 21 kg
- Shipping weight (approx.): 24 kg
Velodyne Acoustics VI-Q 10 Subwoofer Q&A:
- Is the VI-Q 10 suitable for both music and home cinema?
- Yes, the sealed 10-inch design, extended frequency response, and Class D amplifier make it ideal for both music and movie soundtracks in medium-sized rooms.
- How is the VI-Q 10 calibrated to my room?
- The VI-Q 10 is calibrated via the iWoofer™ app, which offers room adjustment, a 25-band parametric equalizer, and presets for tailored bass response.
- What connection options are available on the VI-Q 10?
- It offers gold-plated Stereo/LFE RCA and nickel-plated XLR inputs and outputs, plus high-level speaker inputs for flexible integration.
- Does the VI-Q 10 have an auto power function?
- Yes, the power selector provides Off, Auto, and On modes so the subwoofer can turn on automatically when it senses a signal.
- What finishes does the VI-Q 10 come in?

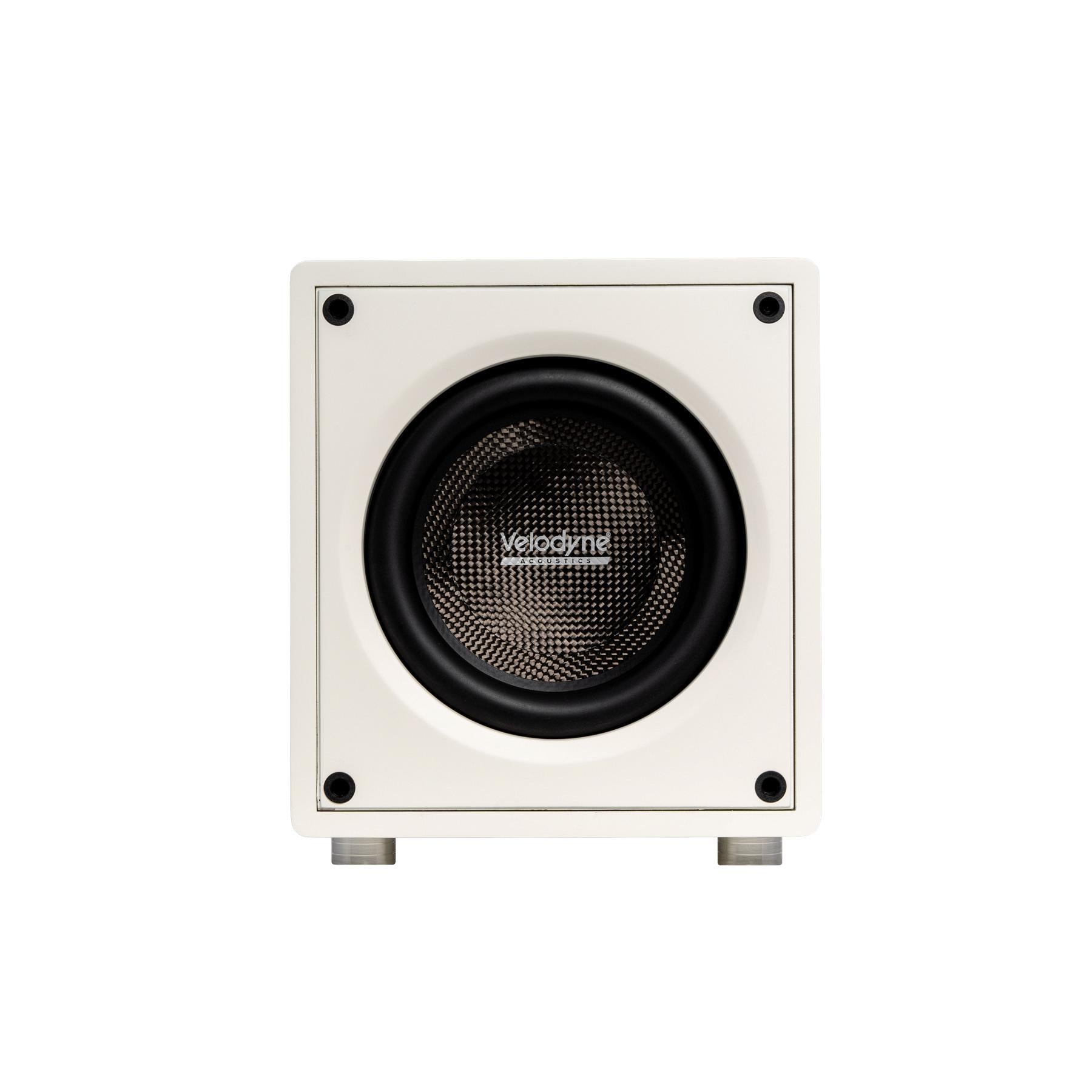

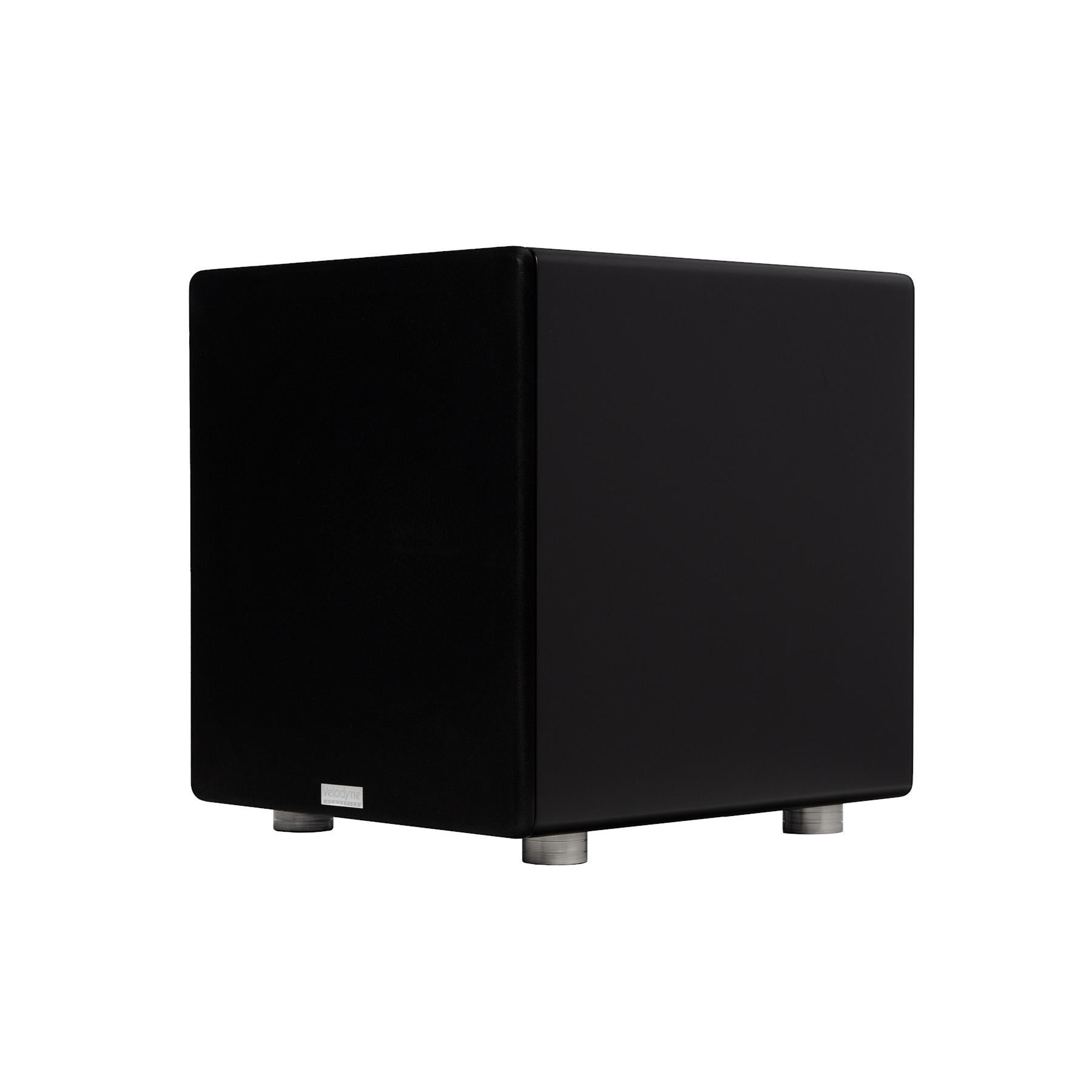

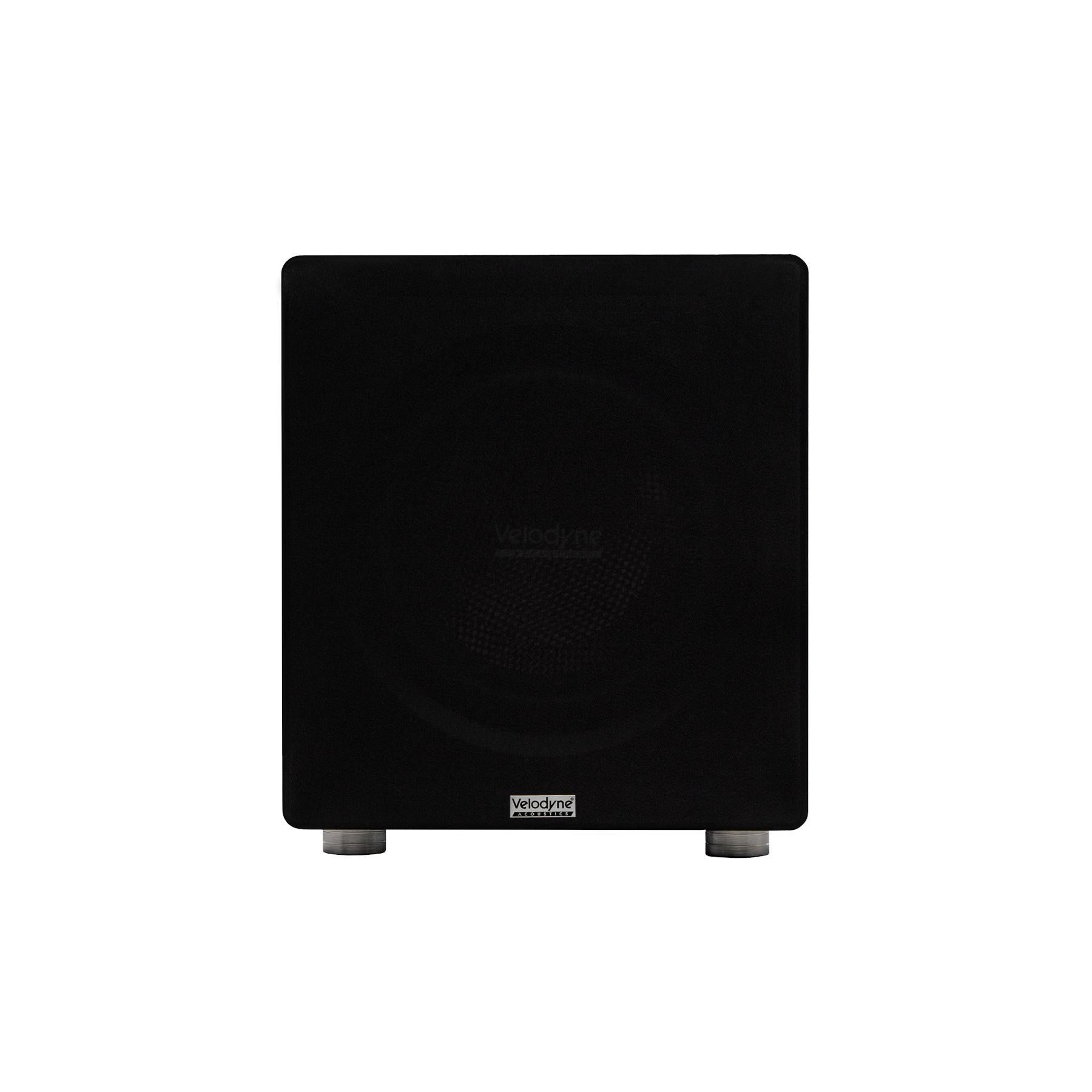

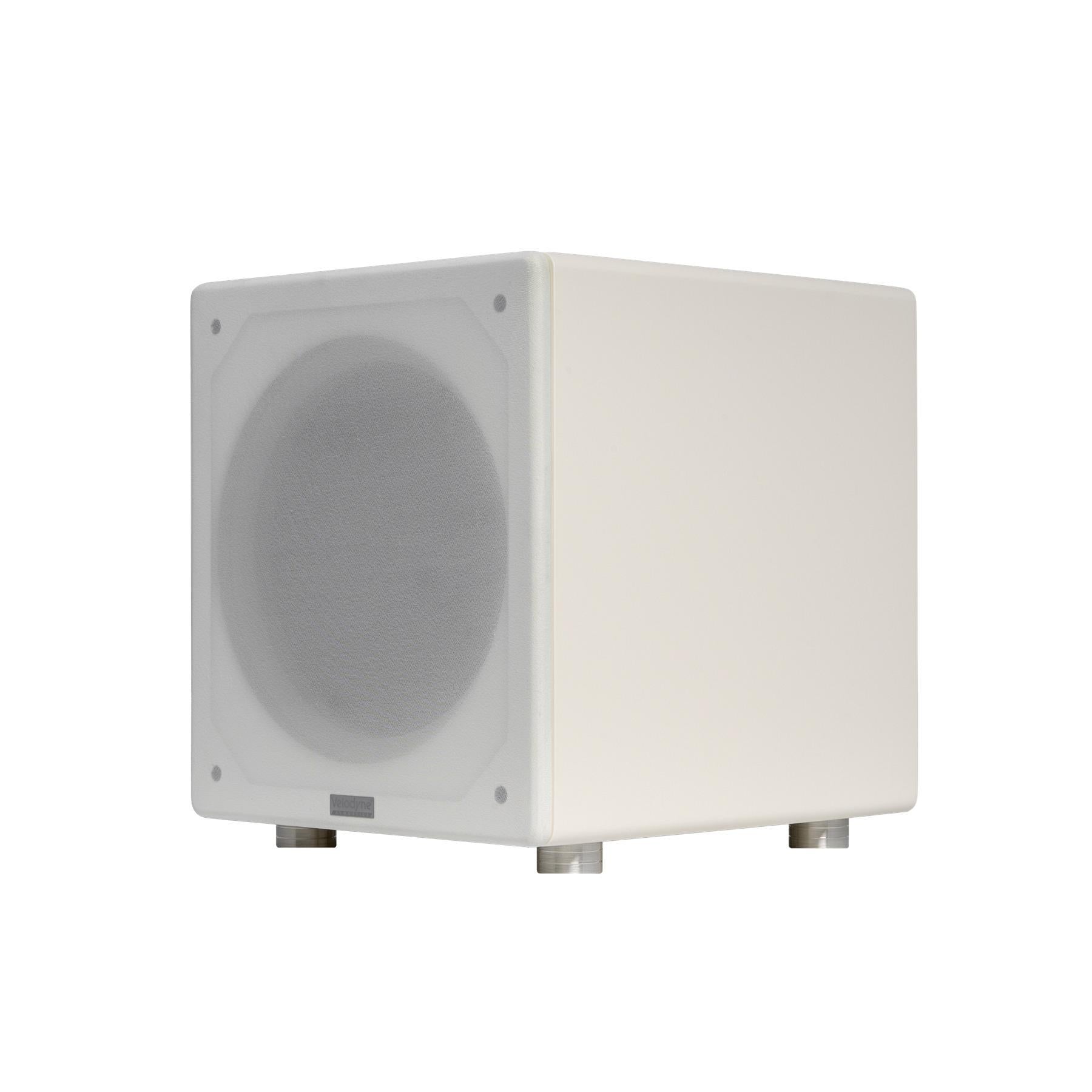

- The VI-Q 10 is available in flat matte black or flat matte white finishes.
- How large is the VI-Q 10 and will it fit in smaller spaces?
- Its 38 × 40 × 32 cm dimensions (W × H × D) keep the footprint compact for easy placement in smaller rooms.
Velodyne Acoustics VI-Q 10 Subwoofer Downloads:
Velodyne Acoustics VI-Q 10 Subwoofer User Manual
