Yamaha HA-L7A Flagship Headphone Amplifier with Built-in DAC

The Yamaha HA-L7A sets a new standard in headphone amplification, blending cutting-edge digital-to-analog conversion with Yamaha’s patented Floating and Balanced Power Amplifier technology. Designed for audiophiles seeking the purest expression of sound, it incorporates dual toroidal transformers, high-precision ESS ES9038PRO DAC, and fully balanced discrete circuitry. With six immersive Sound Field modes, Pure Direct processing, and premium construction, the HA-L7A offers both uncompromising performance and refined design. Handcrafted with precision and engineered for true musical immersion, it elevates headphone listening into an extraordinary high-fidelity experience.

Specifications

• Amplifier Technology: Yamaha patented Floating and Balanced Power Amplifier
• DAC: ESS ES9038PRO 32-bit, 8-channel (quad conversion per channel)
• Sound Modes: 6 immersive Sound Field modes + Pure Direct mode
• Transformers: Dual bifilar-wound toroidal transformers (separate front and second stage)
• Circuit Design: Fully balanced discrete configuration, low-noise multi-board isolation
• Digital Support: PCM up to 384kHz/32-bit, native DSD up to 11.2MHz

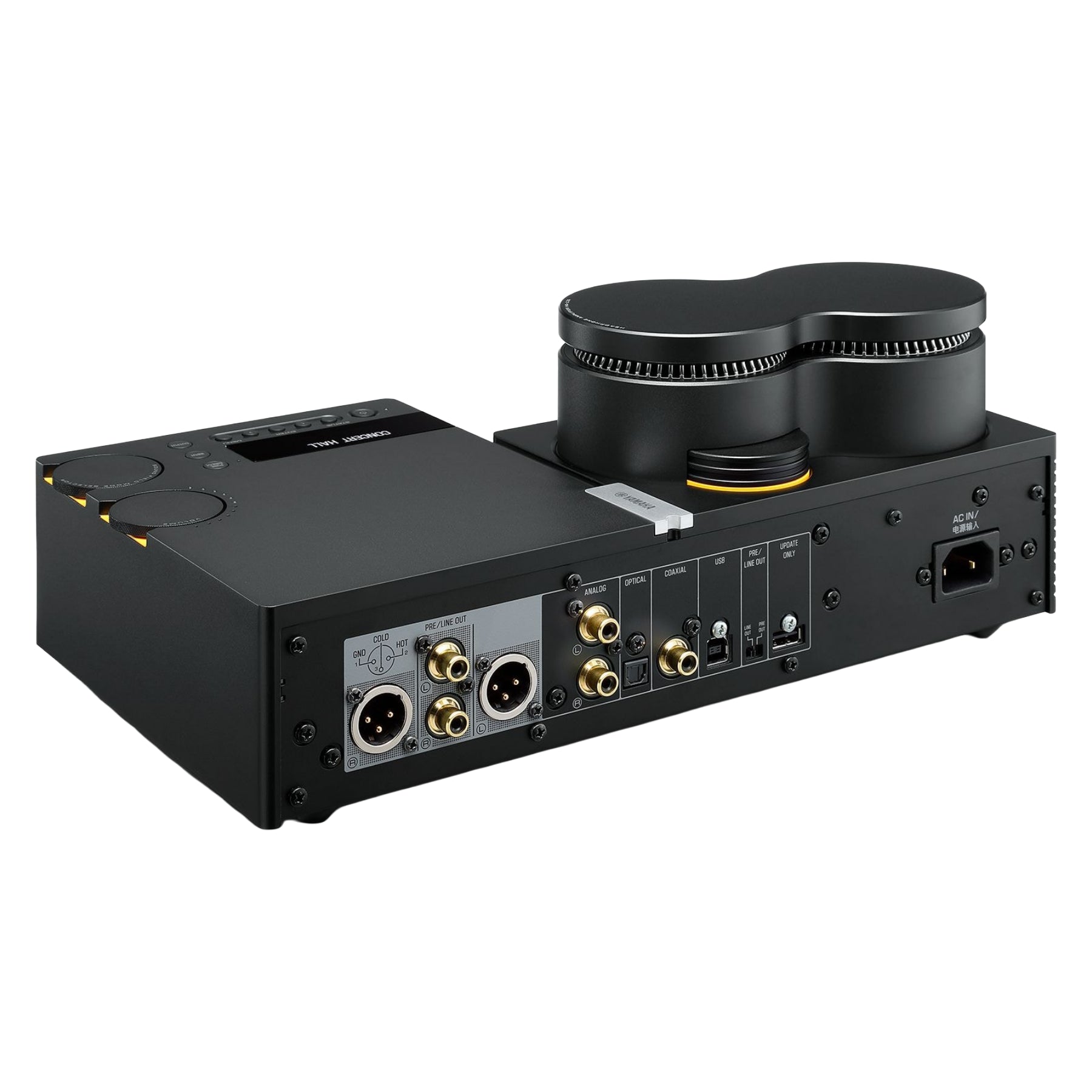

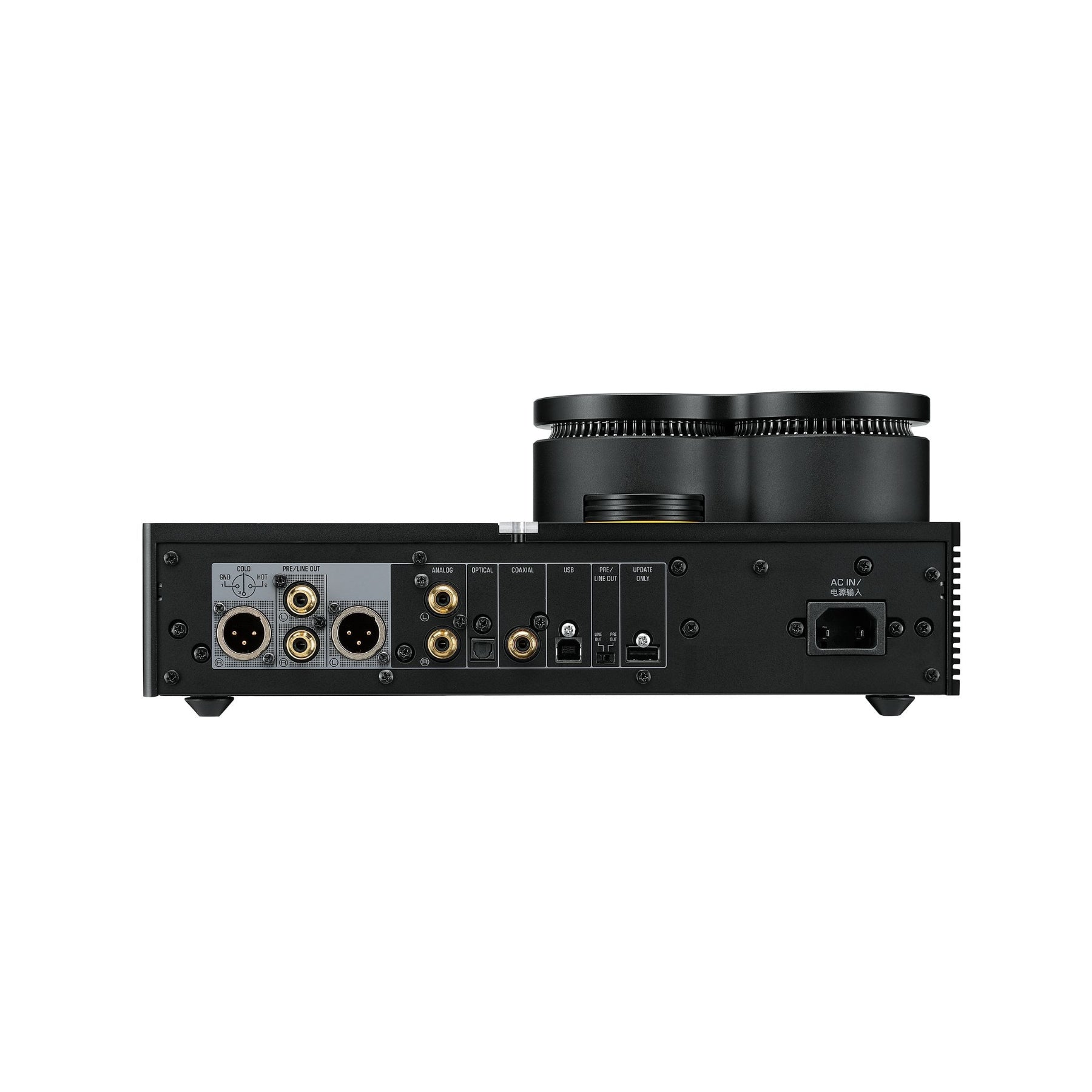

• Connectivity: USB-B, coaxial, optical inputs; balanced/unbalanced outputs; XLR and RCA pre-outs

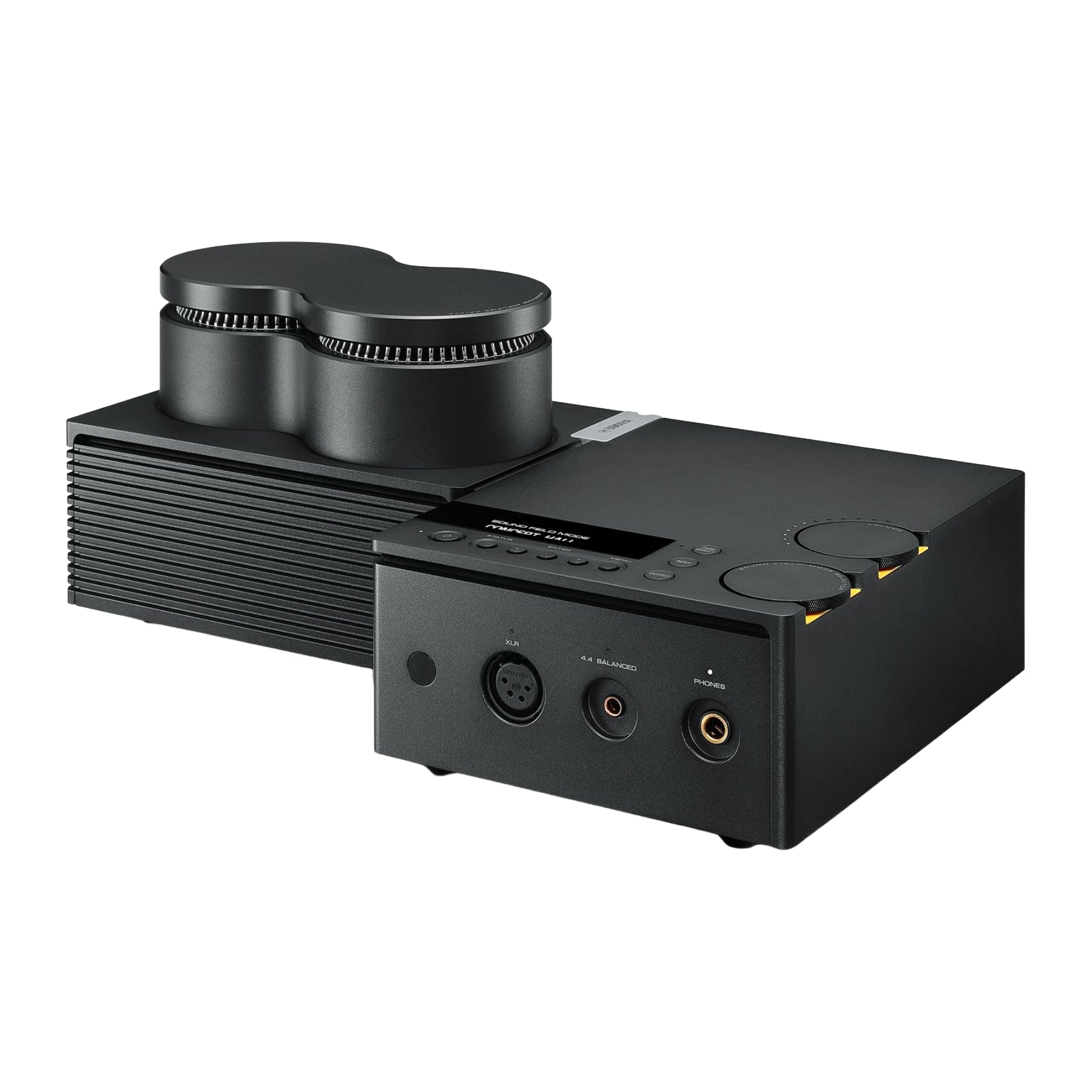

• Headphone Outputs: 2x balanced (XLR + 4.4mm), 1x unbalanced (6.3mm)
• Chassis Design: Heavy-duty extruded aluminum with vibration-resistant steel reinforcement
• Feet: 5 solid metal conical damped supports

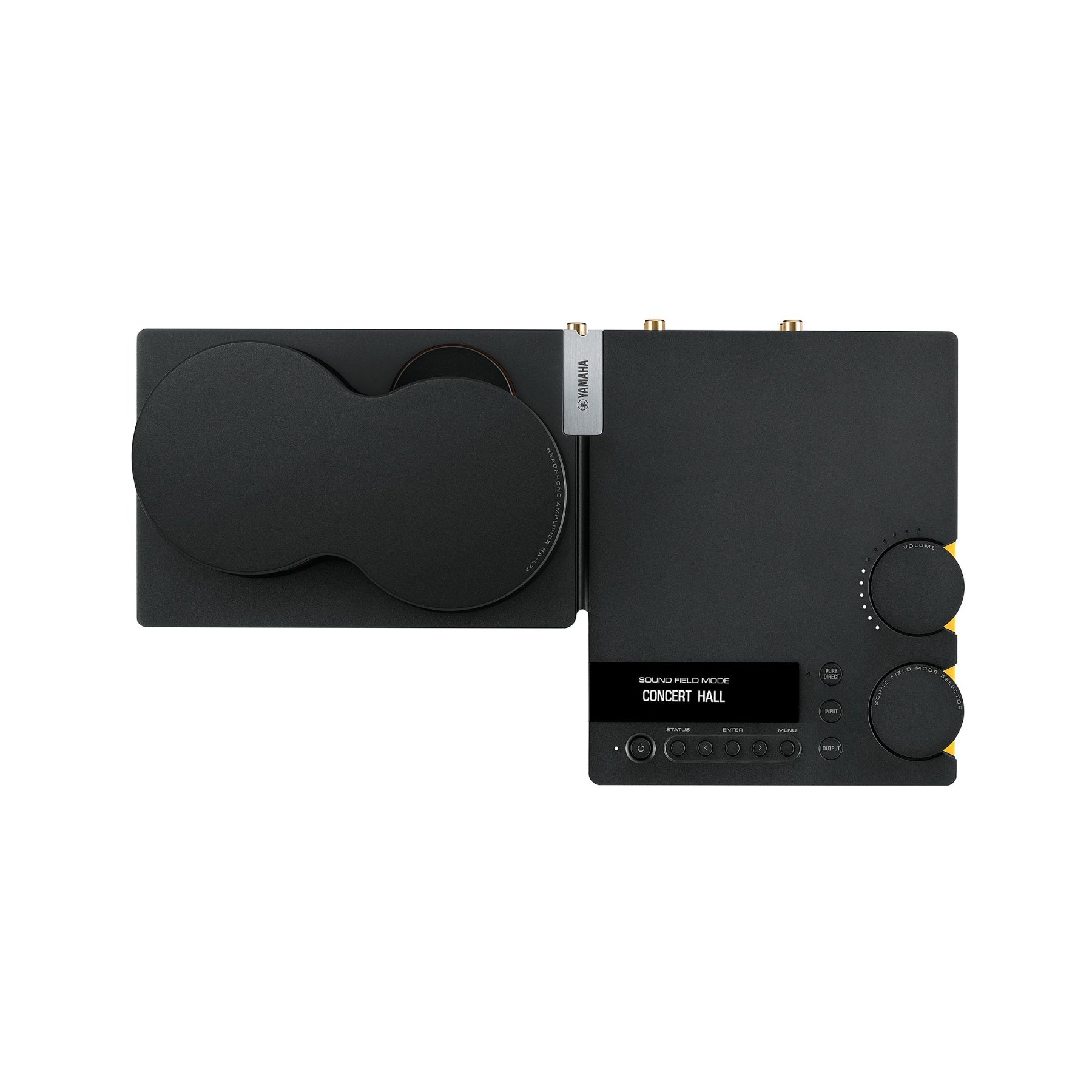

• Display: Brilliant OLED top-panel display with automatic dimming
• Weight: 5.3 kg (11.7 lbs)

Expanded Key Features List

• Patented Floating and Balanced Power Amplifier: Four push-pull circuits float independently from ground, ensuring natural and fatigue-free sound across balanced and unbalanced outputs.
• ESS ES9038PRO DAC: Industry-leading 32-bit digital-to-analog converter with quad-channel processing delivers exceptional resolution, dynamic range, and low distortion.
• Dual Toroidal Transformers: Separate bifilar-wound transformers for front and power stages provide remarkable spaciousness and precise low-frequency control.
• Fully Balanced Discrete Circuitry: Preserves signal purity and minimizes noise, with balanced conversion even for unbalanced inputs.
• Six Sound Field Modes + Pure Direct: Choose immersive DSP-enhanced modes for music and video, or bypass all processing for the purest audio reproduction.
• Premium Construction: Heavy-duty aluminum chassis, vibration-suppressing steel reinforcement, and five metal feet ensure sonic stability and elegant durability.

Q&A Section

Q: What makes the HA-L7A unique compared to other headphone amplifiers?
A: It combines Yamaha’s patented Floating and Balanced Power Amplifier technology with an ESS ES9038PRO DAC, offering both technical innovation and reference-grade sound quality.

Q: Does the HA-L7A support high-resolution audio?
A: Yes, it supports PCM up to 384kHz/32-bit and native DSD up to 11.2MHz for ultra-high-resolution playback.

Q: Can I connect both balanced and unbalanced headphones?
A: Absolutely. The HA-L7A has two balanced outputs (XLR and 4.4mm) and one unbalanced 6.3mm output, with minimized sound quality differences between them.

Q: What are the Sound Field modes?
A: There are six DSP-enhanced modes designed for music, movies, and different content types, plus a Pure Direct mode for the most unaltered sound.

Q: How does the chassis design improve sound quality?
A: The aluminum and steel construction, five solid metal feet, and reinforced frame minimize vibrations and resonance, ensuring a stable and clean sound.

Q: Does the HA-L7A have DAC functionality?
A: Yes, it can function as a USB DAC for computers and digital audio players, with asynchronous transfer to reduce jitter.

Q: What display features are included?
A: The OLED top-panel display shows input source, sampling frequency, volume, and Sound Field mode in a clear, easy-to-read format.

Q: Can the HA-L7A be used as a preamplifier?
A: Yes, it includes XLR and RCA pre-out/line-out terminals, allowing it to serve as both a high-end DAC and a preamp in a larger audio system.
