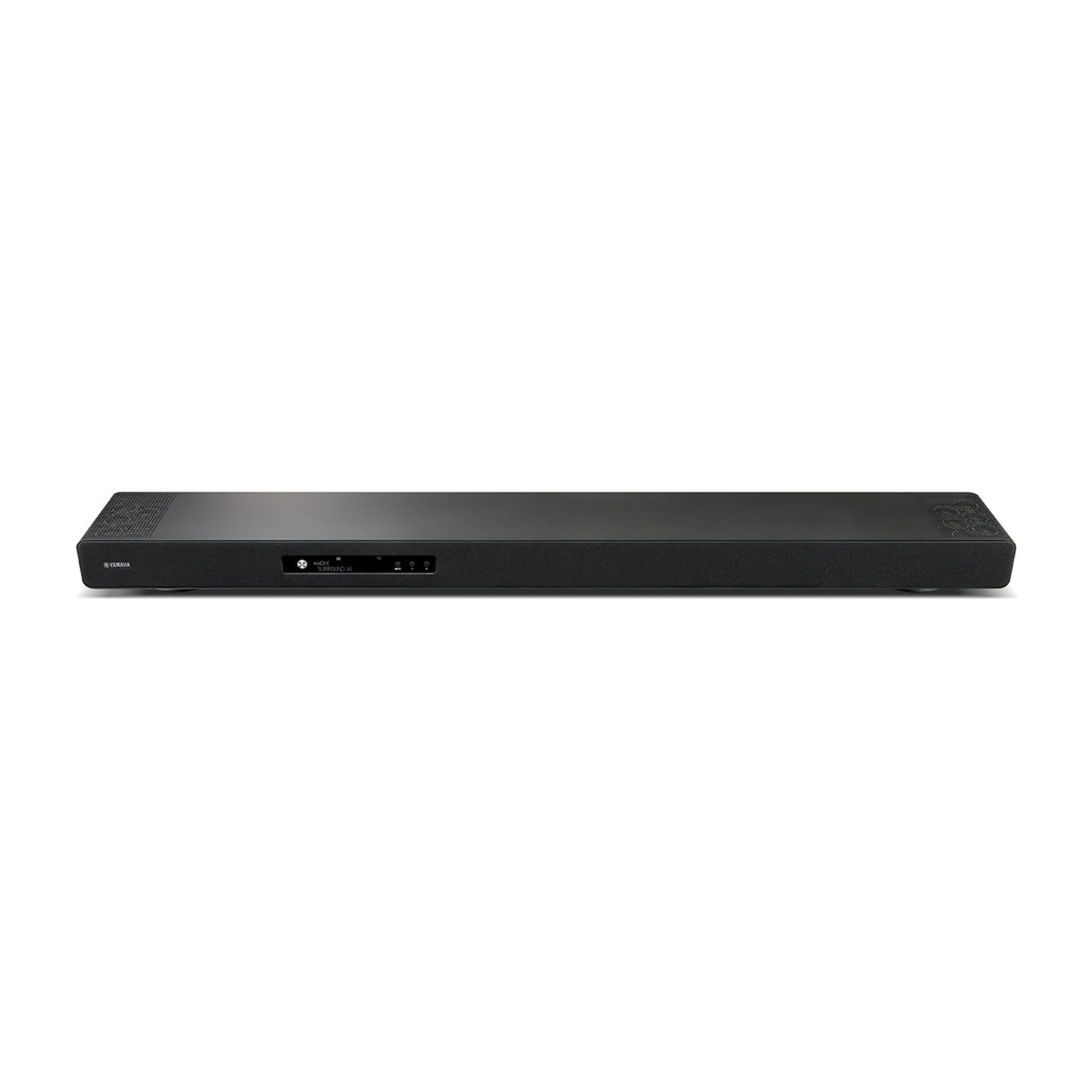

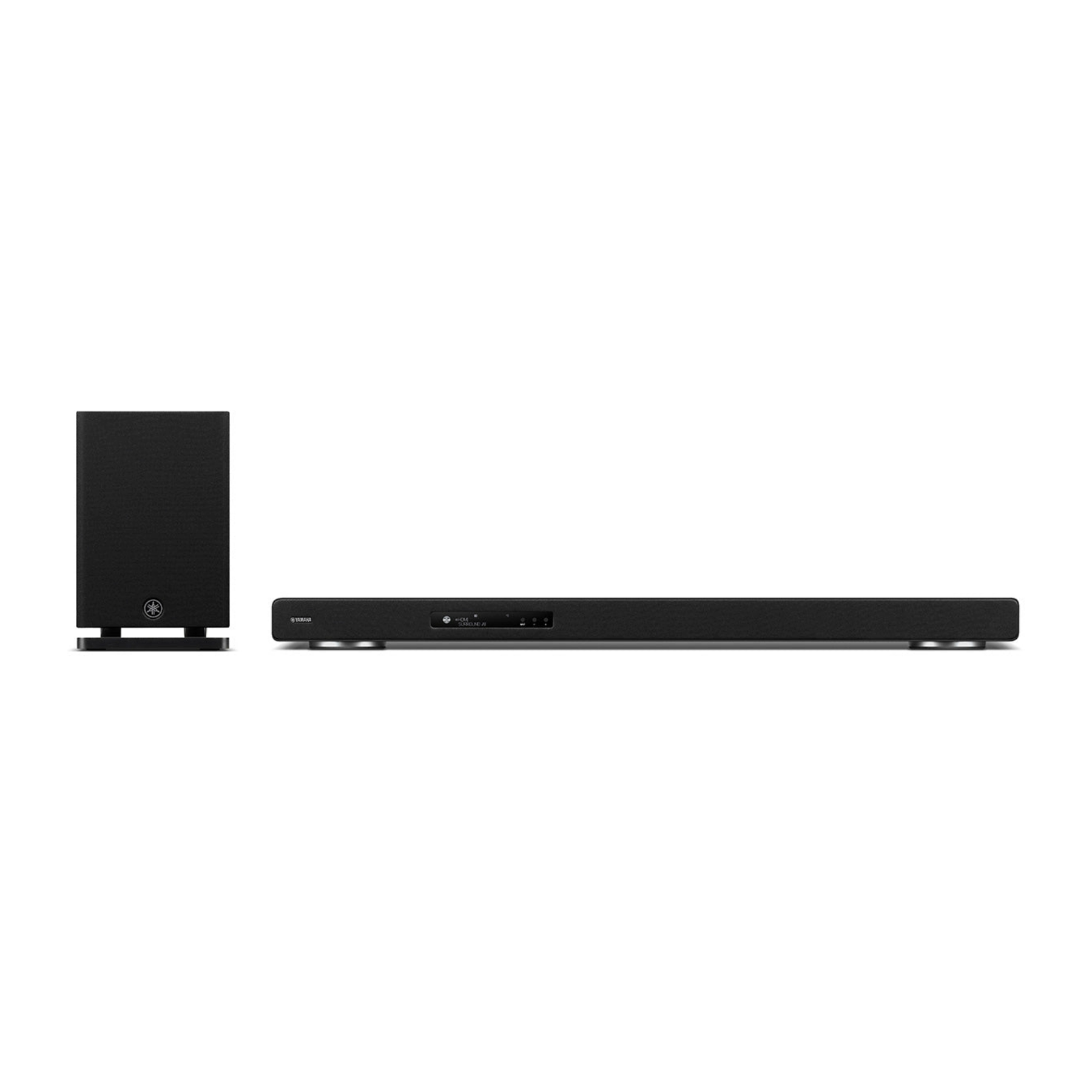

Yamaha True X Bar 90A Dolby Atmos Soundbar System
Redefine your home theater experience with the Yamaha True X Bar 90A, a flagship Dolby Atmos soundbar engineered for uncompromising audio performance. With Yamaha’s proprietary Sound Beam Technology and Surround:AI spatial sound optimization, this system delivers cinematic immersion in a sleek and minimalist design. Its custom eye-shaped drivers, Symmetrical Flare Port subwoofer, and AURO-3D support combine to create breathtaking clarity, power, and multidimensional sound. Fully compatible with MusicCast and today’s top streaming services, the True X Bar 90A is built for effortless control, seamless connectivity, and expandable surround sound with portable wireless speakers (sold separately). From high-octane movies to delicate musical details, every moment is elevated to the extraordinary.
Specifications
-
Model: Yamaha True X Bar 90A
-
Output Power: 100W x2 (Front), 100W (Center), 2.5W x12 (Height)
-
Drivers: Custom eye-shaped full-range and tweeter drivers; 12 height speakers
-
Frequency Response: 120 Hz – 20 kHz (soundbar); 33 Hz – 120 Hz (subwoofer)
-

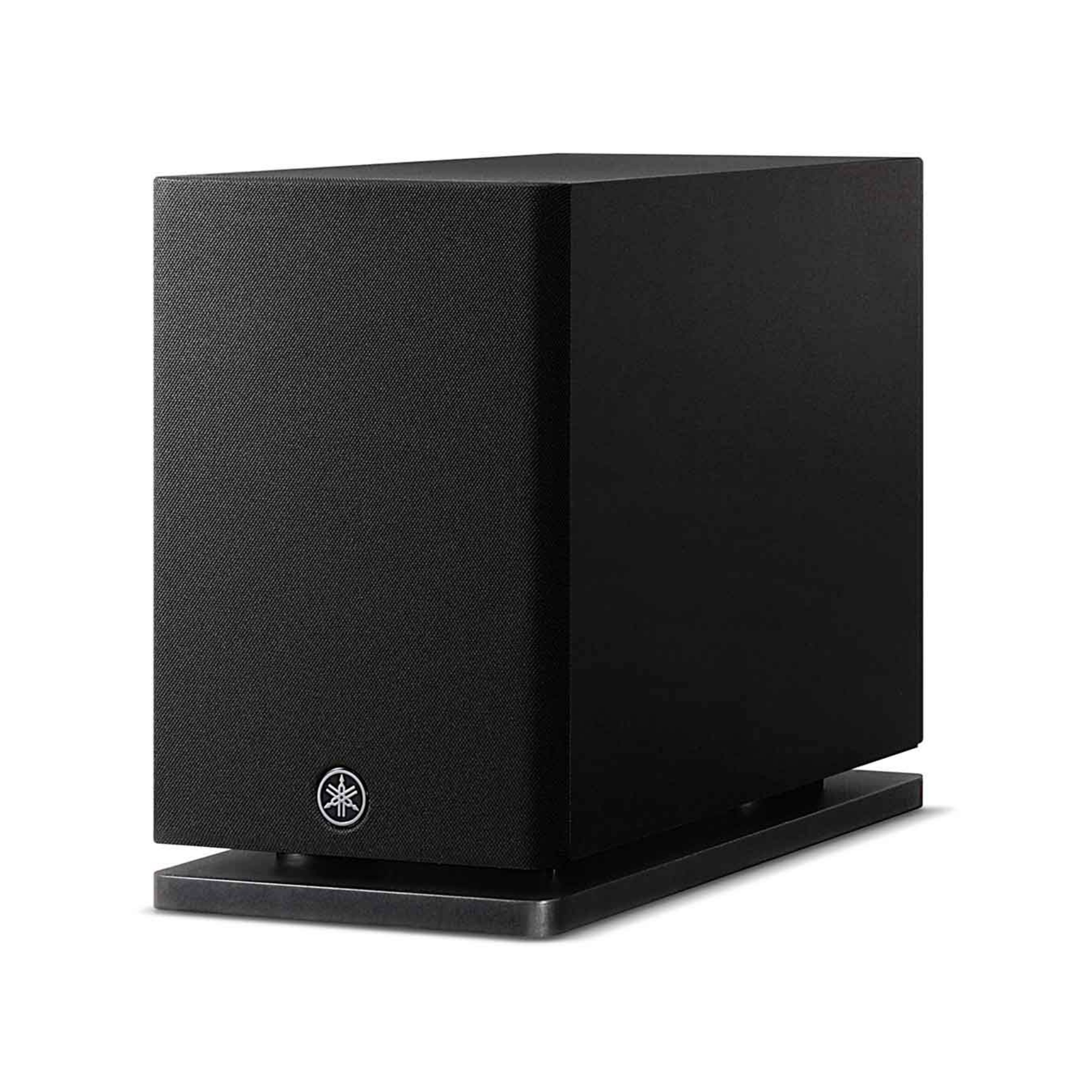

Subwoofer: Wireless 6-3/4" driver with Symmetrical Flare Port, 100W output
-
Dimensions: Soundbar: 46.5" x 3.375" x 5.625"; Subwoofer: 9.5" x 14.875" x 16.25"
-
Weight: Soundbar: 24.3 lbs; Subwoofer: 28.0 lbs
-

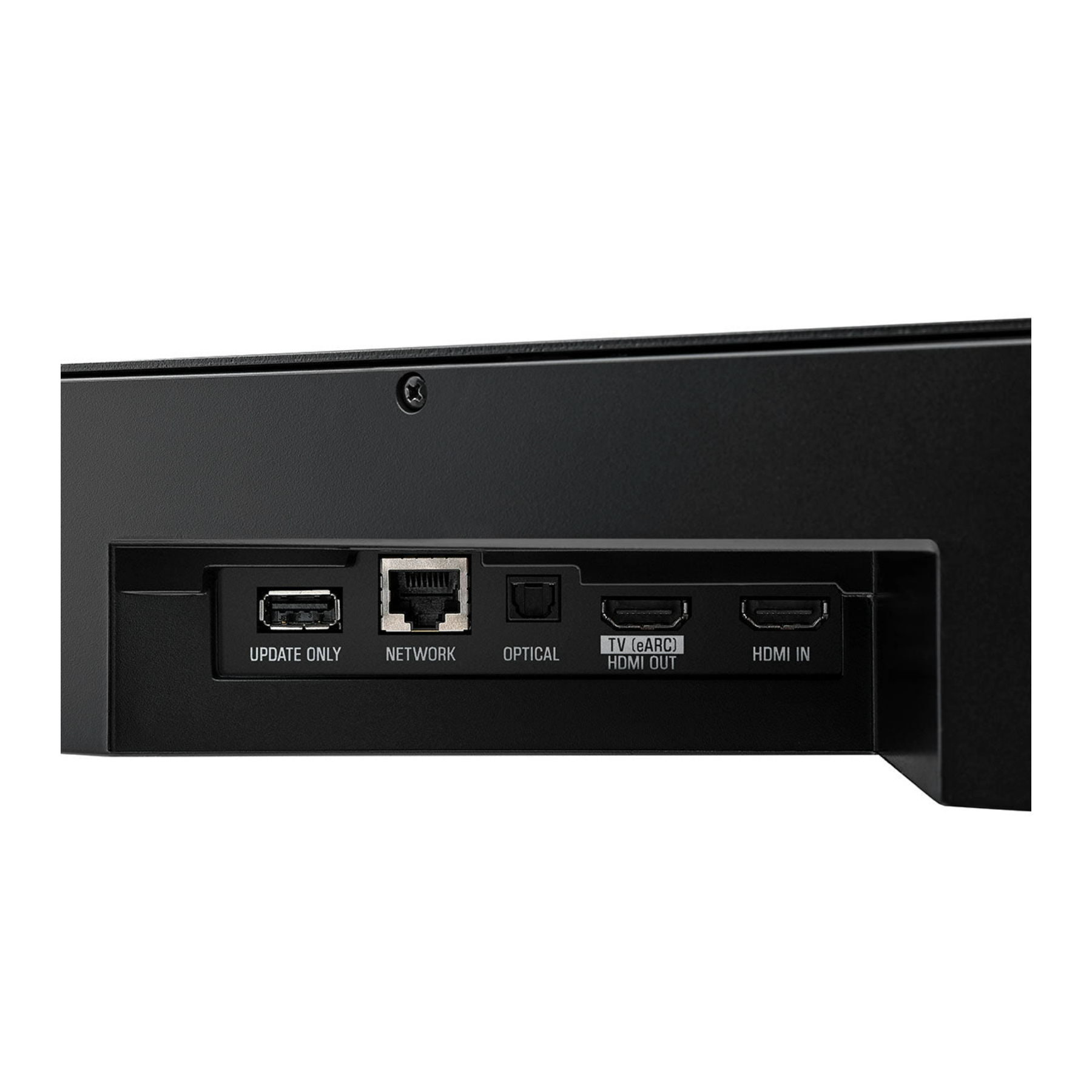

HDMI: 1 in / 1 out (eARC); CEC and Auto Lip-Sync support
-
Audio Decoders: Dolby Atmos, DTS:X, AURO-3D
-
Audio Modes: Surround:AI, 3D Music, Stereo, Straight, All
-
Voice & Bass Features: Clear Voice, Bass Extension
-
Streaming Services: Spotify Connect, AirPlay 2, Amazon Music, Qobuz, TIDAL, Pandora, SiriusXM, Deezer, Net Radio
-
Wireless Connectivity: Wi-Fi, Bluetooth 4.2 (SBC, AAC)
-
Multi-Room Audio: MusicCast-enabled with app control
-
Expandable: True X Surround-ready; compatible with True X Speaker 1A & 3A (sold separately)
-
Power Consumption: 0.5W–2.0W (soundbar standby); 2.0W (subwoofer standby)
-

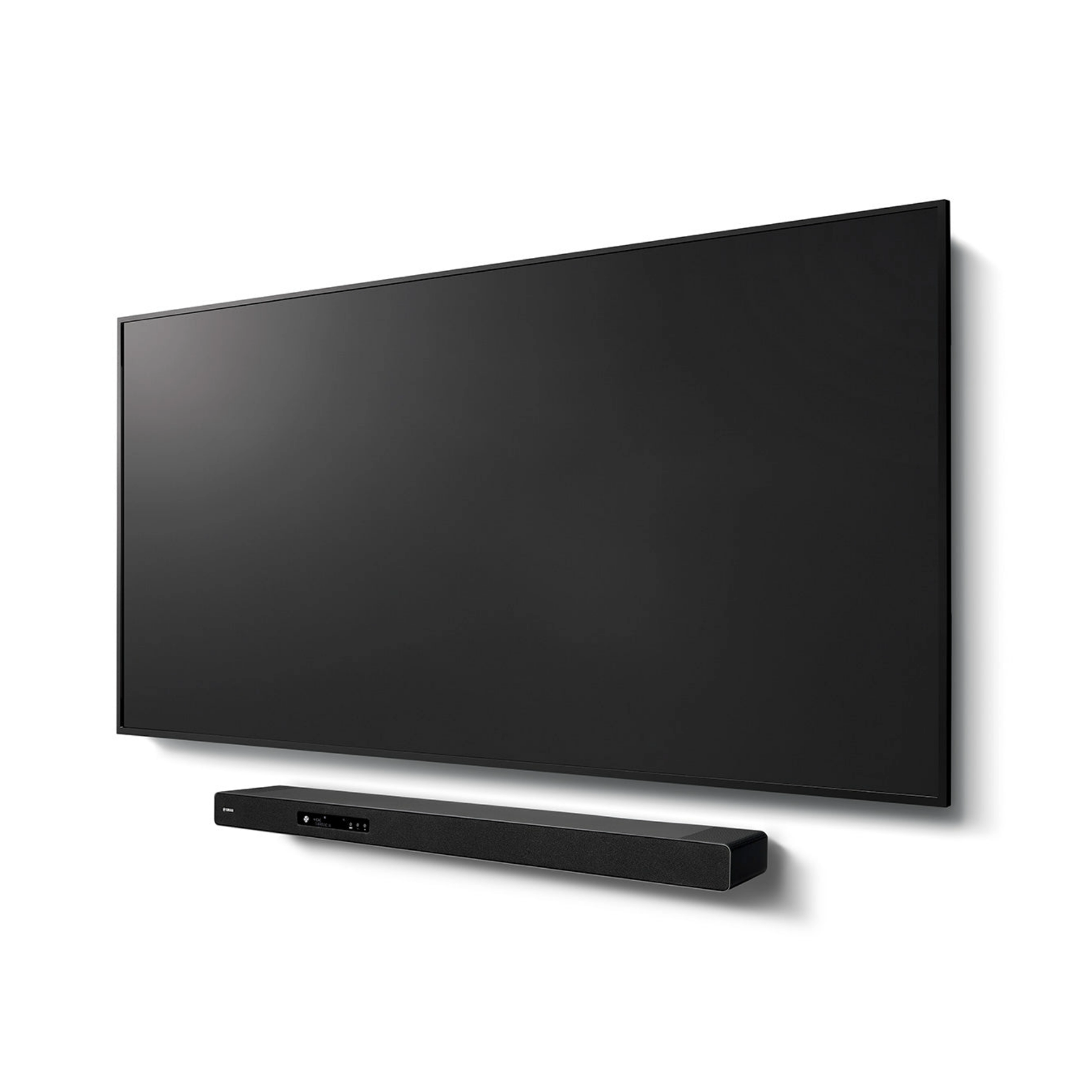

Mounting: Wall-mountable with included brackets; slim 3" height without feet
Expanded Key Features List
-
Flagship Dolby Atmos Soundbar: Creates immersive 3D surround sound with precise height effects and surround decoding.
-
Custom Eye-Shaped Drivers: Deliver exceptional sonic fidelity and clarity from a sleek, compact soundbar form.
-
Symmetrical Flare Port Subwoofer: Produces thunderous, low-distortion bass with reduced port noise by 20 dB.
-
Surround:AI Real-Time Optimization: Automatically enhances audio spatial performance based on content type.
-
True X Surround Expandability: Add wireless, portable rear speakers with rechargeable batteries for full theater immersion.
-
AURO-3D Support: Upmixes stereo content into true 3D audio for an unmatched sense of presence.
-
MusicCast Wireless Streaming: Stream music via Wi-Fi, AirPlay 2, Spotify Connect, and more with full app control.
-
Clear Voice & Bass Extension: Enhances dialogue clarity and deepens low-end response for cinematic impact.
-
Simple HDMI eARC Setup: One-cable connection to your TV with CEC control for easy operation with your existing remote.
-
Elegant, Wall-Mountable Design: Slim and acoustically tuned body with metal chassis and vibration-dampening feet.
Q&A Section
Q: What makes the Yamaha True X Bar 90A unique among soundbars?
A: It’s Yamaha’s flagship Dolby Atmos bar with advanced Sound Beam height technology, Surround:AI, and the world’s first AURO-3D implementation in a soundbar.
Q: Does the soundbar support wireless rear speakers?
A: Yes, it’s compatible with True X Speaker 1A and 3A models for portable wireless surround sound (sold separately).
Q: What is Surround:AI?
A: Yamaha’s intelligent sound processing that dynamically adjusts spatial audio in real time to suit the content you're watching.
Q: Can I stream music to the Bar 90A?
A: Absolutely. You can stream via Wi-Fi, AirPlay 2, Bluetooth, and services like Spotify, TIDAL, Amazon Music, and Qobuz using MusicCast.
Q: Does the Bar 90A work with my TV remote?
A: Yes, it supports HDMI eARC and CEC, so you can control power and volume using your TV remote.
Q: Is it wall-mountable?
A: Yes, the soundbar comes with metal brackets and is only 3" tall without feet, making it ideal for wall installation.
Q: What’s special about the subwoofer?
A: The wireless subwoofer uses Symmetrical Flare Port tech to reduce distortion and produce deeper, smoother bass.
Q: Can it upmix stereo content?
A: Yes, thanks to AURO-3D’s Auro-Matic, stereo sources are transformed into rich 3D audio environments.
