Zidoo UHD8000 Reference 8K Media Player & Hi-Fi Audio Streamer

Experience the ultimate fusion of high-end video playback and audiophile-grade sound with the Zidoo UHD8000. Engineered for enthusiasts, this premium 8K UHD media player is powered by the latest Amlogic S928X-K penta-core processor and features 8GB DDR4 RAM for seamless performance. Equipped with XMOS + ESS9069Q DAC, it delivers up to DSD512 and PCM 768kHz decoding, ensuring studio-quality sound output. With support for HDR10+, Dolby Vision, and 12-bit color depth, visuals are equally breathtaking. Built with a robust aluminum chassis, dual HDMI outputs, and a large LED display, the UHD8000 is crafted for both performance and style. Android 11 OS, integrated music streaming, Blu-ray menu support, and powerful customization features make it a true all-in-one media hub for high-end home theaters and Hi-Fi setups.

Specifications

• Model: UHD8000
• Display Screen: LED
• Chassis Material: Brushed Aluminum Alloy
• Operating System: Android 11
• Processor: Amlogic S928X-K ARM Cortex-A76 + Cortex-A55 Penta-core
• GPU: ARM Mali-G57 MC2
• RAM & Storage: 8GB DDR4 + 64GB eMMC
• Bluetooth: Bluetooth 5.2
• Wi-Fi: Dual-band Wi-Fi 6 (2.4G + 5G), 802.11 a/b/g/n/ac/ax 2T2R, MIMO OFDM
• Ethernet: RJ-45 (10/100/1000Mbps)
• HDMI (Main): HDMI 2.1a, up to 8K@60p, HDR10+, Dolby Vision, 12-bit BT.2020
• HDMI (Audio Only): Separate HDMI audio output with Atmos & DTS X passthrough
• Video Decoding: 8K@60p AV1/VP9/H.265/AVS3/AVS2; supports Dolby Vision, HDR10+, HLG
• Audio Decoding: Dolby TrueHD Atmos, DTS X, DSD512, PCM 768kHz@32bit
• Streaming Support: DLNA, Squeeze Lite, TIDAL Connect (including TIDAL Atmos)
• USB DAC Input: Compatible with Windows 10/11, macOS, Android

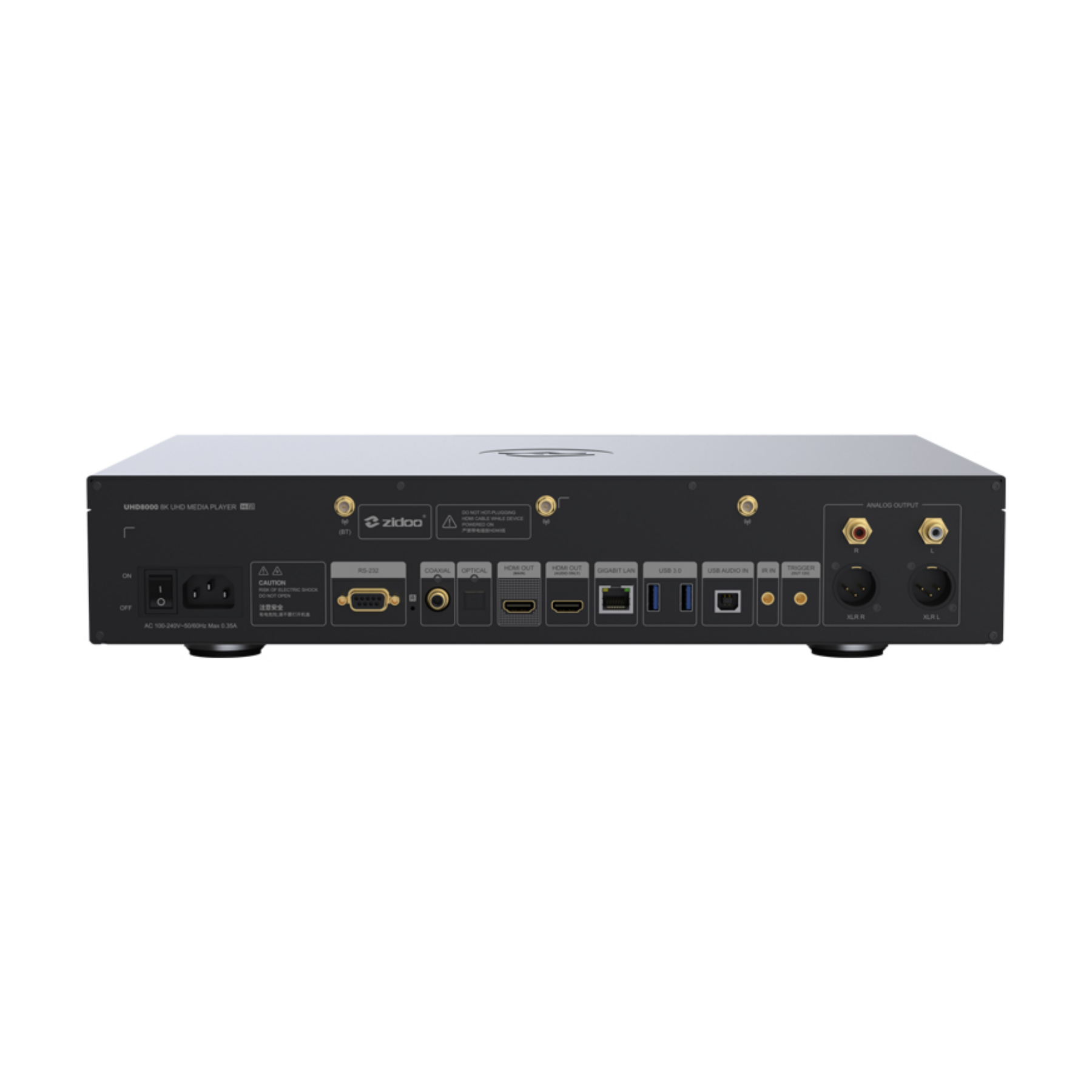

• Audio Output: USB, Optical, Coaxial, RCA (L/R), XLR (balanced)
• Analog Audio Specs: THD+N <0.00015%, SNR >123dBrA, Crosstalk 135dBrA

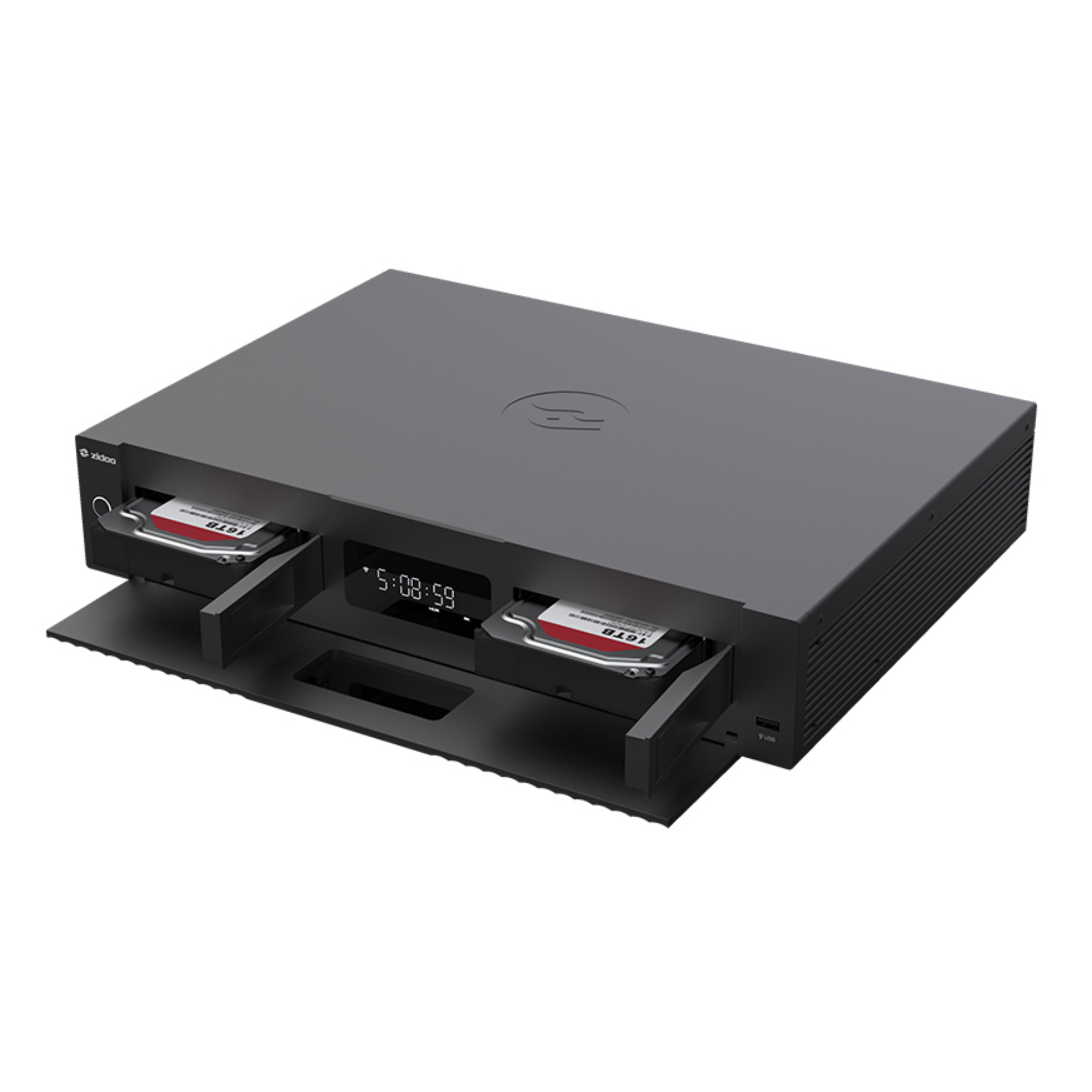

• Storage Bays: Dual 3.5" HDD bays (up to 16TB each), SATA 3.0
• USB Ports: USB 3.0 x2, USB 2.0 x1
• Other Interfaces: RS232, Trigger Out, IR IN, Infrared Receiver
• Power Supply: AC 110~120/220~240V 50/60Hz
• Control Options: Zidoo Controller App, HDMI-CEC, RS-232, Control 4, TCP/IP
• Accessories: Remote, Power Adapter, SATA Cable, HDMI Cable, Antennas x3, Manual
• Dimensions: 430mm x 312mm x 80mm
• Weight: 5.9 kg (without accessories)

Expanded Key Features List

• Premium Brushed Aluminum Build: 430mm wide chassis with shock-absorbing foot pads for a refined and stable setup.
• High-Performance S928X-K Processor: Combines Cortex-A76 and A55 cores for powerful, efficient multitasking and 8K playback.
• ESS9069Q + XMOS DAC: Audiophile-grade DAC delivers ultra-high-resolution audio up to DSD512 and PCM 768kHz.
• 8GB RAM + 64GB eMMC: Smooth system performance and ample storage for apps and media metadata.
• HDMI 2.1 with Dolby Vision: Supports 8K@60p, HDR10+, 12-bit color depth and advanced pass-through audio formats.
• Dedicated HDMI Audio Output: Isolated signal for pure audio passthrough including Atmos, DTS:X, and multi-channel PCM.
• Advanced Video Codec Support: Handles AV1, VP9, H.265 and more for versatile playback of modern formats.
• Hi-Fi Analog Outputs: Balanced XLR and unbalanced RCA outputs with exceptional dynamic range and low distortion.
• Dual HDD Bays: Support up to 16TB per bay for massive local media libraries.
• Poster Wall 4.0: Offers movie trailers, metadata matching, and custom sorting for an intuitive media browsing experience.
• Music Player 8.0: All-new UI with high-resolution playback, custom EQ, and intelligent song matching.
• HDR10+ & Dolby Vision Processing: Processes dynamic metadata per scene or frame for optimal image reproduction.
• Gapless & CUE Playback: Enjoy uninterrupted audio and advanced cue file compatibility for seamless listening sessions.
• Multi-System USB DAC Input: Works as a standalone DAC across Windows, Mac, and Android platforms.
• Smart Home Integration: Compatible with Control4, RS232, and Zidoo’s proprietary mobile controller apps.

Q&A Section

Q: Does the Zidoo UHD8000 support 8K video playback?
A: Yes, it supports 8K@60p video playback through HDMI 2.1 with HDR10+, Dolby Vision, and 12-bit color depth.

Q: Can I use the UHD8000 as a standalone DAC?
A: Absolutely. With its XMOS + ESS9069Q DAC and USB DAC input, it functions as a high-end DAC compatible with Windows, macOS, and Android.

Q: What audio outputs are available?
A: It includes RCA and XLR analog outputs, USB audio out, optical, coaxial, and separate HDMI audio output for high-resolution formats.

Q: Does it support Blu-ray menus and gapless branching playback?
A: Yes, it fully supports BD/UHD menu navigation and seamless playback of complex Blu-ray structures.

Q: Can I stream music from TIDAL or DLNA sources?
A: Yes, the UHD8000 supports TIDAL Connect (including Atmos streaming), DLNA, and multiple other streaming platforms.

Q: Is subtitle customization available?
A: Yes, it supports adjustable subtitle brightness, graphical effects, and dual forced subtitles in Blu-ray and MKV formats.

Q: What storage options are available?
A: The UHD8000 features two 3.5" SATA HDD bays, each supporting up to 16TB for extensive local media storage.

Q: Can the Zidoo UHD8000 be controlled via mobile app?
A: Yes, it supports the Zidoo Controller App for iOS and Android with tablet landscape mode and smart home compatibility.
