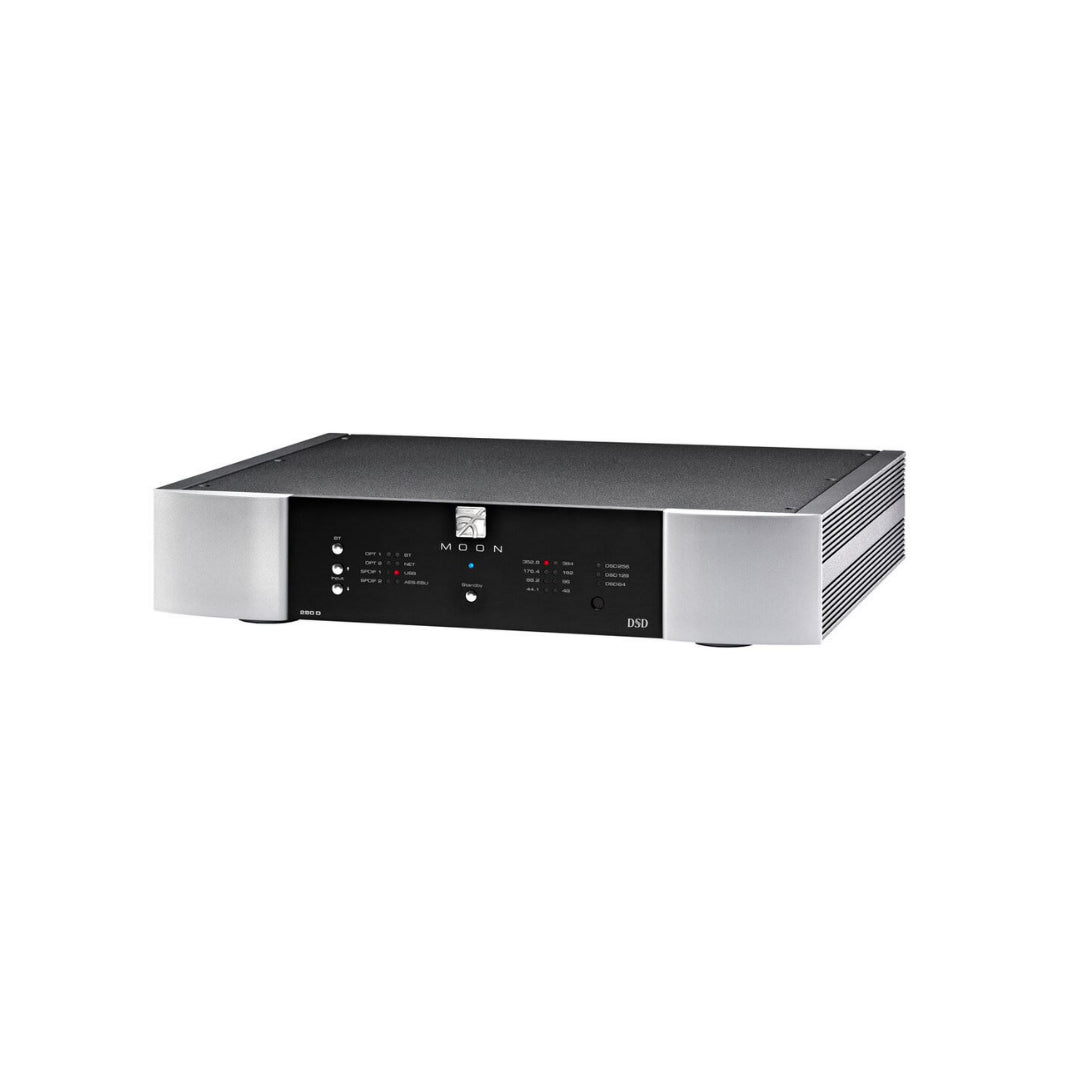

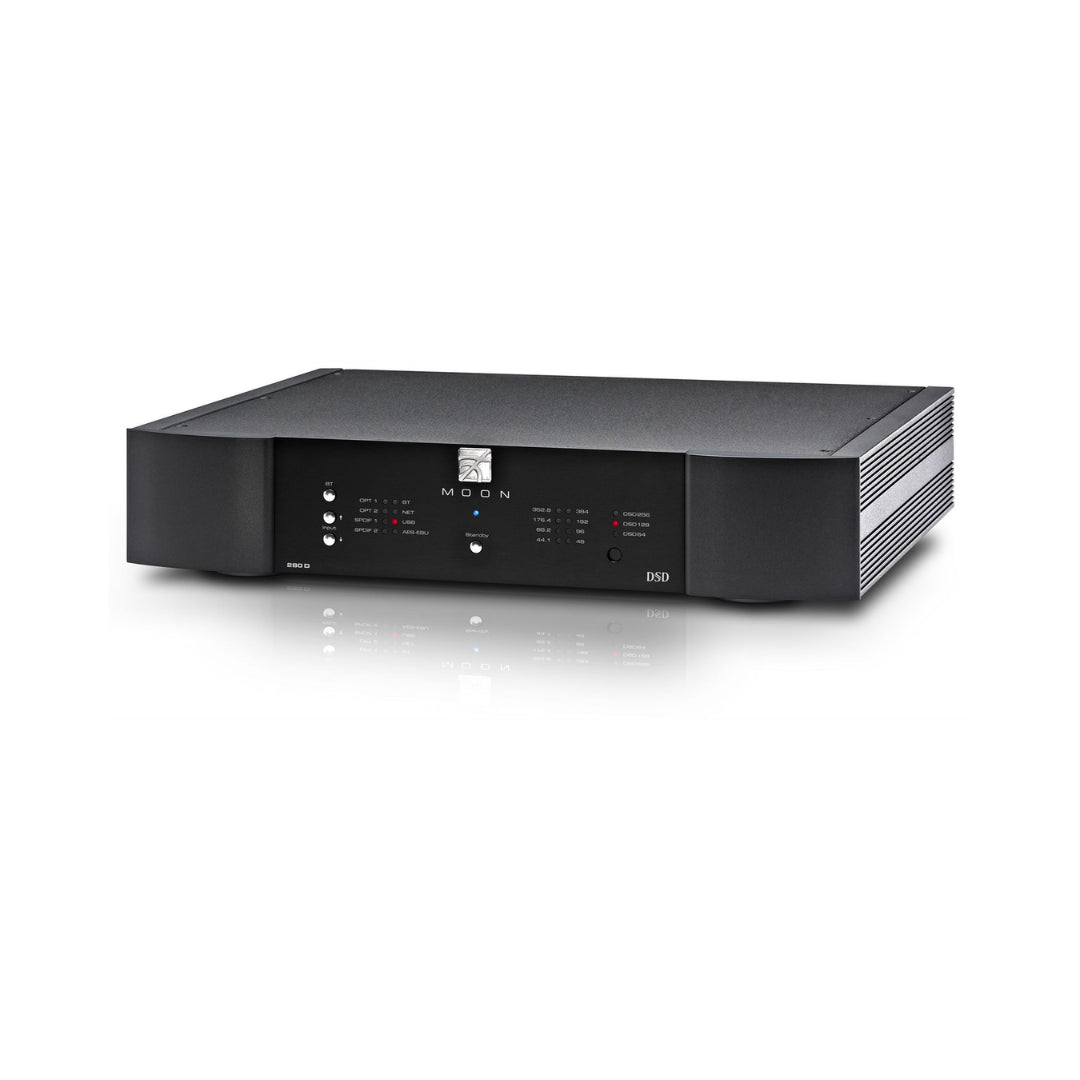

MOON 280D Streaming DAC

has been discontinued and replaced by the MOON 371

The MOON 280D Streaming DAC is Roon ready and supports Spotify Connect, AirPlay2 as well as Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services. Internet radio is also available via Tune-In. The 280D supports MQA decoding and can support multiroom playback. It has native DSD support to 256 (Quad DSD) and PCM to 384kHz via USB (32-bit on USB only).

Design features:

• Fully asynchronous DAC.
• Supports native DSD64, DSD128 and DSD256 (USB only).
• Supports PCM up to 384kHz (32-bit on USB only).
• 7 digital inputs (AES/EBU x 1, S/PDIF x 2, TosLink x 2, USB x 1 and Qualcomm® aptXTM audio for Bluetooth® x 1) for use with virtually any digital source.
• Front panel LED indicators for active input and input signal PCM sampling & DSD rates.
• With 8th digital input through our MiND 2 streaming module (via WiFi or Ethernet).
• Analog stage: fully balanced differential circuit for increased dynamic range and headroom, higher resolution, as well as improved signal-to-noise ratio.
• AirPlay 2, TIDAL Connect, Spotify Connect compatible
• ROON Ready device
• Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
• MQA decoding
• Multi-room synchronized playback

MOON 280D Specifications:

• Frequency response (full range) - 2 Hz - 100 kHz +0/-3 dB
• THD @ 1kHz, 0dBFS (A-weighted) - 0.001 %
• Intermodulation distortion - 0.002 %
• Dynamic Range - 120 dB
• Signal-to-noise Ratio - 118 dB @ full output
• Channel Separation - 116 dB
• Intrinsic Jitter - 1 picosecond RMS
• Analog Output @ 0dBFS - 2.0 V
• Analog output impedance - 100 Ω
• PCM Bit-depth range - 16 - 32 bits
• PCM sampling frequency rates - 44.1 - 384 kHz
• DSD sample rates - DSD64, DSD128 & DSD256
• Shipping weight - 16 lb / 7.5 kg
• Dimensions (width x height x depth) - 16.9 x 3.4 x 13.1 in 42.9 x 8.6 x 33.3 cm

The following accessories should be included inside the box with your unit:

• AC power cable
• ‘CRM-3’ remote control with two ‘CR-2032’ batteries
• ‘SimLink™’ cable with 1/8” mini plug terminations on each end
• Wi-Fi antenna for “MiND 2” Music Streamer equipped version of the MOON 280D
• Owner’s manual
• Warranty and product registration information (USA and Canada only)

280D Manual
