Product Description

Line Circle
What you get from the Audio Technica’s ART20 is a cartridge with excellent macro and micro dynamics, high-frequency extension, and transparency. It has a wide open midrange and nimble yet powerful bass
Get the Details

Features & Specs Line Circle

WEIGHT
9.0 g (0.32 oz)
FREQ RESPONSE
20 to 50,000 Hz
CHANNEL SEPARATION
30 dB (1 kHz)
TRACKING ANGLE
20°
TRACKING FORCE
1.6 to 2.0 g (1.8 g standard)
REC LOAD IMPEDANCE
≥ 100 ohms (when head amplifier connected)
WEIGHT
9.0 g (0.32 oz)
FREQ RESPONSE
20 to 50,000 Hz
CHANNEL SEPARATION
30 dB (1 kHz)
TRACKING ANGLE
20°
TRACKING FORCE
1.6 to 2.0 g (1.8 g standard)
REC LOAD IMPEDANCE
≥ 100 ohms (when head amplifier connected)

Expert Insight

Line Circle

It tracks like a Formula One car and exhibits no sense of grain.

Expert Img
Dylan Crane
Brand Manager

Details

Line Circle

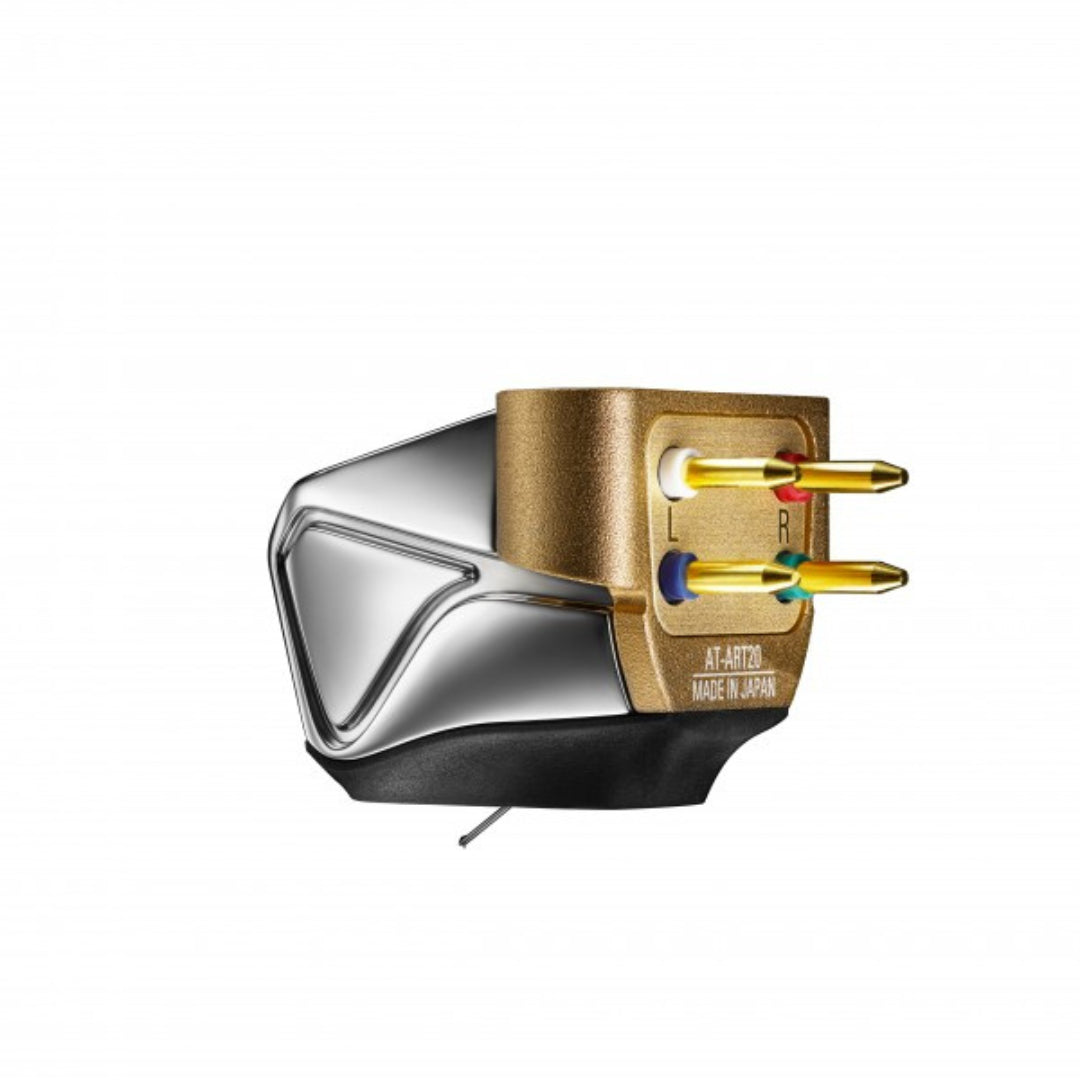

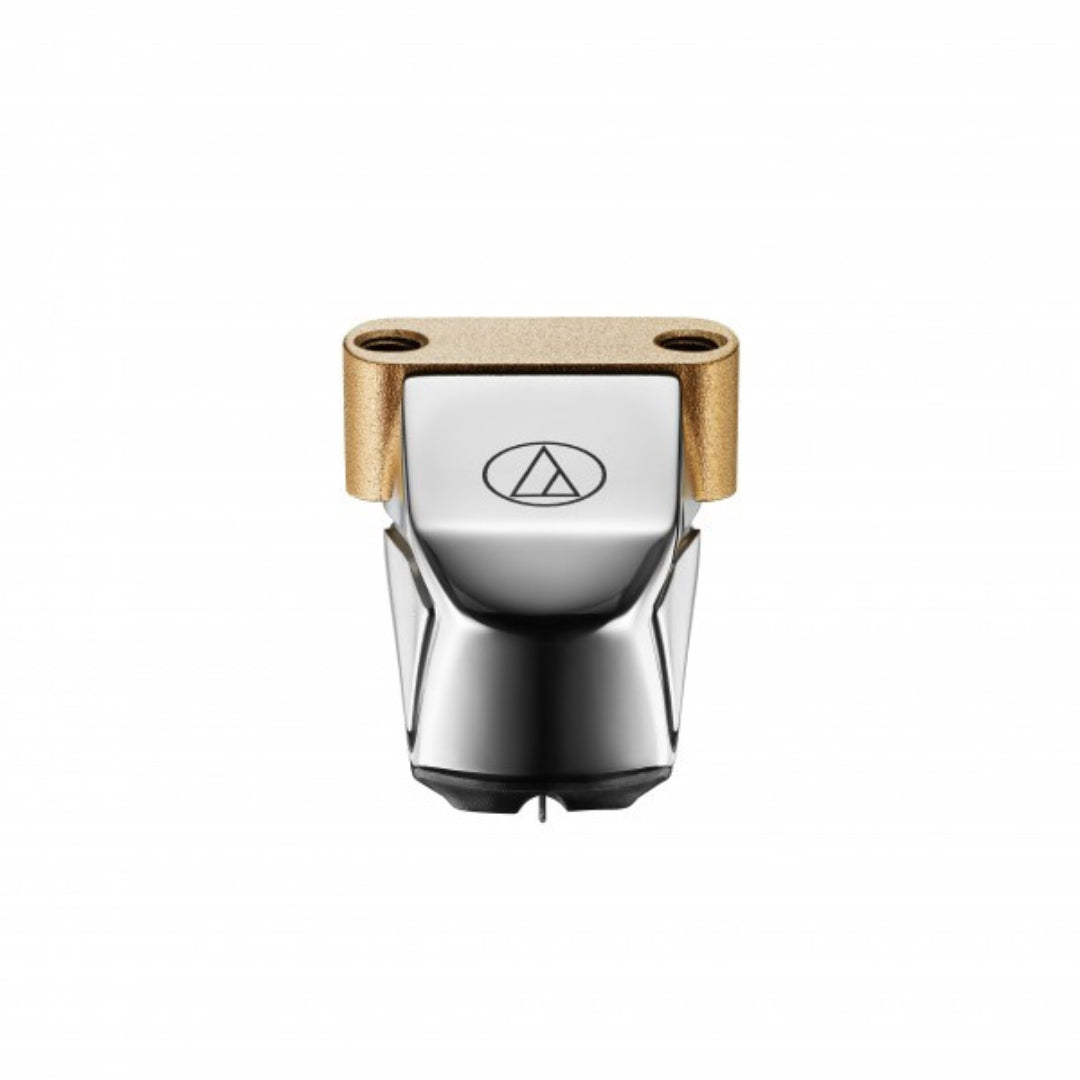

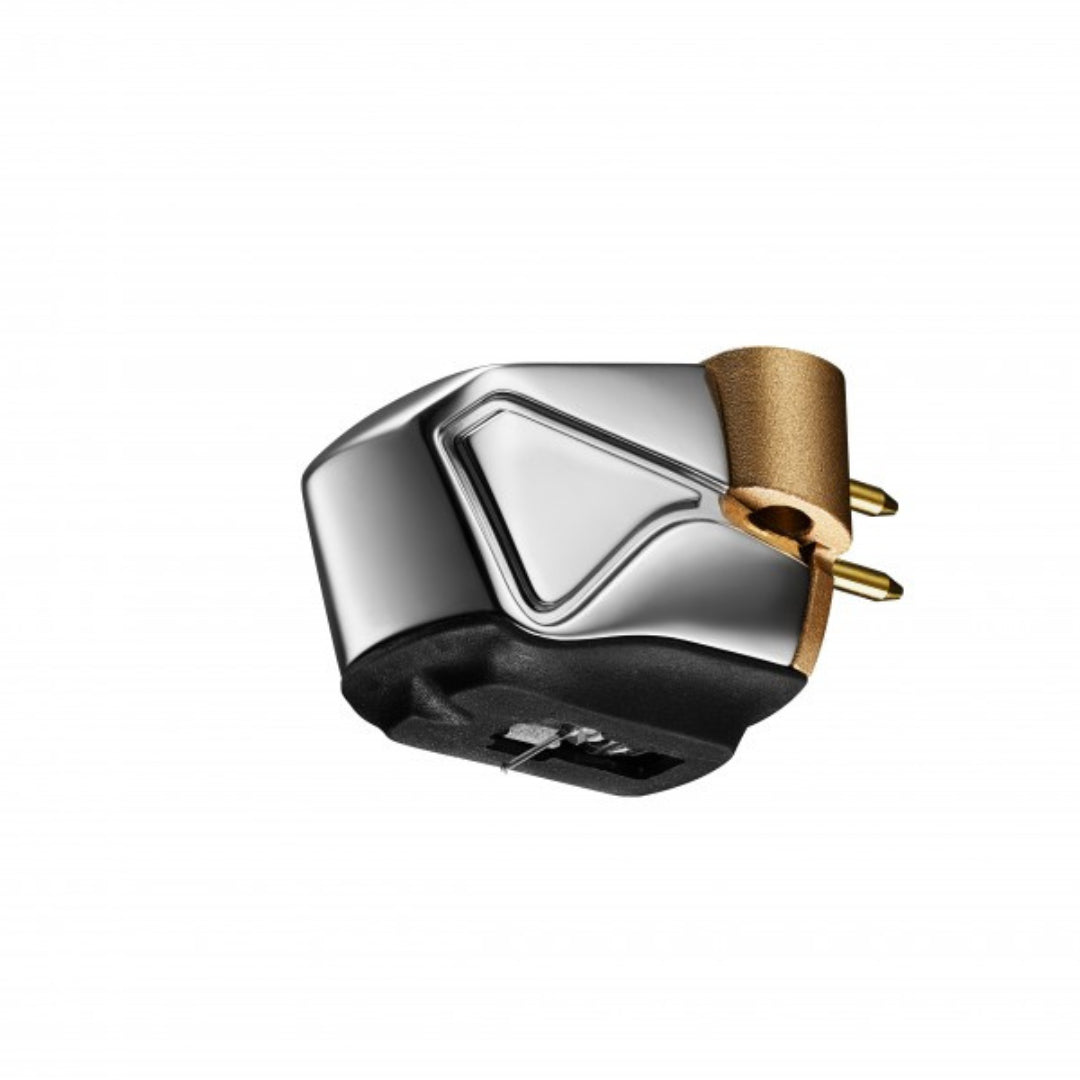

Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge

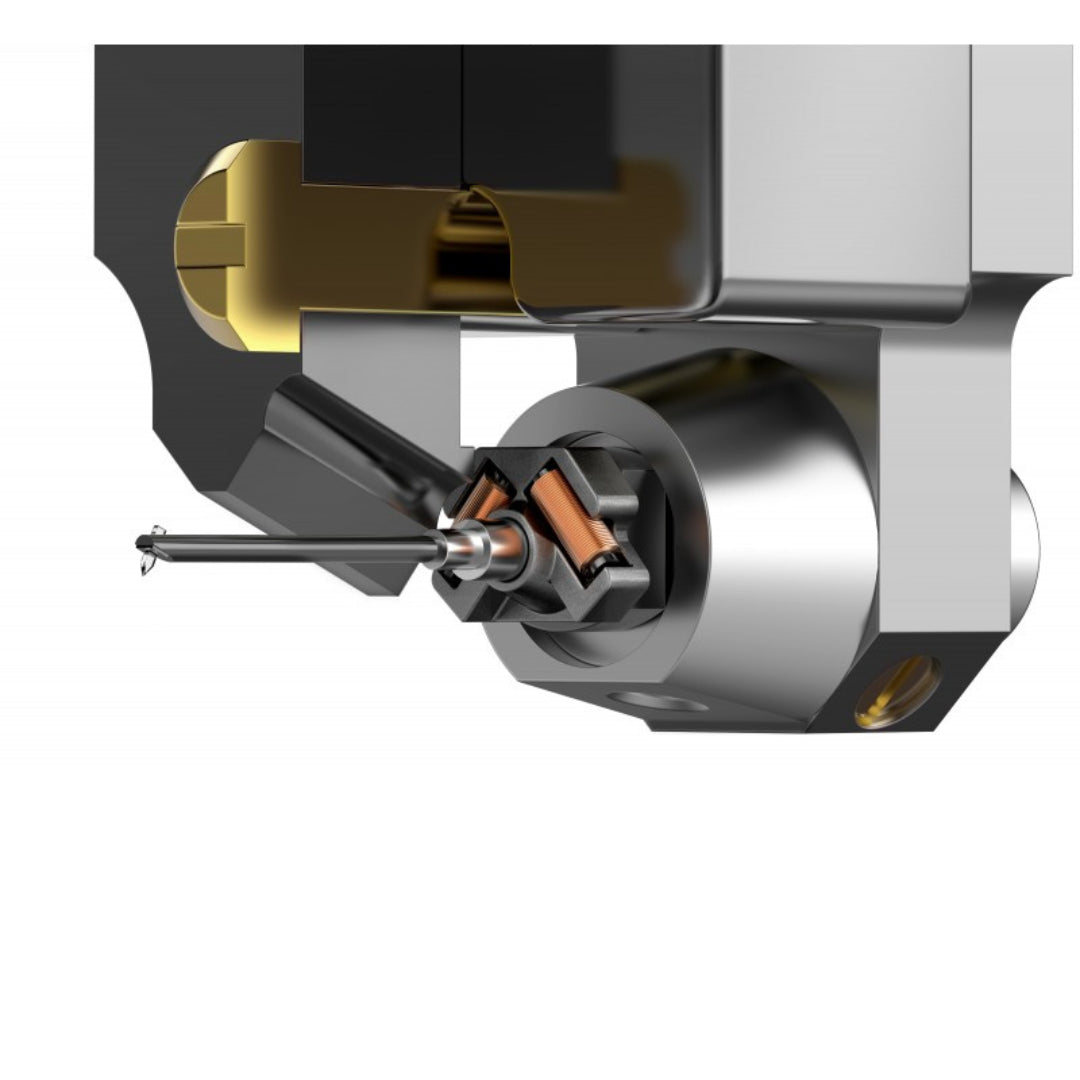

Audio-Technica is pleased to introduce the AT-ART20, the latest cartridge in our ART Series that will allow you to experience a new world of sound. As with previous magnetic core cartridges in our high-end lineup, we had two main goals in developing the AT-ART20: provide superlative analog performance and offer sound reproduction that matches the life-like expressiveness of non-magnetic core cartridges. Based on cartridge technologies and know-how cultivated over our long history, and employing the best materials and advanced processing techniques, we created a magnetic core moving coil cartridge that’s optimally structured to reproduce sound with the full expressiveness of a live performance.

The high-frequency range of the AT-ART20 is expansive and detailed, while the low-frequency sound, which cartridges tend to bury, is reproduced with full clarity and force. Vocals come through with all the variety and expressiveness of the human voice even at low volumes, and the full character of the sound source blossoms anew for the listener with extended sound depth and rich spatial expression that convey the original environment of the performance.

Excellence

Audio Technica AT-ART20 Dual Moving Coil Stereo Cartridge Specs

  • Frequency Response: 20 to 50,000 Hz
  • Channel Separation: 30 dB (1 kHz)
  • Vertical Tracking Angle: 20°
  • Vertical Tracking Force: 1.6 to 2.0 g (1.8 g standard)
  • Stylus Construction: Nude
  • Recommended Load Impedance: ≥ 100 ohms (when head amplifier connected)
  • Coil Impedance: 12 ohms (1 kHz)
  • DC Resistance: 12 ohms
  • Coil Inductance: 25 μH (1 kHz)
  • Output Voltage: 0.55 mV (1 kHz, 5 cm/sec.)
  • Stylus Shape: Special Line Contact
  • Cantilever: 0.28 mm (0.011”) diameter solid boron
  • Static Compliance: 23 × 10-6 cm/dyne
  • Dynamic Compliance: 13 × 10-6 cm/dyne (100 Hz)
  • Cartridge Weight: 9.0 g (0.32 oz)
  • Dimensions: 17.3 mm (0.68”)×16.8 mm (0.66”)×26.6 mm (1.05”) (H×W×D)
  • Accessories Included: Non-magnetic screwdriver, Brush, Washer × 2, Cartridge installation screws (M2.6) (5.0 mm (0.20”) × 2 , 8.0 mm (0.31”) × 2, 10.0 mm (0.39”) × 2 , 12.0 mm (0.47”) × 2), Protector
  • Threaded Hole: M2.6 × 2
  • Stylus Curvature Radius: 1.5 × 0.28 mil
  • Type: MC
