Product Description

Line Circle

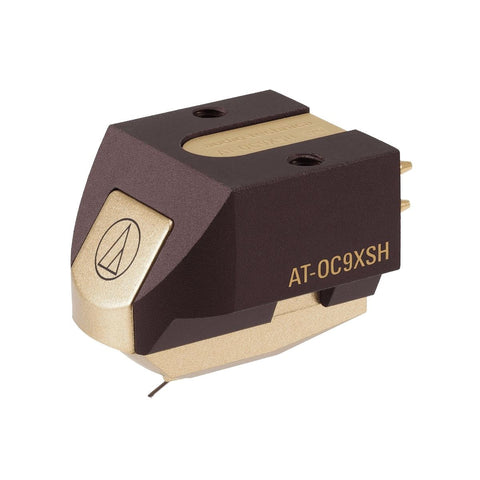

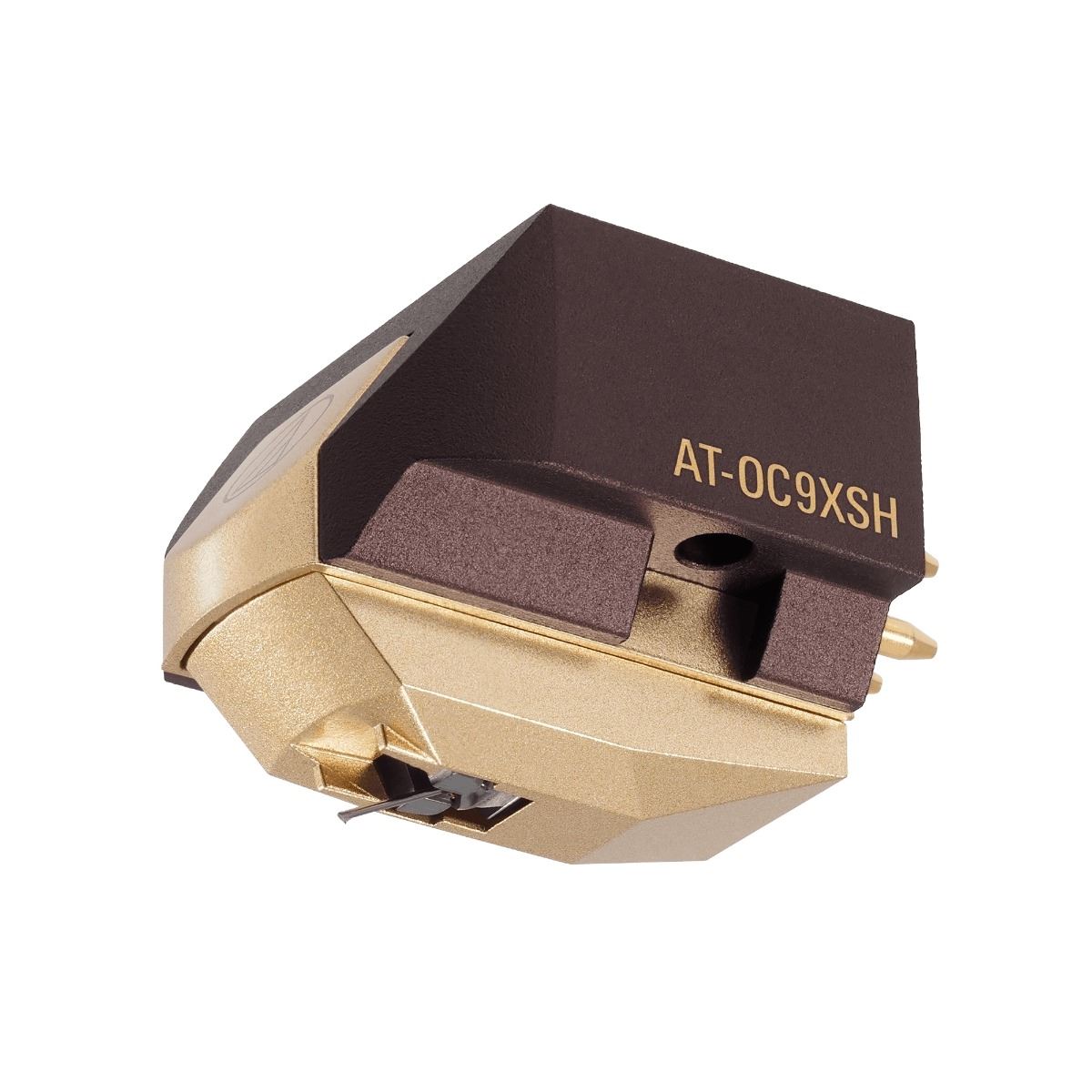

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. Amazing detail, solid deep bass and midrange to enjoy.
Get the Details

Features & Specs Line Circle

FREQUENCY RESPONSE
20-47,000 Hz
CHANNEL SEPARATION
27 dB (1 kHz)
VERTICAL TRACKING ANGLE
20°
VERTICAL TRACKING FORCE
1.8-2.2 g (2.0 g standard)
REC LOAD IMPEDANCE
Min. 100 ohms (when head amplifier is connected)
WEIGHT
7.6 g
FREQUENCY RESPONSE
20-47,000 Hz
CHANNEL SEPARATION
27 dB (1 kHz)
VERTICAL TRACKING ANGLE
20°
VERTICAL TRACKING FORCE
1.8-2.2 g (2.0 g standard)
REC LOAD IMPEDANCE
Min. 100 ohms (when head amplifier is connected)
WEIGHT
7.6 g

Expert Insight

Line Circle

The AT-OC9XSH lives up to the expectation

Expert Img
Dylan Crane
Brand Manager

Details

Line Circle

Enhanced Audio Quality

The AT-OC9XSH Dual Moving Coil cartridge with Shibata stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and premium permendur yoke that increase the magnetic energy, and the nude Shibata stylus on a boron cantilever that tracks the record groove with incredible accuracy, delivering rich, full-range audio and high transient response. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Features

  • Dual Moving Coil design, featuring independent coils for both left and right channels, provides outstanding channel separation
  • The coils are aligned in a reverse V-shaped formation, which exerts less pressure on the stylus, thereby minimizing distortion
  • The cartridge body is pre-threaded, enabling it to be mounted onto the headshell or integral tonearm with just two screws – no nuts required
  • Features nude Shibata stylus and boron cantilever for rich full-range audio reproduction and high transient response
  • A neodymium magnet and permendur yoke provide dramatically increased magnetic energy
  • Aluminum body minimizes unwanted vibration for reduced resonance and superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve pure signal transfer
