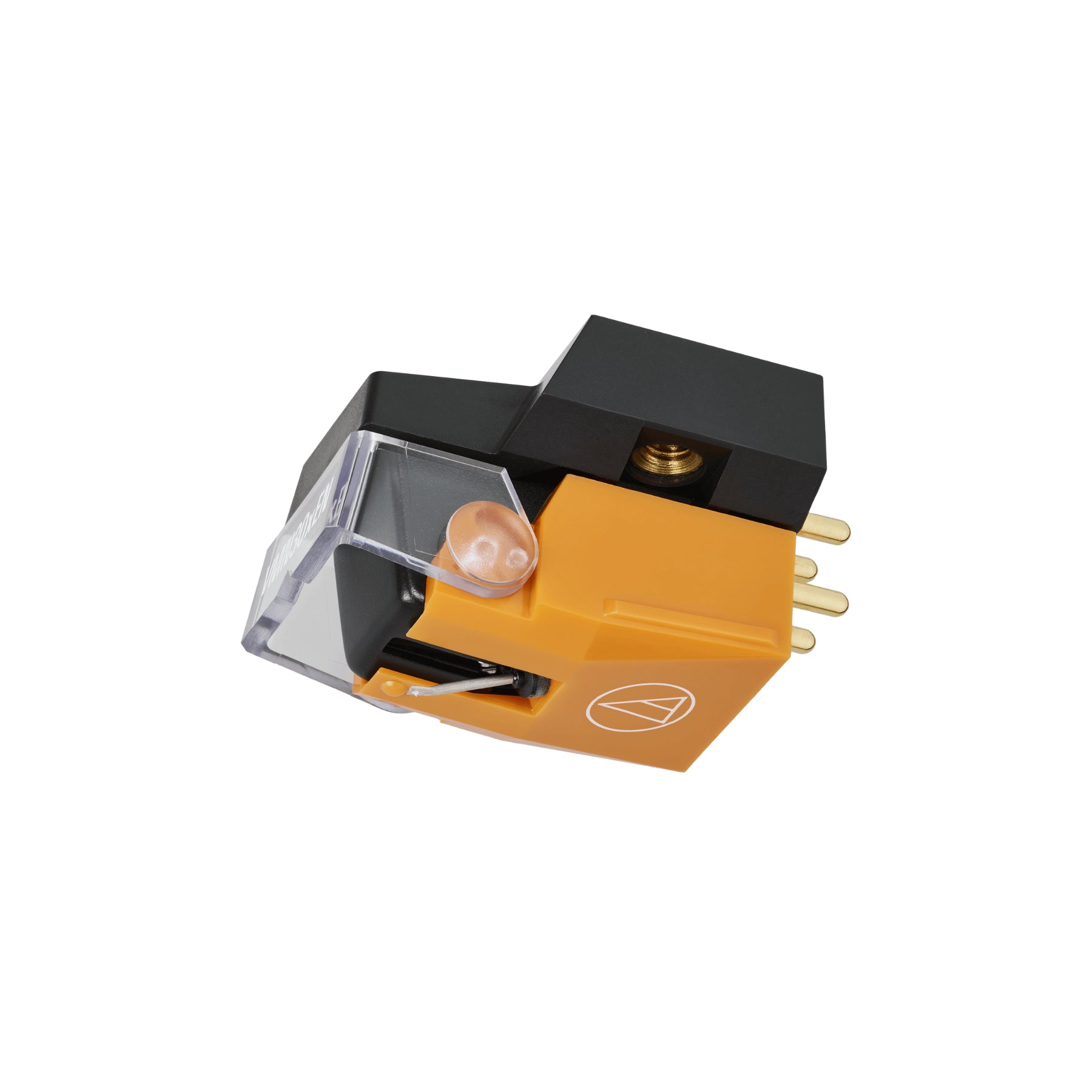

Audio Technica AT-VM530xEN Moving Magnet Cartridge
Audio Technica AT-VM530xEN Moving Magnet Cartridge
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
We’ll be happy to e-mail you when this item is available. Just fill in your name and e-mail address
Product Description
Get the Details
Features & Specs
Expert Insight
The AT-VM530xEN strikes an ideal balance between price and performance, offering clean highs, tight mids, and rich lows. It was easy to mount on my tonearm, and the tracking is impressively smooth even on older records. For the price, it’s a huge upgrade and a must-have for anyone serious about vinyl fidelity.
Details
Audio Technica AT-VM530xEN Moving Magnet Cartridge
Elevate your vinyl listening experience with the AT-VM530xEN, a precision-engineered dual moving magnet cartridge designed to deliver lifelike audio with remarkable clarity. Featuring a lightweight 0.3 x 0.7 mil elliptical nude stylus, PCUHD copper coils, and paratoroidal coil construction, this cartridge offers an expansive stereo soundstage with exceptional channel separation and transient response. Its aluminum cantilever and low-resonance polymer housing ensure reduced distortion and improved groove tracking. The AT-VM530xEN also boasts threaded inserts for simple installation and a redesigned V-cut stylus protector, making it an ideal upgrade for audiophiles and vinyl enthusiasts alike.
Specifications
- Model: AT-VM530xEN
- Type: Dual Moving Magnet (VM)
- Stylus Type: 0.3 x 0.7 mil elliptical nude stylus
- Cantilever: Aluminum pipe
- Body Material: Low-resonance polymer
- Frequency Response: 20 – 25,000 Hz
- Channel Separation: 25 dB (1 kHz)
- Vertical Tracking Angle: 20°
- Tracking Force: 1.8 – 2.2 g (2.0 g recommended)
- Output Voltage: 3.2 mV (1 kHz, 5 cm/sec.)
- Coil Impedance: 3.2 kΩ (1 kHz)
- DC Resistance: 750 ohms
- Coil Inductance: 480 mH (1 kHz)
- Output Balance: 1.5 dB (1 kHz)
- Static Compliance: 23 × 10⁻⁶ cm/dyne
- Dynamic Compliance: 7 × 10⁻⁶ cm/dyne (100 Hz)
- Recommended Load Impedance: 47 kΩ
- Recommended Load Capacitance: 150 – 250 pF
- Mount Type: Standard 1/2" mount with M2.6 threaded inserts
- Weight: 7.2 g (0.25 oz)
- Dimensions: 28.0 x 18.3 x 17.6 mm (H x W x D)
- Included Accessories: Installation screws (10 mm, 8 mm, 5 mm) x2 each, 2 washers
- Replacement Stylus: AT-VMN30xEN (sold separately)
Key Features List

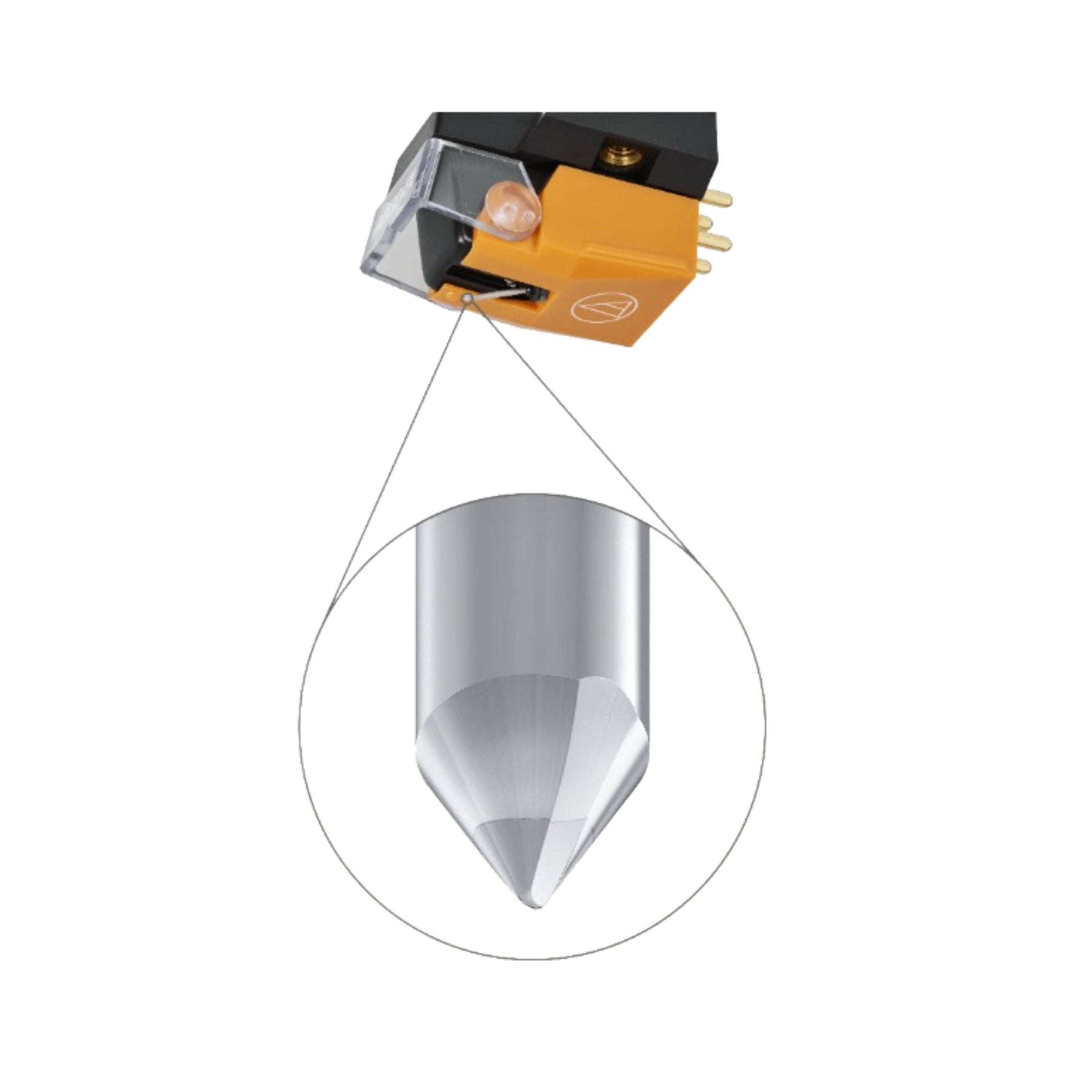

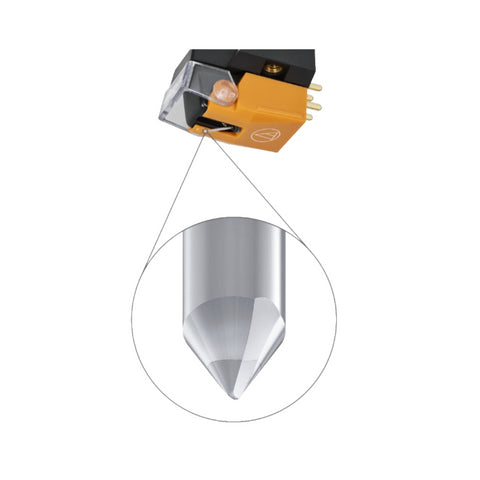

- Elliptical Nude Stylus: The low-mass stylus tip provides superior tracking accuracy and reduced distortion across the frequency spectrum.
- PCUHD Copper Coils: Pure copper ultra-high drawability wires increase conductivity and audio purity for a more vibrant, nuanced sound.
- Efficient Generator Design: Dual stacked coils in paratoroidal configuration minimize crosstalk and deliver clean, well-separated stereo imaging.
- Easy Installation: Built-in threaded inserts eliminate the need for nuts, simplifying mounting, especially on integrated tonearms.
- Stylus Protector with V-Cut: A small V-shaped guide on the protector helps you align the stylus for precise cueing on records.
- Styli Compatibility: Upgrade or experiment with various VMx styli (except mono) for different sonic characteristics or replacement needs.
Q&A Section
Q: What turntables is the AT-VM530xEN compatible with?
A: It fits any turntable with a standard 1/2" cartridge mount.
Q: What is special about the nude elliptical stylus?
A: It’s lighter and more precise than bonded tips, resulting in better tracking and less distortion.
Q: Can I replace the stylus?
A: Yes, it's compatible with most VMx series styli (excluding mono models), including the AT-VMN30xEN.
Q: How does the PCUHD copper improve sound?
A: It enhances signal conductivity and clarity, providing a cleaner, more accurate audio response.
Q: What tools do I need to install it?
A: Just a screwdriver—thanks to the threaded inserts, no mounting nuts are required.
Q: Is this cartridge good for all music genres?
A: Absolutely. Its dynamic range and detailed reproduction suit everything from classical to rock and jazz.
Q: What is the recommended tracking force?
A: Use 2.0 grams for optimal performance, though it can operate within 1.8 – 2.2 grams.
Q: How does it compare to bonded stylus cartridges?
A: The nude stylus is lighter and more sensitive, resulting in less groove wear and higher fidelity playback.
Let me know if you'd like this adapted for a product sheet or comparison guide.
