Integra

DTM-7 Network Stereo Receiver

• 100 Watts per Channel at 8 Ohms, 20 Hz–20 kHz, 0.08 % THD, 2 Channels Driven, FTC
• 3 Digital Audio Inputs (2 Optical and 1 Coaxial)
• 3 Analog Audio Inputs (Excluding Phono Input)
• Phono Input (MM) for Turntable Connection
• Subwoofer Pre Out (x 2)
• Front USB Input (1 A / 5 V) for Audio Playback via USB Storage Devices
• Rear USB Input (500 mA / 1 V) to Power Media Streaming Dongles
• Gold-Plated Quarter-inch Headphone Jack
• Transparent High-Grade Banana Plug-Compatible Speaker Terminals
• High-Quality Gold-Plated RCA Terminals to Eliminate Surface Corrosion and Oxidation
• Anti-Resonant Aluminum Front Panel and Volume Control
• Independent Bass, Treble, and Balance Controls
• 3-Mode Display Dimmer (Normal / Dim / Dimmer)
• 40 FM / AM Random Presets
• Preset Station Naming (Up to 10 Characters)
• Sleep Timer, HDMI Passthrough, and Network Standby
• Full-Function RI Remote Control
• Wi-fi Built-In: Dual-band 5 GHz / 2.4 GHz Wi-Fi Certified Wireless LAN Capability

Next-Level Home Audio
Bask in the dynamic energy of music powered by Integra stereo amplification. Enjoy a wealth of next-generation audio options at your fingertips together with generous connectivity for your all your source components.

Hand Selected Parts Tuned for Audio
To ensure low-impedance and high-current performance, the DTM-6 employs fully discrete output stage circuitry, a massive high current power supply and two custom made 8,200 μF high current capacitors. 135 watts per channel (6 Ohms, 1 kHz, 1% THD, 1 Channel Driven, IEC) are packed into an anti-vibration oval chassis with an anti-resonant front panel, and the non-phase-shift amp design produces stunningly realistic sound imaging.

Works With Sonos
Once the receiver is connected to Sonos Connect, any music or source can be sent from the Sonos app to the receiver. The receiver can be grouped to other Sonos devices on the network or it can be used independently.

DTS Play-Fi
DTS Play-Fi is the most widely adopted Whole Home Audio Technology in the marketplace- it puts you in complete control of your Music and allows you to effortlessly stream from your smartphone, tablet, or PC to DTS Play-Fi speakers and devices throughout the home. Easy to set-up, easy to expand, and easy to enjoy- DTS Play-Fi and Integra- a smart solution.

Perfect for Custom Installation
Integra products are designed and engineered to meet the demands of custom installers. This receiver includes system integration connectivity such as RS232 and IP control with support for 2-way communication with home automation systems. IR inputs/output make for a clean, reliable installation and allow pass-through to control other connected devices.

Programmable 12 volt triggers can be used to control projection screens, external amplifiers and drapes all with the touch of a button. Optional rack mount kits provide a clean, finished look when installed in racks and cabinets. Integra works closely with control systems partners such as Savant, Crestron, URC, RTI, and Ihiji and supports Control4 SDDP and AMX Device Discovery for simplified system integration.

Hi-Resolution Audio Powerhouse
Hear your music library as never before. High-Resolution means studio quality sound recording to extract additional elements, nuances and details far beyond the capabilities of standard CD to virtually put you in the room with your favorite musician. Integra makes it incredibly easy to access and enjoy audio files mastered in high-resolution (up to 192kHz/24-bit) stored on a computer, media server, network-attached storage (NAS) or USB thumb drive with zero loss in audio quality. Virtually every hi-resolution and lossless format is supported- 2.8 or 5.6 MHz DSD, as well as gapless playback of FLAC, WAV, ALAC and WMA files. Premium quality 384 kHz/32-bit digital-to-analog converter from AKM features unique low-distortion technologies to further ensure effortless high-quality playback and excellent sound quality.

App Control
The Integra Control Pro app for iPod touch/iPhone, Android, and Kindle devices is a convenient way to control your home entertainment from anywhere within wireless range. The app has a clear graphical interface to control playback, adjust settings and handle content across multiple zones. The app serves hi-res, lossless, and compressed audio files (including 192 kHz/24-bit FLAC, DSD, Apple Lossless, Dolby TrueHD and more) to the receiver from your mobile devices, and gives it stunning sound.

Chromecast built-in and Voice Control
Chromecast built-in makes it super easy to stream music from your smartphone, tablet, Mac or Windows laptop, or Chromebook to the Integra DTM-6. Control playback, create party modes and connect with other Chromecast bulit-in devices by simply using your voice via Google Home or the Google Home App to share and control content throughout the home with ease.

Stream It Easy
Features Chromecast built-in for audio and Apple AirPlay 2 technologies built in. Stream virtually any audio from a smartphone, tablet or PC to your home theater for powerful sound.

With Amazon Music, Spotify, Deezer(Deezer HiFi) and TuneIn built-in, you can select a station and search for music available on these services via the Integra Control Product app & Integra Music Control app (for Amazon Music) on your smartphone or tablet. The free Integra Control Pro app puts a range of streaming options at your fingertips, from universal Hi-Res Audio via network-attached devices to internet streaming services to music on your smartphone and tablet.

Fluid Control Across Inputs and Zones

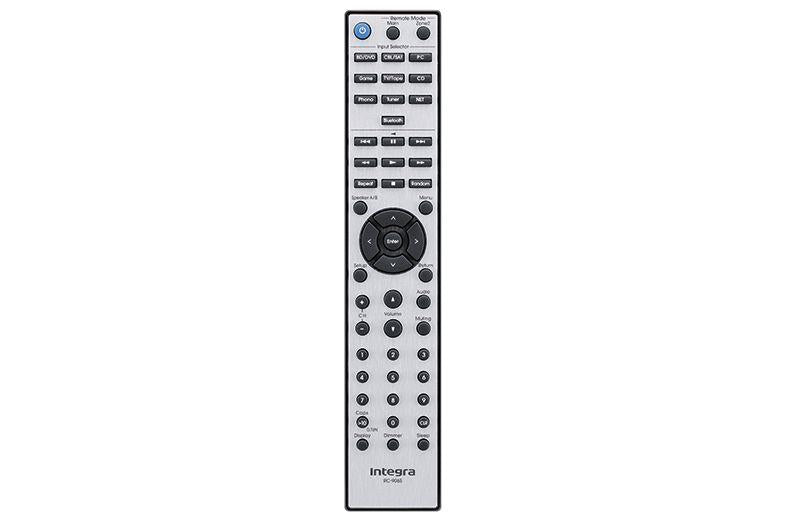

The full-function RI remote control allows for direct access tuning with 10 Key Buttons. Zone 2 options include Pre / Line-out for playback in another room; Zone 2 DAC for SPDIF, NET and USB sources, and a Zone 2 subwoofer pre-out and independent Zone 2 bass, treble, and balance control. Automatic power on/wake-up via optical audio sensing is a very unique feature and is “custom” friendly. This feature, combined with power on volume settings and maximum volume settings, make it easier to integrate 3rd party sources that are primarily app driven.

High-Quality Terminals
High-Quality Gold-Plated RCA Terminals to Eliminate Surface Corrosion and Oxidation.

Integra DTM-7 Specs

• Amplifier
  • Power Output: 100 W/Ch at 8 Ohms, 20 Hz–20 kHz, 0.08 % THD, 2 Channels Driven, FTC
  • Dynamic Power:
    • 240 W (3 Ohms, Front)
    • 210 W (4 Ohms, Front)
    • 120 W (8 Ohms, Front)
  • THD (Total Harmonic Distortion + Noise): 0.08% (20 Hz-20 kHz, Half Power)
  • Input Sensitivity and Impedance:
    • 200 mV / 47 k-Ohms (Line)
    • 3.5 mV / 47 k-Ohms (Phono MM)
  • Rated RCA Output Level and Impedance:
    • 1.0 V / 470 Ohms (Subwoofer Pre Out)
    • 200 mV / 2.3 k-Ohms (Zone Line Out)
  • Phono Overload: 70 mV (MM 1 kHz, 0.5%)
  • Frequency Response: 10 Hz – 100 kHz / +1 dB-3 dB (Direct Mode)
  • Tone Control:
  • ±10 dB, 90 Hz (Bass)
  • ±10 dB, 7.5 kHz (Treble)
• Signal-to-Noise Ratio:
  • 106 dB (Line, IHF-A)
  • 80 dB (Phono MM, IHF-A)
• Speaker Impedance: 4 Ω – 16 Ω
• Headphone Output Impedance: 330 Ω
• Headphone Rated Output: 80 mW (32 Ω 1 kHz 10 % THD)
• Tuner
  • Tuning Frequency Range:
    • FM 87.5 MHz – 107.9 MHz
    • AM 530 kHz – 1,710 kHz
  • FM / AM Preset Memory: 40 Stations

• General
  • Power Supply: AC 120 V, 60 Hz
  • Power Consumption: 260 W
  • Stand-by Power Consumption: 0.1 W
  • No-Sound Power Consumption: 35 W
  • Network Standby Power Consumption: 2.6 W
  • Dimensions (W X H X D): 17-1/8" x 5-7/8" x 12- 15/16" (435 x 149.5 x 328 mm)
  • Weight: 18.7 lbs.
  • CARTON:
    • Dimensions (W X H X D): 21-13/16" x 9-1/2" x 15-13/16" (554 x 242 x 401 mm)
    • Weight: 23.1 Lbs.
