Electrocompaniet AW250R Stereo Power Amplifier

The Electrocompaniet AW250R power amplifier is renowned for its neutral and highly accurate sound reproduction, captivating listeners from the first note of any familiar recording. With its ability to deliver unmatched musical enjoyment, the AW250R sets a high standard in audio performance.

This amplifier features Electrocompaniet's advanced FTT (Floating Transformer Technology) power supply, providing twice the current of conventional designs, along with an expertly crafted circuit and state-of-the-art components. Despite outperforming many pricier high-end amplifiers, the AW250R remains an exceptional value. It includes a balanced link for bi-amping and can be used in bridged mode, delivering up to four times the power.

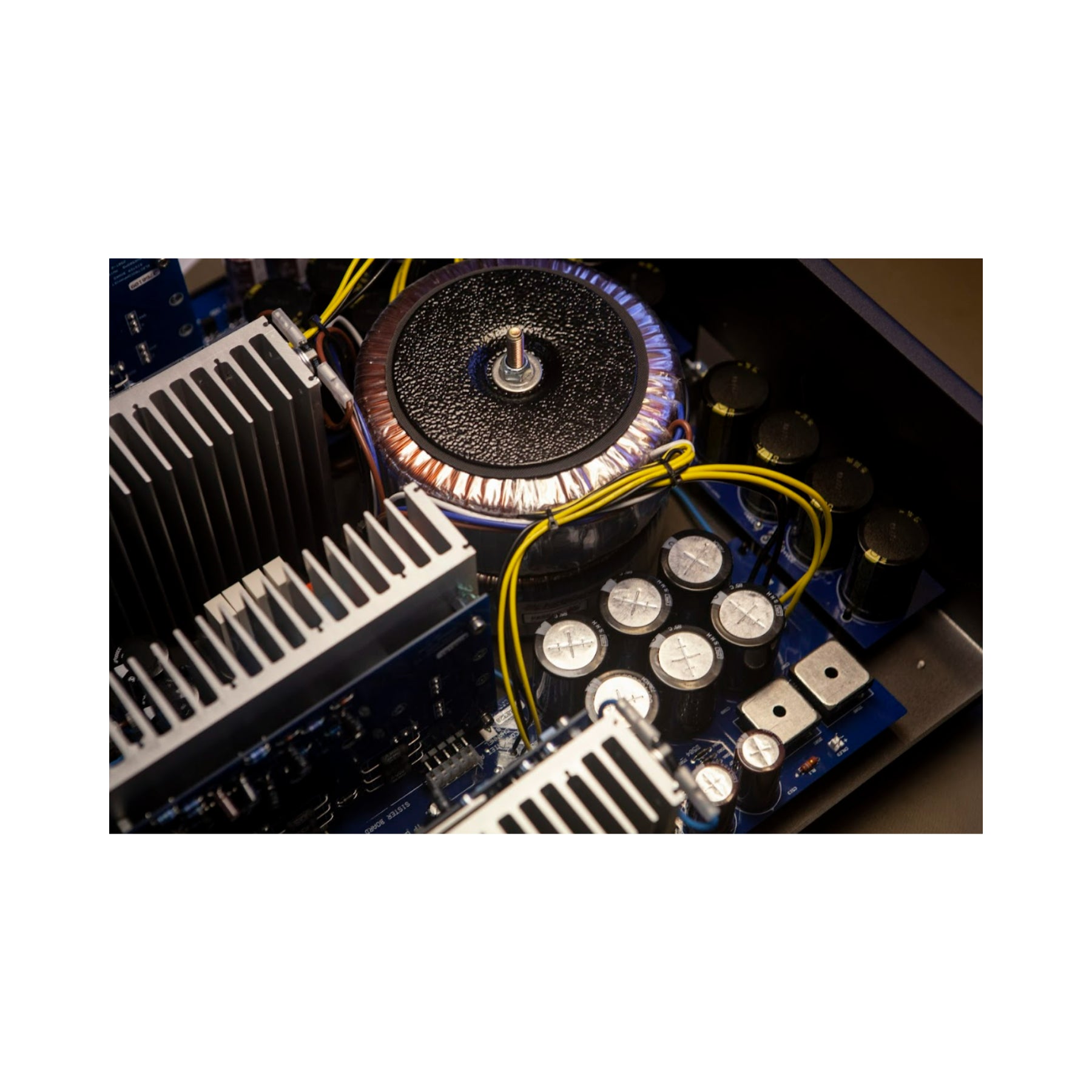

Floating Transformer Technology

An advanced circuit design paired with premium components ensures superior performance.

Premium Quality – 100% Made in Norway

Each AW250R is fully produced at our state-of-the-art Norwegian facilities, from the design and assembly to the manufacturing of every part and component, ensuring the highest level of quality control.

Specifications

• All measurements: 120V / 240V // 50Hz / 60Hz

Amplifier Section

• Output Impedance (20 Hz - 20 kHz): < 0.008 ohm
• XLR (balanced) Input Impedance: 110 kΩ
• Input Sensitivity for Rated Output: 1 V
• Max. Peak Current: > 100 A
• THD (1 kHz, half power, 8Ω): < 0.001%
• THD (1 kHz, -1 dB, 8Ω): < 0.001%
• Noise (with inputs shorted):
  • 400 Hz - 30 kHz: 90 µV
  • 10 Hz - 30 kHz: 100 µV

Rated Output Power

• 8Ω load: 2 x 250 W
• 4Ω load: 2 x 380 W
• 2Ω load: 1 x 625 W
• 1Ω load: 1 x 1100 W

Power Consumption (no load or signal)

• 230 W

Weight & Dimensions

• Weight: 39 kg / 85.8 lbs
• Width: 483 mm / 19 inches
• Depth: 450 mm / 17 inches
• Height: 210 mm / 8.2 inches
