Product Description

Line Circle
The Electrocompaniet ECI 80D is a versatile integrated amplifier that delivers 2 x 80 watts of dynamic power through its advanced Class A/B design. It features a built-in RIAA preamplifier for vinyl enthusiasts, along with HD Bluetooth streaming capabilities for easy connection to your devices. With a sleek design and robust functionality, the ECI 80D offers an exceptional audio experience for both headphones and speakers.
Get the Details

Features & Specs Line Circle

OUTPUT POWER
8 ohms: 2x80W, 4 ohms: 2x150W
FREQUENCY RESPONSE
1 – 150kHz
PHONO SUPPORT
Moving Magnet
DIGITAL & STREAMING INPUT
Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit
DIMENSIONS (WxHxD)
18.5" x 3.5" x 10.3"
WEIGHT
17.6lbs
OUTPUT POWER
8 ohms: 2x80W, 4 ohms: 2x150W
FREQUENCY RESPONSE
1 – 150kHz
PHONO SUPPORT
Moving Magnet
DIGITAL & STREAMING INPUT
Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit
DIMENSIONS (WxHxD)
18.5" x 3.5" x 10.3"
WEIGHT
17.6lbs

Expert Insight

Line Circle

The Electrocompaniet ECI 80D is a game-changing integrated amplifier that seamlessly combines powerful 2 x 80 watts of Class A/B performance with advanced features like a built-in phono preamplifier and HD Bluetooth streaming, delivering an unparalleled audio experience for music lovers.

Expert Img
Dylan Crane
Brand Manager

Details

Line Circle

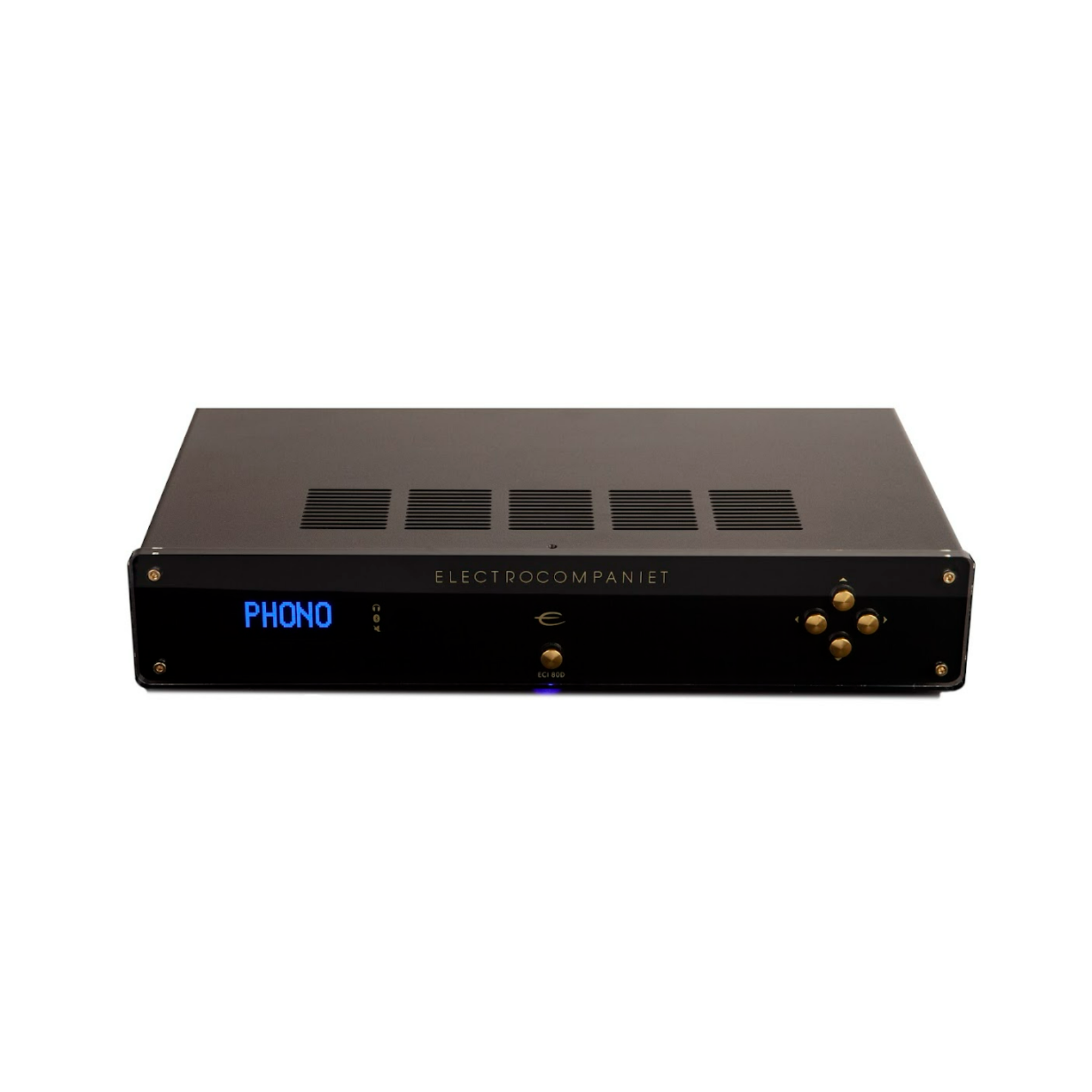

Electrocompaniet ECI 80D Integrated Amplifier

The ECI 80D is our brand new integrated amplifier, offering 2 x 80 watts into 8 ohms through an in-house developed Class A/B amplifier. It includes a built-in RIAA pre-amplifier for LP players (with MM cartridge support), 2-way HD Bluetooth streaming for both playback from your devices and streaming to high-end headphones, as well as a 5-input DAC with 3 Toslink and 2 COAX inputs.

Works with Turntable

The built-in phono preamplifier with MM cartridge support allows you to connect your LP player directly to the ECI 80D and enjoy your vinyl collection.

Headphones-Out

The ECI 80D features a built-in double headphones amplifier, allowing two sets of wired headphones to be used simultaneously for personal listening.

HD Bluetooth Streaming

The ECI 80D supports HD Bluetooth streaming from your phone, tablet, PC, or MAC, and also enables streaming to HD wireless Bluetooth headphones.

Take Control

The ECI 80D comes with a remote control, enabling you to adjust all functions easily from the comfort of your seat.

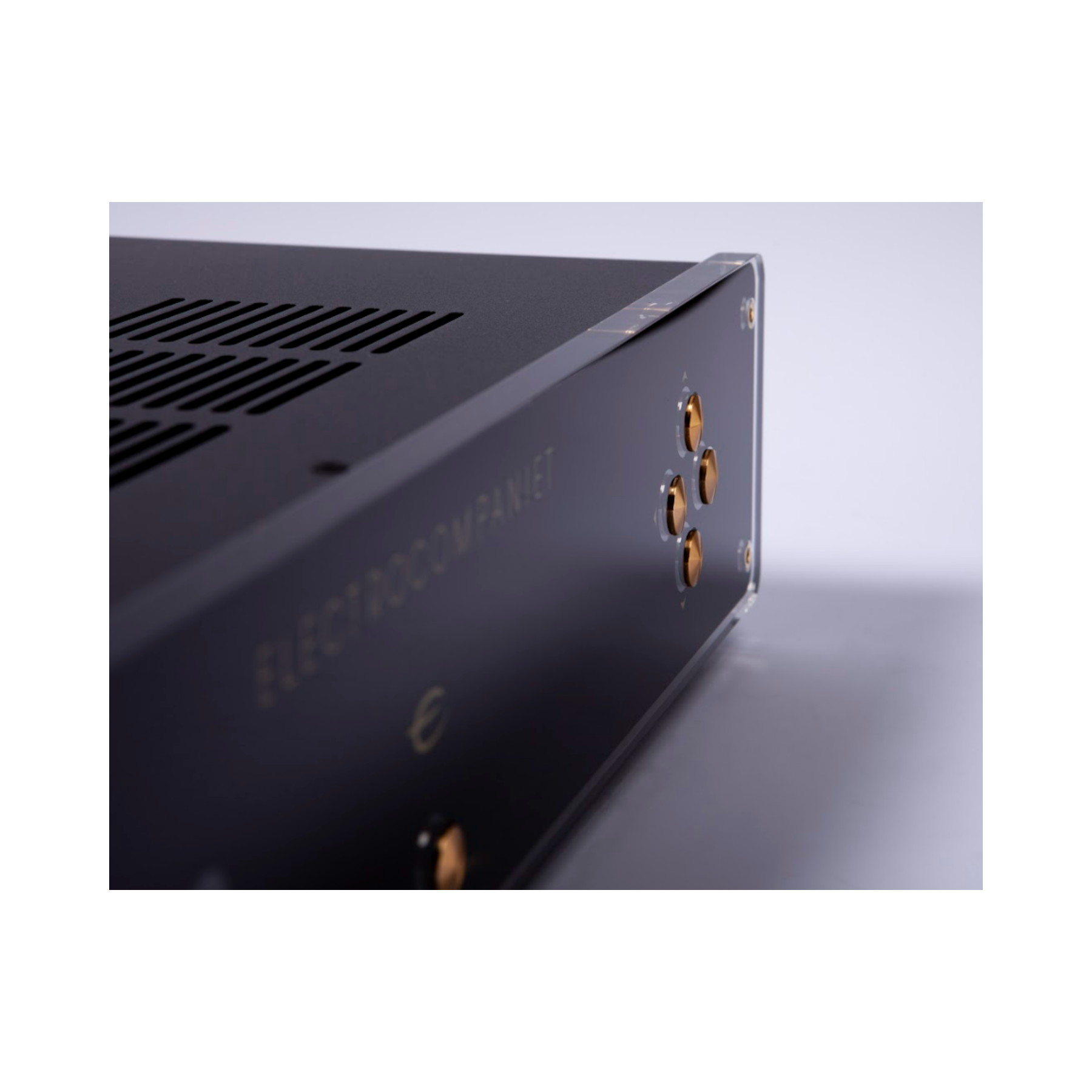

Attractive Form-Factor

This powerful and dynamic integrated amplifier offers an elegant form factor, capable of driving a wide range of speakers available on the market.

Specifications

Preamplifier

  • Input impedance: 75 kOhms
  • Noise floor: < -130dB
  • THD+N: < 0.002%
  • Frequency response (-3dB): 1 – 150 kHz
  • Volume adjustment range: -110dB to +15 dB

Output Amplifier

  • THD+N: < 0.005%
  • Output power (into 8 Ohms): 2 x 80W
  • Output power (into 4 Ohms): 2 x 150W
  • Damping factor (8 Ohms load): > 300
  • Frequency response (-3dB): 1 – 150kHz
  • SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB
  • Gain: 25 dB
  • Protection: DC, overload, temperature

RIAA Phono

  • Pickup support: Moving Magnet
  • Gain: 40 dB @ 1kHz
  • Input impedance: 47 kOhms || 100pF
  • RIAA correction accuracy: +/-0.1dB, 25-20kHz
  • Subsonic filter: -3 dB @ 14 Hz
  • THD: < 0.001%
  • SNR: 83 dB (A-weighted)
  • Overload margin: 30dB @ 1kHz

Headphone Amplifier

  • THD+N: < 0.001%
  • Load impedance (single output in use): > 16 Ohms
  • Load impedance (both outputs in use): > 32 Ohms
  • Max output power (into 16 Ohms load): 0.4W
  • Max output voltage swing: +/-8V peak
  • Output impedance: 10 Ohms
  • Protection: DC, overload

Digital & Streaming

  • Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit
  • Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit
  • Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD

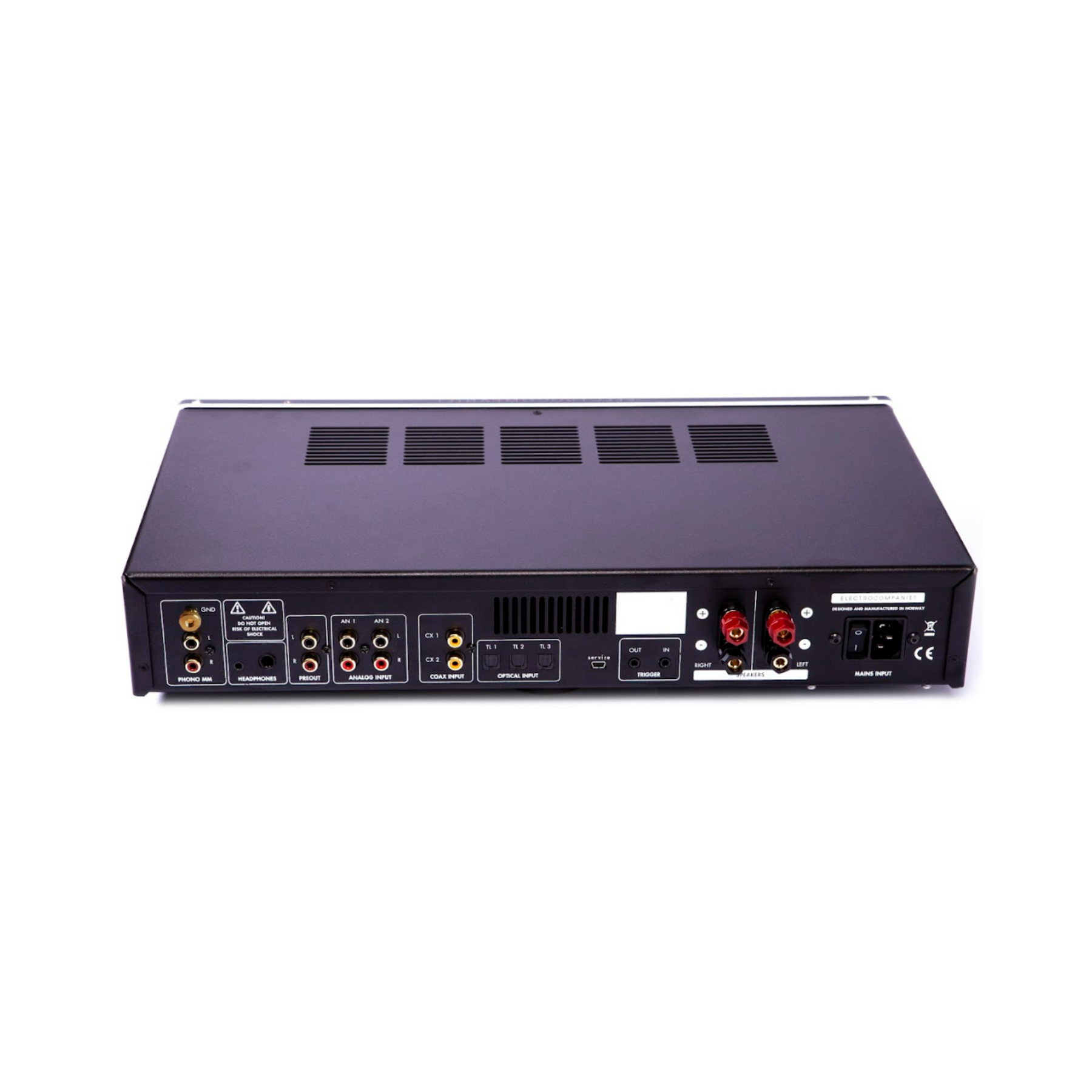

Connectivity

  • Digital inputs: 2 coaxial, 3 optical
  • Analog inputs: 2 RCA
  • Analog preamplifier output: 1 RCA
  • Service port: 1 USB
  • 12V trigger: 1 input, 1 output
  • Phono MM: 1 RCA
  • Headphone outputs: 3.5mm jack + 6.35mm jack
  • Speaker outputs: 1 pair binding posts

Weight & Dimensions

  • Weight: 8 kg – 17.6 lbs
  • Width: 470 mm – 18.5 inches
  • Depth: 262 mm – 10.3 inches
  • Height: 90 mm – 3.5 inches

Voltage & Power Consumption

  • Mains input voltage: 100-240VAC, 50/60Hz, 3A
  • Idle (no load or signal): 30 W
  • Standby: < 0.5 W
  • OFF (main switch OFF): 0 W

ECI 80D Owner's Manual
