iFi Audio Studio Pro iDSD Studio – Flagship Reference-Class Audio Interface & Controller

Experience studio-grade sound with the Pro iDSD Studio by iFi Audio, the pinnacle of audio fidelity and professional-grade control. This high-performance digital-to-analog converter, monitor controller, and headphone amplifier offers uncompromising quality for audio professionals who demand the very best. Engineered for precision, versatility, and sonic purity, it supports top-tier digital formats and integrates seamlessly into any high-end studio setup. Whether you're mixing, mastering, or simply enjoying high-resolution audio, the Pro iDSD Studio ensures an ultra-clean, dynamic, and immersive experience.

Key Features List

• Reference-Grade Audio Resolution: Delivers ultra-high fidelity with PCM 32-bit/768kHz, DSD512, 2xDXD, and full MQA decoding to meet the highest standards in professional audio.
• Quad-Core Burr Brown DAC Array: Custom interleaved design utilizes eight differential signals for exceptional detail, clarity, and channel separation.
• Advanced Clocking with Low Jitter: Global Master Timing system eliminates jitter, with support for external atomic clock input for ultimate precision.
• Studio-Quality Analog Staging: Switchable input stages (solid-state J-FET or tube-based) and Class-A MOSFET power output ensure accurate and flexible monitoring.
• Powerful and Versatile Headphone Outputs: Multiple headphone connections with selectable gain provide robust drive and compatibility for all headphone types.
• Comprehensive Network and Streaming Support: Built-in Wi-Fi, Ethernet, and memory playback allow access to streaming platforms and local media with ease.

Specifications

• Audio Format Support: PCM 32-bit/768kHz, DSD512, 2xDXD, full MQA decoding
• DAC Configuration: Quad-core Burr Brown in interleaved differential configuration
• Clocking System: Global Master Timing clock with optional external atomic clock input

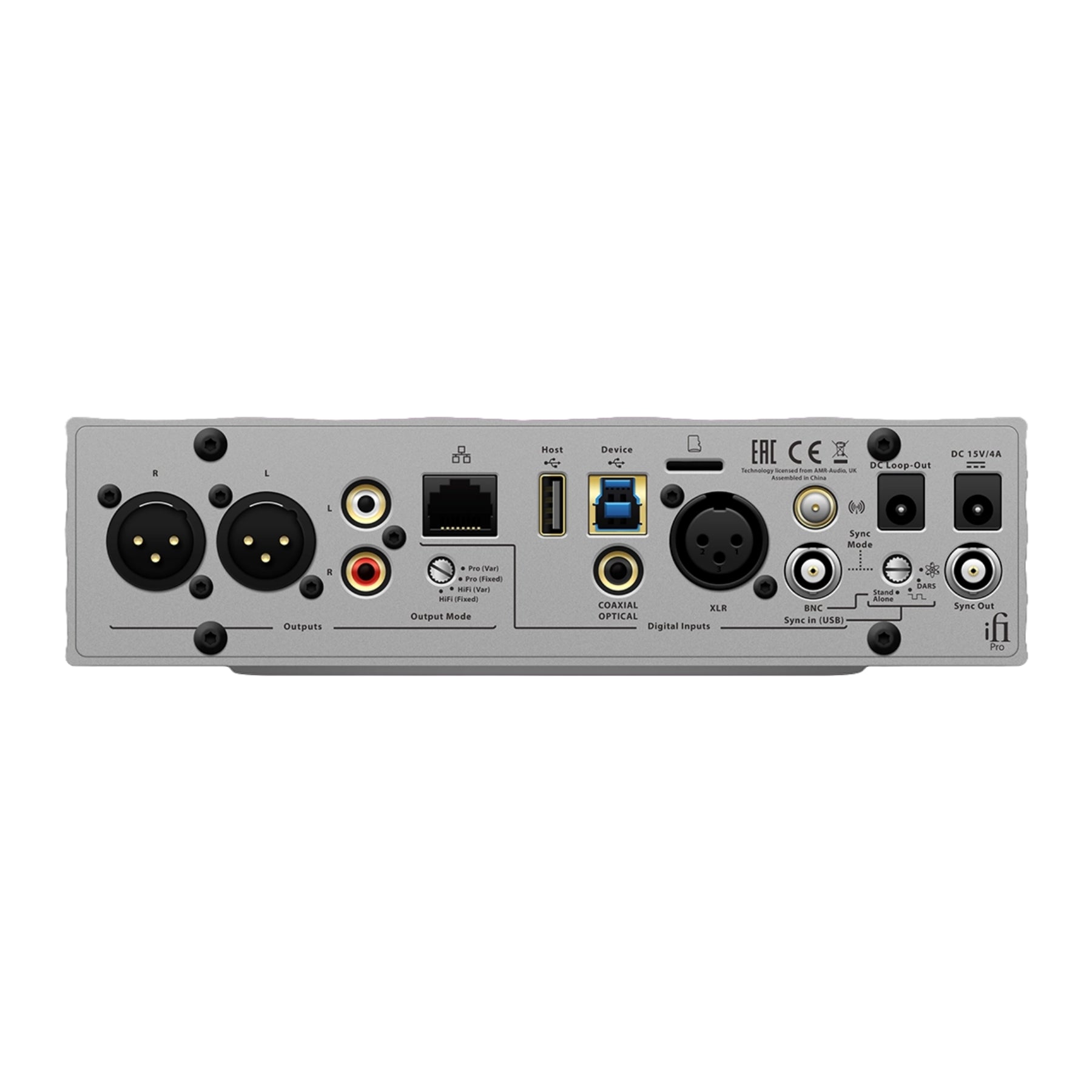

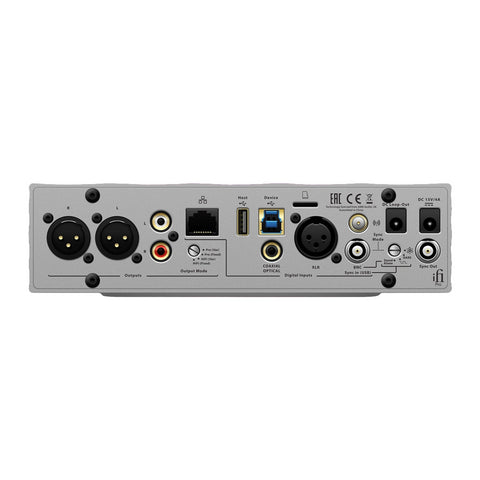

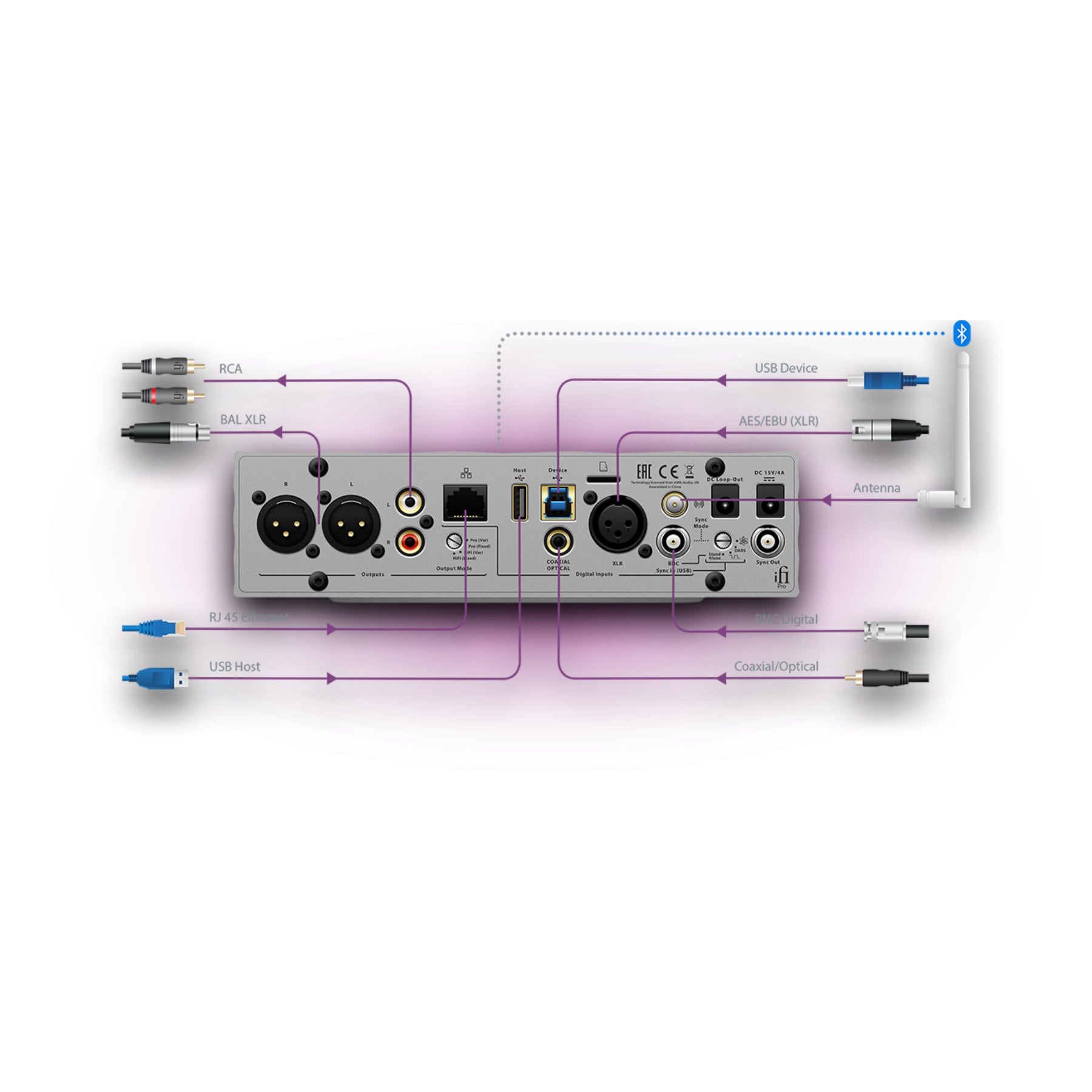

• Digital Inputs: USB, AES/EBU, S/PDIF, Ethernet, Wi-Fi, Micro SD
• Analog Output Stages: Switchable J-FET or tube (2 x GE5670) Class-A input; MOSFET-buffered bipolar Class-A power stage
• Headphone Outputs: Balanced 4.4mm, S-balanced 3.5mm, single-ended 6.3mm
• Power Output: 4200mW headphone drive
• Dynamic Range: >119 dB
• Isolation: Fully galvanically isolated inputs including USB
• Streaming Support: DLNA, Airdrop, Airplay, USB memory, HDD, SD card
• Studio Sync: AES3id-based DARS (AES11 compliant)

Q&A Section

Q: What audio formats does the Pro iDSD Studio support?
A: It supports up to 32-bit/768kHz PCM, DSD512, 2xDXD, and full MQA decoding for maximum fidelity.

Q: Can I use it as a standalone streamer?
A: Yes, it supports DLNA, AirPlay, Airdrop, and playback from USB or SD cards without needing a computer.

Q: What are the headphone output options?
A: Balanced 4.4mm, S-balanced 3.5mm, and 6.3mm single-ended outputs are available with selectable gain levels.

Q: Is this suitable for professional mastering?
A: Absolutely. With high-precision clocking, ultra-low distortion, and studio-grade analog stages, it’s ideal for mastering.

Q: Can it be used with external clocks?
A: Yes, it supports external clocks including high-end atomic models like Sanford Research PERF10.

Q: Are the inputs isolated?
A: Yes, all digital inputs are galvanically isolated, including the USB with dedicated power management.

Q: Does it include a tube stage?
A: Yes, you can switch between a solid-state J-FET and a tube-based Class A stage using two GE5670 tubes.

Q: Is the unit compatible with Mac and Windows?
A: Yes, it works with both Mac and Windows systems and supports a wide range of audio applications.
