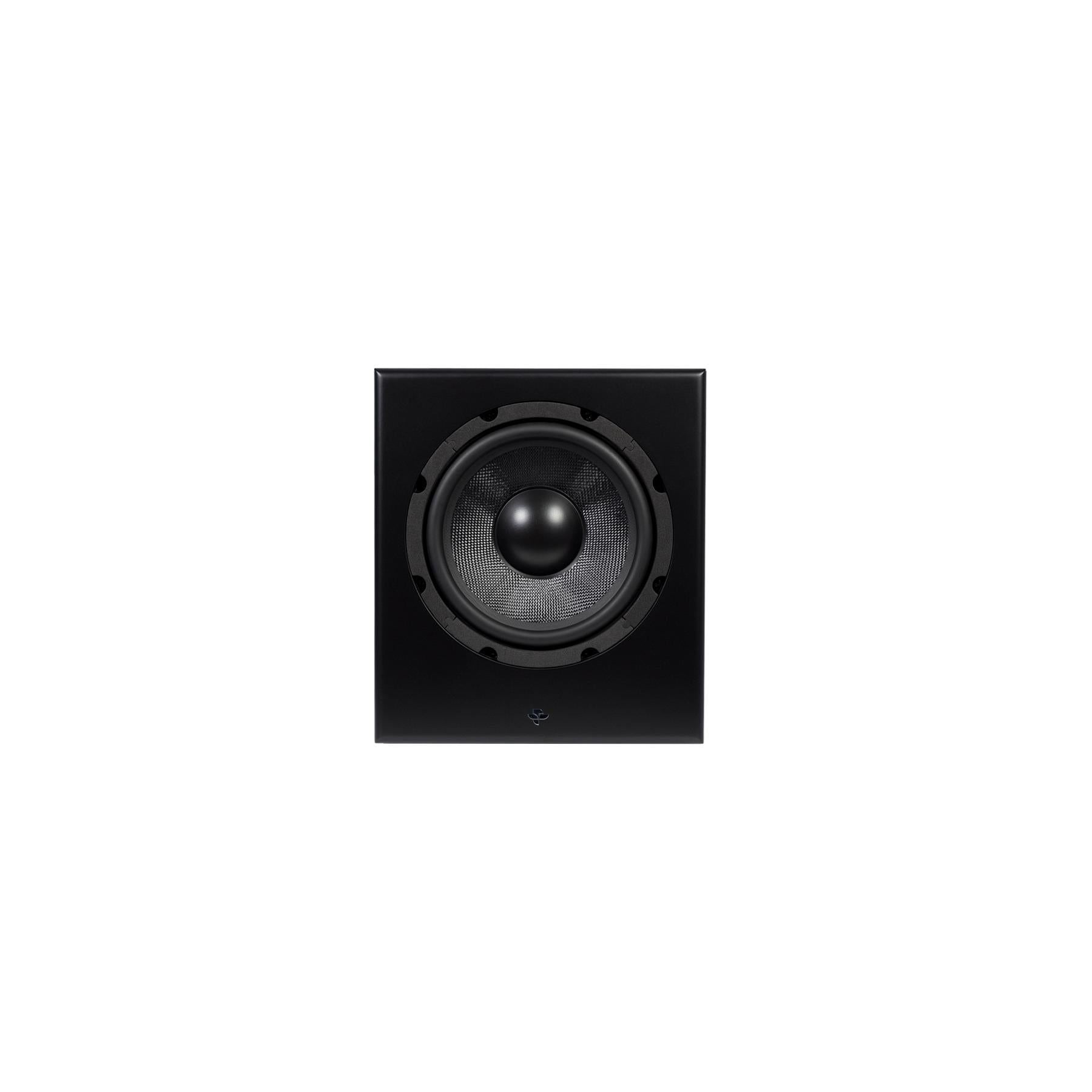

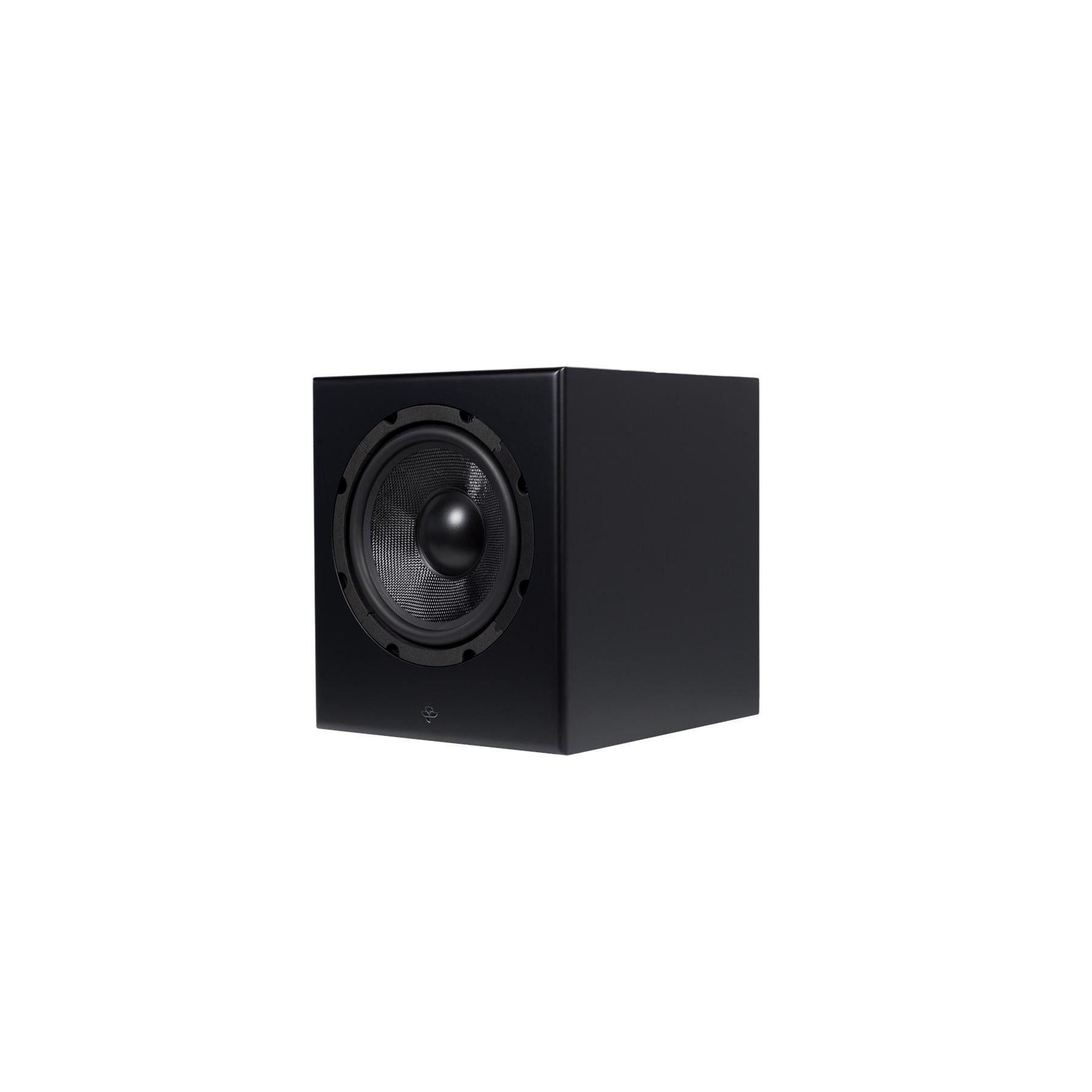

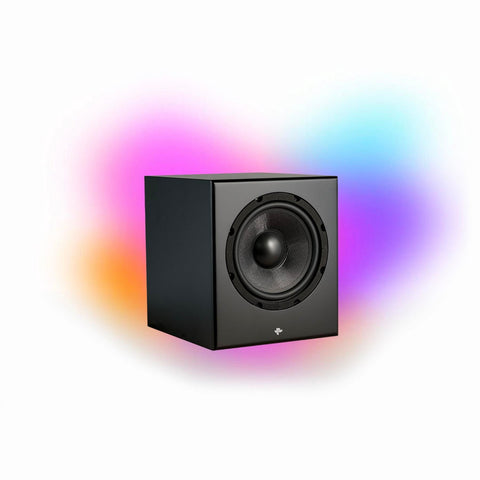

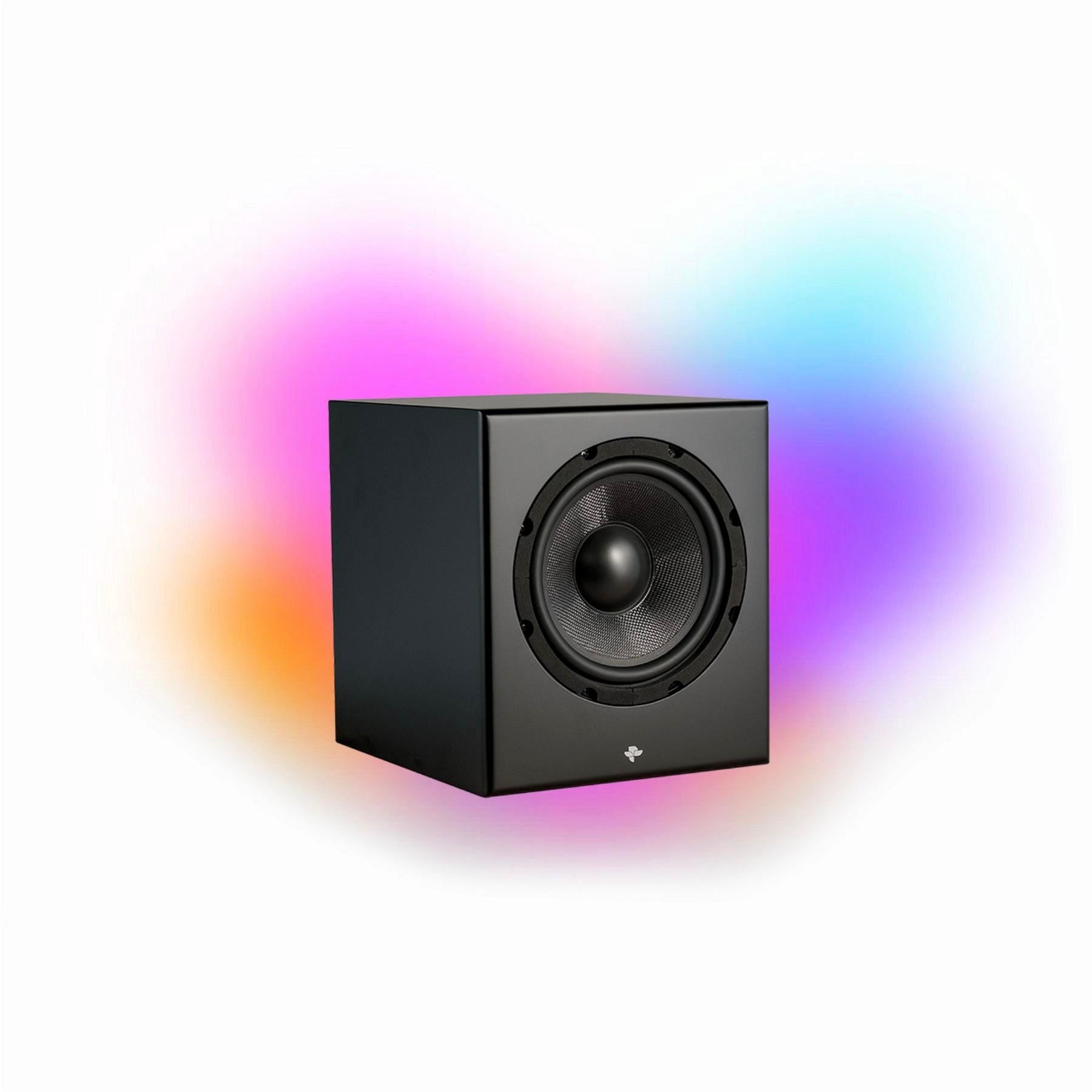

Totem KIN Sub 8 Powered Subwoofer
The Totem KIN Sub 8 offers powerful bass in a compact package. Its 8″ reinforced fiberglass cone and 200 W Class‑D amplifier are housed in a slotted enclosure that enhances efficiency and extension, producing bass down to 29 Hz. Adjustable volume, crossover (40–120 Hz) and phase (0–180°) controls ensure seamless integration with your speakers.
A vented magnetic structure with an oversized ferrite magnet and high‑temperature enamel‑coated voice coil deliver clean, controlled performance. Stereo RCA and LFE inputs provide compatibility with most receivers, while the compact dimensions and satin finishes make placement easy. Magnetic grille, power cord and adhesive feet are included.
What It's Good At
-
8″ reinforced driver: A reinforced fiberglass cone with butyl rubber surround and enamel‑coated voice coil delivers punchy, accurate bass.
-
200 W Class‑D amplifier: Provides ample power and control for bass down to 29 Hz while remaining efficient and cool.
-
Adjustable volume & crossover: Fine‑tune output with variable volume, 40–120 Hz crossover and 0–180° phase control.
-
Slotted enclosure design: Enhances efficiency and low‑frequency extension while keeping cabinet size compact.
-
Compact & stylish: Small footprint fits in tight spaces and comes in satin black or white with magnetic grille.
-

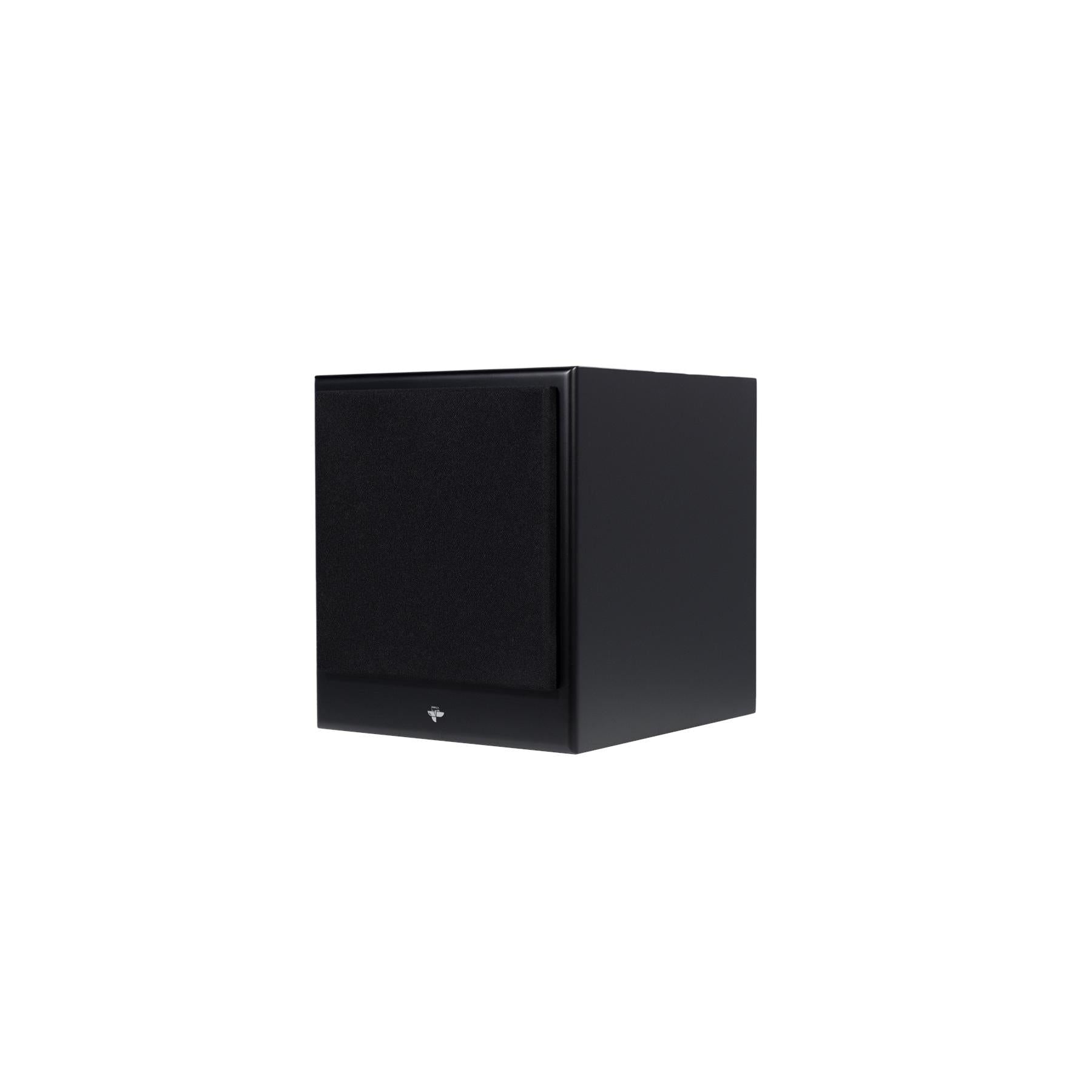

Included accessories: Magnetic grille, power cord and adhesive feet make setup quick and secure.
Totem KIN Sub 8inch Powered Subwoofer Full Specifications:
-
Design: Powered subwoofer with slotted enclosure
-
Amplifier: Class‑D 200 W
-
Driver: 8″ reinforced fiberglass cone with butyl rubber surround
-
Voice Coil: High‑temperature enamel resin‑coated copper wire
-
Frequency Response: 29 Hz – 200 Hz
-
Crossover: Variable 40–120 Hz (24 dB/octave)
-
Phase Control: Variable 0°–180°
-

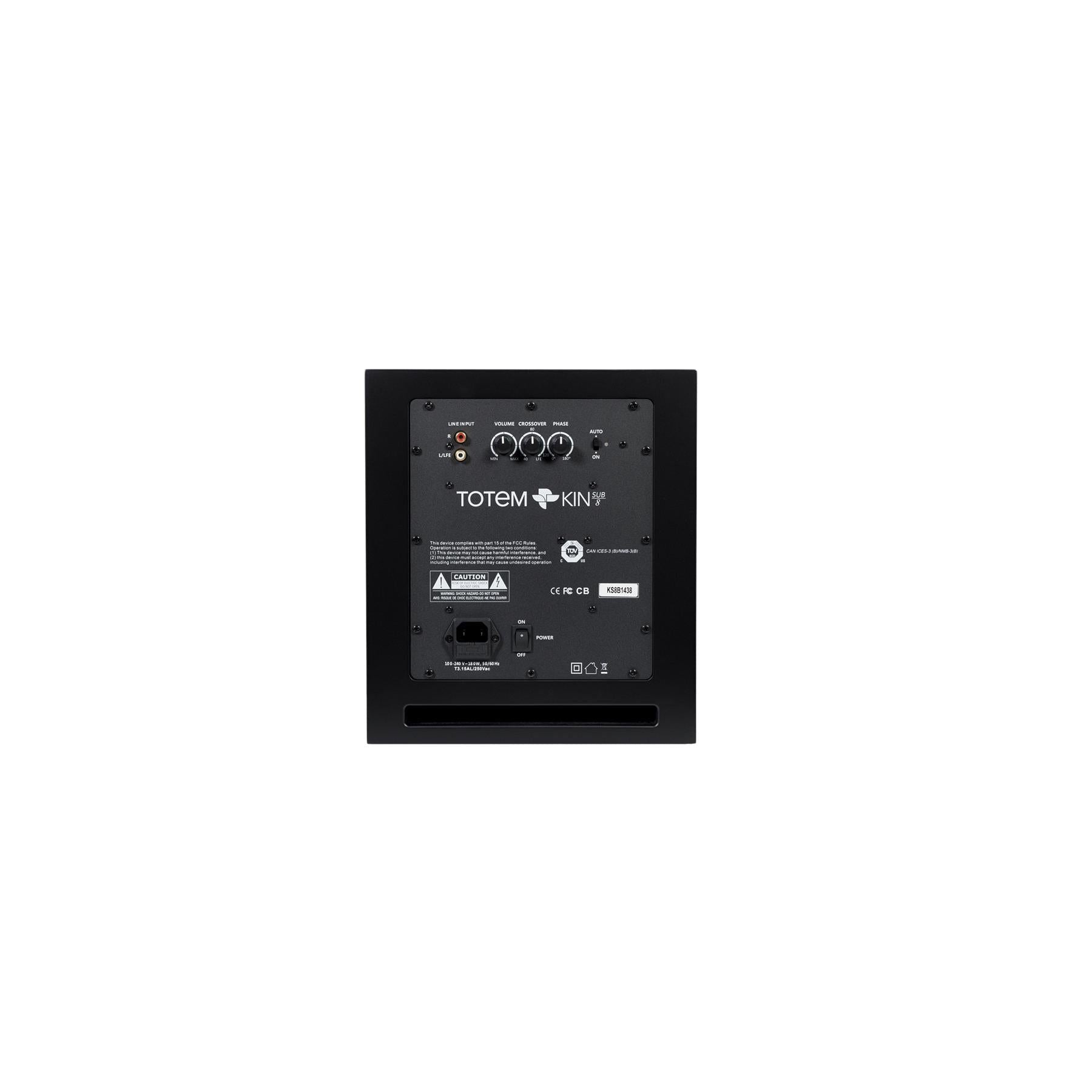

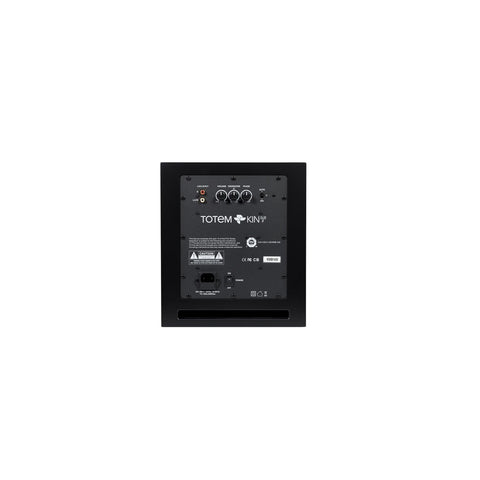

Inputs: Stereo RCA / LFE
-
Power Modes: Auto / On
-
Dimensions (H × W × D): 11.6 × 10.44 × 11.5 inches (285 × 265 × 292 mm)
-
Weight: 16.4 lb (7.43 kg)
-
Included Accessories: Magnetic grille, power cord, adhesive feet
-
Finishes: Satin black (UPC 744142530611) or satin white (744142530628)
Totem KIN Sub 8inch Powered Subwoofer Q&A:
- Q: How does the Sub 8 differ from the Sub 10?
- A: The Sub 8 is more compact and uses an 8″ driver with a 200 W amplifier, making it ideal for smaller rooms while still reaching down to 29 Hz. The Sub 10 uses a 10″ driver and 300 W amplifier for deeper output.
- Q: What controls are available?
- A: You can adjust volume, crossover frequency (40–120 Hz) and phase (0–180°) to integrate the subwoofer perfectly with your speakers.
- Q: What inputs does it have?
- A: Stereo RCA and LFE inputs make the Sub 8 compatible with most receivers and amplifiers.
- Q: Does it support wireless connectivity?
- A: Wireless connectivity is not built in. For wireless operation you can use the KIN Link transmitter.
- Q: How big is the enclosure?
- A: The cabinet measures roughly 11.6 × 10.44 × 11.5 inches, allowing placement under desks, beside couches or in tight spaces.
- Q: What finishes are available?
- A: Satin black and satin white finishes are offered, both with a magnetic grille for a clean look.
- Q: What accessories are included?
- A: A magnetic grille, power cord and adhesive feet for secure placement are included.
Totem KIN Sub 8inch Powered Subwoofer Downloads:
Totem KIN Sub 8 Powered Subwoofer – 200W 8″ - User Manual
Totem KIN Sub 8 Powered Subwoofer – 200W 8″ - Specifications Sheet
