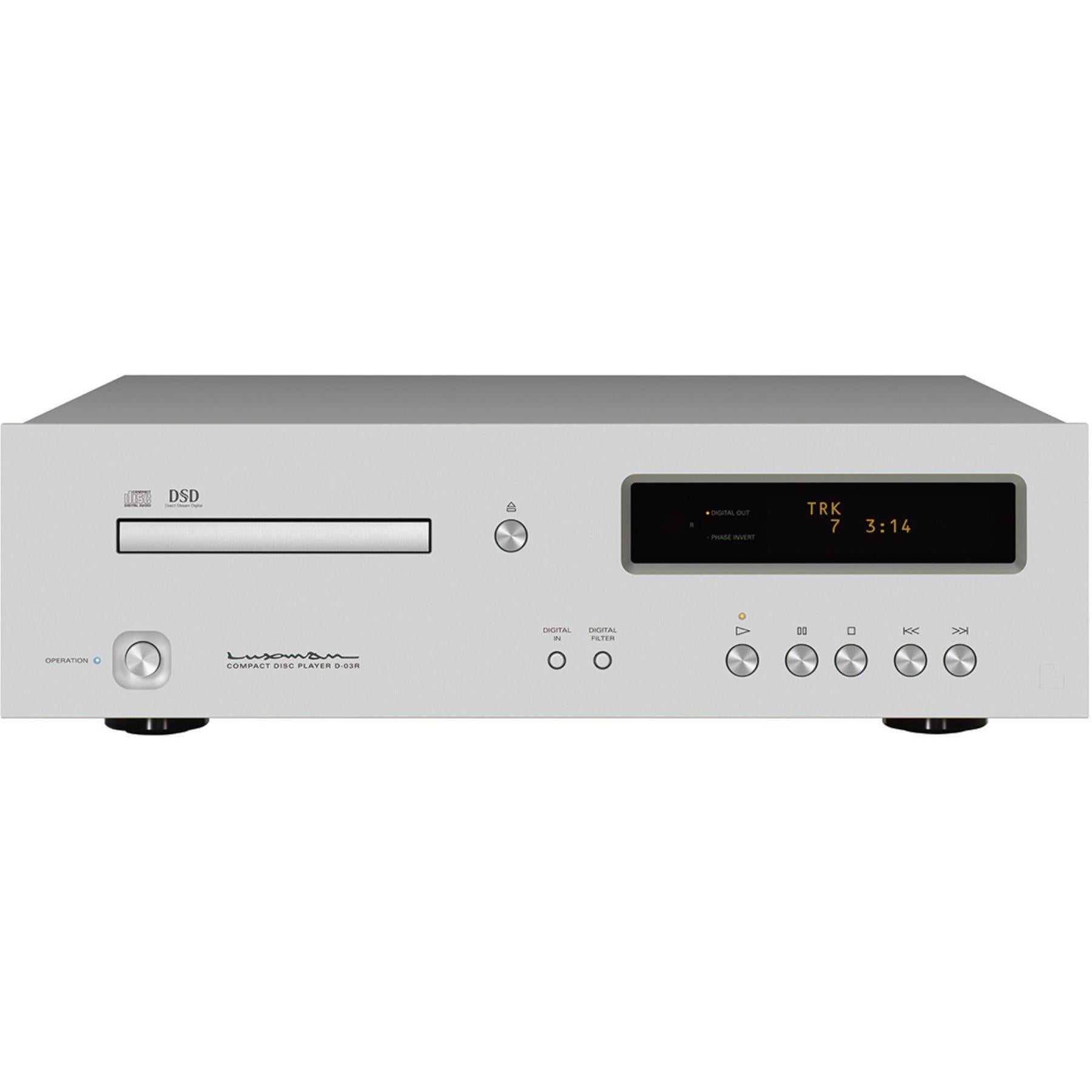

LUXMAN D-03R Compact Disc Player / USB DAC

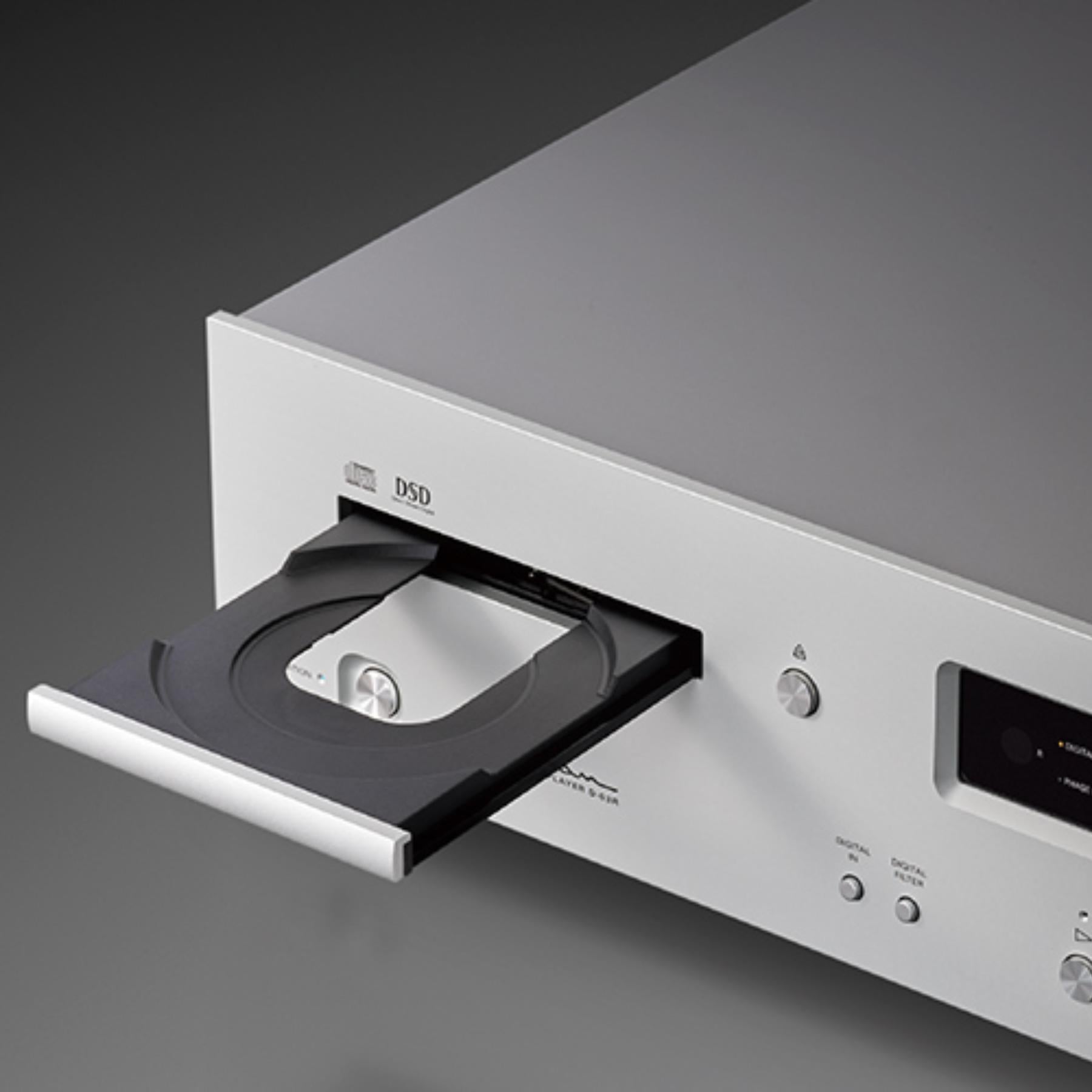

The LUXMAN D-03R is a modern “standard” CD player built for listeners who want to keep enjoying a treasured CD library while unlocking today’s high-resolution digital playback. Designed as both a dedicated compact disc player and a high-performance stand-alone D/A converter, it combines a purpose-built single-laser CD transport with advanced digital processing and a meticulously engineered analog output stage for a clean, authoritative, deeply musical presentation.
At the heart of the D-03R are dual ROHM BD34352EKV DAC chips configured in dual-mono mode, paired with user-selectable digital filters so you can fine-tune the character of your system. Low-jitter circuitry is applied per input, supported by an ultra-low-phase-noise master clock to preserve timing, layering, and image stability.

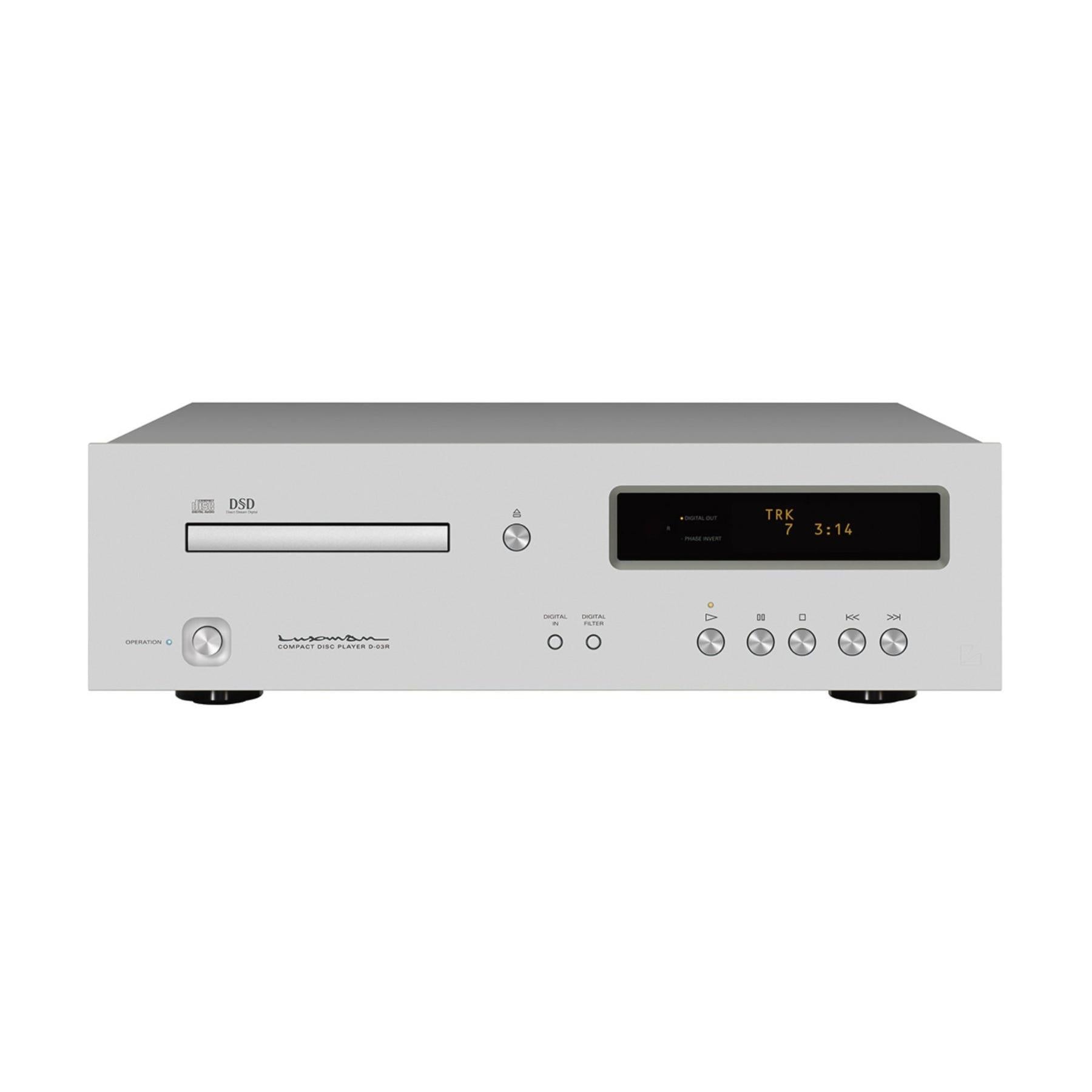

Connectivity is equally flexible. Use the USB input for computer audio or a digital transport, with support up to PCM 384 kHz/32-bit and DSD up to 22.5 MHz, or bring in legacy digital sources through coaxial/optical S/PDIF up to 192 kHz/24-bit (plus DoP support). Full MQA decoding is included for MQA-CD and MQA files—with a bypass mode when you prefer standard playback. Finished with LUXMAN’s elegant blasted-white front panel, a large high-resolution OLED display, and a premium aluminum remote, the D-03R is built to be a lasting centerpiece for serious two-channel listening.
The LUXMAN D-03R is part of ListenUp's LUXMAN CD Players Collection.
What It's Good At:
- Elevating standard CDs with high-resolution conversion, low noise, and excellent timing accuracy
- Delivering premium USB DAC performance for hi-res PCM and ultra-high-rate DSD playback
- Supporting MQA-CD and MQA file playback with full decoding, plus an optional MQA bypass mode

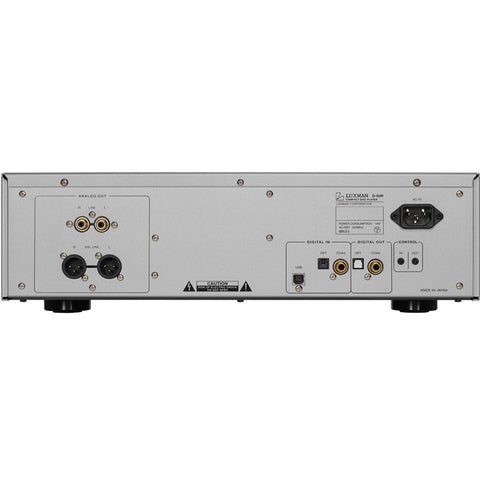

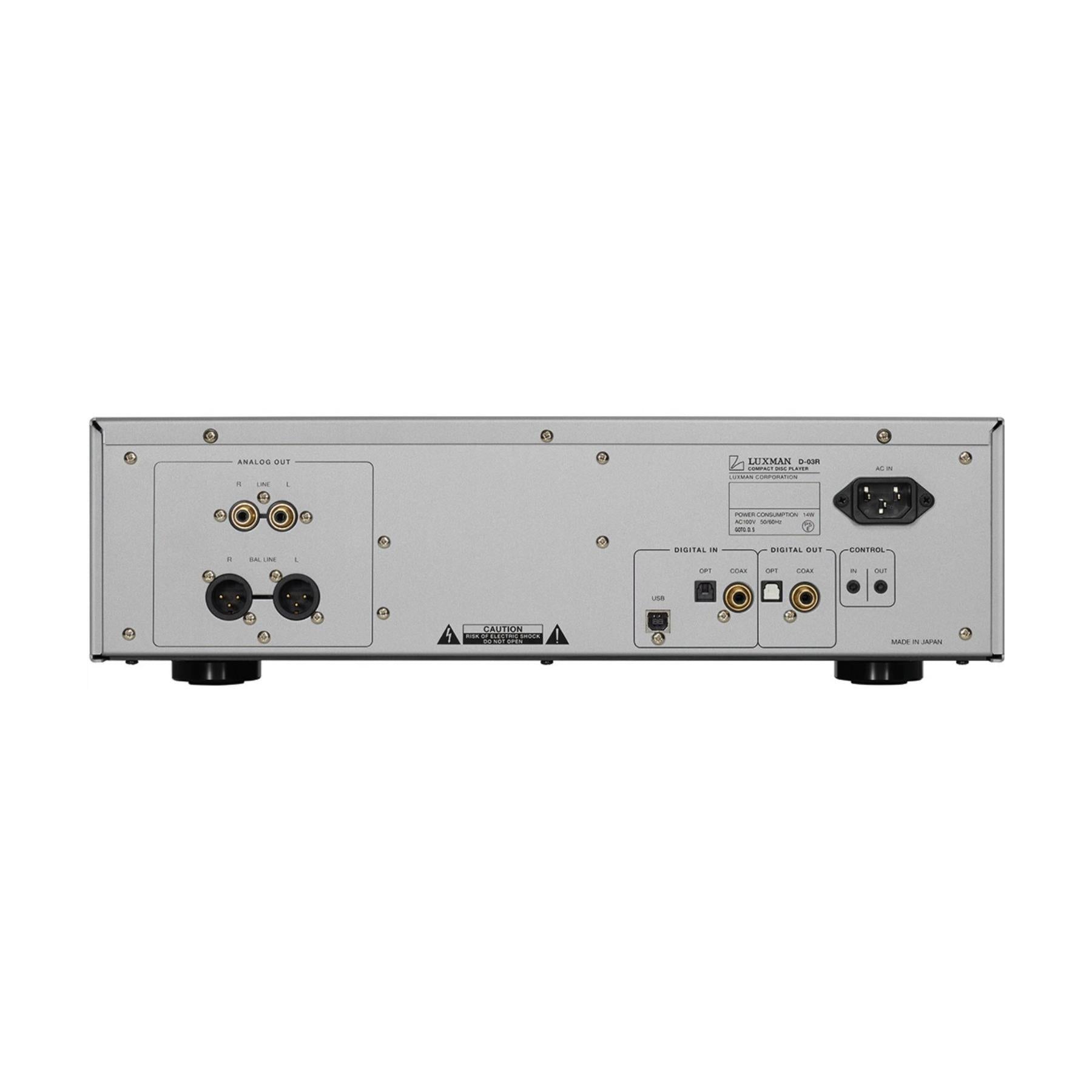

- Driving any preamp or integrated amp cleanly via both gold-plated RCA and Neutrik balanced XLR outputs
- Minimizing jitter and preserving musical nuance with per-input low-jitter design and an ultra-low-phase-noise master clock
- Offering long-term usability with a clear high-resolution OLED display, dimming/zoom options, and a full-function aluminum remote
LUXMAN D-03R Full Specifications:
-
Product type: Compact Disc Player / D/A Converter
-
Supported discs: CD, MQA-CD
-
D/A converter: ROHM BD34352EKV (monaural mode) × 2 (dual-mono)
-
Supported sampling frequencies — USB input (PCM): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz (16/24/32-bit)
-
Supported sampling frequencies — USB input (DSD): 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.5 MHz (1-bit)
-
Supported sampling frequencies — Coaxial/Optical input: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16/20/24-bit), 2.8 MHz (DoP)
-
Analog output voltage / impedance: Unbalanced: 2.4 V / 300 Ω; Balanced: 2.4 V / 600 Ω
-
Frequency response: CD: 5 Hz to 20 kHz (+0, −1.0 dB); COAX / OPT: 5 Hz to 47 kHz (+0, −3.0 dB); USB: 5 Hz to 47 kHz (+0, −3.0 dB)
-
Total harmonic distortion: CD: 0.002%; COAX / OPT: 0.001%; USB: 0.001%
-
S/N ratio (IHF-A): CD: 110 dB; COAX / OPT: 118 dB; USB: 118 dB
-
Power supply: 230 V (50 Hz) / 115 V (60 Hz)
-
Power consumption: 16 W
-
Dimensions: 440 (W) × 133 (H) × 410 (D) mm
-
Depth note: Front-side knob (2 mm) and rear-side terminal (8 mm) are included in depth
-
Net weight: 13.2 kg
-

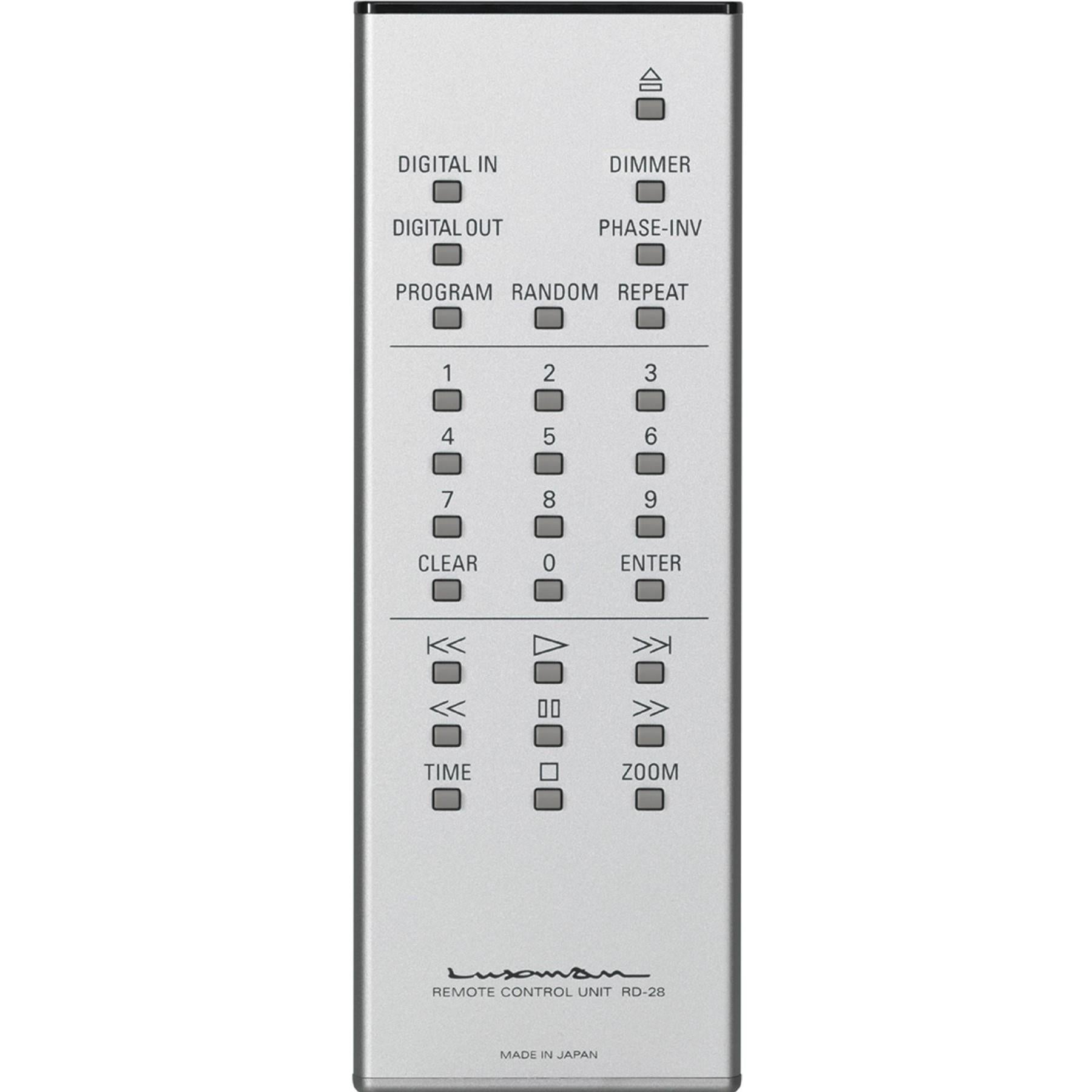

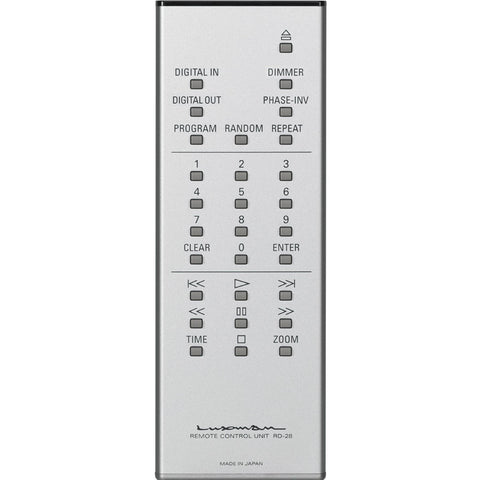

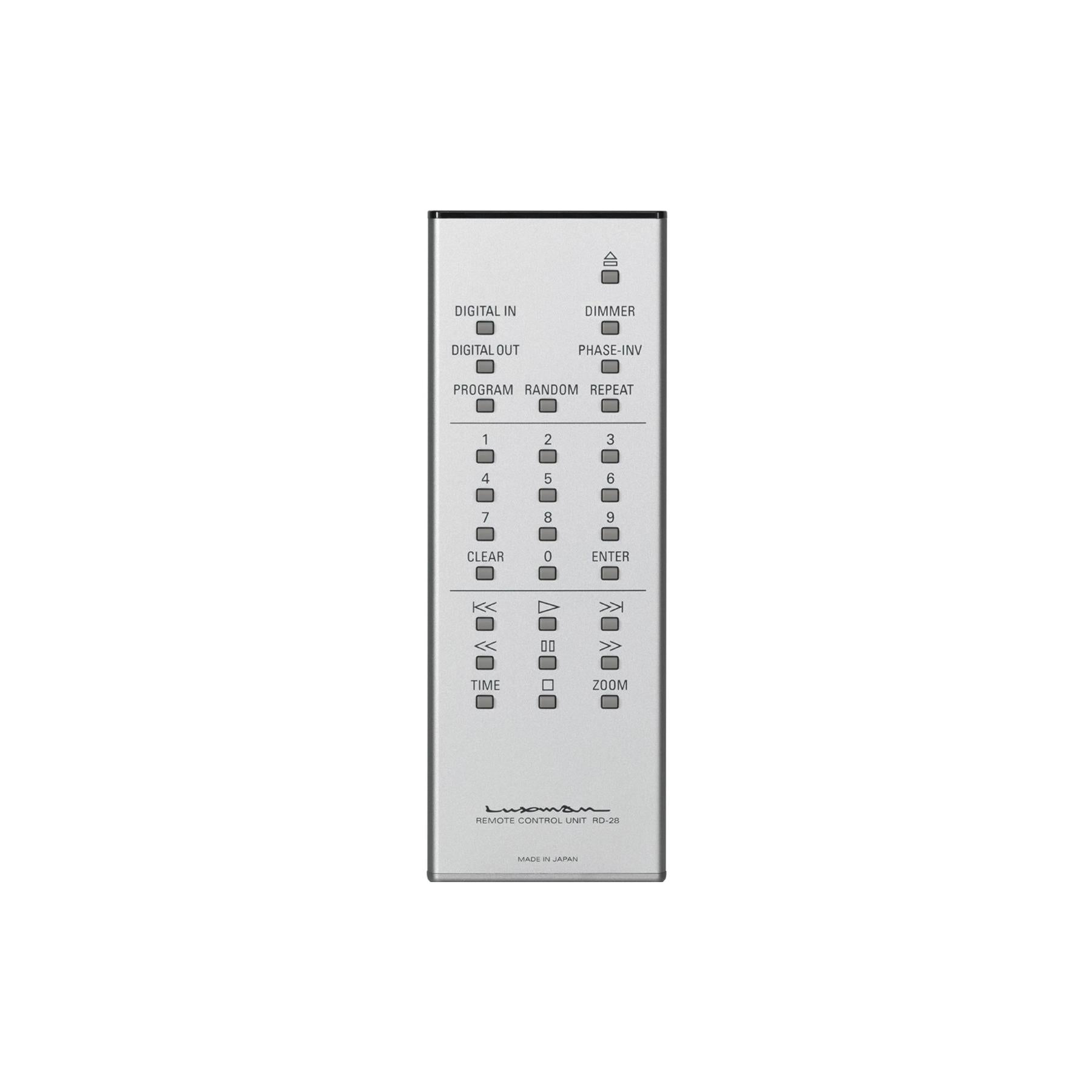

Accessories: Remote control (RD-28), Power cable
-
Control terminals: 3.5 mm remote control in/out × 1
LUXMAN D-03R Q&A:
- Is the LUXMAN D-03R only a CD player, or can it work as an external DAC?
- It works as both—a dedicated CD player and a stand-alone D/A converter. You can connect digital sources via USB, coaxial, or optical inputs and use the D-03R as your system’s main DAC.
- What disc formats can the D-03R play?
- The D-03R supports standard CDs and MQA-CD discs for MQA playback compatibility.
- Does it support high-resolution audio over USB?
- Yes. Over USB it supports PCM up to 384 kHz/32-bit and DSD up to 22.5 MHz (1-bit), making it ideal for hi-res libraries and compatible digital transports.
- What are the coaxial/optical digital input limits?
- The coaxial and optical inputs support PCM up to 192 kHz/24-bit, and also support 2.8 MHz DoP (DSD over PCM) for compatible sources.
- Can I choose different sound filters or playback modes?
- Yes. The D-03R includes user-selectable digital filters, and it also offers an MQA bypass mode when you prefer playback without MQA decoding.
- Does the D-03R have balanced outputs for high-end systems?
- Yes. It includes high-grade balanced XLR outputs (Neutrik) as well as gold-plated RCA outputs, giving you flexibility for a wide range of amplifiers and preamps.
- How easy is it to read from across the room?
- The large high-resolution OLED display includes a zoom mode, multiple dimmer levels, and automatic brightness adjustment for comfortable viewing in different lighting.
- What’s included in the box?
- The D-03R includes the RD-28 remote control and a power cable, so you can integrate it and start listening right away.
