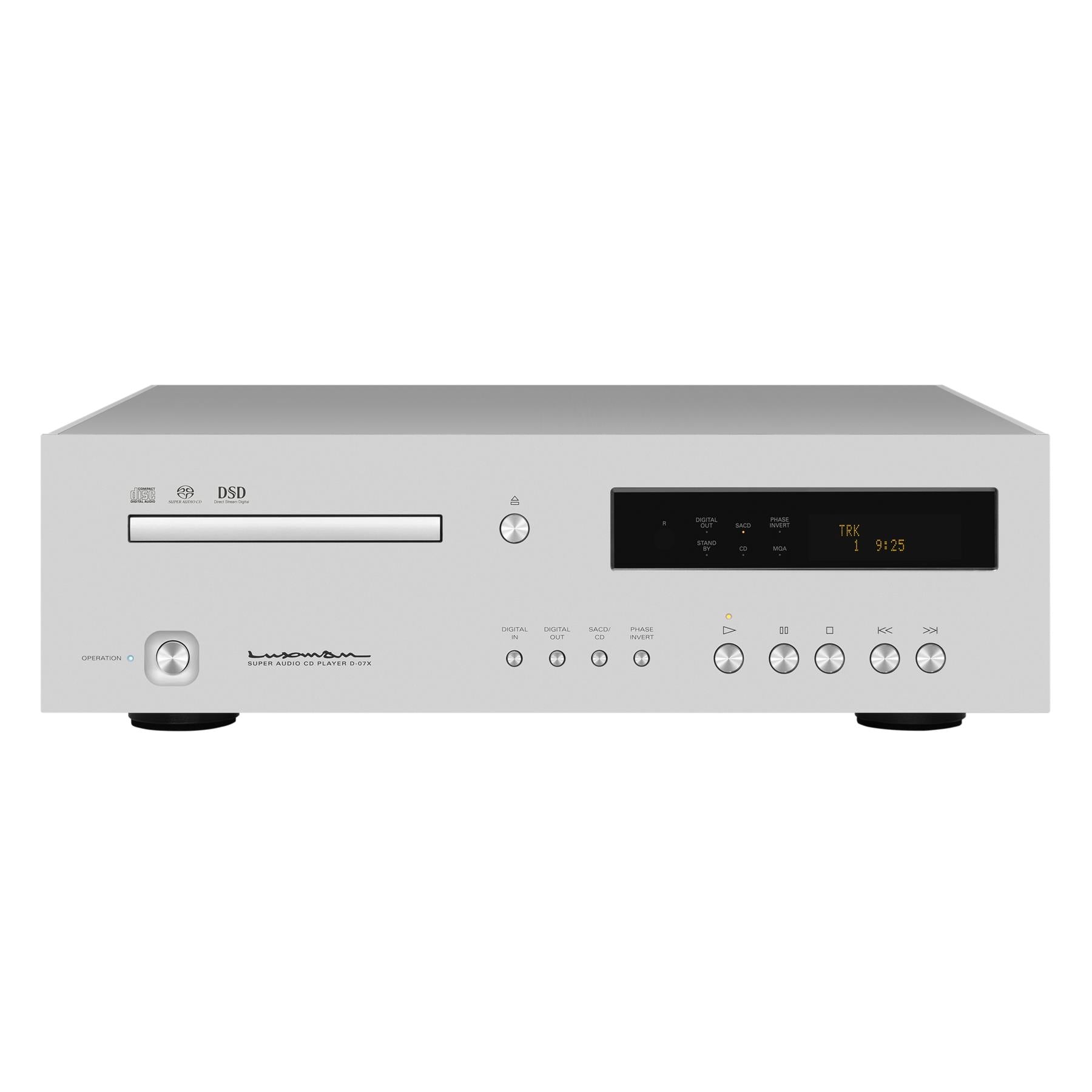

LUXMAN D-07X CD/SACD Player
- Multi-Format Playback: Supports CD, SACD, and High-Resolution Audio files for exceptional versatility and fidelity.
- Advanced USB Connectivity: Play audio directly from PC, Mac, or NAS with support for up to PCM 768kHz/32-bit and DSD 22.4MHz formats.
- MQA & MQA-CD Support: Delivers studio-quality playback of Master Quality Authenticated recordings.
- Precision Clocking System: Dual high-precision, low-jitter, ultra-low phase noise modules minimize distortion and timing errors for crystal-clear audio.
- Selectable Analog FIR Filter: Choose your preferred sound signature when playing SACD or DSD content.

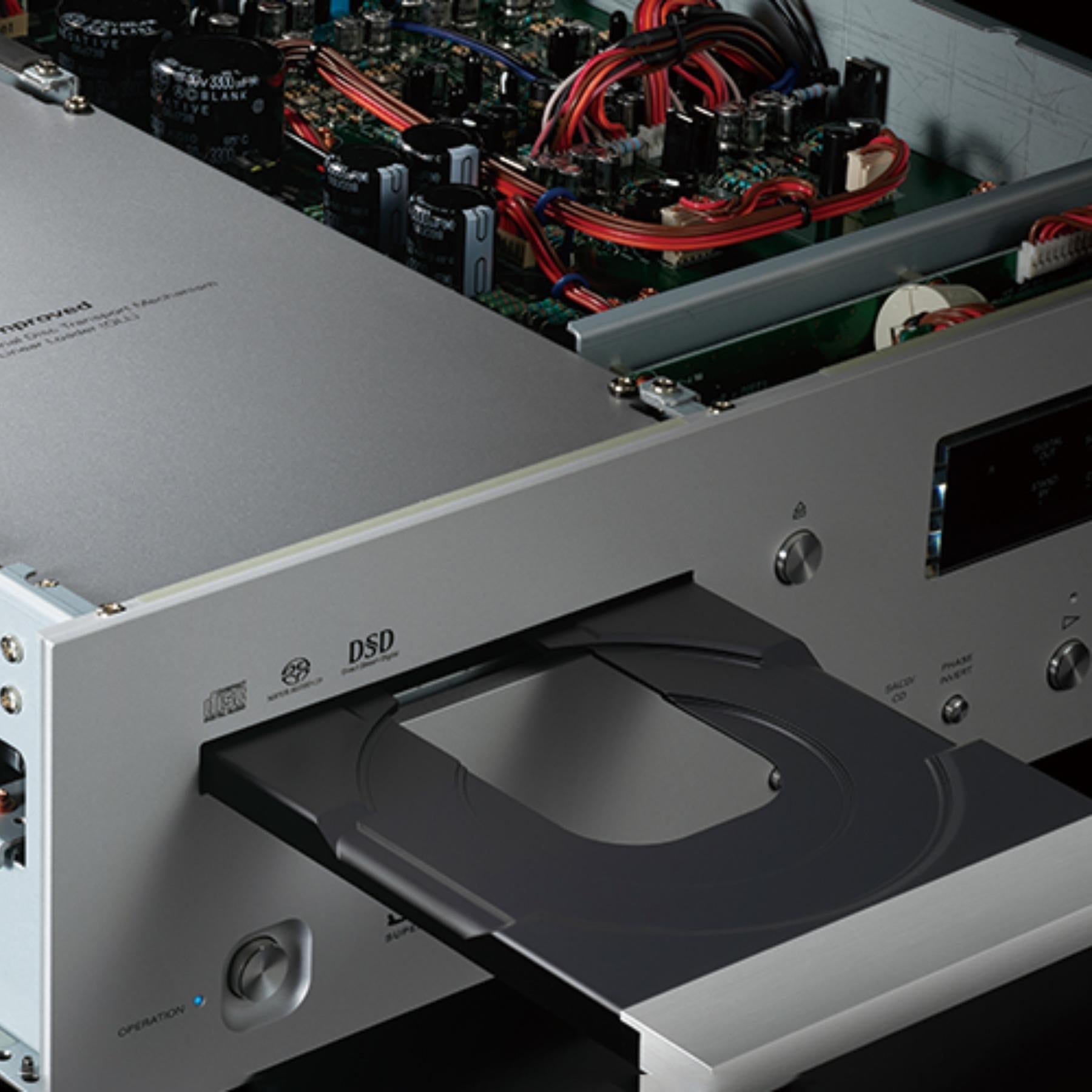

- Luxman LxDTM-i Drive Mechanism: Proprietary, enhanced Disc Transport Mechanism with a die-cast aluminum tray to reduce vibration and resonance.
- Dual BD34301EKV DAC chips operating in monaural mode for ultra-precise conversion.
- High-quality buffer circuitry and discrete amplifier modules ensure low impedance and pure analog output.

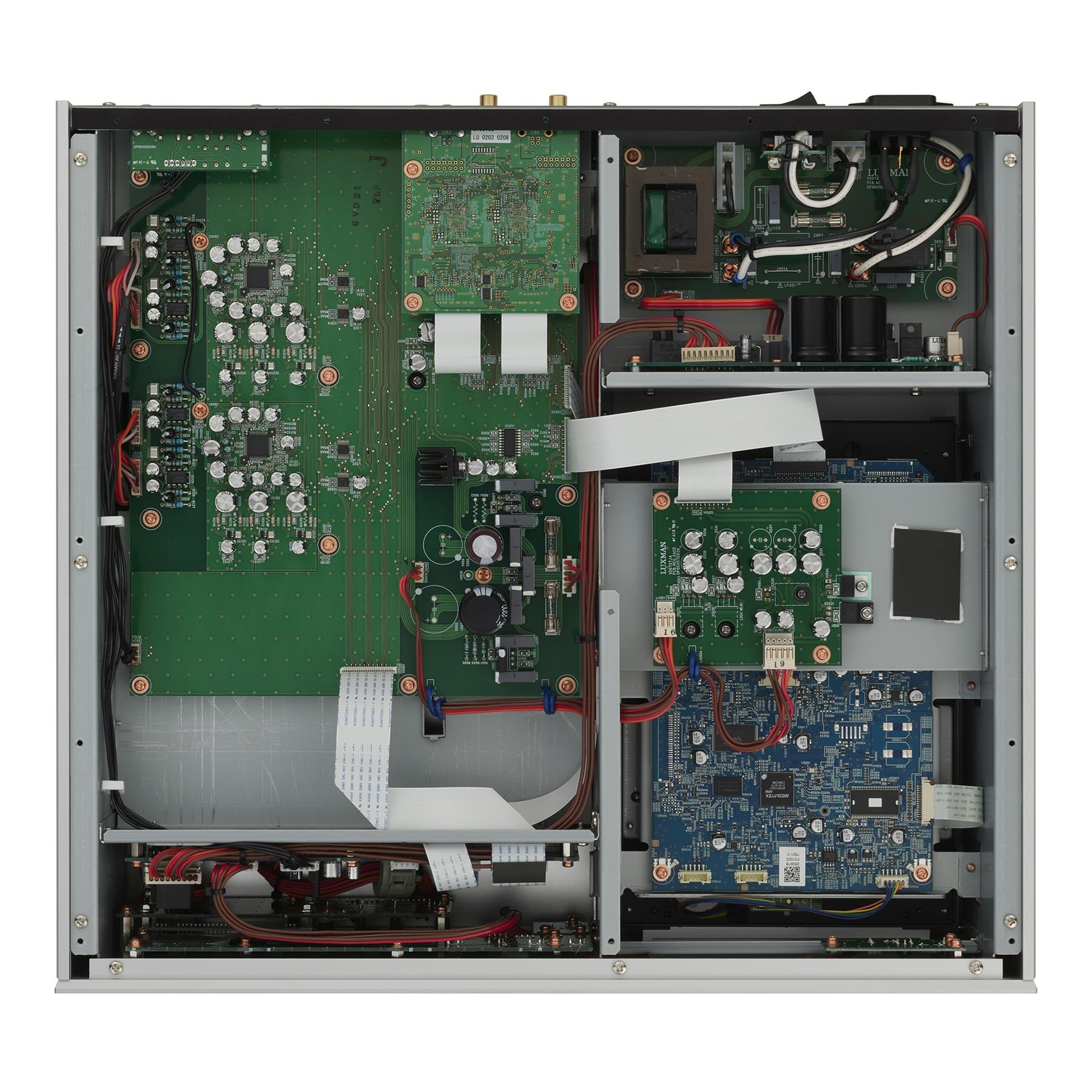

- Stable Power Supply Design: Large-capacity filter capacitors and independent regulator blocks provide rock-solid voltage stability.
- Shielded Chassis Construction: Effectively isolates internal signal paths from electrical interference and digital noise.

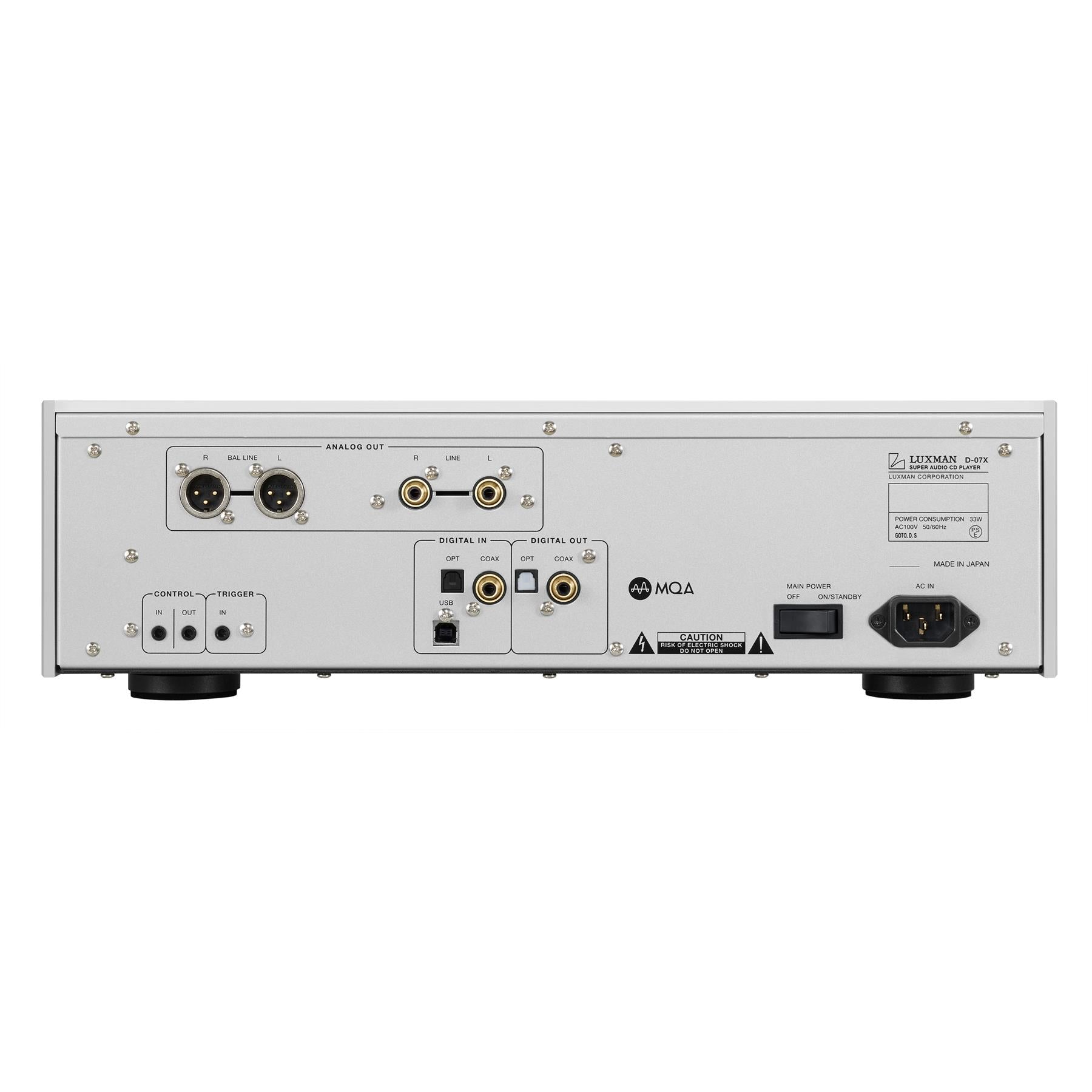

- Analog Outputs: Gold-plated RCA and shielded XLR outputs.
- Digital Inputs: USB, Coaxial, and Optical (supports PCM up to 192kHz/24-bit).
- Digital Outputs: Coaxial and Optical terminals for external DAC connections.
- Trigger I/O: Enables system integration with other LUXMAN components (cable sold separately).
- User-Friendly Display: High-visibility FL display with 4x zoom mode for easy readability from a distance.
-
MQA Indicator: Three-color LED shows decoding status — Blue (Studio), Green (Authentic), Magenta (Renderer).
LUXMAN D07X Specifications:
Supported Formats: SACD, CD (CD-R, CD-RW, MQA-CD)
Supported Sampling Frequencies
USB input (PCM) : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 352.8 kHz, 384 kHz, 705.6 kHz, 768 kHz (16, 24, 32-bit)
USB input (DSD) : 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz (1-bit)
Coaxial / Optical input : 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz (16, 20, 24-bit)
Analog Output Voltage/Impedance
Unbalanced : 2.4 V / 300 Ω, Balanced : 2.4 V / 600 Ω
For SACD / DSD : 2.3 V
Frequency Response
CD : 5 Hz to 20 kHz (+0, -1.0 dB)
SACD : 5 Hz to 38 kHz (+0, -3.0 dB)
USB : 5 Hz to 47 kHz (+0, -3.0 dB)
Total Harmonic Distortion (THD)
CD : 0.0016 %
SACD : 0.0007 %
USB : 0.001 %
Signal to Noise Ratio (IHF-A) CD : 122 dB, SACD : 125 dB, USB : 122 dB
D/A converter ROHM BD34301EKV (monaural mode) x 2
Power Supply: 230 V～(50 Hz) / 115 V～ (60 Hz)
Power Consumption: 37W
Dimensions: 17.3”(W) x 5.2”(H) x 16.1”(D)
Net Weight: 37.5 lbs.

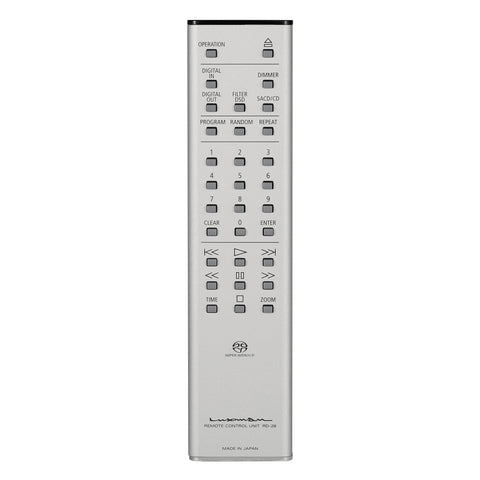

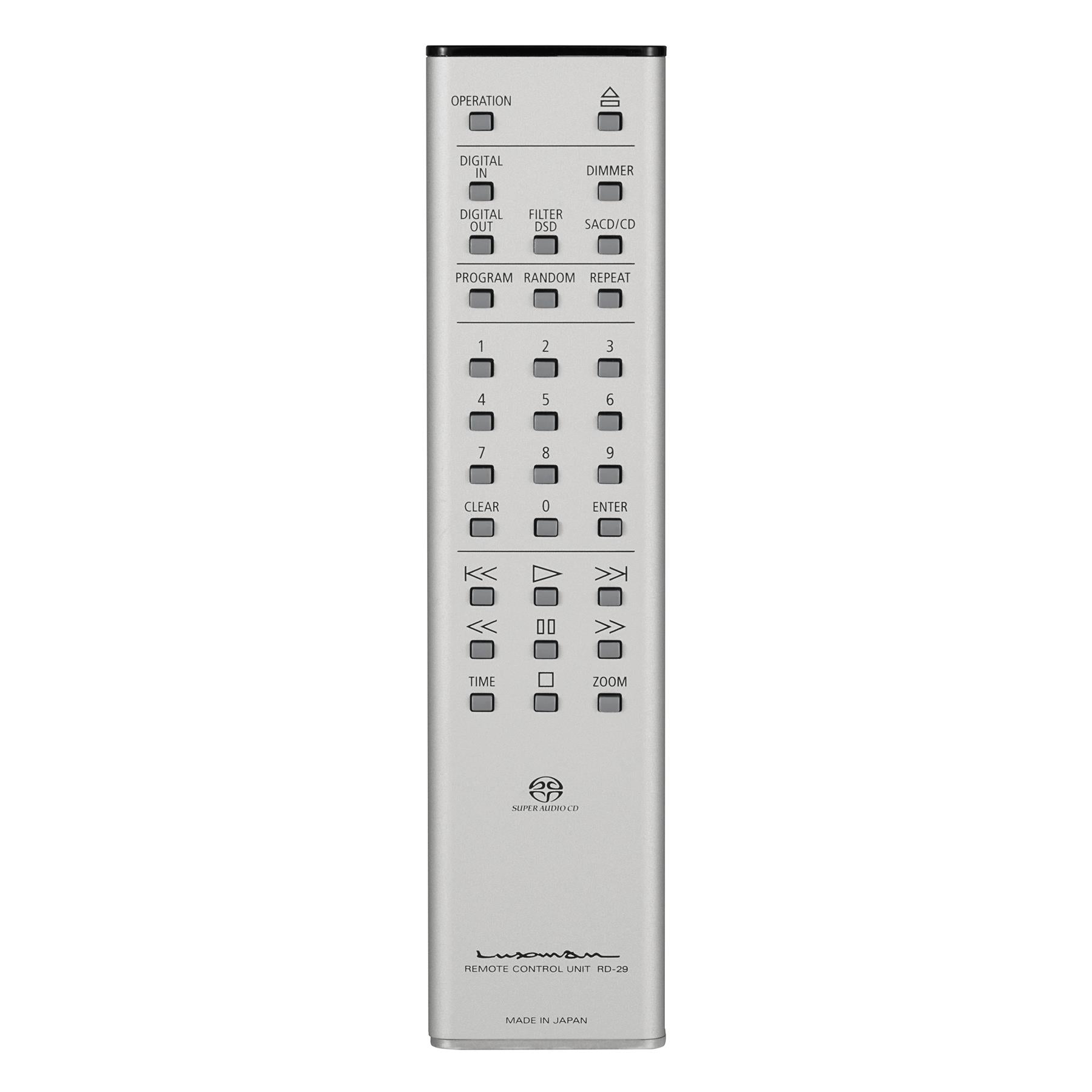

Remote Control: RD-29
