LUXMAN L-509Z Integrated Amplifier
The LUXMAN L-509Z is a flagship Z-Series integrated amplifier built on a “single-chassis separates” philosophy—pairing a fully discrete preamp and power amp in one elegant enclosure for true reference-level performance. It’s the first Luxman integrated to run LIFES 1.0 feedback modules in both the pre and power stages simultaneously, delivering exceptional musical detail, natural tonal richness, and a remarkably open soundstage. Power is effortless and controlled thanks to a robust Class AB output stage with a bipolar 4-parallel push-pull configuration, producing 120W + 120W into 8Ω and 220W + 220W into 4Ω for confident drive with demanding speakers.

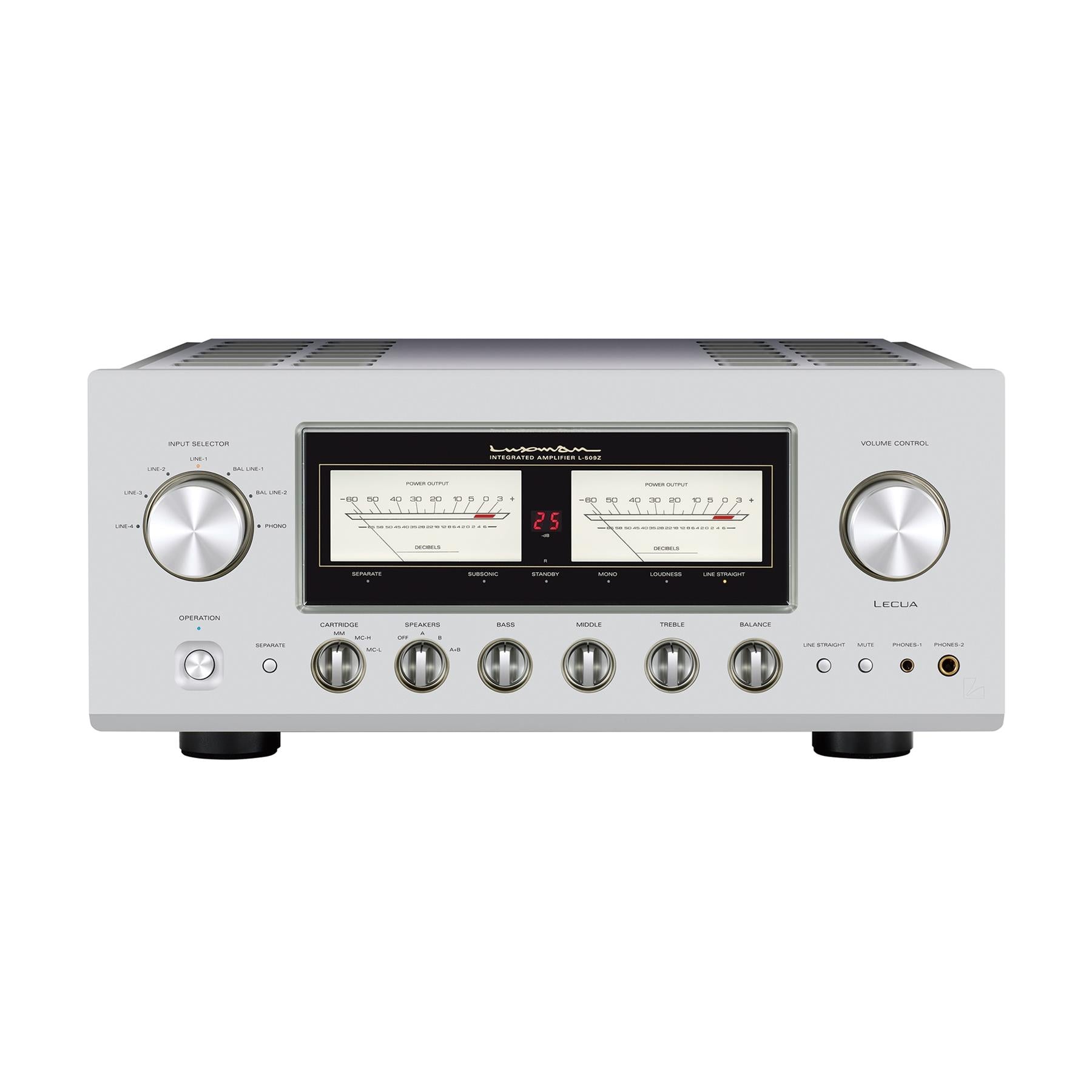

Precision listening is elevated by Luxman’s LECUA-EX electronically controlled attenuator (88 fine steps), engineered to reduce sonic degradation while improving operational feel. The L-509Z also includes a serious onboard MM/MC phono stage with two-step MC gain (MC-H / MC-L), plus versatile connectivity for modern systems: multiple RCA and balanced XLR inputs, MAIN IN for external preamp integration, and dual PRE OUT for system expansion. Add refined usability—large analog VU meters, a 7-segment volume indicator, 3-band tone control (bass/middle/treble), a front-panel Mute button, and both 6.3mm and 4.4mm balanced headphone outputs—and the L-509Z becomes a centerpiece amplifier designed for serious, long-term listening.
The LUXMAN L-509Z is part of ListenUp's LUXMAN Integrated Amplifier Collection.
What It's Good At:
- Delivering flagship-grade dynamics and control with 120W/8Ω and 220W/4Ω high-current power amplification
- Producing highly natural, low-fatigue musicality via LIFES 1.0 feedback architecture in both pre and power stages
- Fine, repeatable volume adjustments with premium feel using LECUA-EX (88-step) attenuation
- Bringing vinyl systems to life with a built-in MM/MC phono stage plus MC-H/MC-L gain selection
- Driving headphones with improved separation using both 6.3mm and 4.4mm balanced outputs (independent L/R ground)
- Supporting flexible system building with balanced XLR inputs, MAIN IN, and two PRE OUT outputs for expansion
LUXMAN L-509Z Full Specifications:
-
Product type: Integrated amplifier / pre-main amplifier (“single-chassis separates” concept)
-
Amplification method: Class AB
-
Amplification feedback circuit: LIFES 1.0
-
Volume adjustment: LECUA-EX (88 steps; 0 to 87 dB)
-
Rated output: 120W + 120W (8Ω) / 220W + 220W (4Ω)
-

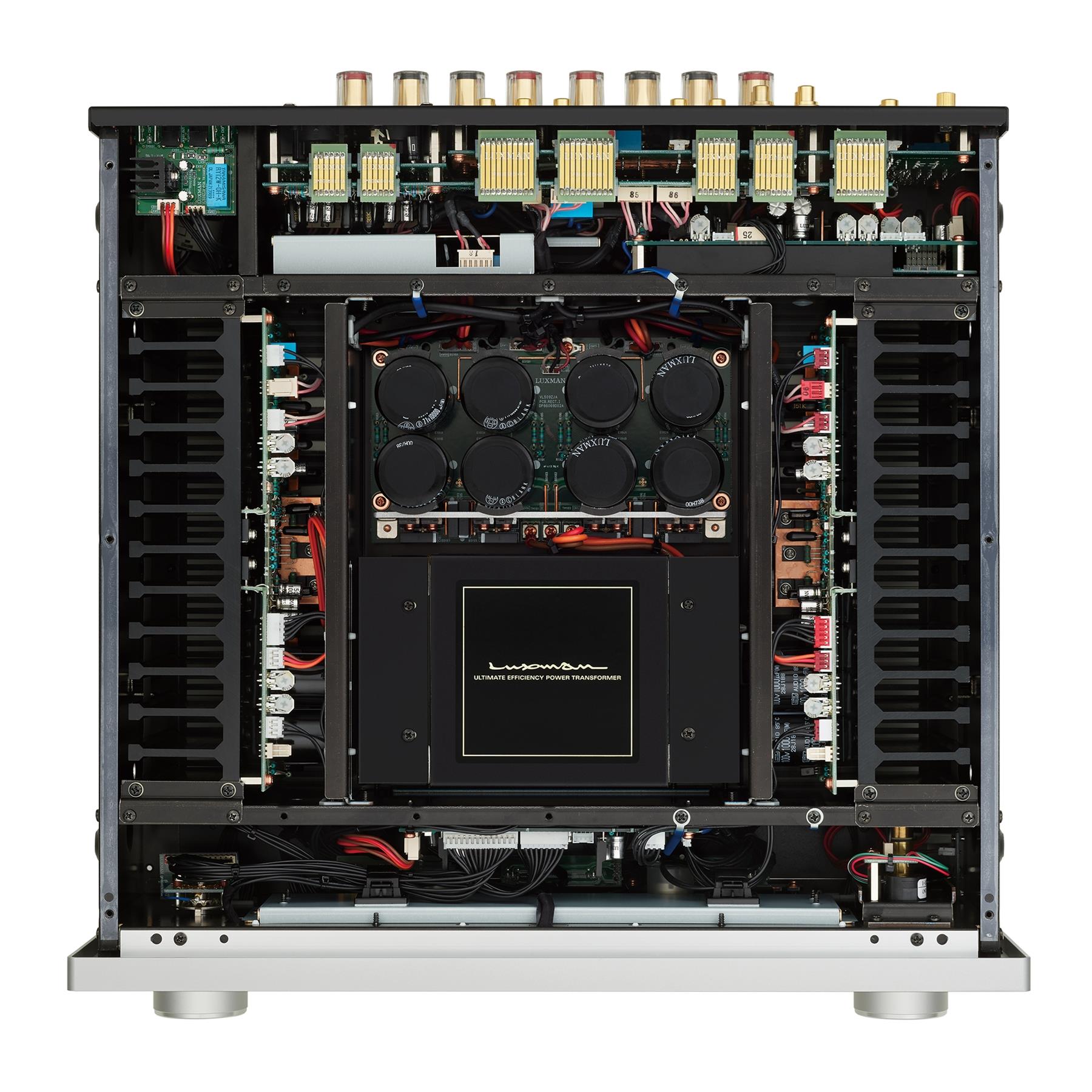

Output configuration: Bipolar 4-parallel push-pull
-
Damping factor: 330 (current injection method / EIAJ current ejection method)
-
Input sensitivity / input impedance:
- PHONO (MM): 2.5mV / 47kΩ
- PHONO (MC-H): 0.3mV / 100Ω
- PHONO (MC-L): 0.1mV / 40Ω
- LINE: 180mV / 47kΩ
- BAL.LINE: 180mV / 79kΩ
- MAIN IN: 1.1V / 47kΩ
-
Output voltage: PRE OUT: 1V
-
Frequency response:
- PHONO: 20Hz to 20kHz (±0.5dB)
- LINE: 20Hz to 100kHz (within -3dB)
-
Total harmonic distortion:
- 0.007% or less (8Ω, 1kHz)
- 0.03% or less (8Ω, 20Hz to 20kHz)
-
S/N ratio (IHF-A):
- PHONO (MM): 87dB or more
- PHONO (MC-H): 70dB or more
- PHONO (MC-L): 62dB or more
- LINE: 106dB or more
-
Tone control: 3-band tone control (BASS / MIDDLE / TREBLE)
-
Max. amount of tone control:
- BASS: ±8dB at 100Hz
- TREBLE: ±8dB at 760Hz
- TREBLE: ±8dB at 10kHz
-
Phono equalizer: Built-in phono EQ supports MM and MC; MC gain selectable (MC-H / MC-L); front-panel Mute button included
-
Headphone outputs: φ6.3mm standard jack + φ4.4mm jack with independent L/R grounding
-
Meters / display: Needle-movement type analog VU meters + 7-segment LED sound volume indicator
-
Power supply: 230V~ (50Hz) / 115V~ (60Hz)
-
Power consumption: 390W; 150W (under no signal); 0.5W (standby)
-
External dimensions: 440(W) × 193(H) × 463(D) mm (front knob 20mm + rear terminal 37mm included in depth)
-
Net weight: 29.4kg (main unit)
-

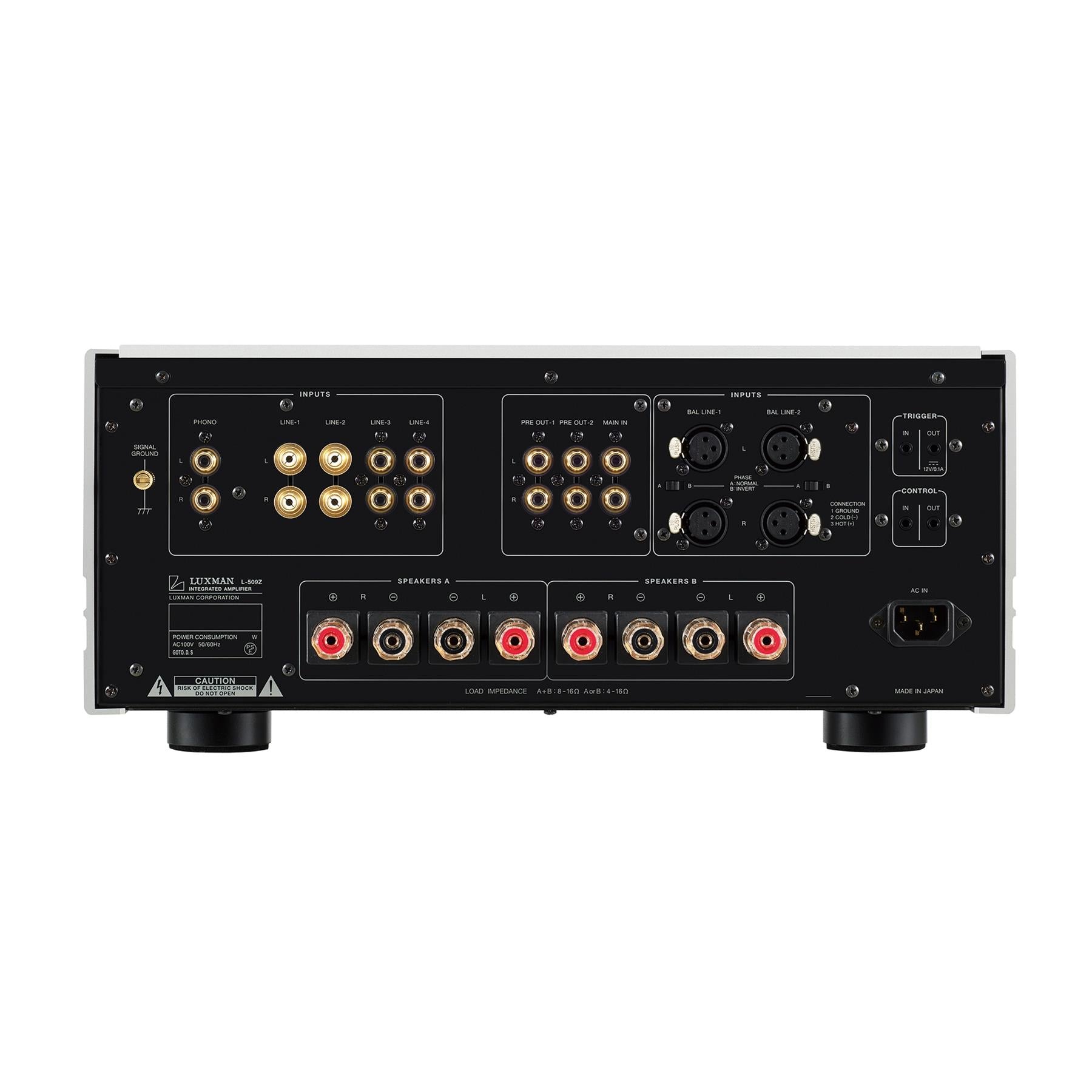

Connections / terminals:
- Phono input terminals + signal ground
- Line input terminals (1, 2, 3, 4)
- Balanced input terminals (1, 2)
- Pre-out terminals (1, 2)
- Main-in terminals
- Speaker terminals (A, B) with independent on/off switching; supports bi-wire connectivity
- AC inlet
- Phase inverters (1, 2)
- Trigger in/out and Control in/out (3.5mm mini-jack type shown)
-
Speaker terminal / supported Y-lug terminal dimensions:
- Width of part a: 16mm or less
- Width of part b: 7mm or more
- * Connection may not be performed depending on the shape of the Y-lug terminal.
-
Accessories:

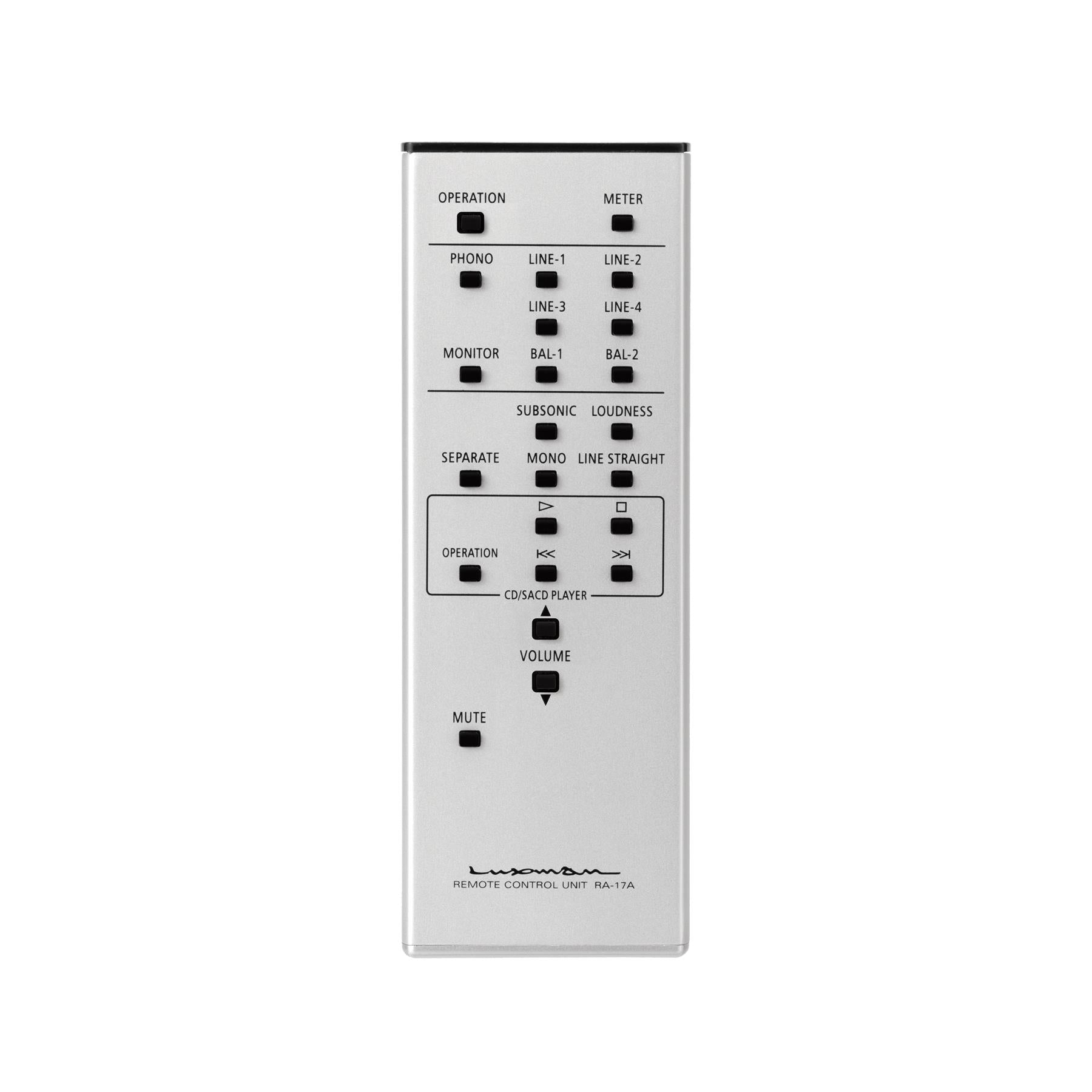

- Remote control (RA-17A)
- Power cable
- Speaker terminal
LUXMAN L-509Z Q&A:
- What type of amplifier is the LUXMAN L-509Z?
- It’s a flagship integrated amplifier (pre-main) designed with a “single-chassis separates” approach—combining fully discrete preamp and power amp sections in one unit.
- How much power does the L-509Z output?
- It delivers 120W + 120W into 8Ω and 220W + 220W into 4Ω, providing strong drive capability and excellent control with a wide range of speakers.
- Does it have a built-in phono stage for turntables?
- Yes. It includes a high-quality phono equalizer that supports both MM and MC cartridges, with two-step MC gain selection (MC-H and MC-L) for broader cartridge compatibility.
- What is LIFES 1.0 and why does it matter?
- LIFES 1.0 is Luxman’s amplification feedback engine used in both the pre and power stages, engineered to deliver high fidelity with natural musicality and refined detail.
- How does the volume control work on the L-509Z?
- The L-509Z uses Luxman’s LECUA-EX electronically controlled attenuator, offering 88 precise steps designed to minimize sound quality deterioration across the volume range.
- Can I connect balanced XLR sources?
- Yes. The L-509Z includes balanced input terminals (1 and 2), making it easy to integrate high-end balanced sources.
- Does it support headphone listening, including balanced headphones?
- Yes. In addition to a 6.3mm headphone jack, it includes a 4.4mm headphone output with independent left/right grounding to improve separation and imaging with compatible balanced cables.
- Can the L-509Z be used in a system with external components (like a separate preamp or power amp)?
- Yes. With MAIN IN, dual PRE OUT (1 and 2), and multiple line inputs, it’s built for flexible system expansion and integration.
