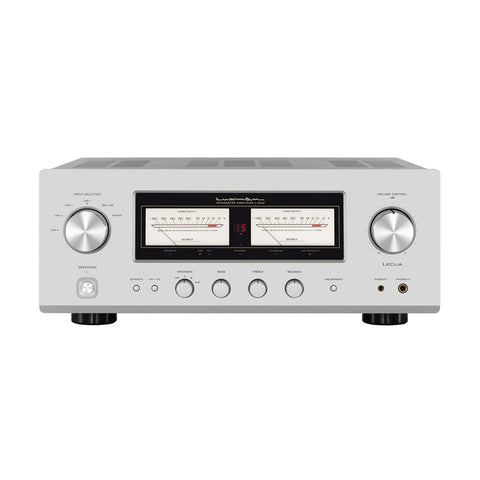

LUXMAN L-505Z Integrated Amplifier

Built to honor the legacy of LUXMAN’s beloved L-505 line while pushing the series into a new generation, the L-505Z is a full-featured integrated amplifier engineered around LUXMAN’s LIFES 1.0 amplification feedback engine for lifelike musical energy, low distortion, and effortless control. Its Class AB output stage uses a bipolar parallel push-pull configuration to deliver confident drive and dynamic headroom, while the LECUA electronically controlled attenuator provides ultra-smooth, high-clarity volume control across 88 steps—with precise remote operation and balance adjustment via volume-shift control.

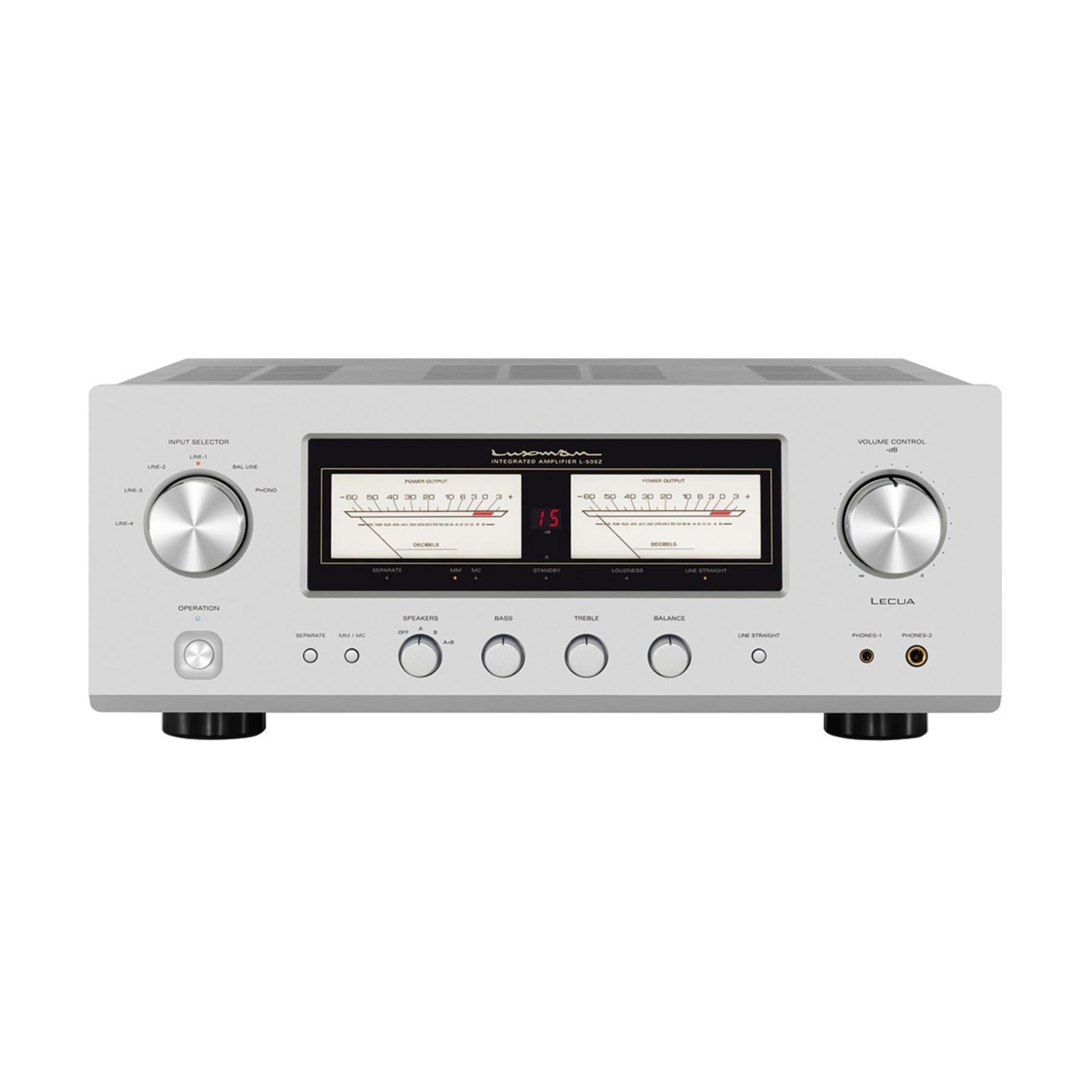

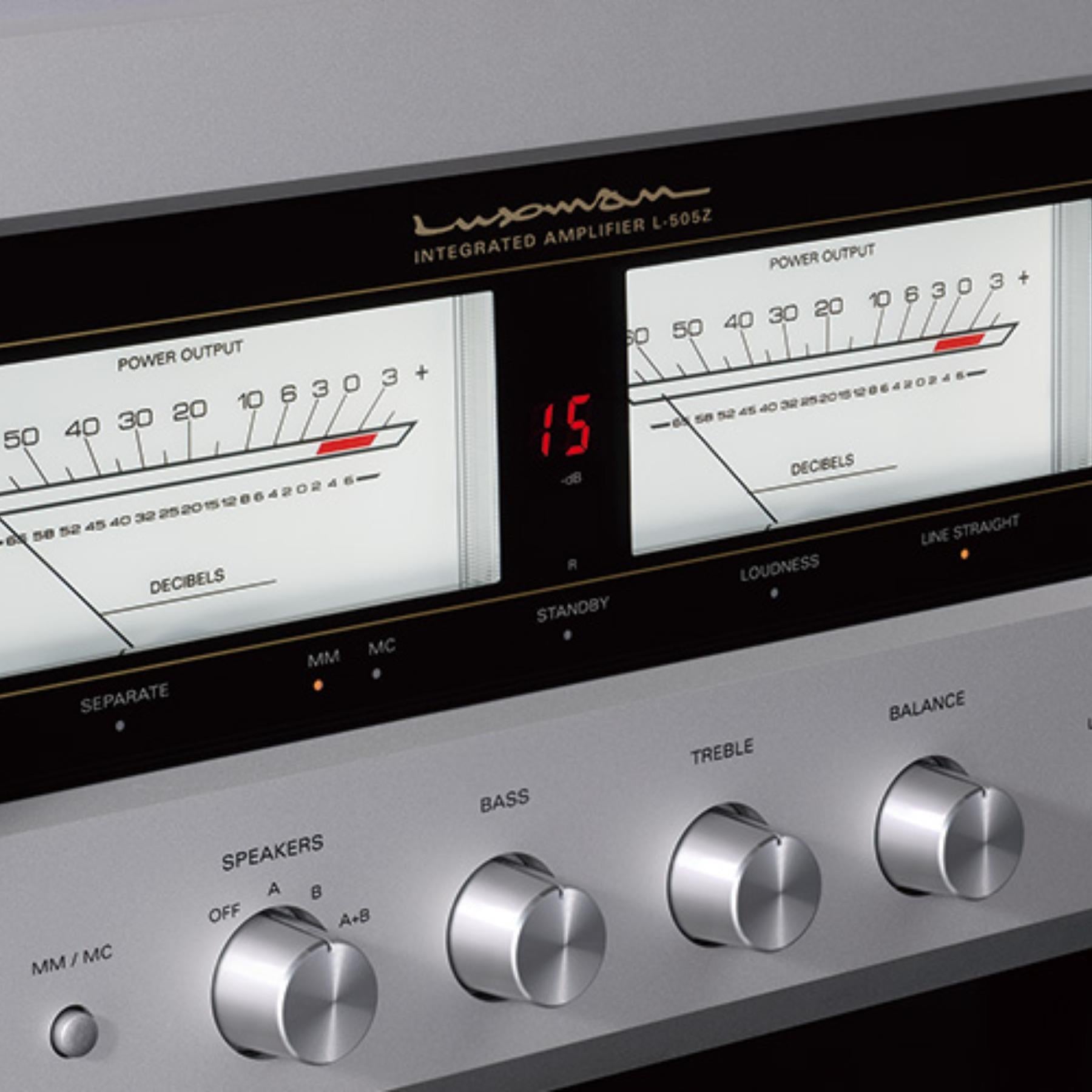

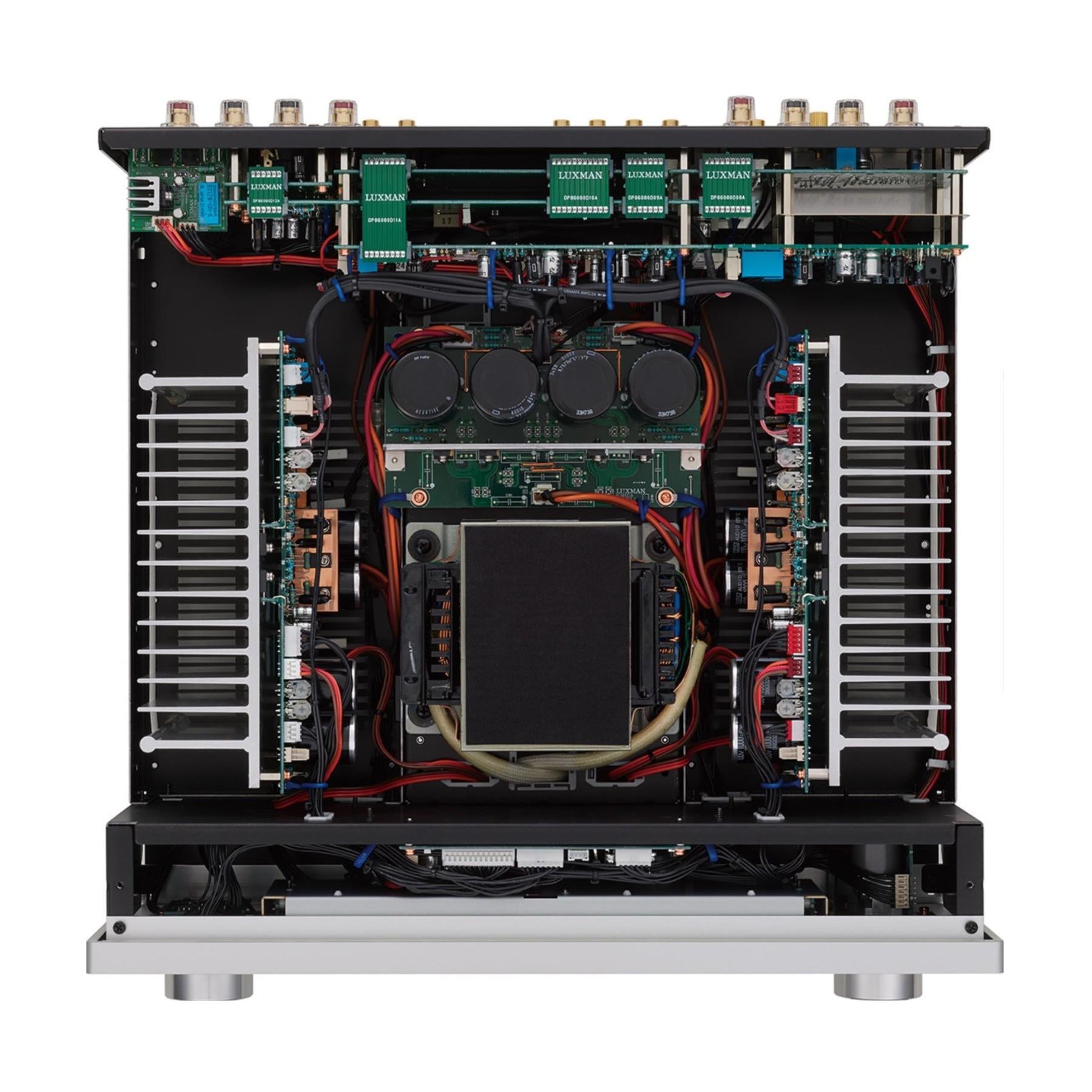

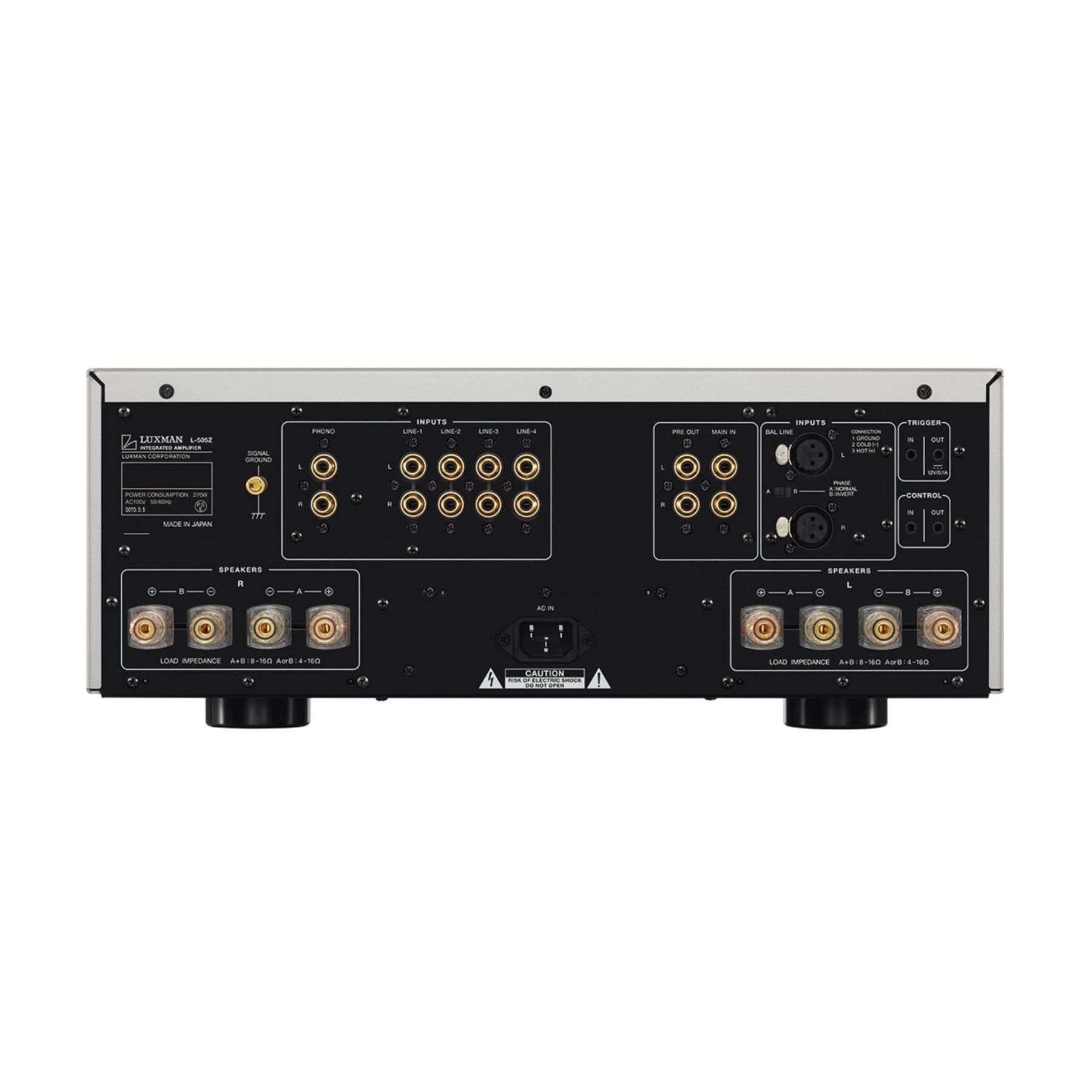

Beyond power, the L-505Z is designed for real-world high-end systems: a high-quality MM/MC phono EQ supports modern vinyl setups, PRE OUT/MAIN IN connectivity enables bi-amping or integration with an AV system, and a thoughtfully laid-out rear panel offers 18mm pitch RCA terminals for premium cables. Up front, classic needle-type VU meters and a 7-segment LED volume display blend vintage appeal with modern usability, while headphone listeners get both a standard 6.3mm output and a dedicated 4.4mm connection with independent left/right ground wiring for improved separation and a more dimensional presentation. From LUXMAN’s “Bee-Line” signal routing concept to OFC internal wiring and a loop-less chassis structure, the L-505Z is tuned to deliver a refined, engaging sound that feels unmistakably high-end.

The LUXMAN L-505Z is part of ListenUp's LUXMAN Integrated Amplifier Collection.

What It's Good At:

• High-end musical realism at everyday usability thanks to LIFES 1.0 feedback design and carefully voiced circuit tuning
• Driving demanding speakers with authority via 100W/ch (8Ω) and 150W/ch (4Ω) Class AB power
• Vinyl playback done right with a built-in, high-quality MM/MC phono stage for turntable systems
• Precision listening at any volume using the 88-step LECUA attenuator for smooth, detailed level control
• Headphone listening with better separation through the dedicated 4.4mm output with independent L/R grounds
• System-building flexibility with PRE OUT/MAIN IN, tone controls, loudness, and separation features for bi-amp or AV integration

LUXMAN L-505Z Full Specifications:

• Product type: Integrated amplifier
• Rated output: 100W + 100W (8Ω), 150W + 150W (4Ω)
• Input sensitivity / input impedance:
  • PHONO (MM): 2.5mV / 47kΩ
  • PHONO (MC): 0.3mV / 100Ω
  • LINE: 180mV / 47kΩ
  • BAL.LINE: 180mV / 55kΩ
  • MAIN IN: 1V / 47kΩ
• Output voltage: PRE OUT: 1V
• Frequency response:
  • PHONO: 20Hz to 20kHz (±0.5dB)
  • LINE: 20Hz to 100kHz (within -3dB)
• Total harmonic distortion:
  • 0.009% or less (8Ω, 1kHz)
  • 0.09% or less (8Ω, 20Hz to 20kHz)
• S/N ratio (IHF-A):
  • PHONO (MM): 87dB or more
  • PHONO (MC): 70dB or more
  • LINE: 104dB or more
• Volume adjustment: LECUA
• Amplification feedback circuit: LIFES 1.0
• Output configuration: Bipolar parallel push-pull
• Damping factor: 200
• Max. amount of tone control:
  • BASS: ±8dB at 100Hz
  • TREBLE: ±8dB at 10kHz
• Power supply: 230V~ (50Hz) / 115V~ (60Hz)
• Power consumption: 330W; 90W (under no signal), 0.5W (at standby)
• External dimensions: 440(W) × 178(H) × 454(D) mm (Depth includes front-side knob 20mm and rear-side terminal 27mm)
• Net weight: 22.5kg (main unit)

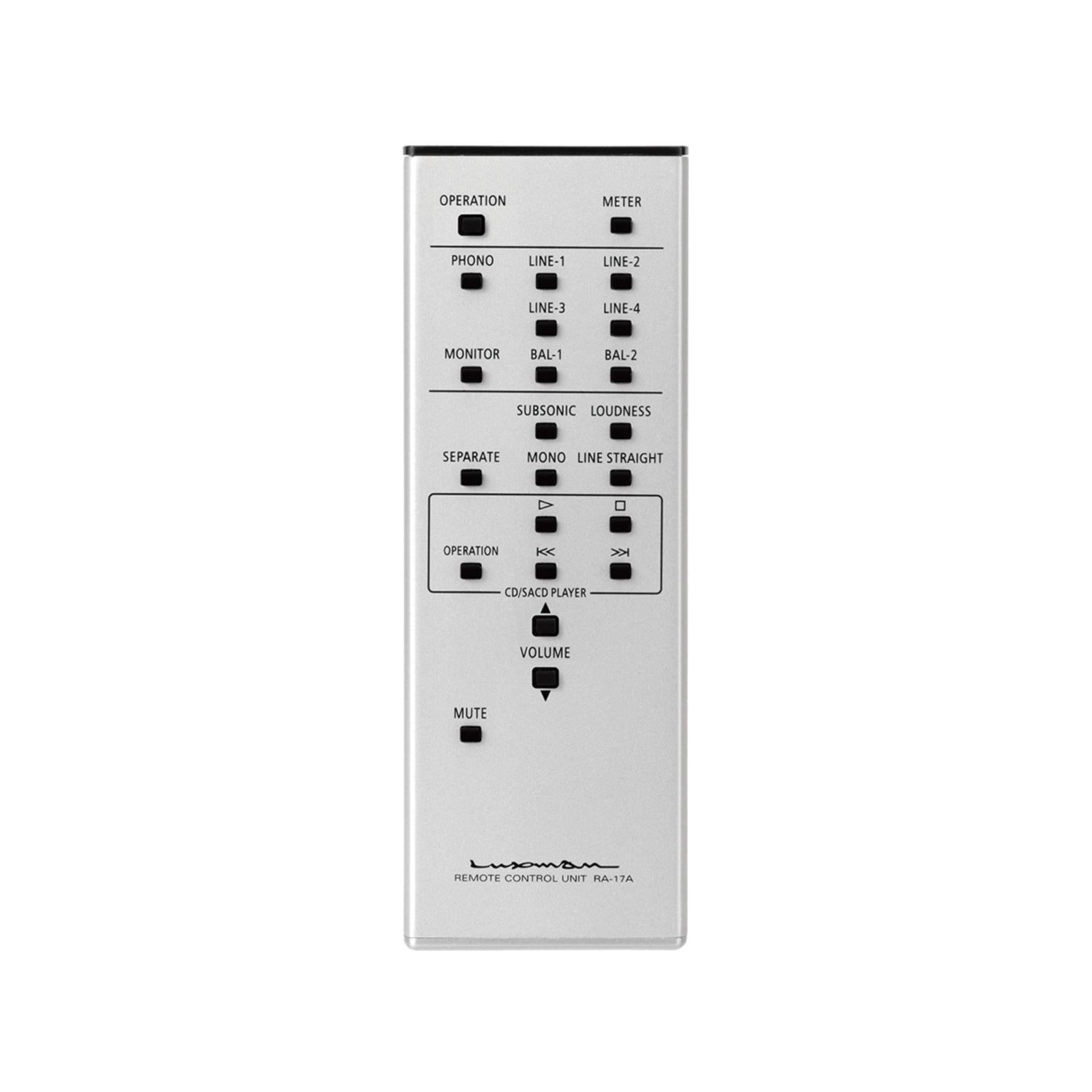

• Accessories: Remote control (RA-17A), Power cable, Speaker terminal
• Supported Y-lug terminal dimension:
  • Width of part a: 15mm or less
  • Width of part b: 8mm or more
  • Connection may not be performed depending on the shape of the Y-lug terminal.
• Additional notes:
  • Balanced phase selector INVERT setting changes pin No. 2 to HOT and No. 3 to COLD
  • Meter lighting, monaural, subsonic, and loudness can be switched with the remote control
  • Specifications and appearance are subject to change without notice
  • Line cables are not included; purchase separately

LUXMAN L-505Z Q&A:

Does the L-505Z have a phono input for a turntable?

Yes. It includes a built-in phono EQ stage that supports both MM and MC cartridges, making it ready for serious vinyl playback without an external phono preamp.

How much power does the L-505Z deliver per channel?

It’s rated at 100W + 100W into 8Ω and 150W + 150W into 4Ω, providing strong control for a wide range of speakers.

Can I use the L-505Z with an AV receiver or in a bi-amp setup?

Yes. With PRE OUT/MAIN IN connectivity and separation functionality, it can be configured for bi-amping with an external power amp or integrated into an AV-based system.

What is LIFES 1.0 and why does it matter?

LIFES 1.0 is LUXMAN’s amplification feedback engine designed to reduce distortion and enhance realism while preserving natural musical flow, contributing to a more lifelike, high-end presentation.

Is the volume control purely analog?

The L-505Z uses LUXMAN’s LECUA electronically controlled attenuator. It delivers smooth, consistent volume control across 88 steps while helping maintain sound quality at different listening levels.

Does it support balanced sources?

Yes. It includes a balanced line input (BAL.LINE) with specified sensitivity and impedance for integrating balanced source components.

What headphone connections are included?

You get both a standard 6.3mm headphone output and a 4.4mm output with independent left/right ground wiring to improve separation and clarity with compatible headphones and cables.

Can I turn off the meter lights and display?

Yes. Using the remote, you can switch the VU meter lighting and the 7-segment LED volume display on or off to suit your room and listening preference.

LUXMAN L-505Z Downloads:

LUXMAN L-505Z Catalog
