Introducing the Marantz CINEMA 30 – Elevate Your Home Theater Experience!

Unleash Sonic Power:

Experience audio perfection with the Marantz CINEMA 30, the epitome of audio-visual excellence. Boasting 140W per channel and minimal 0.05% THD, this AVR ensures a perfect blend of robust dynamics and nuanced details in every sound.

Excellence in Engineering:

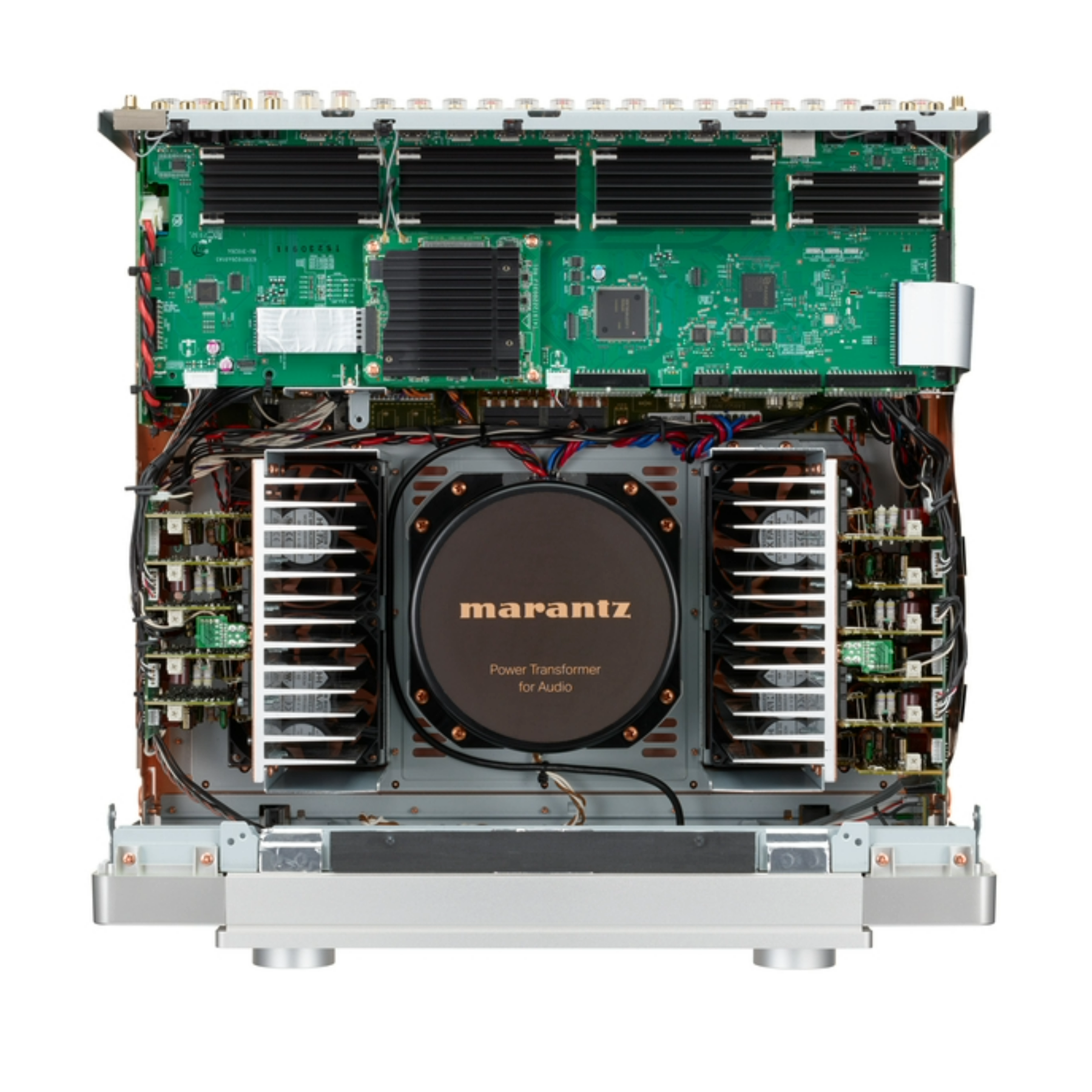

Immerse yourself in cutting-edge engineering with the CINEMA 30. Featuring advanced technologies like HDAM SA-2, symmetrical amplifiers, and toroidal transformer-based power supplies, this AVR delivers unparalleled performance without compromise.

Versatile Configurations:

With 11 built-in amplifier channels and processing capabilities for up to 13.4 channels, the CINEMA 30 offers unmatched flexibility for crafting your ideal speaker layout. Customize your home theater effortlessly to match your room's acoustics.

Tailored Sound Experience:

Crafted by Marantz Sound Masters, the CINEMA 30 is meticulously tuned and calibrated to capture The Most Musical Sound. Utilize premium calibration tools to ensure your system delivers peak performance, personalized to your preferences.

Revolutionary Performance:

Immerse yourself in the fusion of art and science practiced by Sound Masters in the Marantz engineering labs of Shirakawa, Japan. The CINEMA 30's proprietary technologies redefine sound quality, delivering a rich, warm, and nuanced audio experience.

Elegant Timelessness:

Experience timeless elegance with Marantz design – a harmonious blend of balance, symmetry, and meticulous attention to detail. The CINEMA 30, constructed with steel and aluminum knobs, features a subtly textured front panel illuminated by dimmable lights for added sophistication.

Customization Hub:

Transform your home theater with the CINEMA 30's rich assortment of connections and configuration options. Optimize loudspeakers using Audyssey MultEQ XT32, or elevate calibration with the professional-grade Dirac Live.

Effortless Setup, Seamless Use:

While the CINEMA 30 boasts complexity within, everyday use and setup are simplified with the included quick-start guide and on-screen procedure. The backlit remote ensures easy access, and advanced HDMI connectivity allows seamless integration with your TV remote.

Voice Commands and Compatibility:

Experience convenience with voice commands from Hey Google, Alexa, and Siri. The CINEMA 30 stands at the center of your entertainment with 7 HDMI inputs, all 8K compatible, and a mix of analog and digital inputs for versatile audio source compatibility.

Future-Ready Upgradeability:

The CINEMA 30's extensive connectivity and advanced technology open doors for future system expansion. With 13.4 channel preamp outputs, you can effortlessly expand your loudspeaker layout with additional components.

Elevate your home theater with the Marantz CINEMA 30 – where excellence and innovation redefine your audio-visual journey!

Specifications

Multichannel Surround

• DTS HD Master / DTS:X / DTS:X Pro / DTS Neo:6 / DTS Neural:X/ DTS Virtual:X: Yes / Yes / Yes / No / Yes / Yes
• IMAX Enhanced: Yes
• Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music / Dolby ProLogic II / Dolby Surround: Yes / Yes / Yes / Yes / No / Yes
• Auro 3D: Yes
• 360 Reality Audio / MPEG H: Yes / Yes
• Audyssey DSX: No
• Multichannel Stereo: Yes
• Max. Number of Processing (Preamp) Channels: 13.4

Sound Enhancements

• Discrete Power Amplifier: Yes
• Copper Plated Chassis: Yes
• Power Transformer: Toroidal / EI: Toroidal
• Current Feedback Topology: Yes
• Hyper Dynamic Amplifier Modules (HDAM): Yes
• Pure Direct: Yes
• Gold Plated RCA Terminals: Yes
• Clock Jitter Reducer: Yes
• Audyssey MultEQ XT32
• Audyssey Dynamic EQ / Dynamic Volume / Audyssey LFC: Yes / Yes / Yes
• Dirac Live upgradability: Yes
• Compressed Audio Enhancer: MDAX2: Yes

HDMI

• HDMI Inputs: Back / Front: Yes
• HDCP 2.3 Support: Yes
• HDMI Outputs: Main / Zone: Yes
• Video Conversion Analog → HDMI: Yes
• Analog to HDMI Scaling: Yes
• HDMI to HDMI Scaling: Yes
• GUI Overlay on HDMI: Yes
• HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB: Yes
• 8K/60Hz AB / 4K/120Hz AB Pass-through In/Out: Yes
• HDMI 2.0: 3D / 4K / CEC / ARC: Yes
• HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR: Yes
• HDMI ALLM (Auto Low Latency Mode) Pass-through for Gaming: Yes
• Variable Refresh Rate / Quick Flame Transport / Quick Media Switching: Yes / Yes / No
• 3D Signal Pass-through: Yes
• 8K Signal Pass-through / Scaling / GUI Overlay: Yes / Yes / Yes
• 4K Signal Pass-through / Scaling / GUI Overlay: Yes / Yes / Yes
• HDMI Pass-through in Standby Mode: Yes
• Picture Adjust / Noise Reduction: No / No
• CEC: Yes
• DSD Audio Capability: Yes
• Audio Return Channel ARC, eARC: Yes
• Auto LipSync: Yes

Multiroom / CI

• HEOS Multi-Room Integrated: Yes
• HEOS Link Compatibility: IR / IP: Yes / Yes
• Multi-Room zones: 3
• Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: Yes (2ch) / Yes (2ch) / Yes / Yes
• Zone Audio Output: Speaker / Preout: Yes / Yes
• Zone HDMI Output from HDMI Source: Yes
• IP Control / RS232 Control / Web Control / App Control: Yes / Yes / Yes / Yes
• IR Flasher In: Yes
• Marantz Remote Bus: Yes
• DC Trigger Output: 3
• HDMI Diagnostics: Yes

Others

• Auto Speaker Setup by Microphone: Audyssey MultEQ XT32
• Dirac Live (upgrade)
• Front Display: 2 line FLD + port hole OLED
• Graphic User Interface - GUI: Modern HD GUI
• ISF Certification: No
• GUI Languages: 3
• Setup Assistant: Yes
• Smart Select: Yes
• Firmware Update by Network / USB: Yes / Yes
• Variable Crossover / Optimized Bass Redirection / Bass Sync: Yes / Yes / Yes
• ECO Mode / Auto Power Off / Sleep Timer: Yes / Yes / Yes

Network

• HEOS Multi-Room and Streaming: Yes
• Bluetooth Re-Transmit for Bluetooth headphones: Yes (with volume control)
• Alexa / Google Voice Assistant / Apple HomePod: Yes / Yes / Yes
• Network Audio Sharing: Yes
• Lossy Formats: MP3 / WMA / AAC: Yes / Yes / Yes
• Lossless Formats: FLAC / ALAC / WAV: Yes / Yes / Yes
• Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• DSD Audio Streaming: Yes, 2.8/5.6 MHz
• FLAC HD 192/24 / WAV 192/24 / ALAC 192/24: Yes / Yes / Yes
• Gapless Playback: Yes (FLAC, WAV, ALAC, DSD)
• AirPlay Audio Streaming: Yes (AirPlay 2)
• Internet Radio: Yes (TuneIn)
• Spotify: Yes (Spotify Connect)
• Pandora / SiriusXM: Yes / Yes
• Other Streaming Services: Amazon Music HD / Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
• Roon tested: Yes
• Compatible with Remote App for Smart Phones: Marantz AVR Remote
• Compatible with Remote App for Tablets: Android / iOS / Amazon Kindle
• Wi-Fi / Bluetooth / Ethernet Ports: Yes / Yes / Yes

Inputs/Outputs

• Video Composite In / Out: 2 / 0
• Component In / Out: 1 / 0
• HDMI In / Out: 7 / 3
• Multi-Room Video Out: Video / HDMI: No / Yes
• Audio Analog In / Out: 6 / 0
• Phono (MM) In: Yes
• Digital In: Optical / Coaxial: 2 / 2
• Multi-Room Out: Analog / Digital: 2 / 0
• Multichannel Pre Out: Yes (13.4)
• Subwoofer Out: 4 (independent)
• 7.1 Multichannel Input: No
• Other Speaker Terminal: Gold Plated Screw / Regular Screw: Yes / No
• Number of Speaker Terminals: 13
• Speaker A / B Assignable
• Bi-Amp Drive Assignable
• Multi-Room Speaker Terminal Assignable
• Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB: No / No / No / No / Yes
• USB Audio / Made for iPod / Made for iPhone: Yes / No / No
• USB Power supply on rear panel: Yes
• AM/FM Tuner: Yes

Specifications

• Number of Poweramps: 11
• Power Output:
  • 8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive: N /A
  • 8 ohm, 20 Hz - 20 kHz, 0.05% 2ch Drive: 140 W
  • 6 ohm, 1 kHz, 0.7% 2ch Drive: 175 W
  • 6 ohm, 1 kHz, 10% 1ch Drive: 250 W
• 70% Guarantee: Yes

General

• Metal Front Panel: Yes
• System Remote Control: RC051SR
• Pre-Programmed / Learnable / LCD Display: Yes / Yes / Yes
• Consumption Power:
  • Power, No Sound (ECO on / off): 780 W
  • Standby: 65 W / 110 W
  • CEC Standby: 0.2 W
  • Network Standby: 0.5 W
  • Network Control, ON: Less than 2.0 W (TBD)
• Maximum Dimensions:
  • Antenna, Horizontal: (W × D × H): 17.4 × 18.0 × 7.5 in.
  • Antenna, Vertical: (W × D × H): 17.4 × 18.0 × 10.2 in.
  • w/o Antenna: (W × D × H): 17.4 × 17.6 × 7.5 in.

What's in the box

• Main unit, remote control, batteries, AM/FM antennas, wire labels, quick start guide, Audyssey microphone, cardboard microphone stand, 2 External Detachable Antennas, AC cord

Weight in lbs.

• 42.8

Marantz Cinema 30 Owner's Manual

Marantz Cinema 30 Info Sheet
